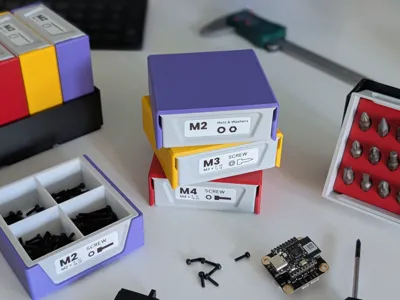

Storage Box for Small Parts
Organize your small parts, such as screws, nuts, clamps, etc., in my small storage box with a sliding lid.
I deliberately designed the compartments for the box as a separate printout because I think it makes the box more versatile. I also created a Gridfinity Box to store the boxes, which you can also find as a print profil.
Assembly

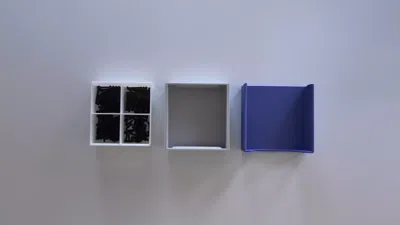

To assemble, as shown below, insert the pins of the box into the middle rail of the lid, and of course align them so that the box is closed.
A few facts
Storage box
- External dimensions: 74 x 74 x 26.6 mm
- Internal dimensions: 64 x 66 x 23.4 mm
- Label size: 12 x 40 mm (what I use with a Niimbot D101*)

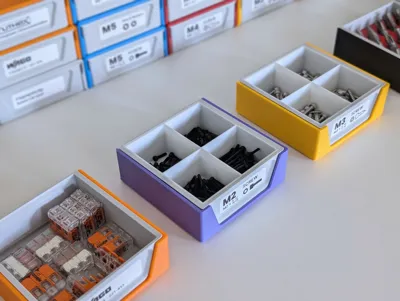

Compartments
- 4 compartments
- 3 compartments
- 2 compartments
- 15 driver bits - 6.35 mm (1/4") Hex driver bits in length of 25 mm.

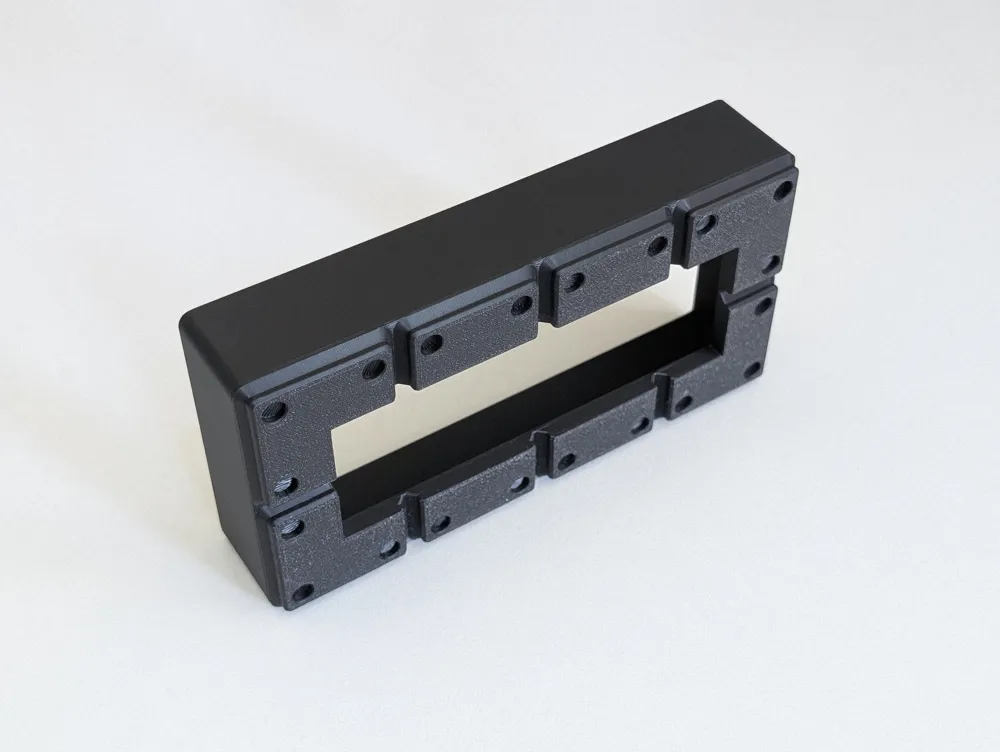

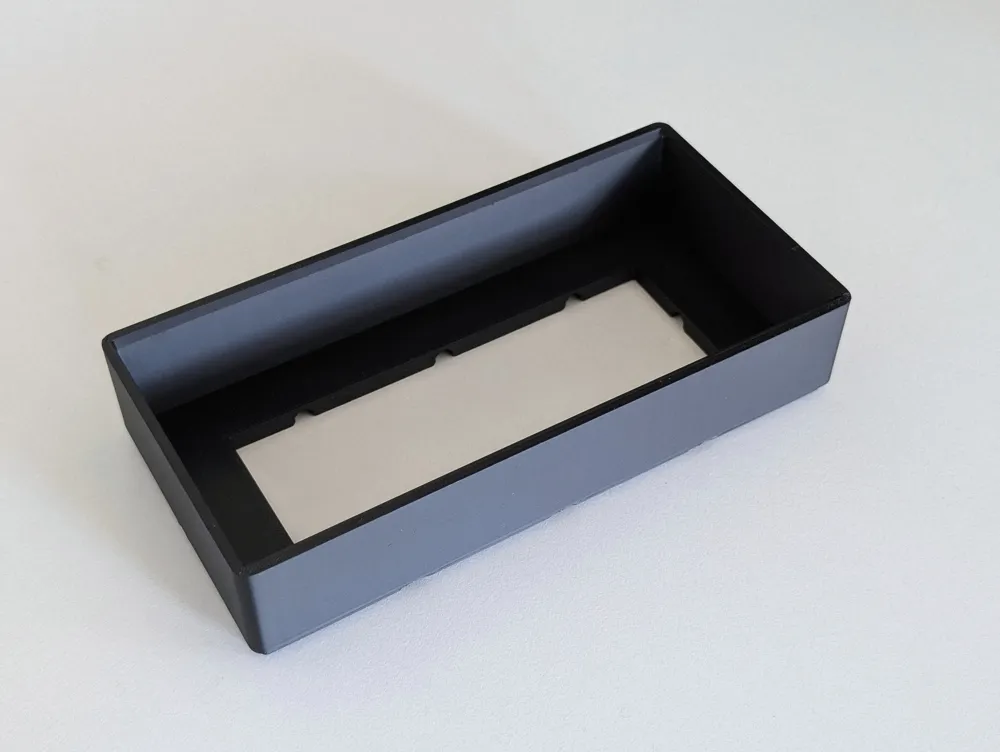

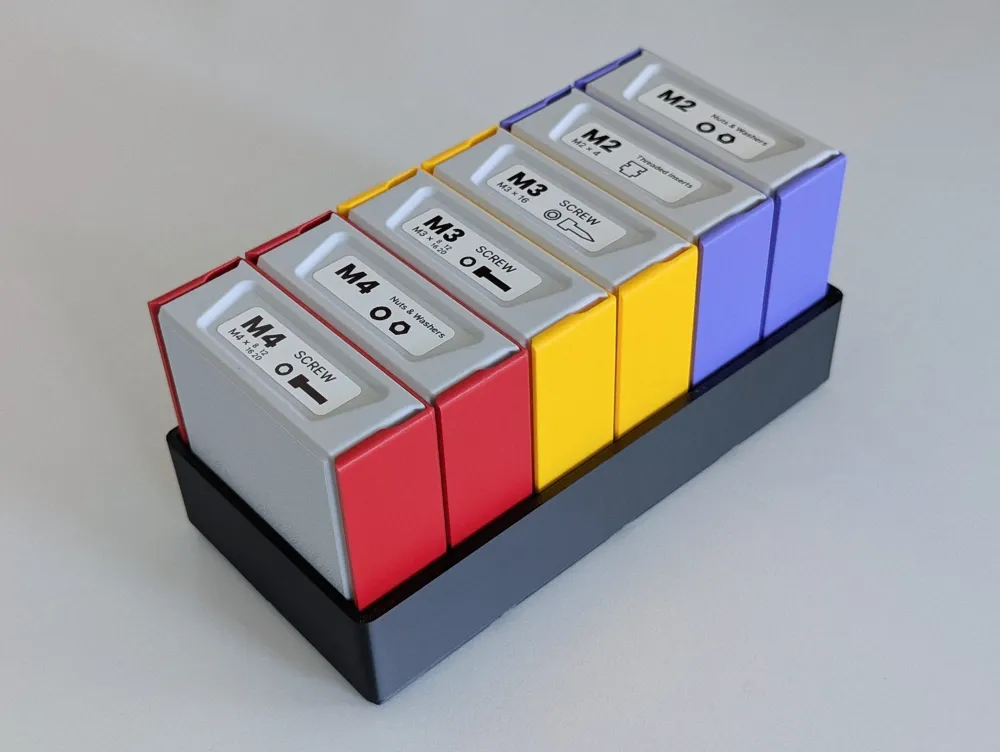

Gridfinity Box
- 4 x 2 grids
- For 6 storage boxes

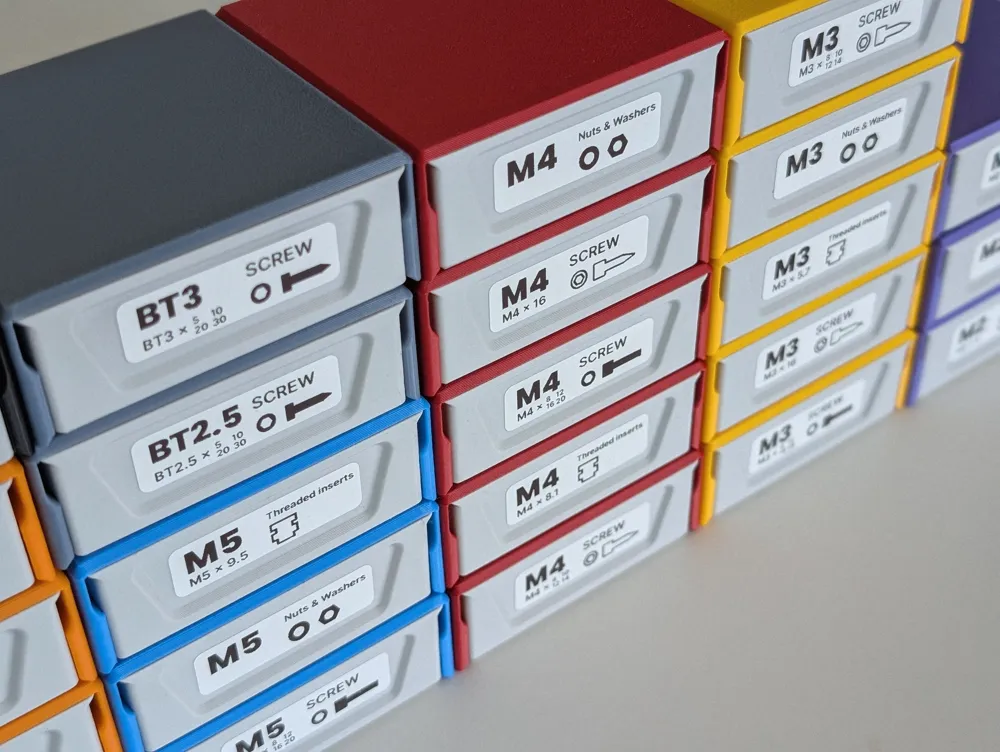

Under "Documentation" I have uploaded some of my labels in PDF format - the bold font is "Poppins" (M3 etc.) and the normal text is "Inter". (Label size: 12 x 40 mm)
I hope you like my storage box and that it helps you organize your small parts.
I'm also very excited to receive your initial feedback, prints, and pictures.
Please note I made countless test prints in PLA, so I recommend printing in PLA.
I also used a scarf seam for the storage box, which is very important for the mechanics and ultimately for a great appearance. I have set the scarf seam in the print profile, but please make sure to use the the scarf seam is set to contour. |
Suitable models Additionally, I've created a "Storage box for small parts" collection here, which includes suitable models from other users. If you've created a suitable model, please send me the link here on Makerworld. |
