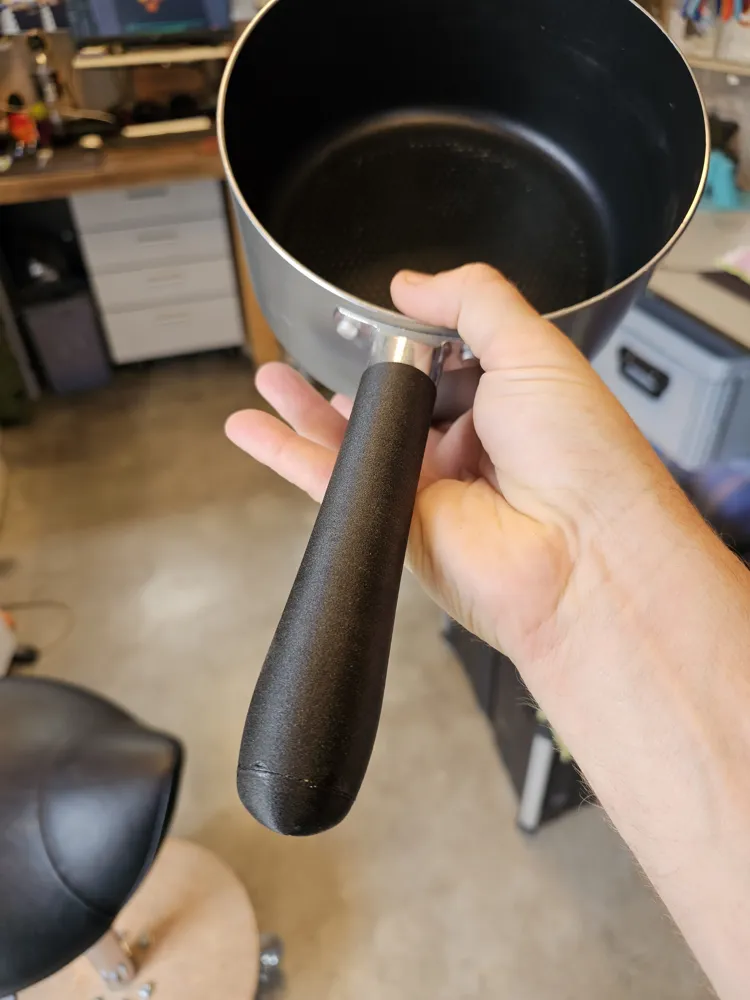

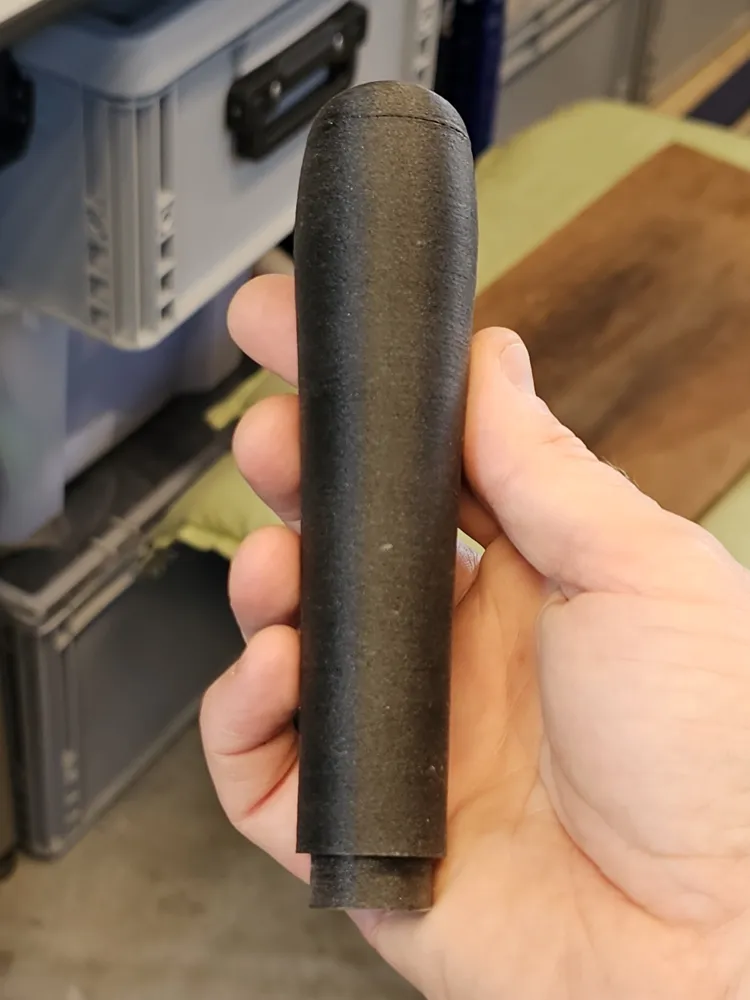

I lost my pan handle so printed a new one. Only print this in very high temperature resistant filament.

I used glass fiber nylon PA12 with a temperature resistance of 180°C but I have not used it extensively yet to know if it holds up.

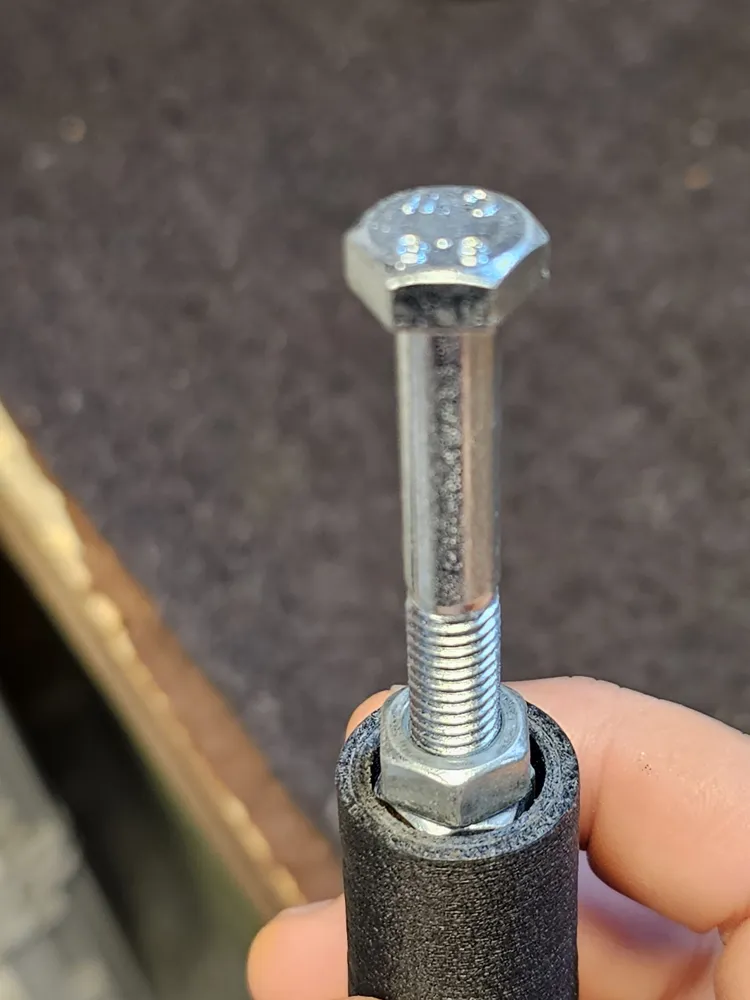

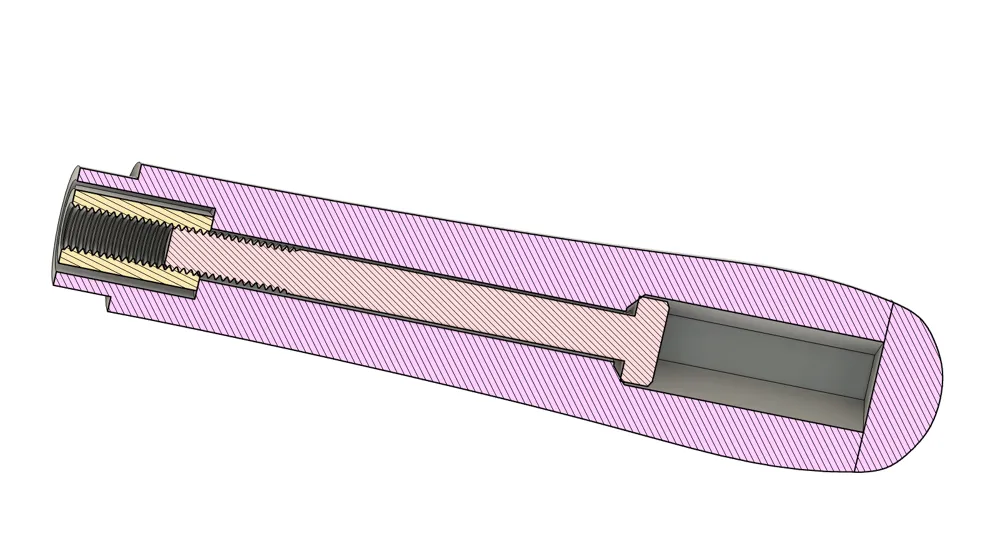

You'll need 1x bolt M8x80mm and 1x M8x24mm coupler to assemble the handle. You can simply glue the ‘hat’ to the handle with CA glue.

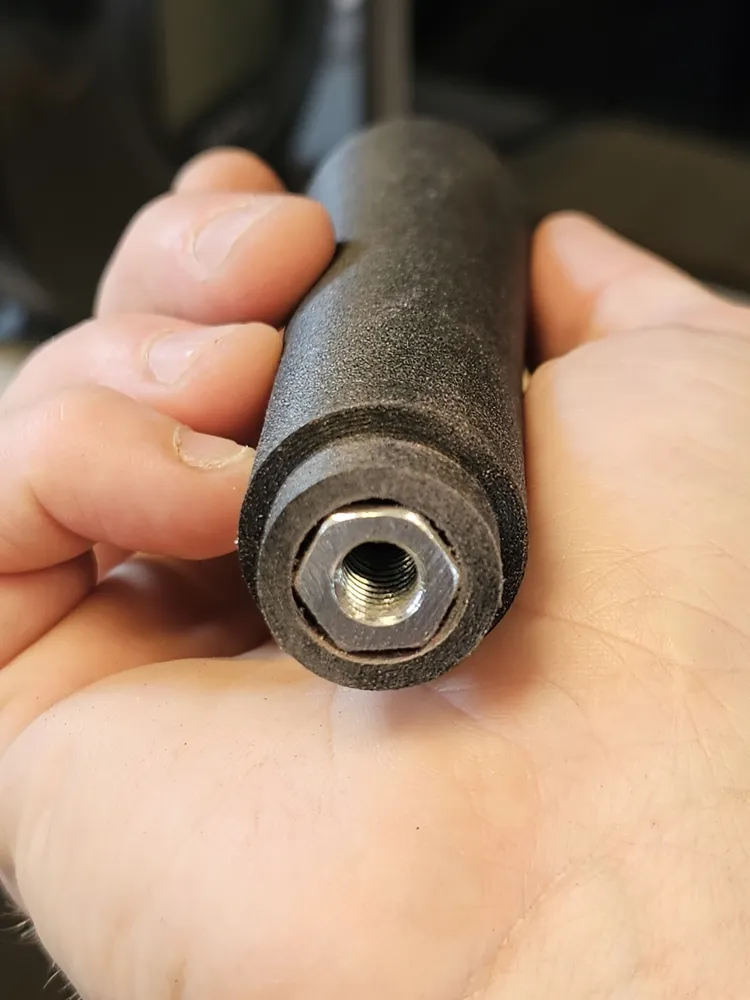

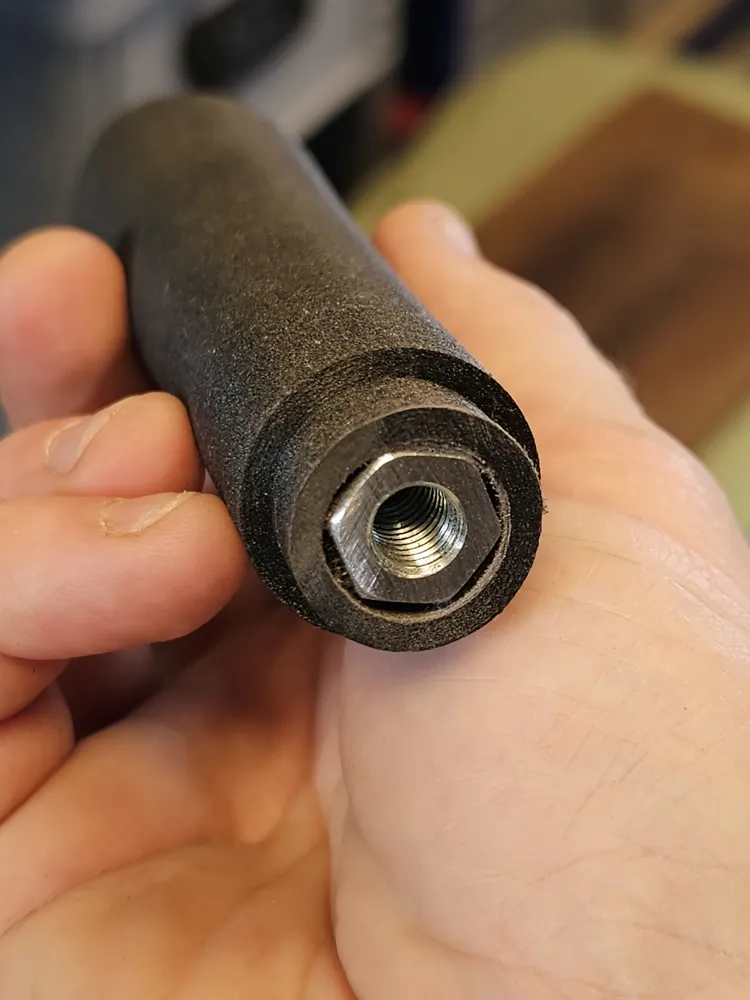

Use another bolt and nut as a lock nut to the coupler to really tighten it to the extreme so the bolt sinks into the plastic for a failproof connection. I filled in the gaps around the coupler with CA glue afterward to make sure it never gets loose.

After assembly, I sanded down the nut-end on a belt sander to get a perfect fit (I had to remove a few millimeters) but it still works even without any sanding.
