Mirror Wallmount

Hello,

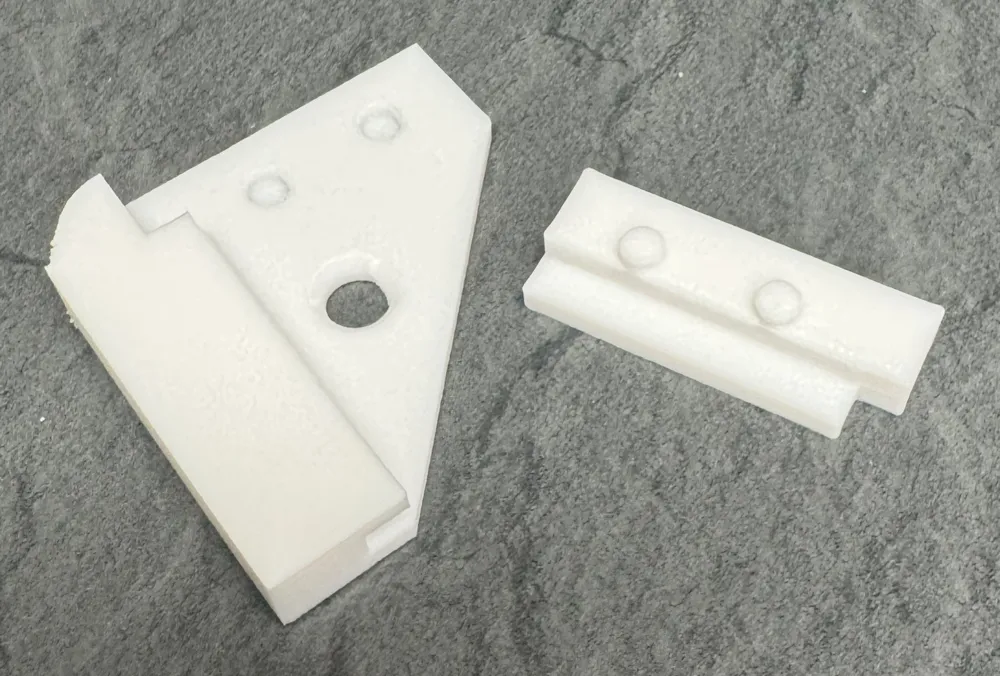

Mirrors with a thickness of 3 mm can be attached to the wall with this wall bracket. The design ensures that the fixing screws are invisible. For one mirror, you need two fixed corners (Part3) and the other parts once each.

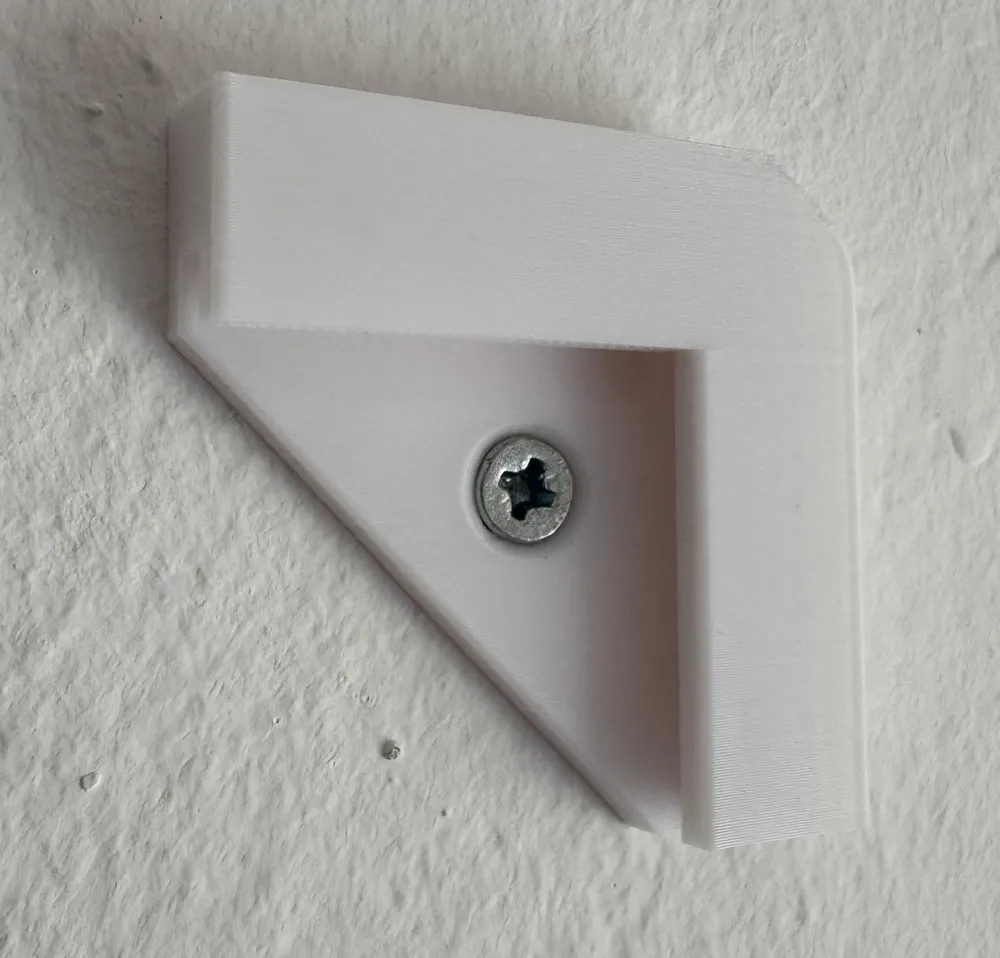

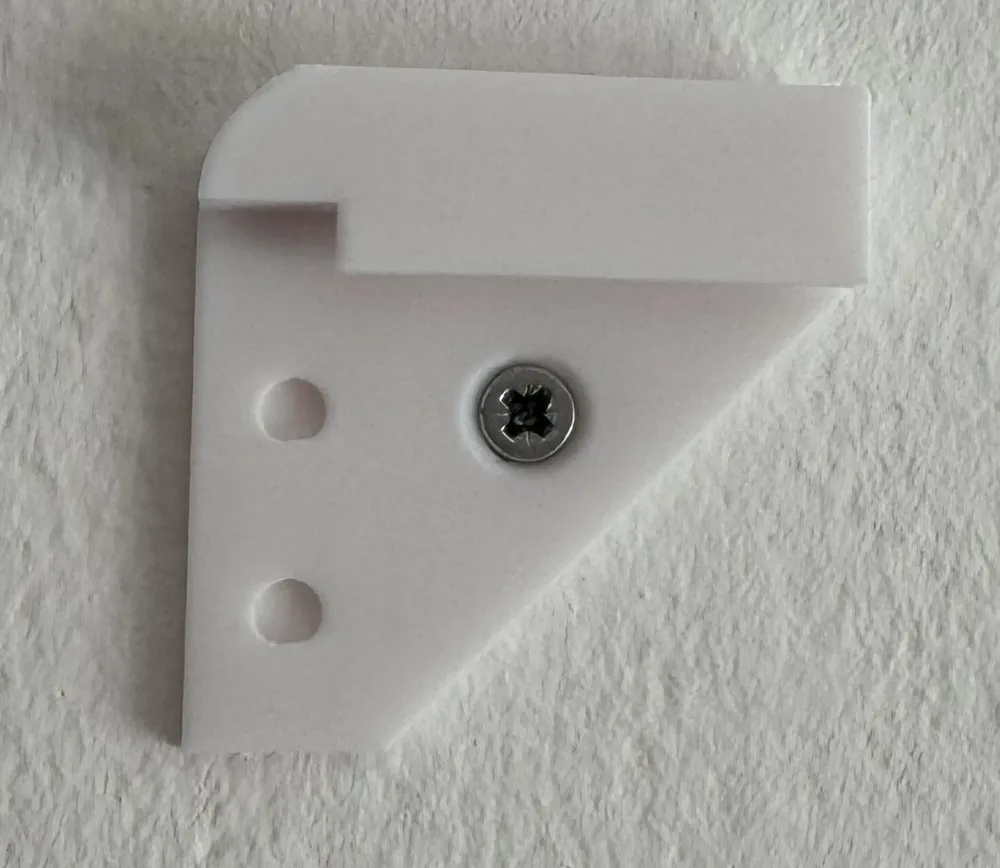

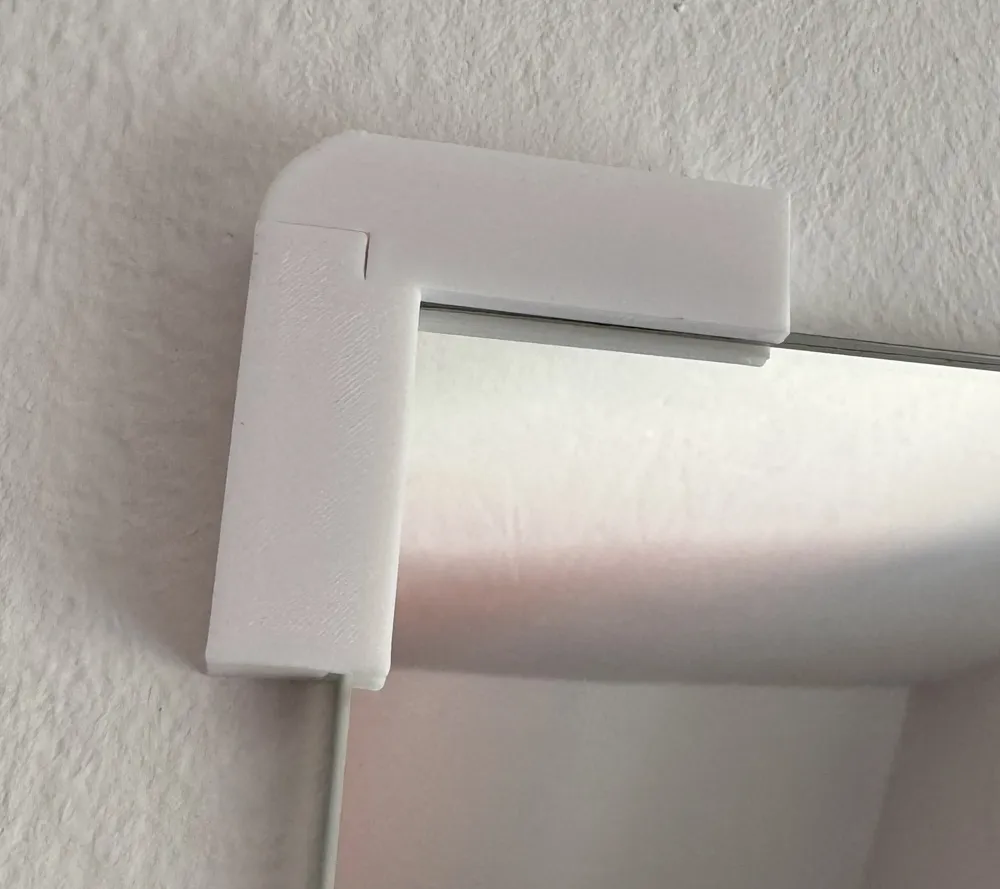

For wall mounting, the two complete corners on the long side of the mirror should be screwed to the wall. The corners (Part1a and b) should be mounted so that the mirror can be slid in from one side. Once the mirror is slid into all corners, they can be secured with the covers (Part2a and b).

Print settings:
Material: PLA
Infill: 50%
Wall: 3
Bottom: 3
Top: 3

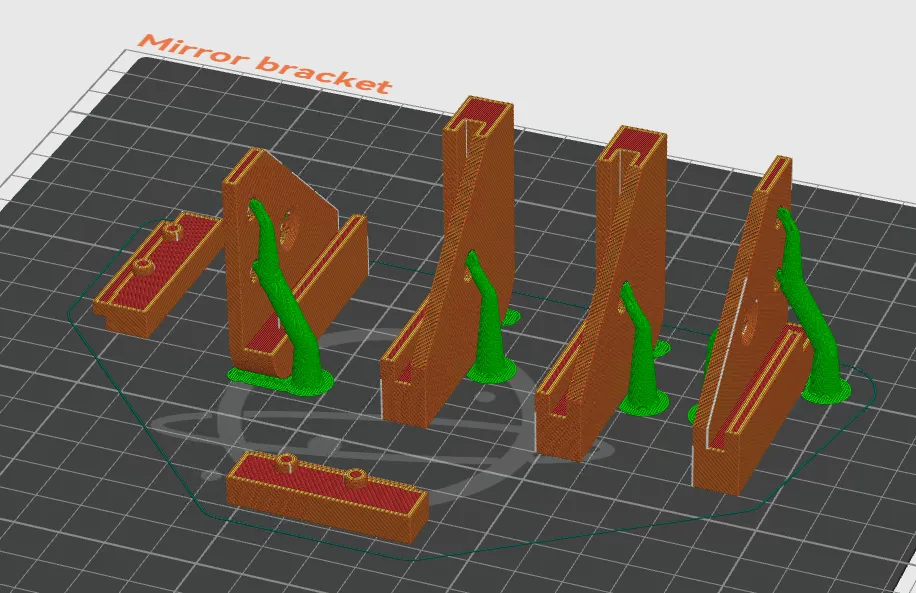

Use the print orientation as shown in the images.

-----------------------------------------------------------------------------

Hello,

With this wall mount, mirrors with a thickness of 3 mm can be attached to the wall. The design means the mounting screws are not visible. For one mirror you need two fixed corners (Part3) and the other parts once each.

For wall mounting, attach the two complete corners to the wall on the long side of the mirror. The corners (Part1a and b) should be mounted so that the mirror can be inserted from one side. Once the mirror is inserted into all corners, they can be secured with the covers (Part2a and b).

Print settings:
Material: PLA
Infill: 50%
Wall: 3
Bottom: 3
Top: 3

The print orientation should be as shown in the images.
