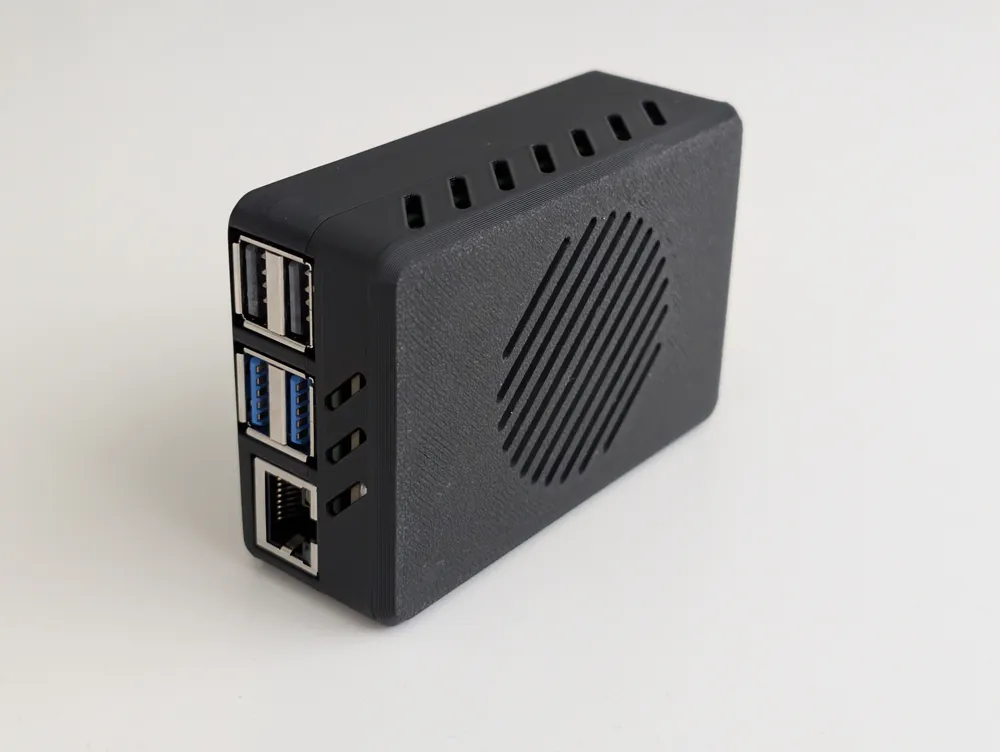

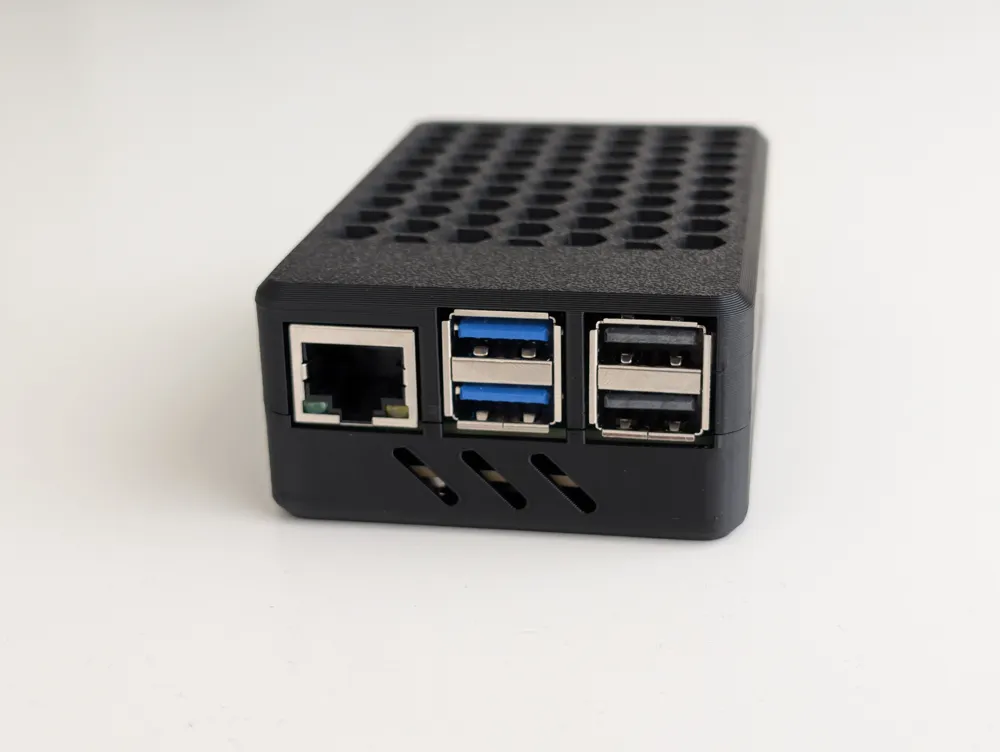

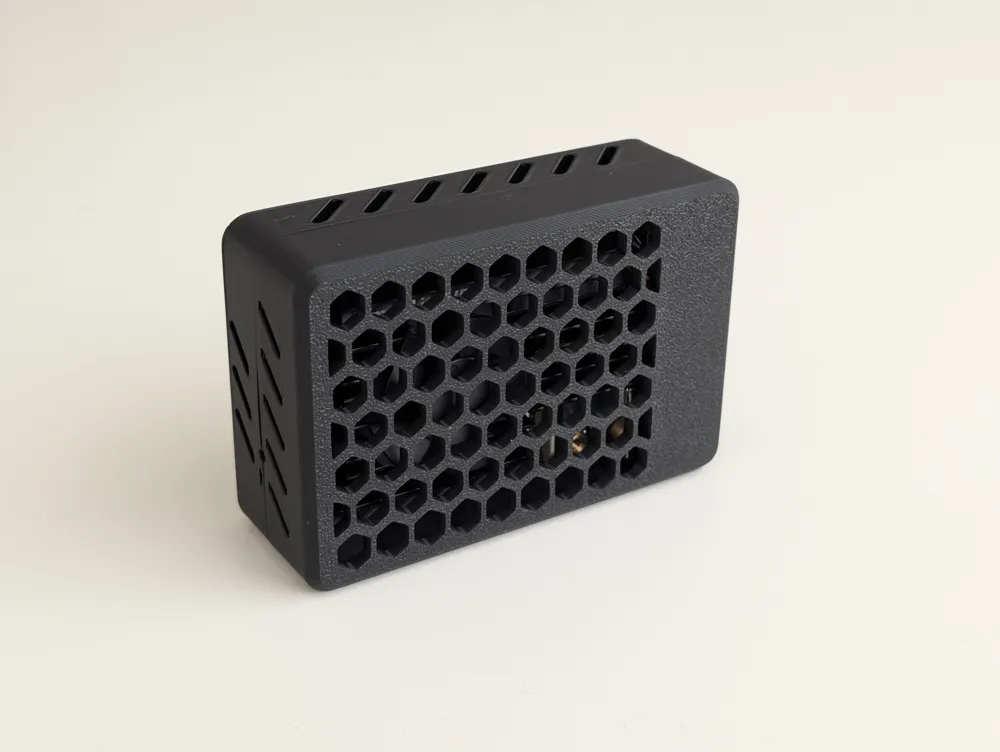

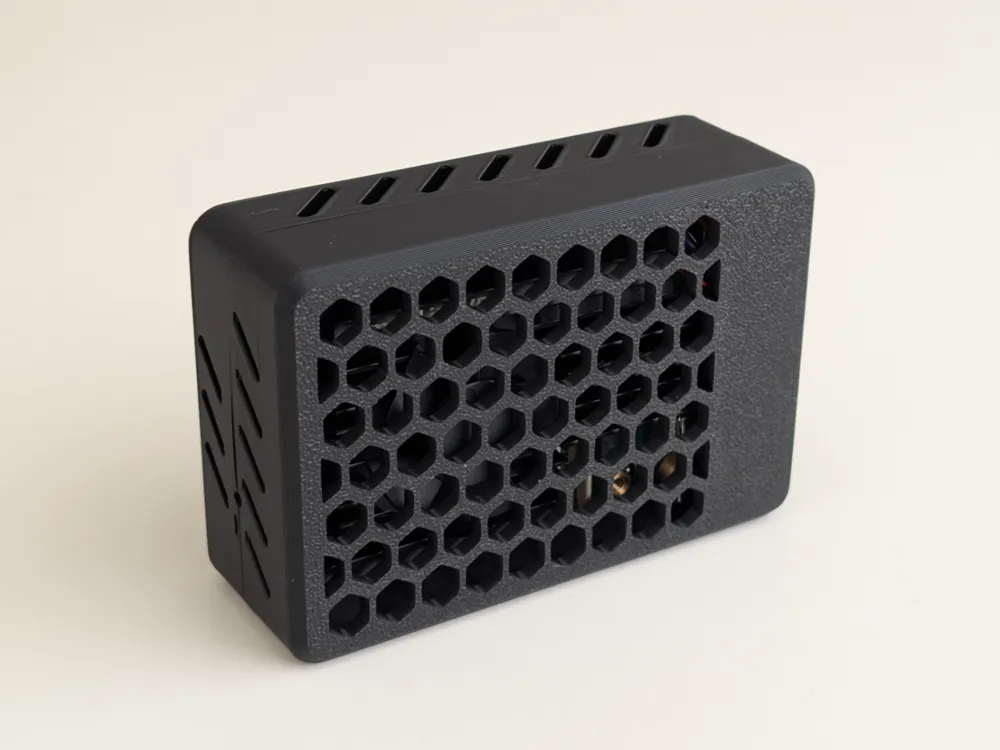

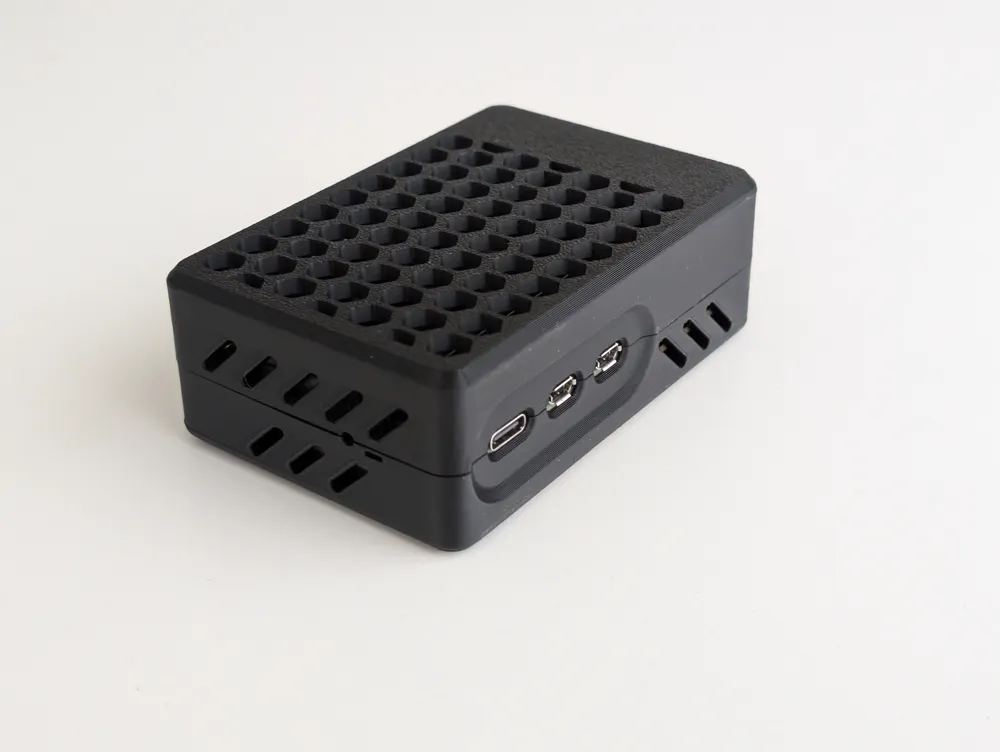

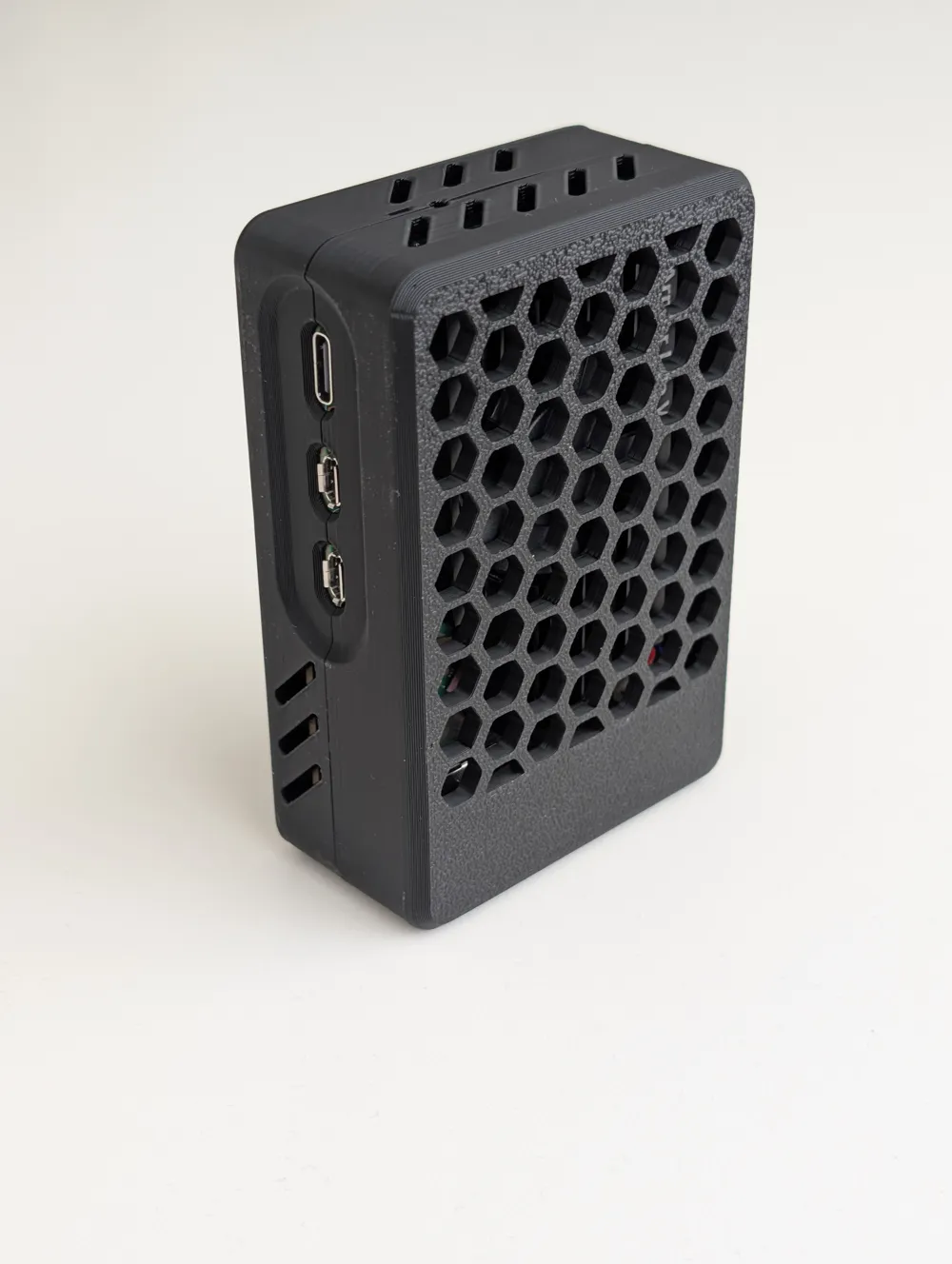

Raspberry Pi 5 Case with NVME base (Snap-fit)
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
82
242
26
3
500
325
Released
Description
This model is based on pyrho's original design, I have improved the air intake for better thermal performance, and added space for a NVME base. The case is snap fit, so its easy to assemble
Assembly
- Remove the SD card from the Pi (with the SD card its a tight fit, but it should work)
- Slide the Pi in the bottom part of the case
- The four alignment pins should be flush with the board
- Press down so that the board sits snugly
- Snap fit both parts
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
