Released
Description

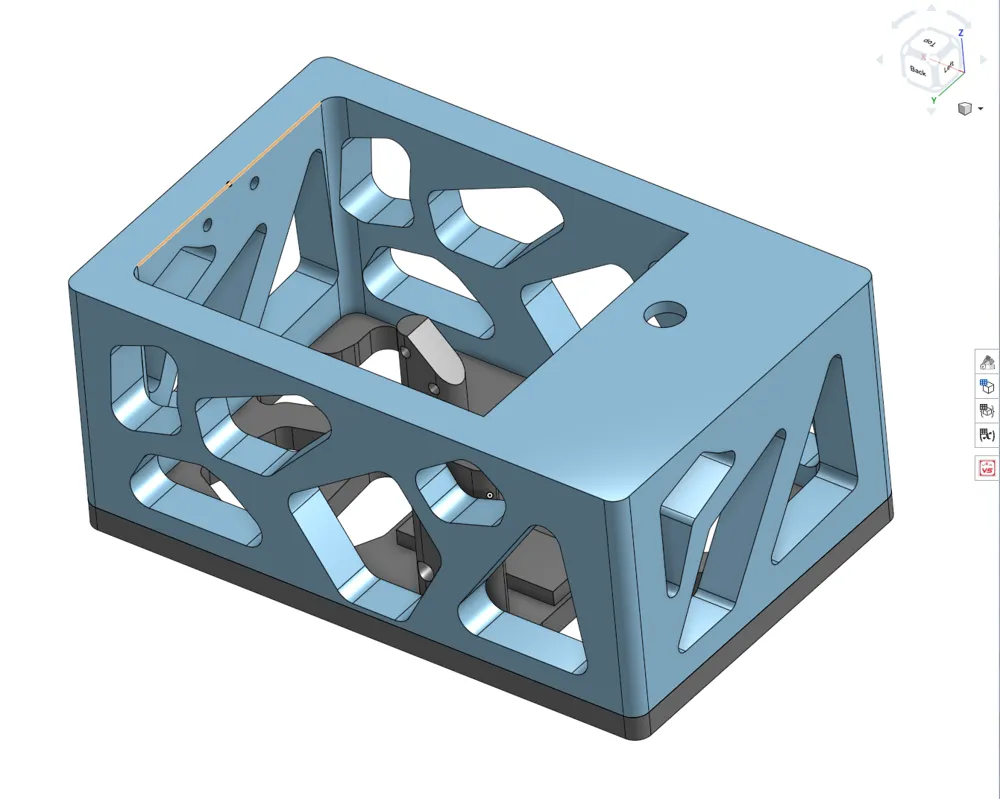

Useless machine that turns itself off when activated

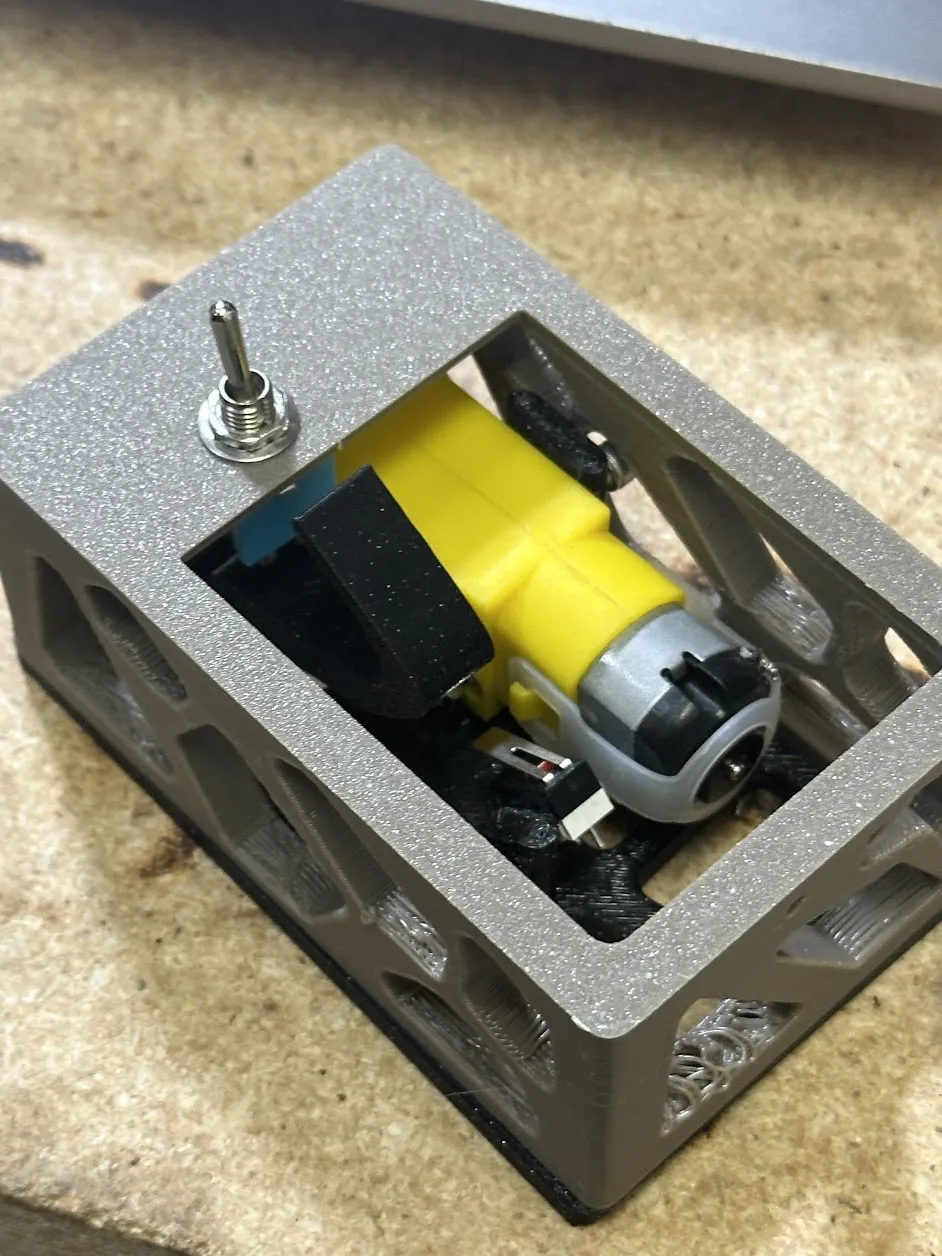

Uses a three/two state switch (six pins) to switch motor direction when trigger is pressed and a microswitich as a limit switch to stop the motor at the retracted position, standard TT motor with right angle gearbox. Battery Pack external. Assemble with self-tapping M2 Screws.
Example parts:
Motor:
https://www.amazon.com/gp/product/B083BDW3FD
Microswitch:
https://www.amazon.com/gp/product/B088W8WMTB
Toggle Switch:
https://www.amazon.com/gp/product/B0799KM8T6
M2x10 Self Tapping:
https://www.amazon.com/gp/product/B01KXTUCM8
4x1.5VAA Battery Pack:
https://www.amazon.com/gp/product/B085VS14TY
