Night Light
Print Profile(2)
Bill of Materials
Description

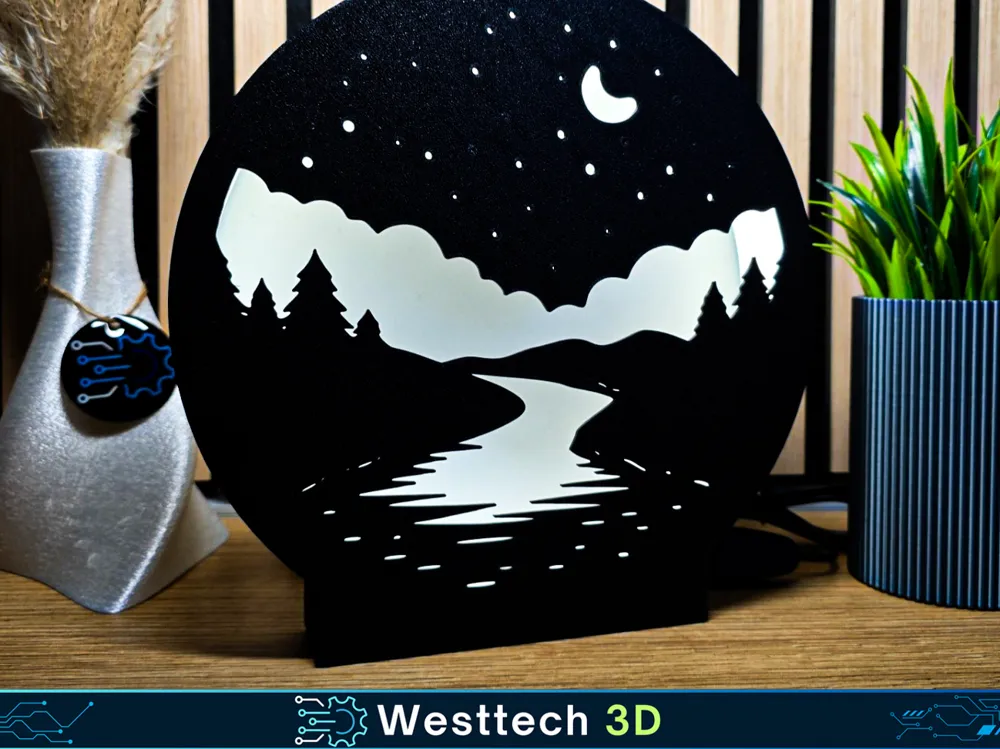

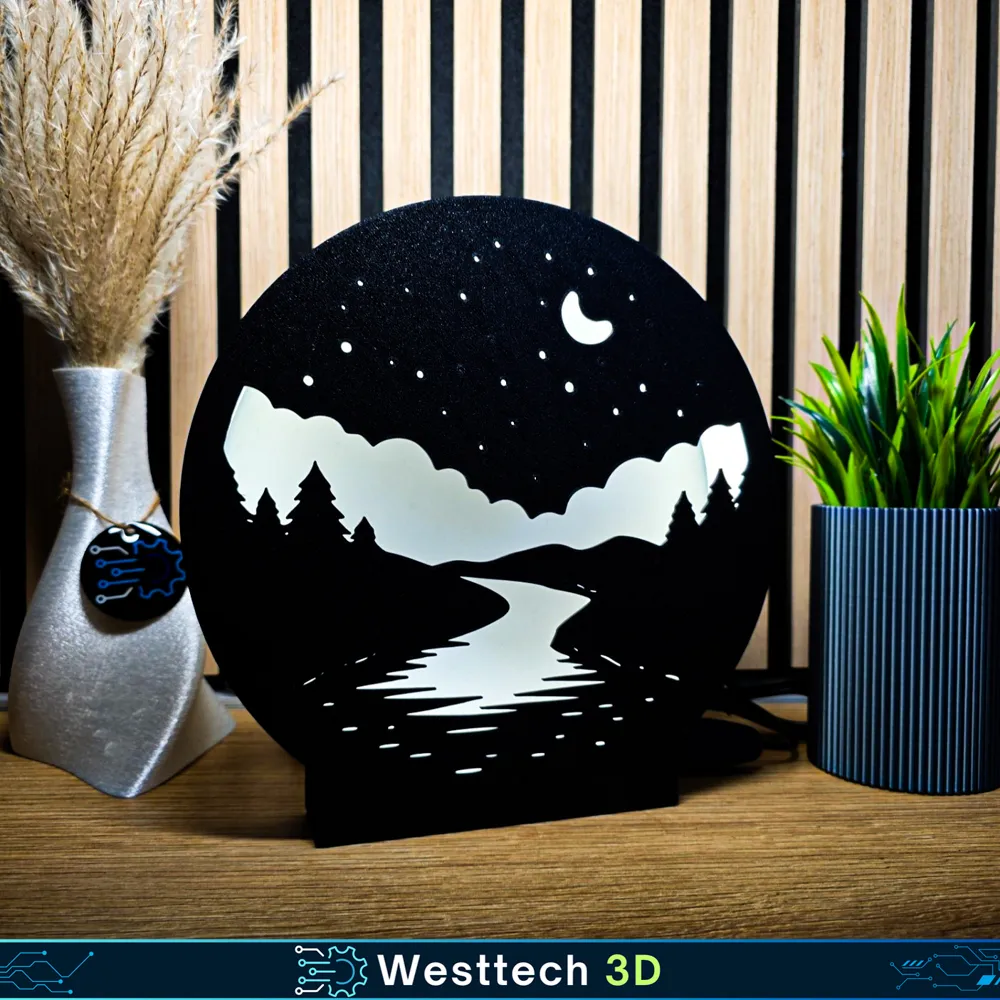

Night Lamp – Stylish & Easy to 3D Print
Here you will find a stylish lamp that you can easily print yourself – perfect for a pleasant atmosphere at home.
Two variants are available:
🧷 Variant 1: Glued
🔩 Variant 2: Screwed
______________________________________
🛠️ Recommended Print Settings:
🔲 Main part
- Optimal layer height: 0.16 mm for fine details
- Time-saving alternative: up to max. 0.20 mm
🪵 Back panel with diffuser
- Recommended: 0.20 mm
- Maximum: 0.24 mm
- This ensures a particularly soft, pleasant light – ideal for a cozy atmosphere.
💡 Note on the back panel:
- The back panel is intentionally slightly loose, as I glue it before shipping.
If you prefer a tighter fit, you can enlarge the back panel in the slicer by 0.5 % to 1 % – simply try what works best for you!
🔧 Details of the glued version
- LED holder: This should be fixed with some plastic adhesive.

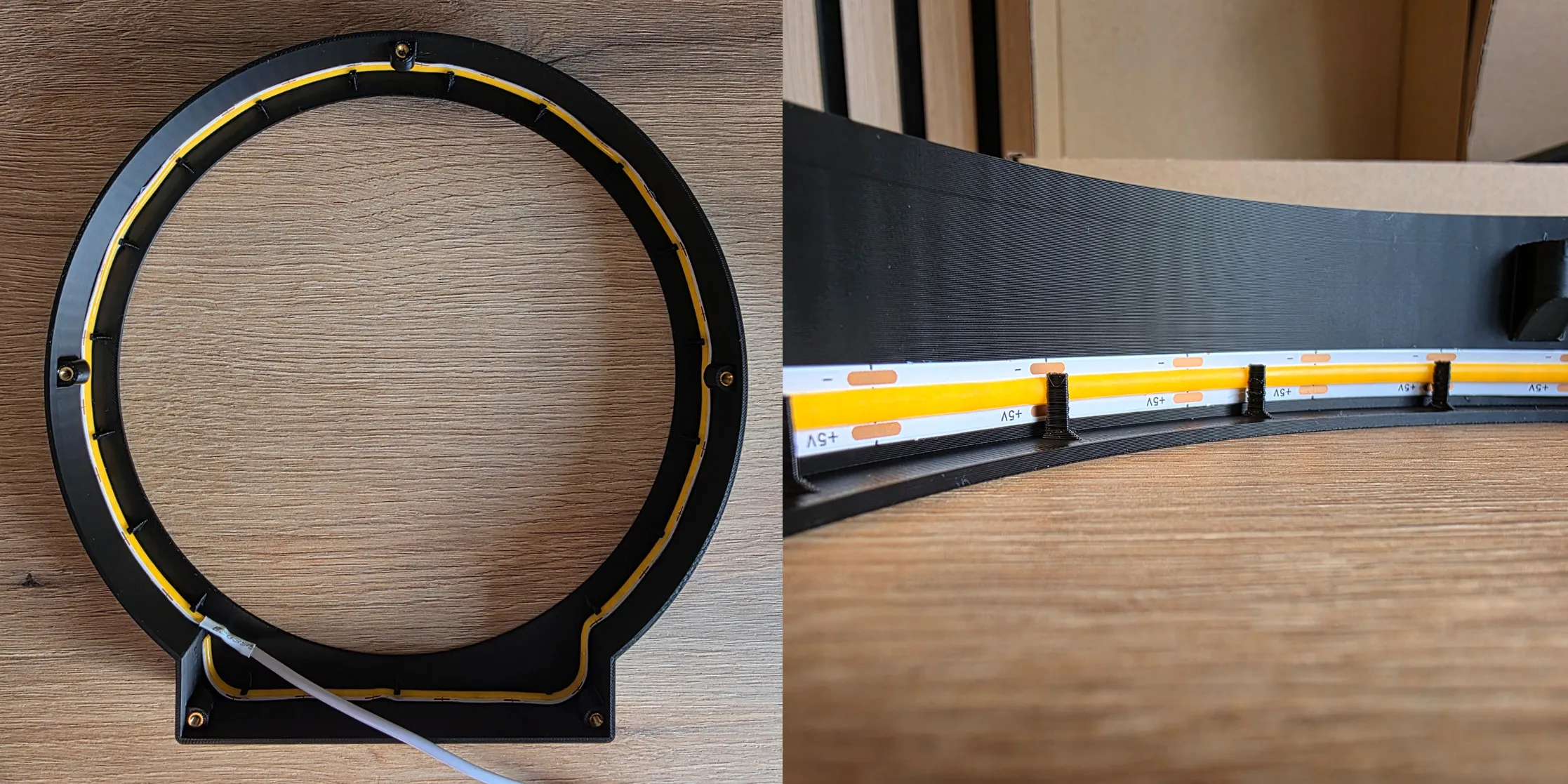

- LED strip: Simply insert – the adhesive surface on the back usually holds them well.

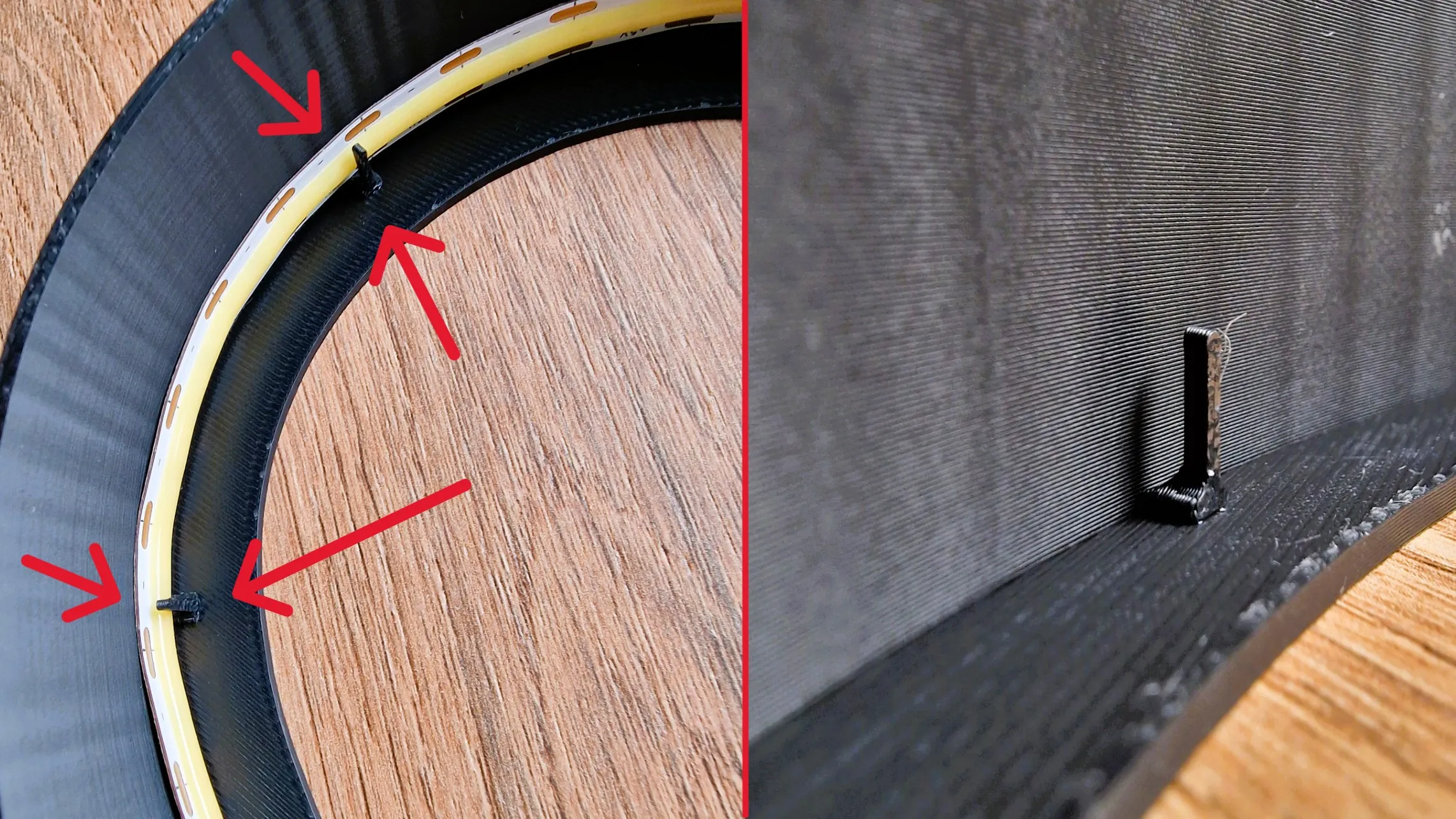

The printed support prevents the strips from detaching when heated (e.g. by COB LEDs). Recommended length of the LED strip: at least 74 cm
🔩 Details of the screwed version 🔩🪛
- Required accessories:

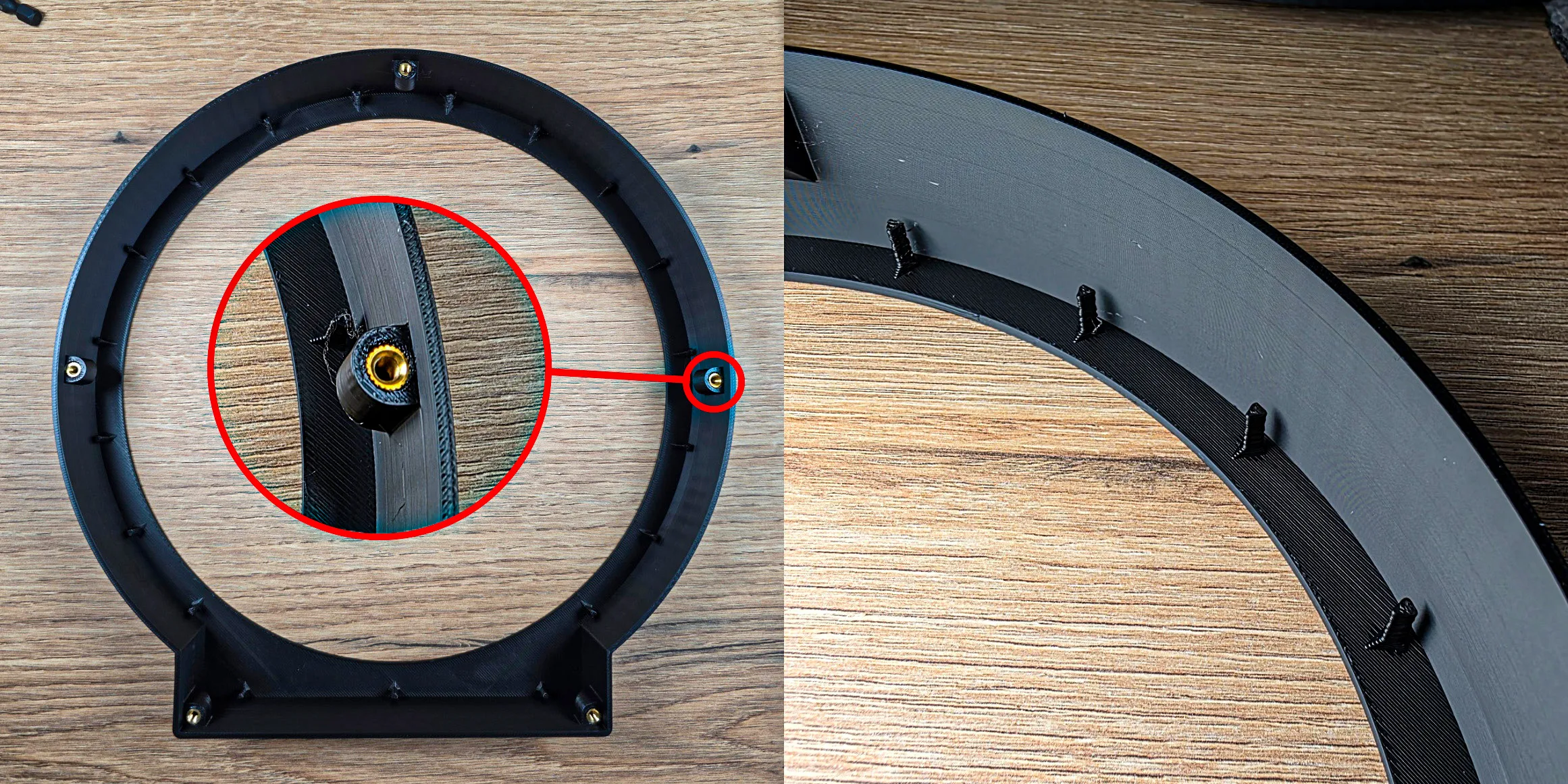

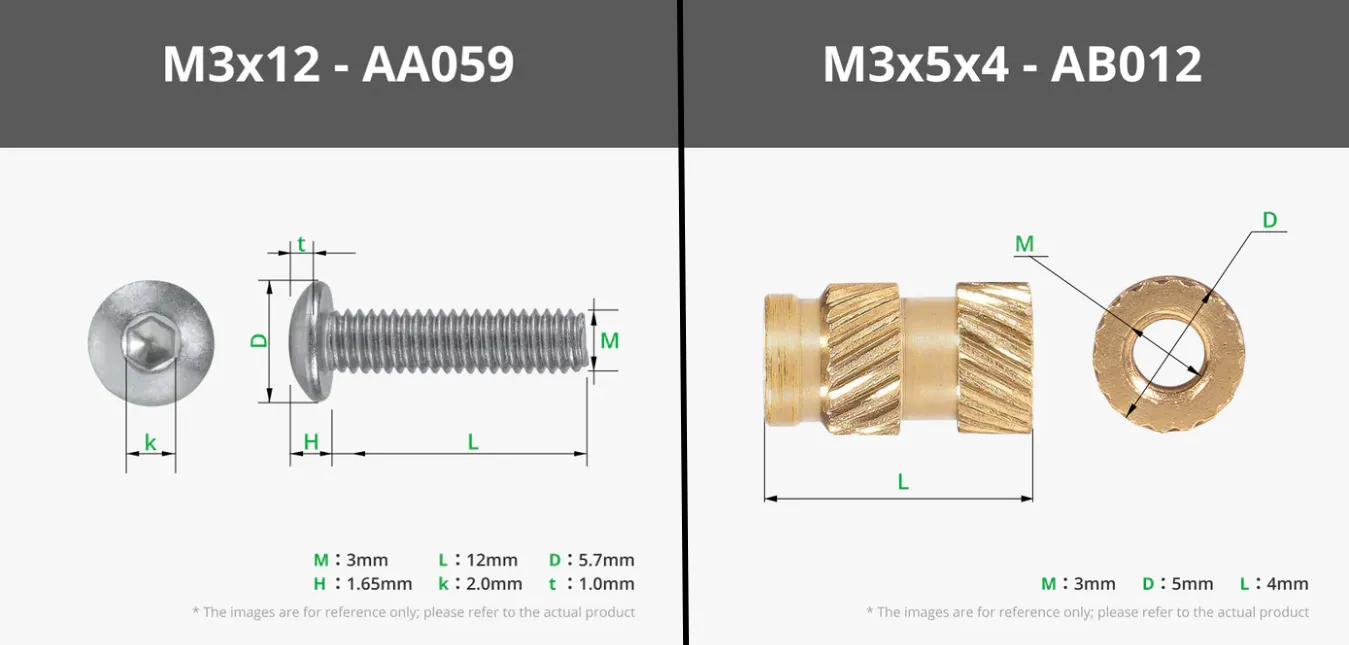

- 5x M3x6 heat-set inserts
- 5x M3x12 screws

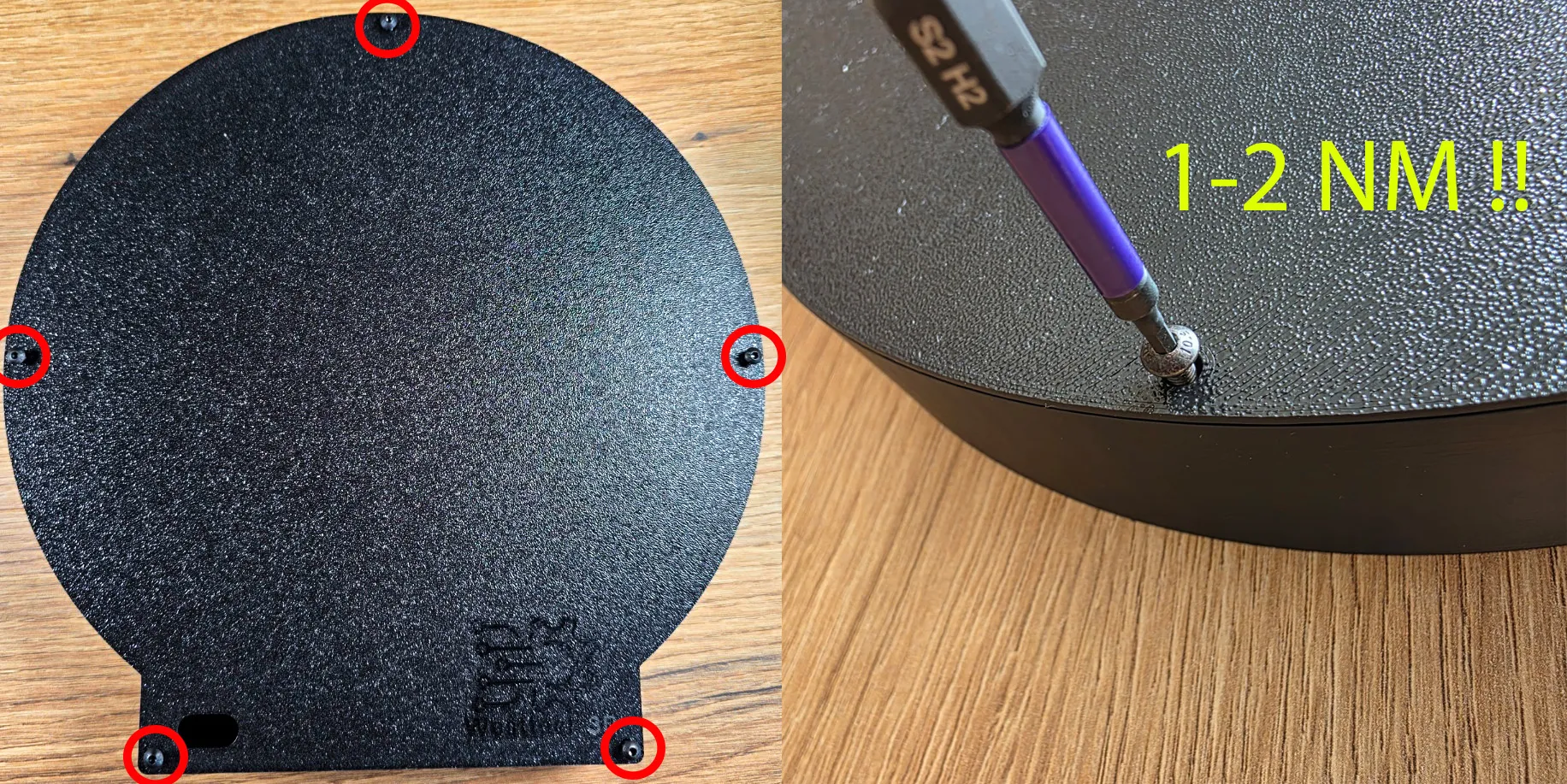

- 🔧 Tip: Please do not tighten the screws too much to avoid damage.
I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback!
Happy Printing!
