Gear Clock

Model

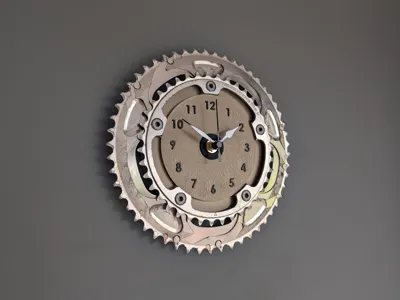

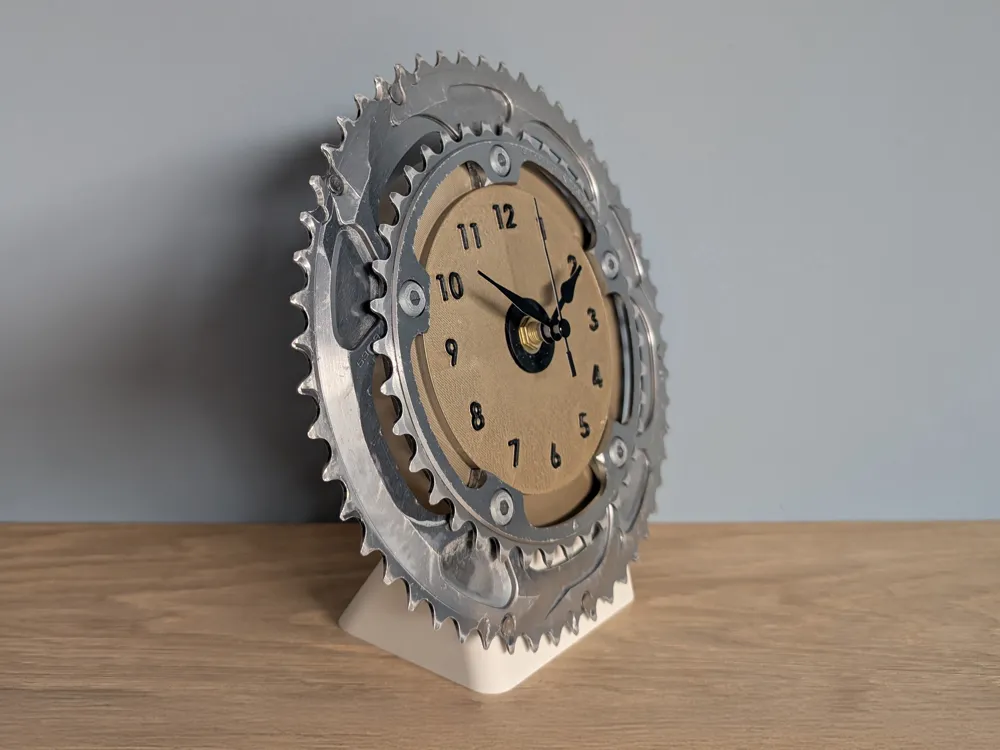

What better way to reuse a worn-out bike gear than to give it new life as a functional clock?
This piece upcycled some old gears to turn them into a gift for a bike lover. A great piece to display in your home; hanging on the wall or standing on your desk.

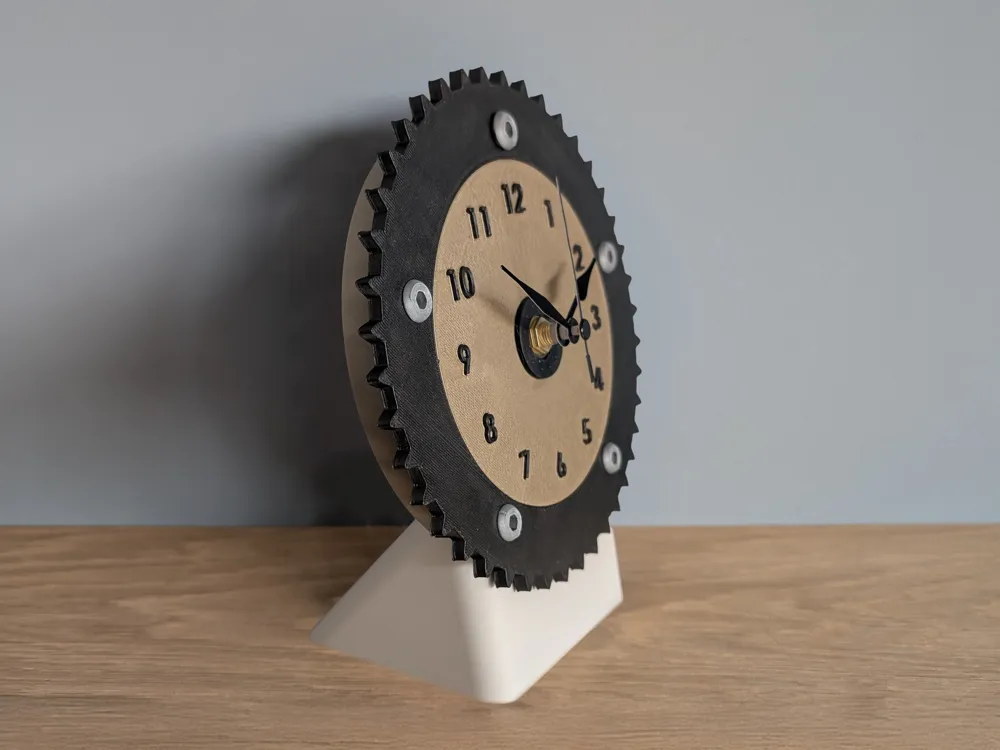

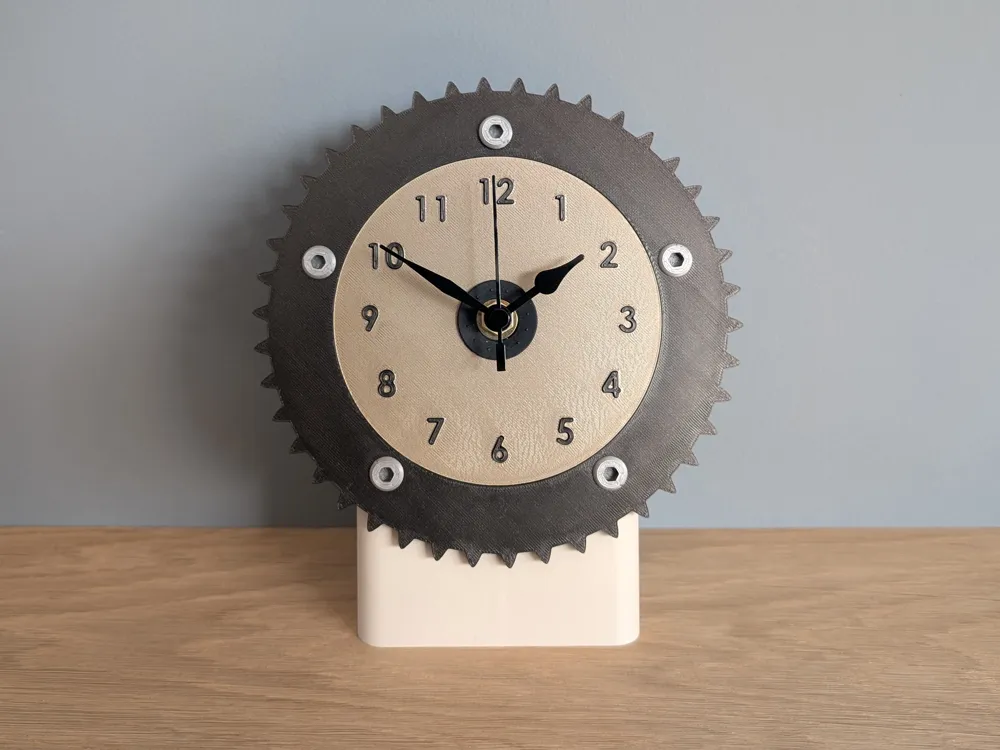

If you don't have an old gear laying around, don't worry! I've also added a printable gear that fits perfectly.

Requirements

Bambulab Clock Components Kit 011

Bicycle gear with an inner diameter of 115 mm.

Measurements

The clock (excluding gears) has a diameter of 146 mm x 19 mm thick.

The clock fits gears with a diameter of 115 mm. (Bicycle gears)

The bolts have a diameter of 10 mm.

Thickness of the gears can go up to 7mm however the lip is only 5mm high so it will stick out a bit.

Printing

The model is printable in a non AMS version. The numbers and bolts can be pressed into place and glued if needed.

Assembly

Step 1: Remove the printed parts from the buildplate.

Step 2: Remove all the support material.

Step 3: Place the clock assembly into the printed clock face.

Step 4: Tighten the nut on the front of the clock face to secure the clock assembly

Step 5: Press the numbers into the slots on the clock face (use glue if needed).

Step 6: Place the gear onto the face of the clock.

Step 7: Secure the gear with the bolts (use glue if needed).

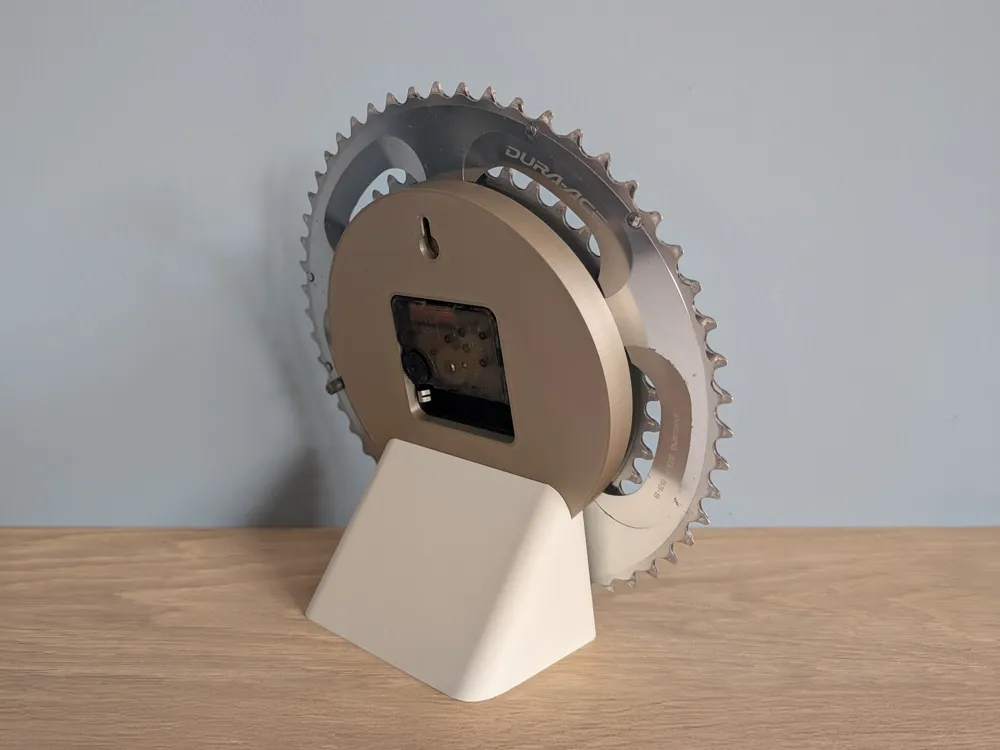

Step 8: Hang the clock on the wall or use the printed stand.

Helpful tips

Ironing the top surface can increase the quality a lot.

If you have any questions about the model or if you would like a customized version, please feel free to contact me!
