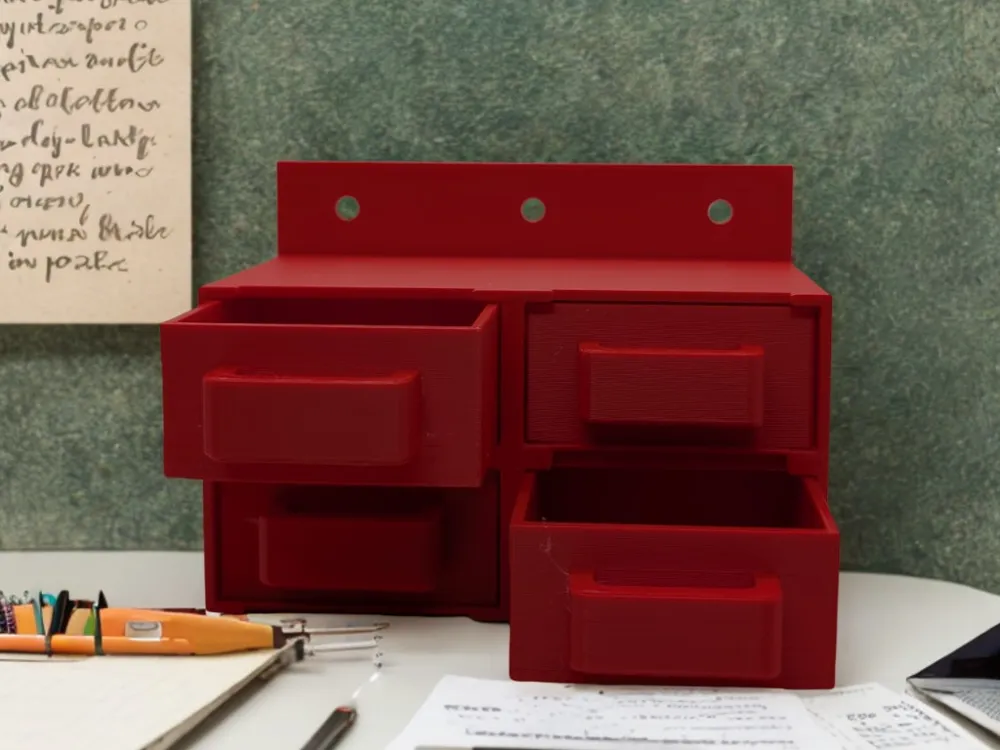

🧰 Stackable Modular Drawer System v1.9 – The Maker’s Cabinet
A modular, stackable, wall-mountable, and fully customizable drawer system – born to be 3D printed. Crafted in fully parametric OpenSCAD, this project is more than just useful storage: it’s a statement piece for creators. Think of it as your mini workbench – tidy, smart, and always within reach.
✨ Why You’ll Love It

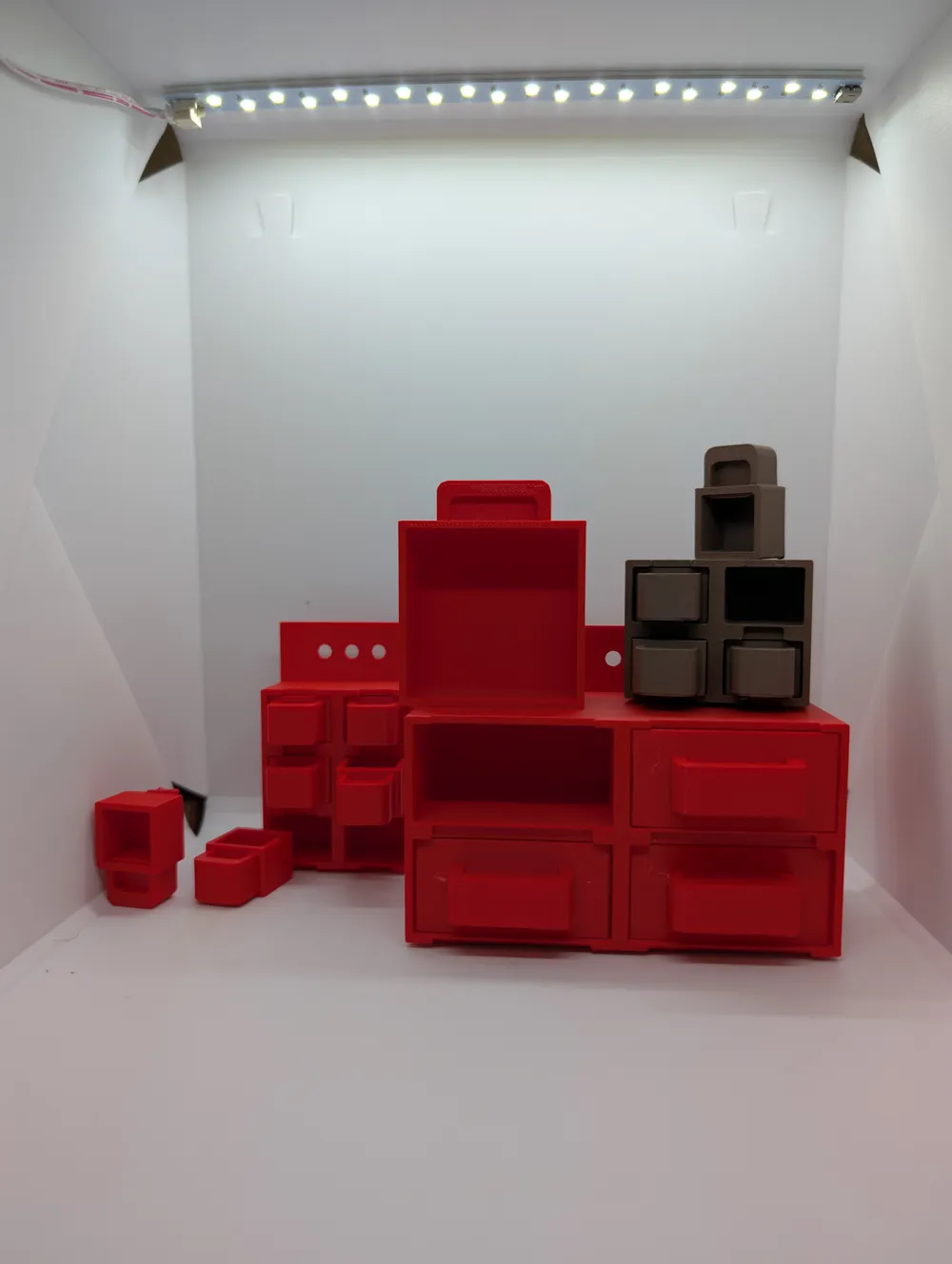

🔩 Stackable: thanks to optional bottom rails, you can build infinite towers of order – like Legos for grown-up tinkerers.

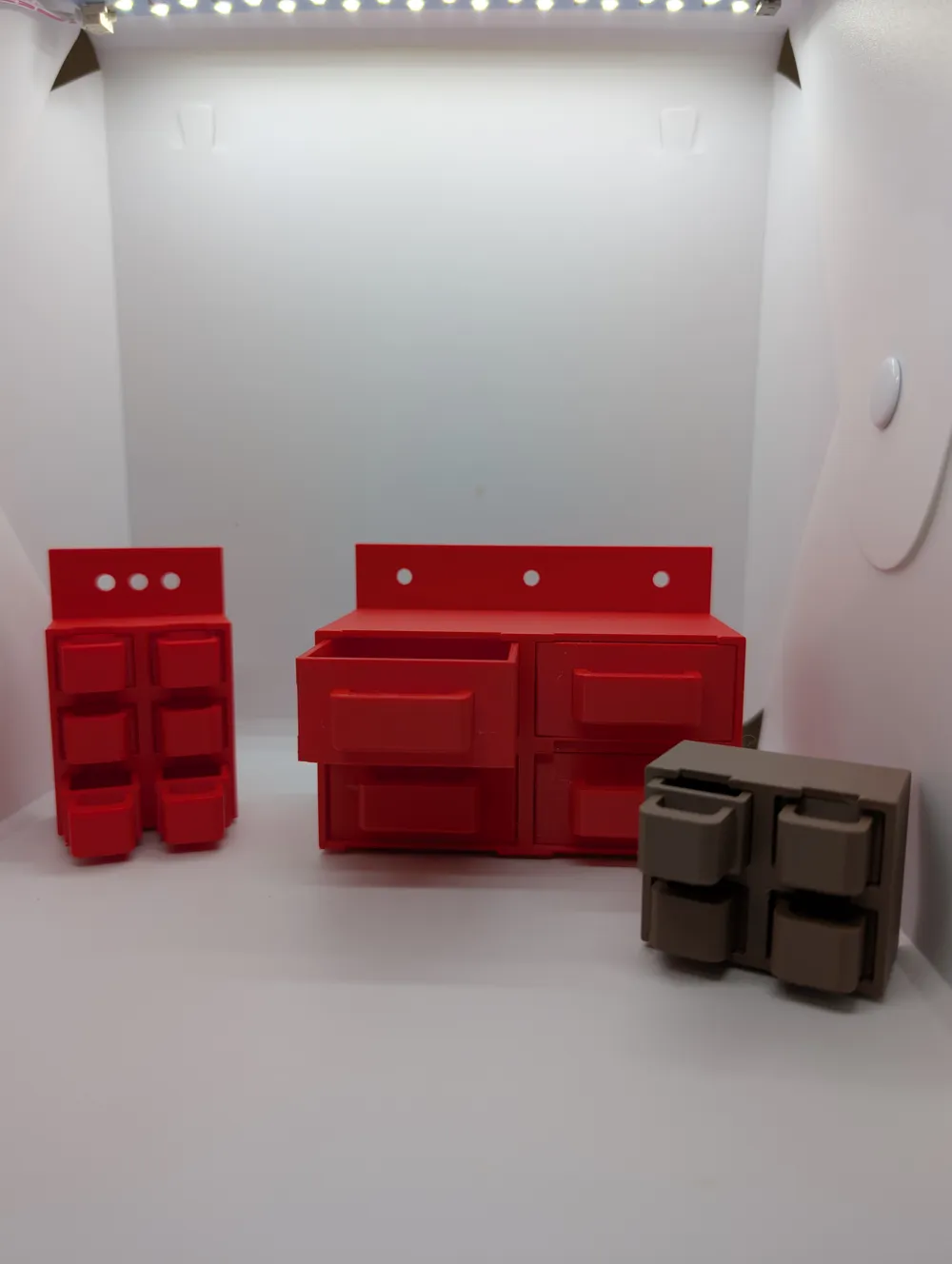

🧱 Modular: choose as many rows and columns as you need – the code scales automatically.

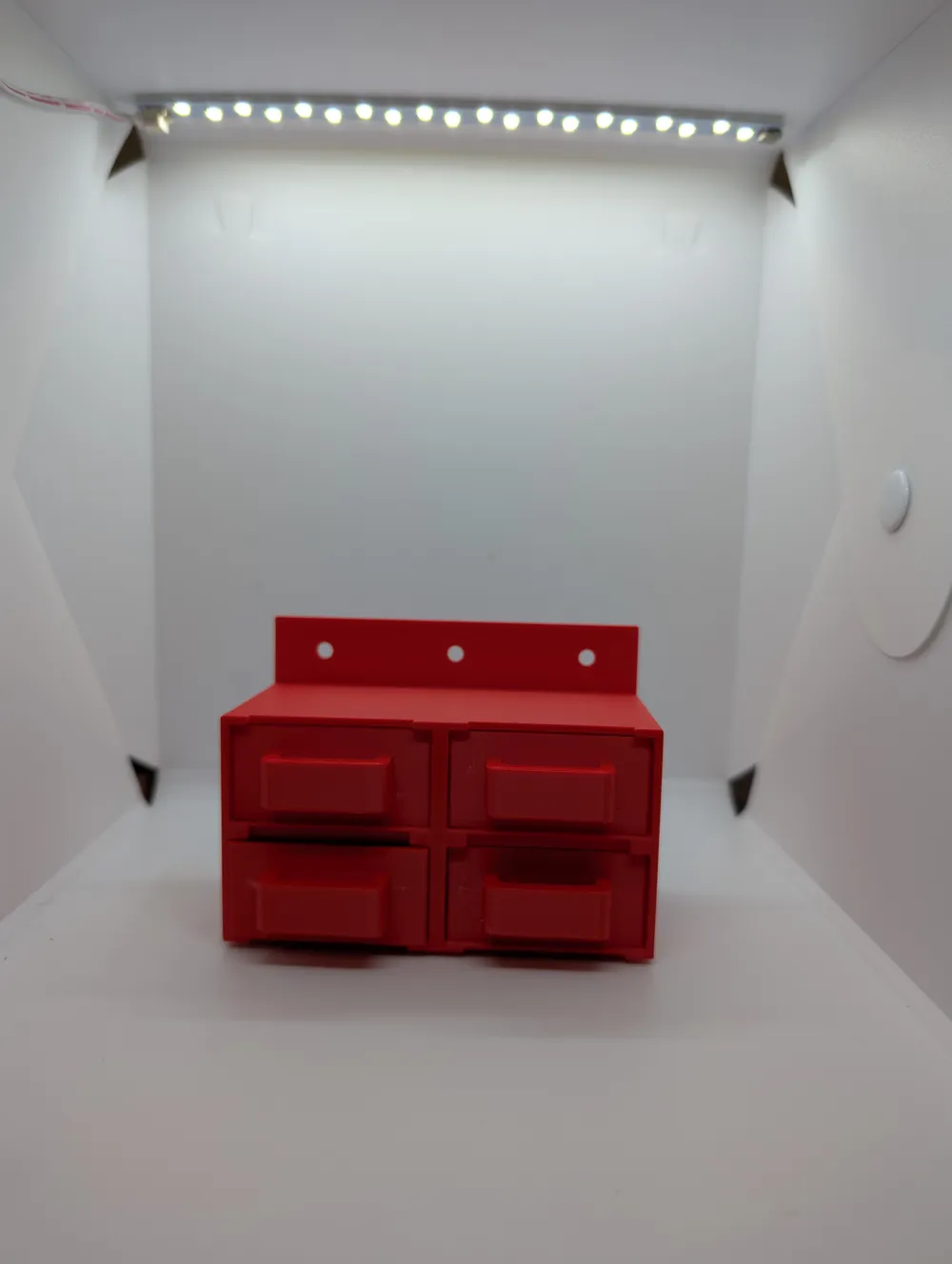

🪛 Wall-mountable: free your workspace with the optional backplate mounting system.
🛠️ Easy to print: no supports needed, FDM-optimized geometry.
🎨 Fully customizable: groove or no groove, drawer sizes, wall thickness, tolerances… every detail is parametric.
🧠 How the OpenSCAD Code Works
The code is modular, well-commented, and organized. Key components:
🗃️ container()
Builds the main structure:
Adjustable wall thickness
Internal guides for drawers
Optional bottom stacking rails when use_rails = true

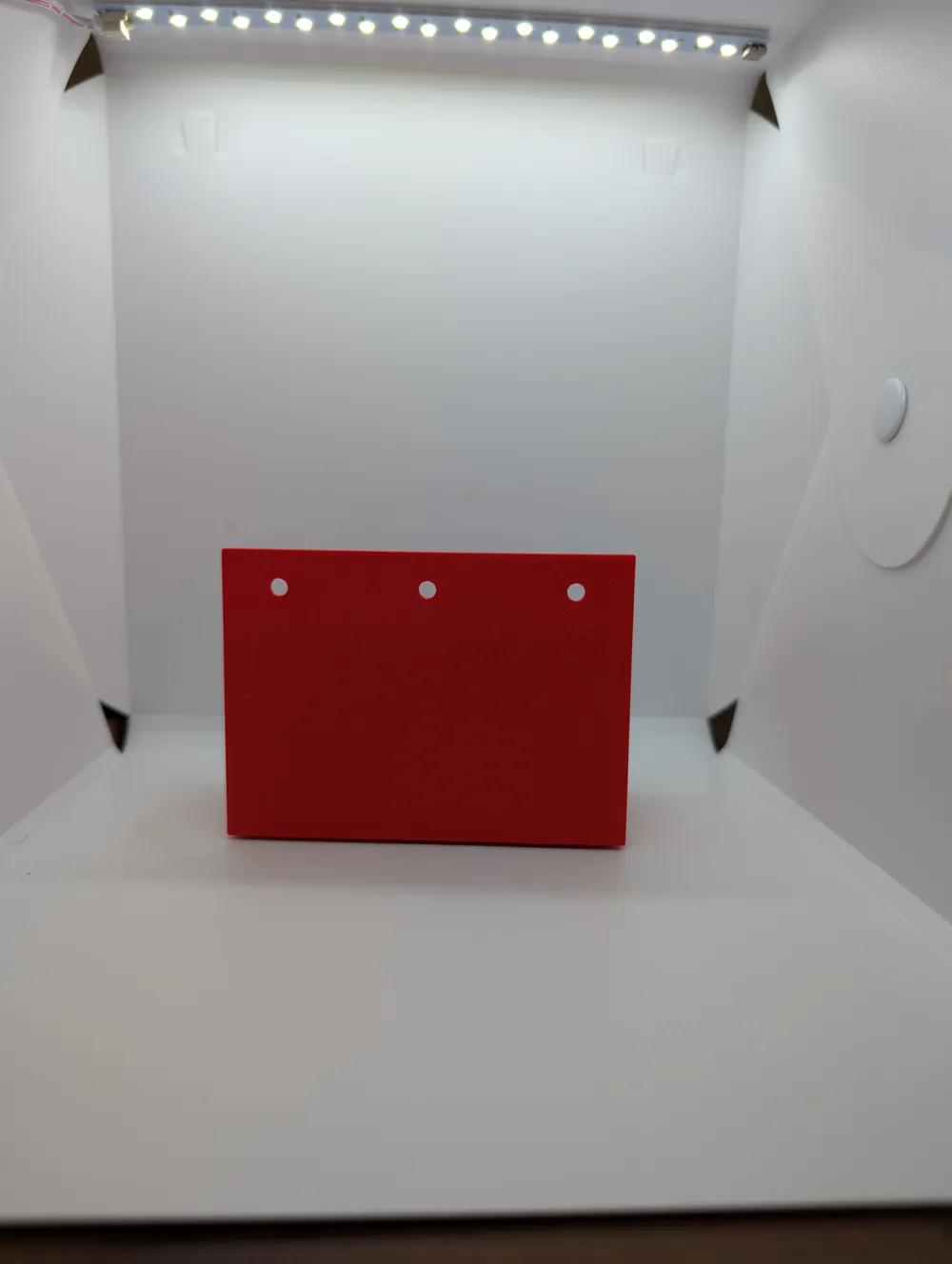

🧲 wall_mount_system()
Adds a backplate for wall mounting:
Variable height
Customizable screw hole count and diameter
🧷 drawer()
Creates the drawer:
Designed to fit precisely based on defined tolerances
Ergonomic handle with optional groove
Sturdy and functional for daily use
⚙️ Key Parameters
Parameter
Description
Default
num_columns
Number of horizontal modules
3
num_rows
Number of vertical modules
4
container_width
Internal drawer width (mm)
50
container_depth
Drawer depth (mm)
50
tolerance
Drawer-to-box clearance (mm)
0.5
add_wall_mount
Enable wall mounting plate
false
use_rails
Add stacking rails
true
🖨️ Print Settings
Layer height: 0.2 mm
Supports: needed
Recommended filament: PLA or PETG for strength
Cooling: advised for drawer precision
🎯 Who It’s For
Makers who crave organized creativity
3D printing pros optimizing their workspace
Artisans, tinkerers, hobbyists, and electronics lovers with a bench full of bits
🚀 Ready to Print? Ready to Stack.
This isn’t just a print – it’s your first step to a cleaner, smarter workshop. Download it. Customize it. Print it. But most of all: stack it.
🌟 Poetic Intro Line
"Each drawer holds not just tools, but the quiet beauty of order in a maker’s chaotic world."
