[V2] AM4xS - Stationary Adapter

2025-07-01: Added ringless covers for the stationary bracket.

2025-06-20: Added separate profile that is printable on the X1C.

Because of how modular my AM4xS - AMS SLIDING Stacking System is, I have separated the print profiles into multiple different models. It would simply be impossible to include all the various different options in a single print profile as there would be too many plates.

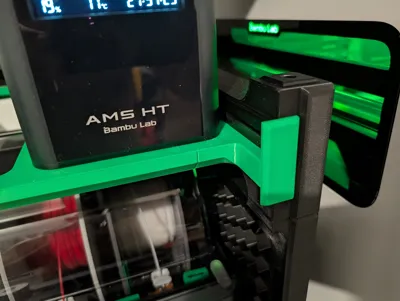

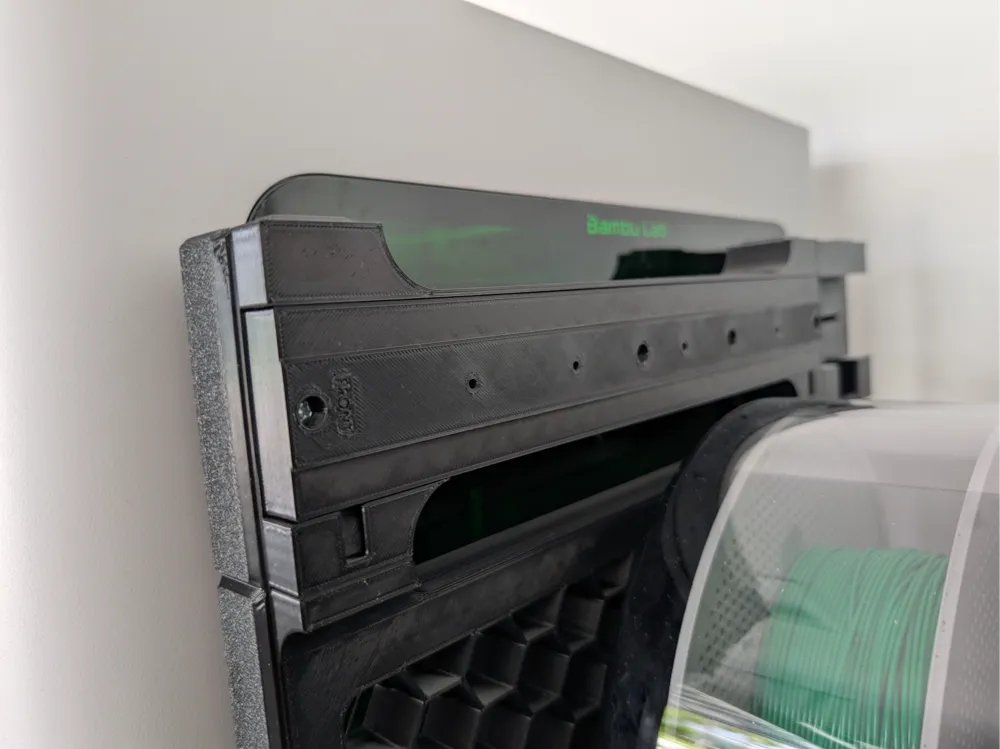

This model is for the “stationary adapter”. One of the things someone pointed out to me, is that the top AMS in the stack does not need to slide out. So he wanted a way to mount that AMS in a fixed position, instead of having it slide out. These adapters go in place of a set of drawer slides. Use 4 of your preferred ¾" #6 sheet metal screws to connect an adapter plate into the slide position. Then use another 4 of those same screws to connect the AMS brace to the adapter. Alternatively, you can use 1-½" screws instead to add a little bit of extra support on the adapter and brace; but I don't think it's necessary.
