Bill of Materials
- RS2 Membrane Dehumidifier x 1: https://micro-dehumidifier.com/product/rs2-push-connector/
- VREG2 USB-C power adapter board x 1: https://micro-dehumidifier.com/product/vreg2-usb-c-power-adapter-board/
- 2.8mm Spade Push Connector x 2: https://www.aliexpress.com/item/1005007638701583.html?spm=a2g0o.order_list.order_list_main.272.3e26180250RwqS
- 2P Side Entry JST XH Header x 1: https://www.aliexpress.com/item/1005004985397880.html?spm=a2g0o.order_list.order_list_main.242.3e26180250RwqS
- 26 AWG Wire x 1: https://www.aliexpress.com/item/1005007009685328.html?spm=a2g0o.order_list.order_list_main.267.3e26180250RwqS
- flux core soldering wire x 1:
- ST XH 2.54mm 2pin plug with wire x 1: https://www.aliexpress.com/item/1005003667099436.html?spm=a2g0o.productlist.main.21.6e43aqG5aqG5ns&algo_pvid=ef000c07-00d6-438a-9574-e1a88b4617ac&pdp_ext_f=%7B%22order%22%3A%2272%22%2C%22eval%22%3A%221%22%7D&utparam-url=scene%3Asearch%7Cquery_from%3A
Description

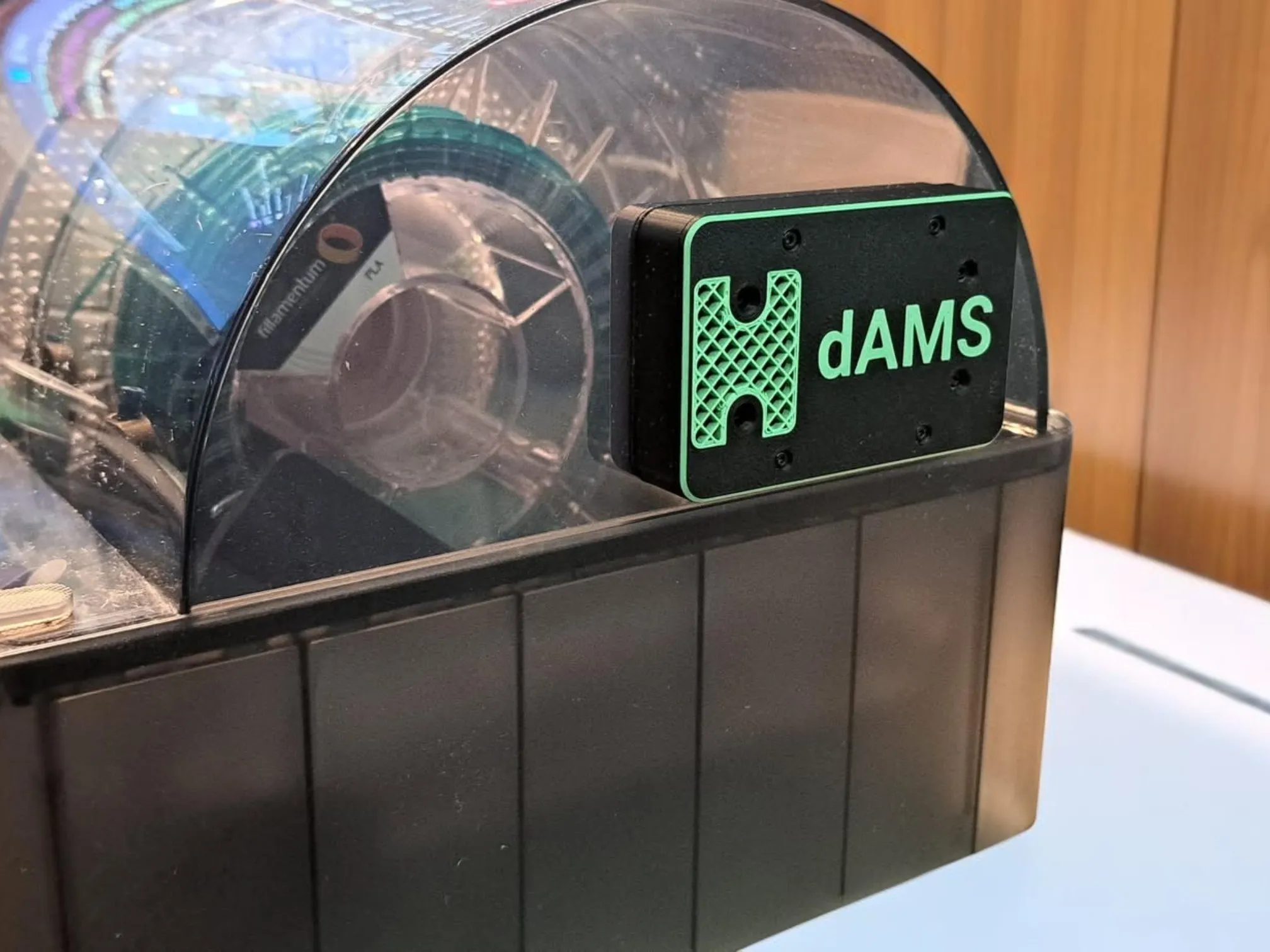

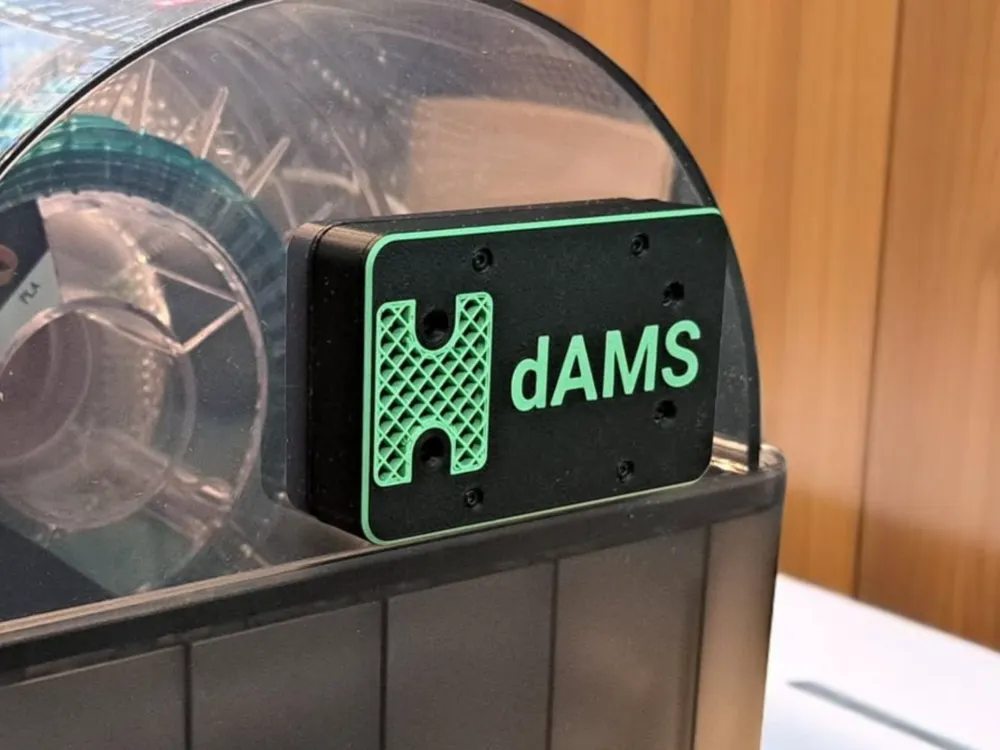

dAMS: Low-Profile Active Dehumidifier for Bambu Lab AMS
Tired of battling filament humidity? Introducing dAMS (dehumidified AMS), a low-profile active dehumidifier mod for your Bambu Lab AMS. This innovative design integrates an RS2 solid-state dehumidifier directly into your AMS, providing a powerful and efficient solution to maintain optimal filament conditions.
The dAMS doesn't just passively absorb moisture; it actively works to regulate humidity levels within your AMS and can even slowly dry your filaments as they sit. Say goodbye to popping, stringing, and failed prints caused by moisture-laden filament!
Key Features:
- Active Dehumidification: Utilizes an RS2 solid-state dehumidifier for continuous and effective moisture removal.
- Filament Drying Capability: Gently dries your filaments over time, ensuring they are always print-ready.

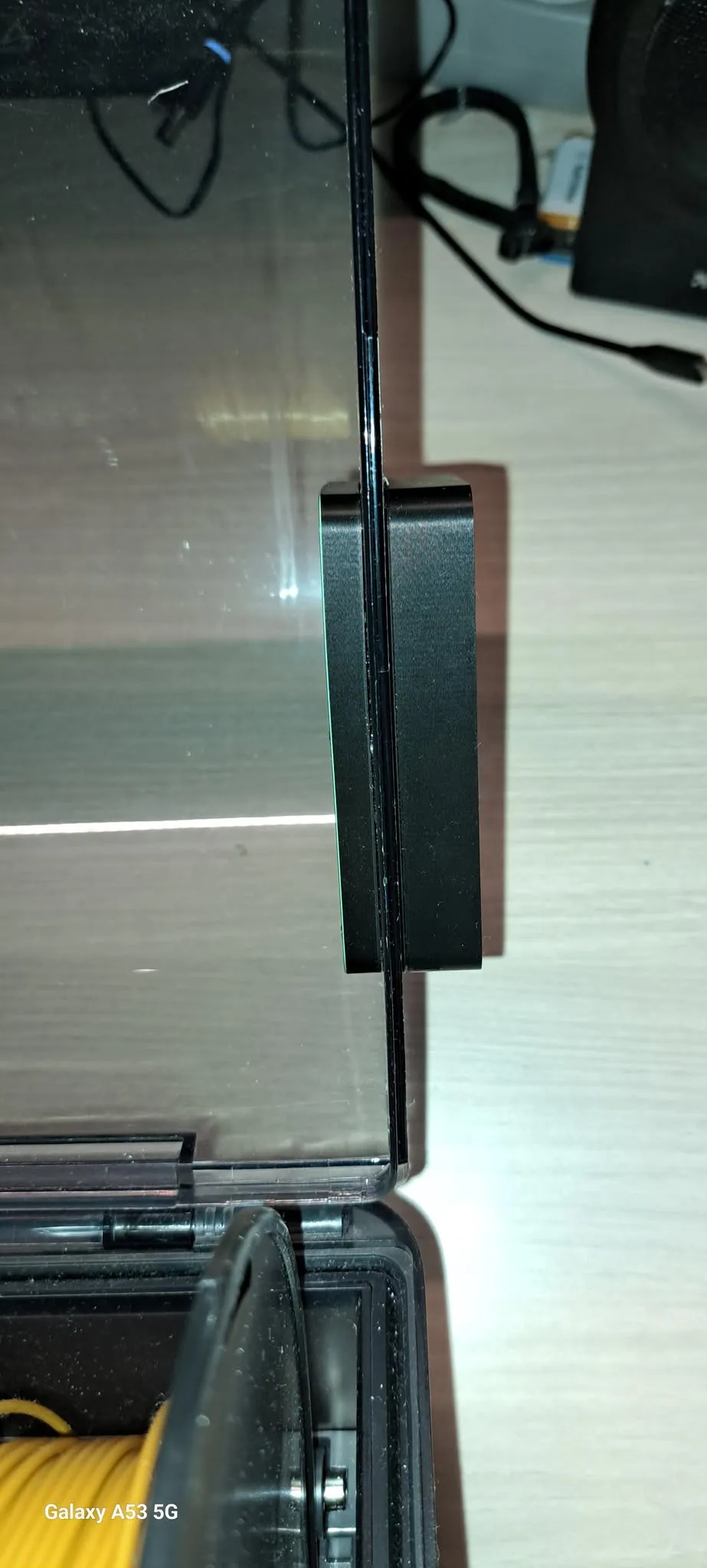

- Low-Profile Design: Blends seamlessly with your AMS without adding significant bulk.
- Improved Print Quality: Helps prevent common humidity-related printing issues like bubbling, stringing, and weak layers.
- Easy Integration: Designed for straightforward installation into your existing Bambu Lab AMS.
Keep your filaments in prime condition and unlock more reliable, high-quality 3D prints with the dAMS. Your AMS just got an upgrade!
Important Disclaimer: This is a permanent modification to your Bambu Lab AMS and requires cutting a hole in the lid. This may void your AMS warranty.
Required Tools (Minimum):
- Saw
- Drill
- Soldering Iron
- Knife/Scalpel
Recommended for Best Quality:
- Ultrasonic knife for precise cutting of the AMS lid.
- Drill pilot holes for screws and use slow speed and drill with caution so you don't crack the plastic..
- Clean up any burrs after cutting and drilling to ensure a good, airtight connection.
Assembly Guide:

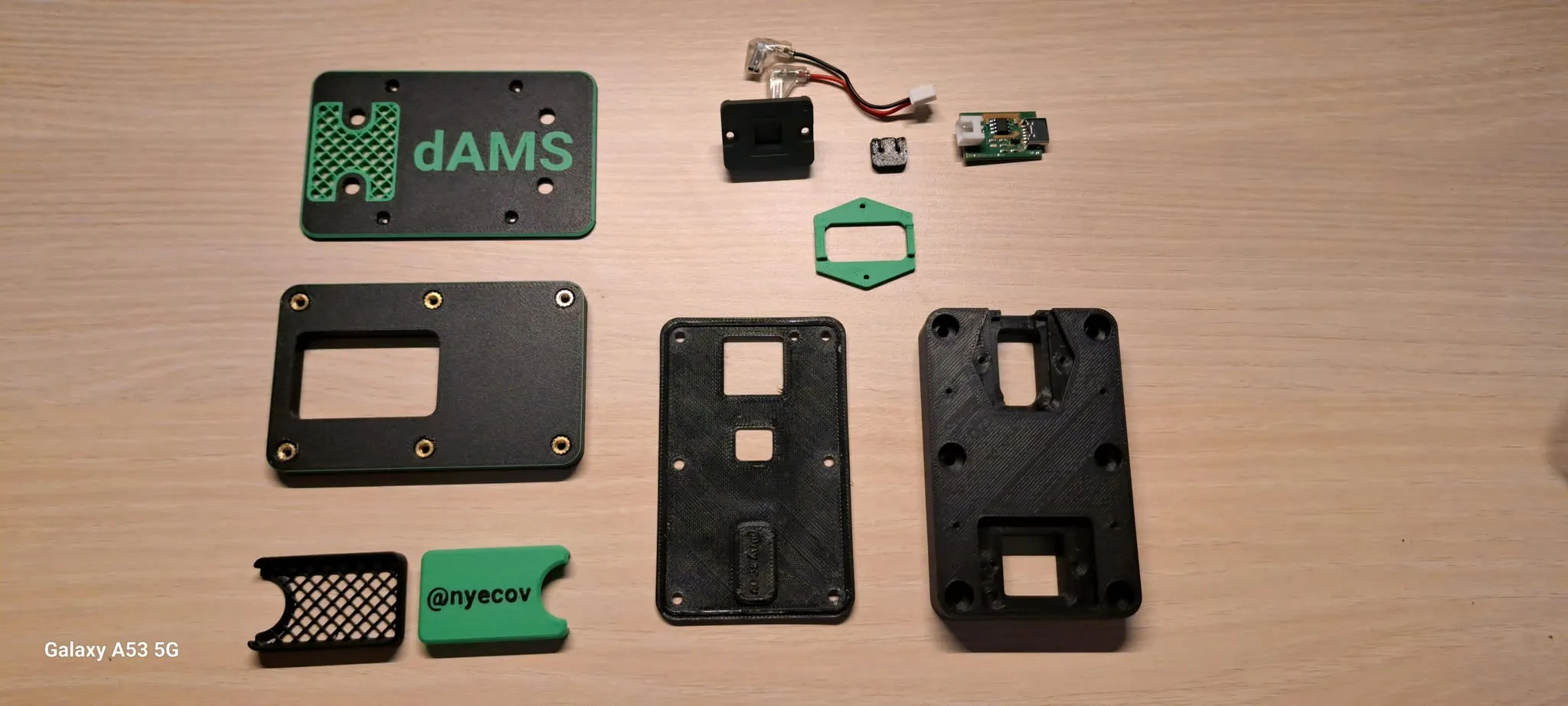

Prepare the components for assembly

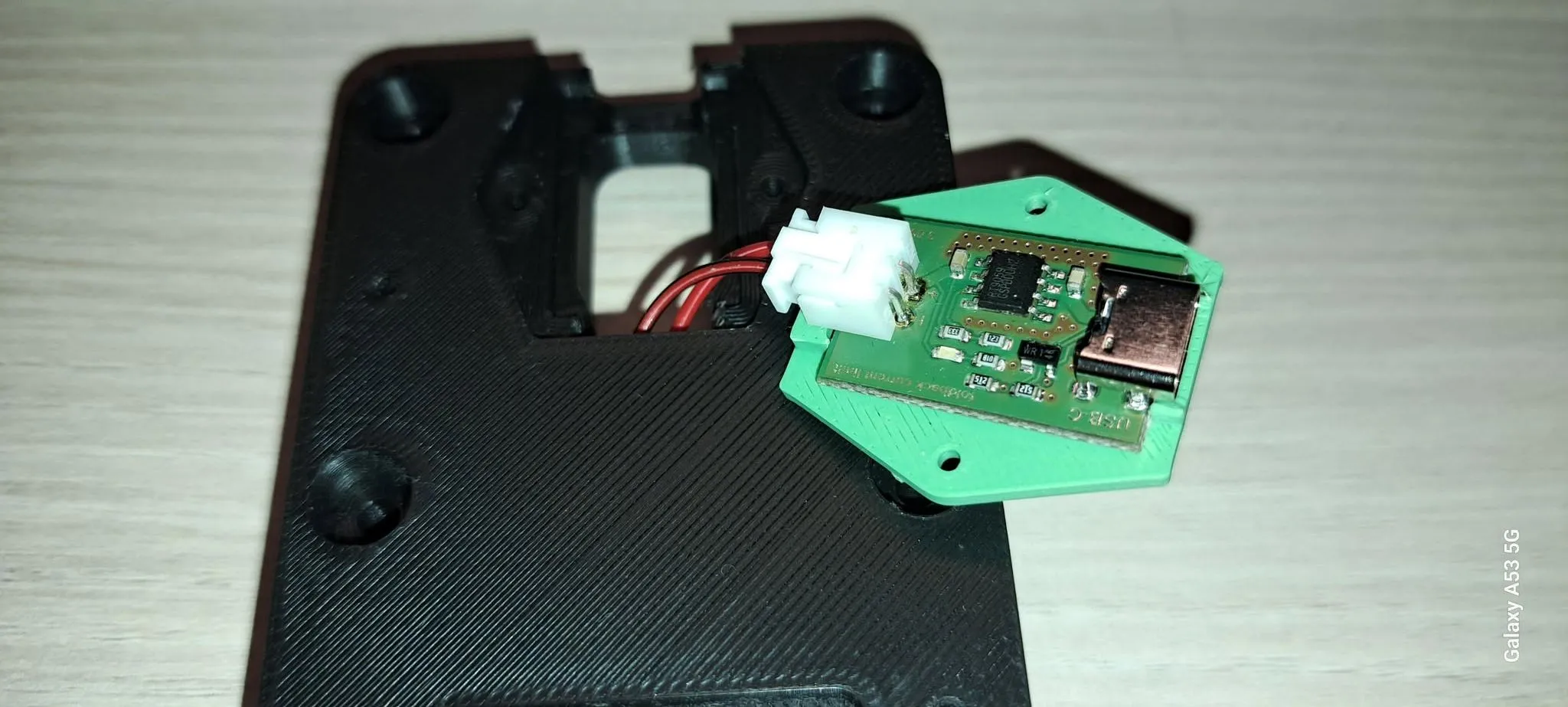

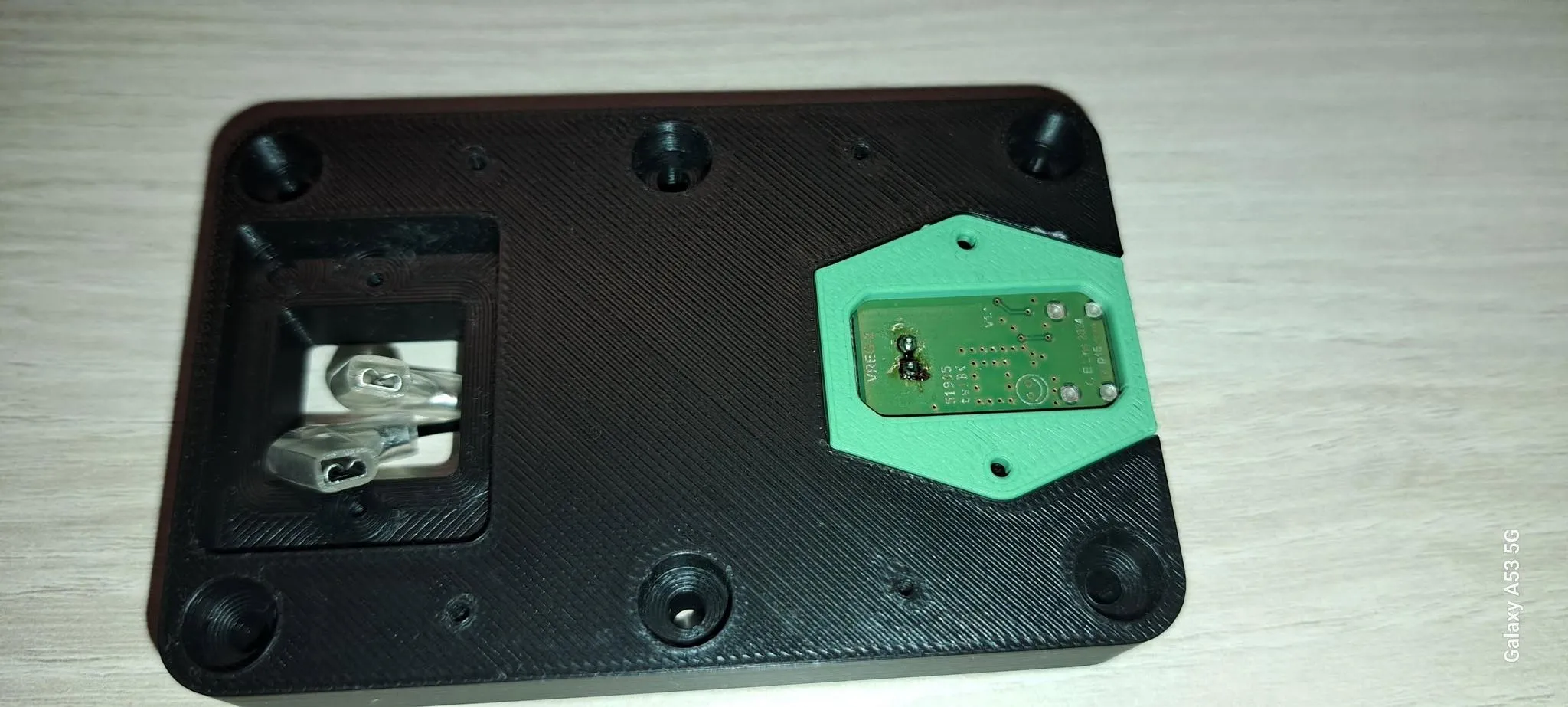

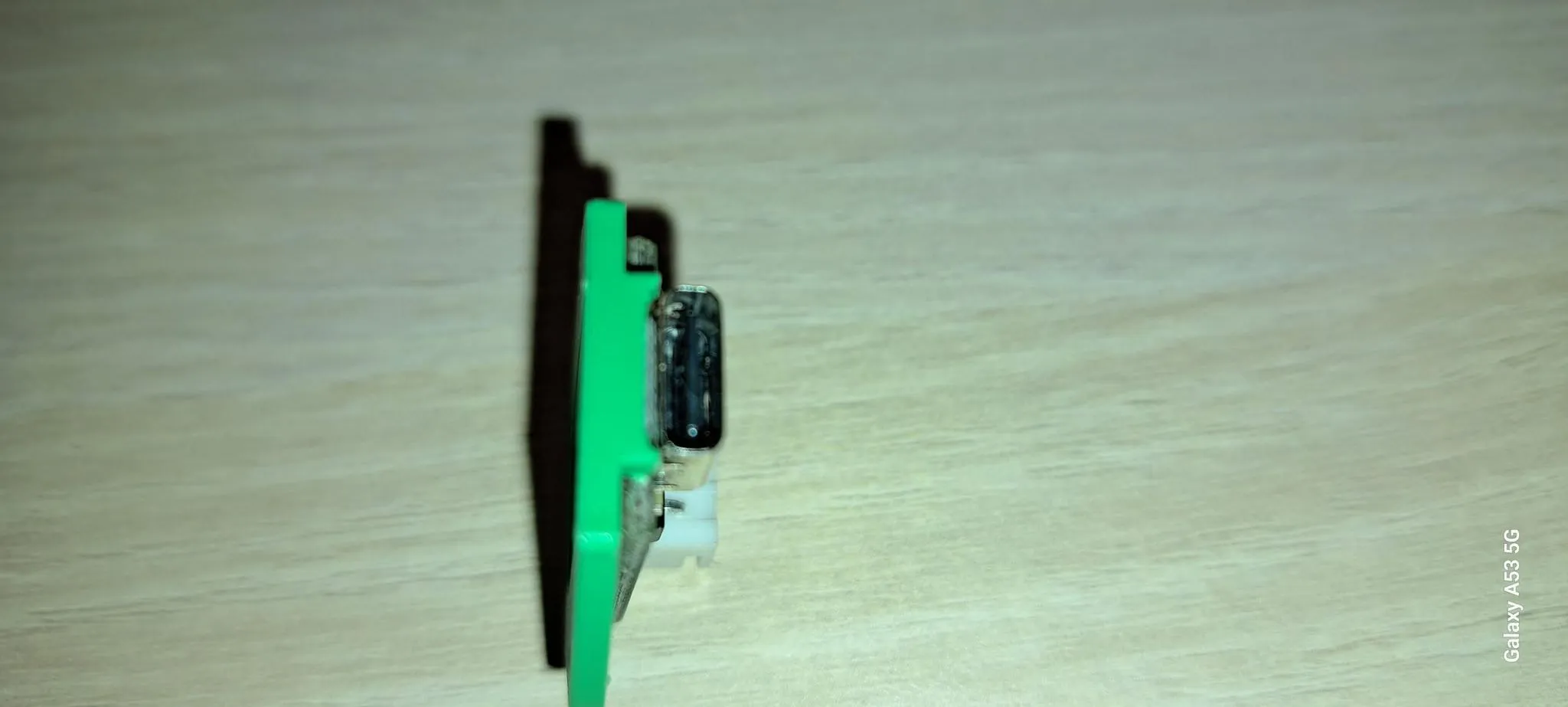

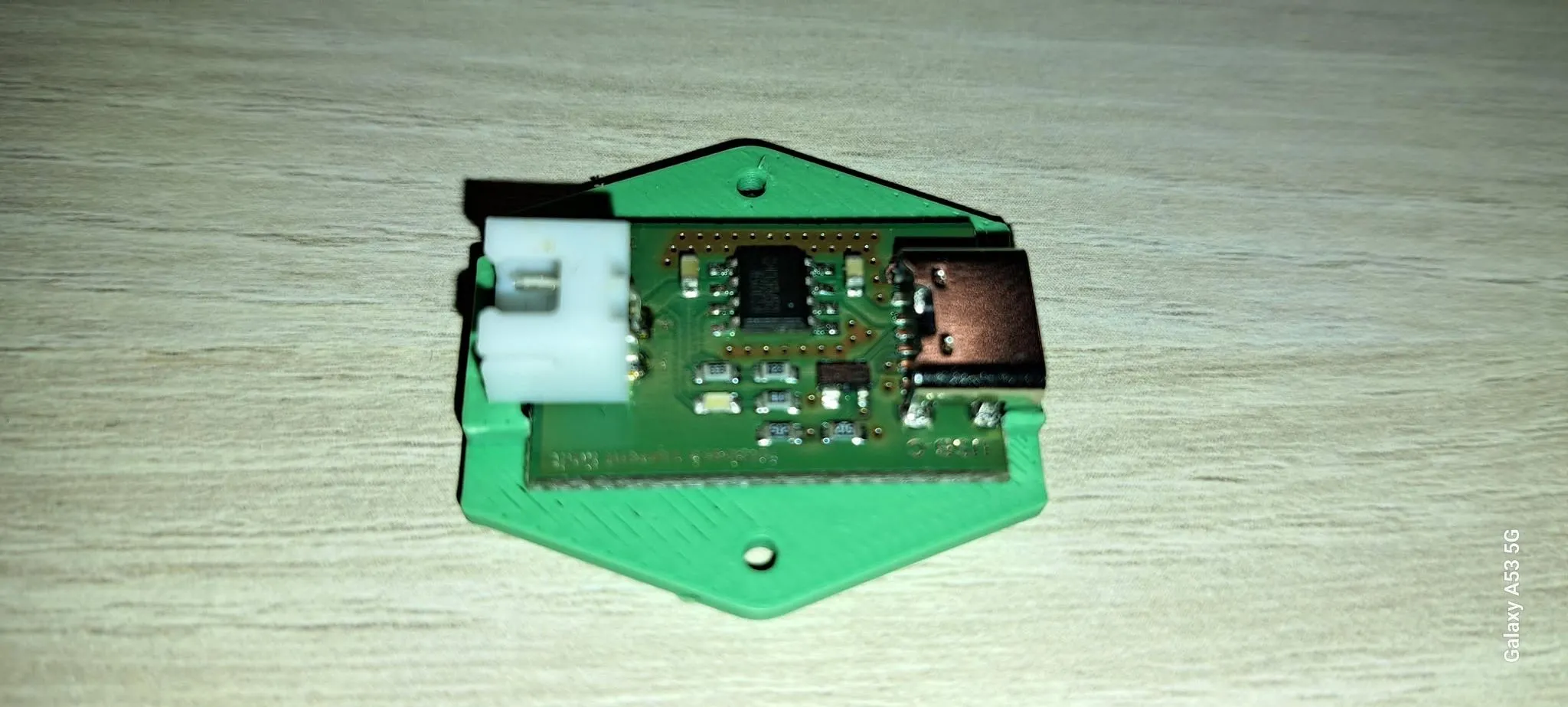

Place the VREG2 USB-C power board into the DC converter bracket (tight fit)

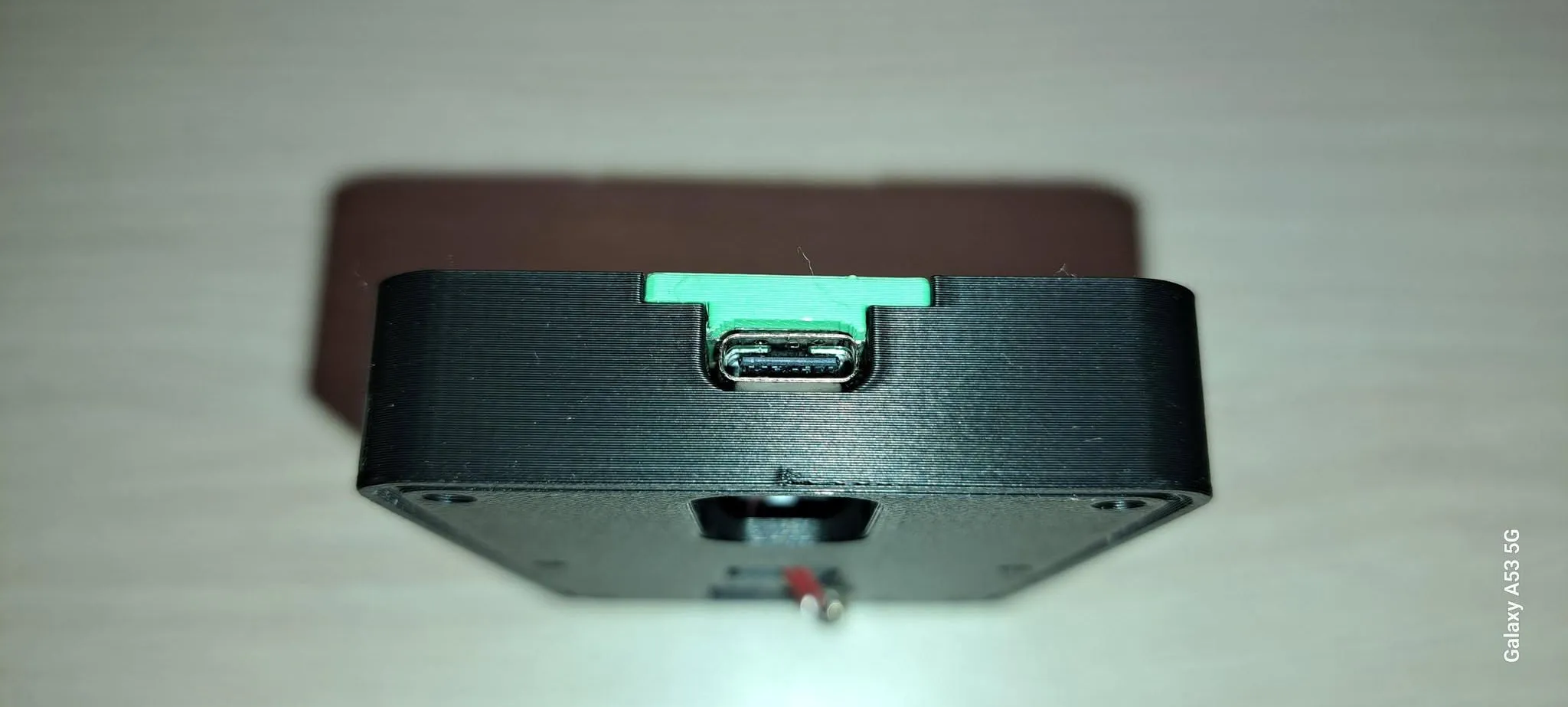

Check board orientation, usb-c connector should not be obstructed
Thread the prepared dc power cable trough the Base Plate
Connect the JST connectors XH
Place the DC converter bracket with the VREG power board into the Base Plate
Check Orientation

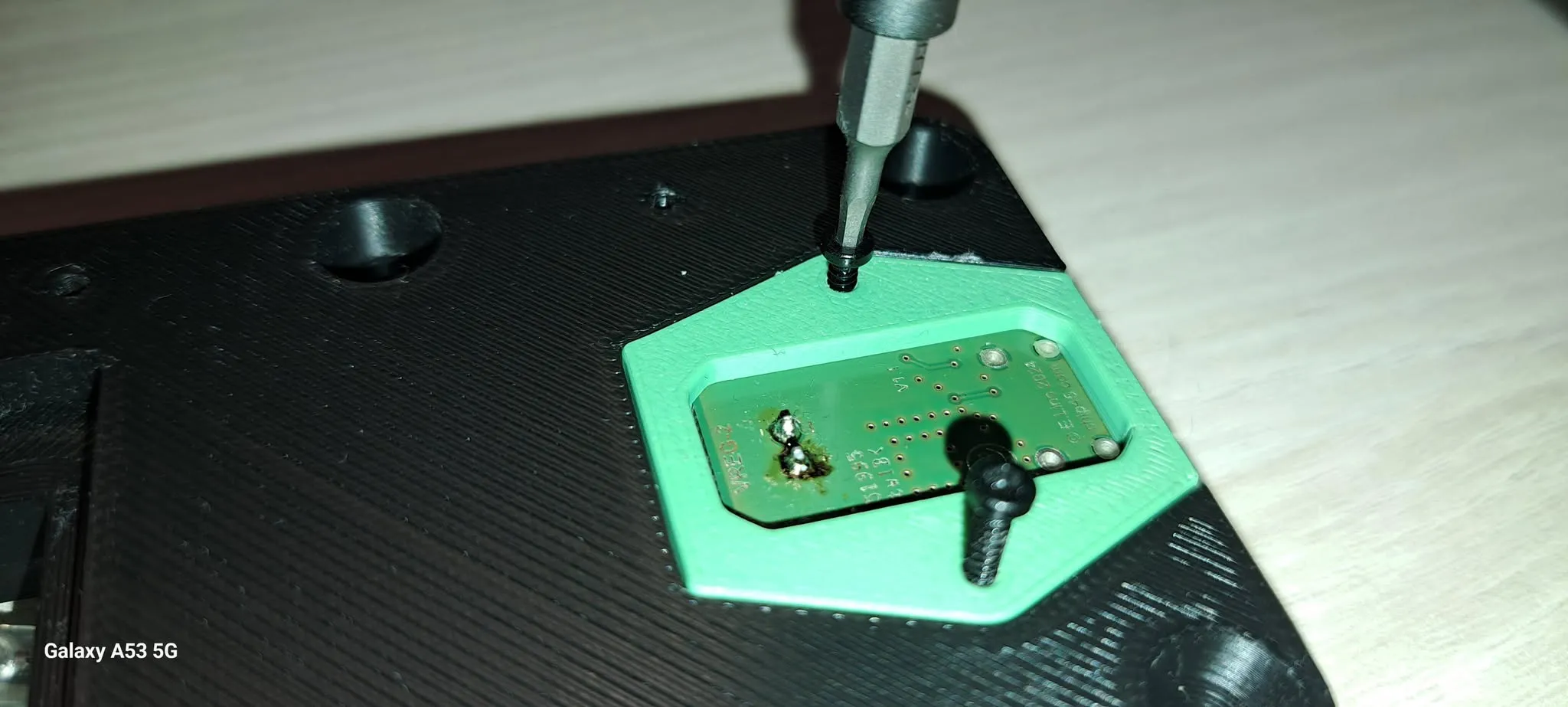

Use 2 BT2x6 SHCS Self Tapping Screw (20PCS) - AA093 to secure the bracket
- Cut the Gasket Plug with a scalpel or knife along the 2 channels

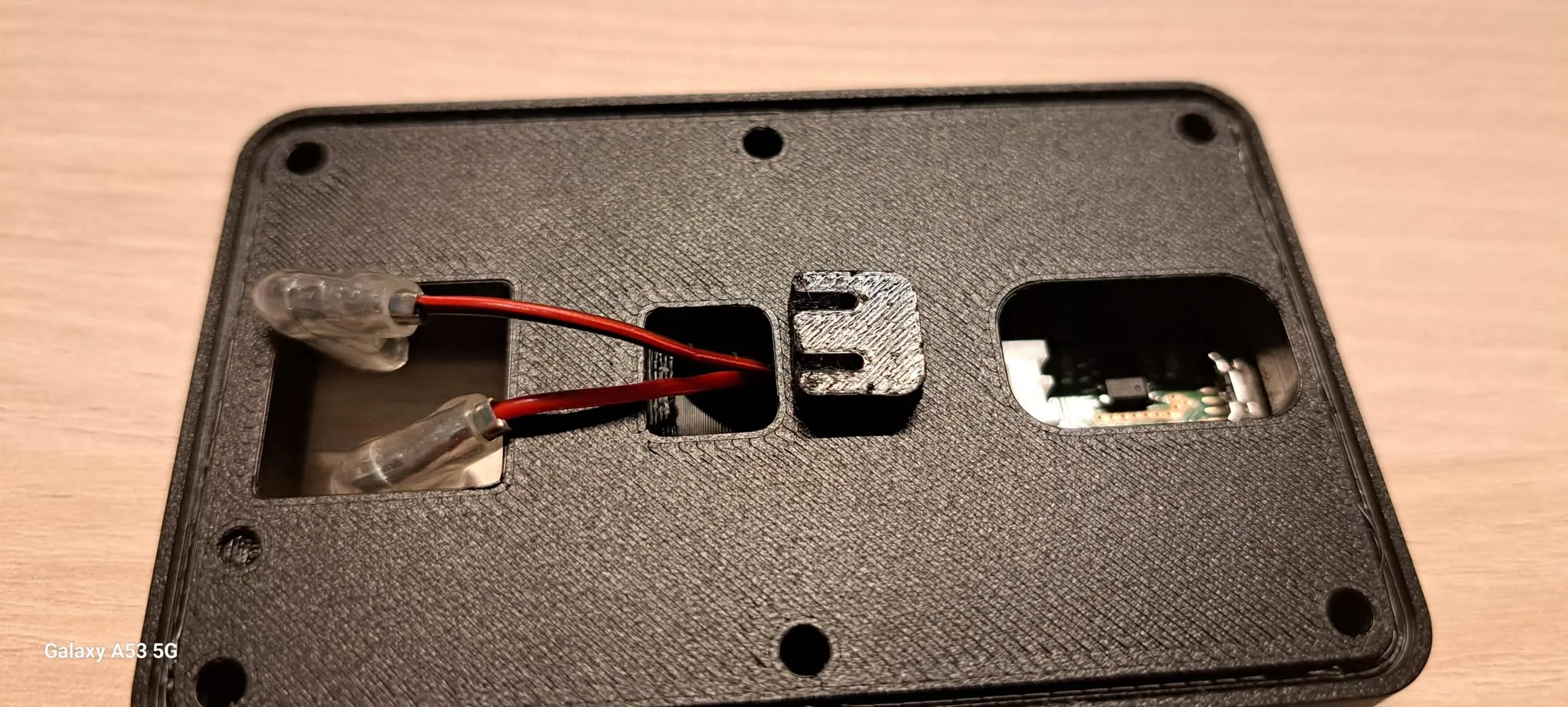

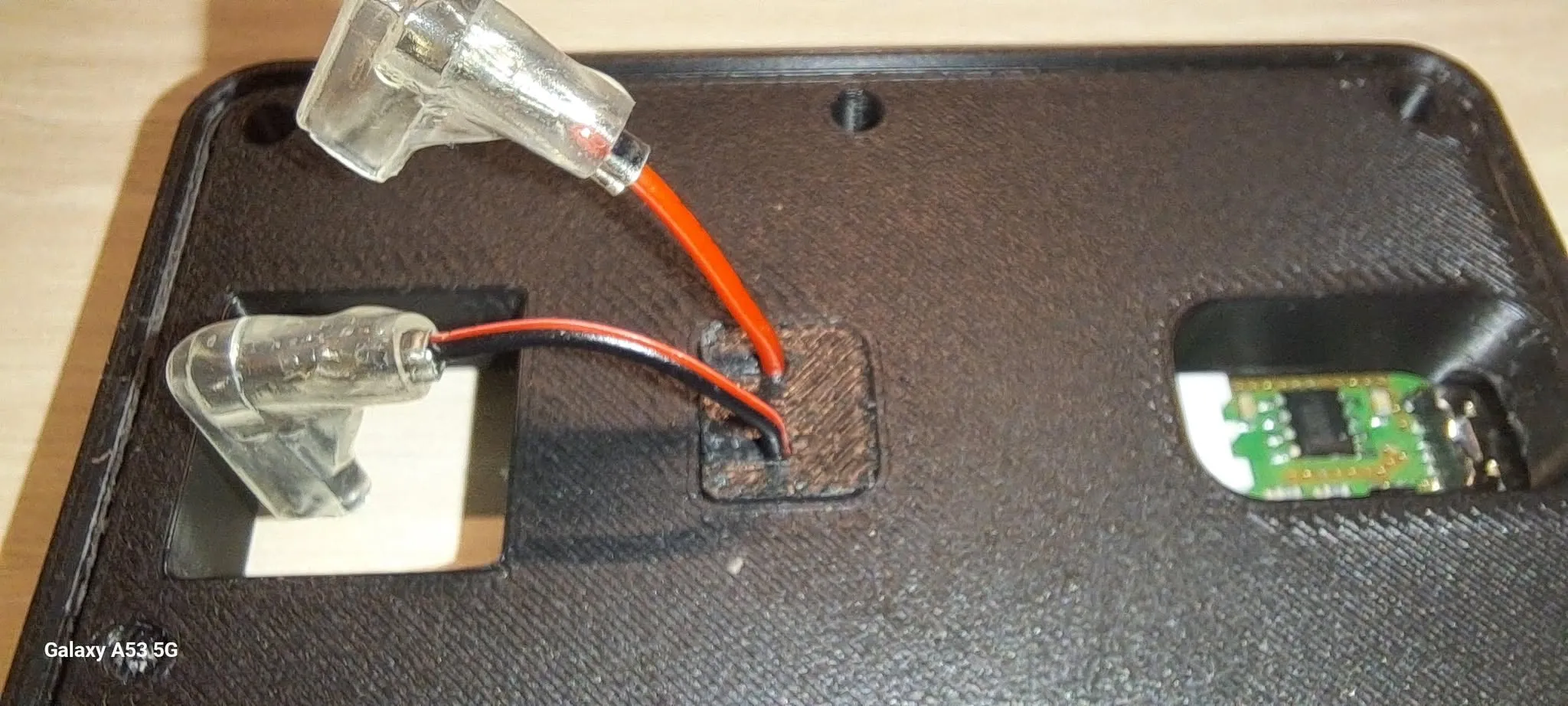

Carefully push the wires trough the cuts into the holes in the Gasket Plug

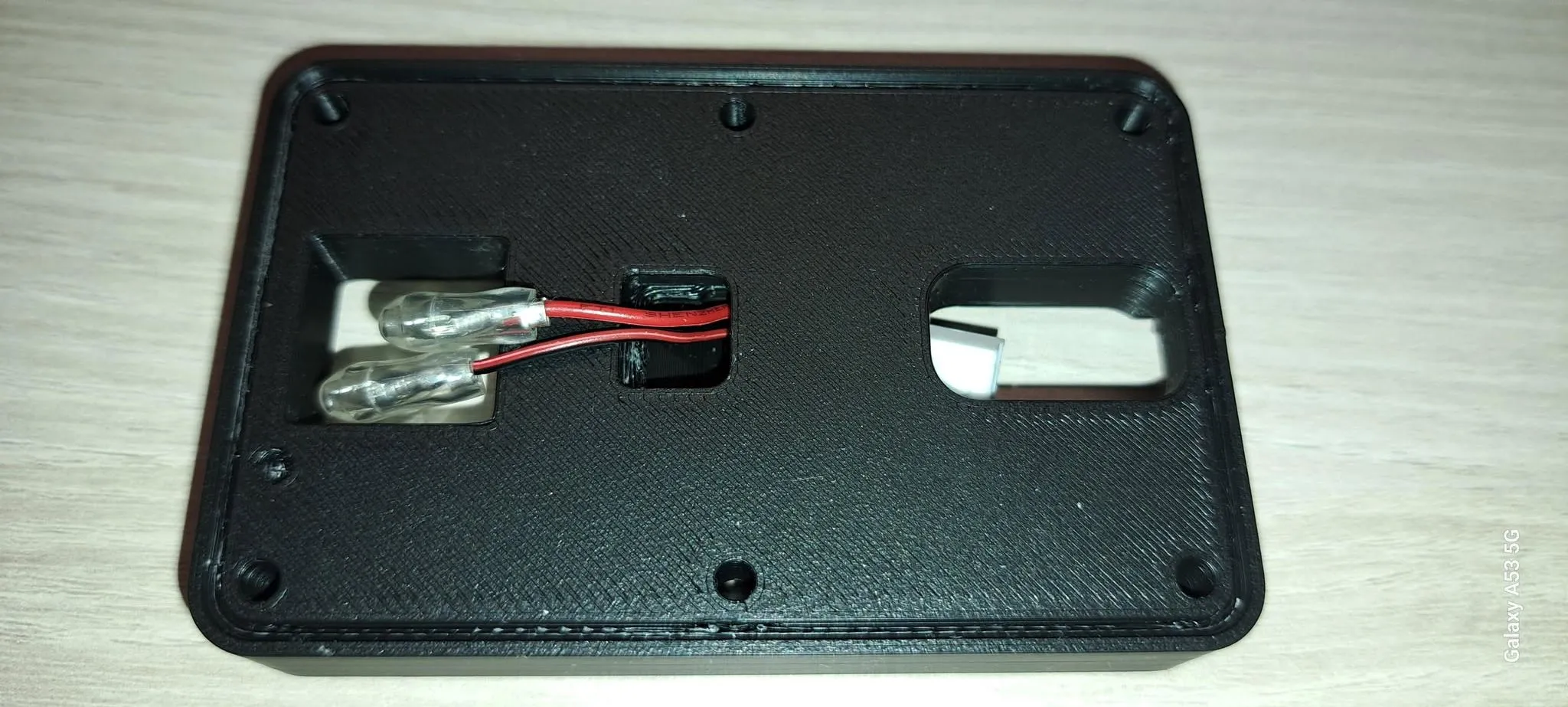

Seal the base plate by slideing the Gasket Plug into its place in the Base Plate

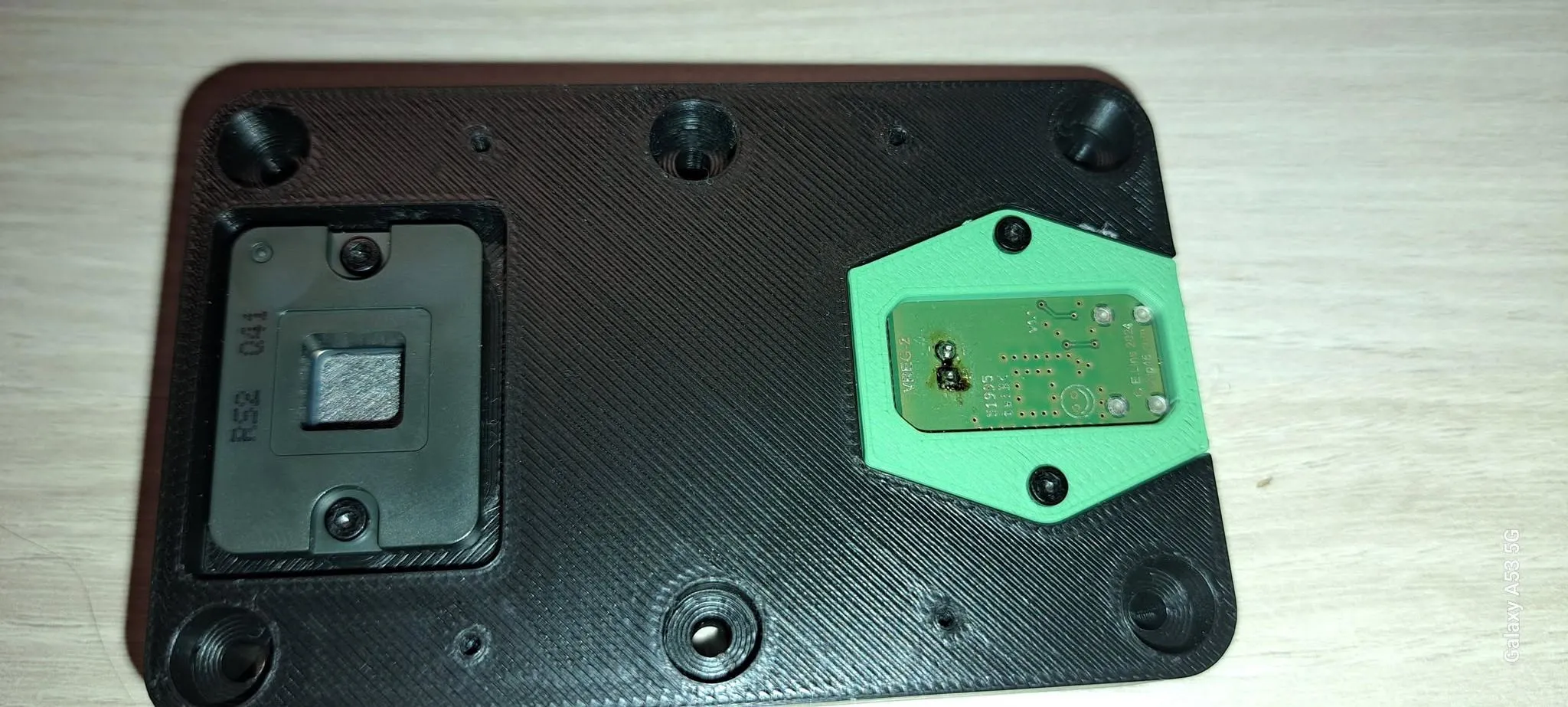

RS2 Membrane Dehumidifier into the base plate and secure it with 2 BT2x6 SHCS Self Tapping Screw (20PCS) - AA093

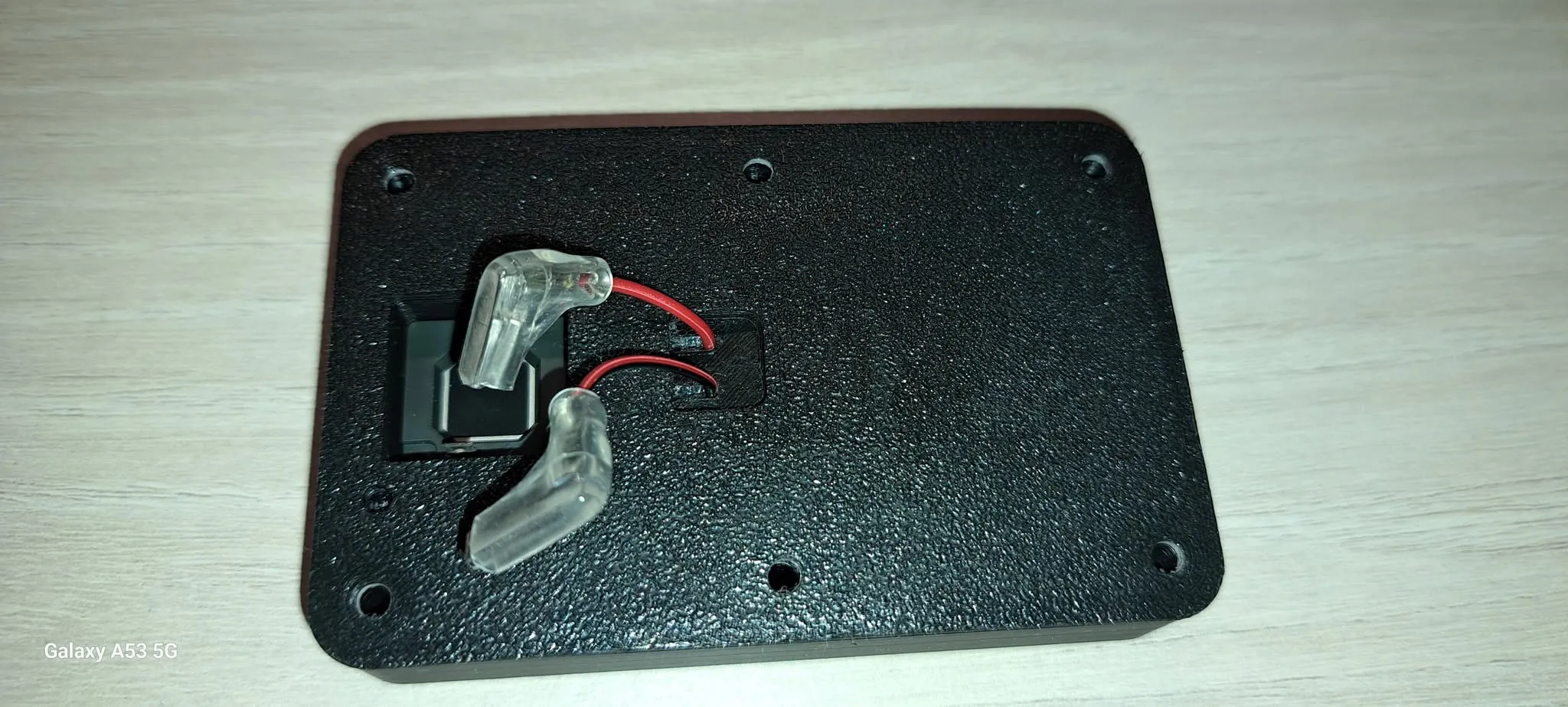

Thread the power wires trough the gasket plate and connect them to the RS2 Membrane Dehumidifier.

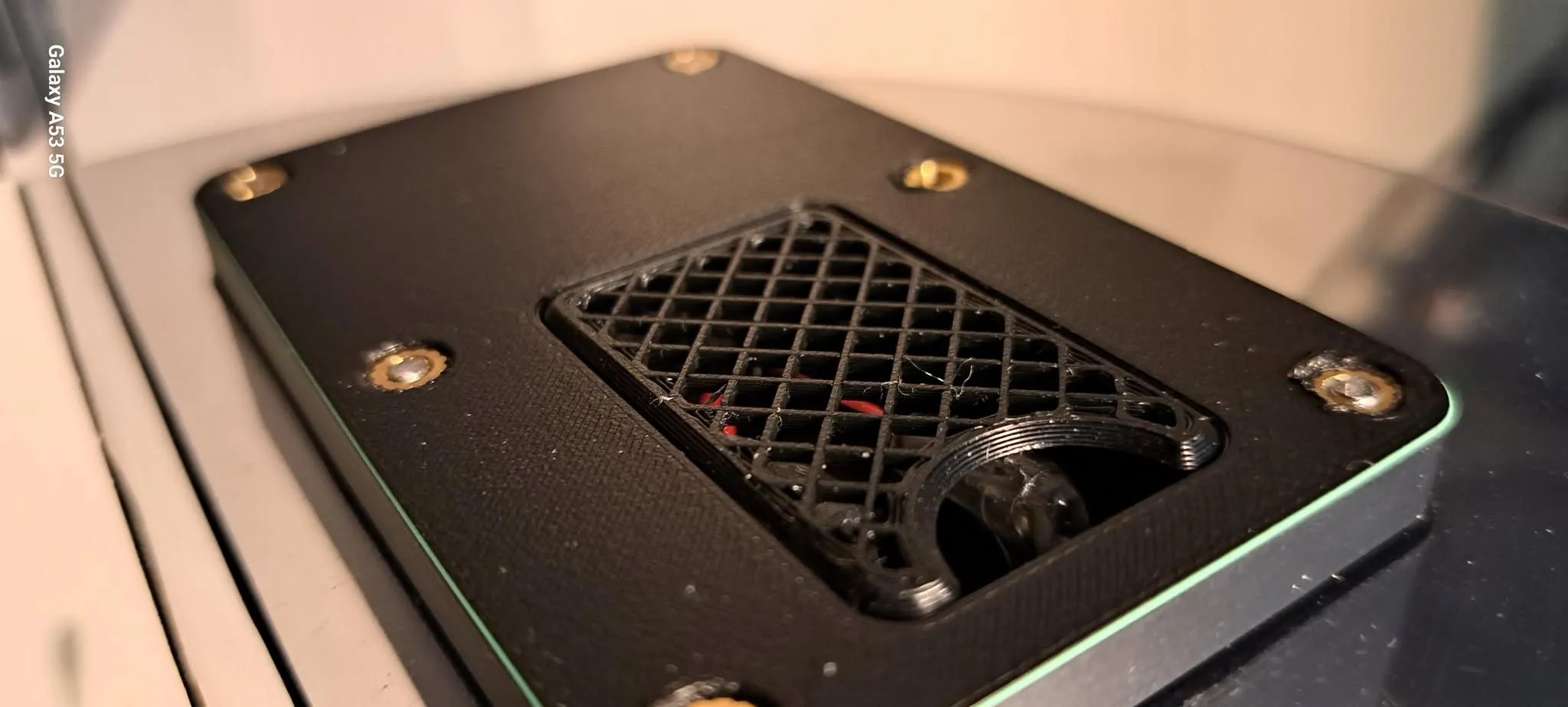

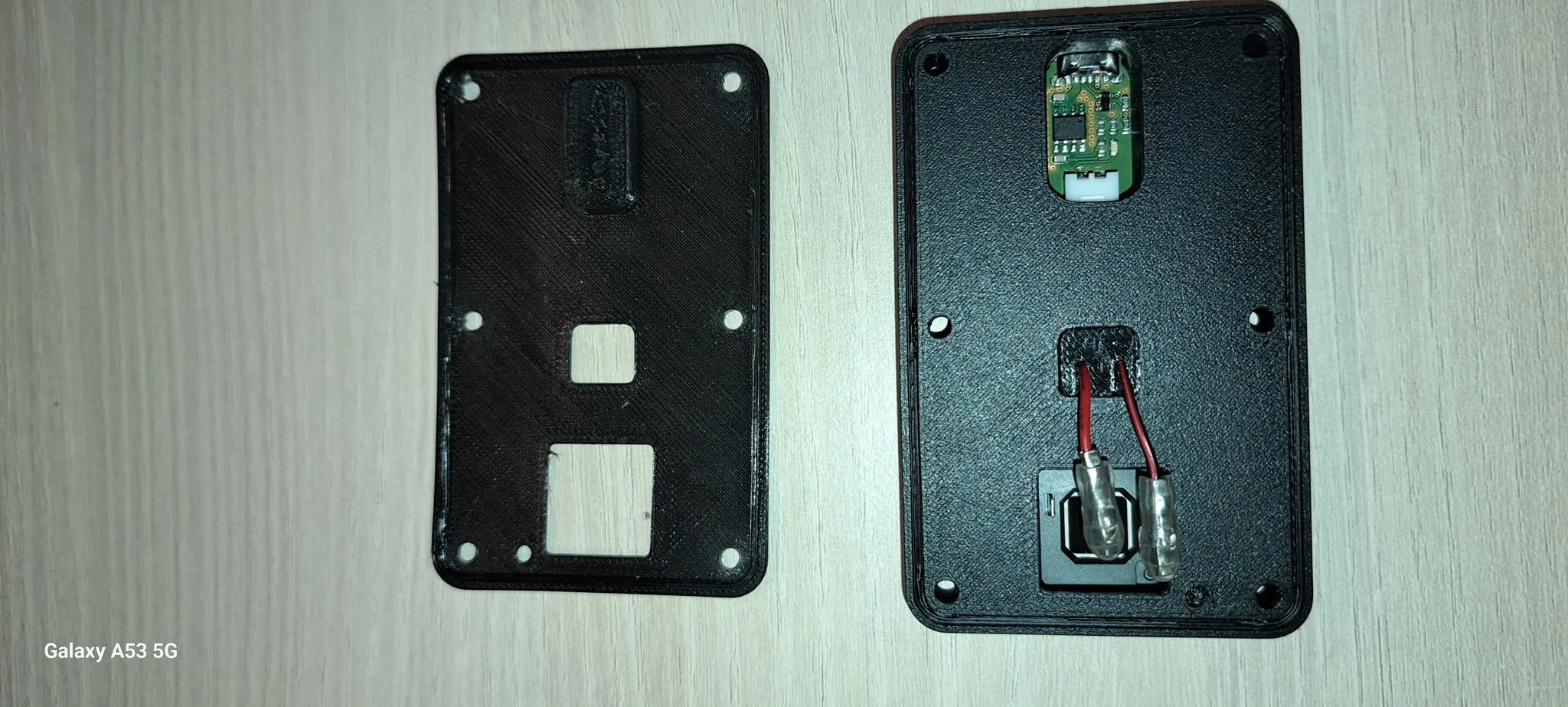

USE the INDICATOR on the Base Plate and Dehumidifier for proper orientation. Double check the polarity as connectic the wires in reverse can and will fry your dehumidifier.- Use 6 M3x20 SHCS Machine Screw (10PCS) - AA040 to secure the Base Plate assembly to the side of the AMS with the Back Plate.
Place Wire cover over the exposed wires in the Back Plate.
- Tighten the M3X20 screws until the gasket plate is compressed for a good airtight seal.
Place protective cover on the Base Plate and secure it with 4 BT2x6 SHCS Self Tapping Screw (20PCS) - AA093 screws.

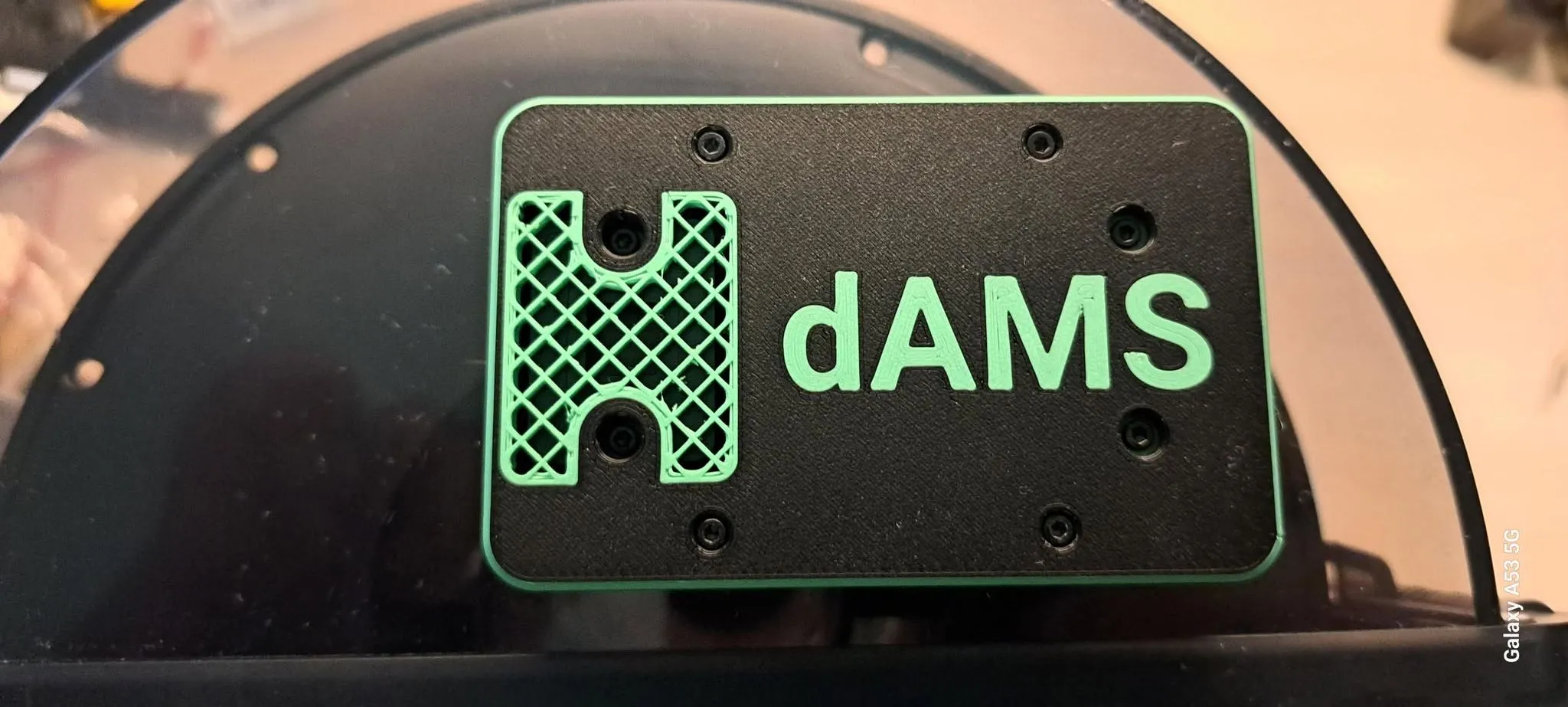

Congratulation your dAMS is ready!
