Description

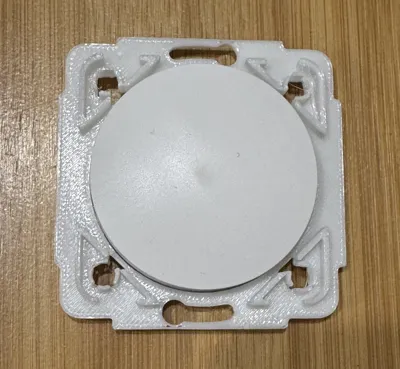

This model allows you to fit a Zigbee switch with dimensions of 50×50×8 mm from Aliexpress into an ABB Tango cover.

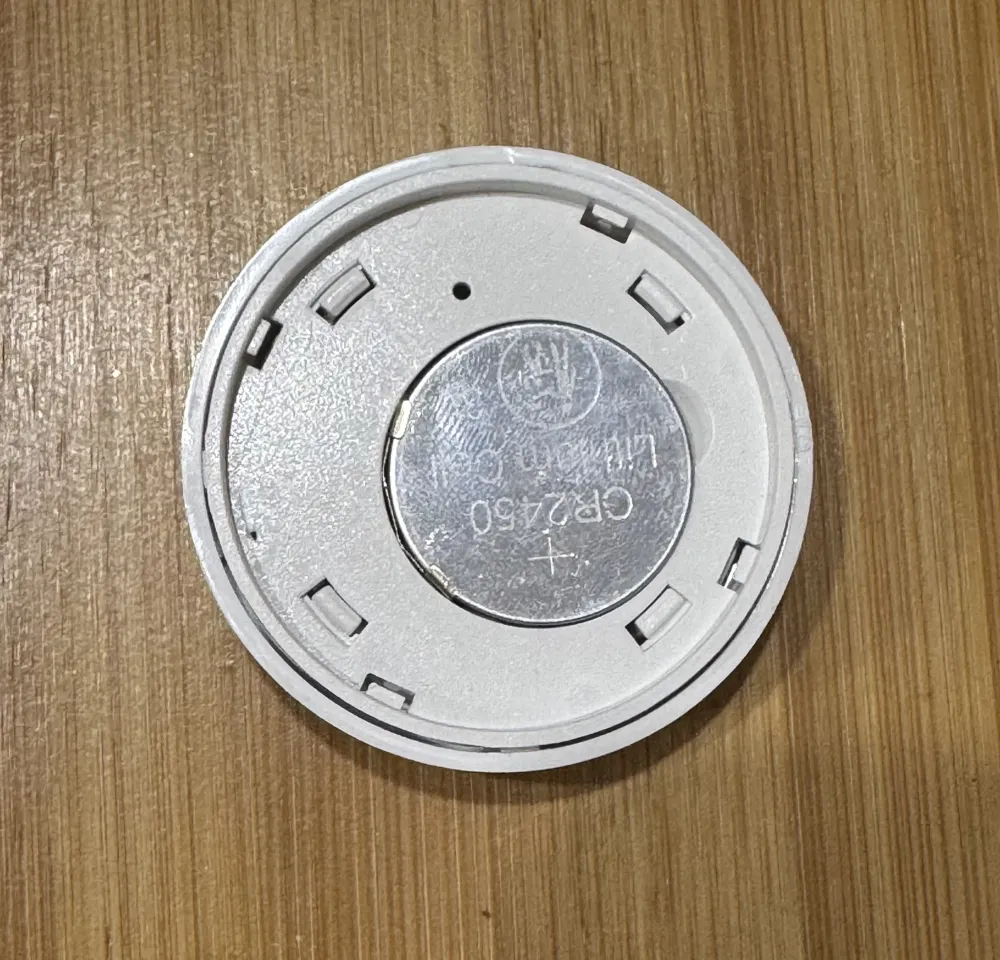

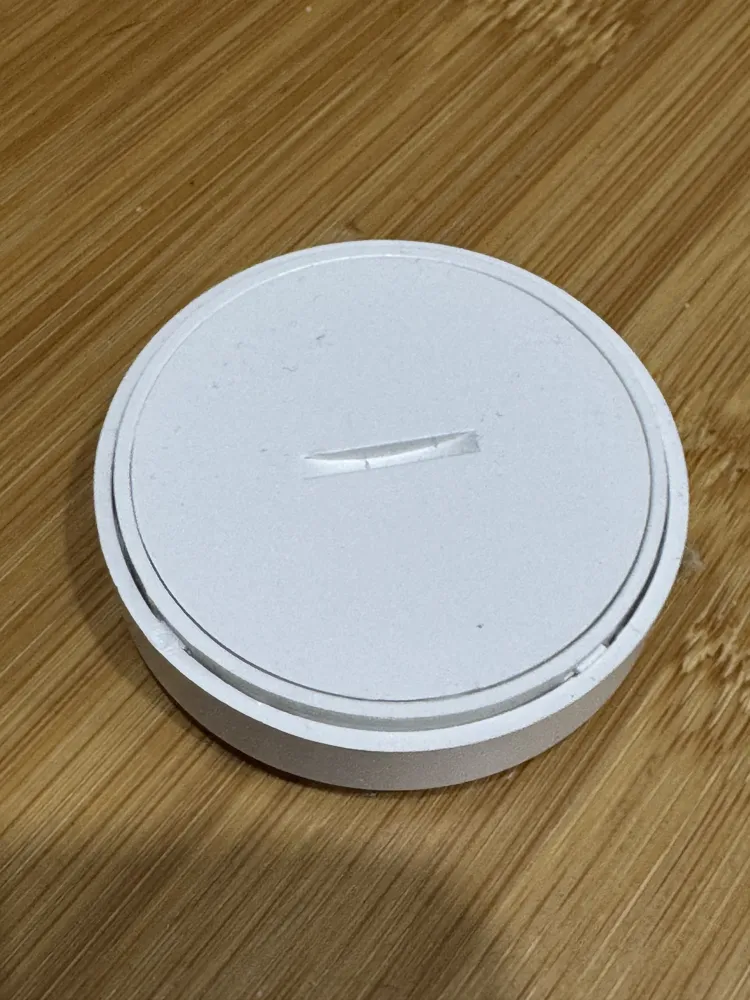

The battery can be easily replaced—simply remove the front plate with a screwdriver and twist it to the left to unlock.
It is important to purchase the exact model from Aliexpress that has a bottom section to lock it into place on the back of the 3D print.
Installation steps:
- Remove the bottom cover from the Zigbee switch.

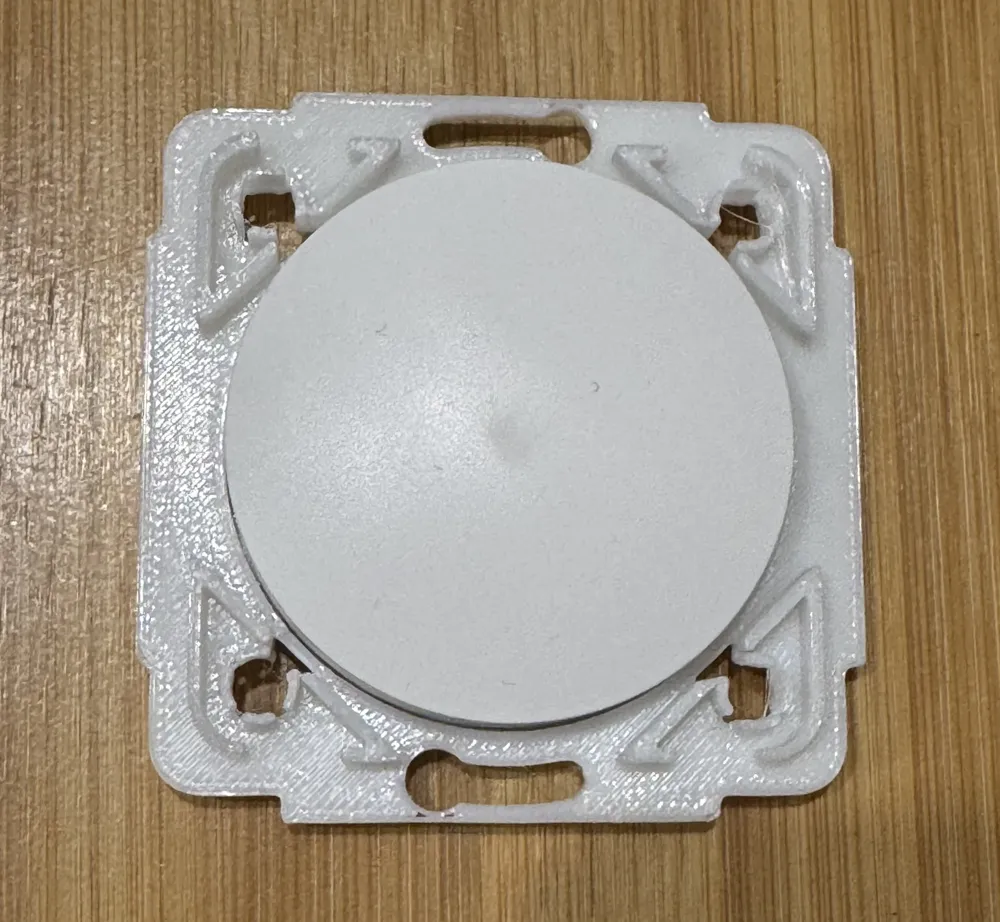

- Place the switch into the 3D-printed holder and twist it to the right to secure it.

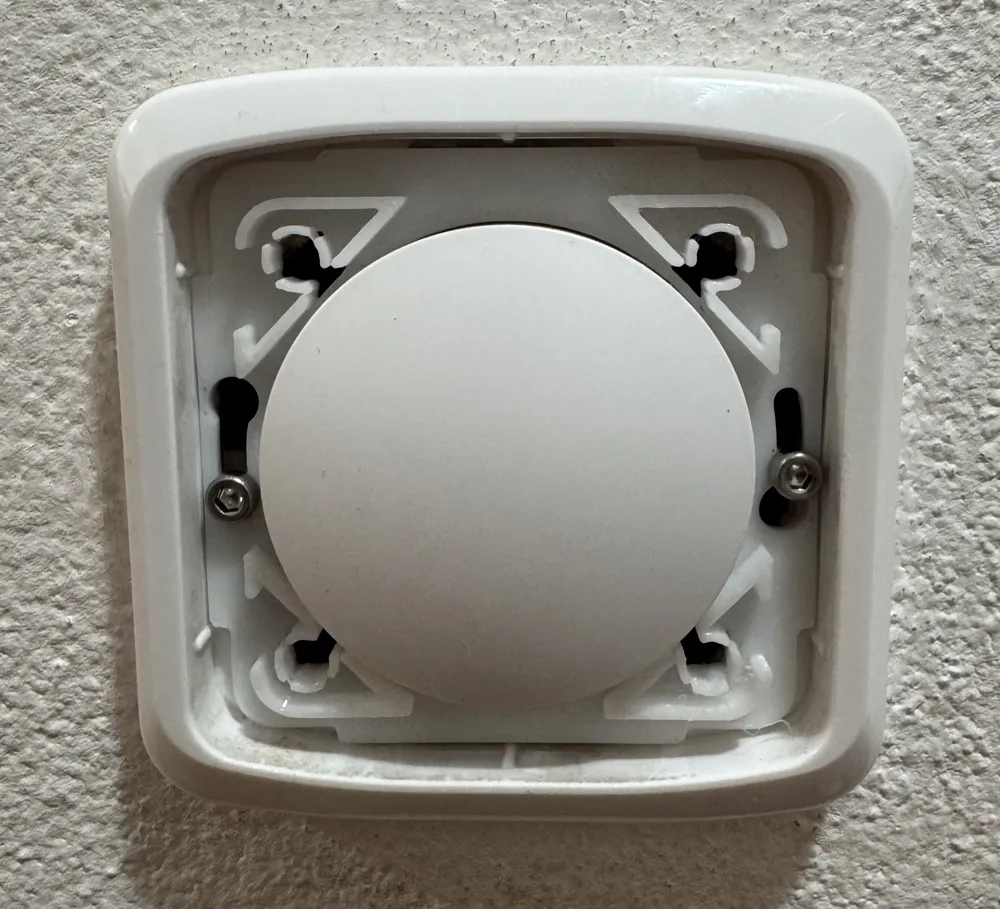

- Attach the 3D-printed model with the Zigbee switch to the ABB Tango cover and secure it with screws.

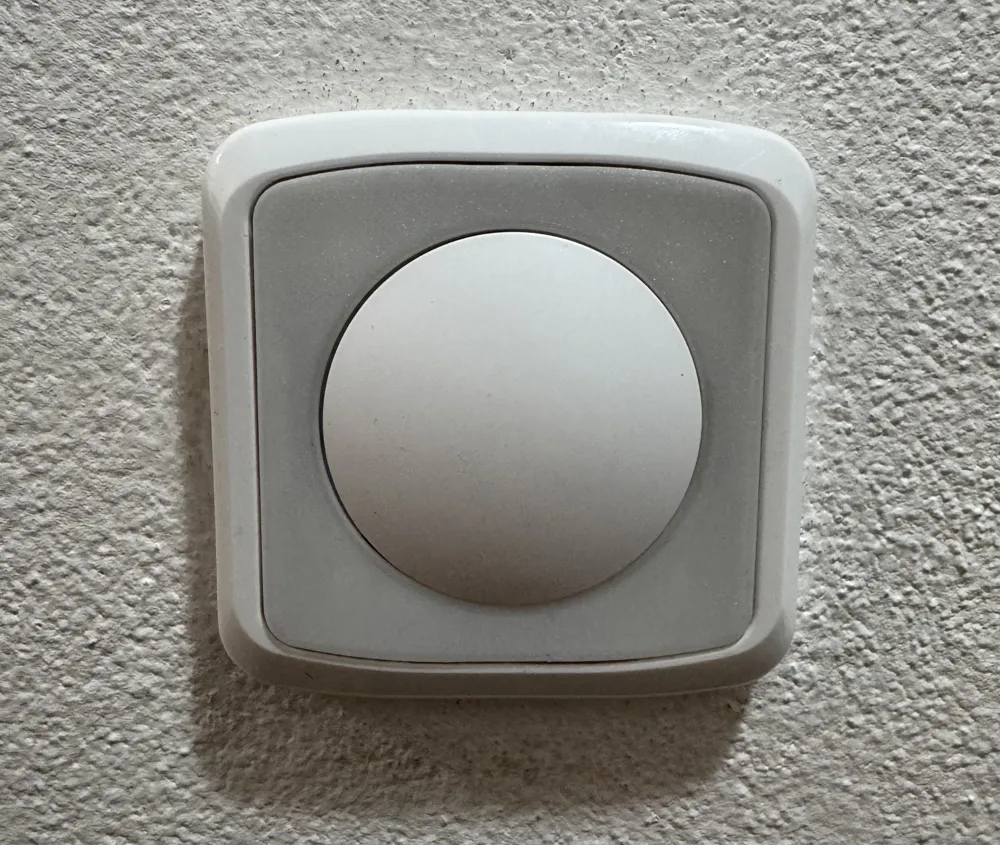

- Insert the 3D-printed front plate into the ABB Tango cover.
This remix is based on
