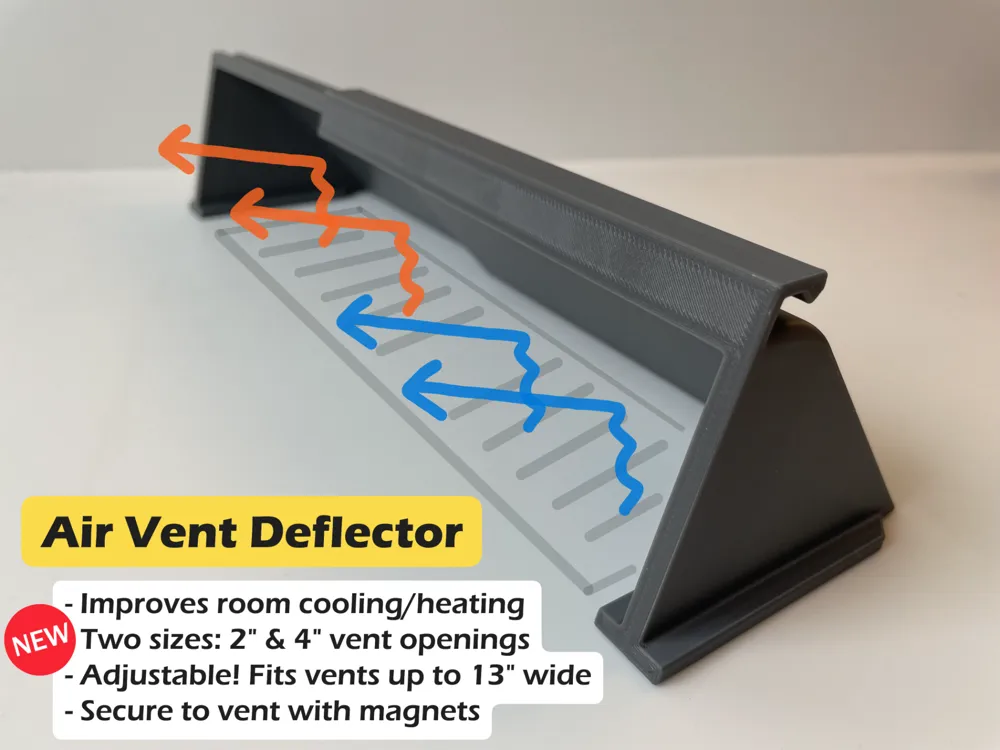

Air Vent Deflector | Adjustable & Magnetic
Print Profile(2)
Bill of Materials
Description

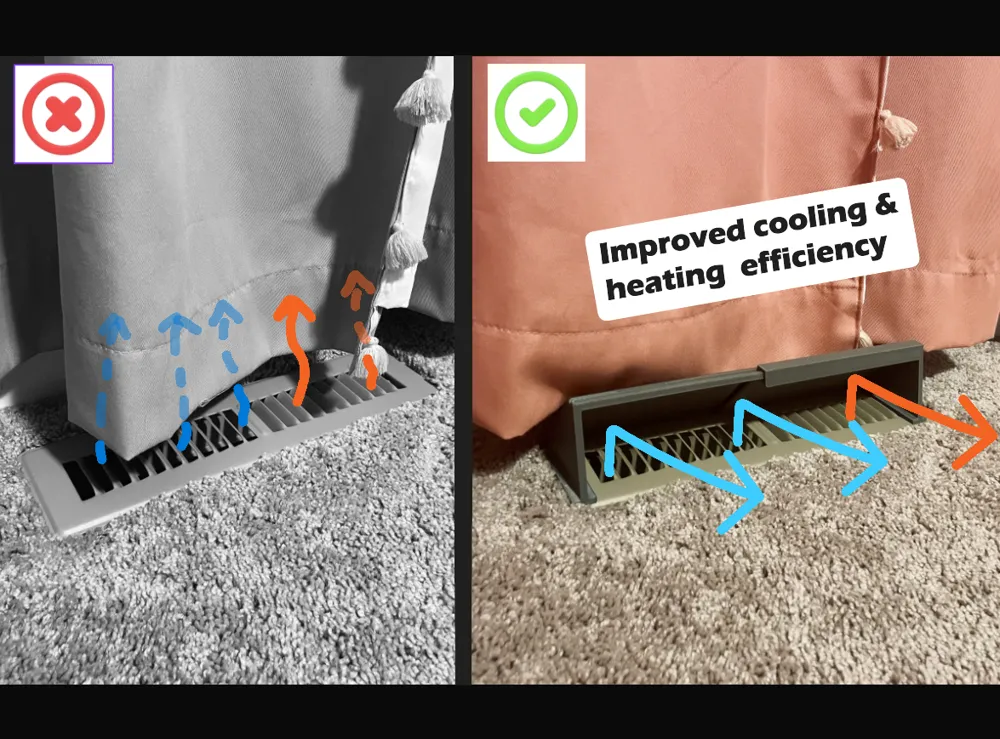

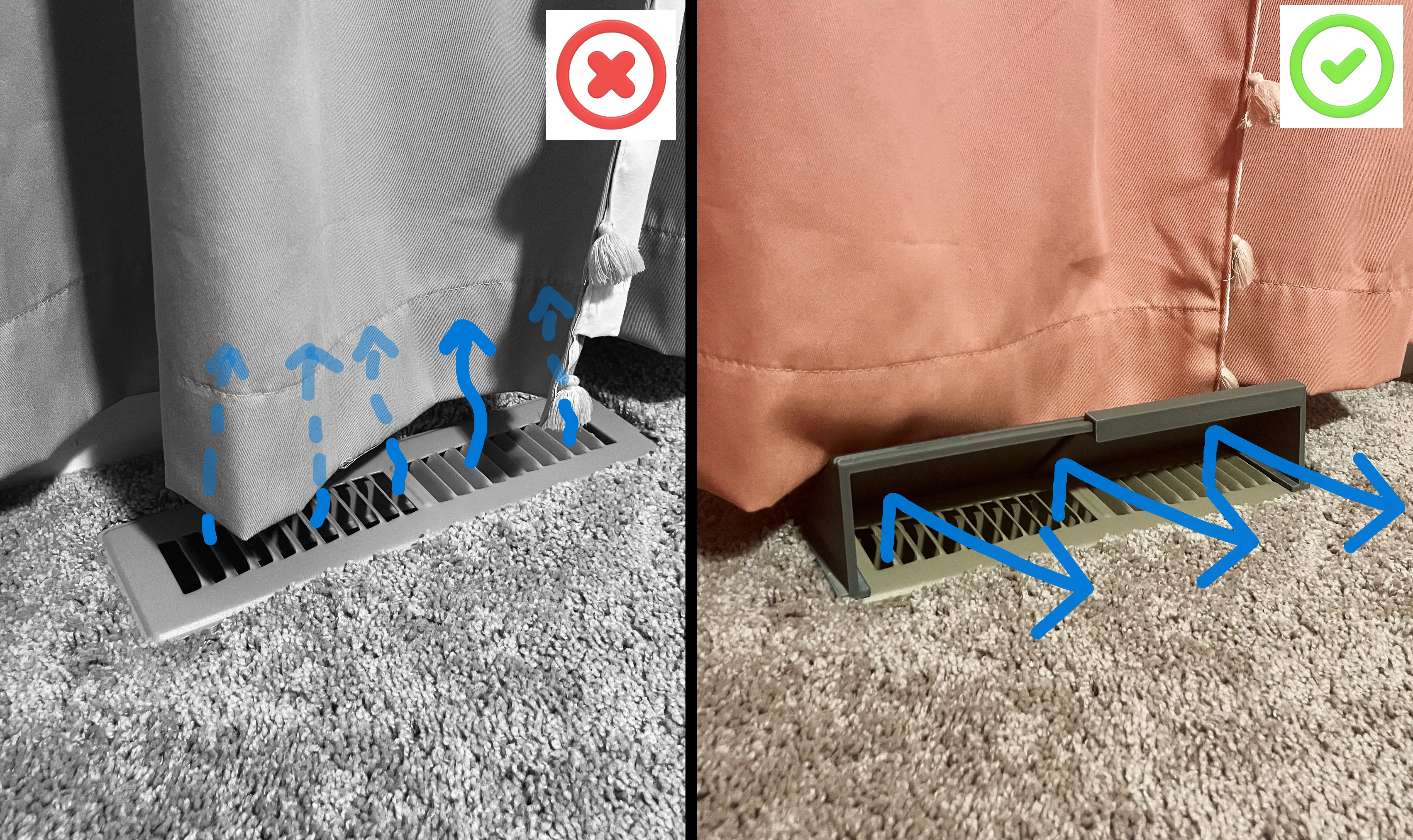

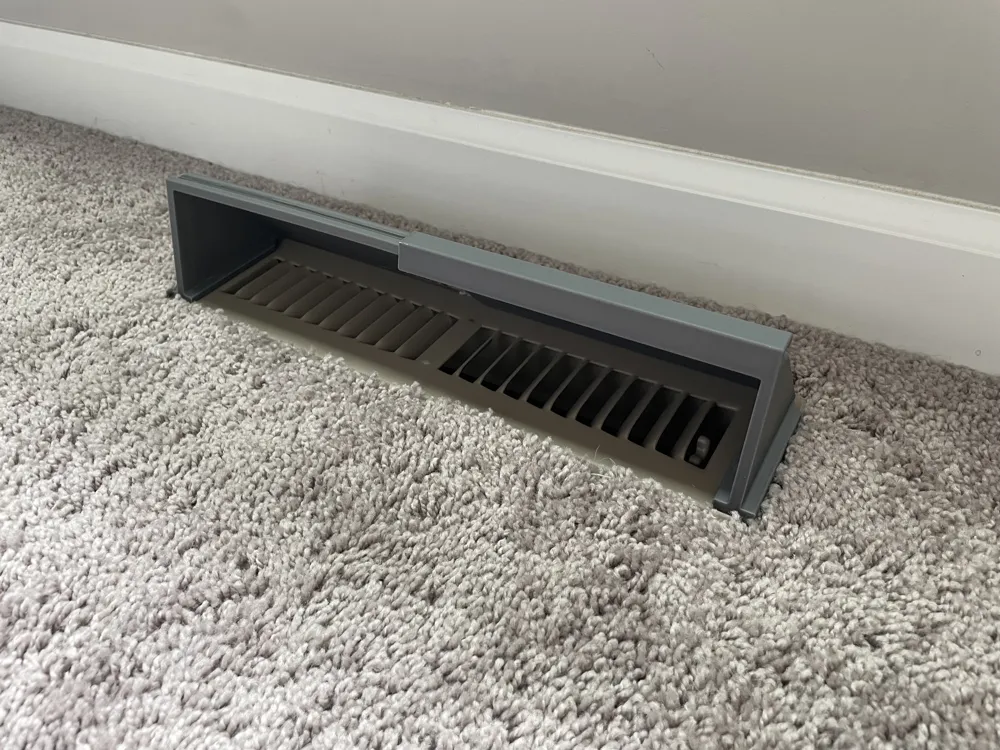

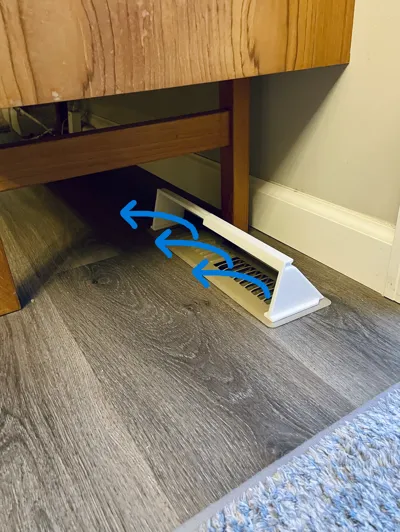

Have a room that is too cold or too hot? Are any of your floor vents under furniture, or near doors or windows? Do you have a vent blasting in the wrong direction? Improve the heating and cooling of your room with this easy to install, well-designed and battle tested air vent deflector.
Highlights

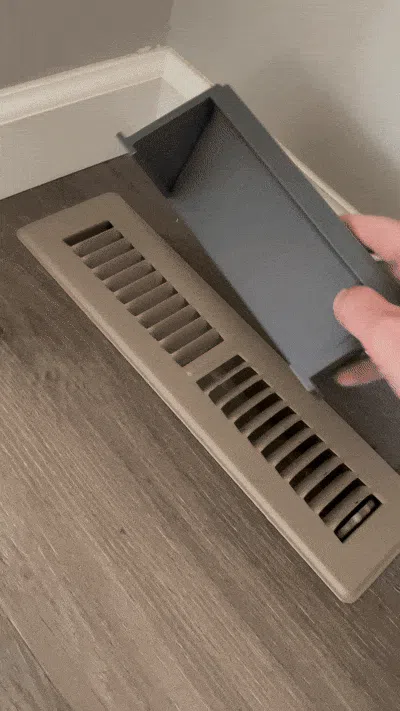

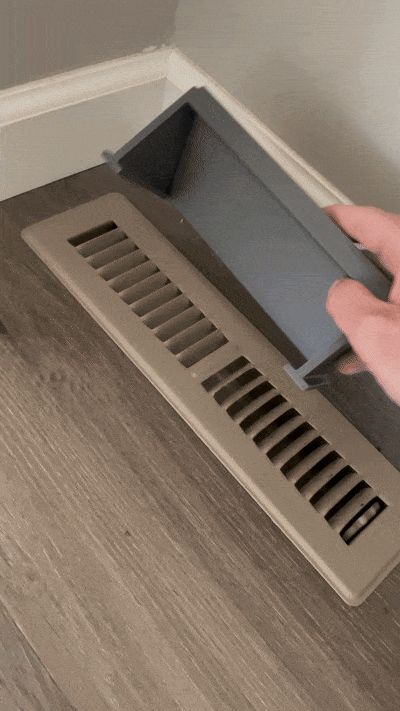

- 🛝Slide into comfort: Air vent deflector quickly adjusts to fit vents 6" - 13" in length thanks to a handy slide mechanism.
- 🧲Magnets secure it in-place: Built in magnet slots allow for securing to metal vents! The current design supports 12x2mm or 10x2mm circular magnets that press fit into place.
- 🆕Available in two sizes: The original design tailored for 2" vent openings, and a new 4" vent opening design. Choose your size when selecting the print profile.
Boost Me (for free)
Enjoying this print?
👍 Liking helps others discover this model
🚀 Boosting is the best way to support my work
➕ Follow for more functional prints coming soon!
Printing Notes
- Print profiles use mouse ears on the model corners to keep the print from lifting given its length. Consider adding a brim or additional mouse ears if you experience bed adhesion issues.
- I recommend against using PLA as it is likely to warp after prolonged periods under even slightly elevated heat. I used PETG but, of course, ABS or ASA would have even better heat resistance.
