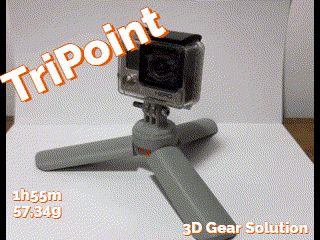

TriPoint - Universal Tripod
📸 Compact, Magnetic & Multi-Purpose Support!
✅ Key Features

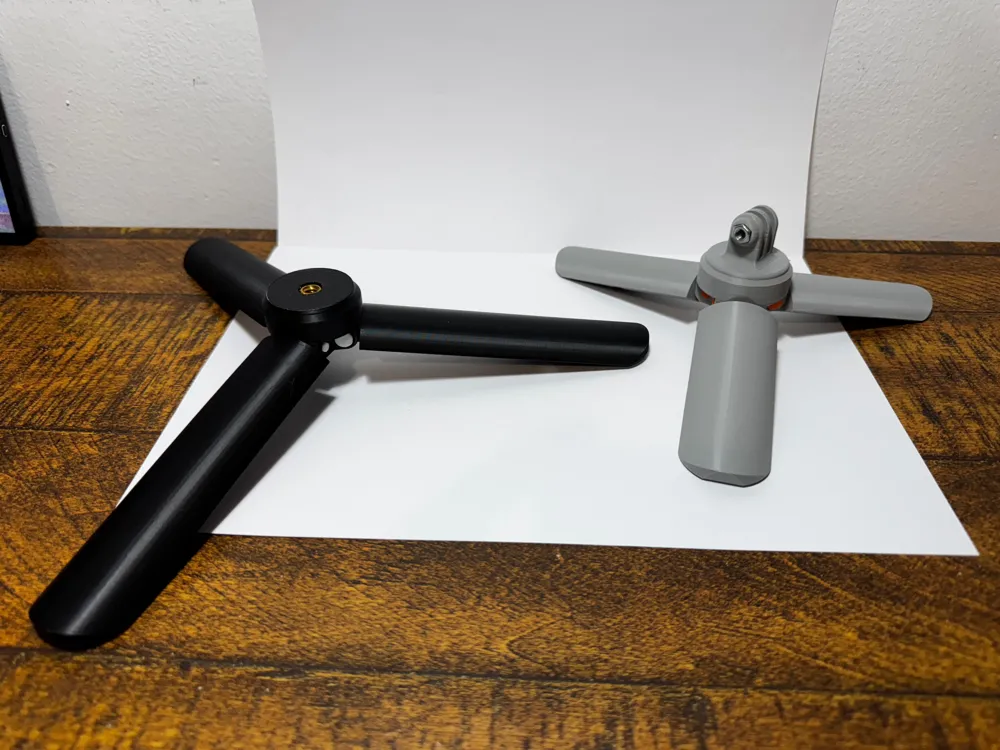

- 📏 Available in two sizes:
Standard – Legs: 120 mm
Mini – Legs: 80 mm
- 🧲 Built-in Magnetic System:
Each leg holds 2 magnets (6x2 mm) – for a total of 6 magnets – allowing the tripod to stay securely closed when folded (optional). - 🖐️ Grip Mode Functionality:

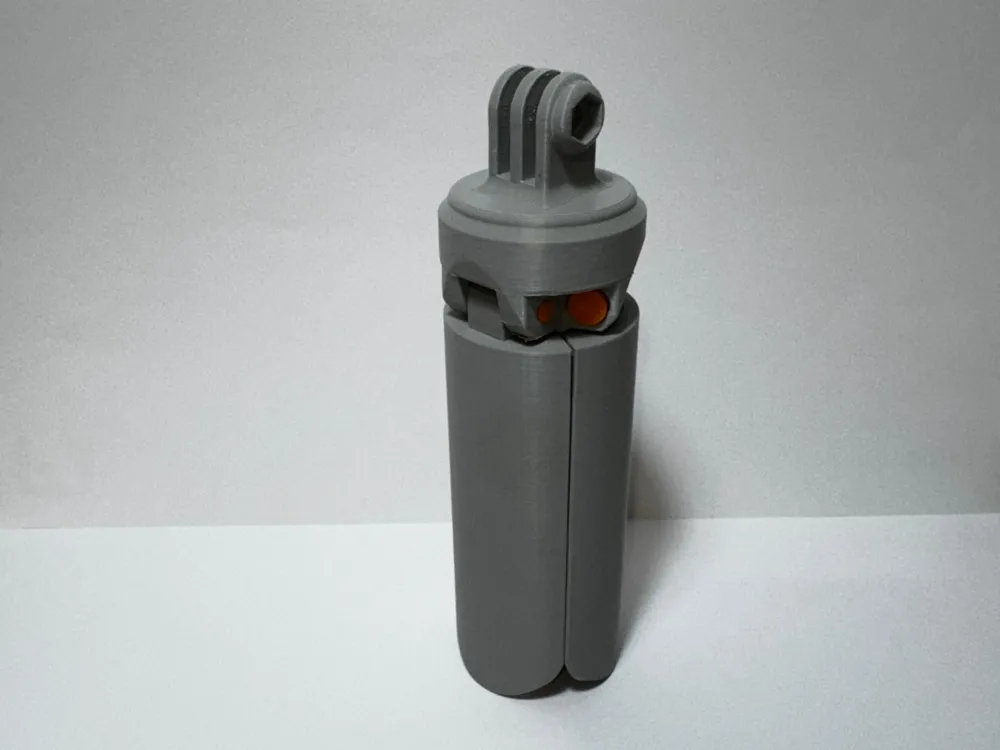

Fold it up and use it as a comfortable hand grip for better stability in handheld shooting.
🛠️ Easy Assembly Guide
0

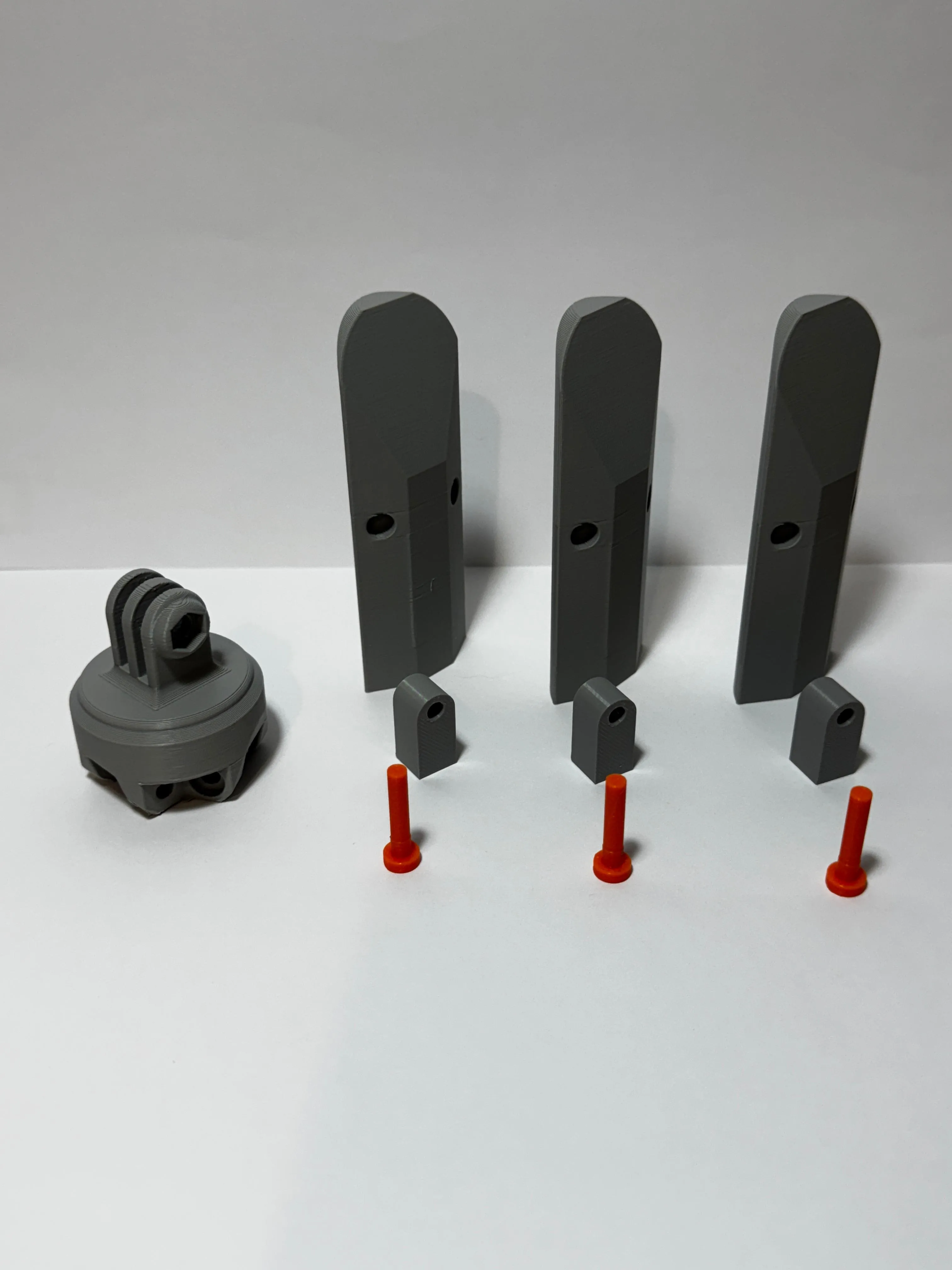

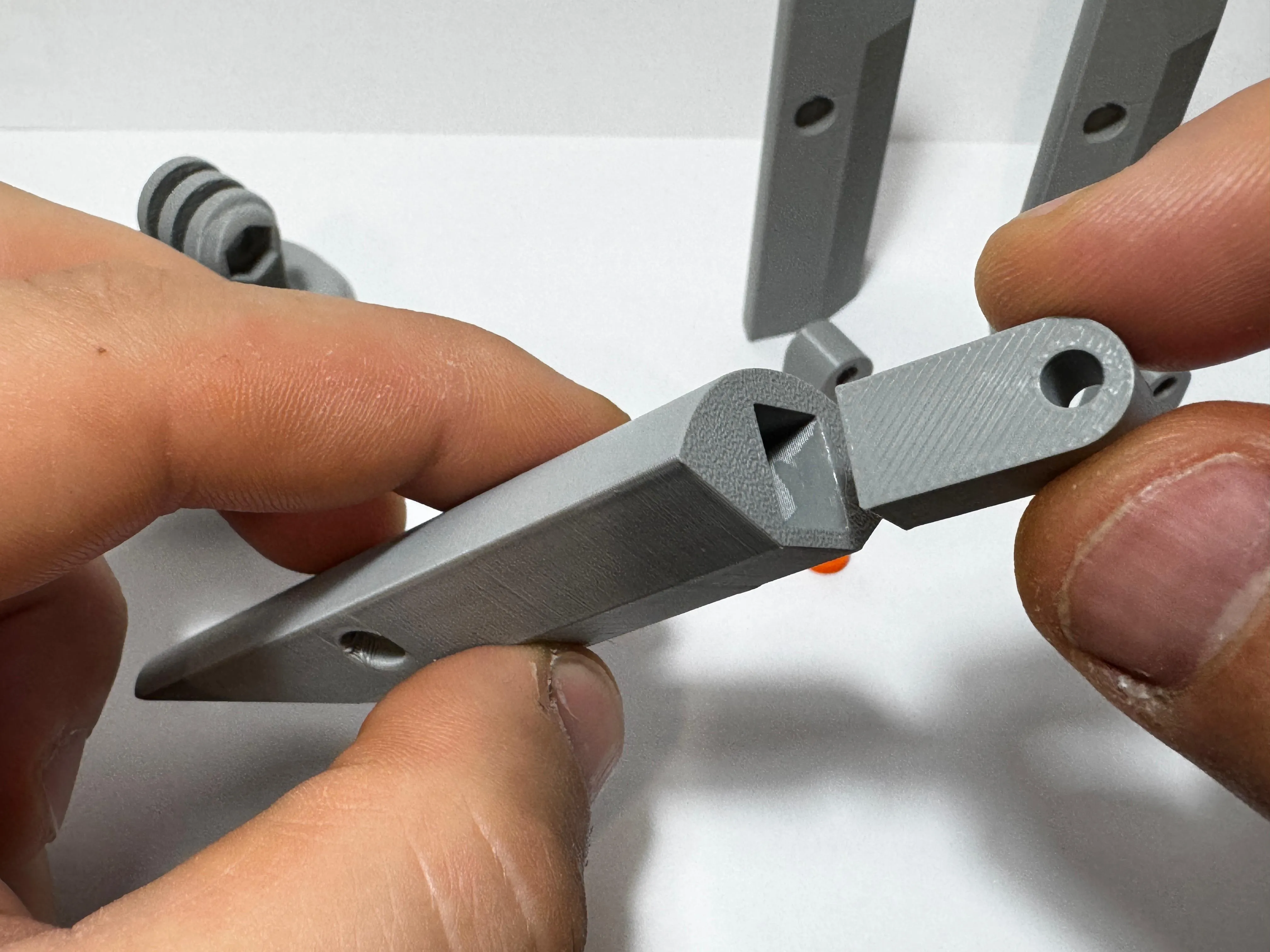

Insert the slotted connector into each leg
➕ Add a few drops of super glue (e.g., Loctite/CA glue) for a firm hold

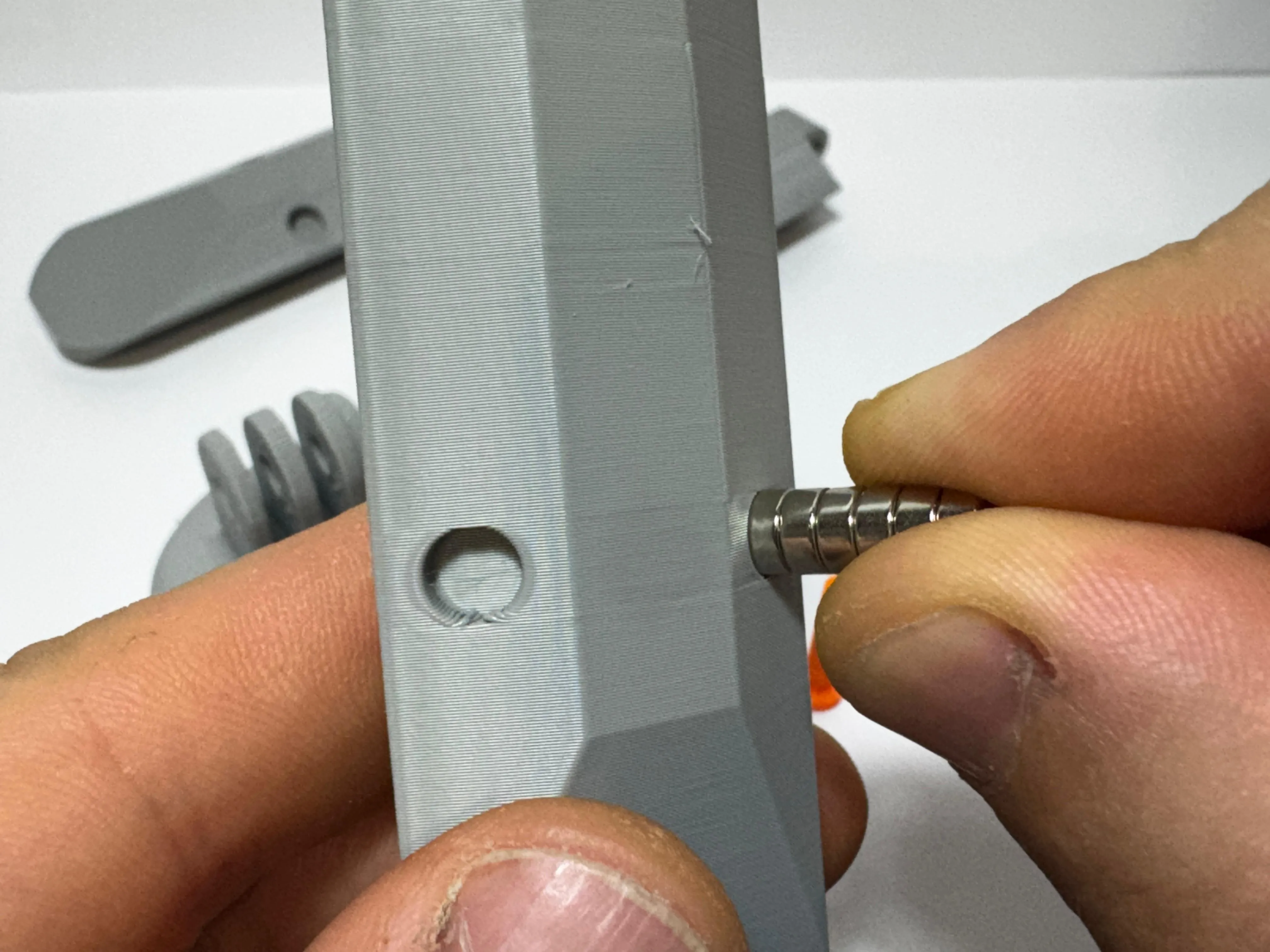

Place the magnets into the side holes of each leg (optional)

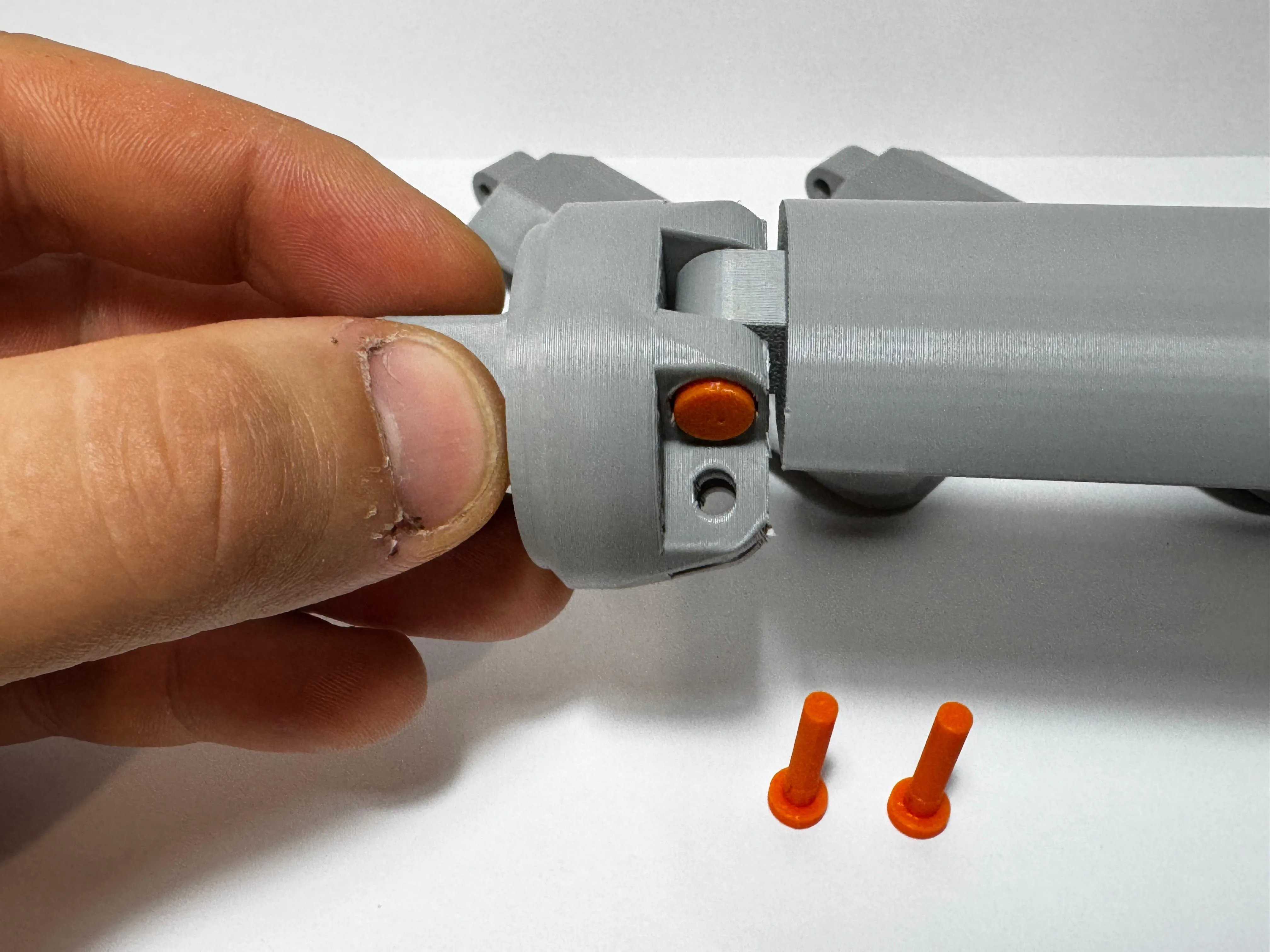

Attach the legs to the base using the center pin
➕ Apply a small amount of glue to lock it securely

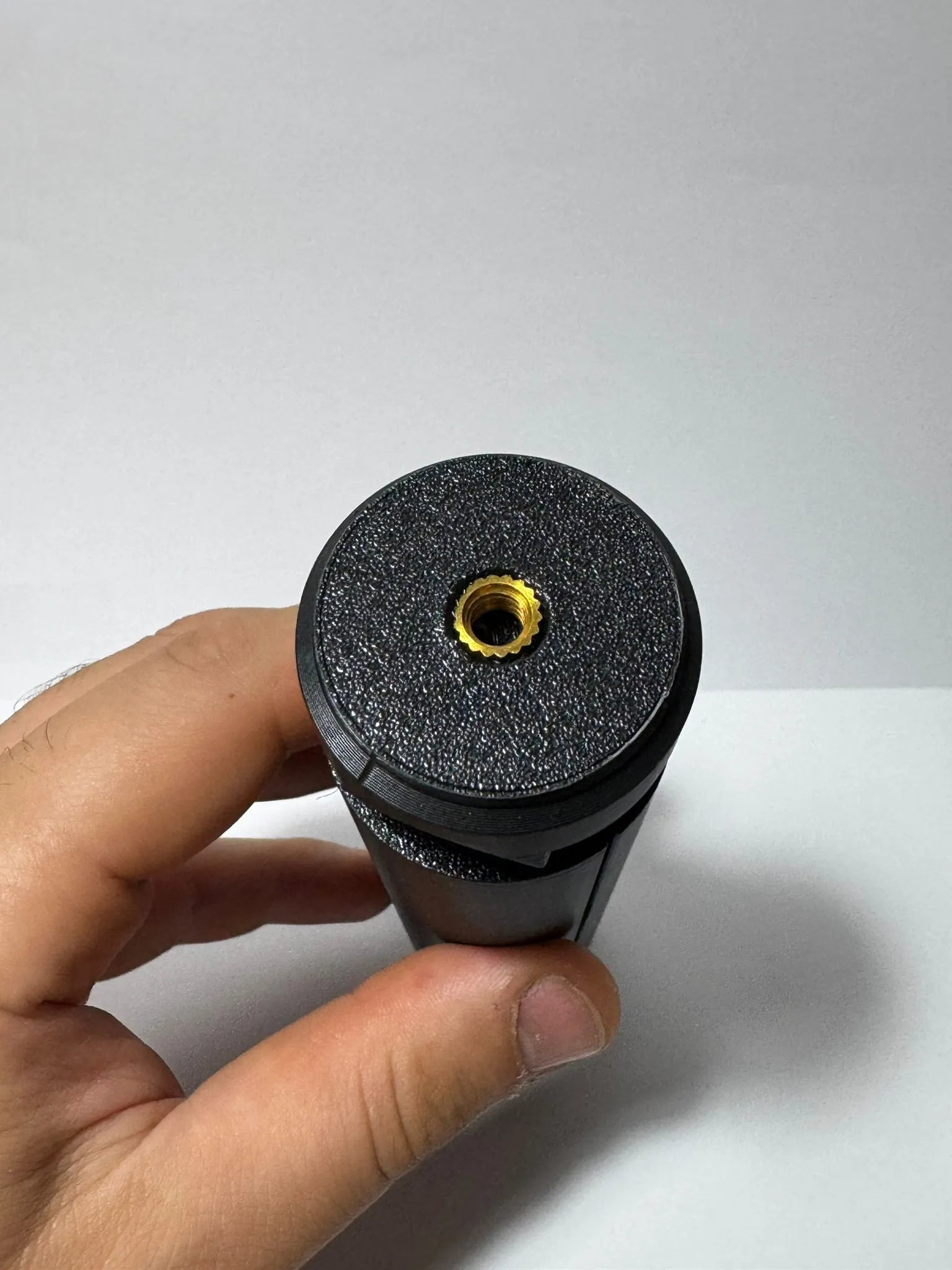

(Optional) Insert a 1/4” threaded insert into the central hole if your base supports it
🔄 3 Interchangeable Base Types
- 🔩 Base for 1/4” Threaded Insert (insert not included)

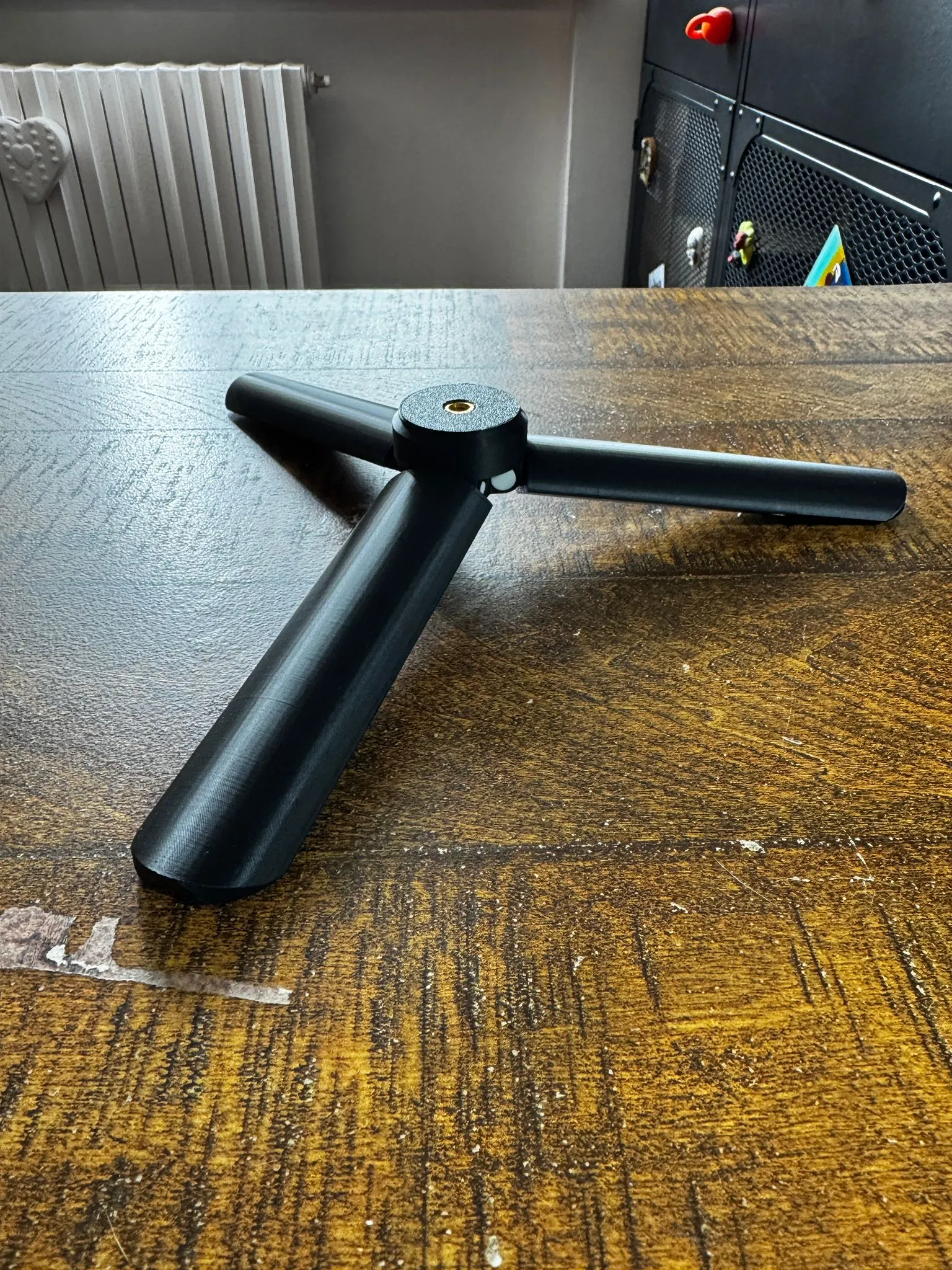

- 🧱 Base with Integrated 1/4” Thread

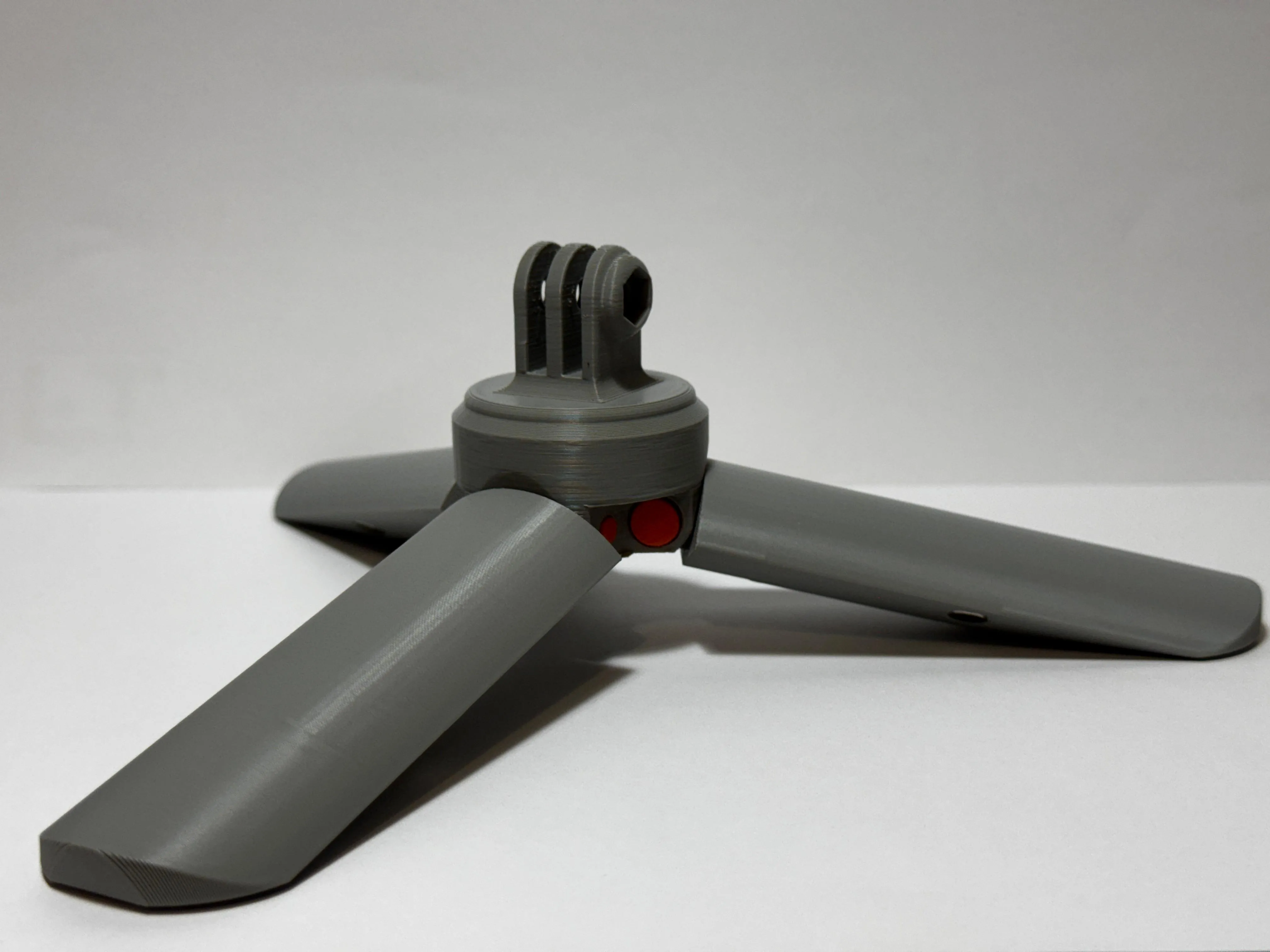

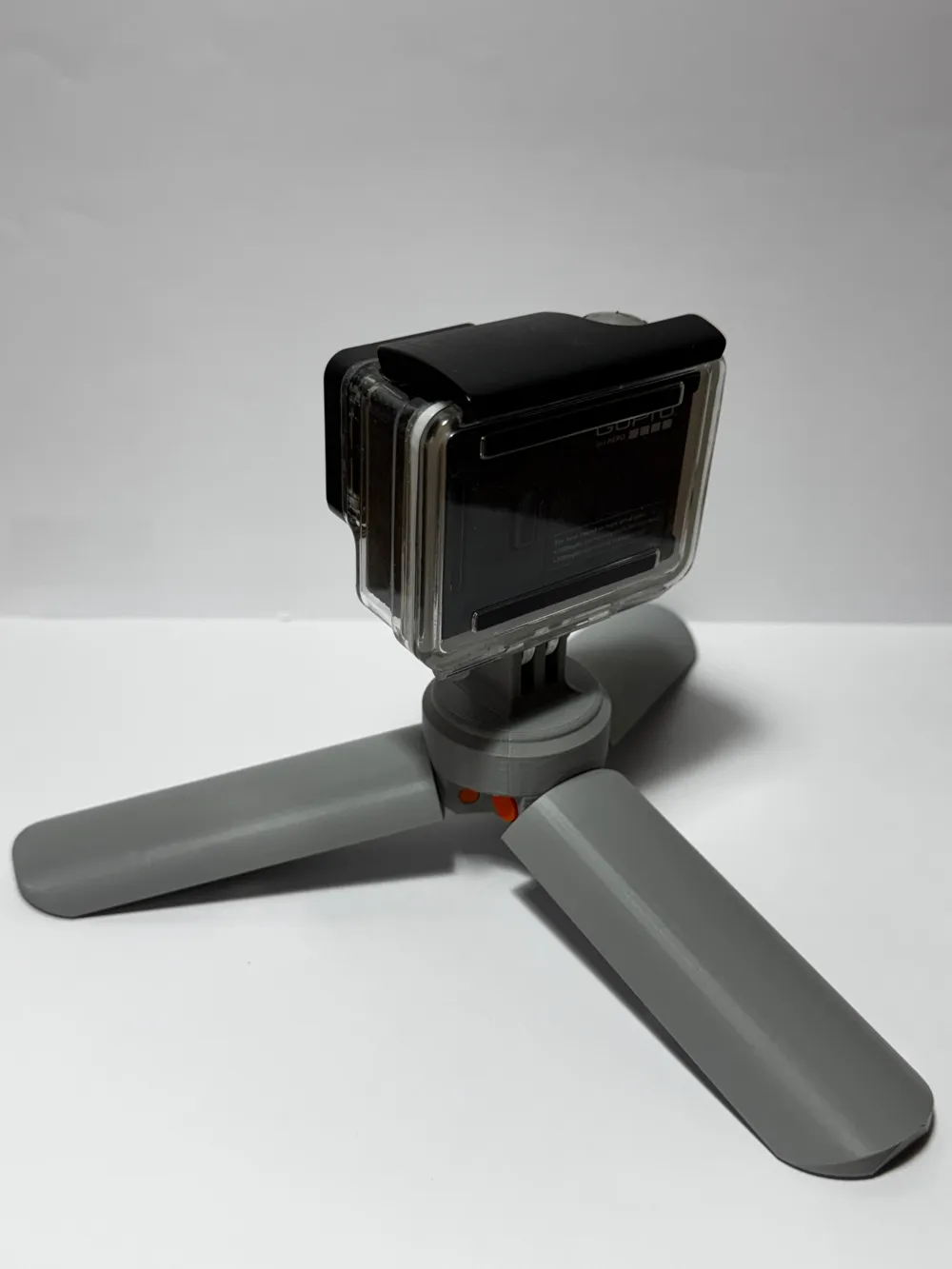

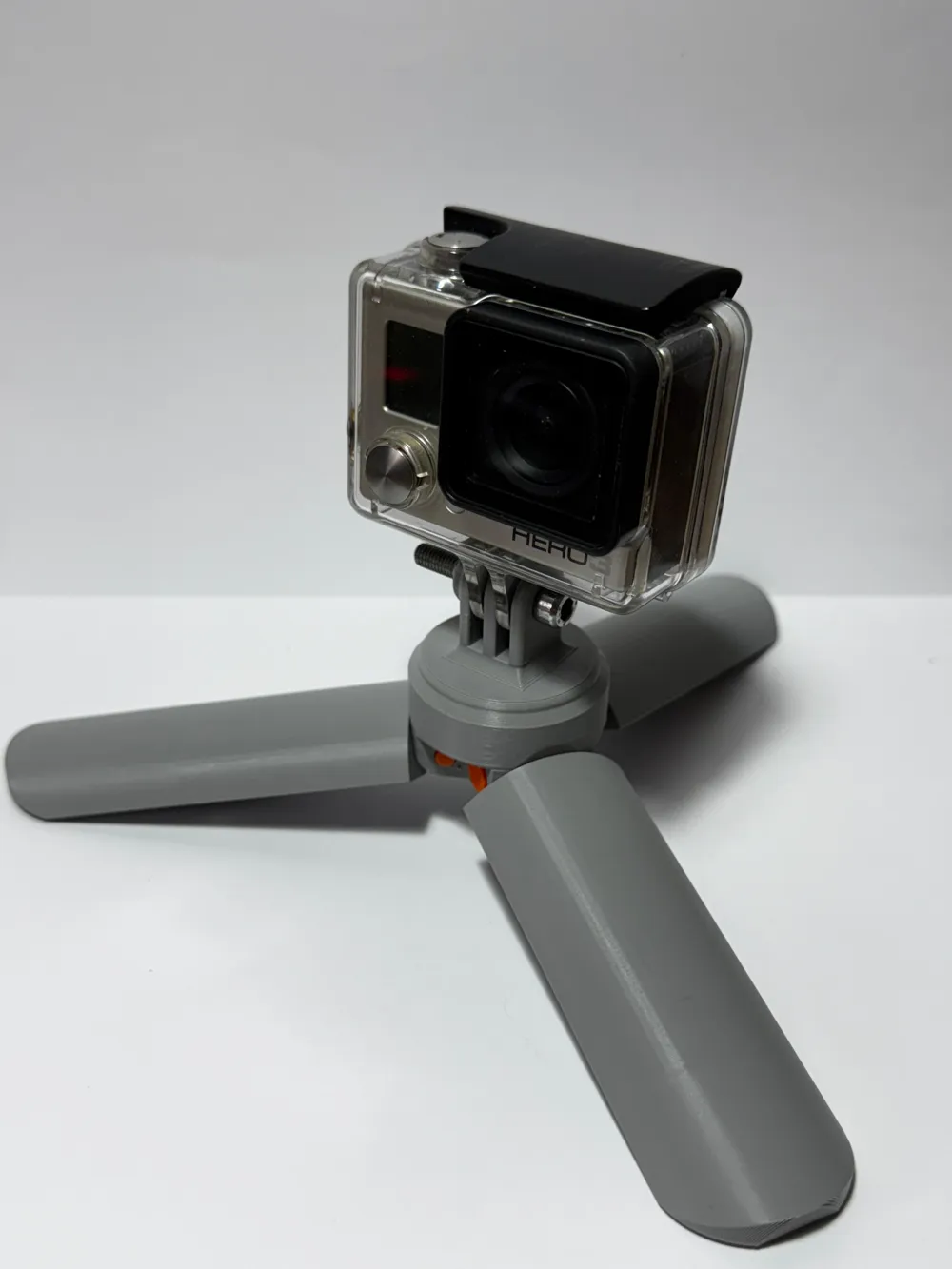

- 📷 Base with GoPro Mount
⚙️ Compatible with:

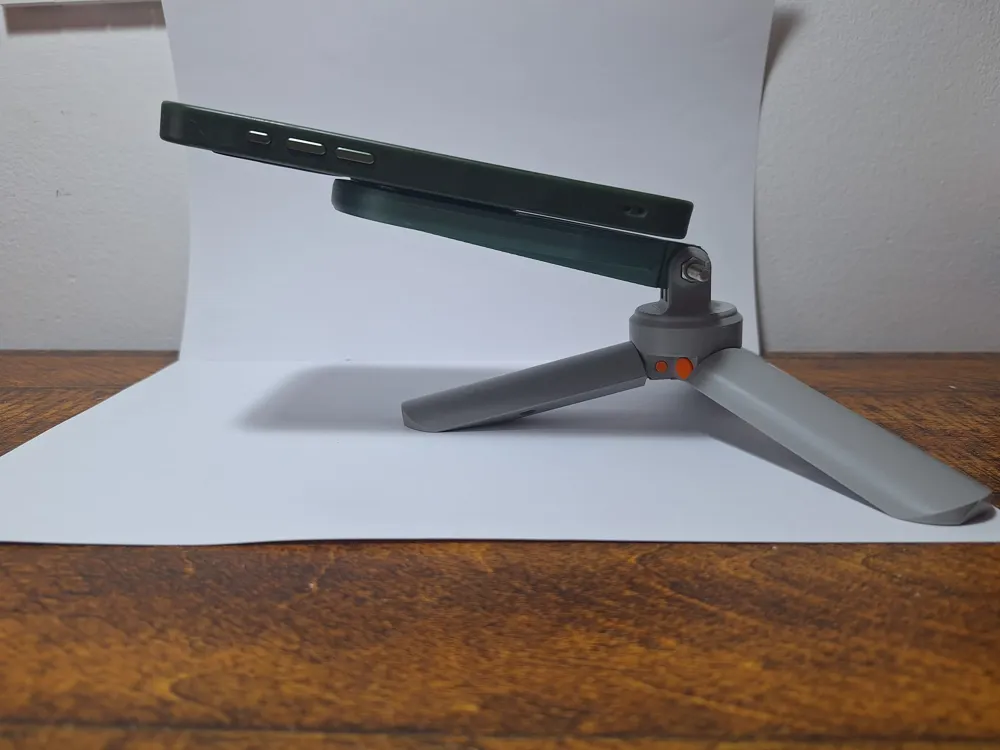

📷 Cameras | 🎥 Action cams | 💡 LED lights | 🎙️ Microphones | 📱 Smartphones (with adapter)
🎒 Compact. Reliable. Versatile.
The perfect tool for creators on the go!
