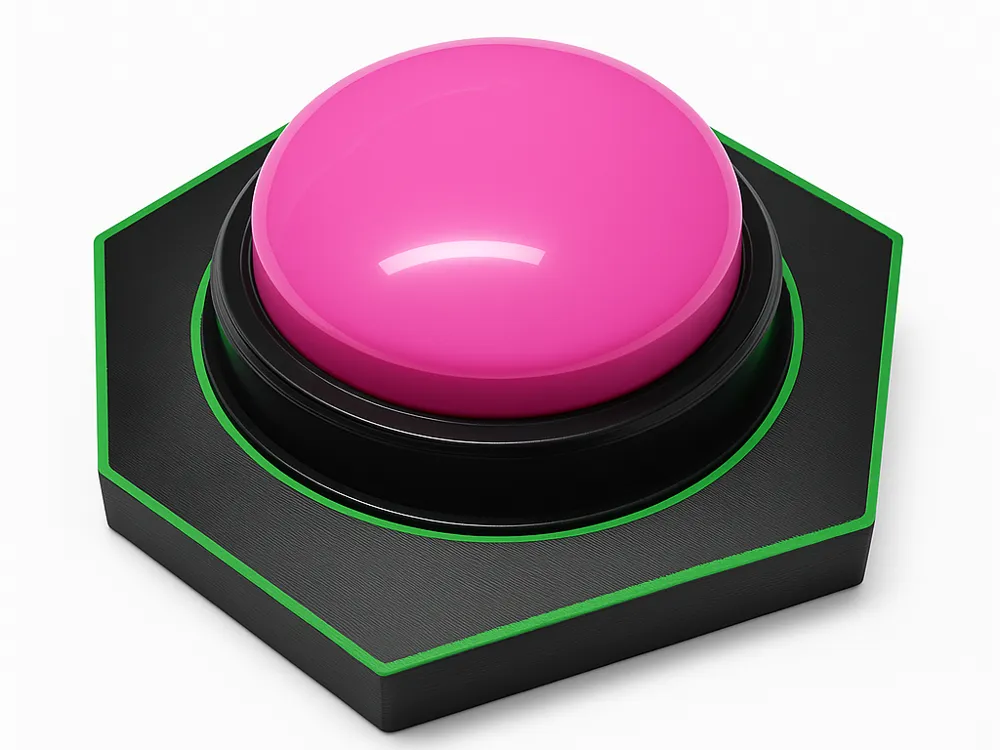

Dog Button Holder

🔧 Features

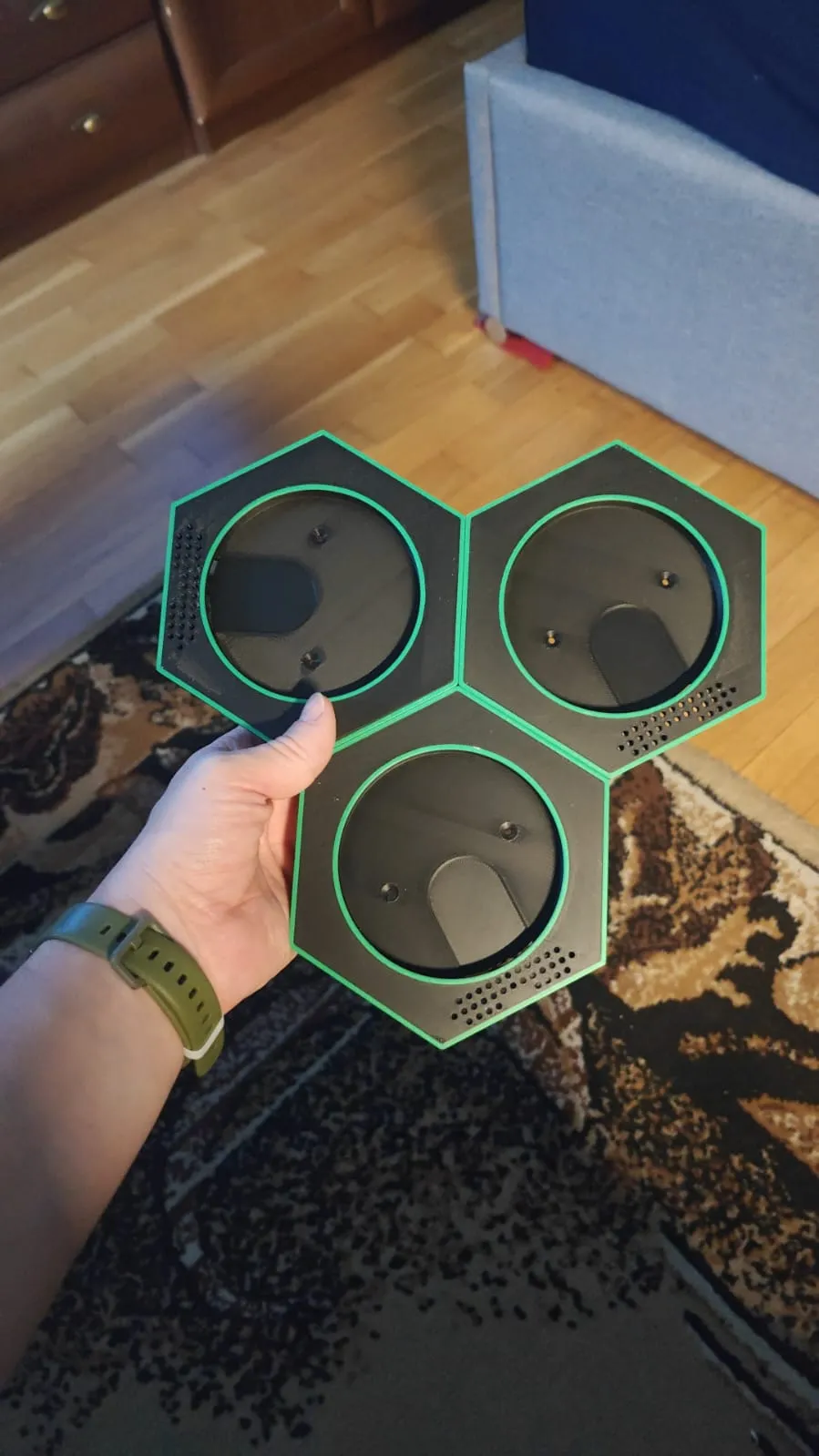

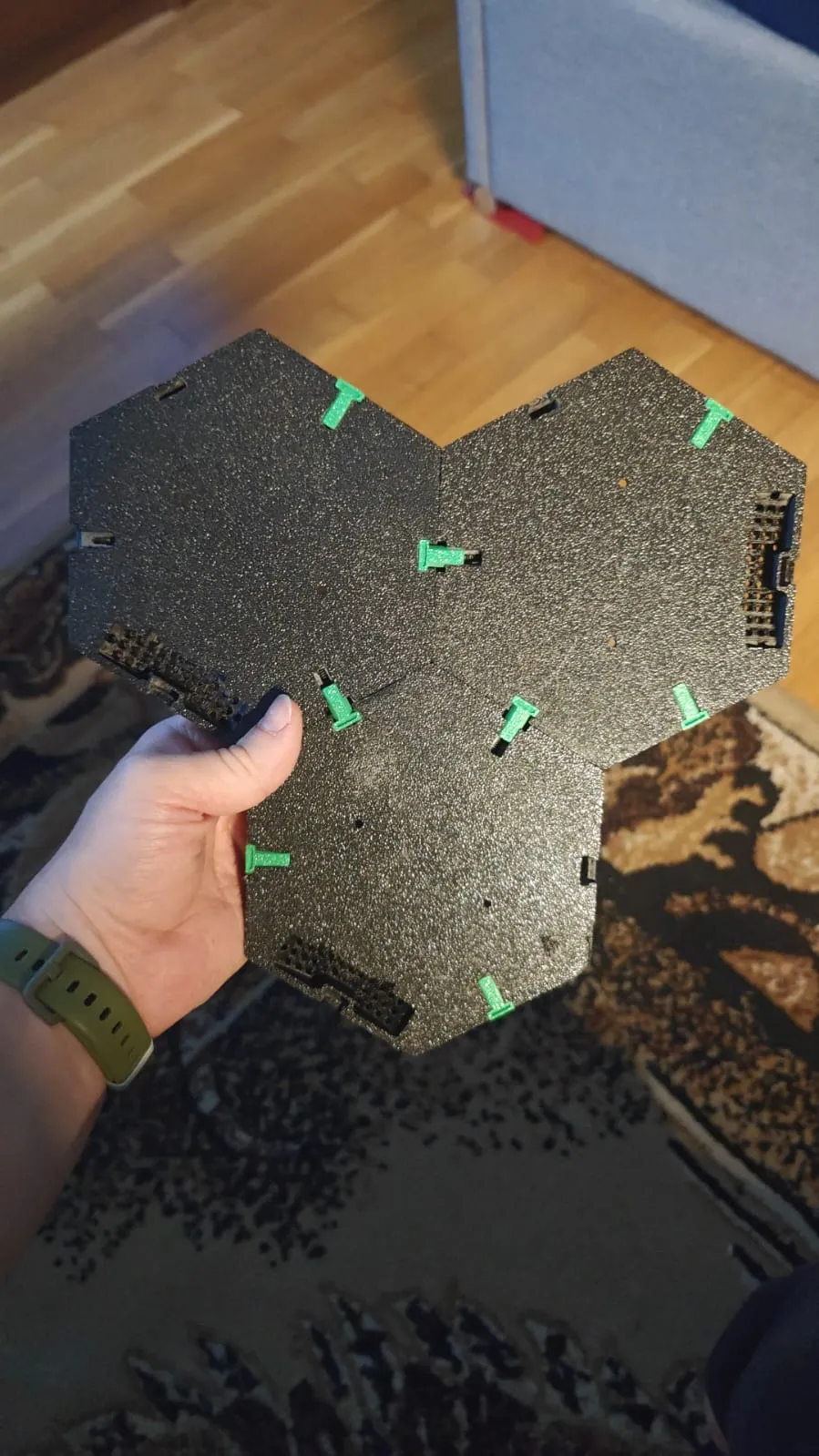

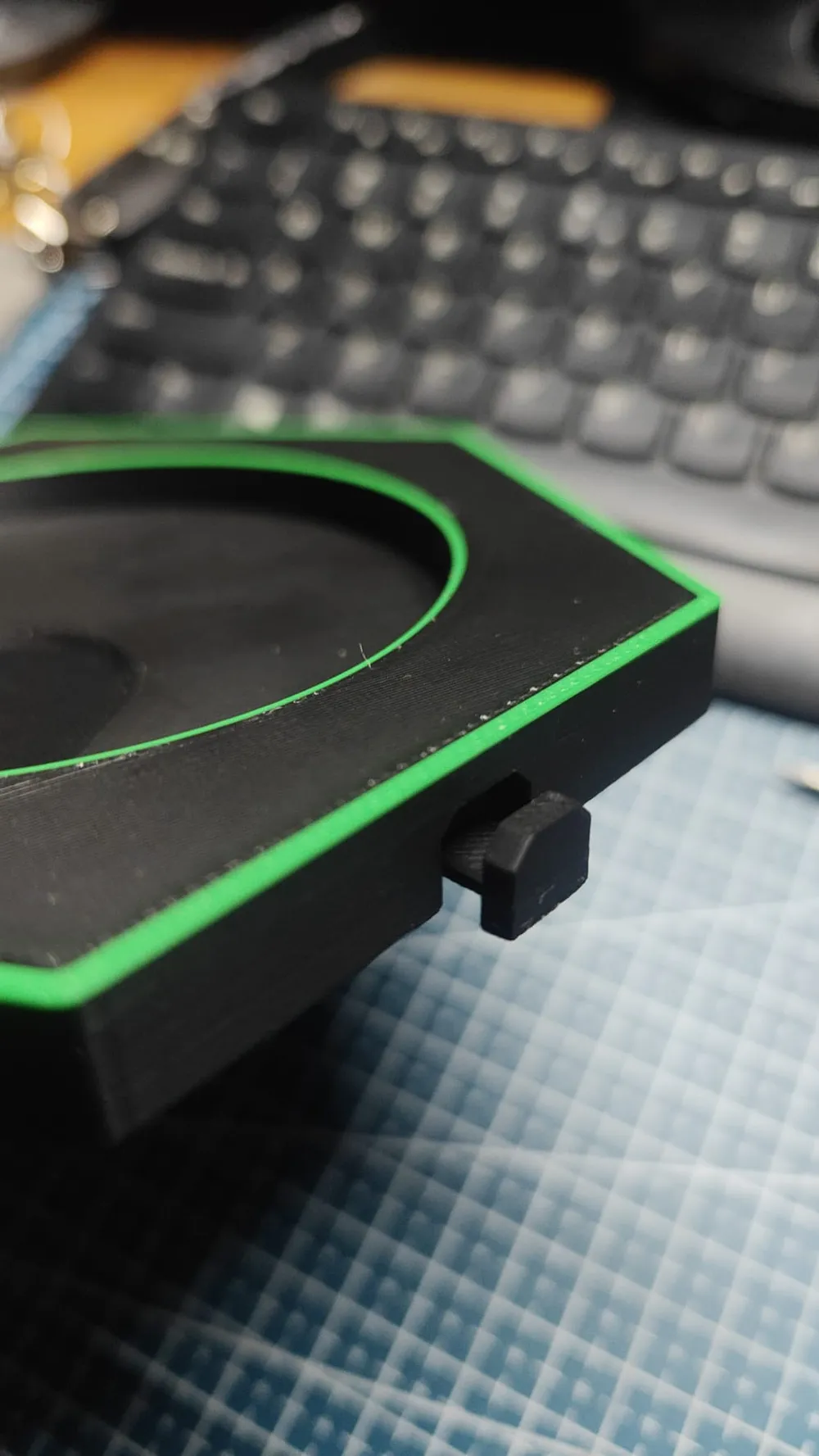

• Modular connection system – each base includes 3 sliding locks (green pins) for connecting multiple modules in various configurations.

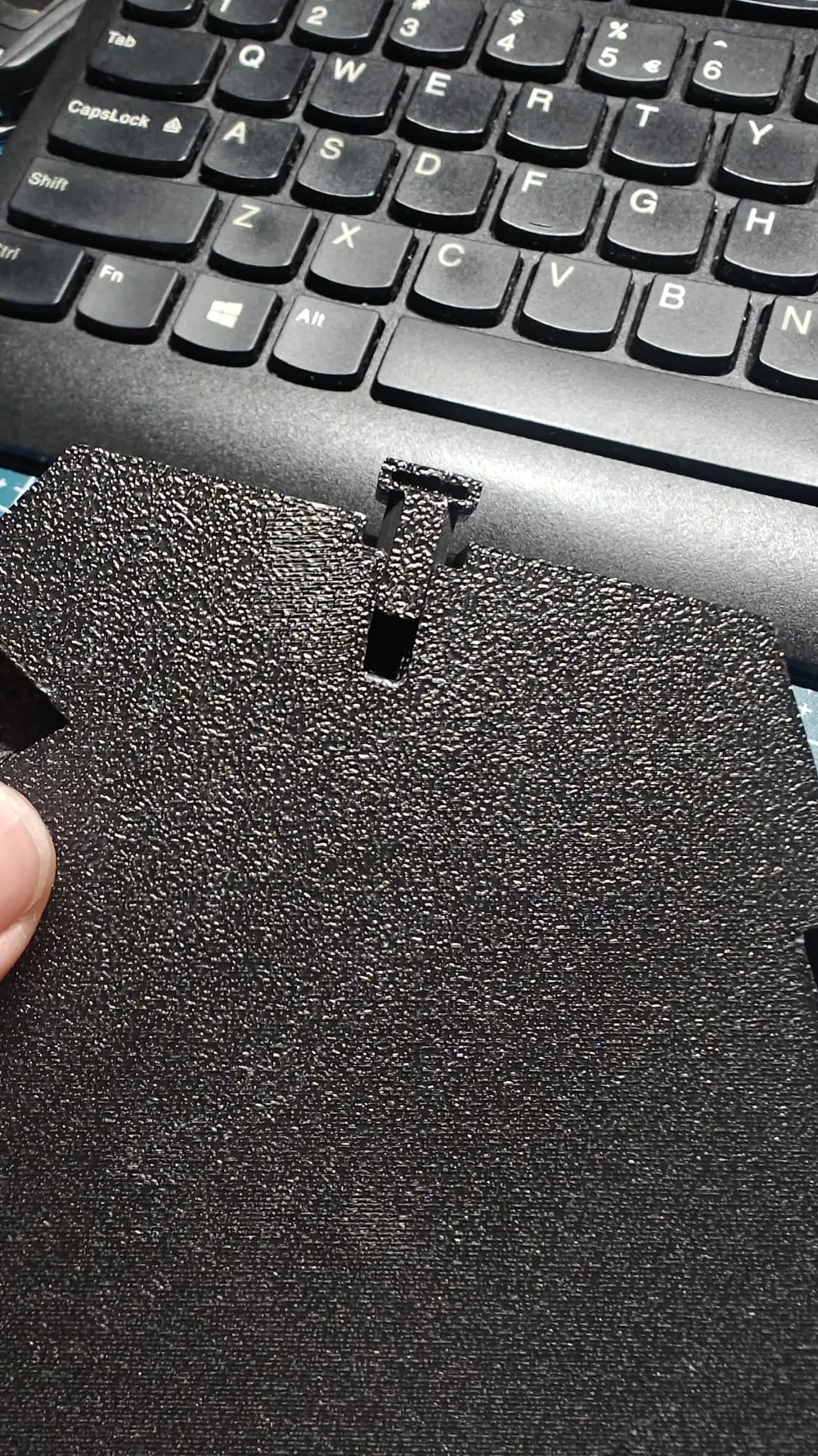

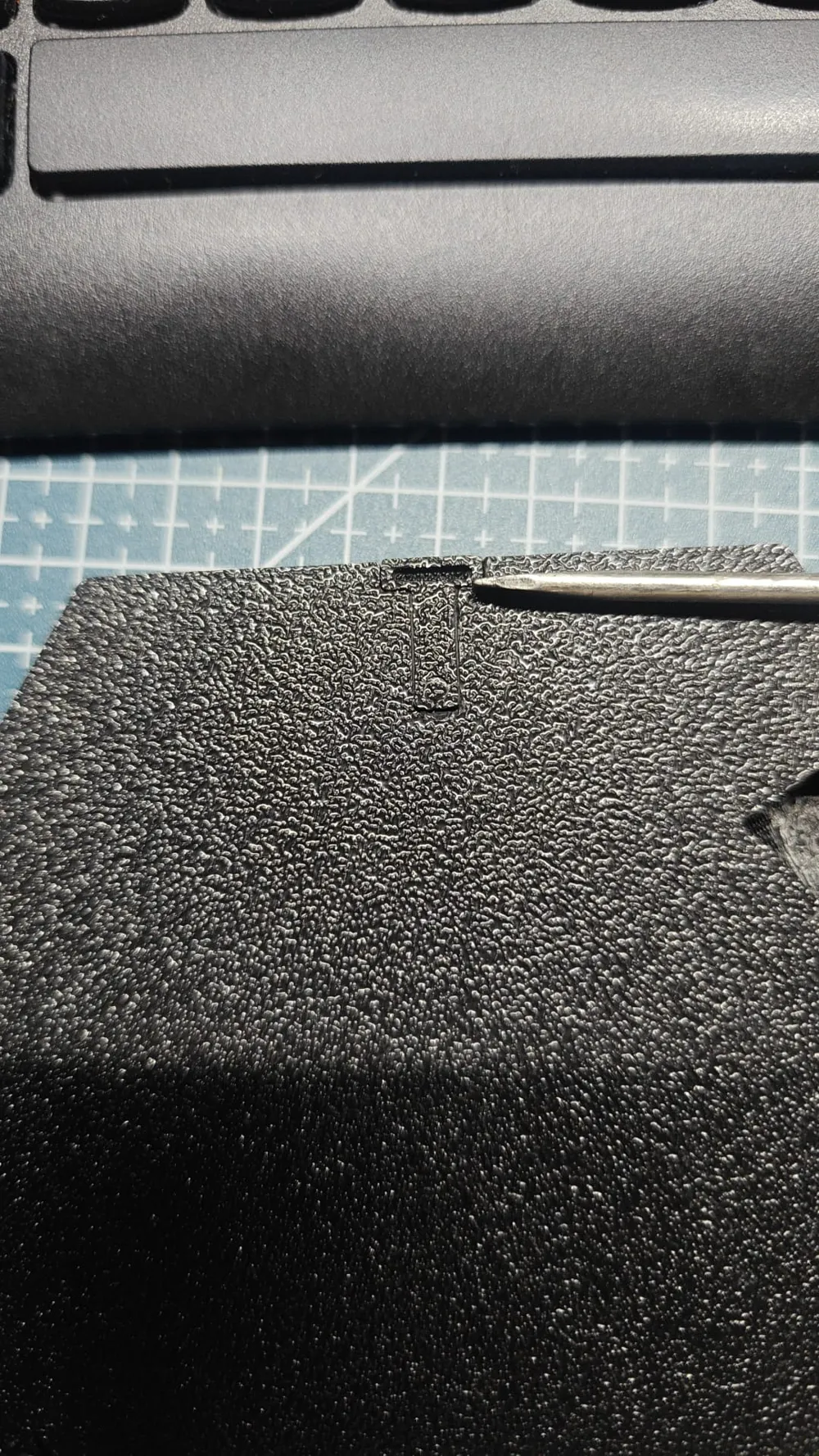

• Anti-pullout protection – locks are held in place by separately printed pins inserted into guides. Slight filing may be needed for optimal fit.

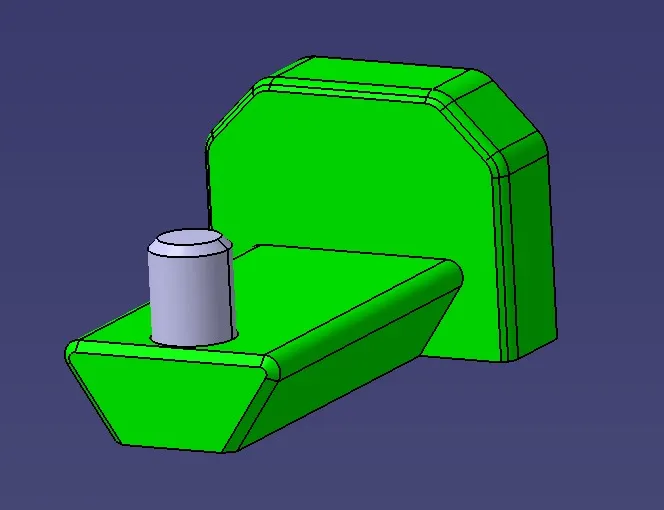

• Ergonomic design – each lock has a fingernail groove to make it easier to slide out without tools.

🔊 Sound optimization

The button features upward-facing sound channels, since the built-in speaker is located at the bottom. This prevents the sound from being fully muffled by the surface. While slightly muted, the sound remains clear and functional.

🛠️ Mounting and usage

• Two holes inside allow for wall mounting or similar.
• It is recommended to attach rubber anti-slip pads under the base to prevent it from sliding on smooth surfaces.

📀 Dimensions & Compatibility

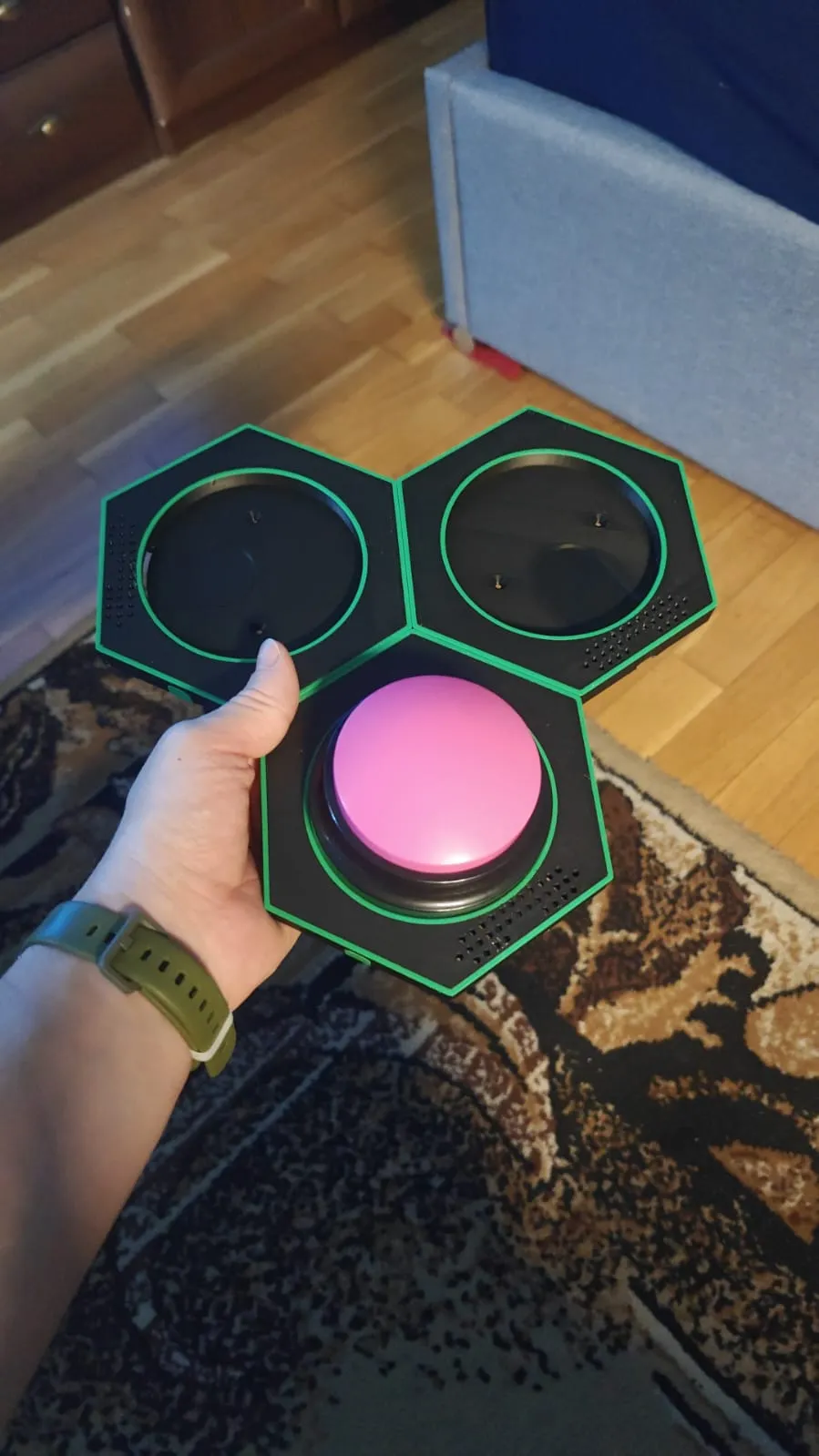

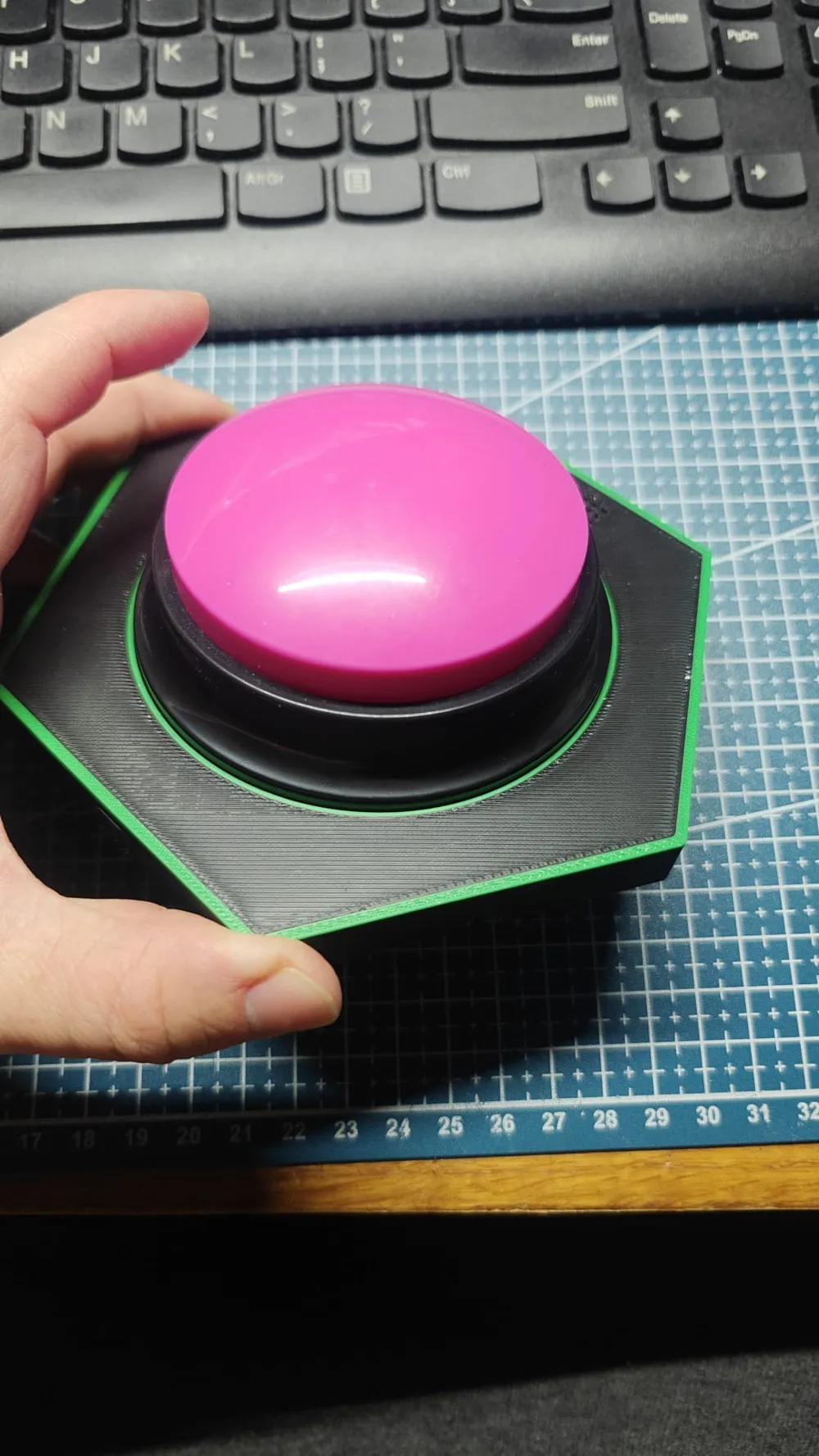

• Button hole diameter: 88 mm – tight fit for most popular models.
• Height: 12 mm
• Hex width: 122 mm

🖨️ Print settings

• In my opinion, 0.2 mm layer height looks really decent
• Ironing is optional – both options look good
• Pins can be printed more precisely or adjusted with a file
• Material: PLA or PETG

🧲 What's next?

An alternative version using neodymium magnets instead of sliders is planned. If there's enough interest, it will be published.

📦 Print includes:

• 1× Base
• 3× Sliding locks
• 3× Locking pins

Design by BackyardForgeStudio

This model is intended for personal use only.

Commercial use, selling prints, or redistributing the digital files is not allowed.

For commercial licensing inquiries, please contact BackyardForgeStudio.
