Press for Threaded Inserts
Print Profile(1)
Bill of Materials
Description

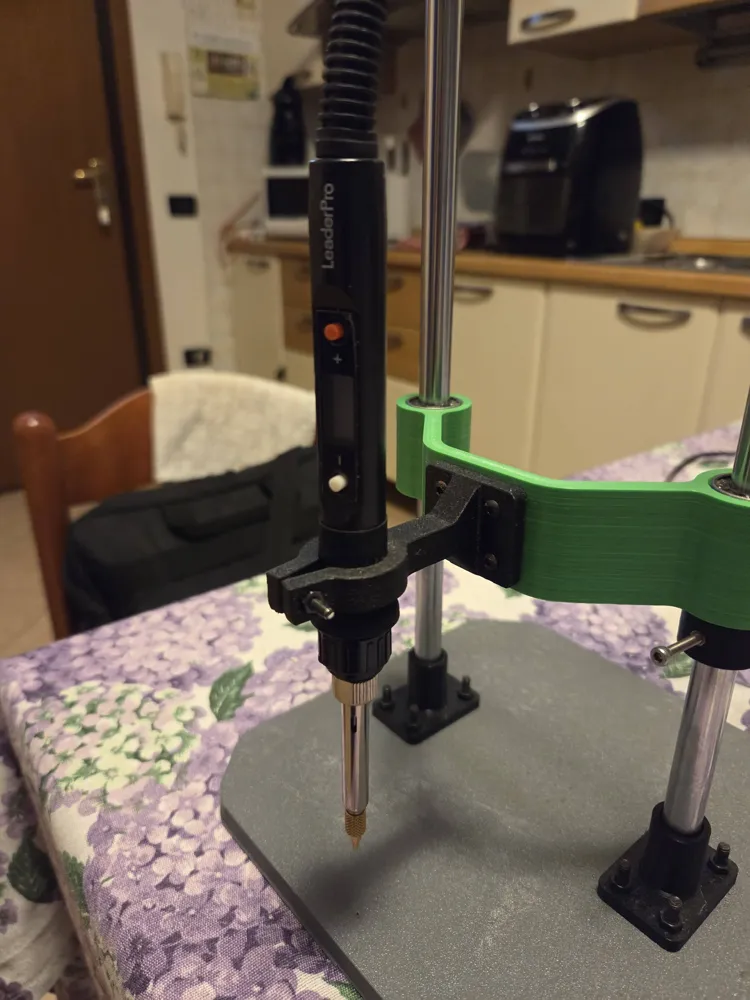

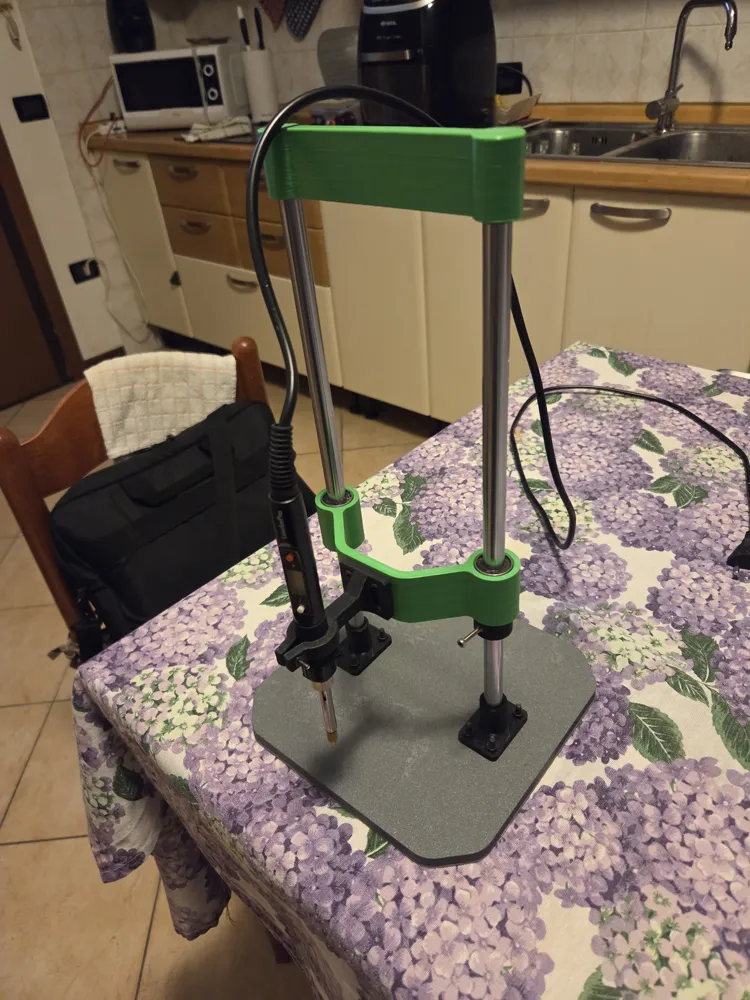

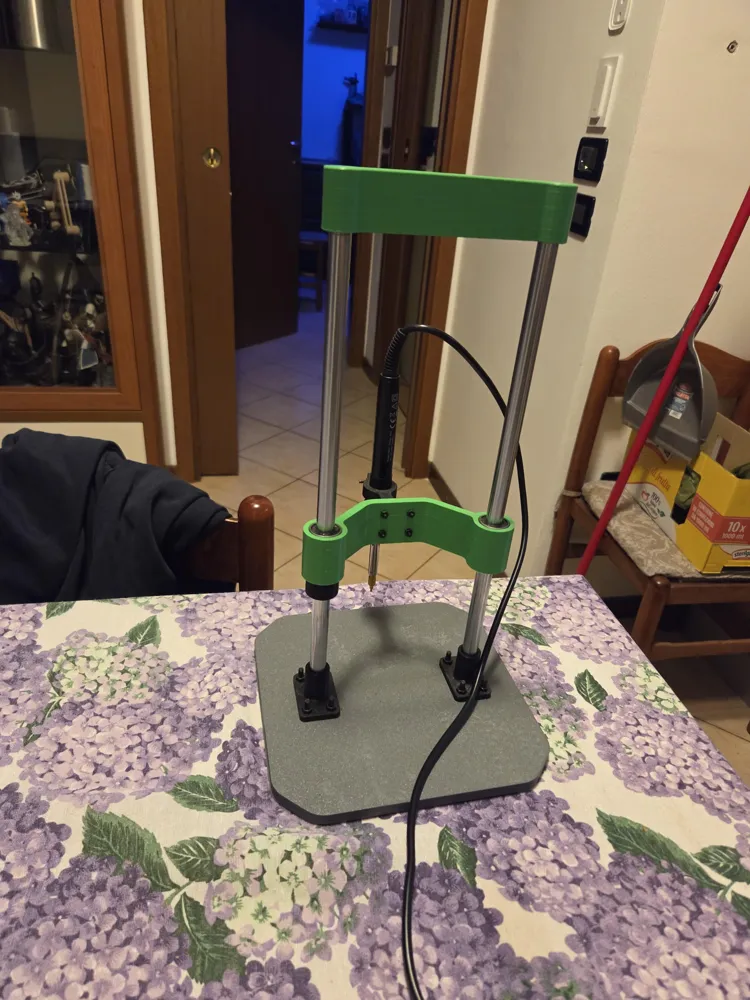

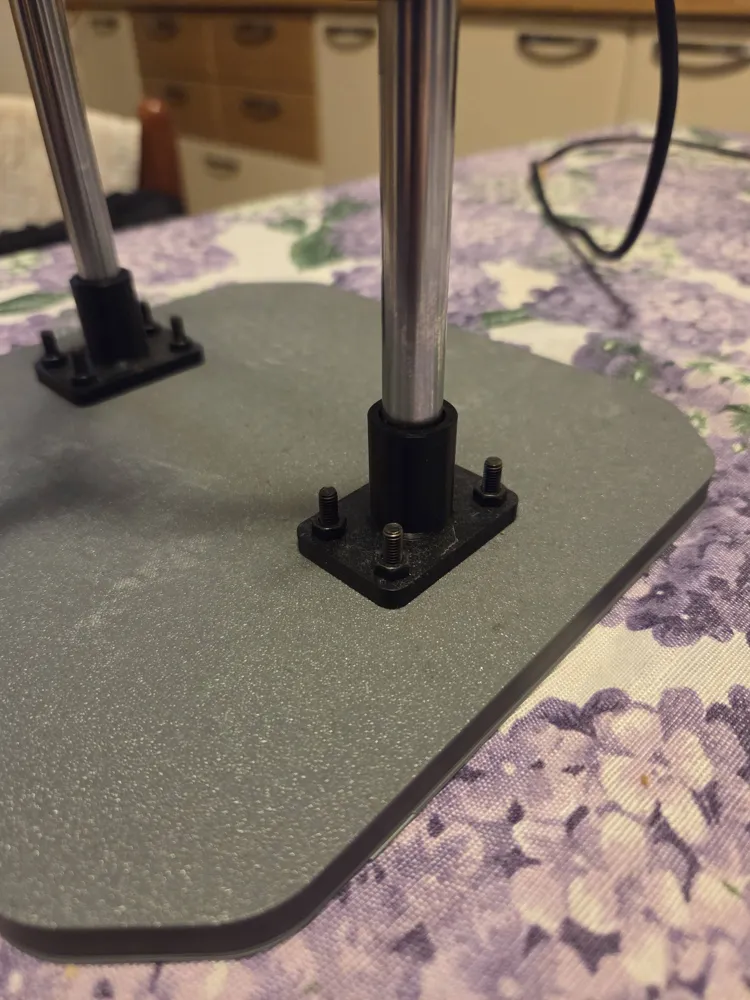

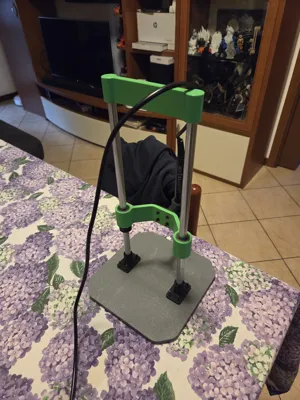

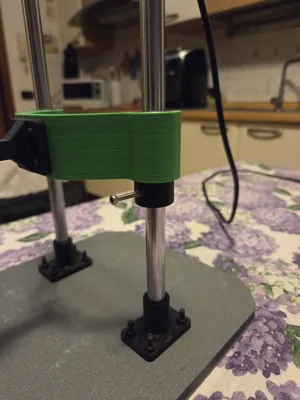

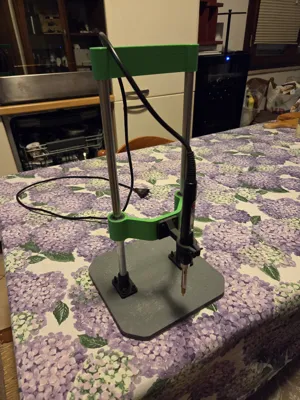

I have developed a press to facilitate the correct insertion of threaded inserts into 3D prints, perpendicular to the hole and in a simple and functional way.

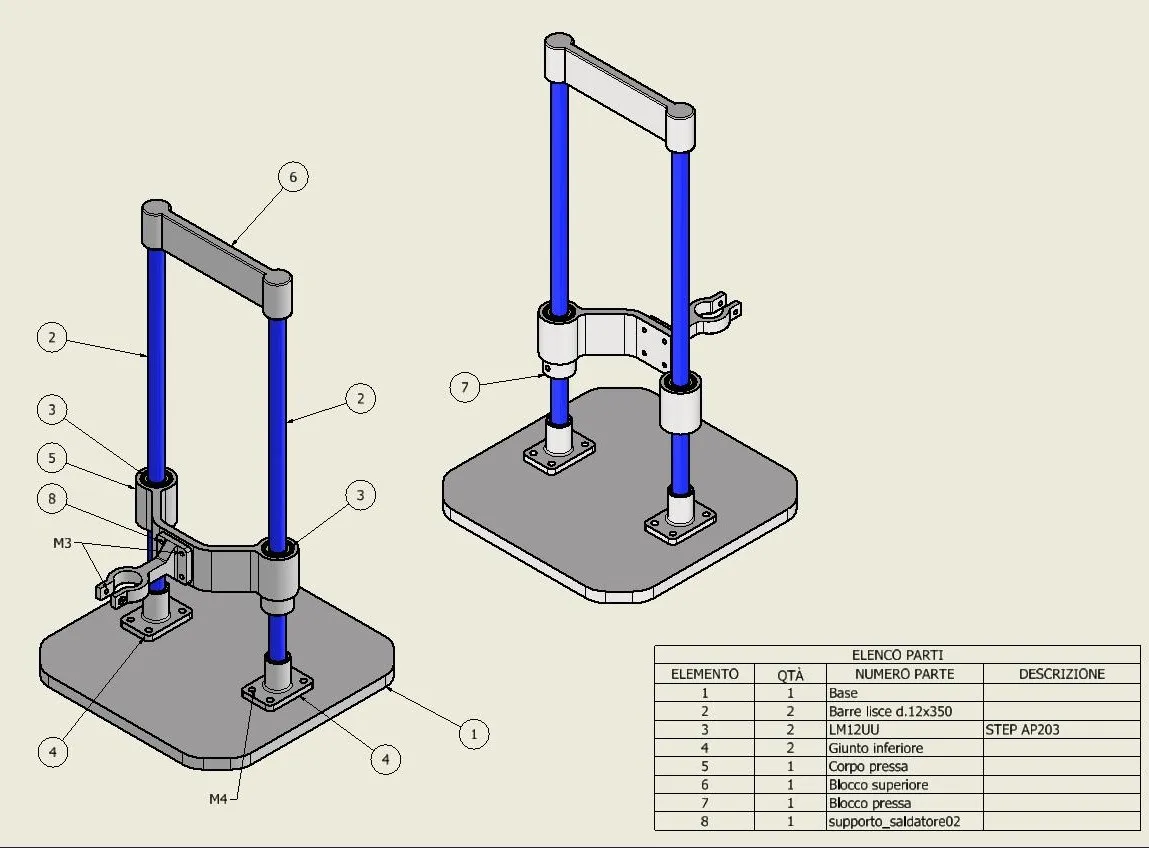

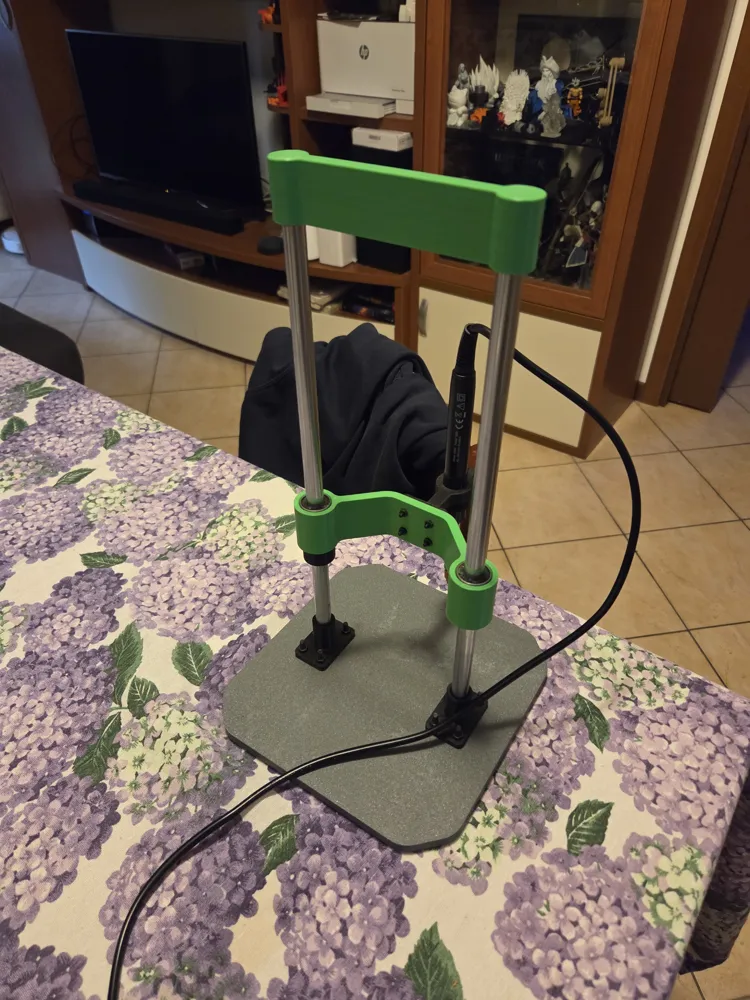

In addition to the photographs, I have also added a 3D model of the assembly, complete with the non-printed parts to facilitate assembly.
Below is the link to the necessary materials in addition to the 3D printed parts:
No. 2 Linear ball bearings type "LM12UU"
No. 2 Ø12 L=350mm chromed steel round rod
No. 1 Brass threaded insert M3
To complete the assembly, you will also need some screws:
No. 8 TCEI UNI 5931 screws - M4 x 20 (recessed hexagonal cylindrical head)
No. 8 UNI5588 hexagonal nuts - M4
No. 5 TCEI UNI 5931 screws - M3 x 20 (recessed hexagonal cylindrical head)
No. 5 UNI5588 hexagonal nuts - M3

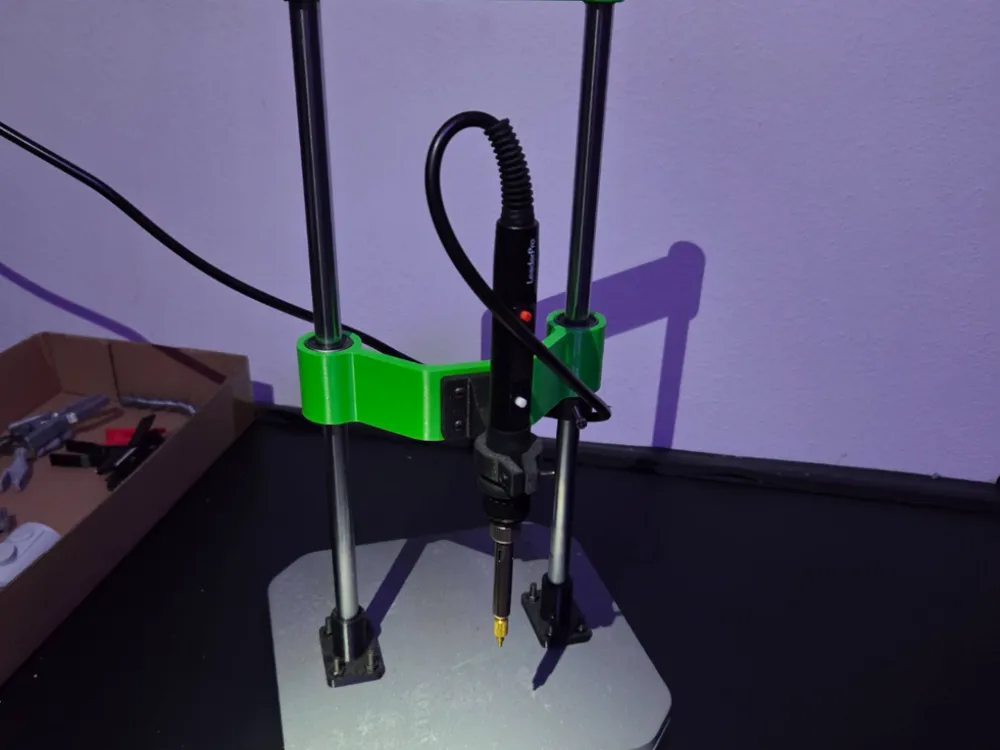

The project is compatible with most soldering irons, in my case I used an 80W model available on Amazon at the following link
