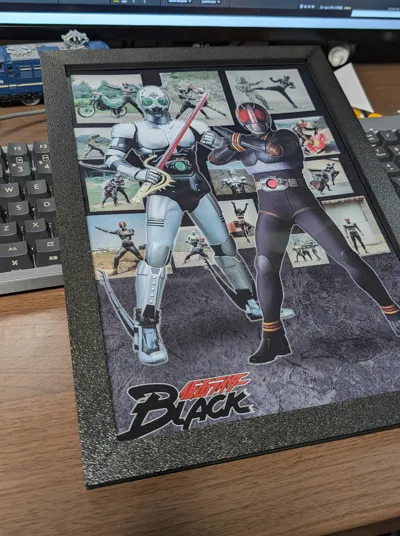

Clearfile Frame

This frame showcases clear files, a quintessential item in Japanese otaku culture.
Designed to maximize the diagonal print area of standard models like the BambuLab A1/P1, it is unfortunately incompatible with the A1 mini.

Description

Printing two identical sets completes a single picture frame.
As the bed-contacting surface forms the front, a PEI plate is recommended.
Precise print settings are crucial, as corners are prone to lifting.

Depending on the filament and environment, assembled components might loosen.
Employ adhesive or similar materials as needed.

Three display options are provided.

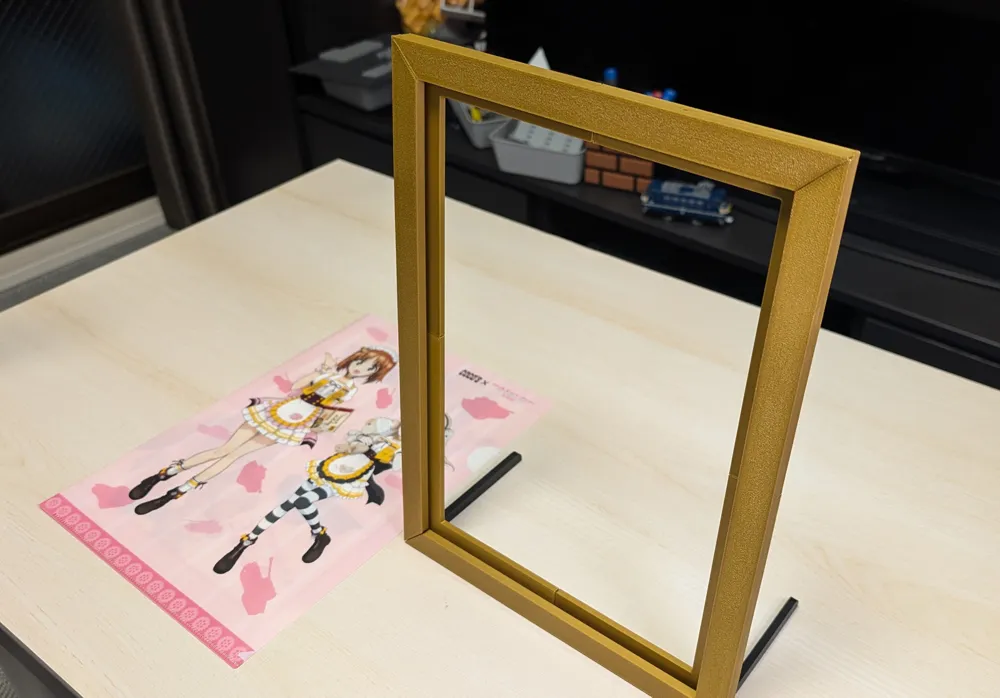

1. Freestanding Stand

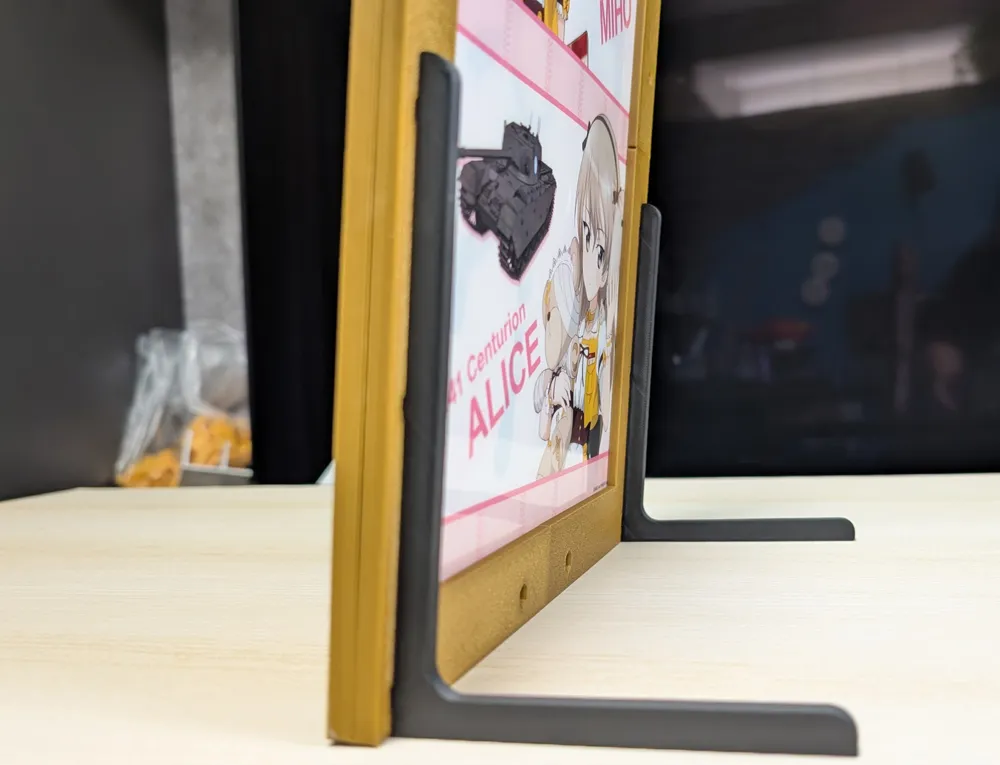

   Inserting the L-shaped stand component into the rear enables freestanding display.
   For non-freestanding configurations, delete the object to conserve filament.



2. Hanging
   Two upper holes facilitate hanging with a string.
   Horizontal orientation is unsupported.
   Custom data will be created upon request.



3. Magnet
   Enables affixing to refrigerators, etc.
   Magnets measure 6mm in diameter and 3mm in depth.
   Compatible with Daiso's “Super Strong Magnets Mini.”
   Adjust the number of magnets to suit your environment.

Thank you!

----------------------------------------------------------------------------------------------------------------

While designed for standard clear file sizes, this frame also accommodates A4 flyers.
Given the tight fit and lack of rear support, mounting to slightly larger paper or laminating is advised.
