Simple Raspberry Pi 5 Case
Print Profile(1)
Description
Summary
Runs a little bit cooler than just sitting out on the desk in free air.
Brings the USB power connection to the back and out of the way. Low exhaust openings ensure that there is some circulation around the NVMe hat for the CPU fan.
All screws are M3 (3mm) except for those used with the standoffs under the motherboard. Standoffs are expected to be 0.19 in (5mm) in height.

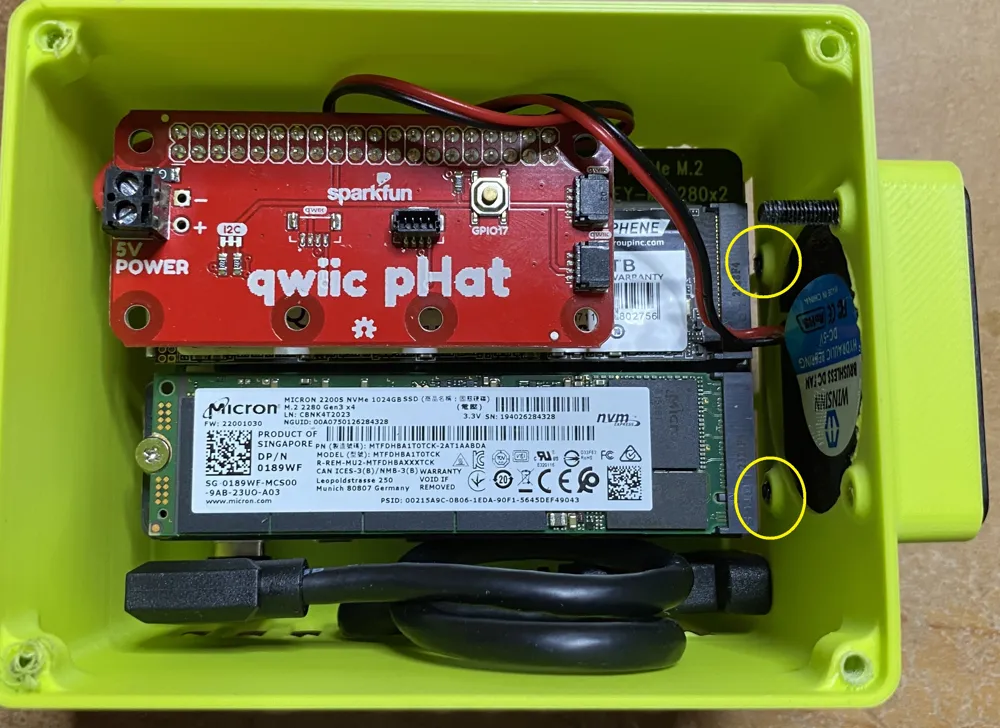

Caution! Screws for the fan can impact the connectors and boards inside the case causing damage and shorts and stuff. The picture of the interior shows that 12mm screws will not intrude into the case. Note the longer nasty one that could be a problemo...
Required Additional Items:
Nice to Have Items:
- Noctua 40mm fan Nice and Quiet!
- Raspberry Pi Qwiic PHat
Made Large Enough for Geekworm X1004 PCIe to Dual M.2 HAT Which is larger than the RPi5 motherboard by just a smidge.
