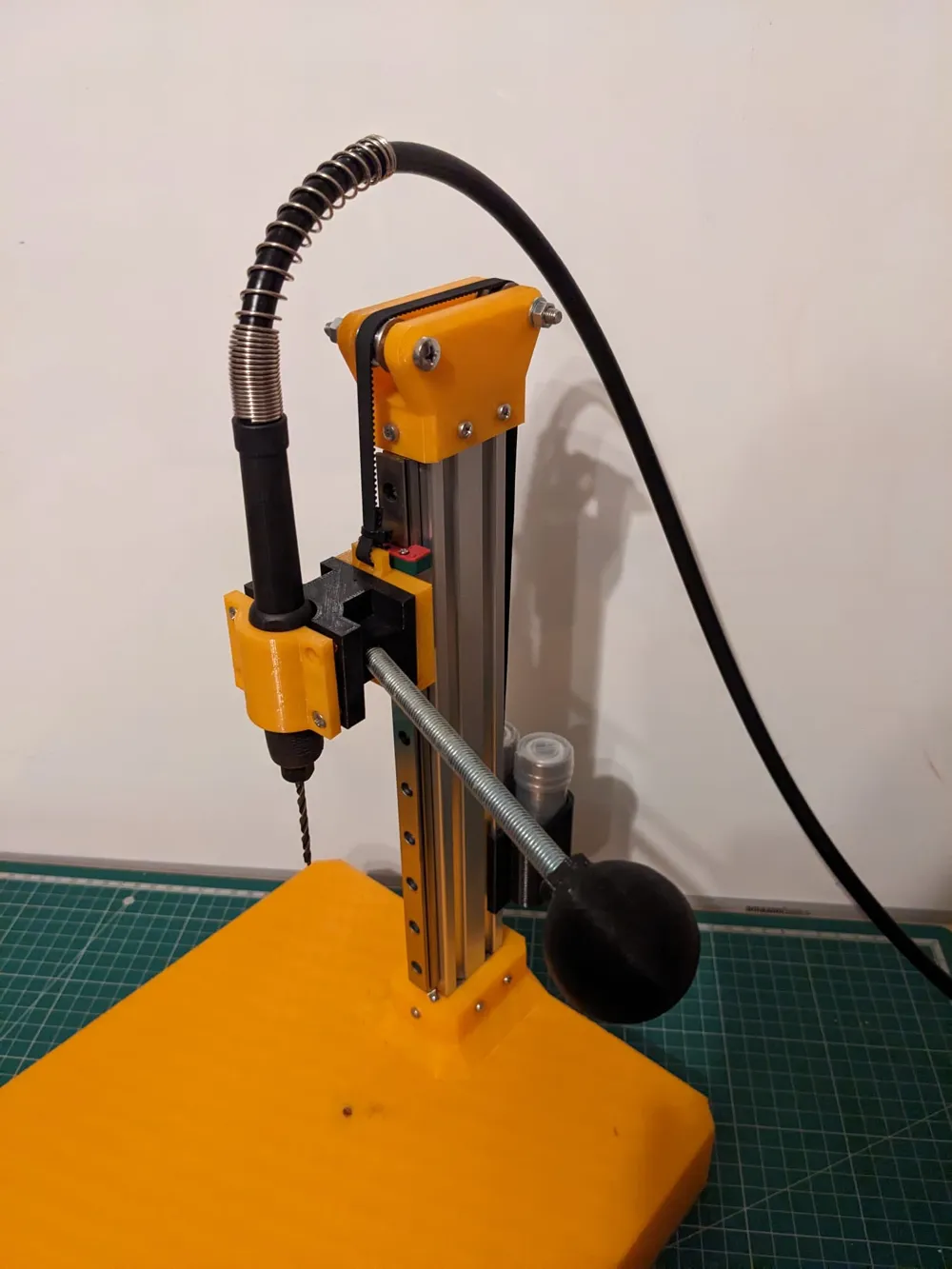

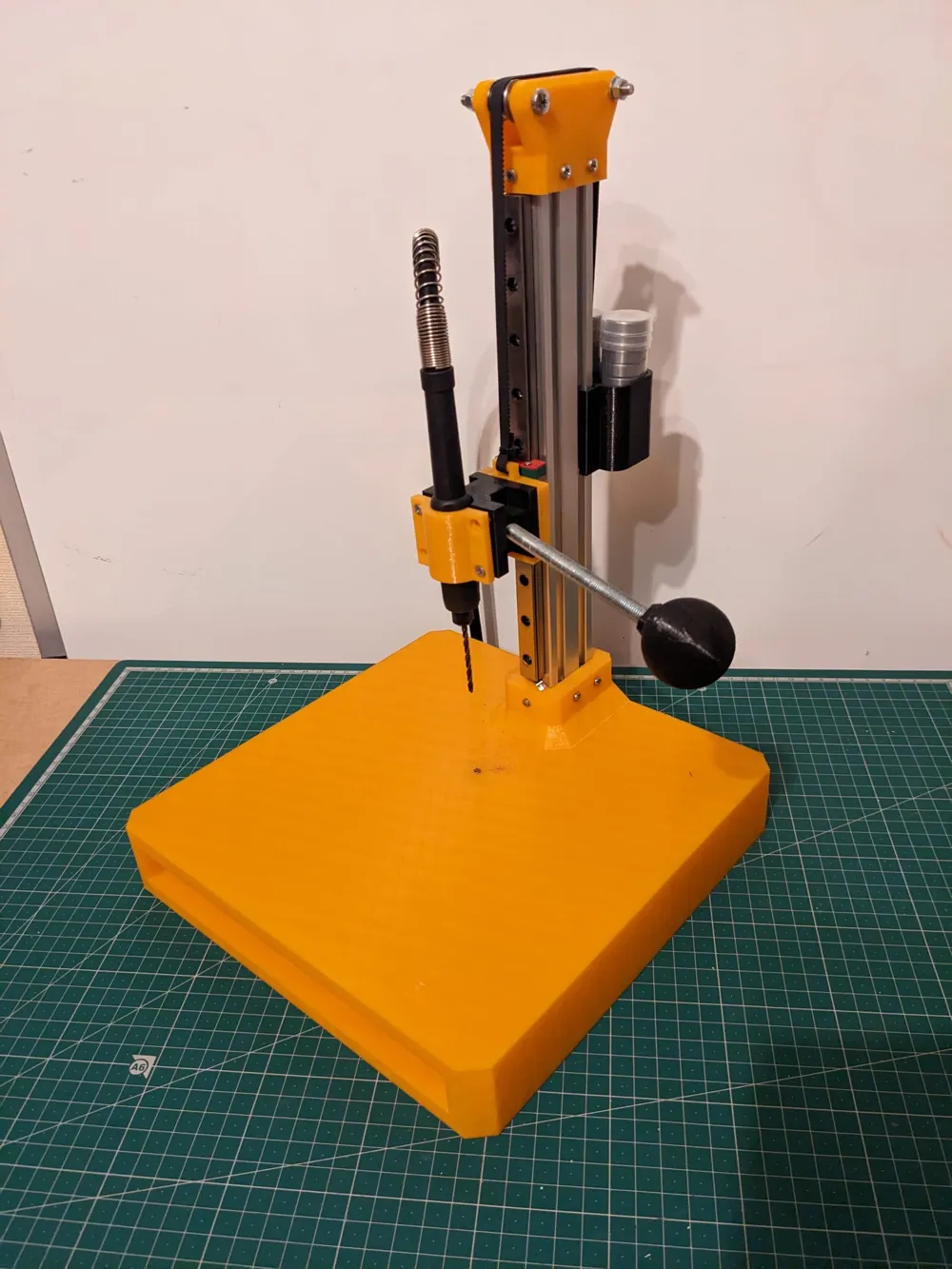

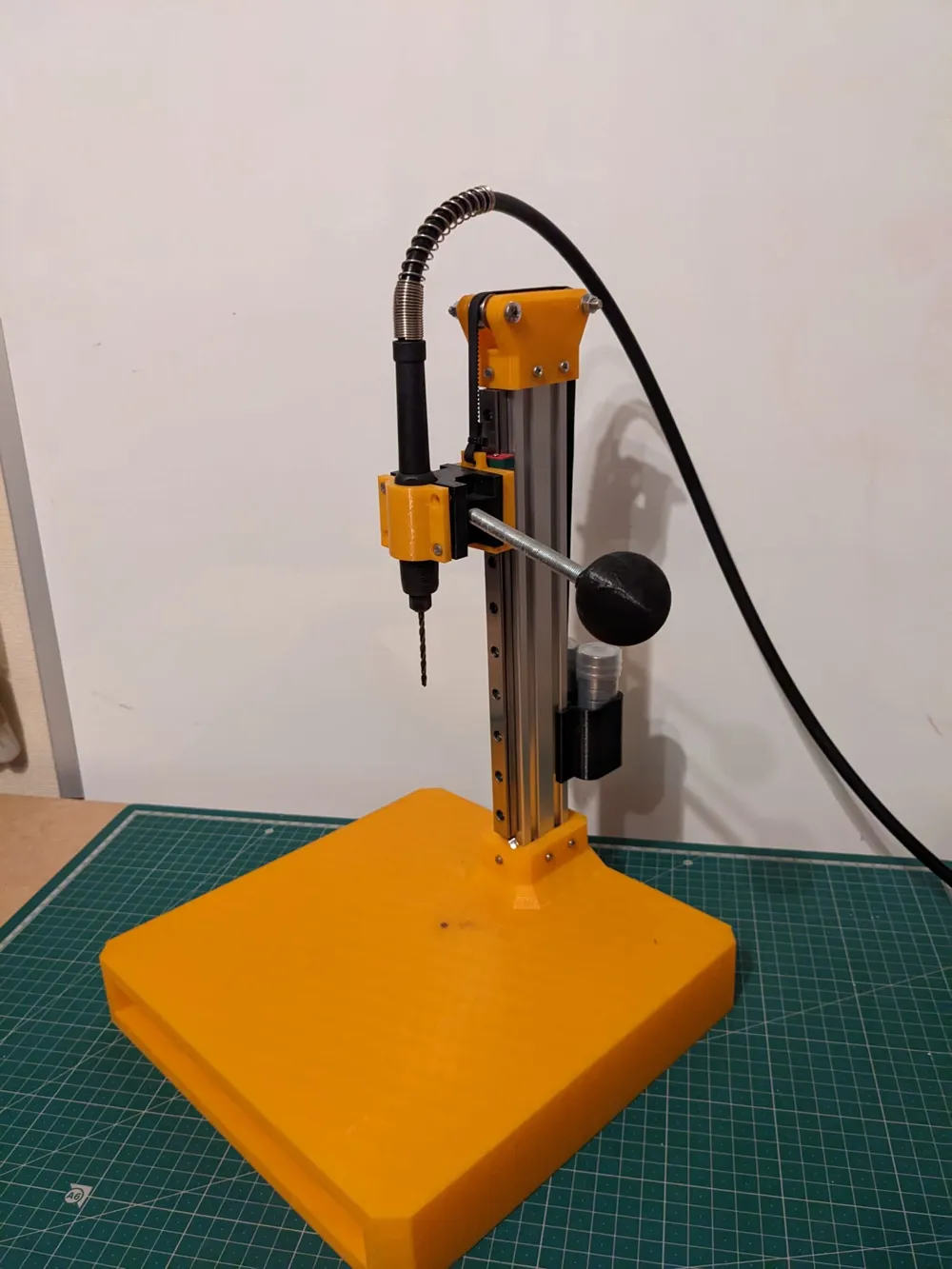

Drill Press
Print Profile(1)
Bill of Materials
- Aluminum profile 2040 x 1: 300 mm long
- linear motion guides x 1: HIWIN or similar, 250 mm long
- T nuts M3 x 20: For instering into the aluminum profile
- M4 machine screw x 2: 35-40 mm long
- M4 hex nut x 2:
- M4 flat washer x 10:
- 605 bearing x 4: or similar for 4mm I.D.
- M8 threaded rod x 1: 100-150 mm long, for handle as user preference
Description
Apart from the printable pieces (one of each), it is required:
x 1 aluminum profile 2040, 300mm long
x 1 linear rails (HIWIN or similar), 250mm long
x 20 T nuts M3
x 2 nuts M4
x 10 washers M4
x 4 threaded inserts M3
x 12 bolts M3 16mm
x 14 bolts M3 10mm
x 2 bolts M4 35-40 mm
x 1 threaded rod M8 130mm
x 4 bearings 605 or similar (M4)
