Modular Lab & Work Tray
Print Profile(1)
Description

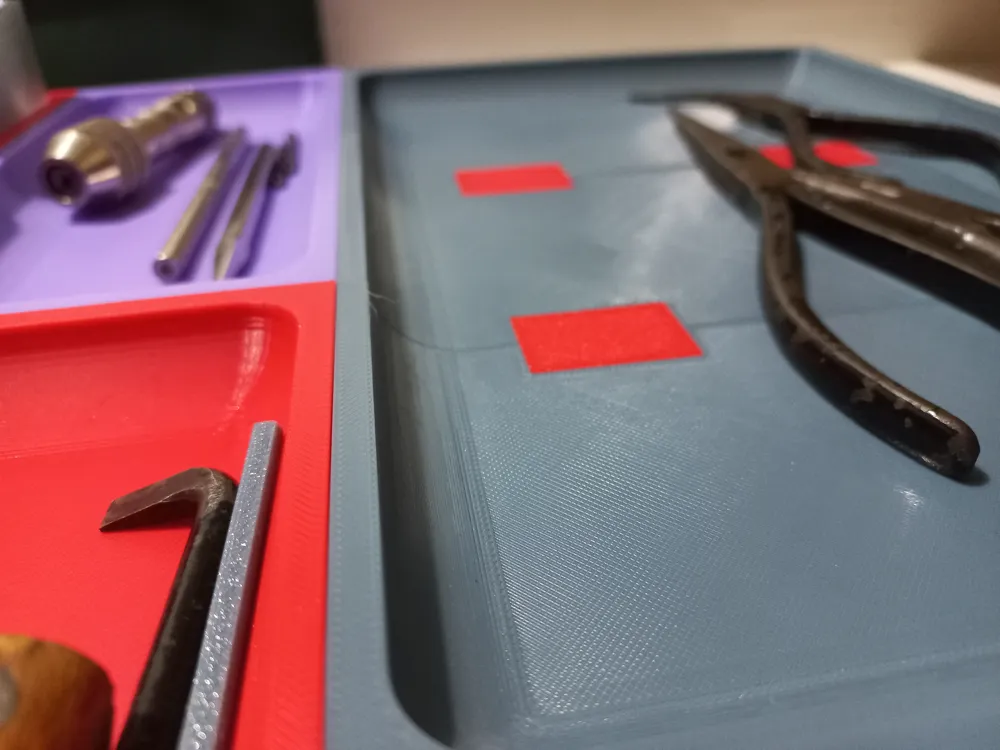

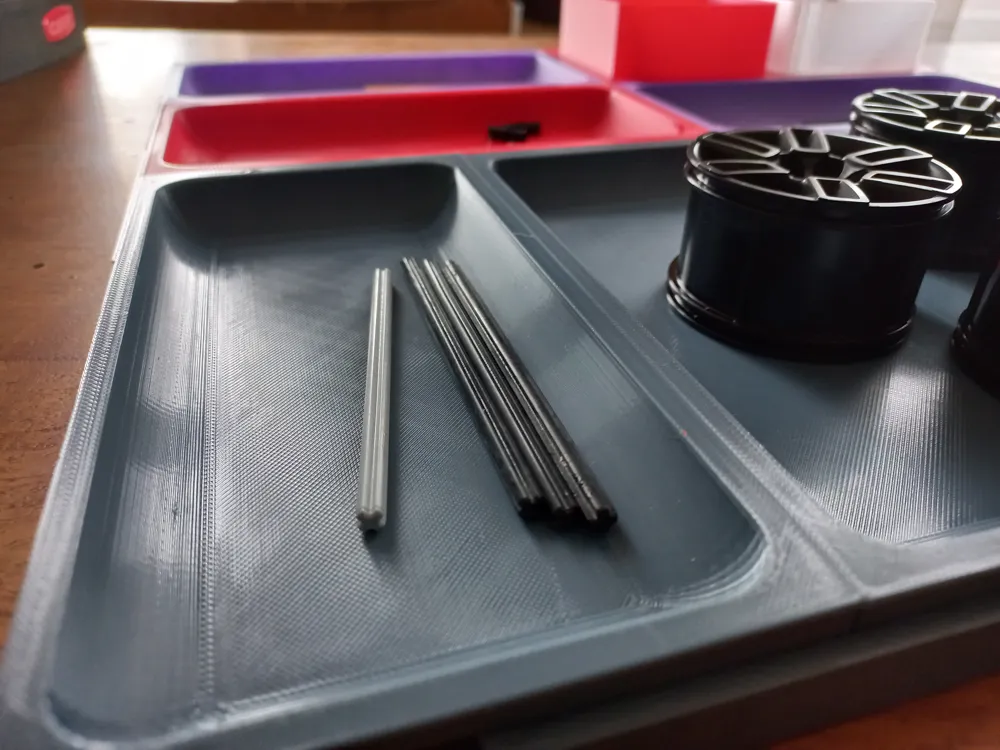

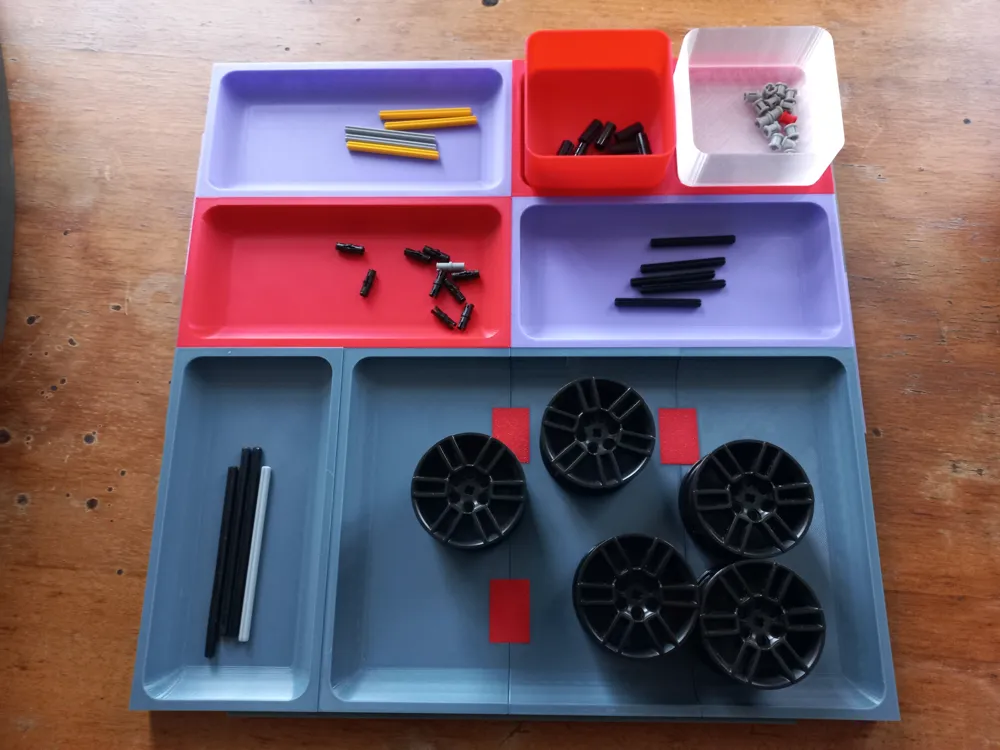

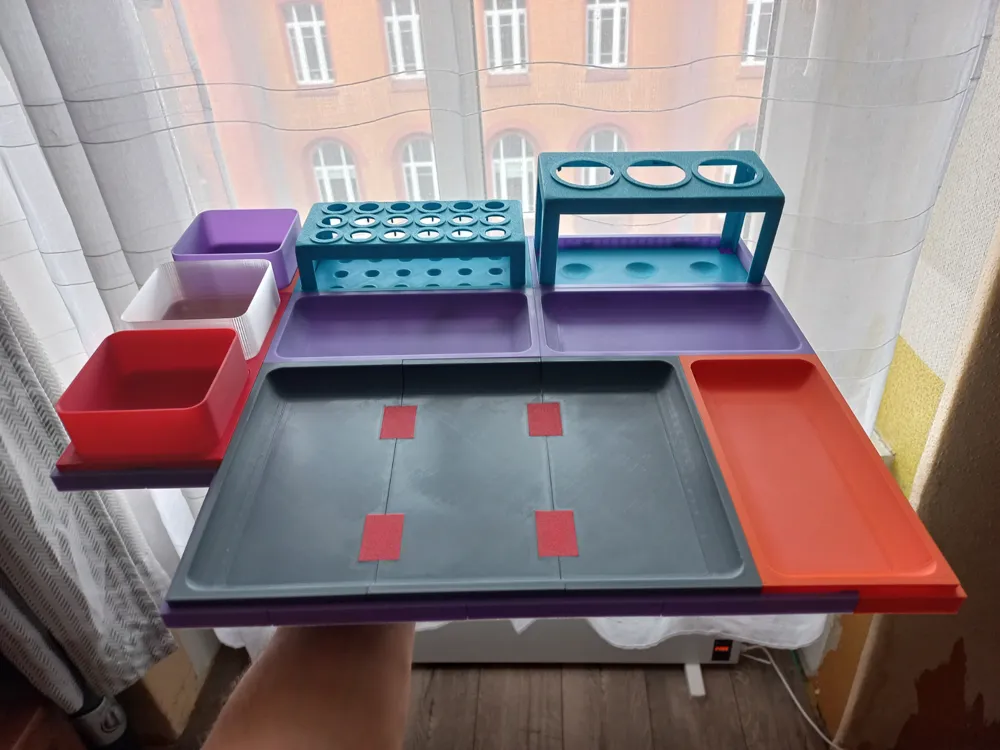

The tray is an ideal solution for organizing laboratory equipment and much more. It enables convenient storage and quick sorting of elements, accessories, and tools, which significantly streamlines everyday work. Thanks to the specially rounded edges of the compartments, even the smallest items are easy to pick up, increasing work comfort and minimizing the risk of contamination. The modular construction allows the tray to be tailored to the individual needs of every laboratory workstation—both for storage in drawers and on the workbench. It also works perfectly for other tasks involving small parts, such as electrical work and assembling construction bricks.

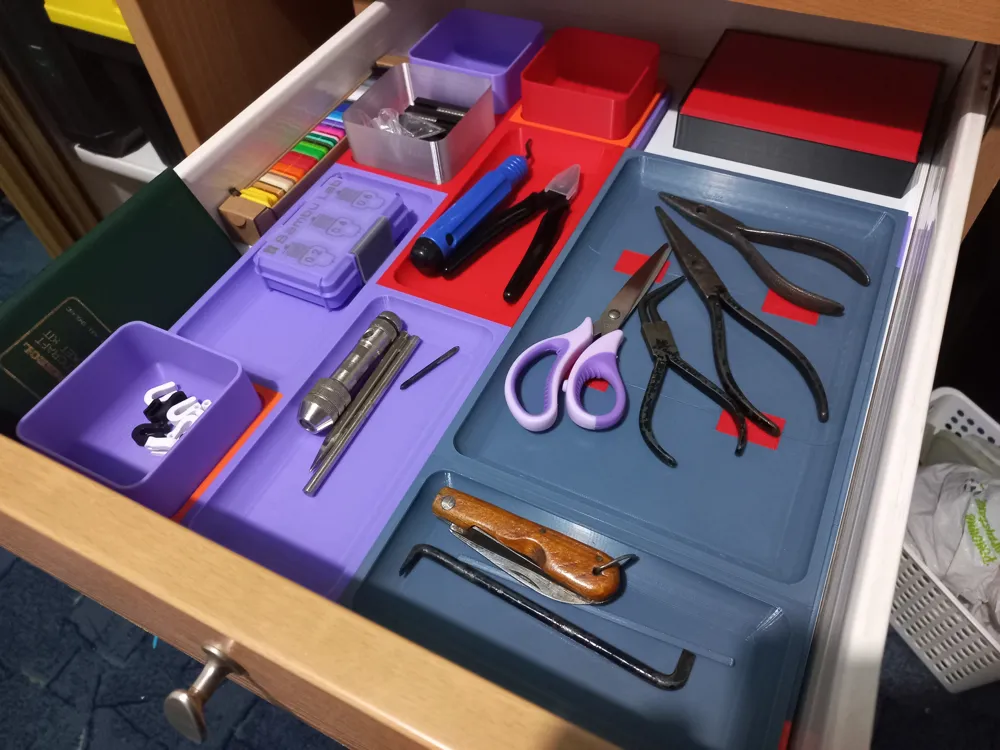

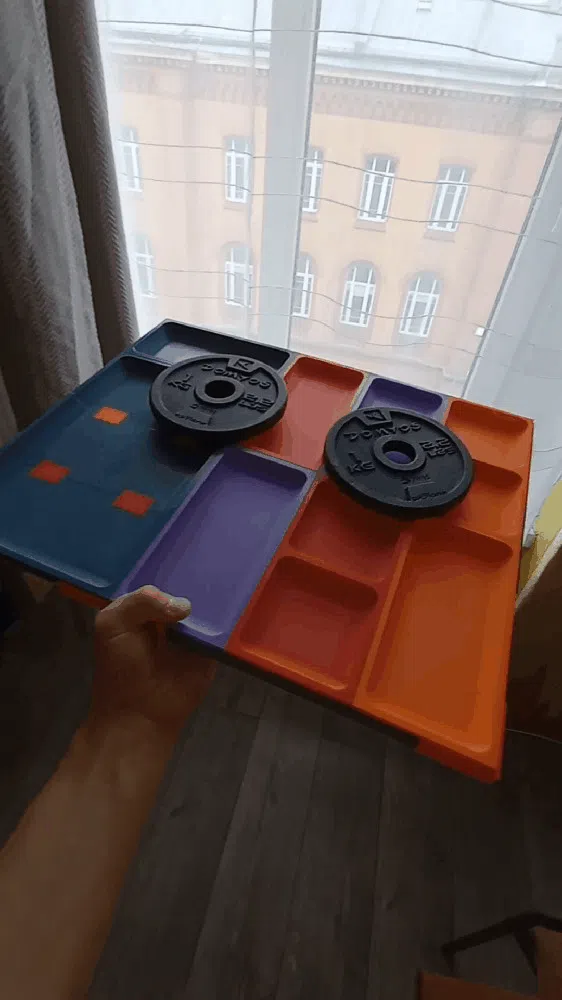

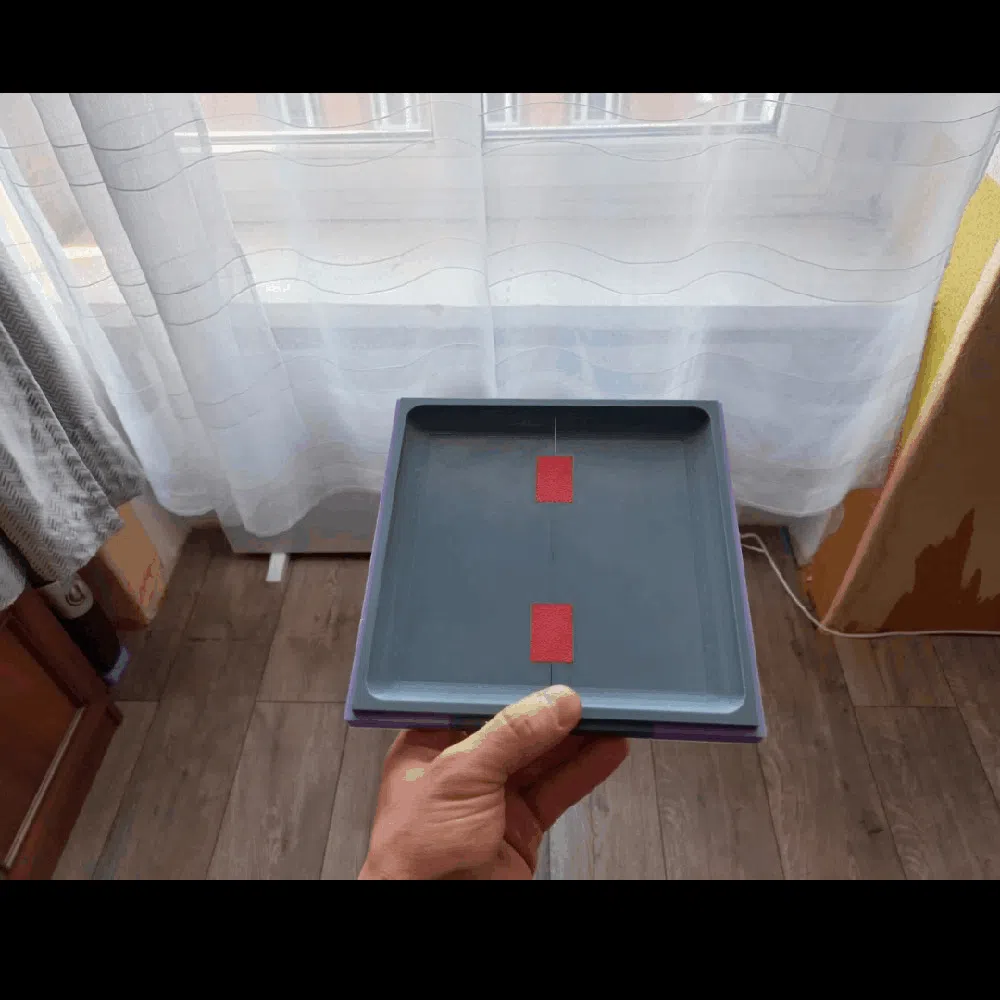

The tray fits perfectly in drawers, helping to maintain order among laboratory supplies, electronics, or other small items. The modules can be easily connected and rearranged according to your needs. Once assembled, the tray is rigid and stable, so you can safely carry it along with its contents—making it an ideal solution for the laboratory, workshop, or home.

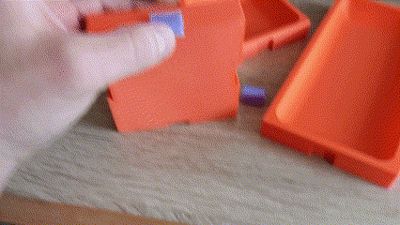

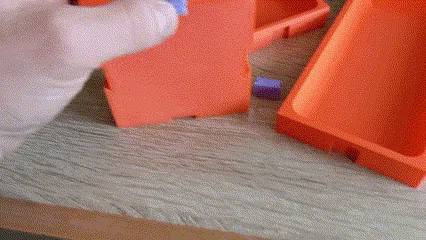

The model offers two types of connectors—loose and tight. The main difference lies in the ease of disassembly: loose connectors allow for quick module detachment, while tight connectors provide a more rigid and stable structure. Assembly of both versions is simple and involves inserting the connectors perpendicularly into the slots. If maximum rigidity of the entire tray is desired, it is recommended to use tight connectors along with additional side connectors around the entire perimeter of the modules. In other cases, loose connectors will be perfectly sufficient, and side connectors are optional and can be used only where their application is deemed necessary.
Print settings:
Material: PLA/PETG
0,4 mm nozzle
0,2 layer height
2 wall loops
15% Grid infill
No supports
Adapters:

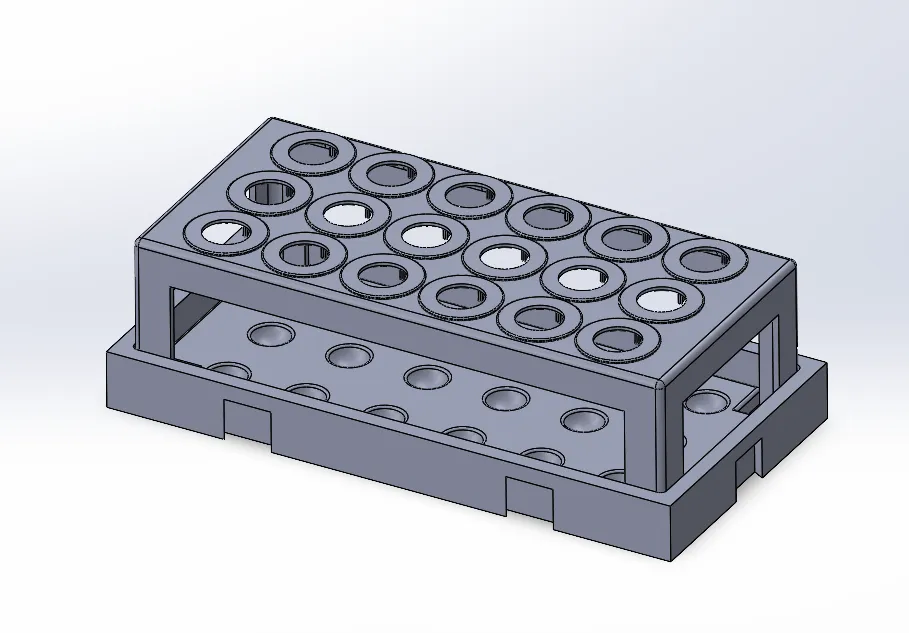

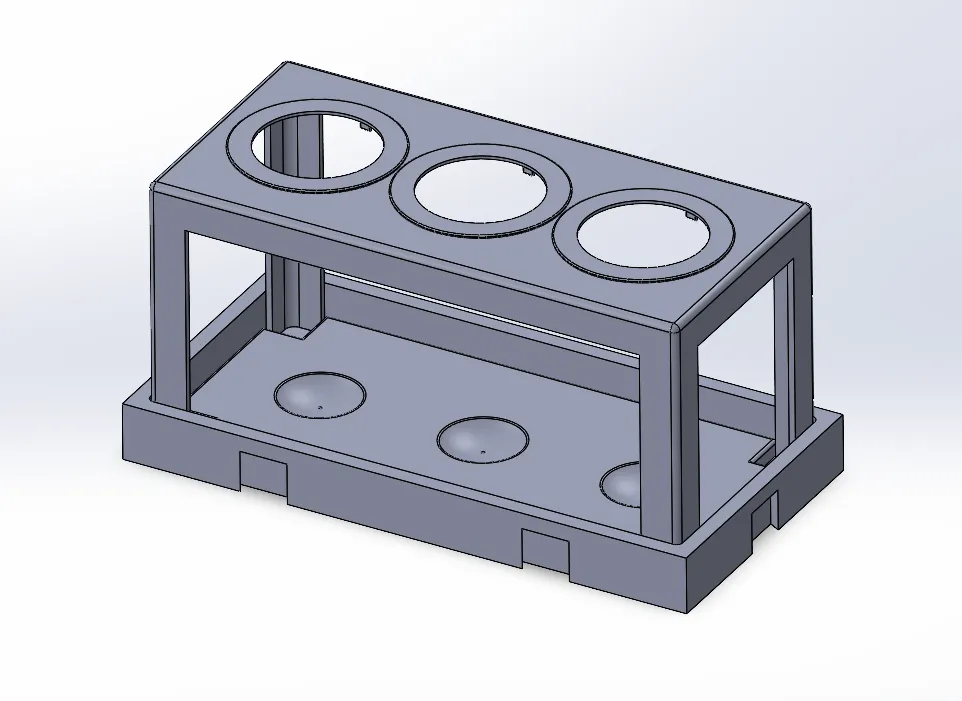

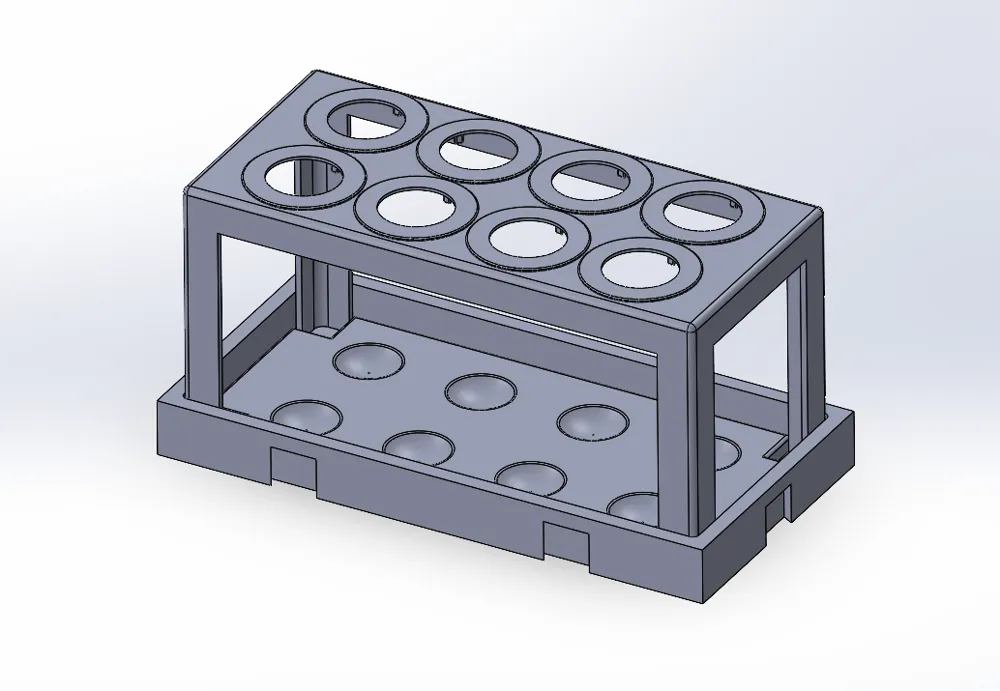

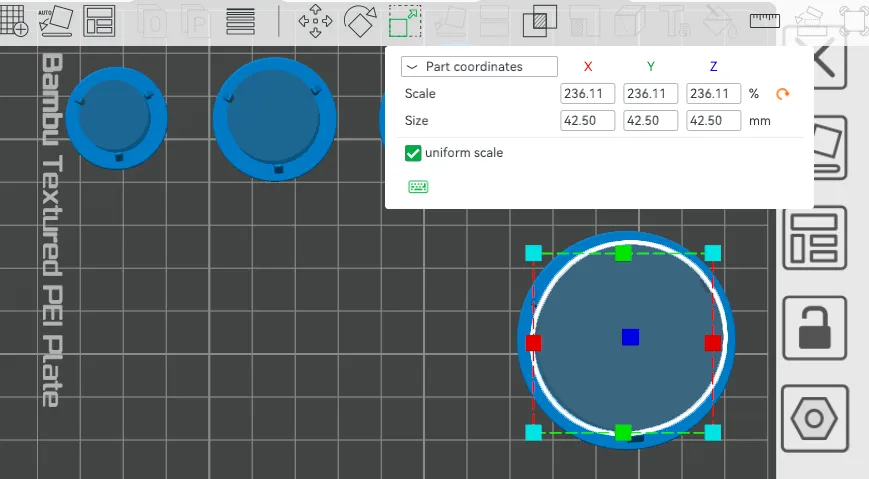

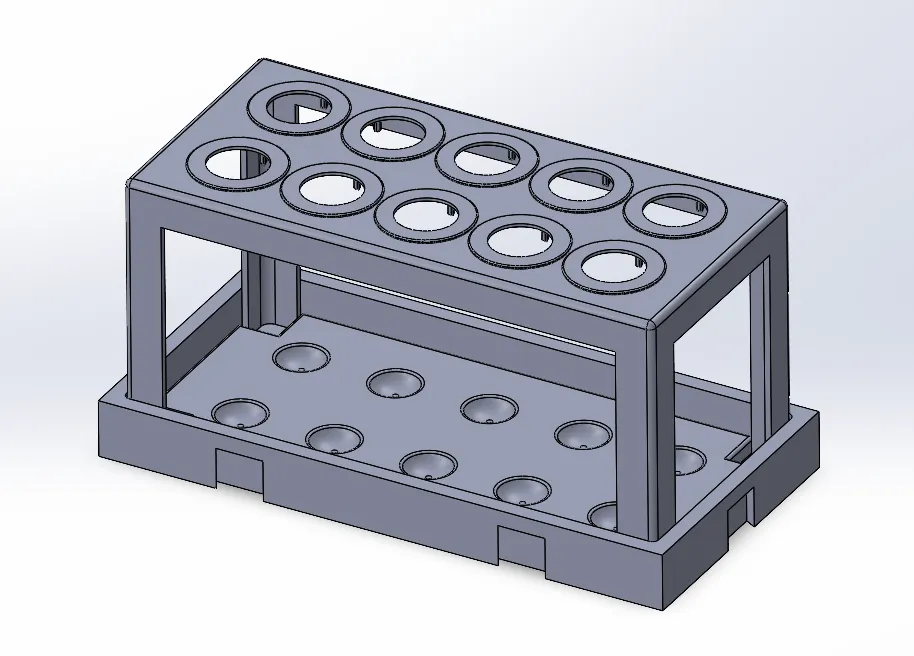

Adapters are designed to allow you to easily create custom hole sizes. In your slicer, each adapter is provided with a negative object (at the maximum recommended size for each type). Simply scale these negative objects to your desired size.

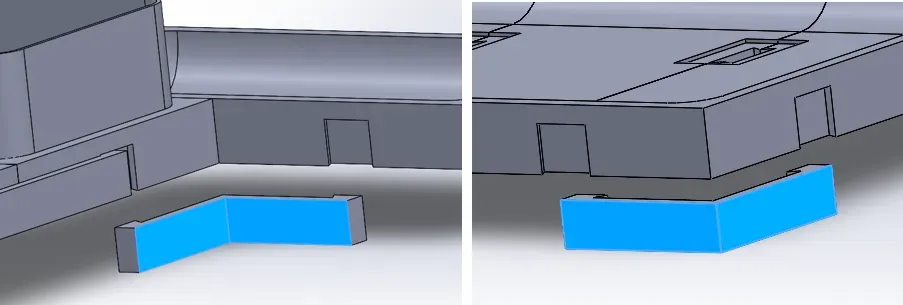

Connectors print orientation:

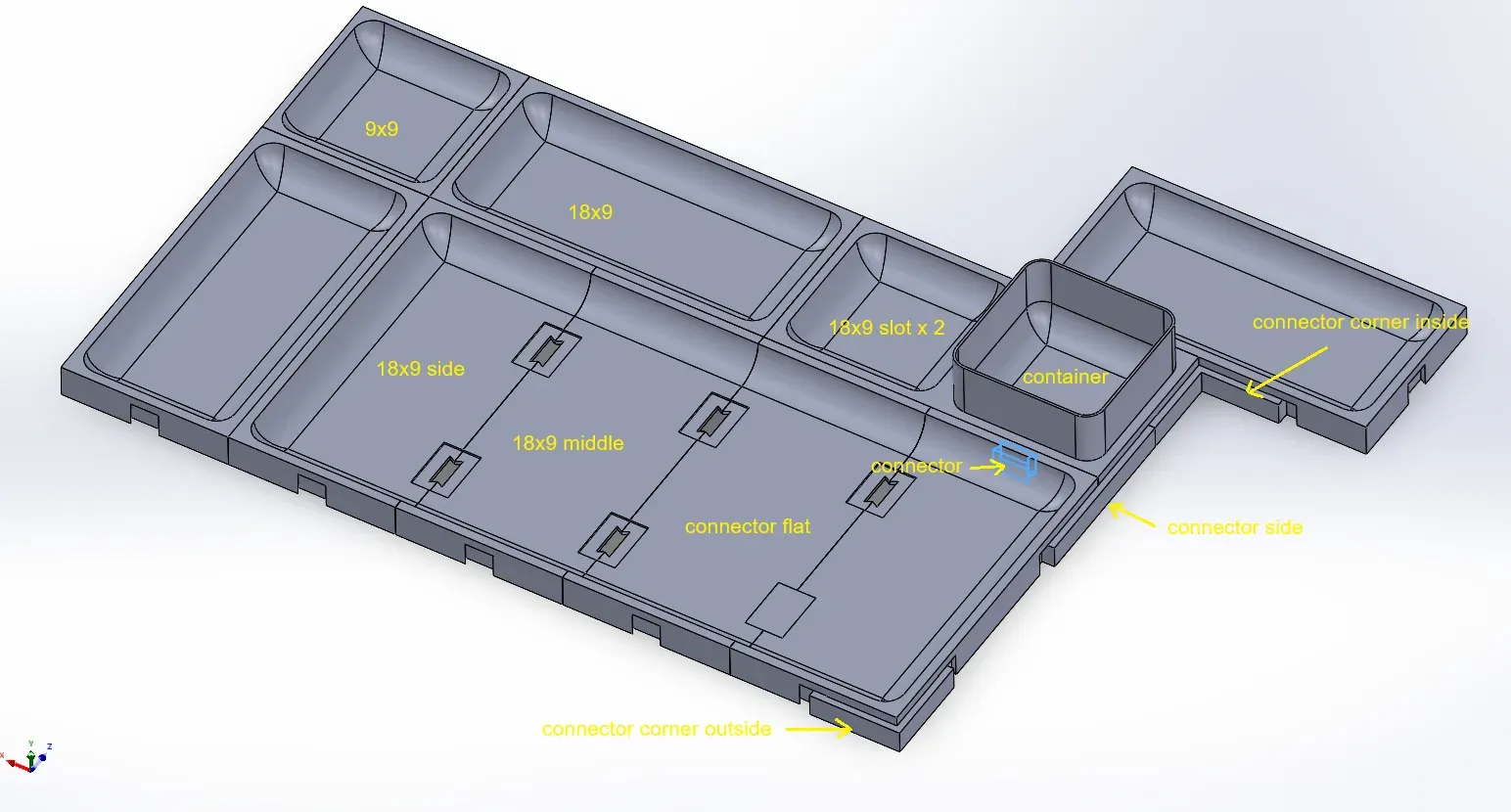

Basic parts list:

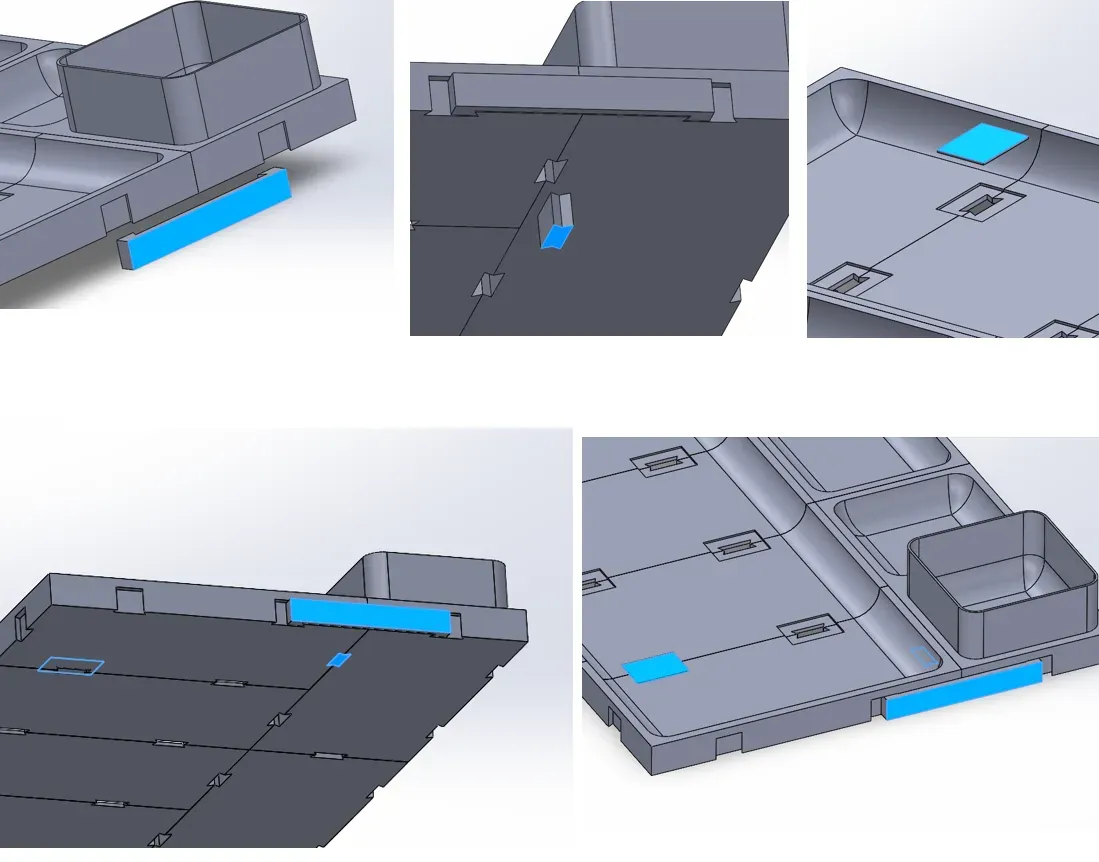

Connector placement:
