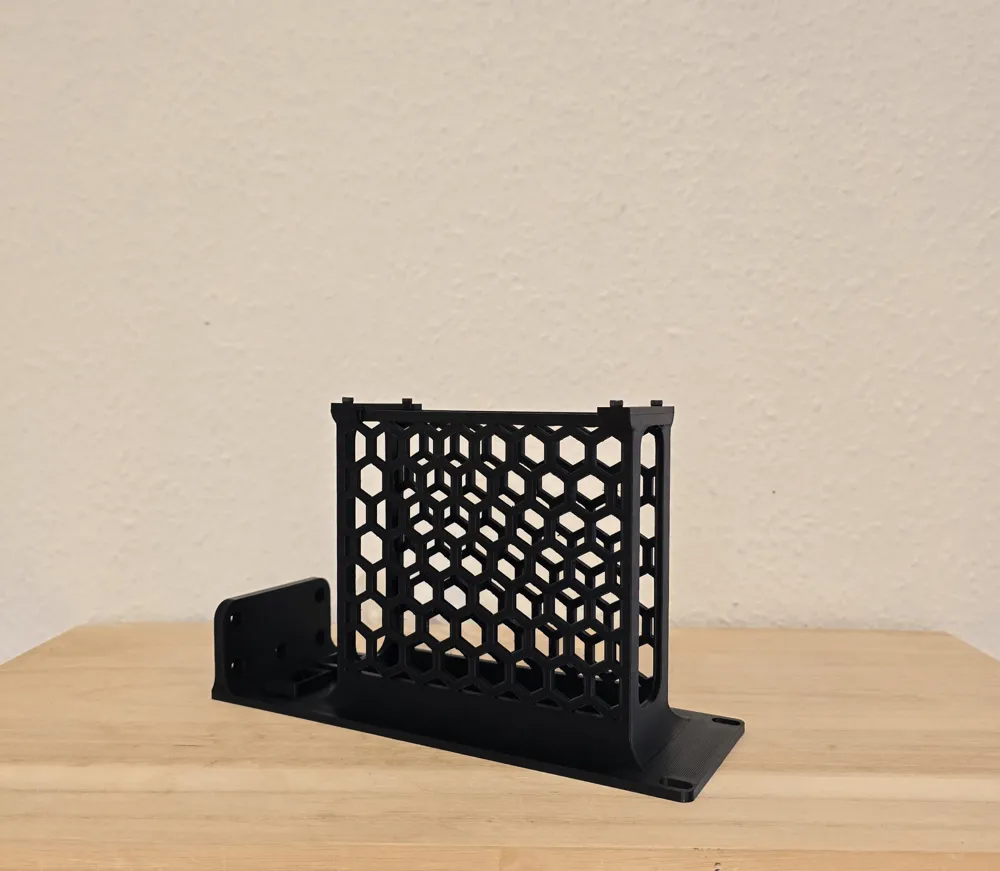

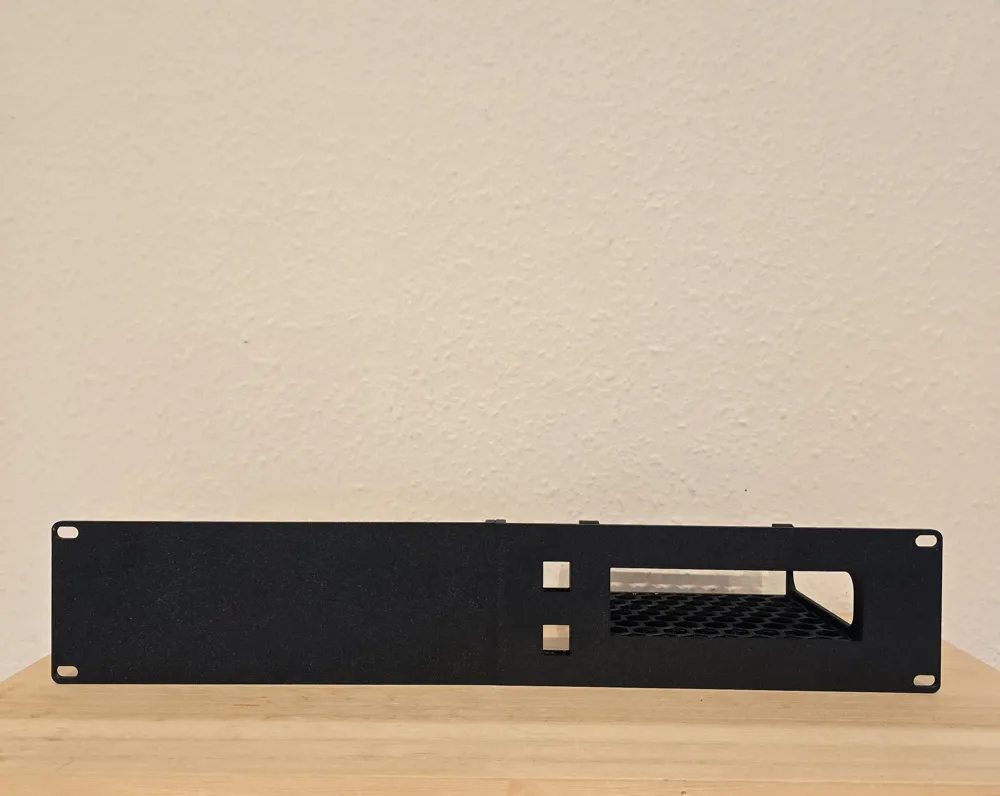

19 - Inch Rack mount 2u Sonos port

19 - inch rack mount 2u for Sonos port.


You load it from behind, and use 2 back - stops.

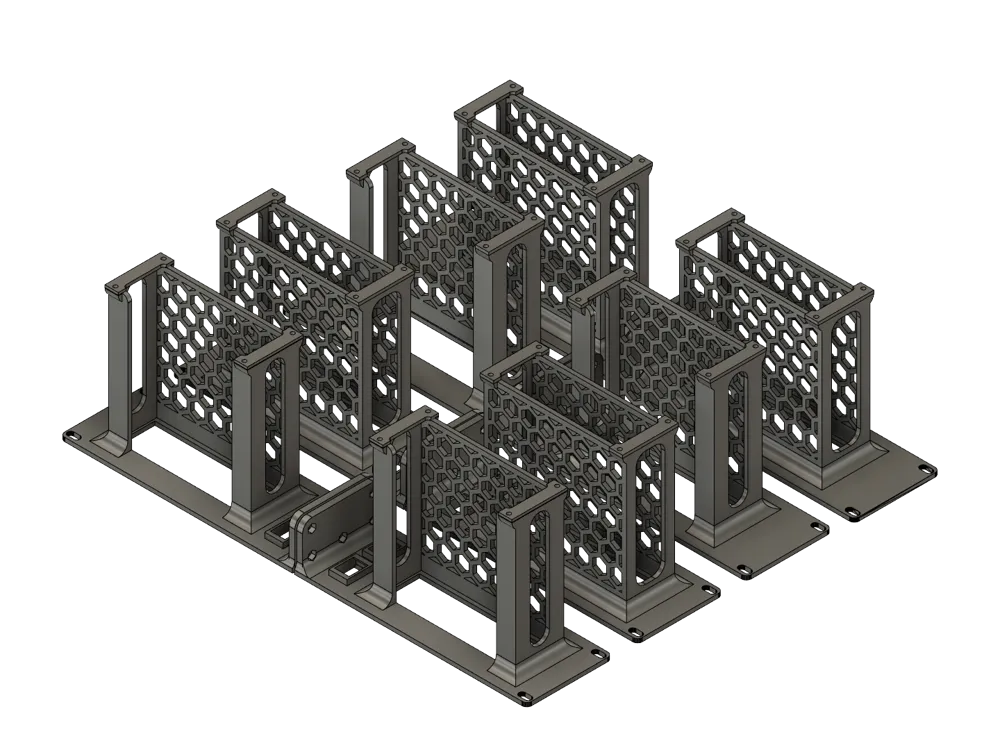

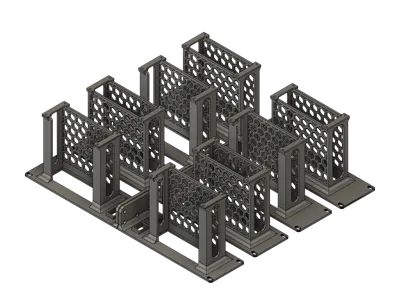

The following models

1.  19 - inch rack mount -  Hex nut.

2.  19 - inch rack mount  - Screw.

3. 19 - inch rack mount 2x keystone - Hex nut.

4. 19 - inch rack mount 2x keystone -  Screw.

5. 19 - inch rack mount Hex nut-NP. = No polygon in top, for less filament.

6. 19 - inch rack mount Screw-NP. = No polygon in top for less filament.

7. 19 - inch rack mount 2x keystone - Hex nut-NP. = No polygon in top, for less filament.

8. 19 - inch rack mount 2x keystone - Screw-NP. = No polygon in top, for less filament.






Parts
5x M5 Hex nut.
5x M5 Screw.
4x M3 x 6mm Screws for the Back-stops.



If you only need one mount, you can find the blanks/keystone Blanks here

Blanks        Keystone Blanks
