Ultimate Miniature Painting & Priming Handle 1.0

The Ultimate Miniature Painting & Priming Handle 1.0!

ATTENTION! The tolerances for the screws and bolts are quite tight and specifically tuned for Bambu Lab PETG. Since every plastic (even PETG from different manufacturers) shrinks differently during cooling, I recommend using the slicer's "scale" function to slightly adjust the screws and bolts if the fit is too tight.

Never get dirty fingers again when priming your miniatures!

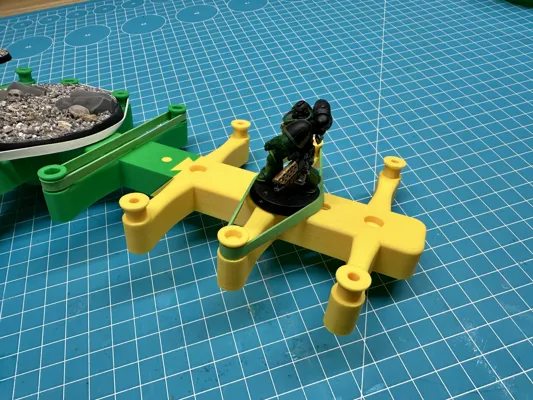

Forget wooden strips and double-sided tape - all you need are rubber bands 5mm x 50mm (diameter). (If you buy exactly this rubber bands give them a good wash with hand soap and warm water, they could be a little bit…oily?! when they are new.)

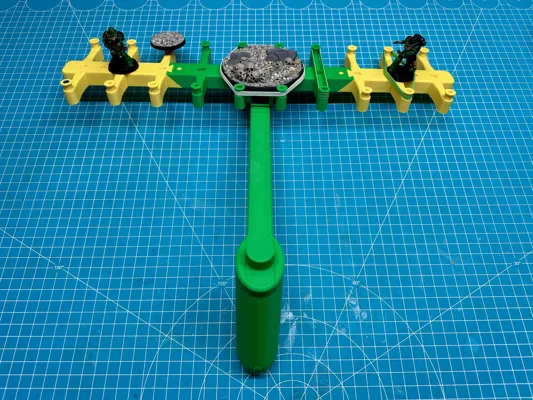

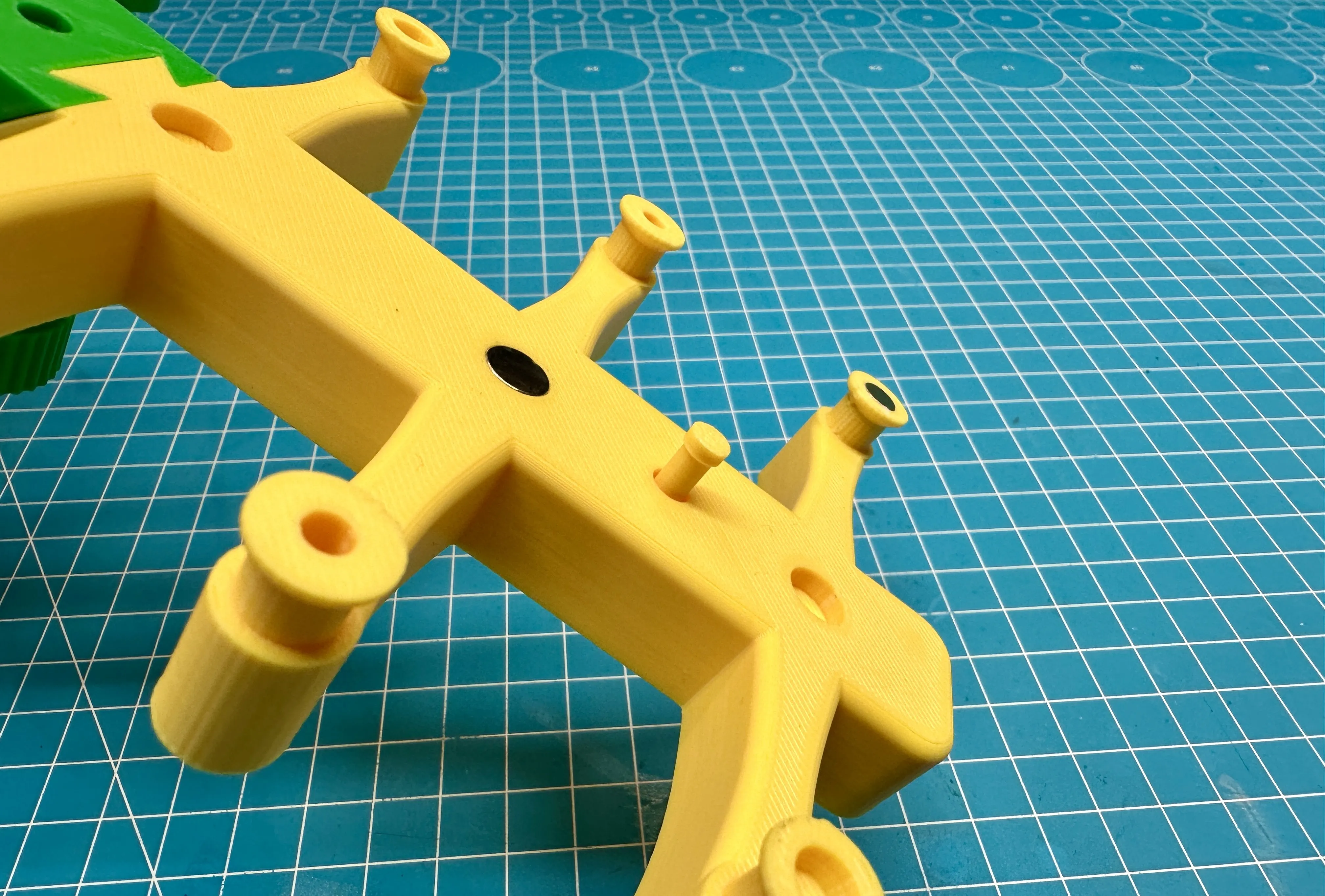

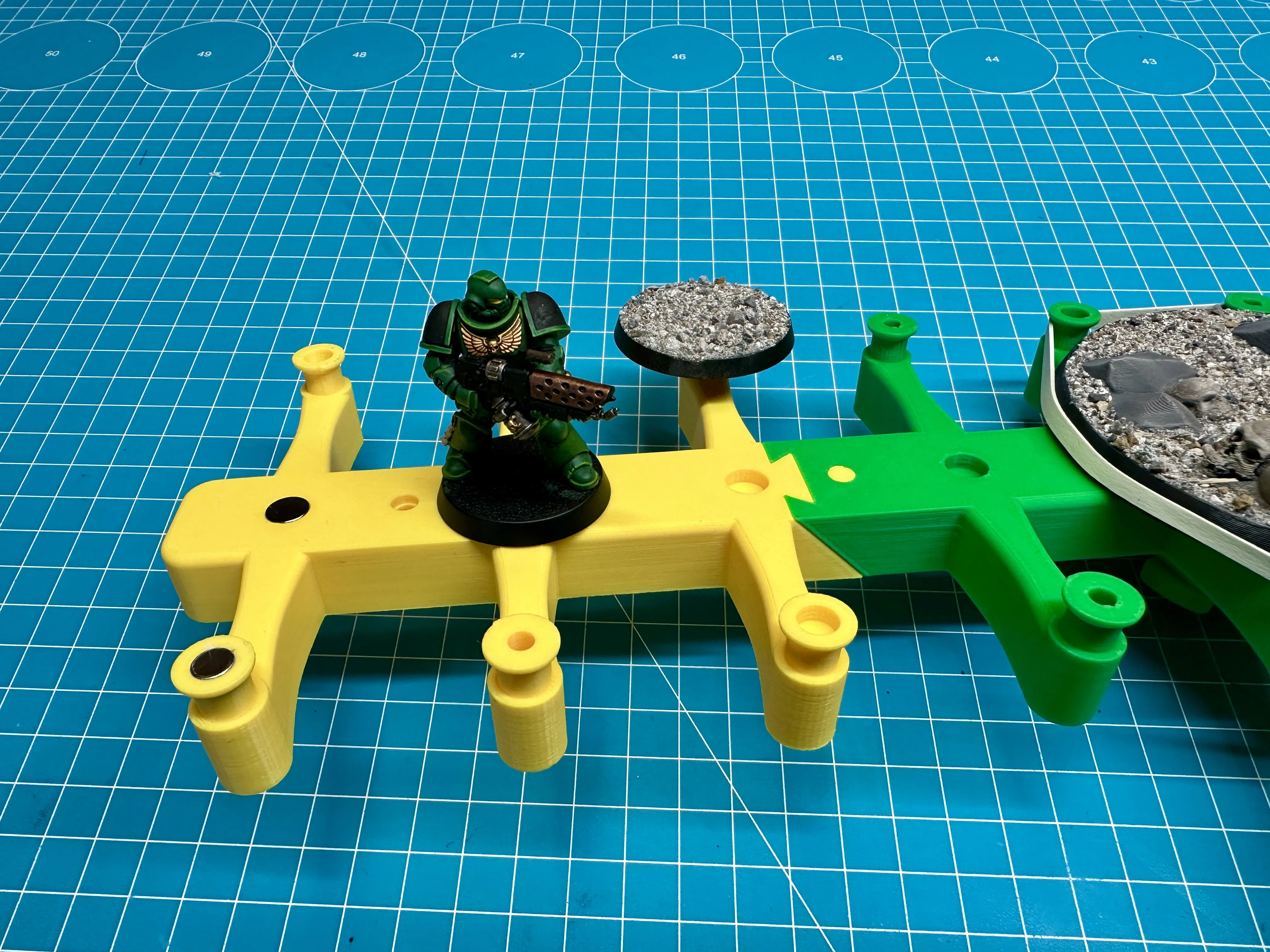

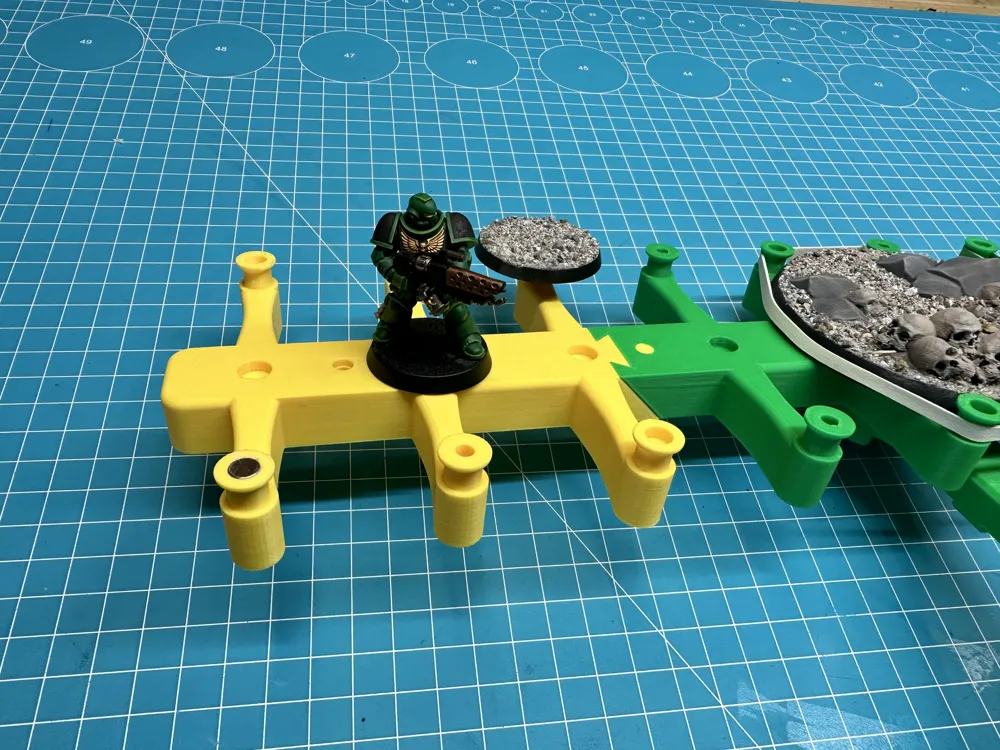

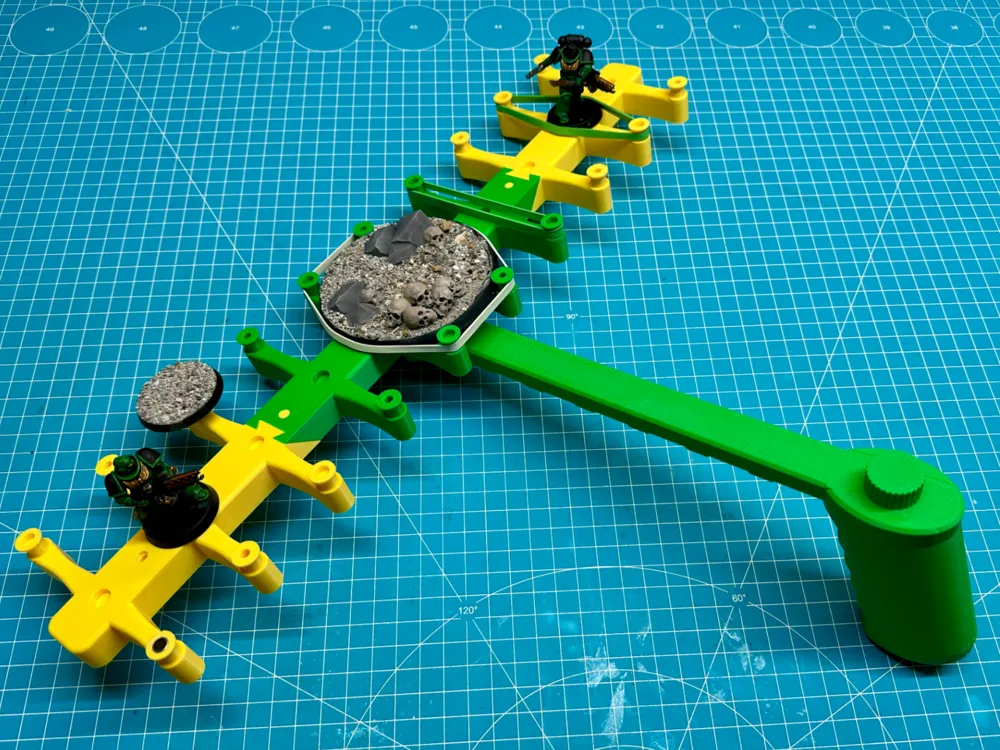

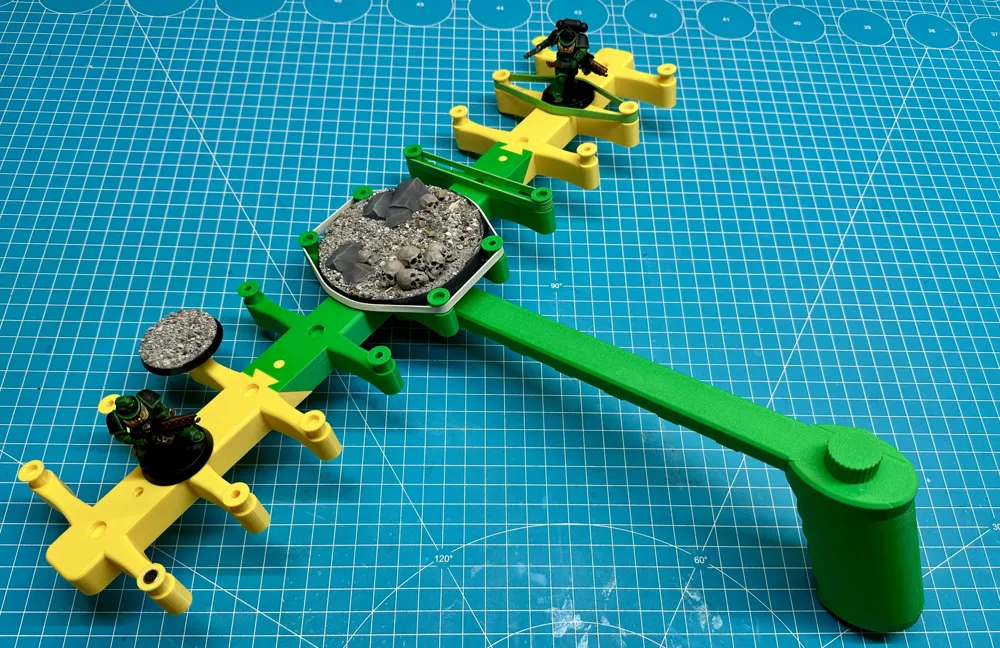

Your bases or miniatures are already magnetized?! Perfect! Insert 8x3mm & 6x3mm Magnets into the cantilevers and attach even more miniatures for priming. Every second hole has a 4mm bore for attaching heads or smaller parts, for example.

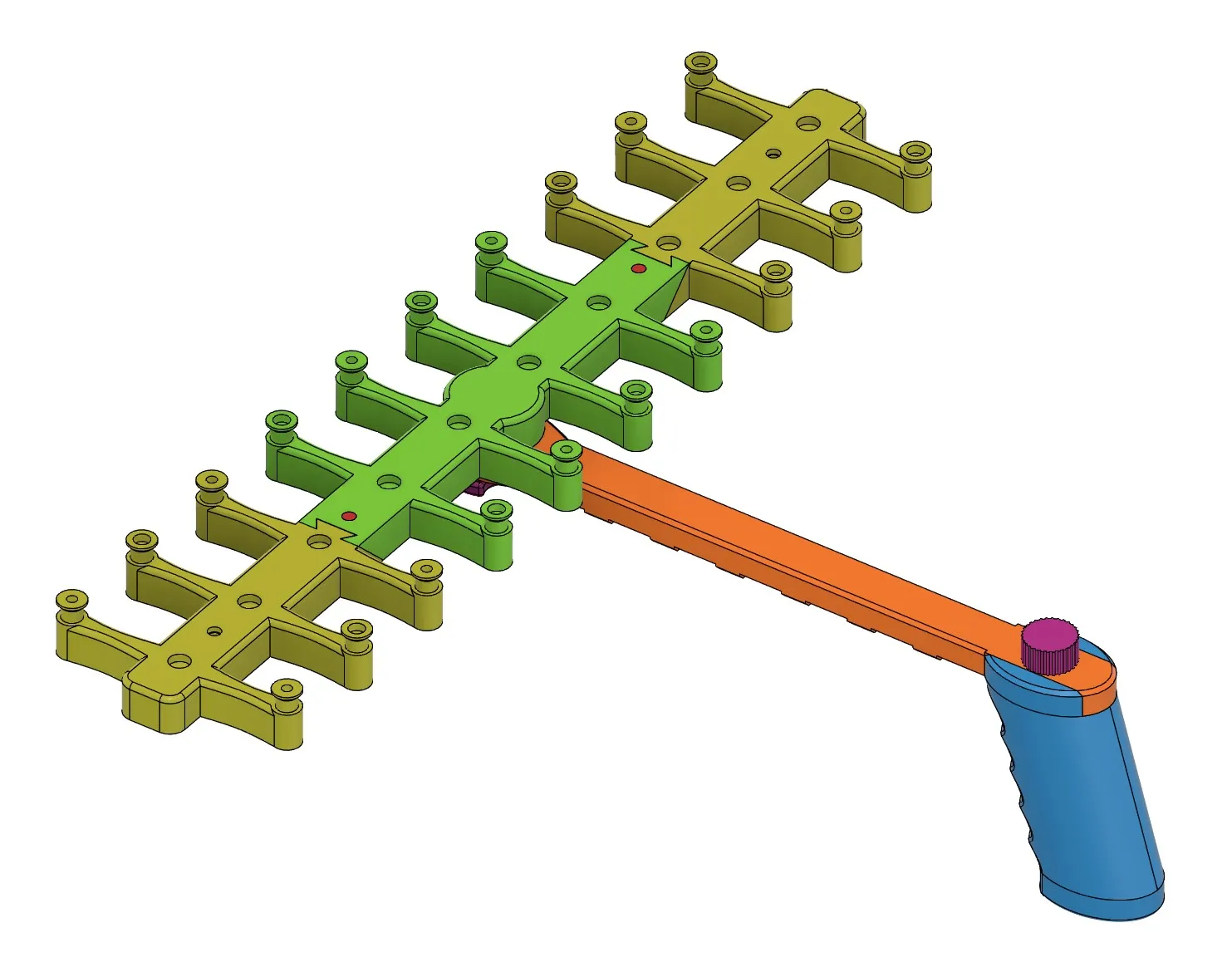

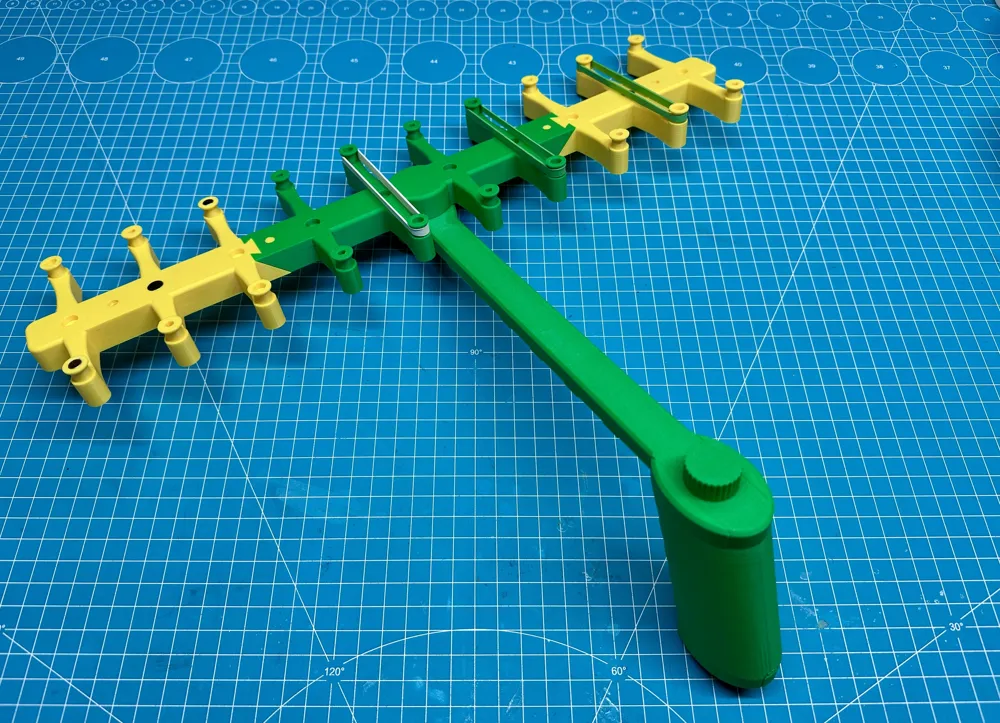

If you always want to prime fewer miniatures at once, that's no problem - since the priming holder is modular, you can just use the center part and leave the left and right cantilevers in the drawer.

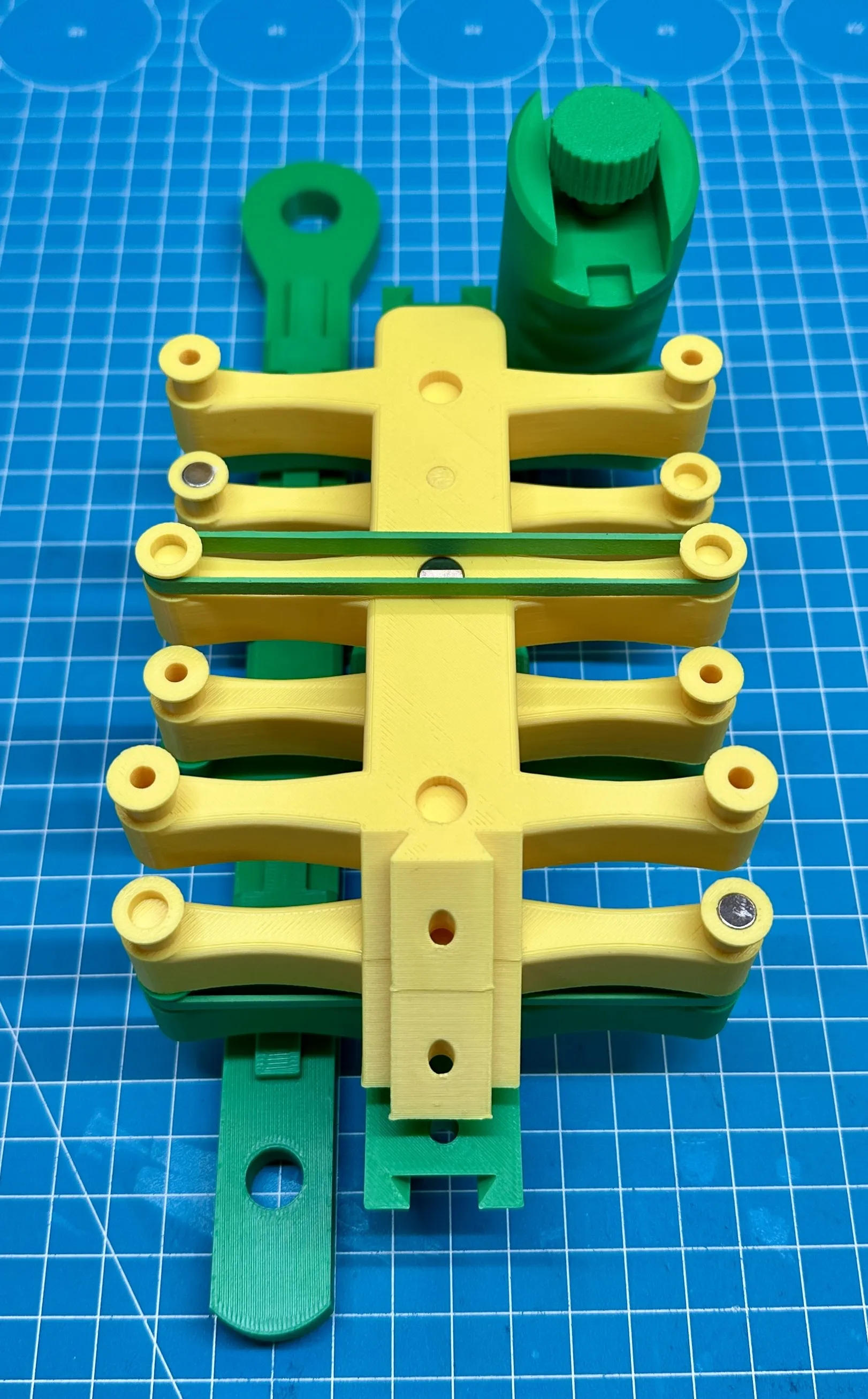

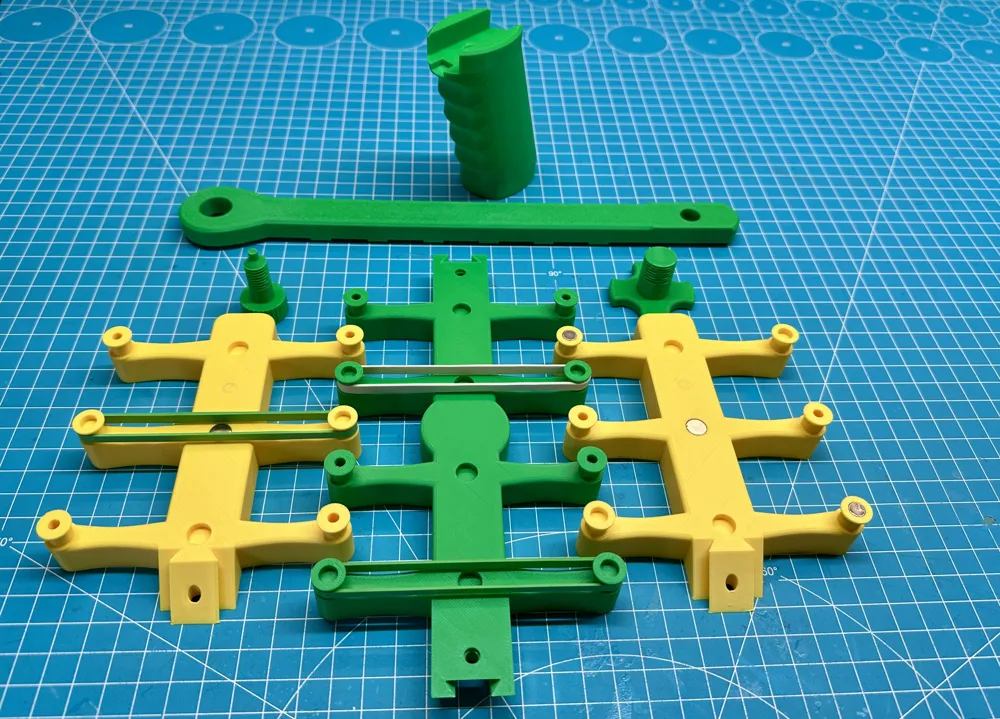

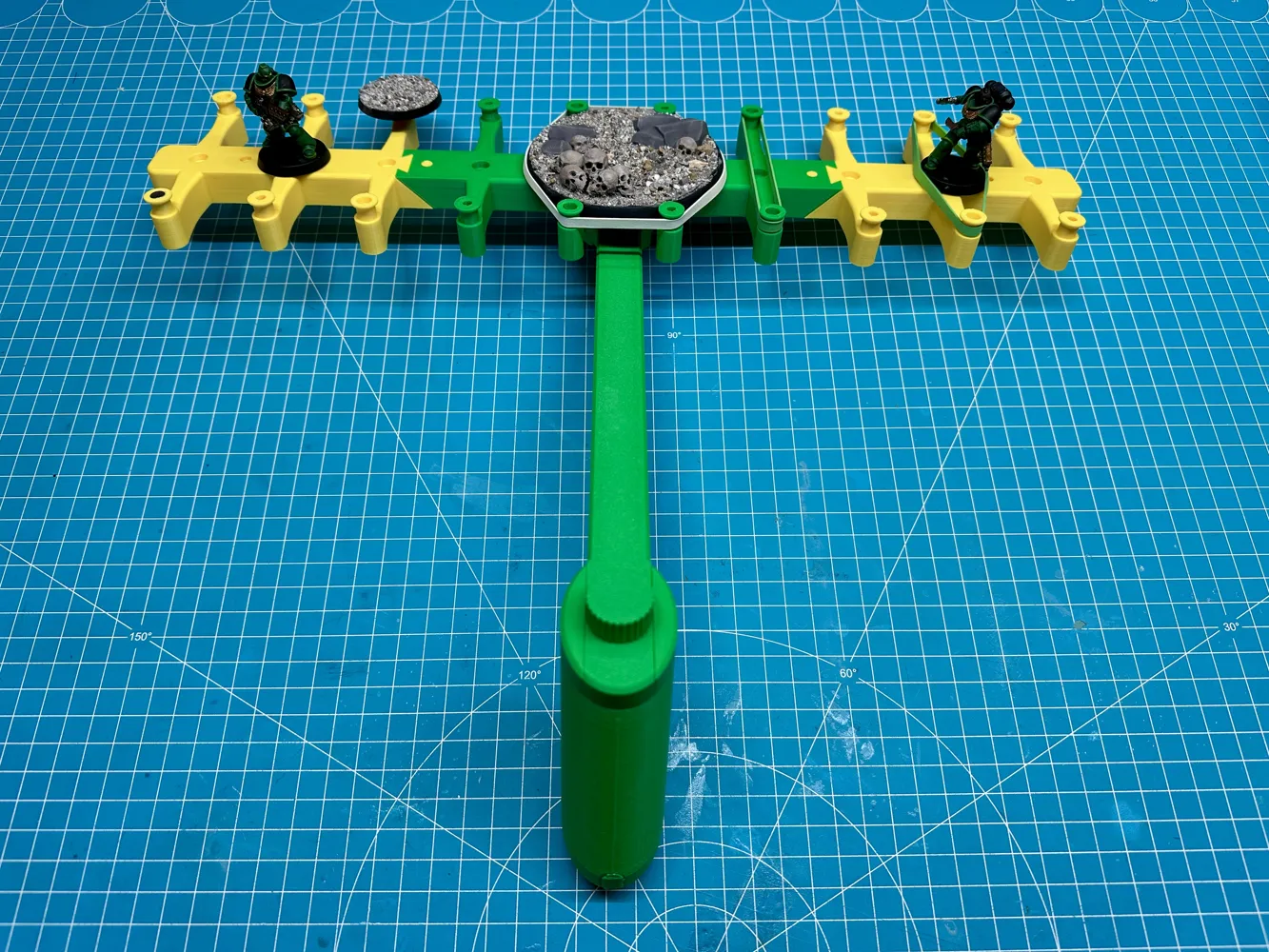

Since the priming holder is completely modular, it requires very little storage space.

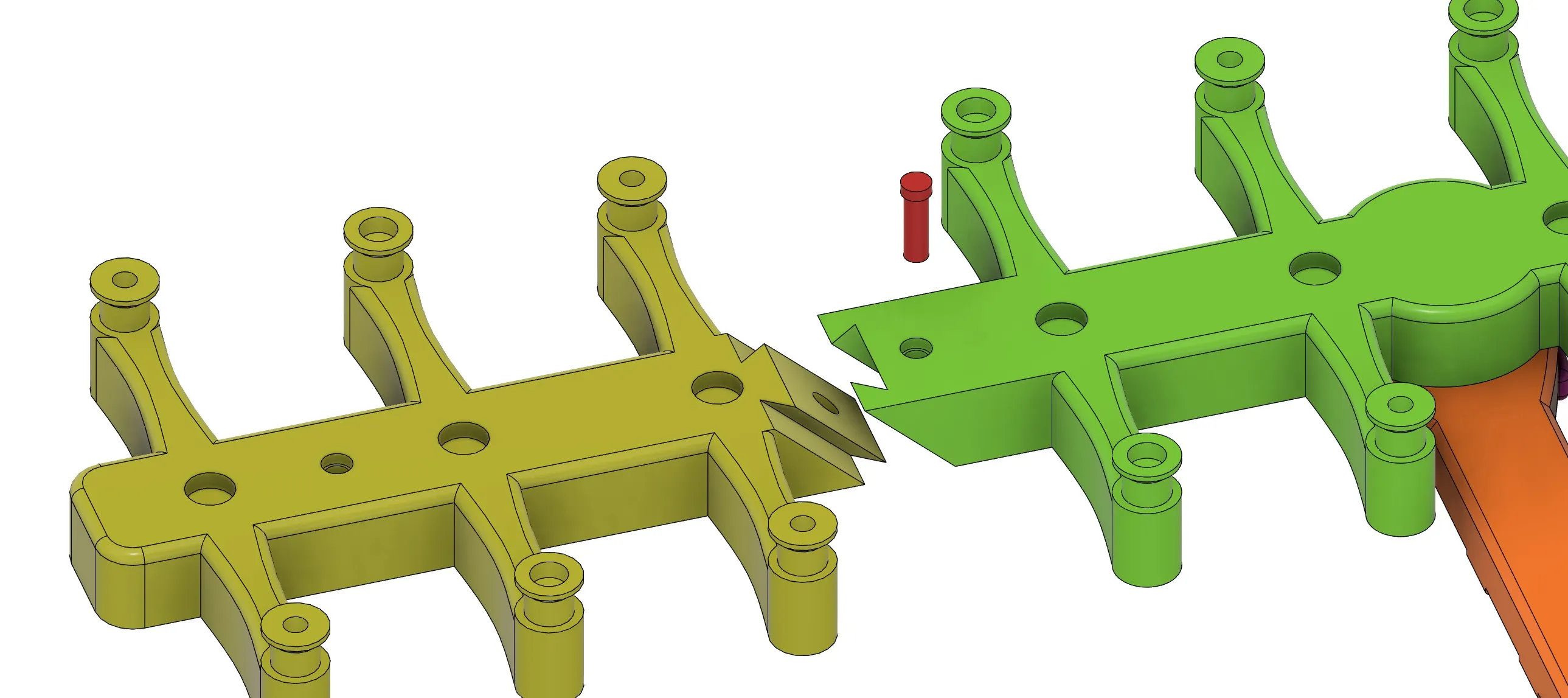

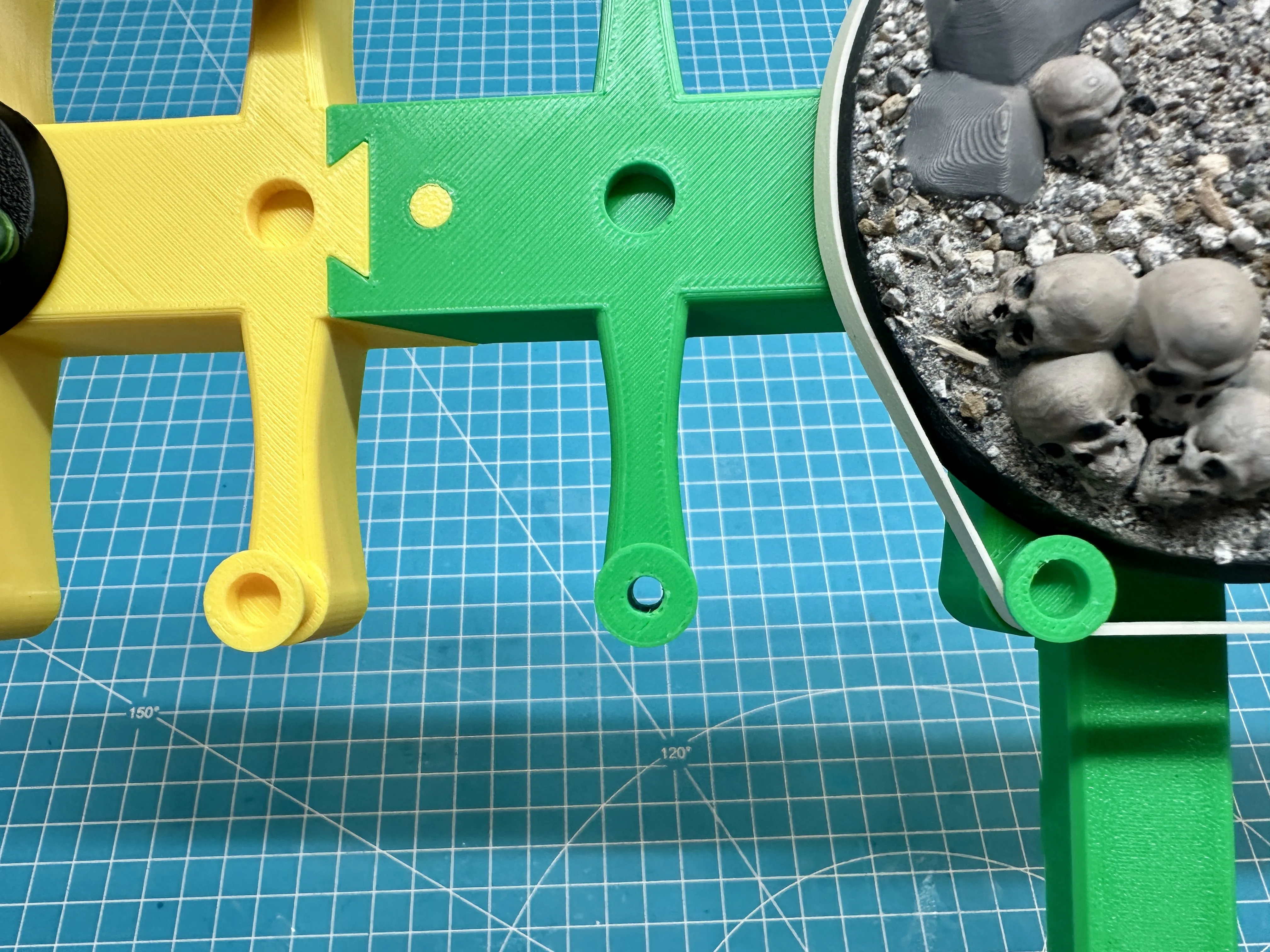

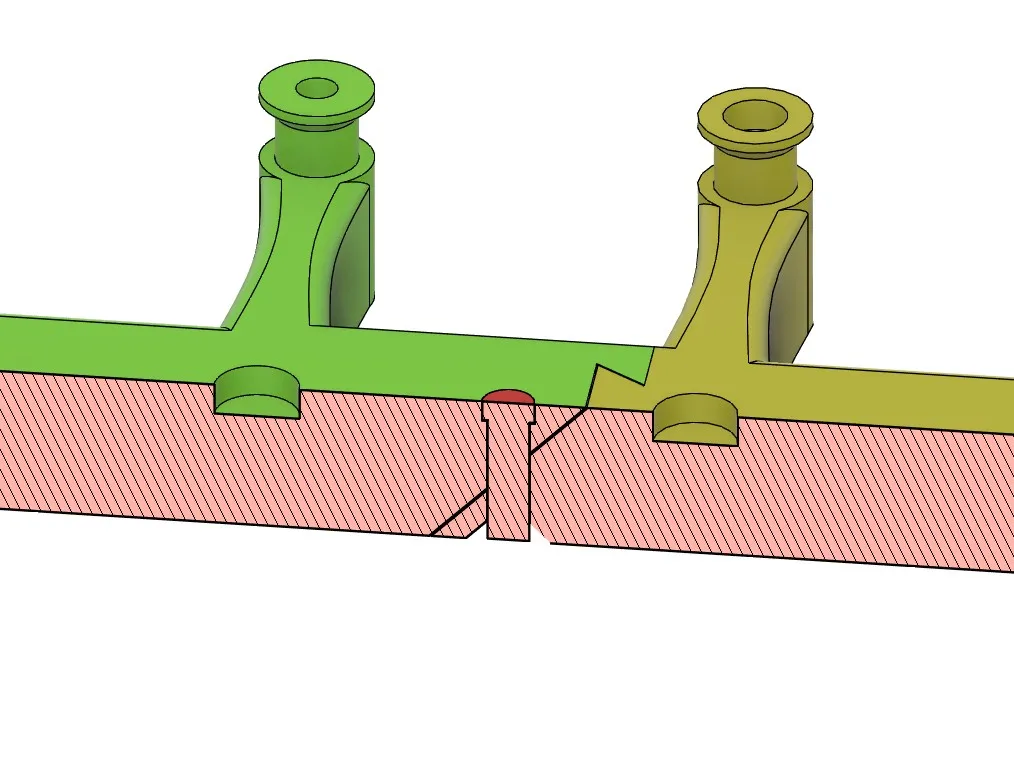

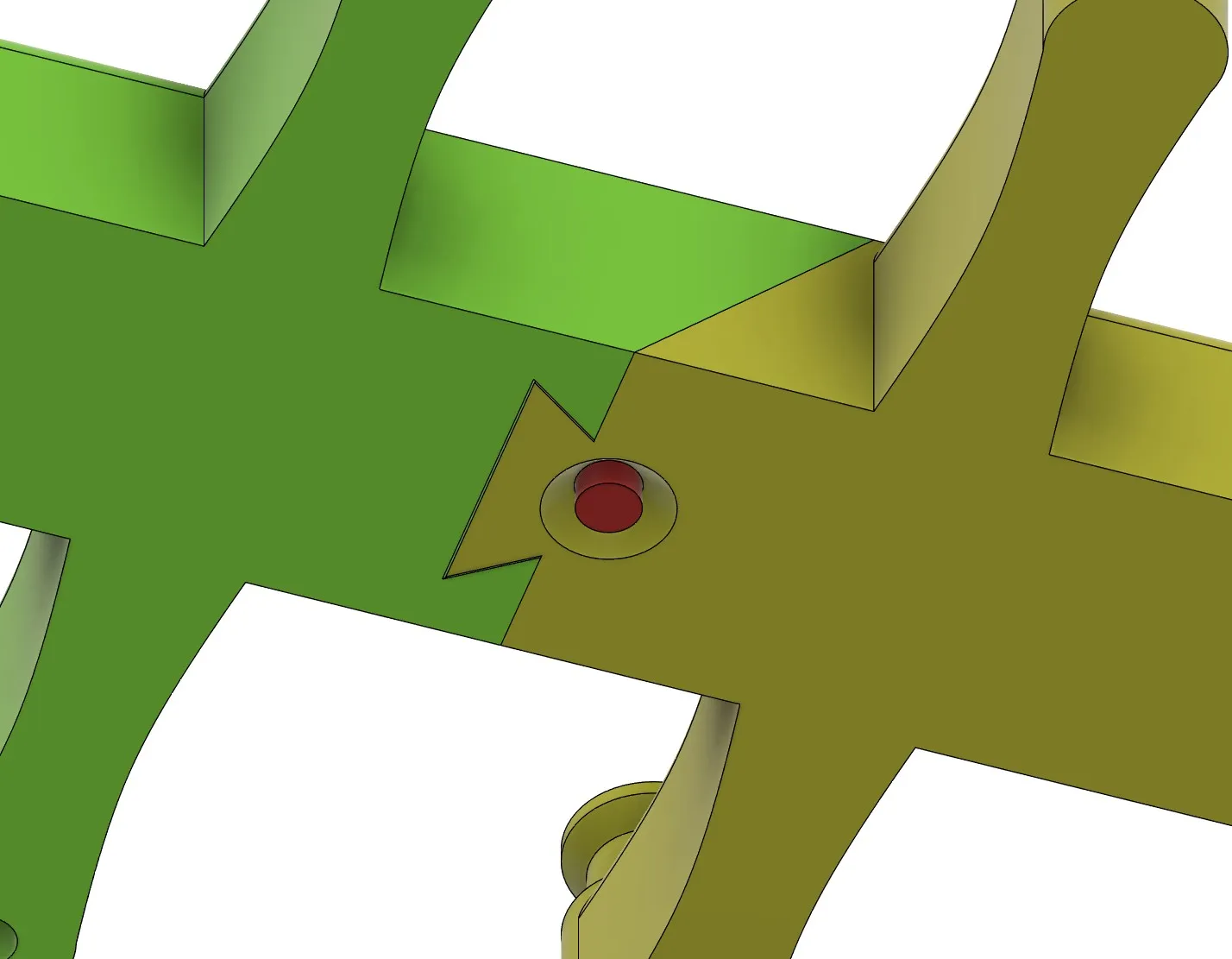

The cantilevers are connected via dovetail joints and secured with small pins each.

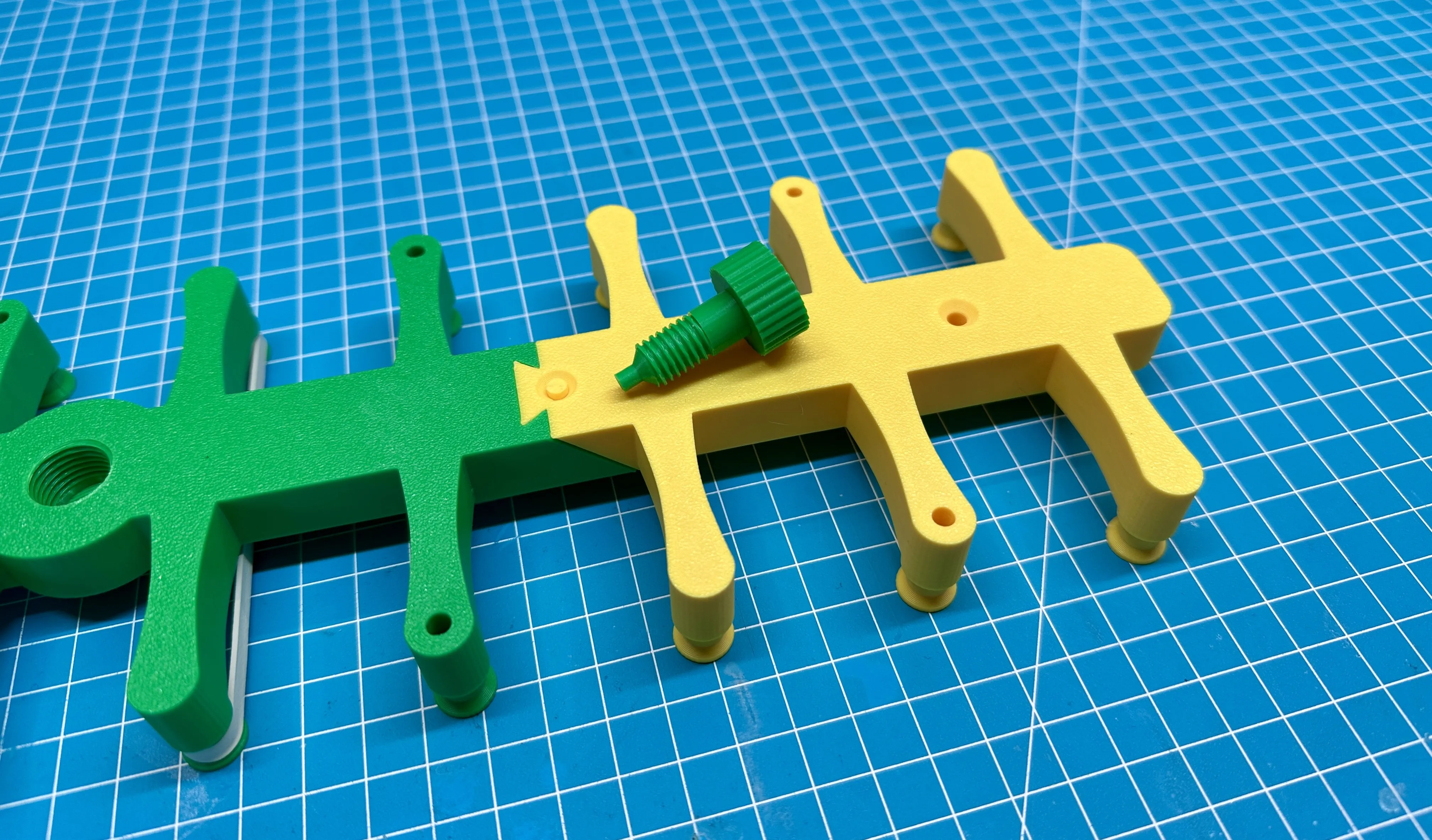

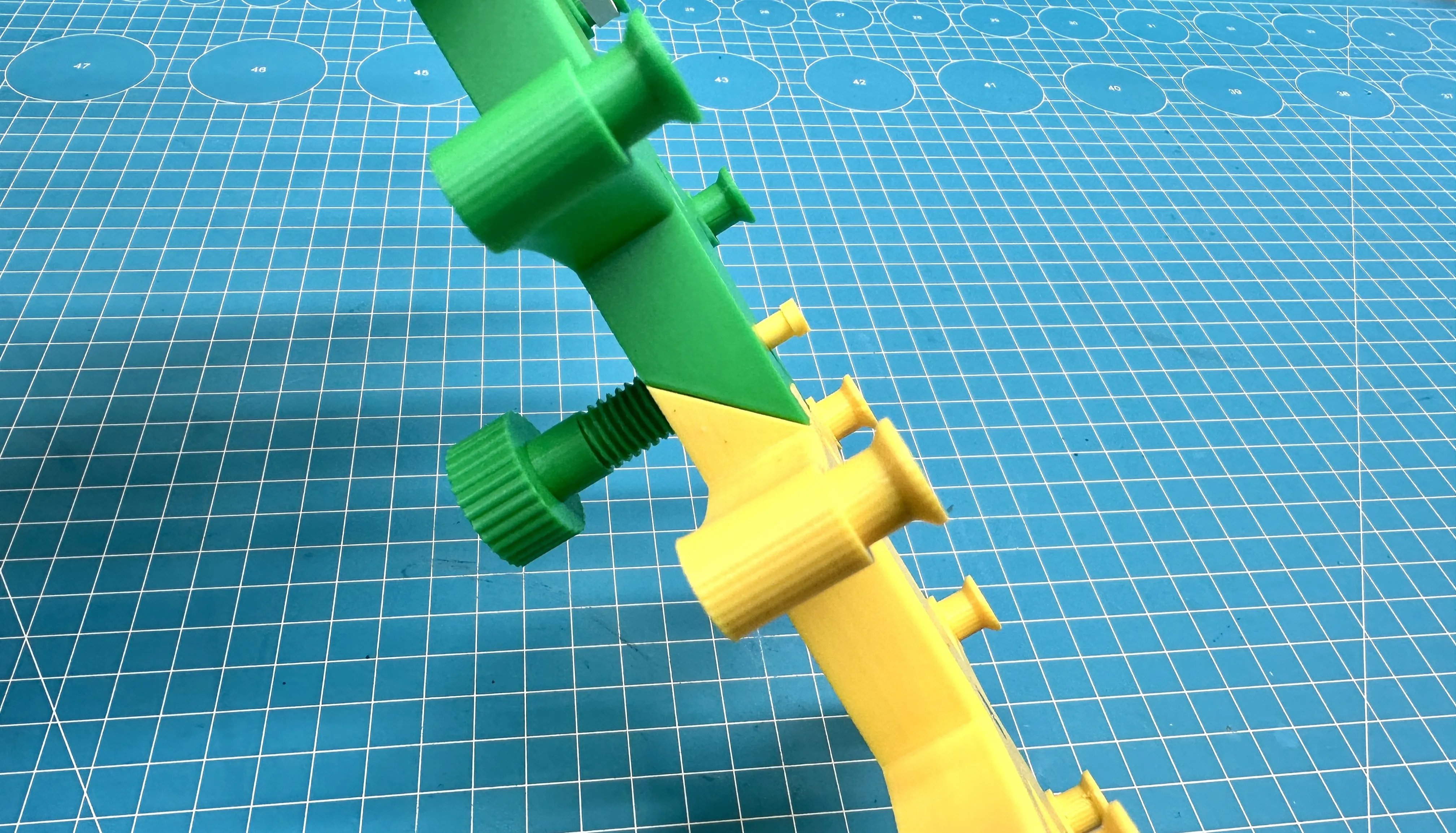

When you don't need the right and left cantilevers, the pins can be safely stored in the additional holes on the side so they don't get lost.

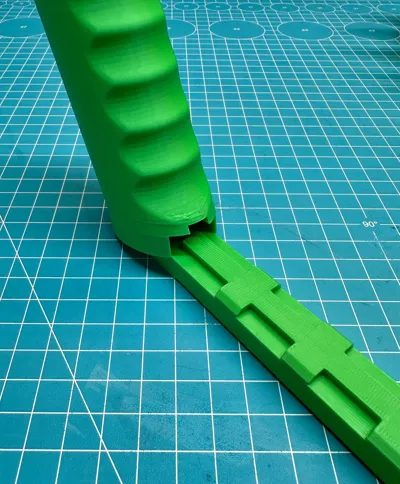

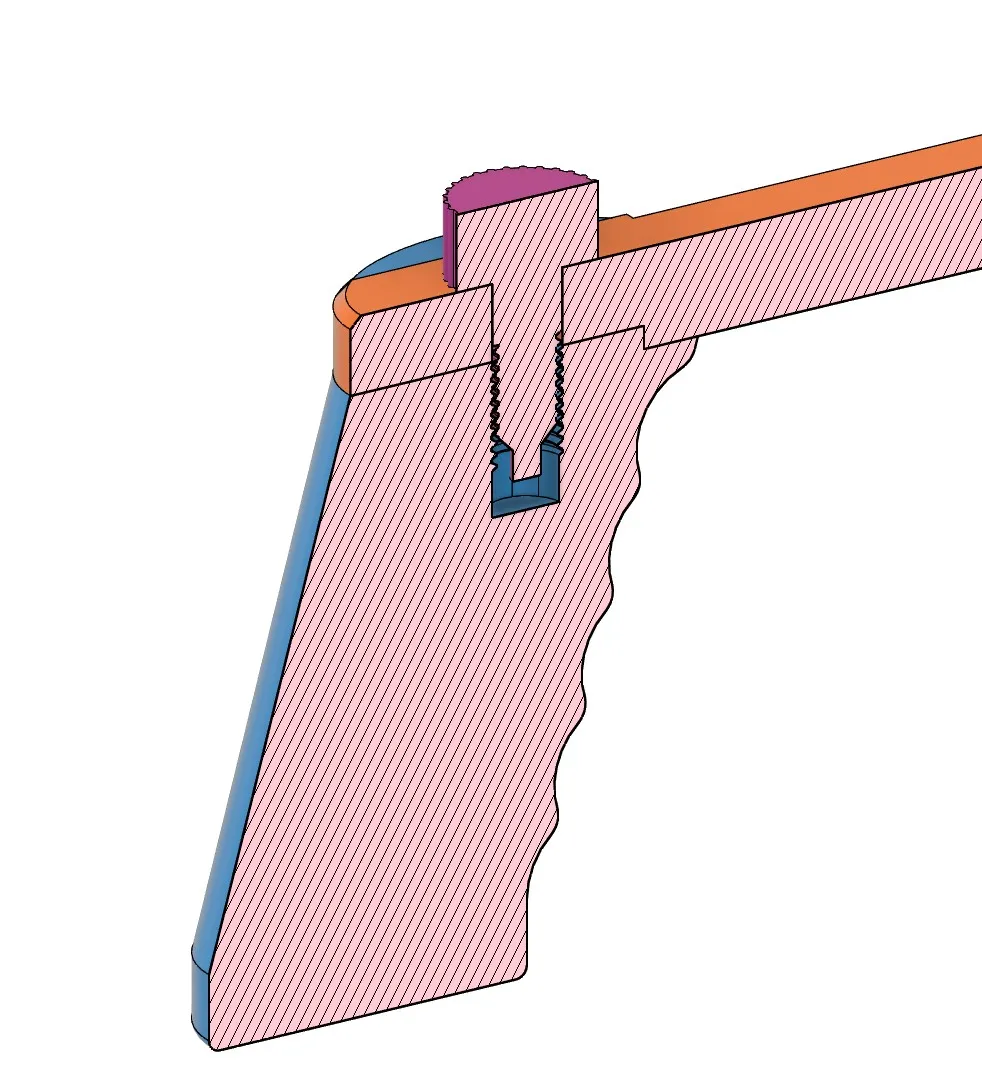

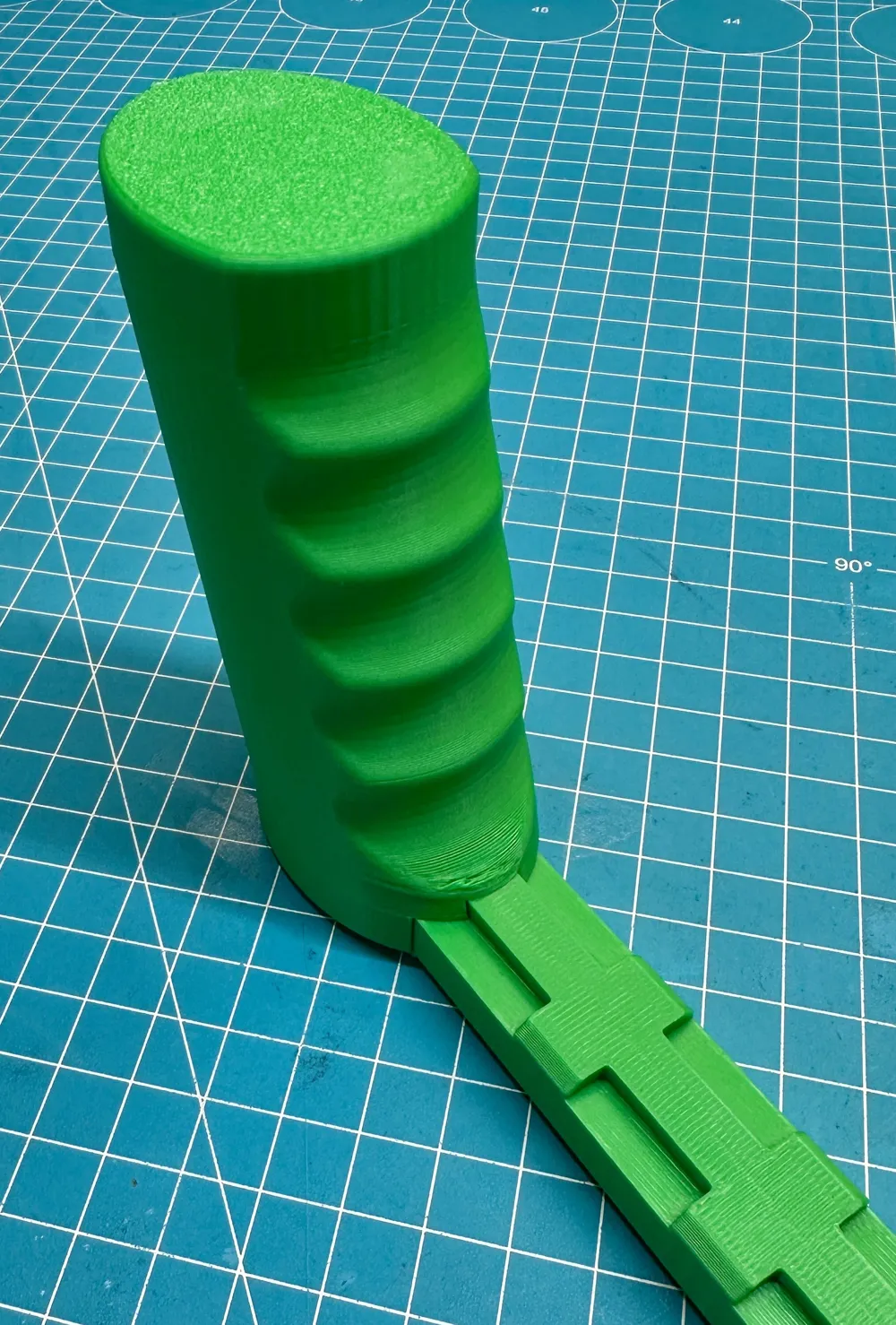

Should the pins ever get stuck, you can use the integrated tool in the grip screw to loosen them again.

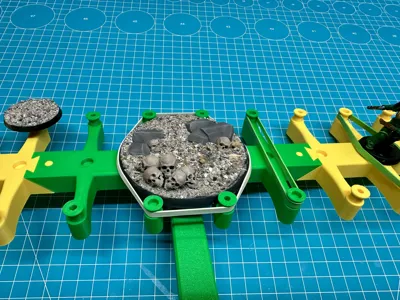

The holder accommodates all common bases up to 90mm diameter.

(no Supports needed)

I hope you like the design! If you have any suggestions for improvement, please let me know!

Have fun painting your miniatures! :)
