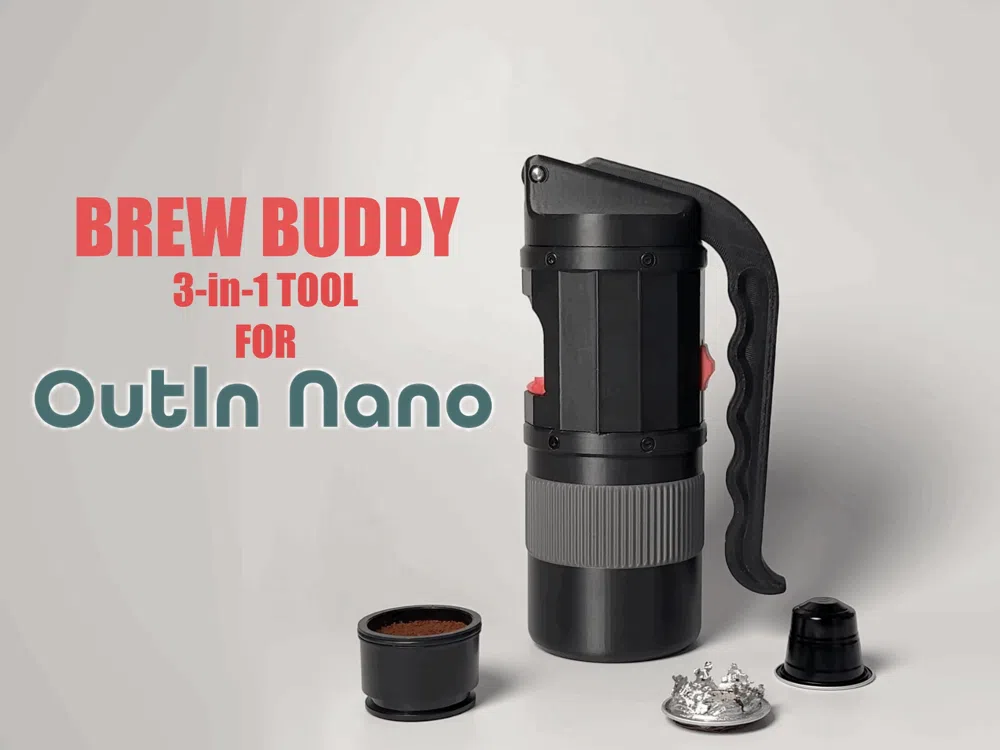

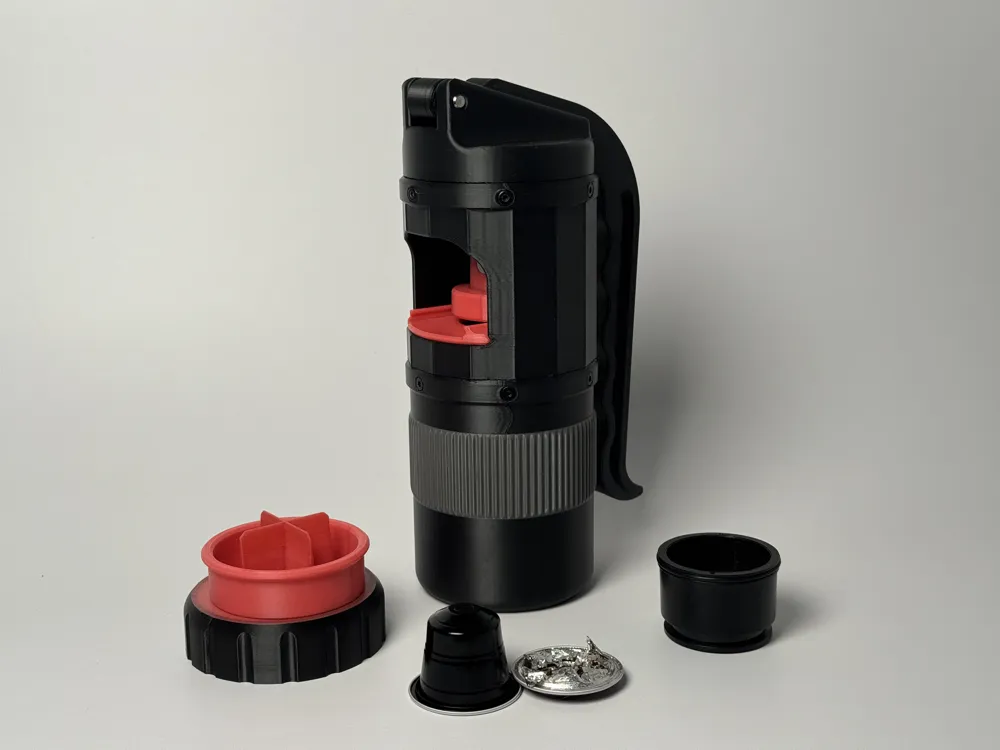

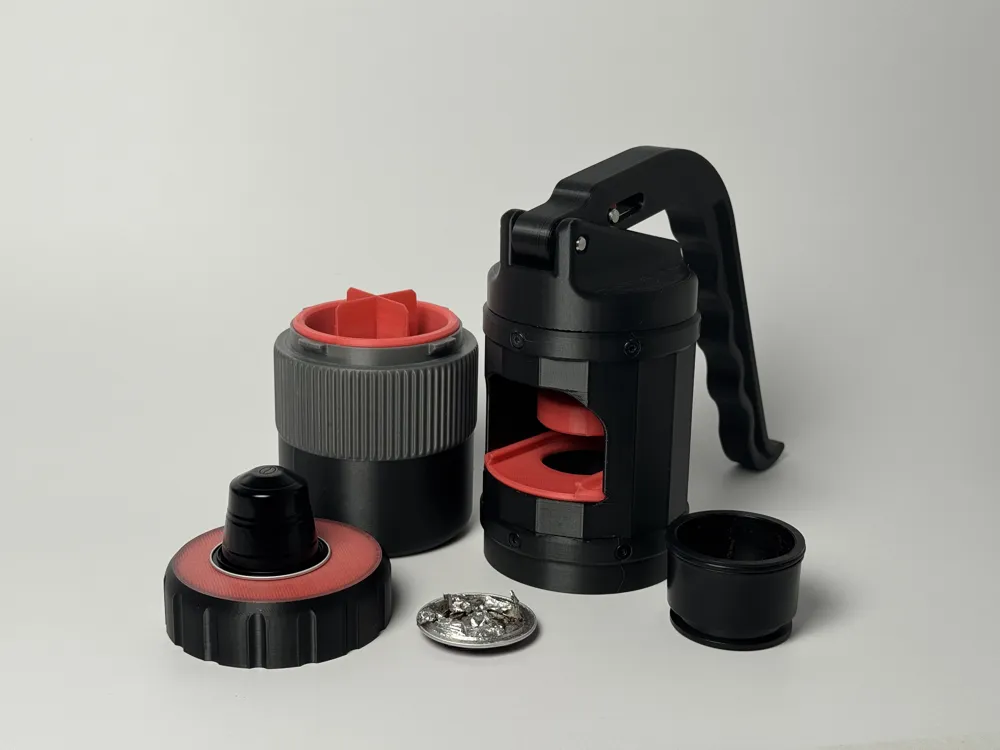

Introducing Brew Buddy, a portable 3-in-1 companion tool for your OutIn Nano.

Recycle, Tamp & Clean on the Go!



Its compact design and 3-in-1 functionality make it great for coffee lovers who are always on the go. The perfect tool to slip into your backpack on your next adventure.

Check out the demo video on instagram or youtube

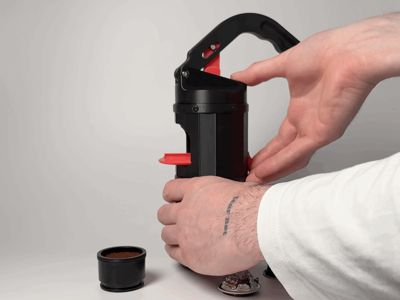

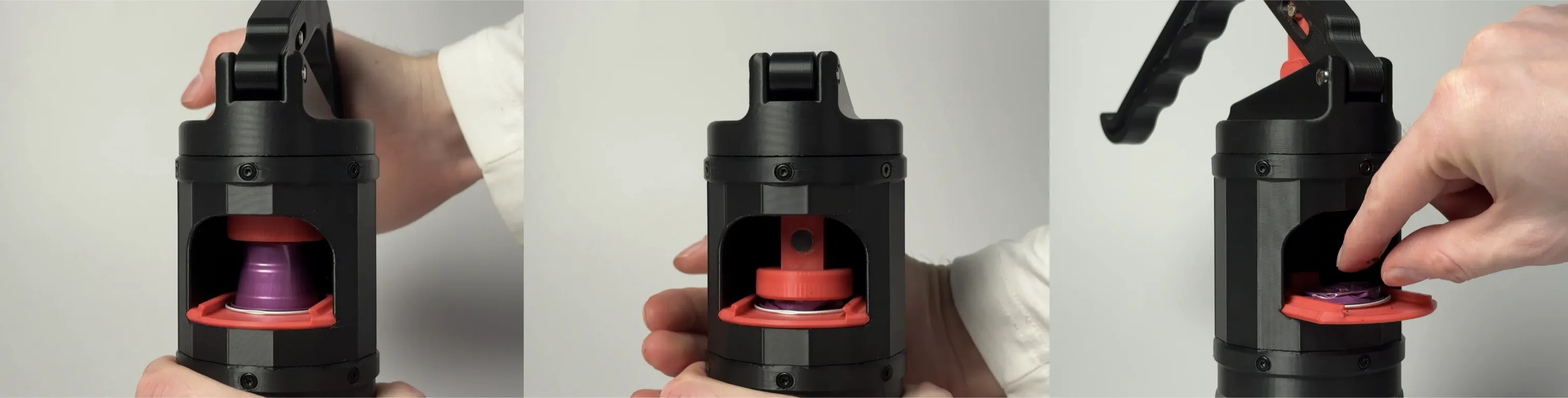

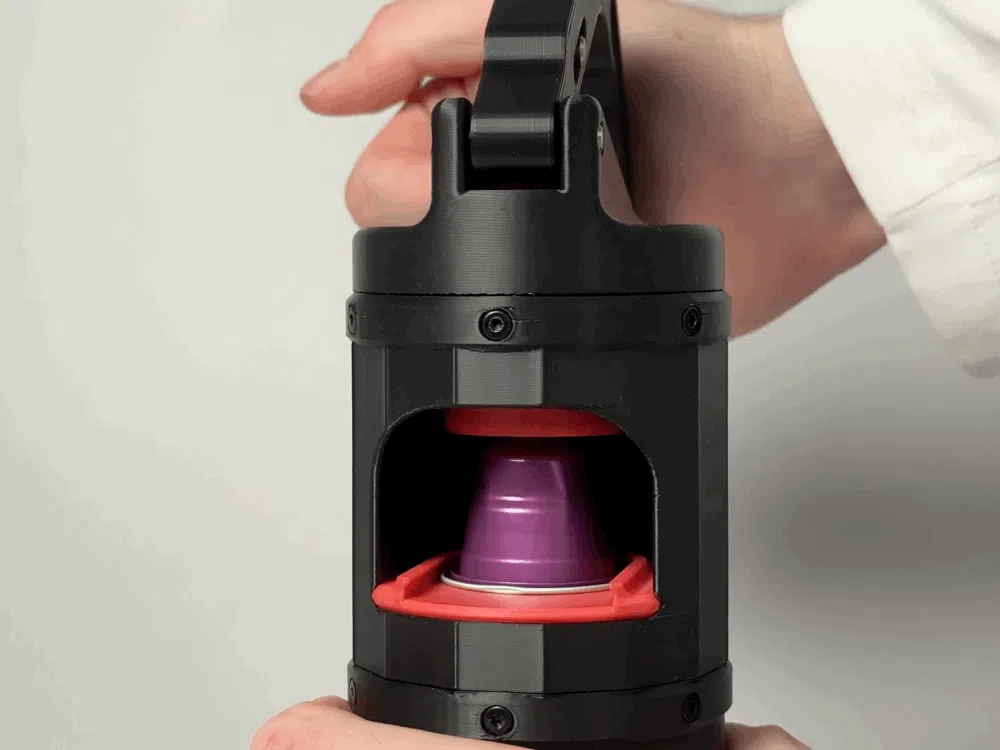

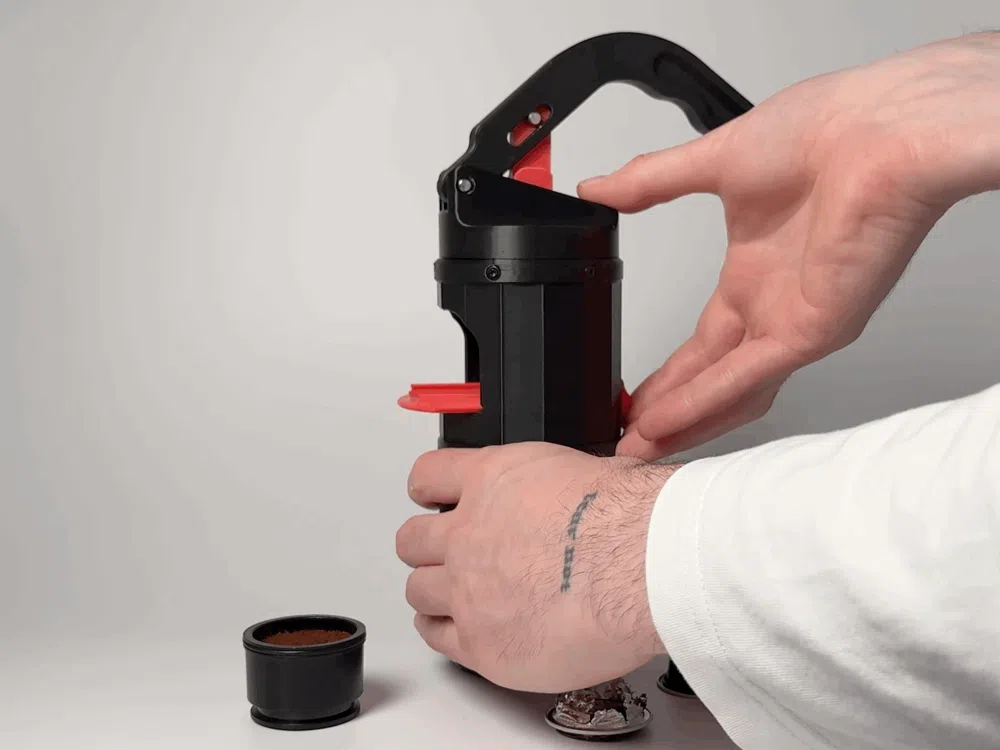

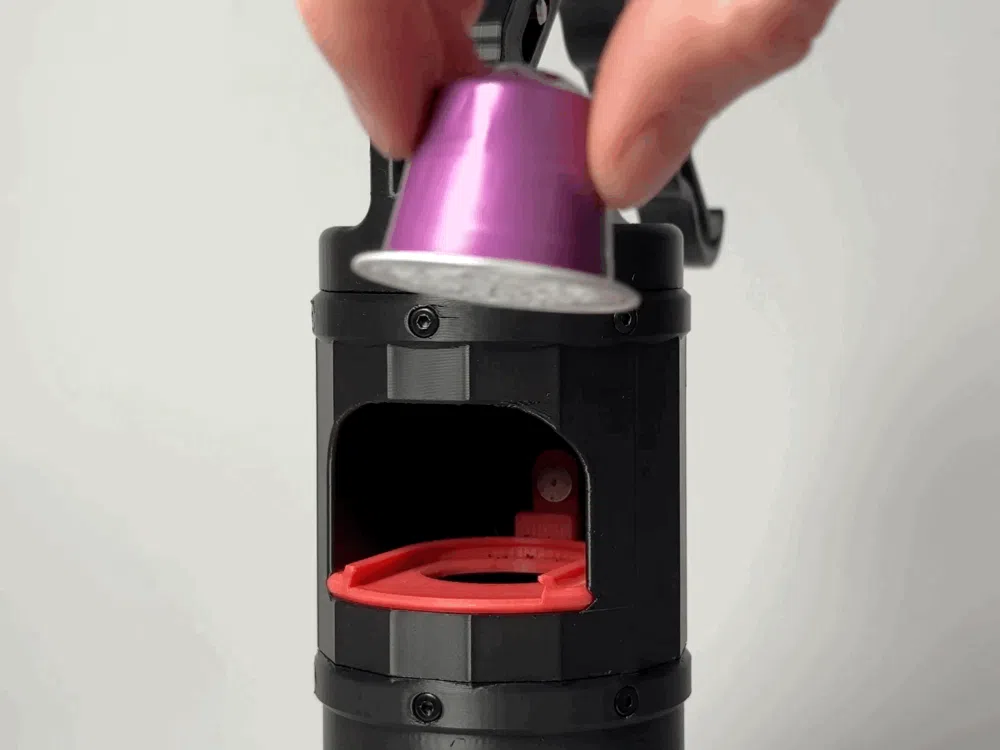

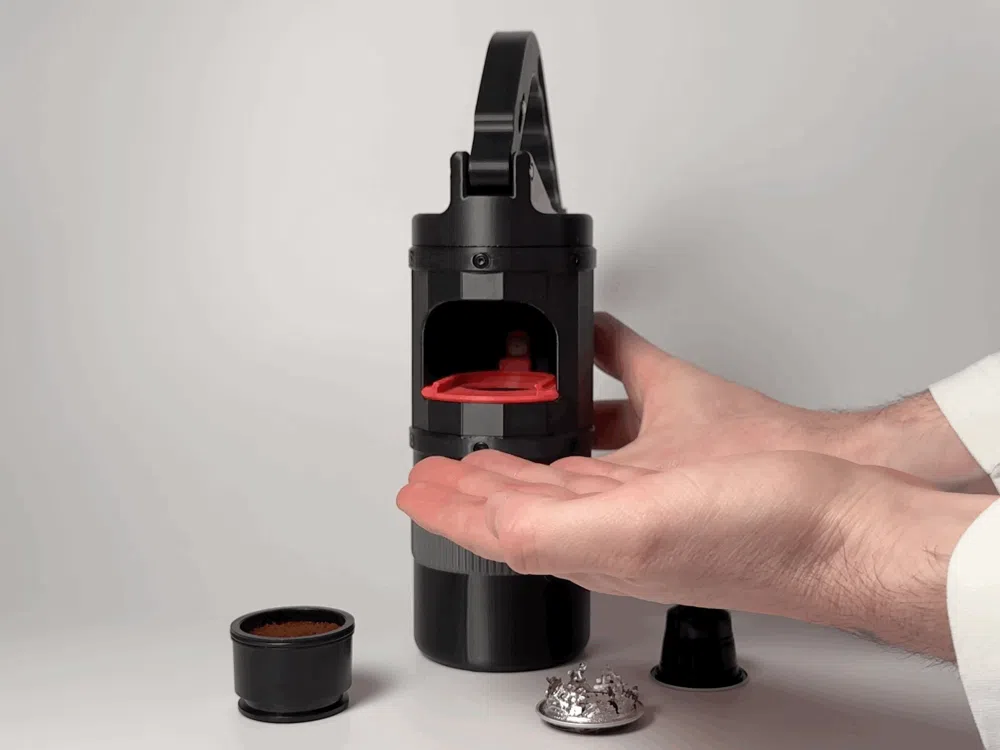

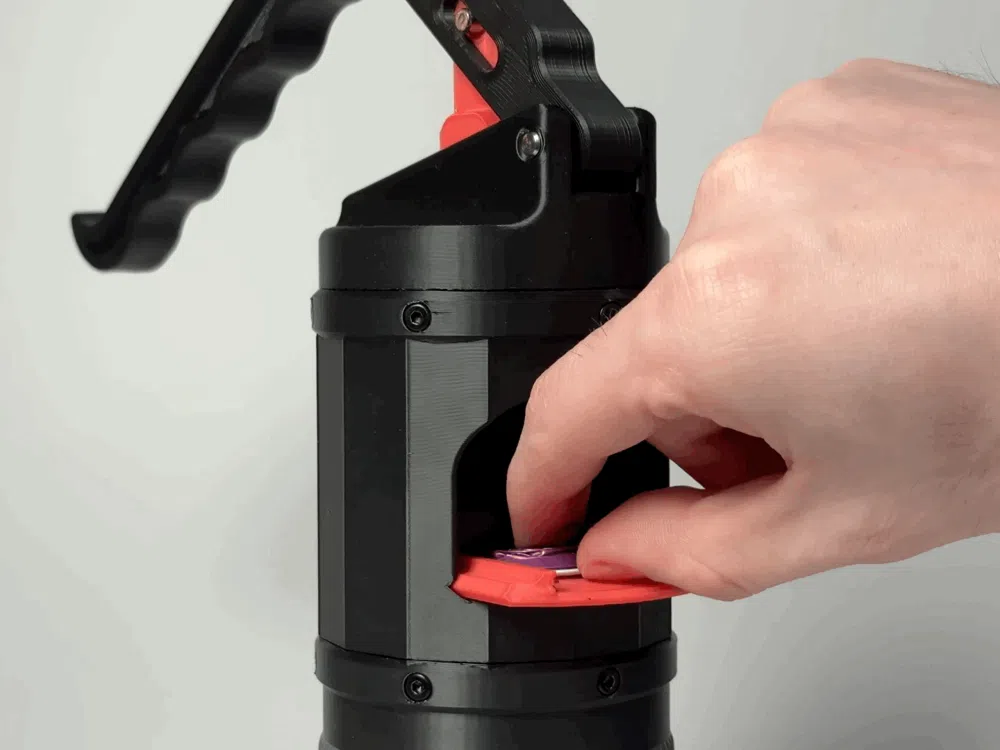

Recycle used coffee pods with ease, wherever you go! Brew Buddy makes it easy to crush coffee pods and separate the coffee ground from the aluminium casing, making it easier to recycle.

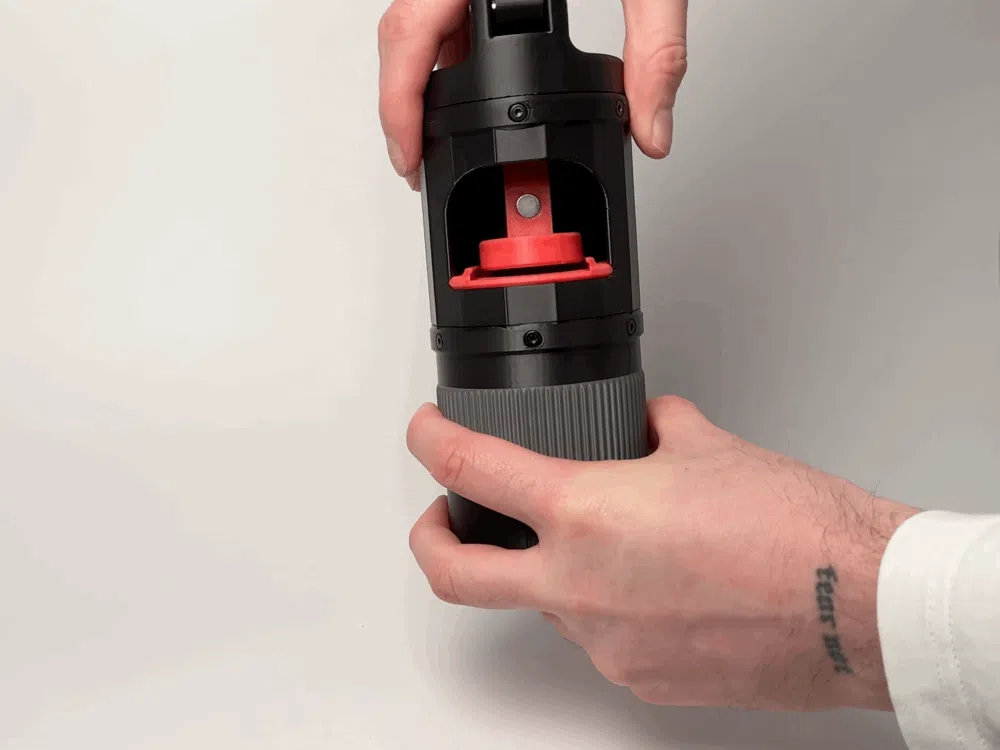

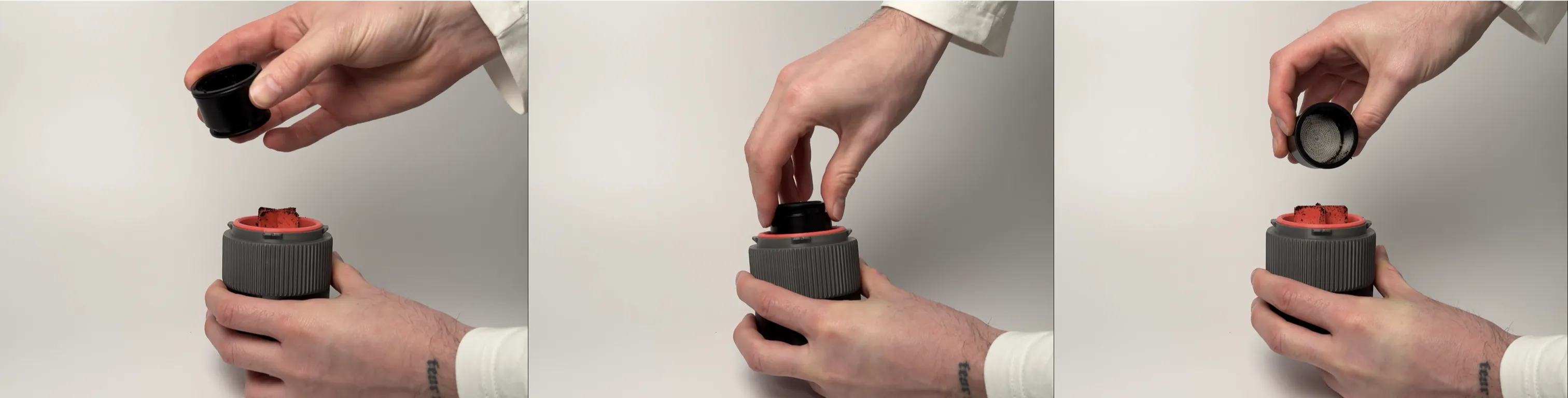

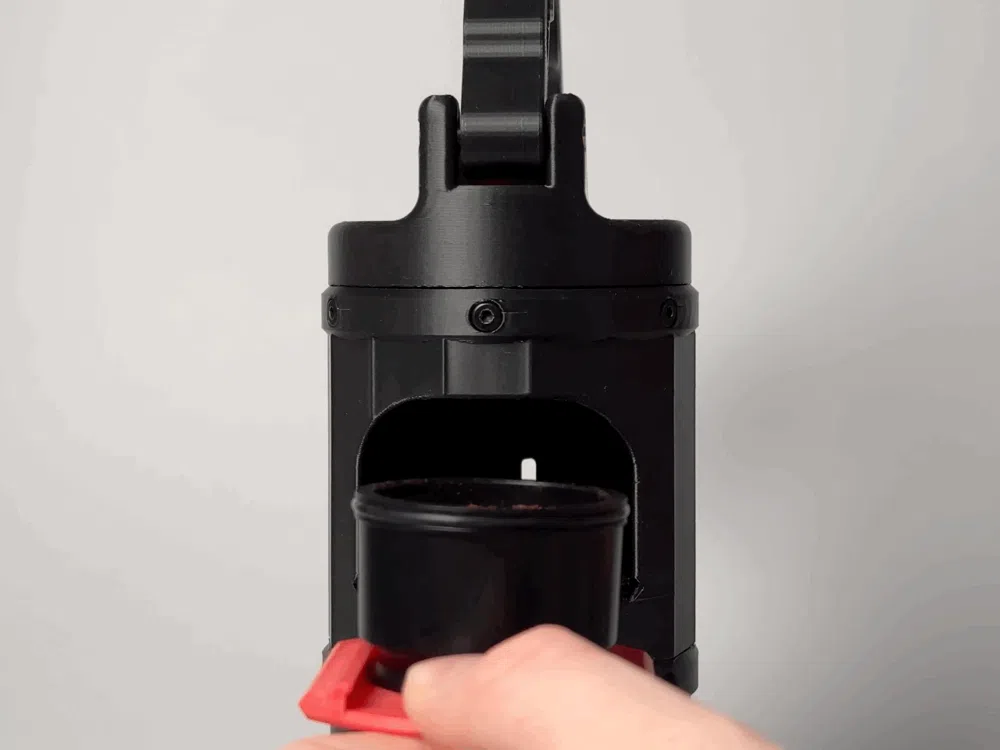

Tamp your OutIn Nano espresso evenly and consistently. The beauty of this design is that you don’t need a surface to place the coffee basket for tamping, so you can have well tamped coffee wherever you go! The same plunger that crushes coffee pods fits perfectly inside the coffee basket, allowing for consistent pressure and even tamping.

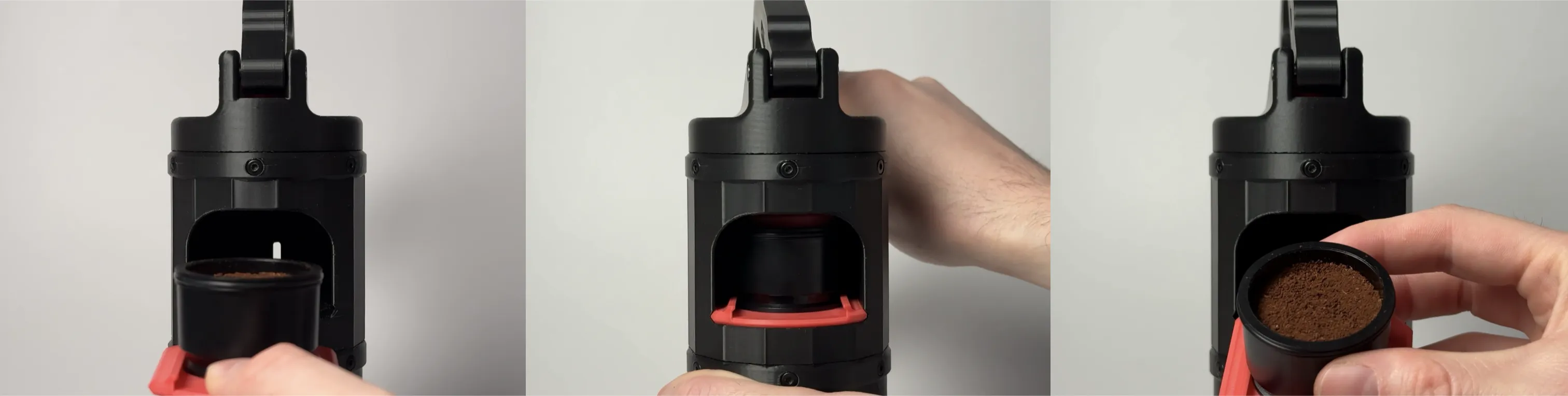

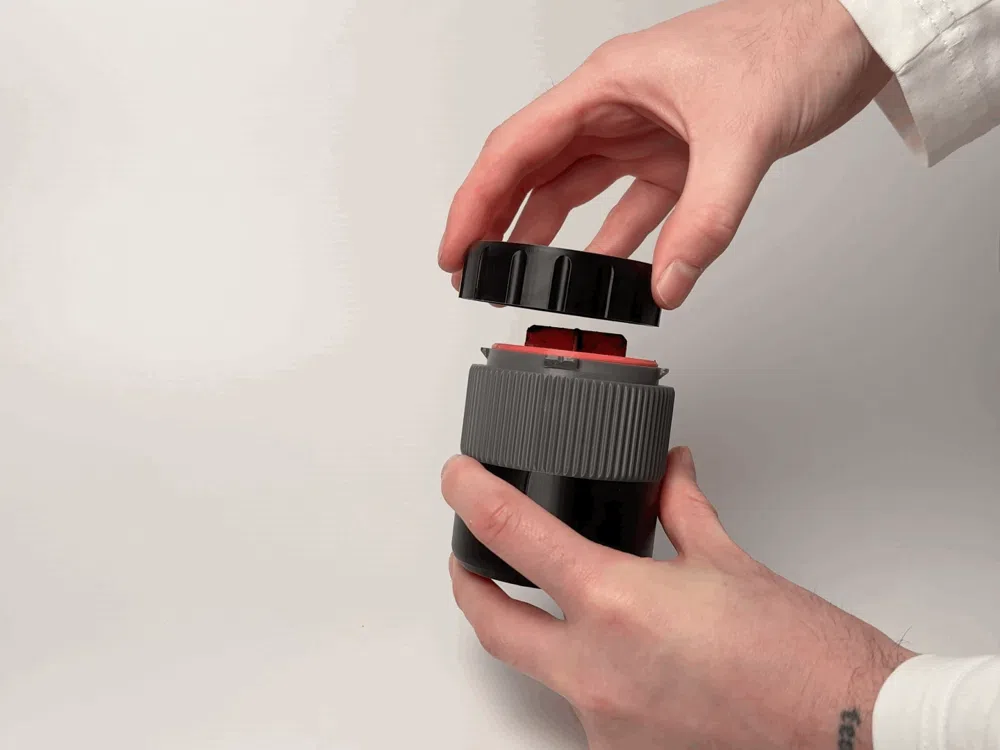

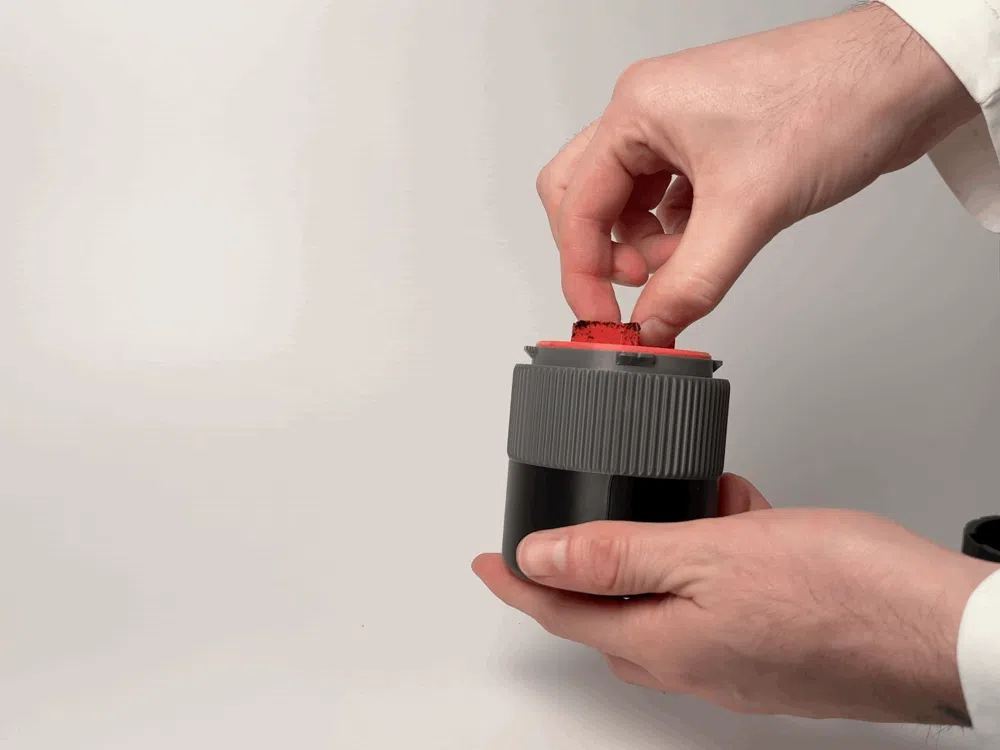

Clean used OutIn Nano coffee baskets. The built it grounds catcher has a removable attachment designed to help clean out the coffee basket after you've made a fresh cup of coffee. This is particularly useful when traveling to keep your backpack tidy.





Create this tool for yourself by following the Assembly Guide attached. Or check out this assembly video. You will need:

12 x BT2.6x8 Socket Head Cap Self Tapping Screw

1 x 16mm D5 Stainless Steel Dowel Pin

1 x 30mm D5 Stainless Steel Dowel Pin

6 x D8x3mm Round magnets

Superglue




Enjoy!
