Laboratory stand
Print Profile(26)
Bill of Materials
- Screw M6x10 x 12: Any hardware shop [ In my case DIN 7985 ]
- Screw M6x20 x 4: Any hardware shop [ In my case DIN 7985 ]
- Nut M6 x 20: Any hardware shop [ Nut thickness 4.6-4.8mm] [ In my case DIN ]934
- USB-C female on pcb x 4: Got 10 pcs on aliexpress for 2.34 € [ screws included ]
- IEC C14 x 1: Got 1 pcs on aliexpress for 1.32 €
- DIN rail x 6: Used 35 cm each costed like 0.52 € [ use any size you want but for comfortable use 50 cm is upper limit ]
Description
Boost Me (for free)
If you enjoy my work and want to support it, a boost would mean a lot! It’s a great way to show that it’s valued by the community, and it really helps keep me motivated. Thank you!

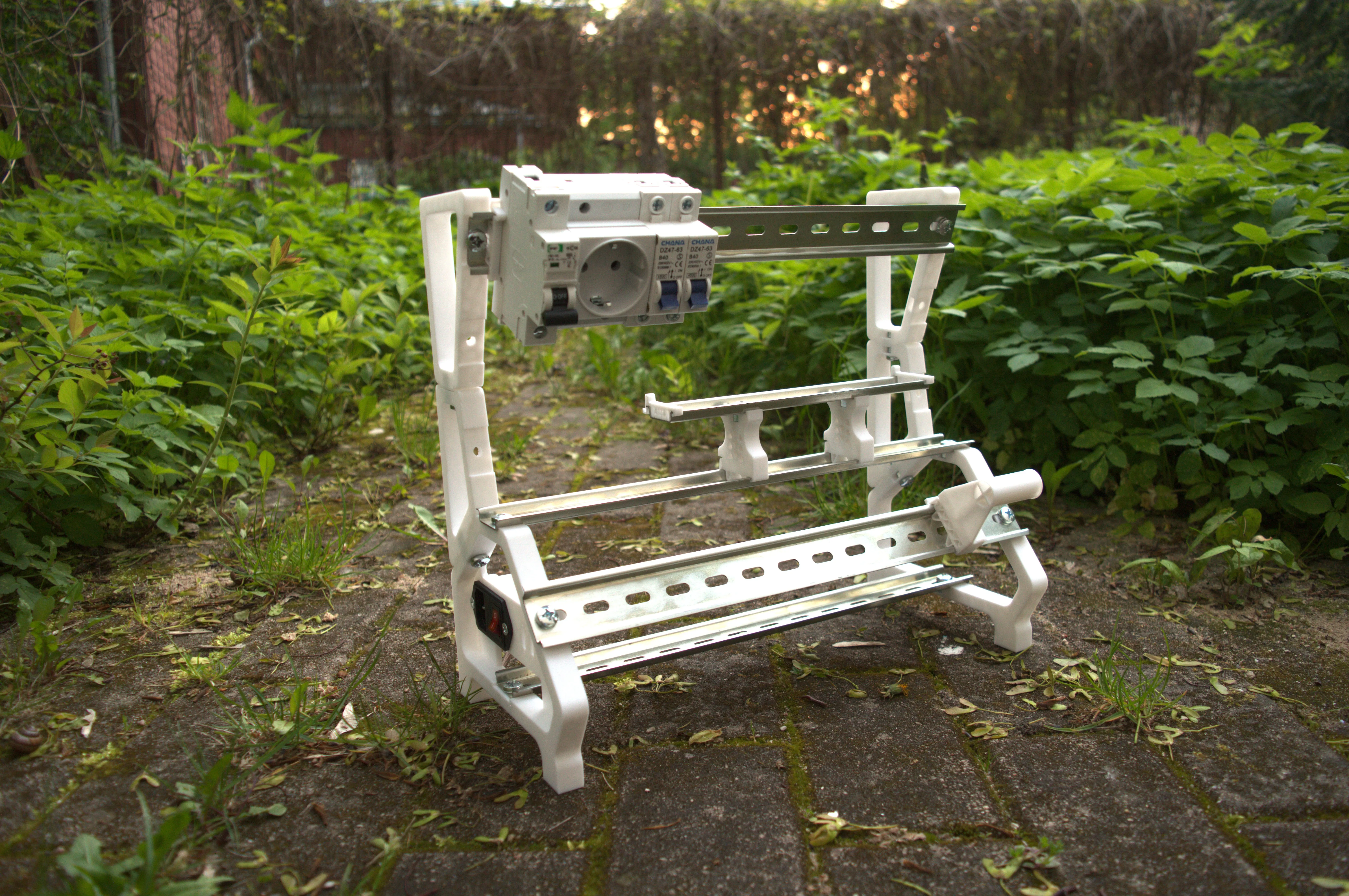

Laboratory rack [ Requires some hardware ]
____________________________________________________________________________________________________________
Attention!Some components there CAN use 110-120-220-230-240V AC electricity and USB power up to 100W , DO NOT allow kids without supervision interact with powered rack without AT LEAST cover for IEC connector.
____________________________________________________________________________________________________________
Hey fellow makers!

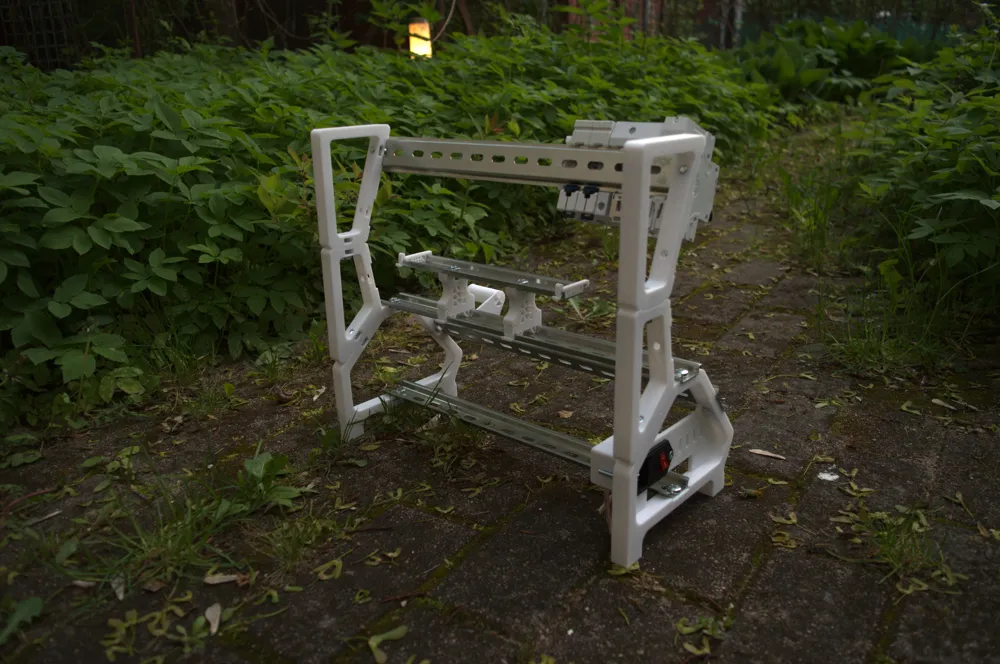

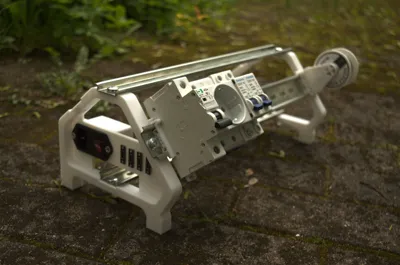

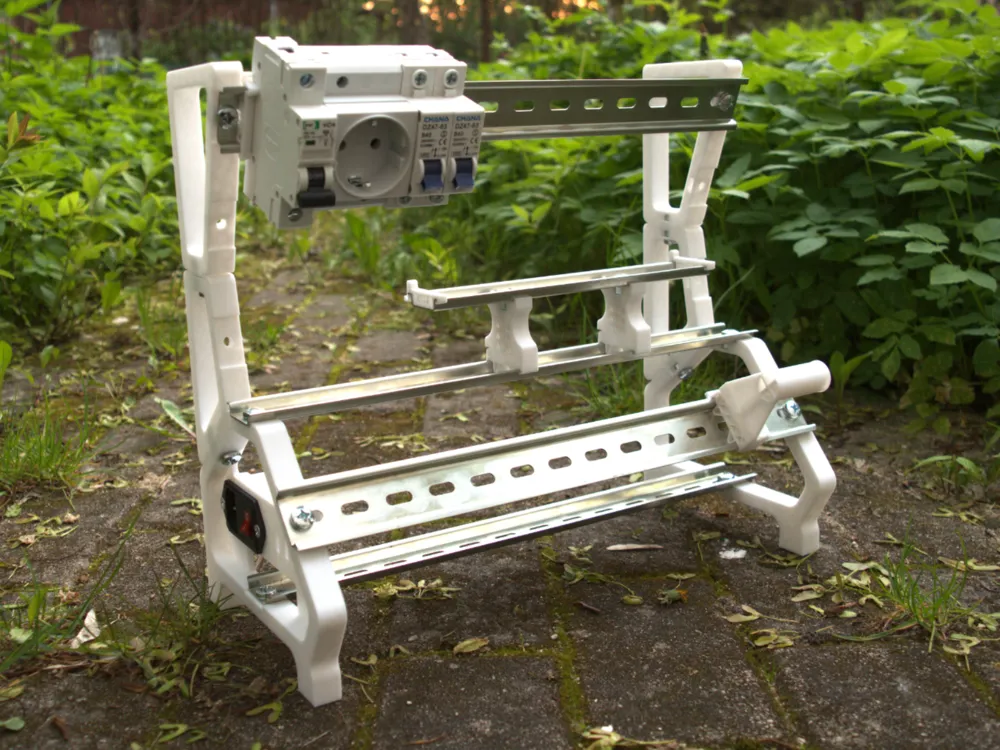

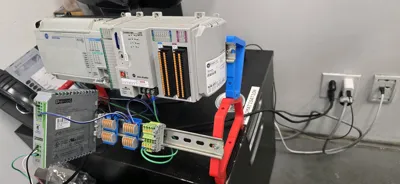

I wanted to share my latest project – a semi-modular laboratory rack made using 3D printed components and some standard hardware. It’s designed to hold DIN rails, which makes it ideal for experimenting with anything DIN-mountable.

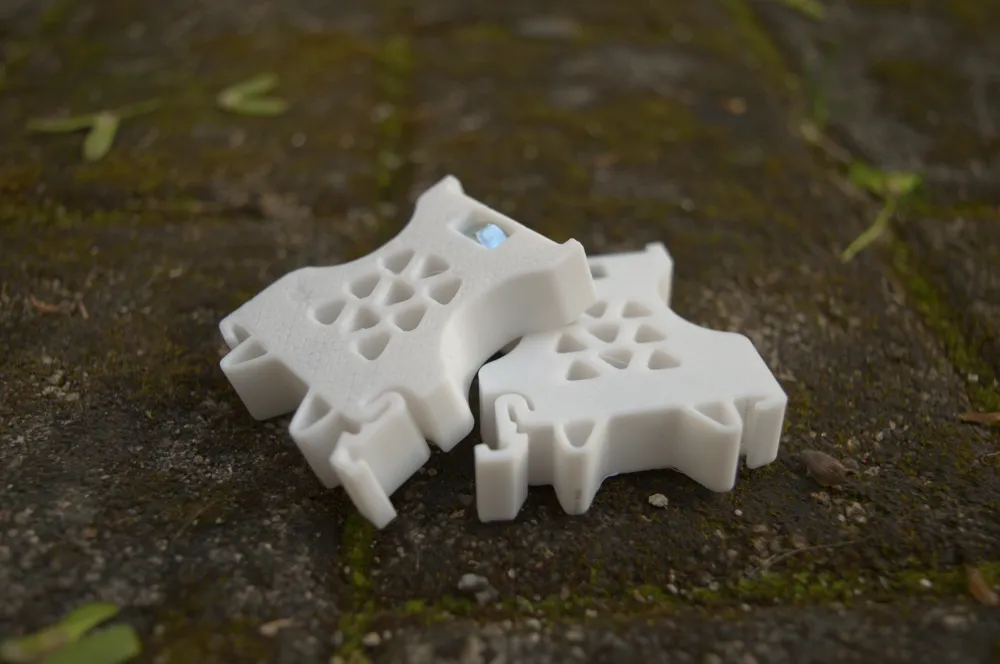

Currently I'm working on more things made specifically to component DIN rail system, you can use added bellow clips and clamps to make your own clamping parts, they use or plain M3x10 screws or use some M3x4.2+ hot inserts.

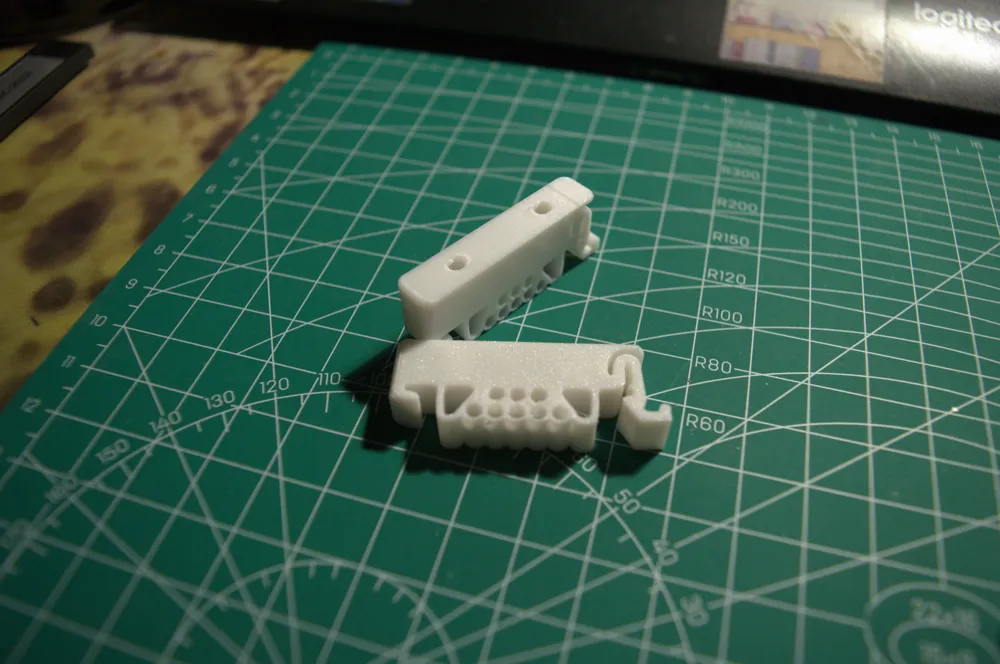

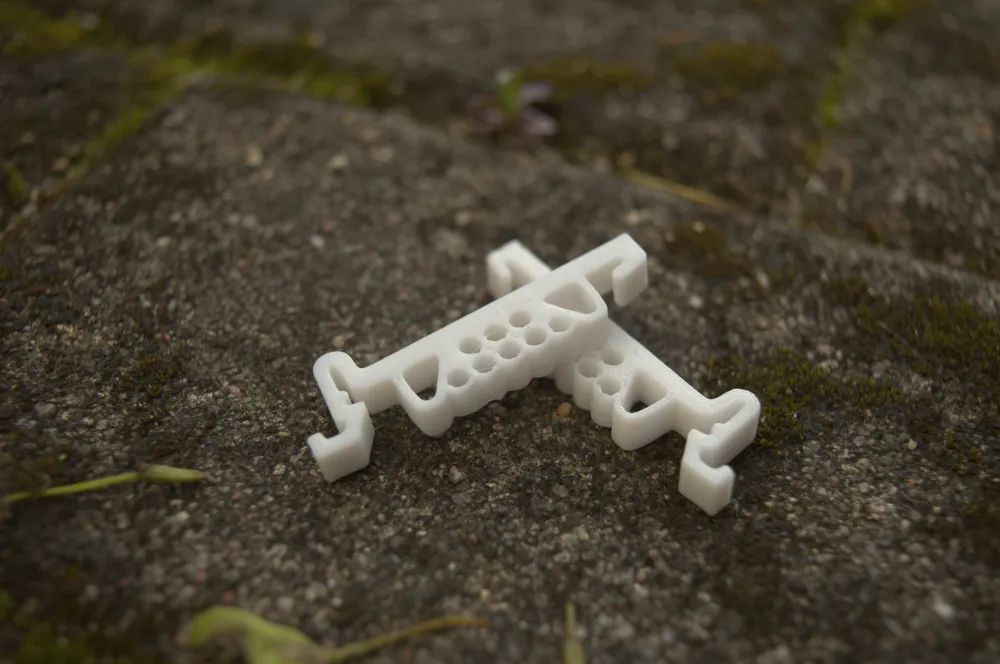

For clips distance between screw holes [ center to center ] - 20 mm

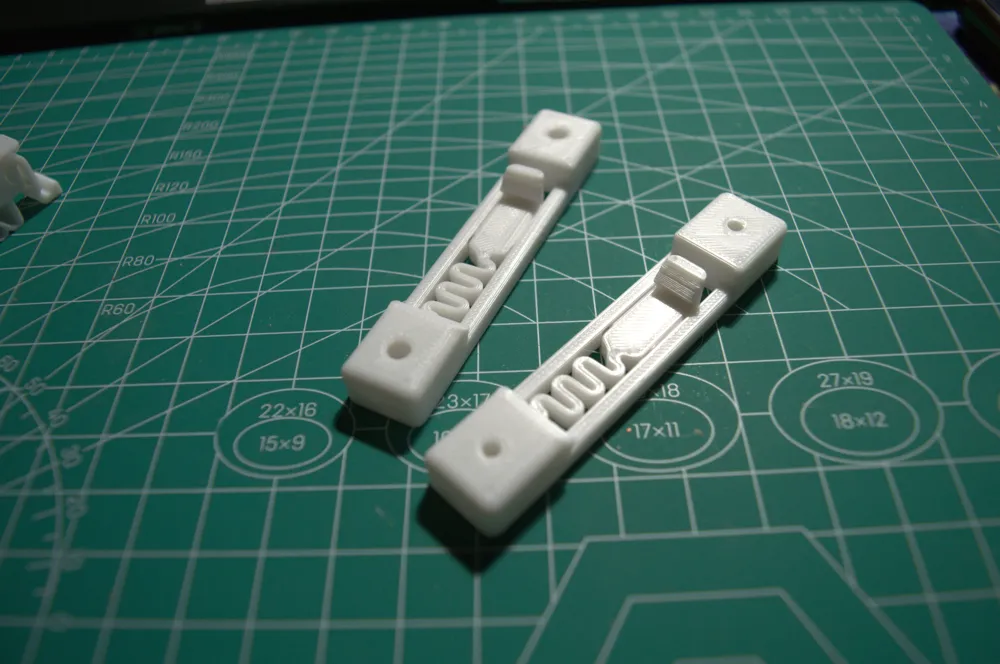

For clamps distance between screw holes [ center to center ] - 60 mm
If you have some requests and ideas for accessories feel free to share your thoughts in comments.
Translation of my file names
| MT | Rack base [ Main design with additional DIN slots ] |
| LT | Rack base [ Main design ] |
| MT / LT + L / R + POWER | Rack base + Nut slot side + Power / usb panel |

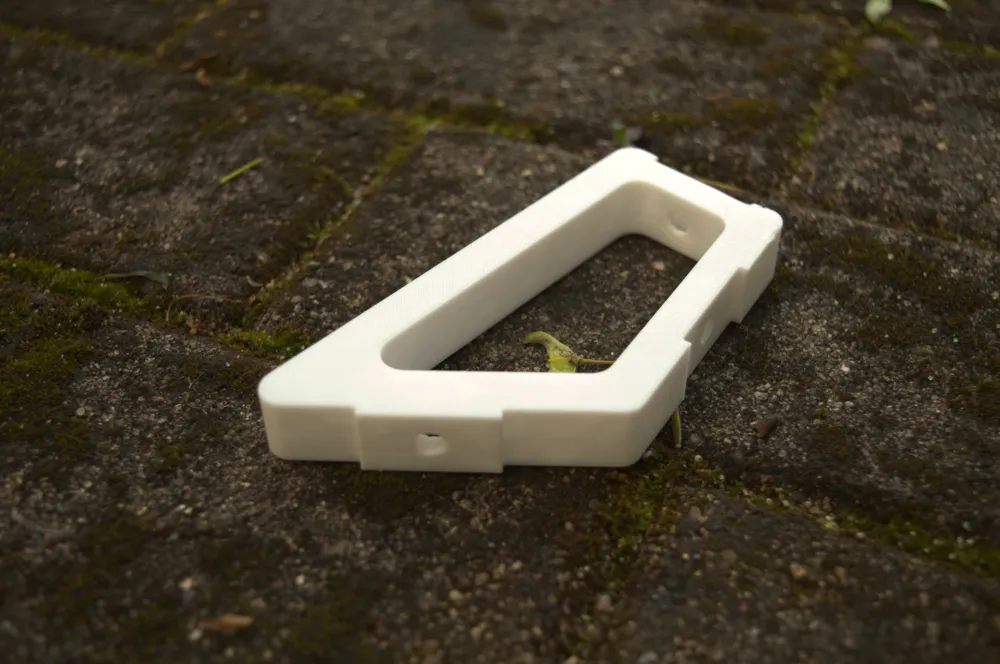

| UE | Upper extension [ Is first one to increase rack height ] |

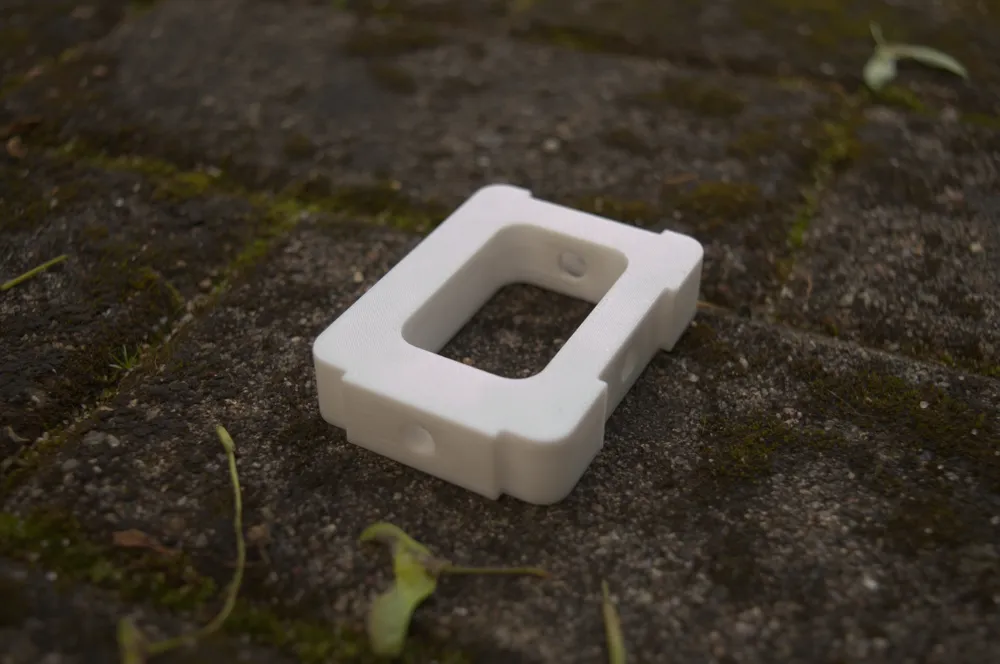

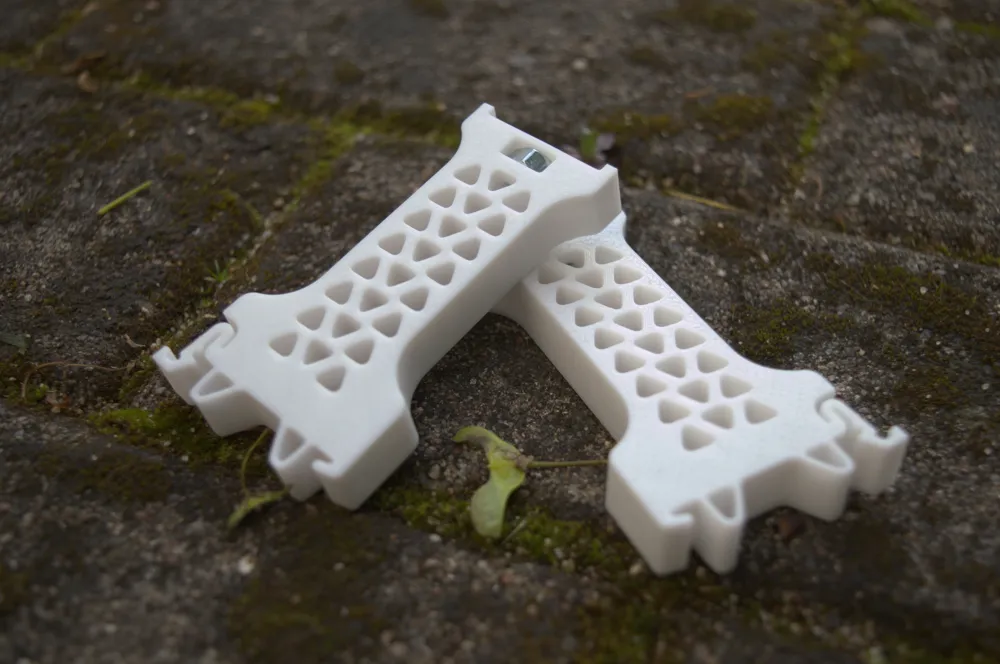

| TS | Small section that extend rack height for 1 slot |

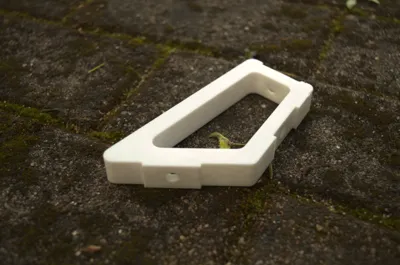

| TE | End piece that encloses rack area pointing down |
| Accessories as work in progress [ Links on my accessory collections will be added there soon ] | |
| Accessory type | Progress |

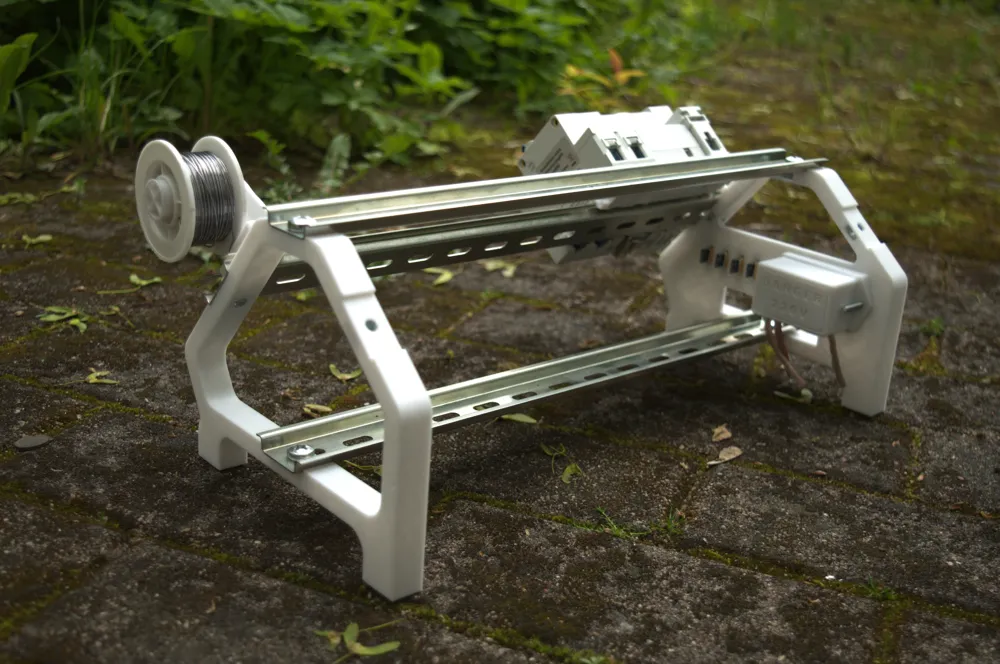

| Soldering accessories | [ Solder wire holder ] |
| Lighting accessories | [ Stand lamp ] |
| Chemistry accessories | Under question [ comment if needed faster ] |
| Wiring accessories | WIP |
| Electrical accessories | Under question [ comment if needed faster ] |
| Robotics accessories | Under question [ comment if needed faster ] |
| Cyberdeck MOD | Frozen |
____________________________________________________________________________________________________________

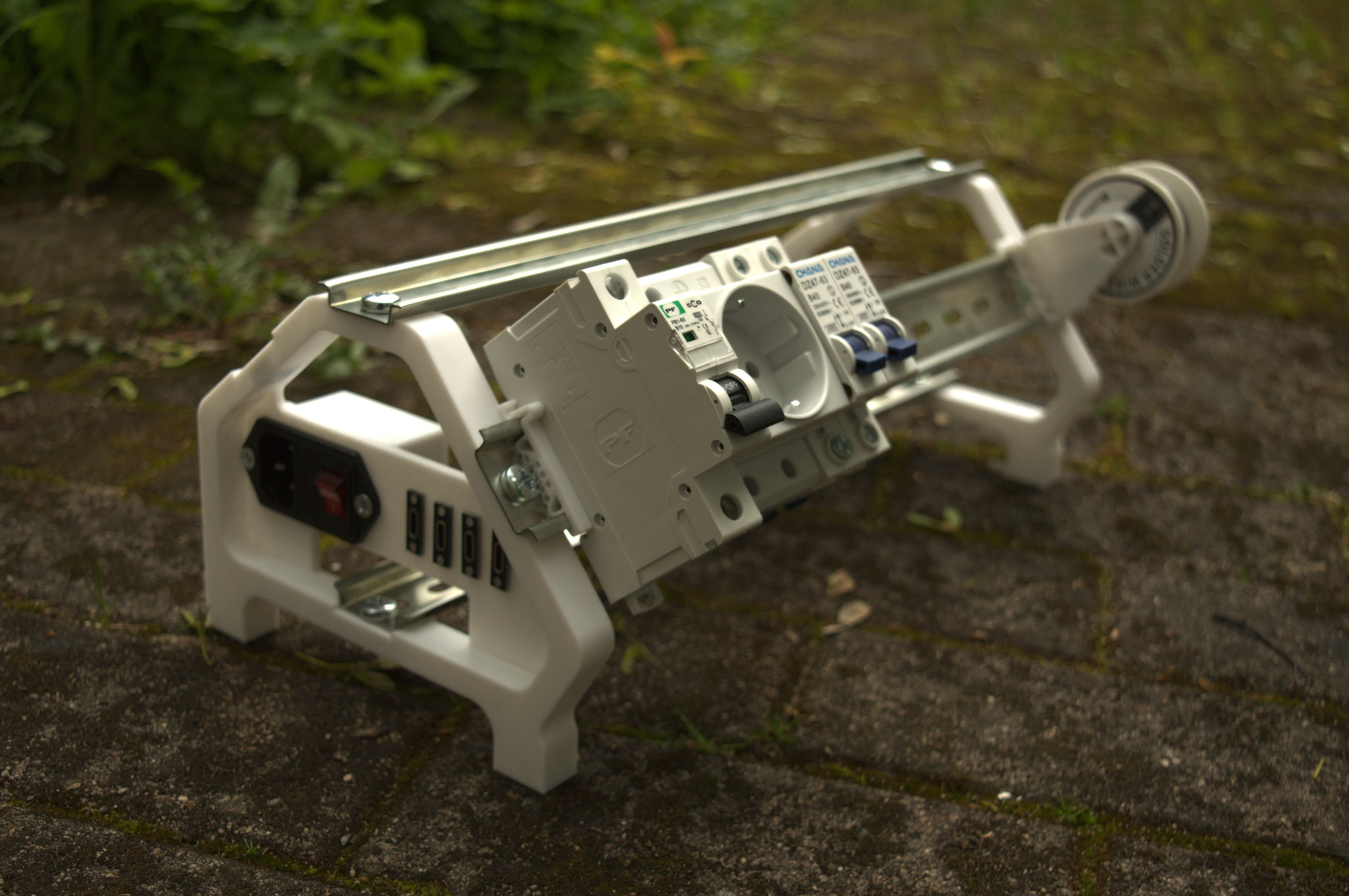

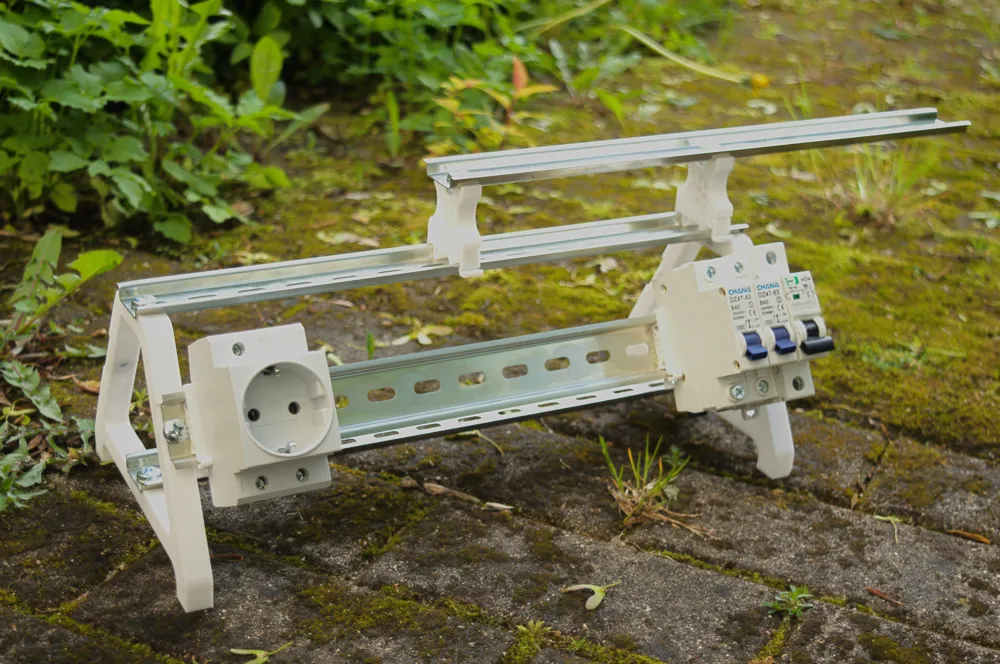

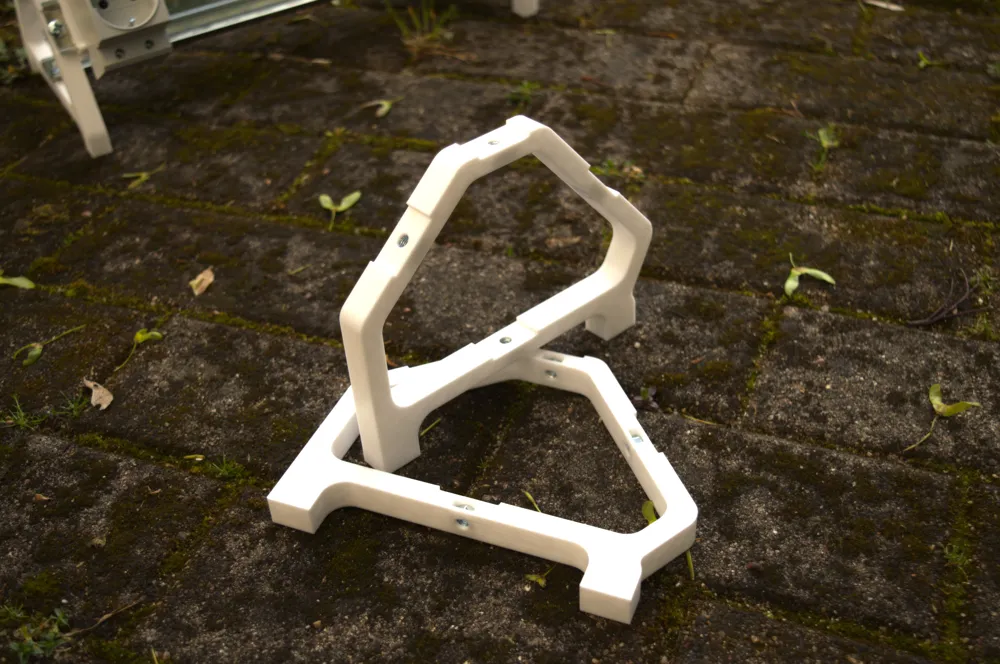

Rack base [ Final chosen form factor ] [ Has 2 options with/without power/usb ]
Requires:
| No power/usb | |
| Hardware | Amount |
| DIN rail 35 cm | 4 pcs |
| M6 nut | 8 pcs |
| M6x10 screw/bolt | 8 pcs |
| With power/usb | |
| Hardware | Amount |
| DIN rail 35 cm | 4 pcs |
| M6 nut | 8 pcs |
| M6x10 screw/bolt | 8 pcs |
| IEC C14 | 1 pcs |
| M4x20 screw/bolt | 2 pcs |
| USB-C female | 4 pcs |

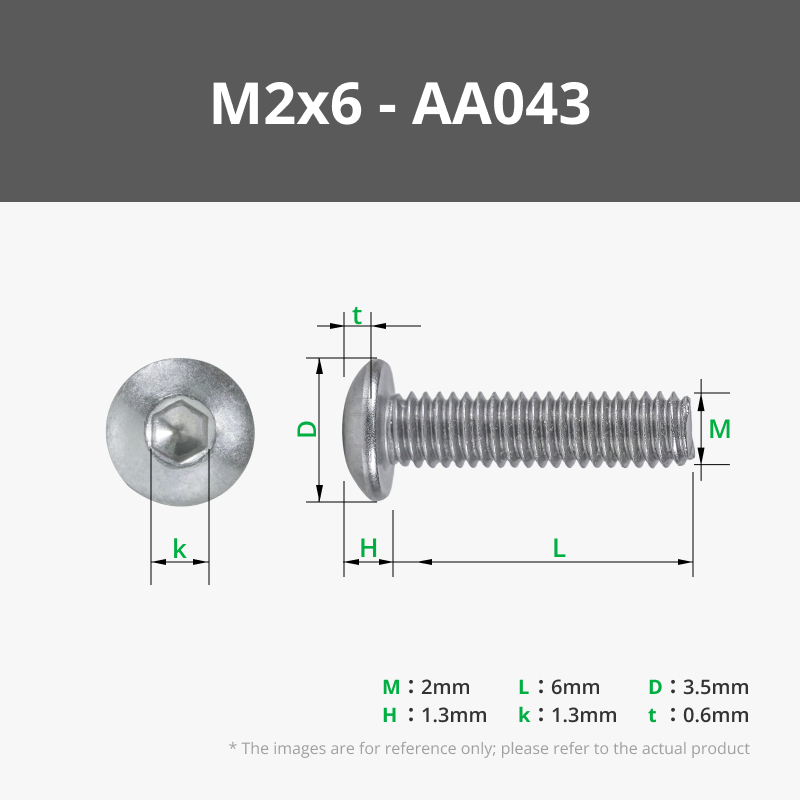

| M2x6 scew/bolt | 8 pcs |
Expanded build:
| With power/usb | |
| Hardware | Amount |
| DIN rail 35 cm | 6 pcs |
| M6 nut | 20 pcs |
| M6x10 screw/bolt | 12 pcs |
| M6x20 screw/bolt | 4 pcs |
| IEC C14 | 1 pcs |
| M4x20 screw/bolt | 2 pcs |
| USB-C female | 4 pcs |
| M2x6 scew/bolt | 8 pcs |

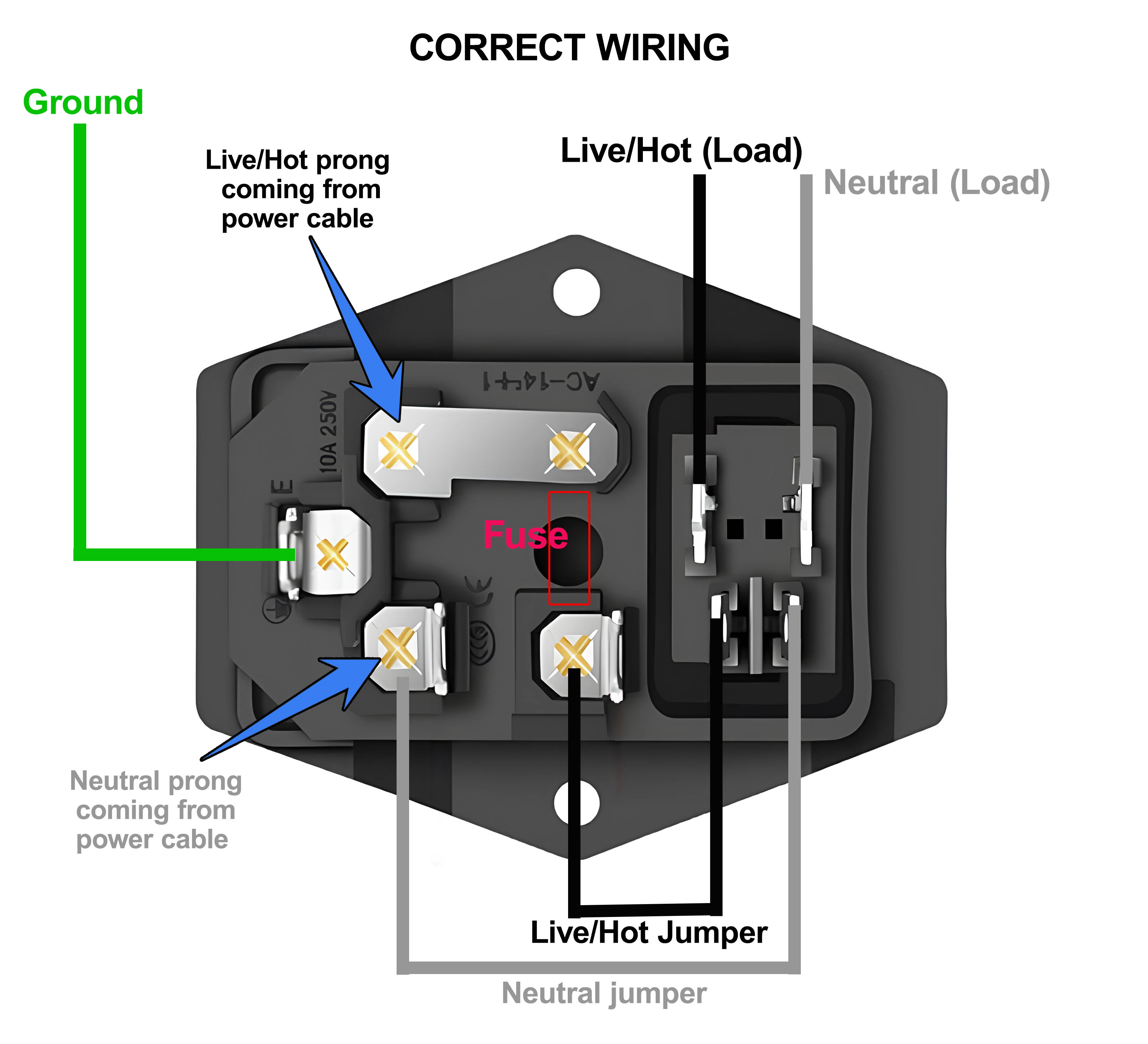

IEC320 C14 Wiring diagram [ L - live / positive ] [ N - neutral ] [ GND - ground / earth ]

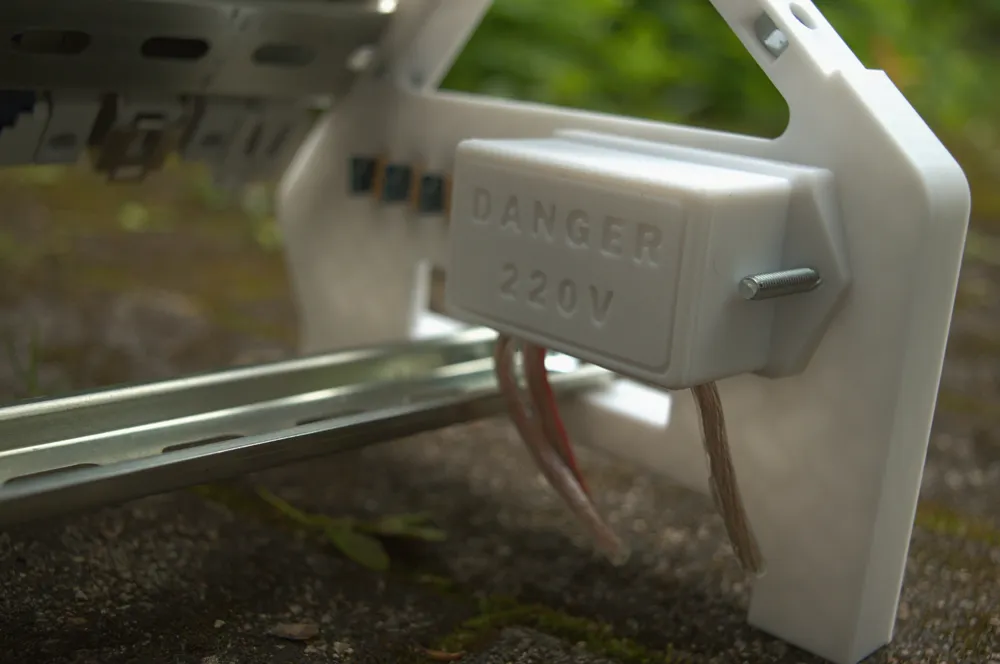

USE STRICTLY WITH SAFETY COVER

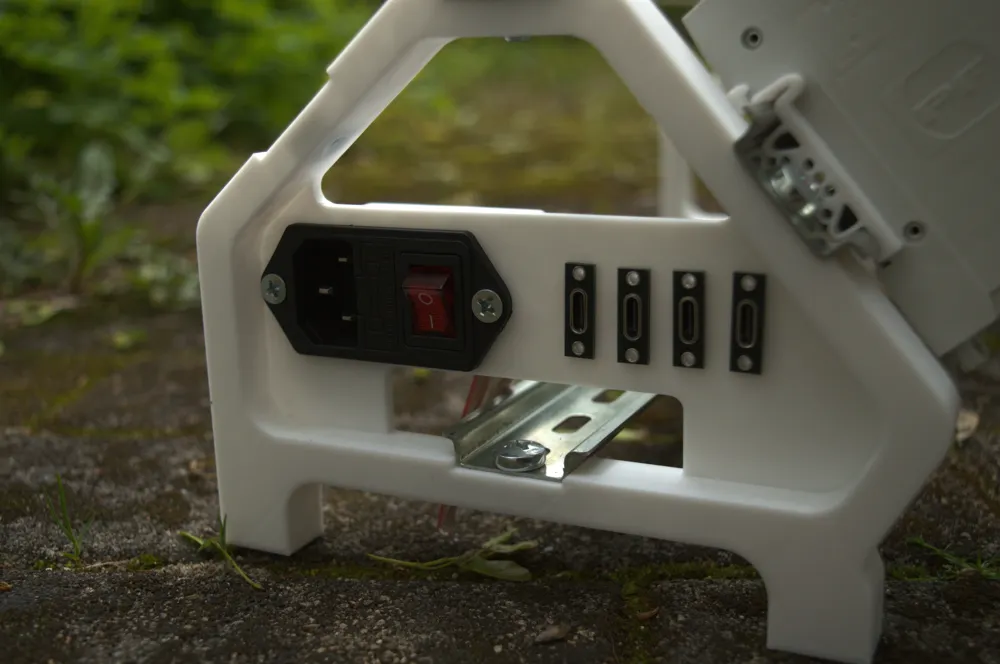

Used parts for usb and power
[ For some reason it's marked AC-17 ]
