Model Wheel
Print Profile(1)
Description

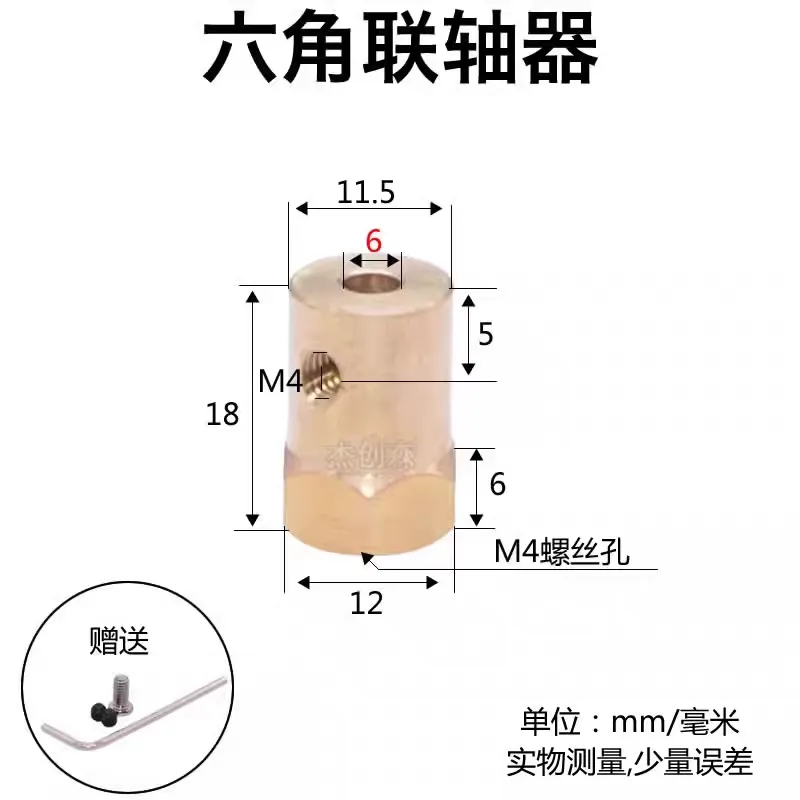

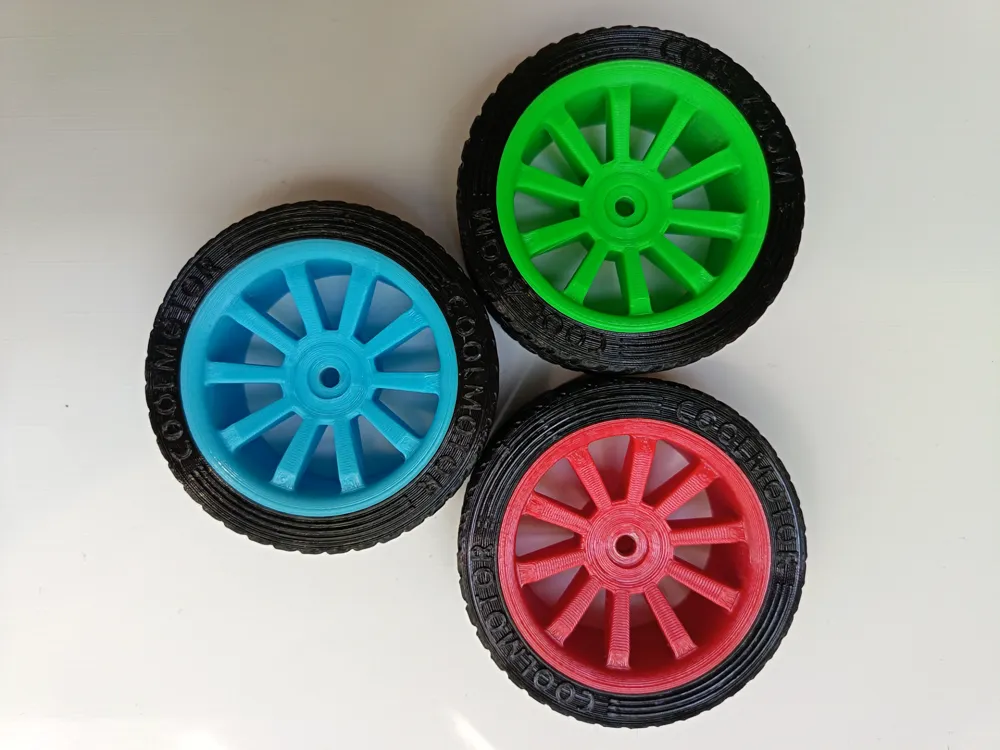

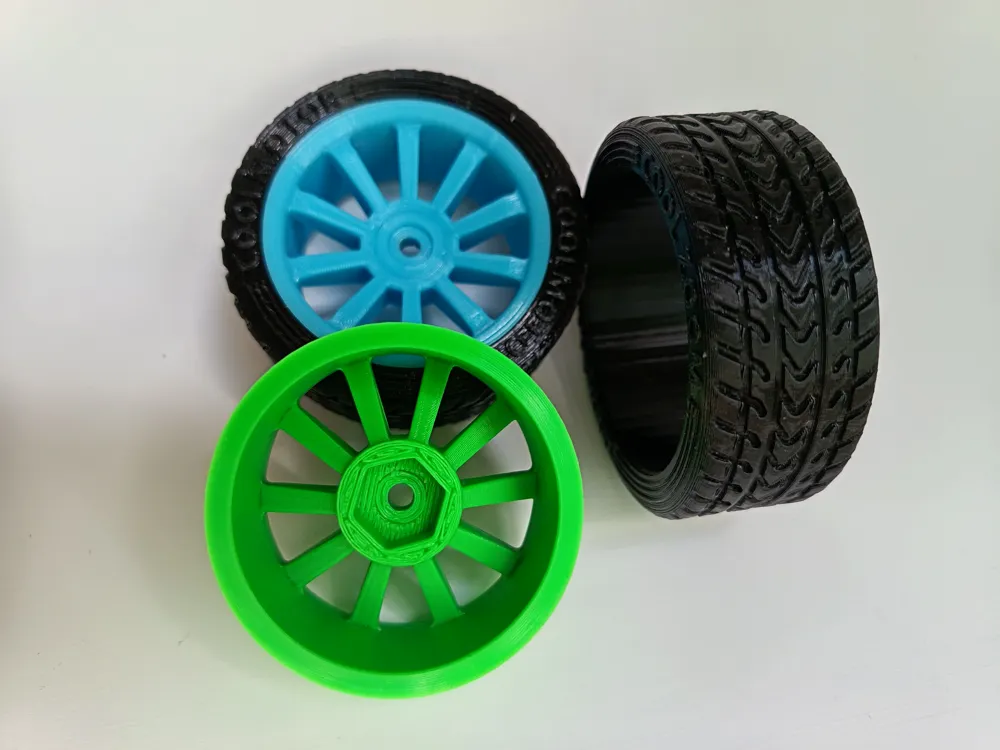

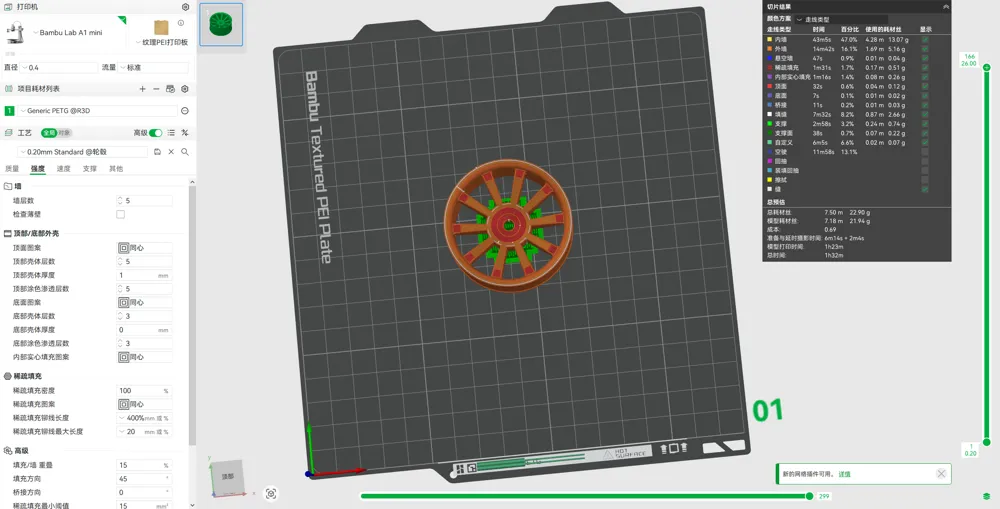

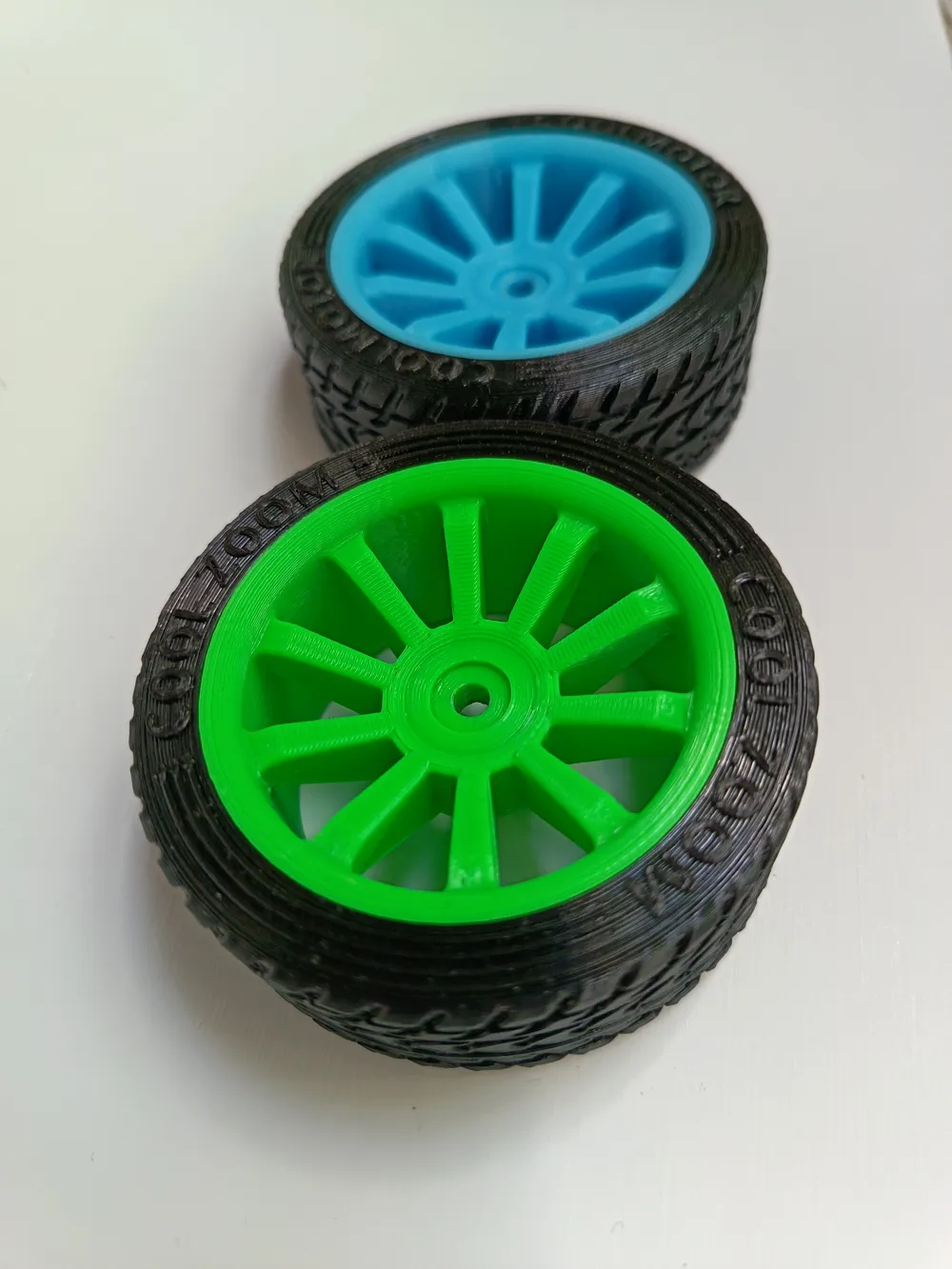

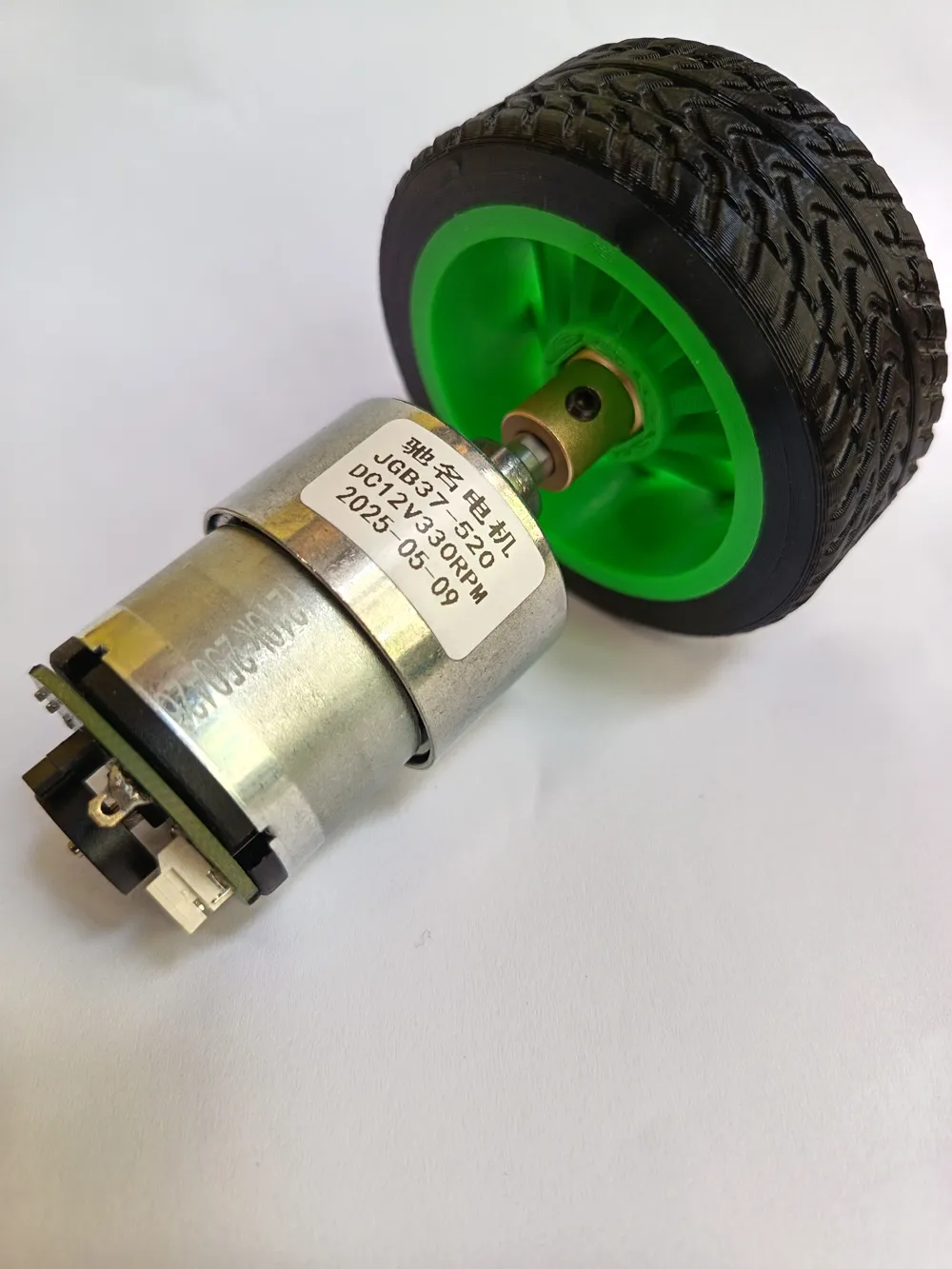

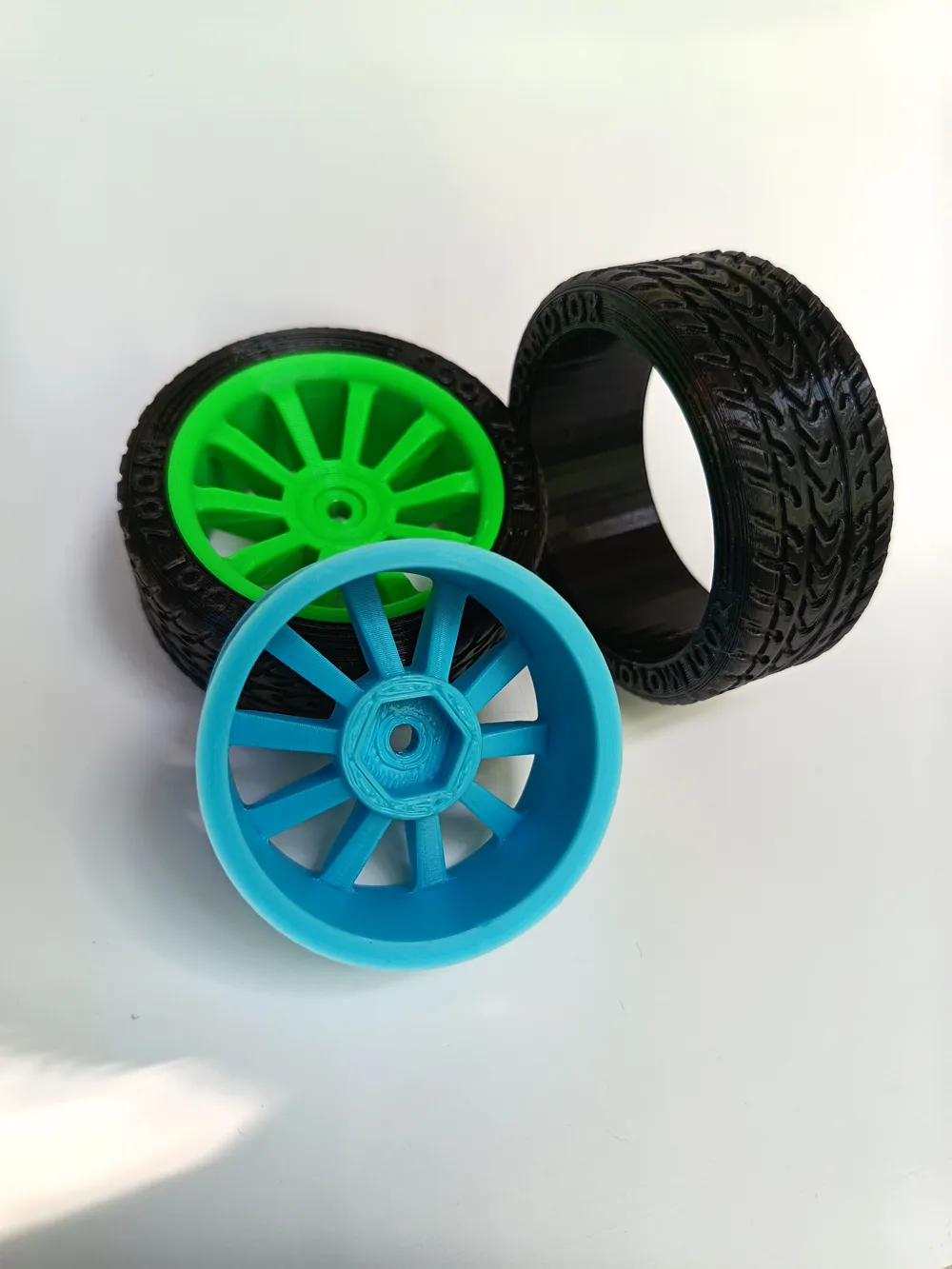

Model car tires and wheels. The tire has an outer diameter of 69mm and a thickness of 26mm, while the wheel hub has an outer diameter of 52mm and is designed to accommodate the hexagonal coupler shown in the accompanying image. Support structures are necessary during the wheel hub printing process. After printing, carefully remove supports, ensuring a smooth, level interior within the hexagonal mounting hole for optimal stability and to prevent wobbling during operation.
For optimal performance, TPU 95A filament is recommended for the tires to achieve desirable elasticity. Common PLA or PETG filaments are suitable for the wheel hubs.
