Mount your Graphics Card to your Honeycomb Storage Wall!

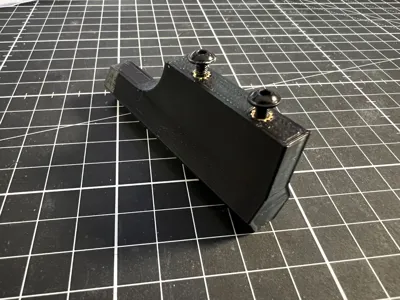

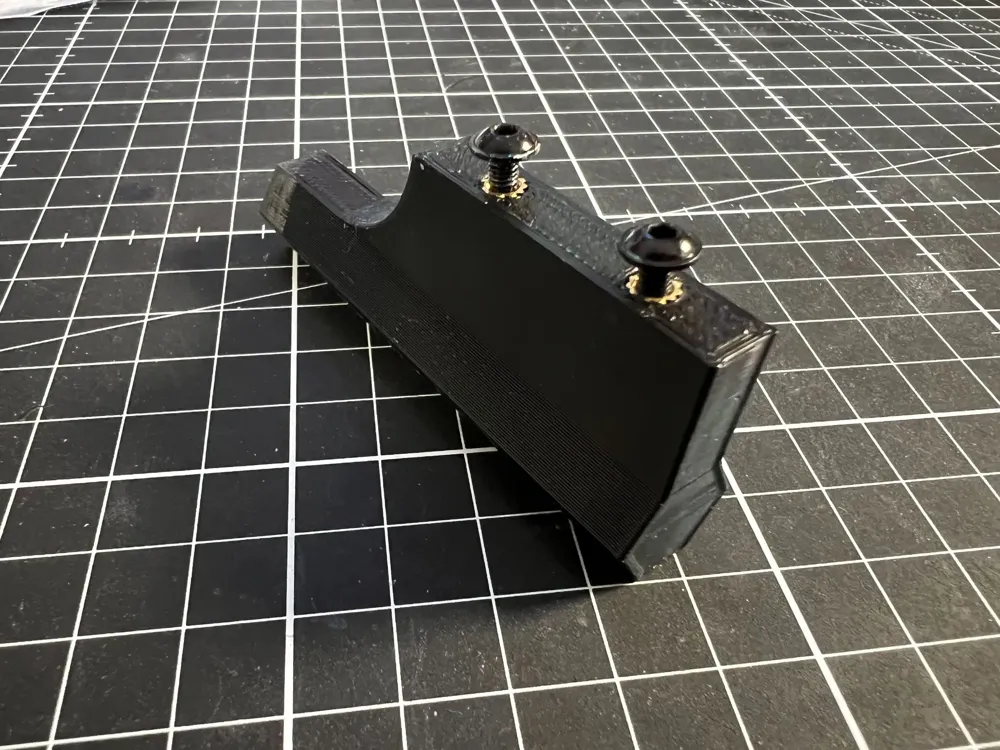

Mount for your GPU/Graphics Card. Requires a right-angle PCI-E riser cable if connecting to a motherboard. Includes an additional mount for bolting down your PCI-E bracket for extra support.

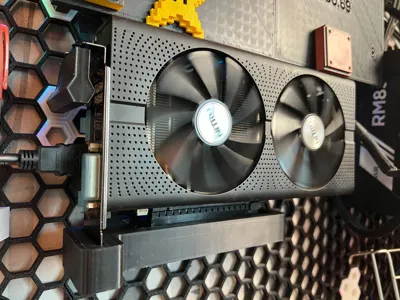

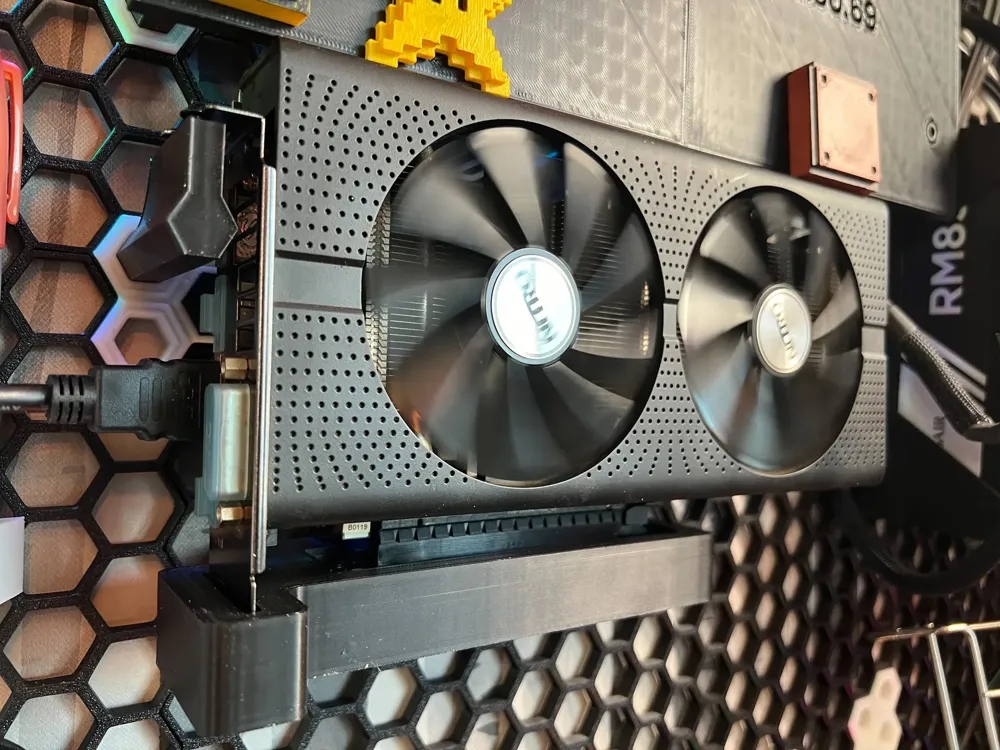

Tested with a 2-fan AMD RX480 (pictured) and a 3-fan RTX 2080ti without issues. may or may not be suitable for larger 3-slot cards such as 3080/4090 (let us know in the comments if you try this on other cards).

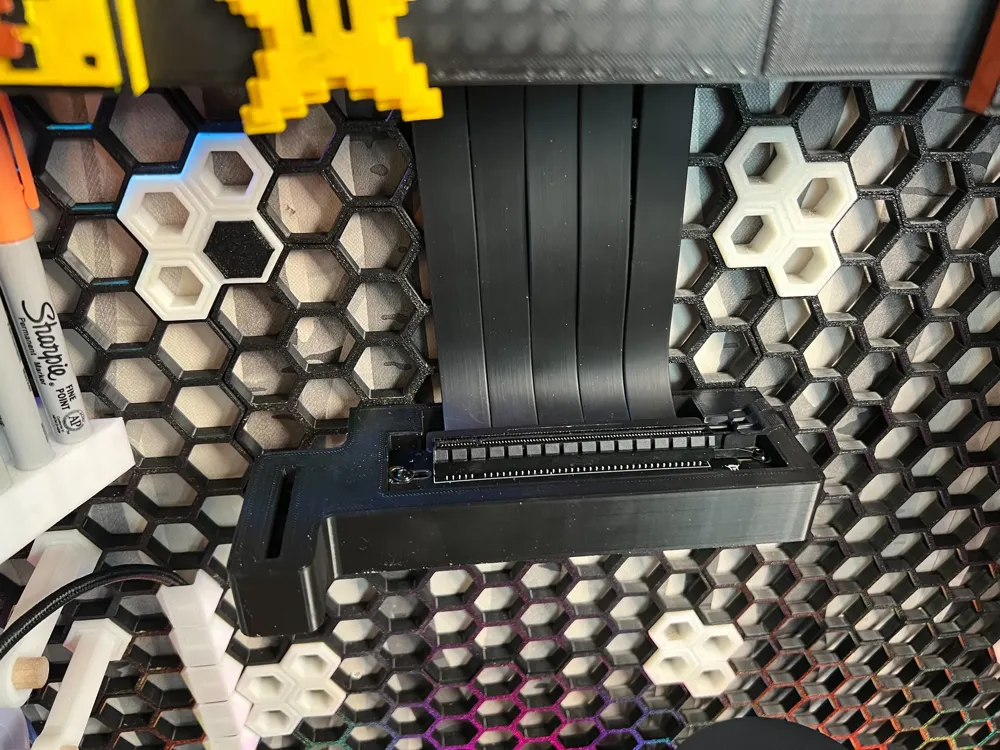

The riser cable mounting holes were designed for use with a random riser cable I got from Amazon (EZDIT-FAB 30cm) however I'm not sure how standardized or common the mounting holes are, if they are unsuitable for your cable, you should be fine with some double sided tape and using the additional bracket provided.

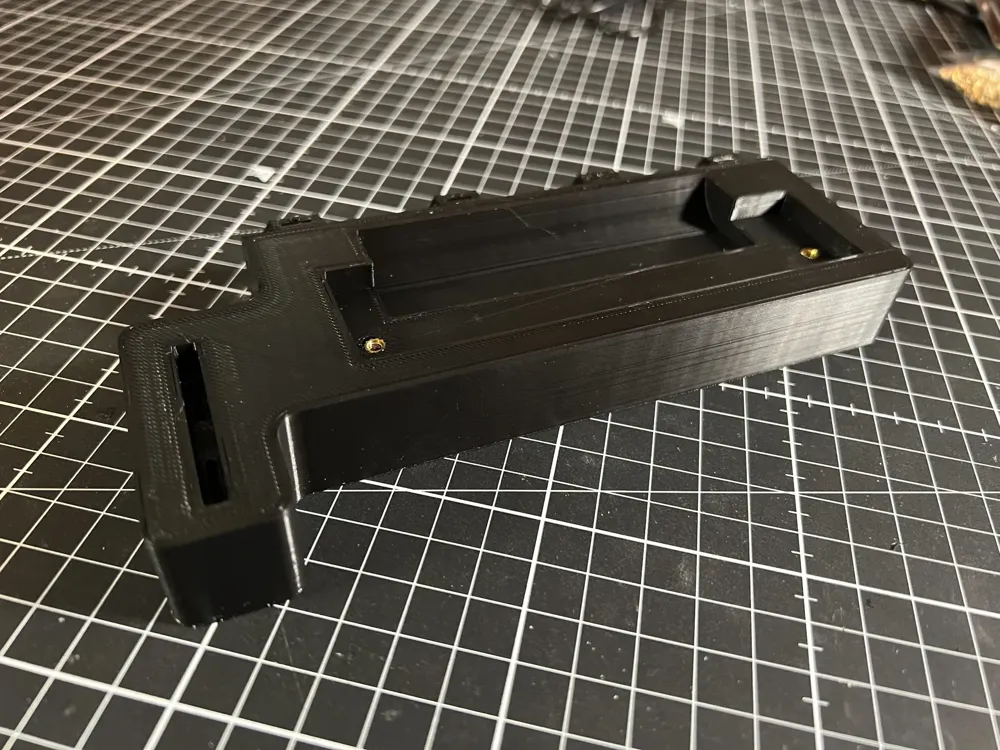

I decided to use threaded inserts, but tolerances on the holes should be enough to use M3 screws without them.

A completely original model that uses HSW attachments for mounting
