Chisel Holder
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
20.6 h
3 plates
Open in Bambu Studio
Boost
20
69
5
4
44
11
Released
Bill of Materials
List other parts
- M5x25mm bolt x 14:
- M5 lock washer x 14:
- M5 flat washer x 14:
- Loctite Threadlocker 242 Blue x 1:
- Ruthex M5x9.5 Heat Set Inserts x 14:
Description

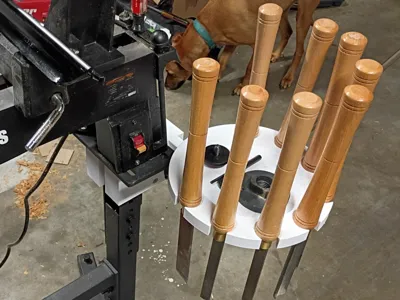

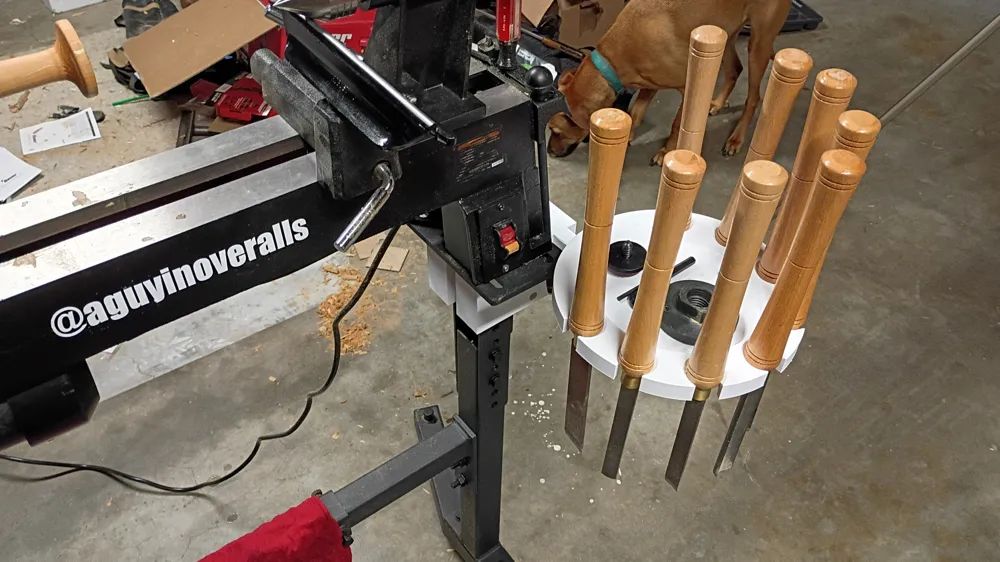

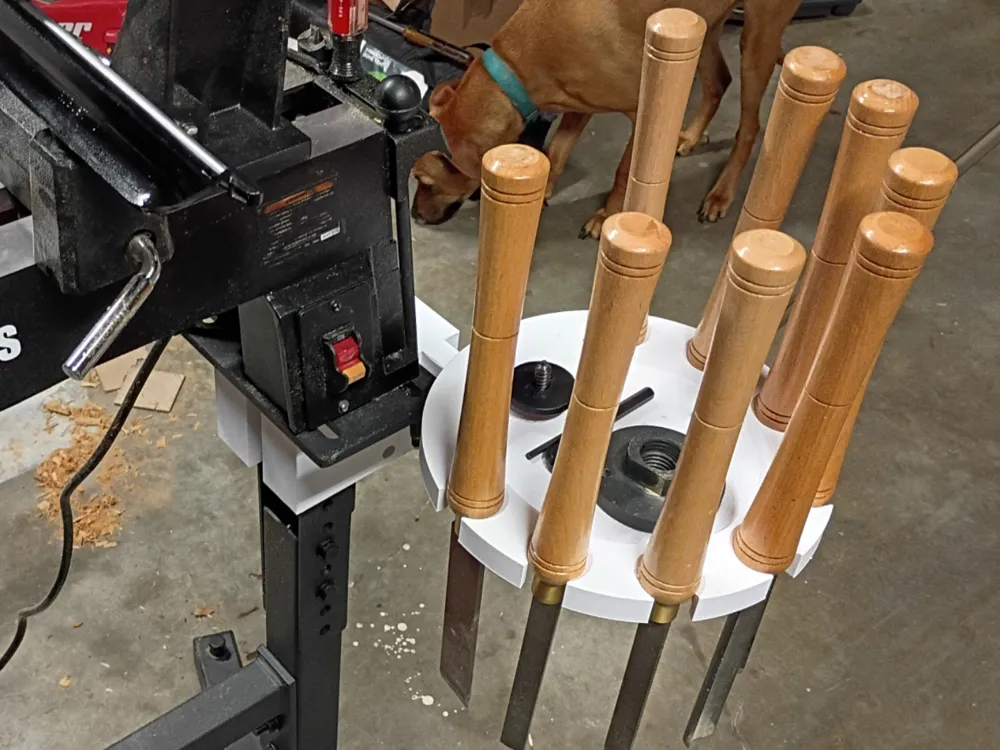

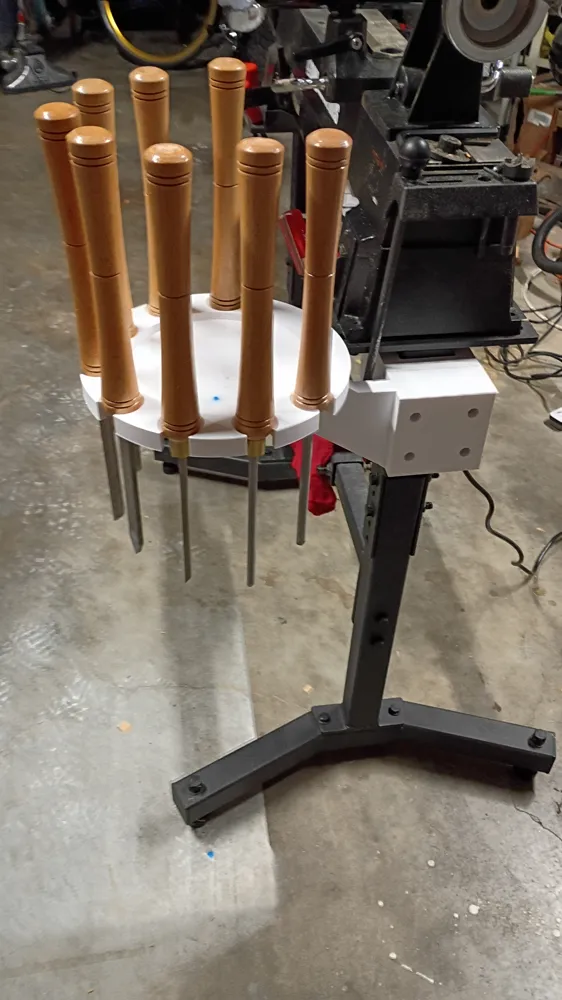

This chisel holder is designed to mount to a Bauer Universal Lathe Stand, and provides slots for up to 8 chisels. There is also room for some additional items on the center of the top-plate. I used PETG-HF to print each component because I wanted the extra strength over PLA, given it is going to be bearing weight on it consistently.
If you need to modify any of the models, clone the GitHub repo for the OpenSCAD files: https://github.com/aguyinoveralls/Chisel-Holder
To see it in use, you can watch some videos on my YouTube channel or Instagram accounts:
Let me know in the comments how useful you found it with your lathe stand!
