Learn Java for FTC Hardware Test Bench

This is a remix and upgrade of an original FTC programming board designed as a companion to the book "Learn Java for FTC" by Alan Smith. My goal was to create a more comprehensive platform for FTC programmers to test code for a wider array of common hardware components, making it an invaluable tool for learning and prototyping.

▶️ Assembly Video Tutorial:

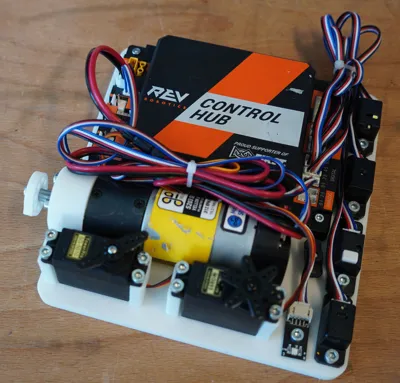

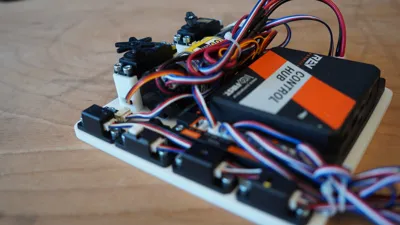

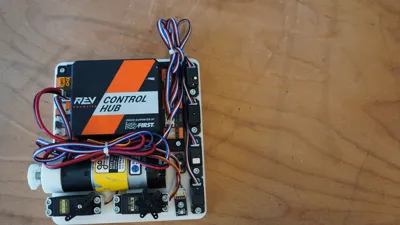

This remixed FTC Hardware Test Bench allows you to securely mount and easily wire:

• REV Control Hub
• GoBilda 12V Yellow Jacket Motor (e.g., 5203 Series)
• Colour Sensor (e.g., REV Color Sensor V3)
• Distance Sensor (e.g., REV 2m Distance Sensor)
• Touch Sensor (e.g., REV Touch Sensor)
• Magnetic Limit Switch (e.g., REV Magnetic Limit Switch)
• Red/Green LED Indicator
• Two Servos:
• 1x Positional Servo (e.g., REV Smart Robot Servo, GoBilda Dual Mode Servo)
• 1x Rotational (Continuous) Servo



Assembly Hardware:

Screws & Nuts: An assortment of M3 and M4 screws. L
Control Hub: M3 (e.g., M3x10mm to M3x18mm)

All other Parts: M4 8mm


Supports are NOT needed.
