H2D AMS Riser

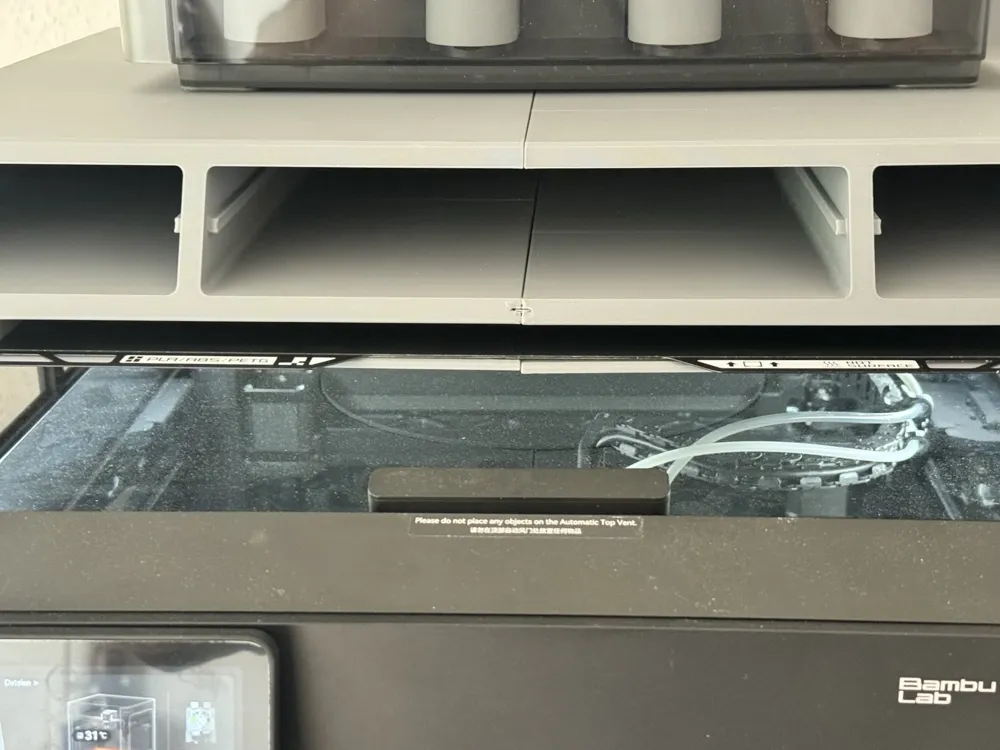

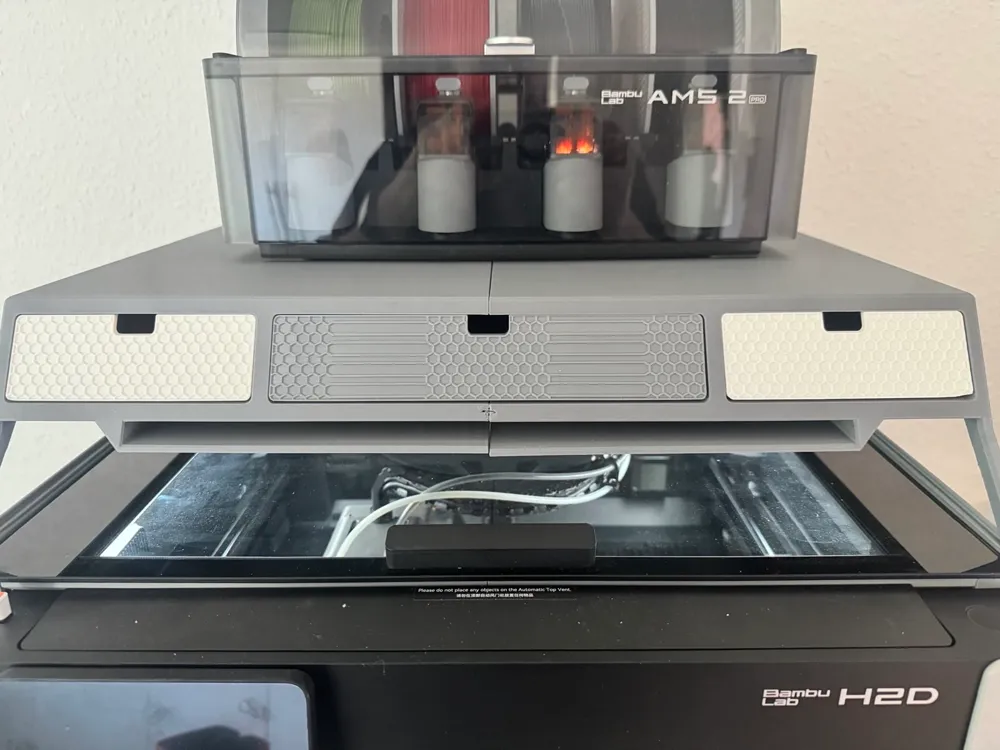

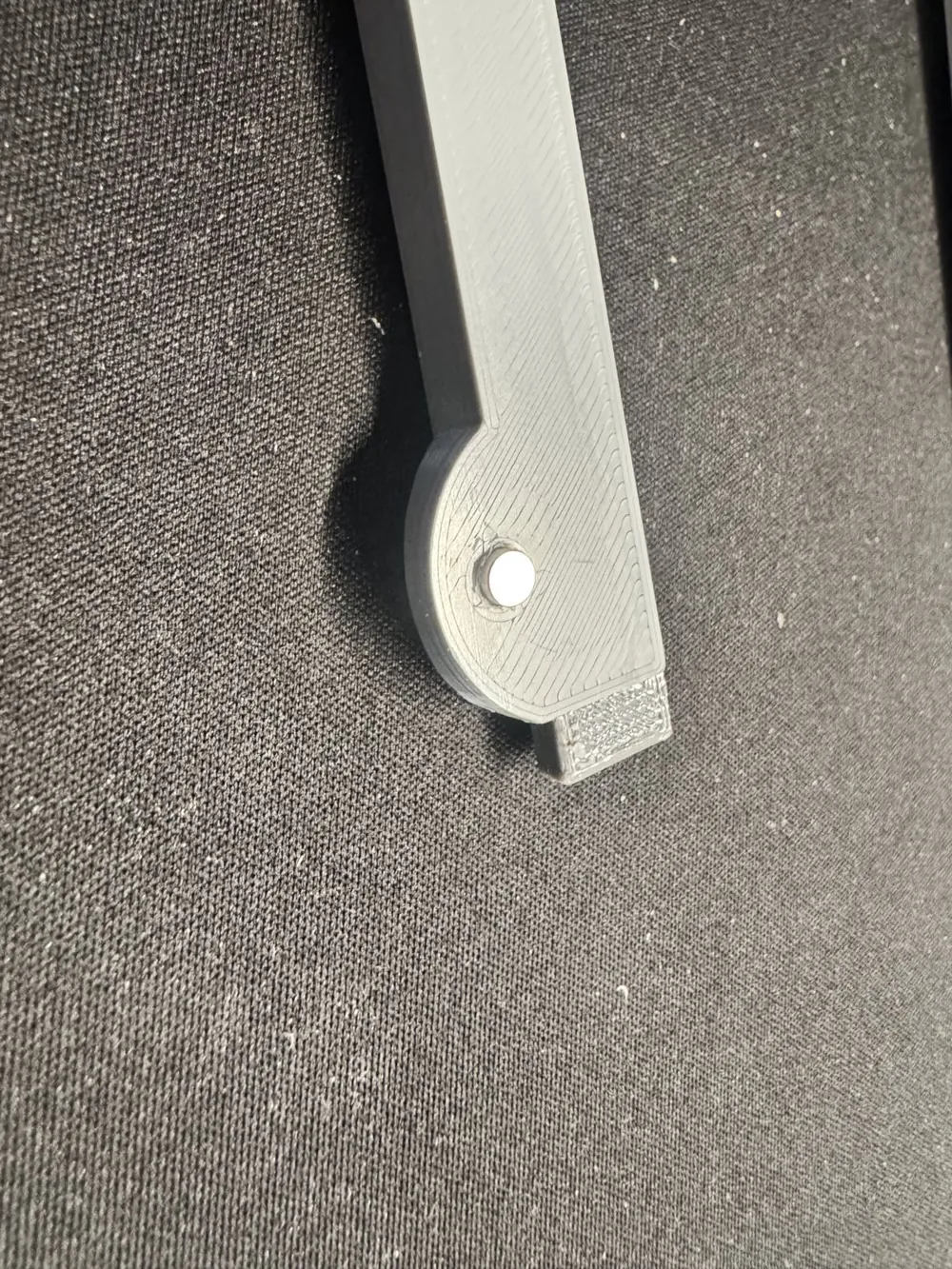

I am delighted with the AMS riser for my X1C and have now adapted the model to my H2D. As the top glas does not have to be raised on the H2D, I have made the riser a little flatter and taken into account the special features such as the magnet on the glass. There are two additonal STL files of the drawers available, for the full-length drawers the drawers have to be split and printed with both nozzles, but the shorter drawers still offer plenty of space. There is a gasket set that can be printed in TPU, I used thin foam rubber here, but for H2d users with a laser and cutter this may be a variant. I used a 4x3mm round magnet. Make sure the magnet has the same orientation as the original on glas cover, i have placed the new magnet on the cover magnet, marked the lower side and made sure this marked side is facing up when glued in place. In one picture you can see two support pieces (one on each front part) which have to be removed after printing, they improve the adhesion for the thin walls. There are still some not really needed tree supports an the front parts, i have decided to keep them for additional measurement against wobble, to save some time it should be possible to remove them. Pictures are from first version, modified the files afterwards to have a thicker bottom on the build plate compartment.

Edit: modified the front rails to give more room for the flap, please use the modified front rails from STL. Ensure there is no bow when mounting the front rails to ensure proper operation for the flap. Its still tight but working perfect when correct placed.

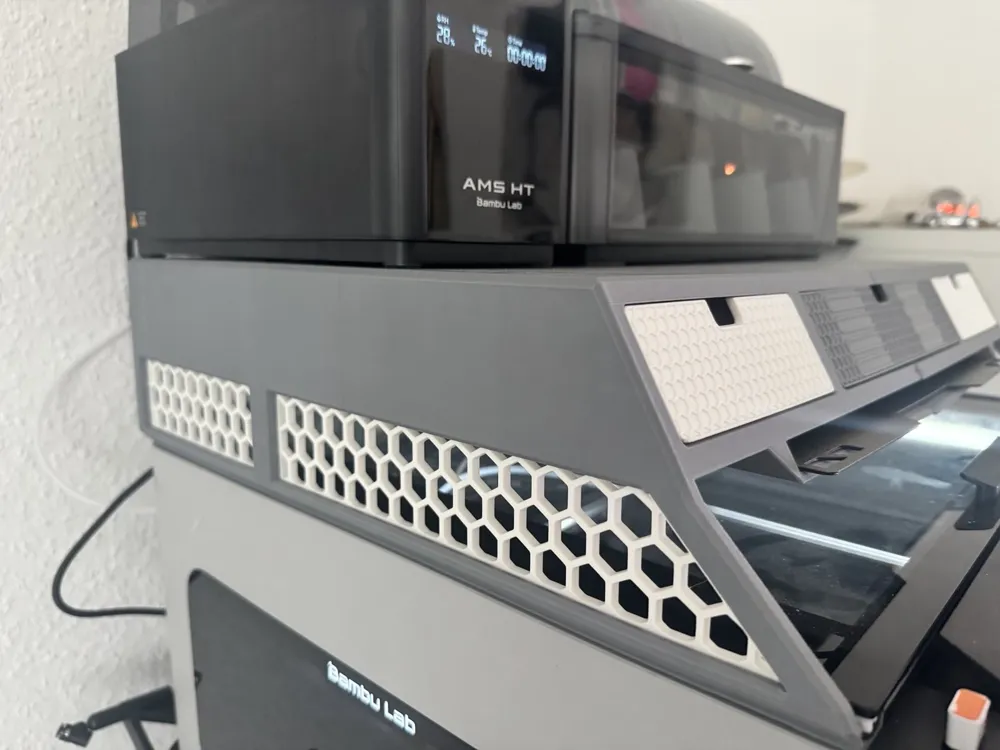

The expansion for using two AMS with the riser is now available, no need to print riser parts if you decide using two AMS after printing this riser, just print the extension: https://makerworld.com/en/models/1514184-h2d-riser-extension-for-dual-ams#profileId-1585932

Update, as requested there are now inserts for the windows on plate 9, designed to press fit.
