Description

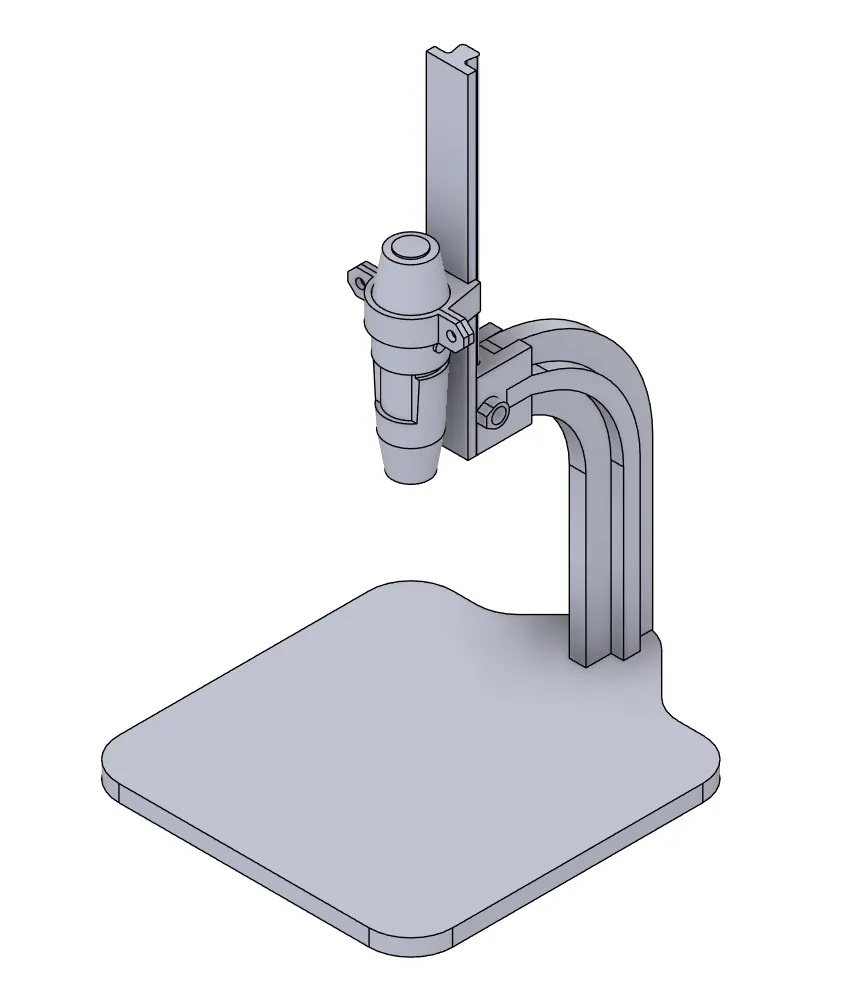

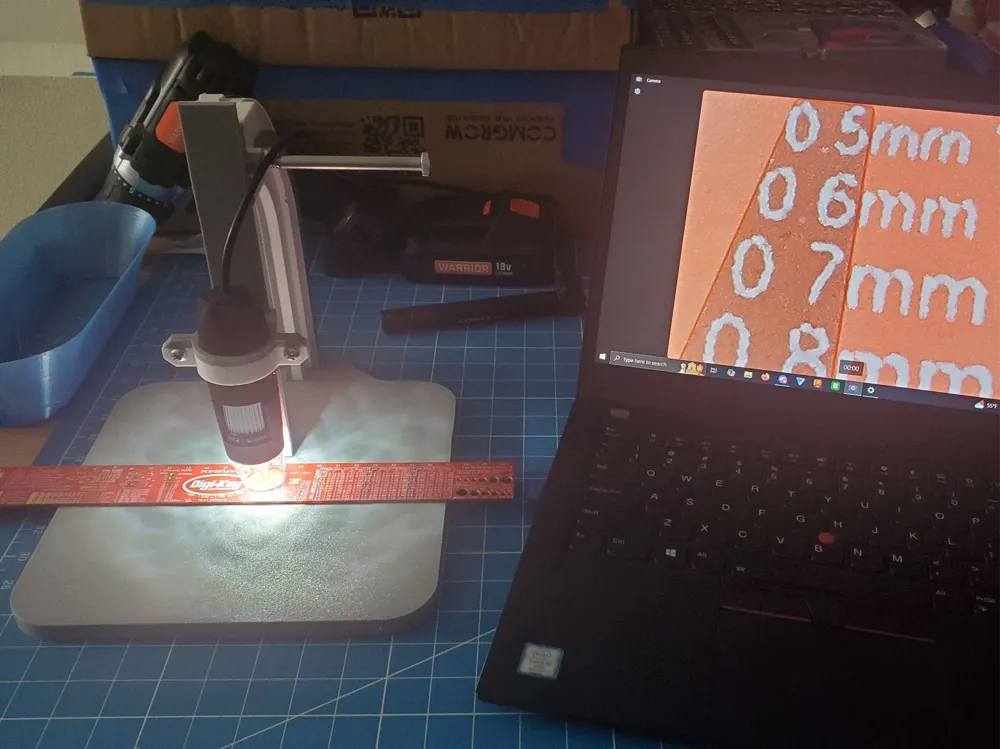

Top down stand for cheap USB microscopes available from Amazon. Great microscopes, but not easy to use like a normal scope without a stand like this. Most of the stand just snaps together, aside from one bolt and threaded insert for holding the slide in position, and a couple smaller screws for holding the scope in the clamp. All parts should be printable without supports.
Non-printed parts required:
Microscope: amazon.com/Microscope-Carrying-Compatible-Portable-Students/dp/B09YYJV39K
¼-20 Heat Set Threaded Inserts: amazon.com/dp/B09MTS6ZZQ?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
Any ¼-20 bolt >.5in long for the vise
A couple random bolts and nuts to hold the scope clamp together, I used 8-32s from Home Depot
