Nine Dragon Balls - Dragon God Orb
Print Profile(1)
Description
Nine Dragon Pearl Series(Portal):
Thunder God Sword,Thunder God Pearl Non-illuminated Version
Dragon God Sword,Dragon God Pearl
Boost Me (for free)
If you like my model, please boost me, thank you!

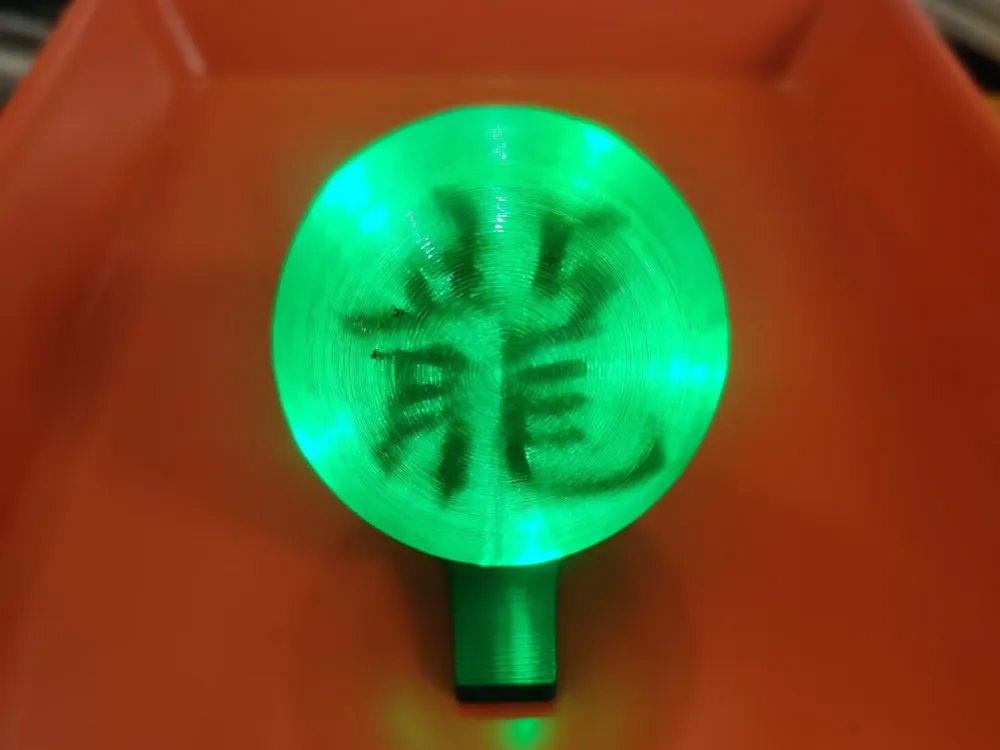

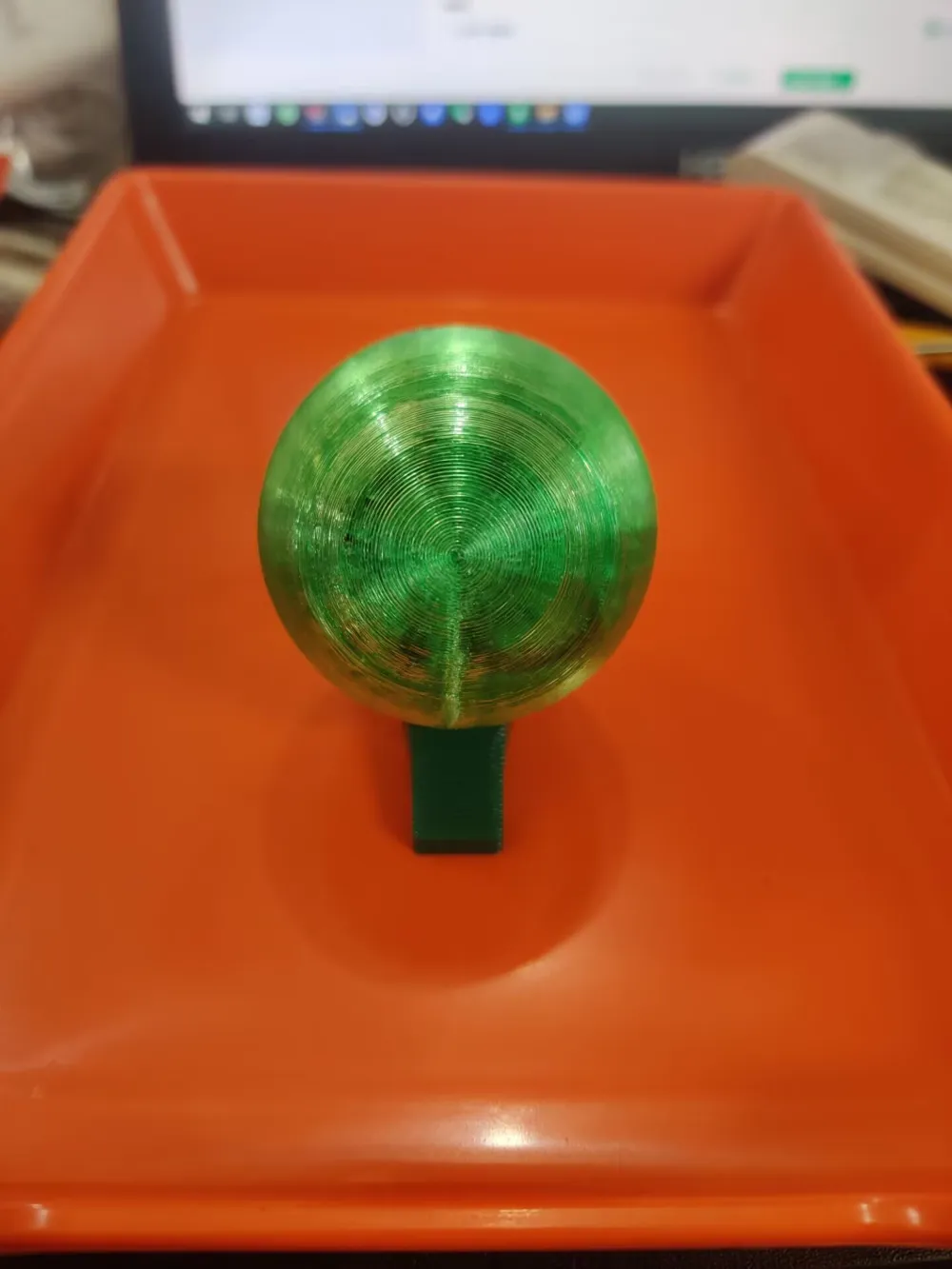

Nine Dragon Pearl - Dragon God Pearl
Already color-separated and split into parts, AMS is required, filament requires PETG transparent green and PETG black

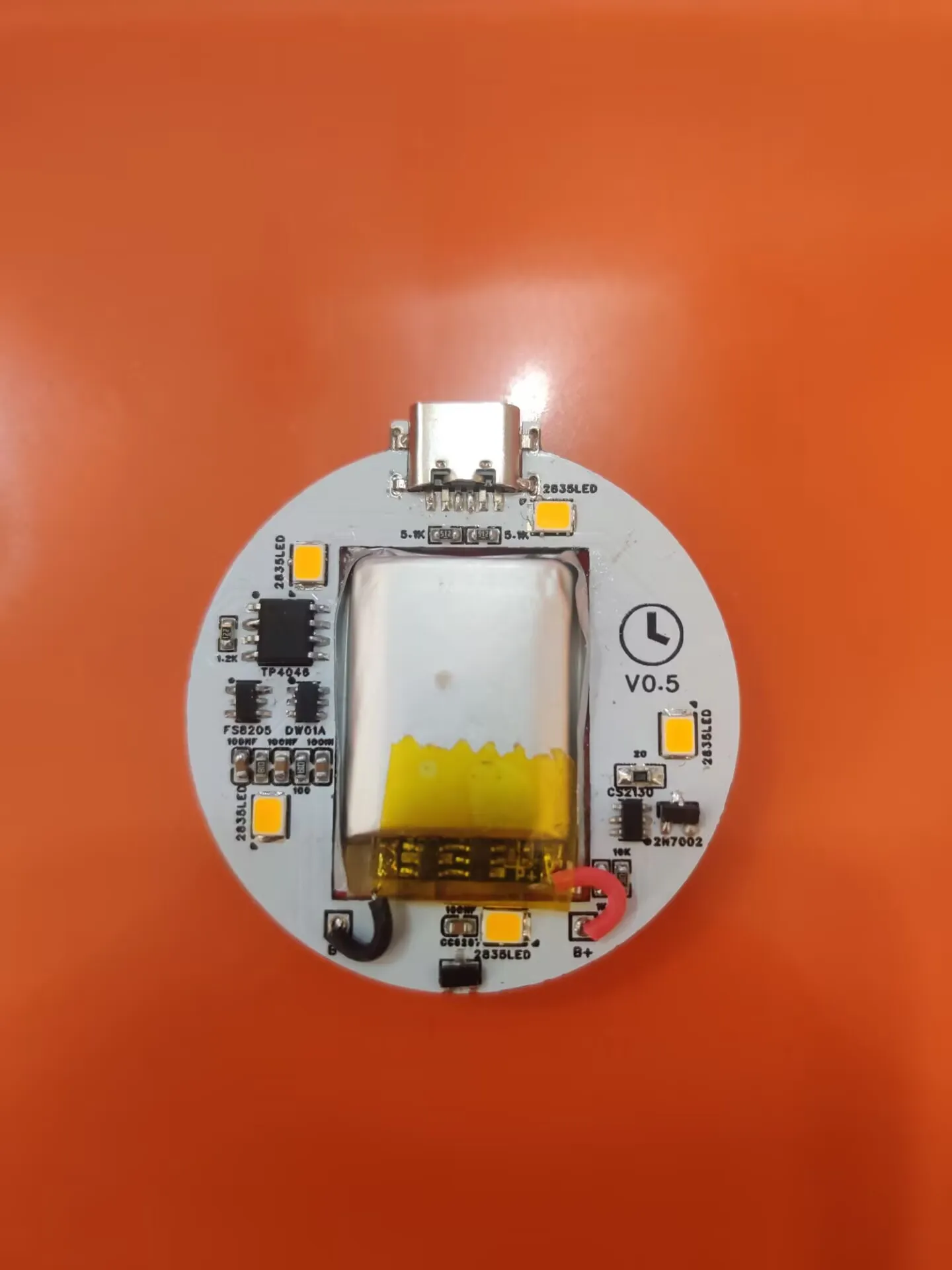

PCB board files are in the download list
PCB Components:
TP4056*1 SO8
FS8205*1 SOT23-6
DW01A*1 SOT23-6
CC6207*1 SOT-23
CS2130*1 SOT23-6
2N7002*1 SOT-23
TYPEC-6P沉板1.6*1
SMD Resistors:
0805: 20Ω*1
0603: 100Ω*1, 1K*2, 1.2K*1, 5.1K*2, 10K*1
SMD Capacitors:
0603: 100NF*4
2835 SMD LED green*10
752028 lithium battery 3.7V*1(602028 also works, thinner or thicker sizes can be used)
After completing PCB soldering and testing, apply a little glue on the side of the battery to fix it, hot melt glue or 401 adhesive can be used

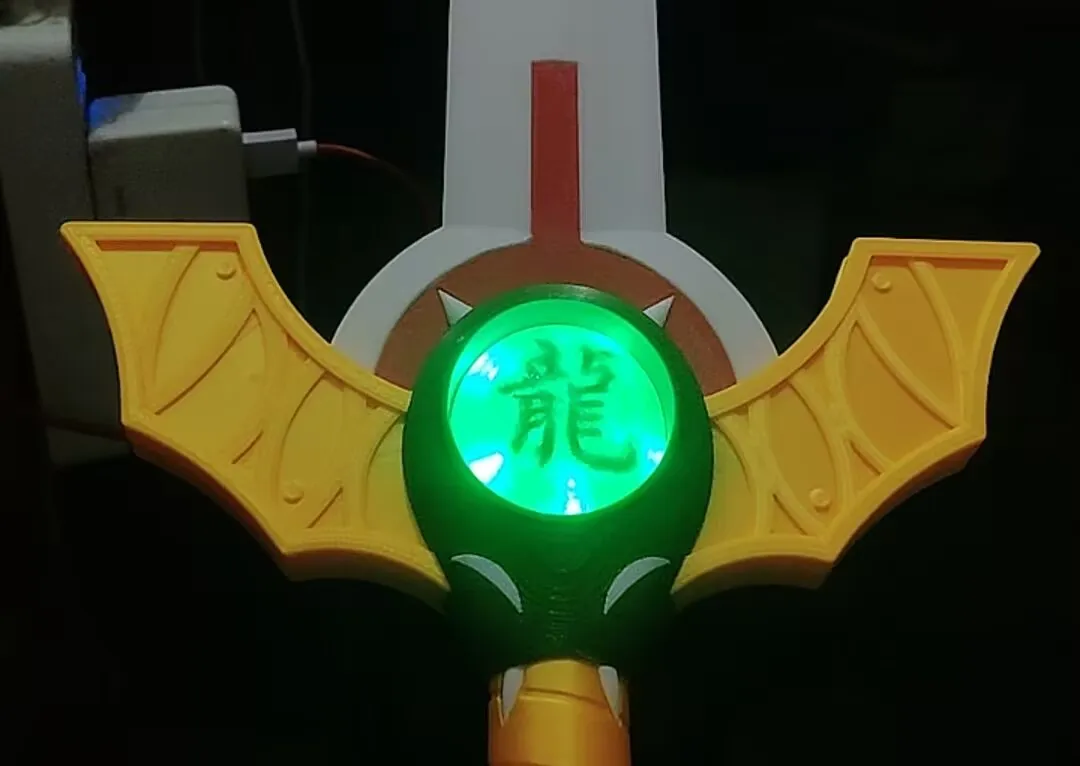

Sword inserted lighting effect
