Replacement shutter latch
IP Report

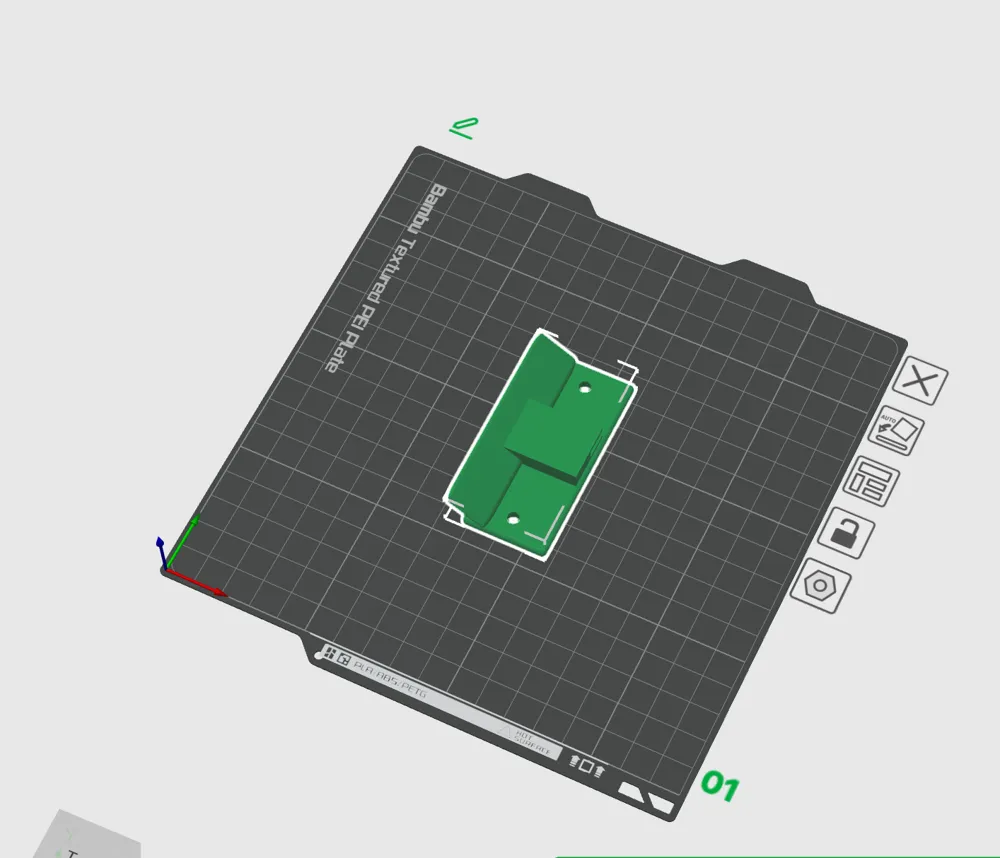

Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
28 min
1 plate
Open in Bambu Studio
Boost
4
4
0
0
13
5
Released
Description
Content has been automatically translated.
This part is a replacement shutter latch, designed for standard PVC or wood systems.
It allows you to repair a broken latch without having to buy the entire mechanism.
Model created on Tinkercad, tested and printed on a Bambu Lab A1 Mini using PETG for better outdoor durability.
📐 Approximate Dimensions:
- Base: 75 × 45 mm
- Thickness: 3 mm
- Central block: 20 × 20 × 20 mm
- Slot: 6 mm wide, 15 mm high
- Screw holes: 4 mm diameter (×6), spaced apart to fit most fixings
🖨️ Recommended print settings:
- Layer height: 0.2 mm
- Infill: 40 to 50 %
- Supports: not needed
- Filament: PETG or ASA (outdoor) / PLA (indoor test)
🛠️ Notes:
- Feel free to adjust the dimensions in your slicer or modeling software to suit your installation.
A quick test print in PLA is recommended before final printing.
