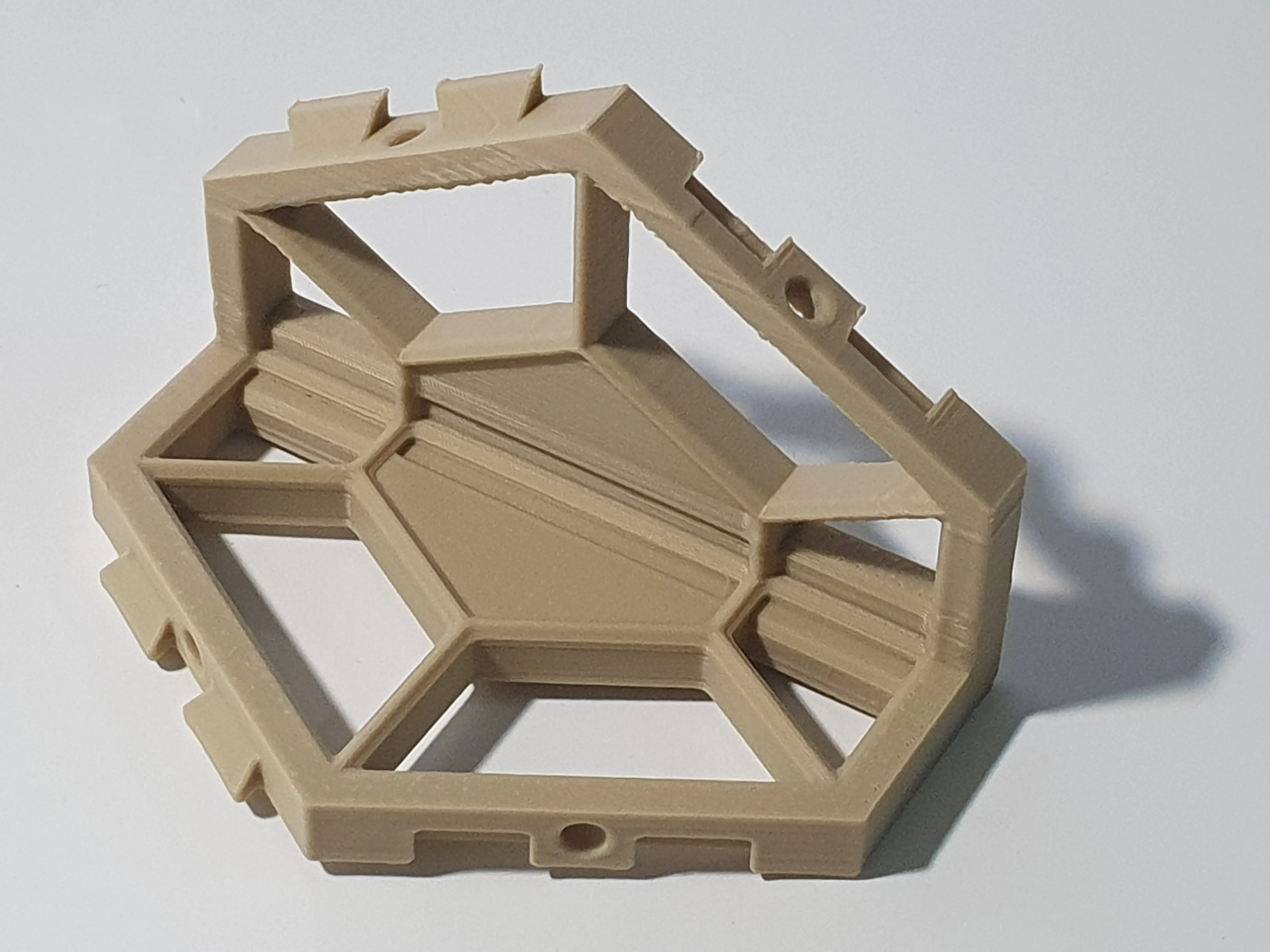

Modular Plant Trellis - Corner Piece

Corner piece for the modular plant support trellis

Use this in conjunction with the hexagon modules available here:

https://makerworld.com/en/models/1127261

and the feet pieces available here:

https://makerworld.com/en/models/1416675

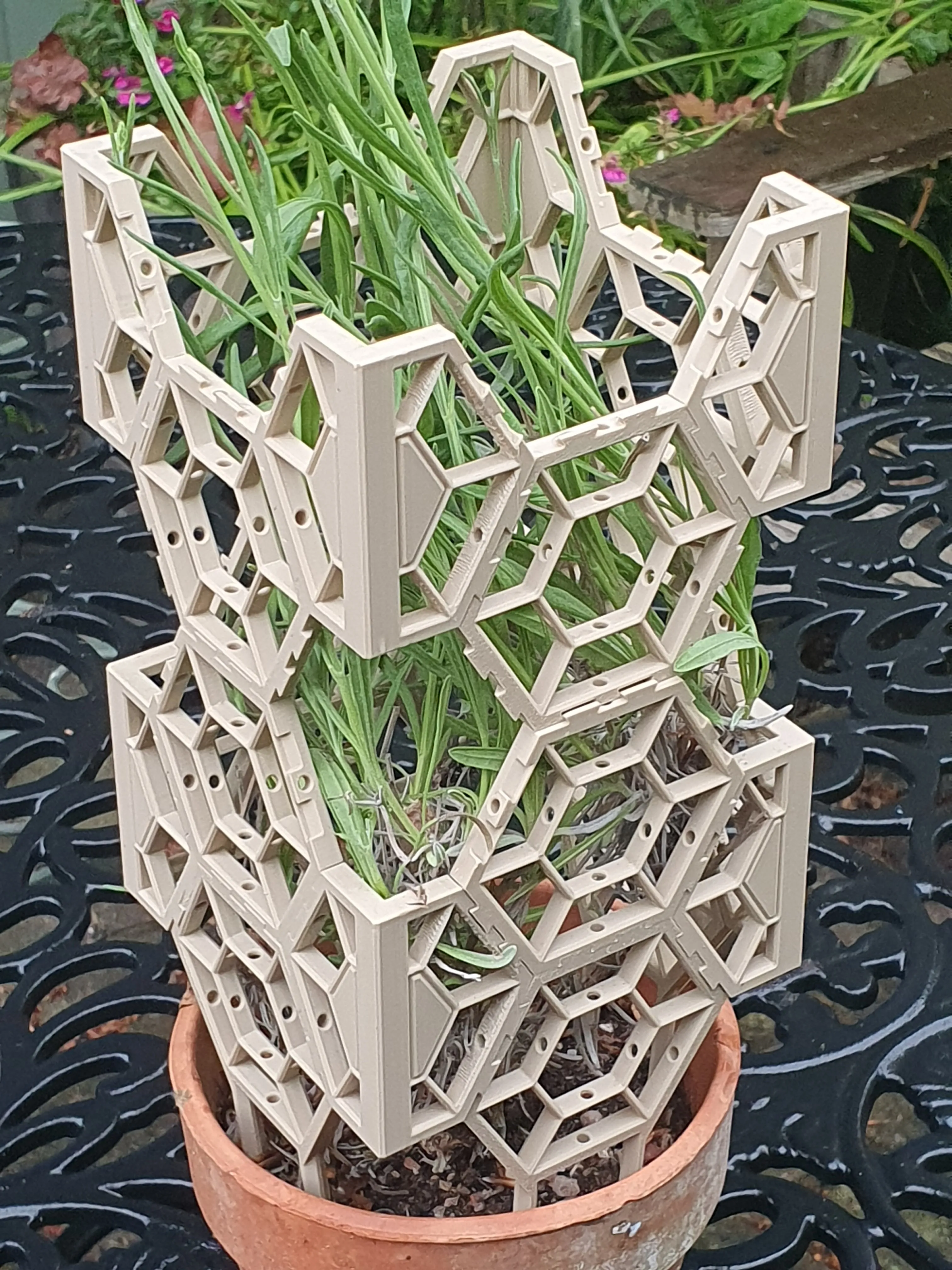

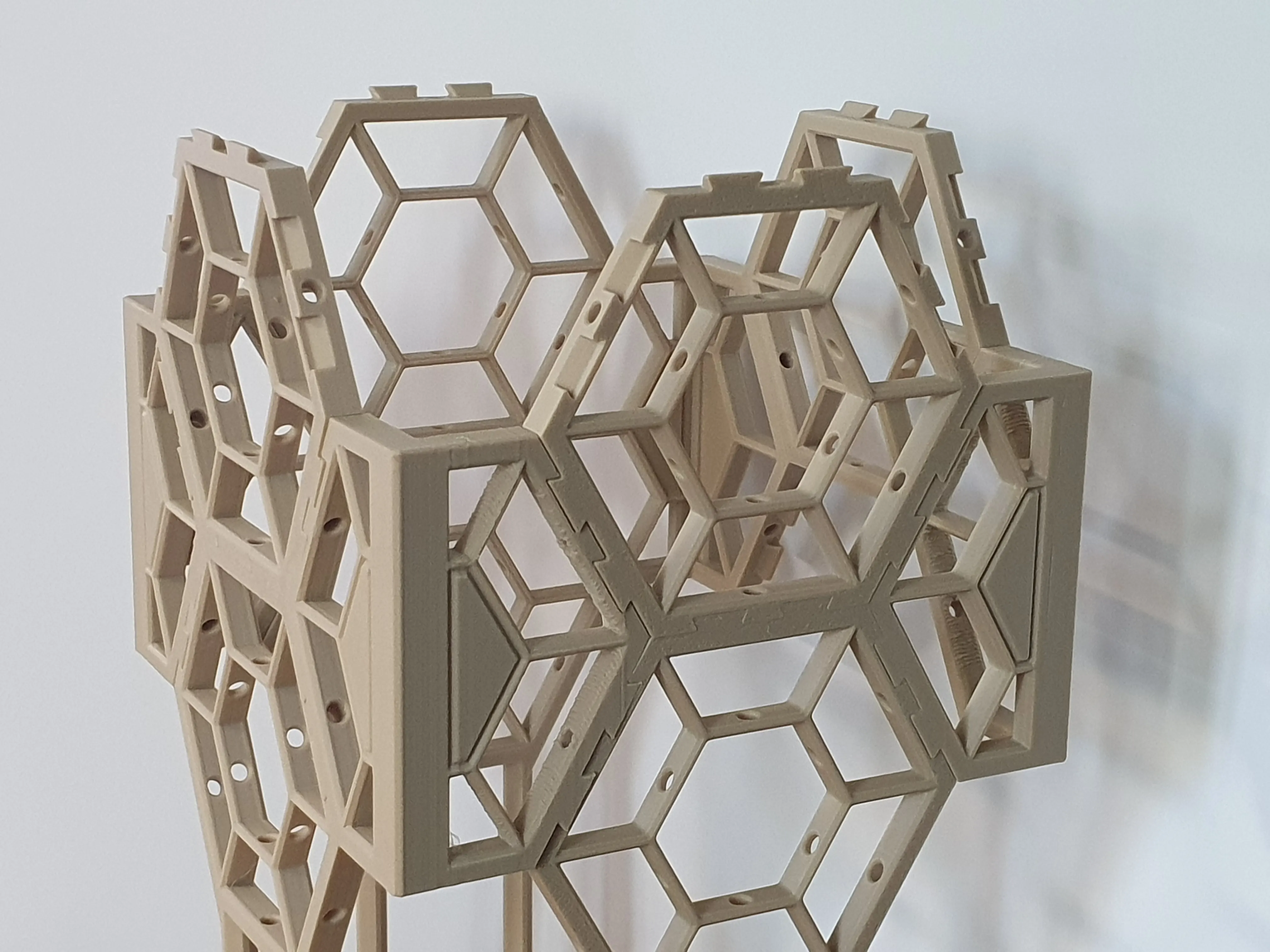

Together you can build plant trellis structures of varying sizes and shapes!

Printing

This prints well in PLA or PETG. No need for supports.

Assembly notes

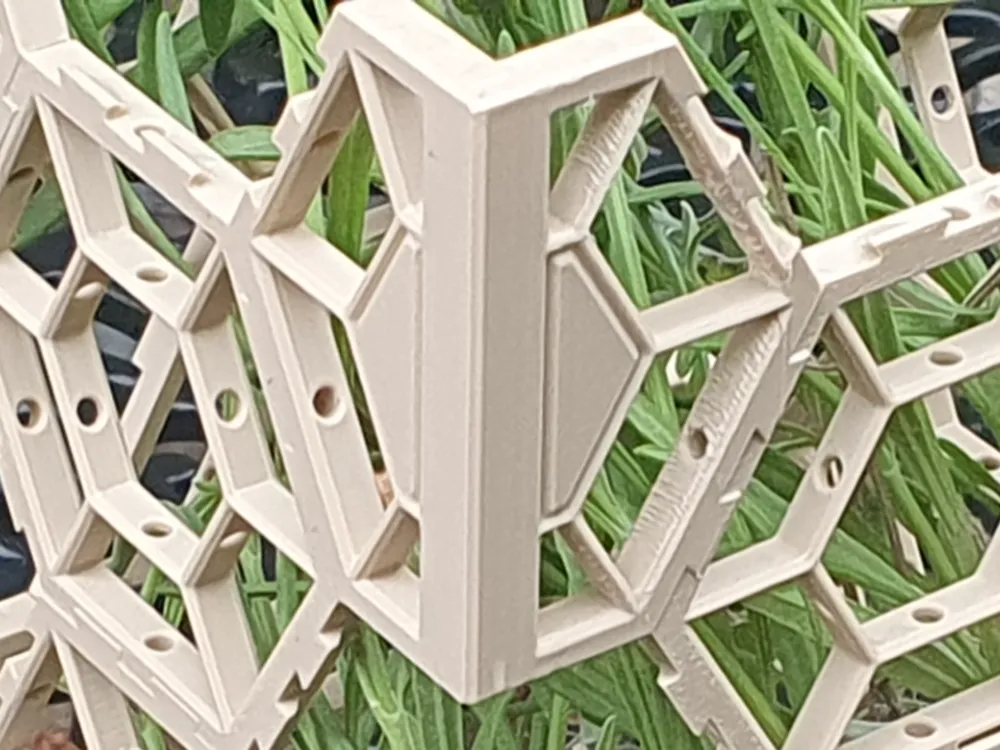

• The parts clip together using alternating dovetails - no need for any non-printed parts.



• If your printer is dialled in nicely these should fit together nicely and firmly, but you can always dab a little glue on the joints if you need (I've not found the need to do this myself)



• When you have two modules already connected, and are joining the third, place the new on in position at an angle with the corner touching the existing ones, and gently twist to align both sides at once.



• If you are adding one where three edges need to be connected at the same time it takes a little more fiddling, but it possible and relies on the plastic being a little flexible.
