Assembly Angle Bracket
Print Profile(0)
Description

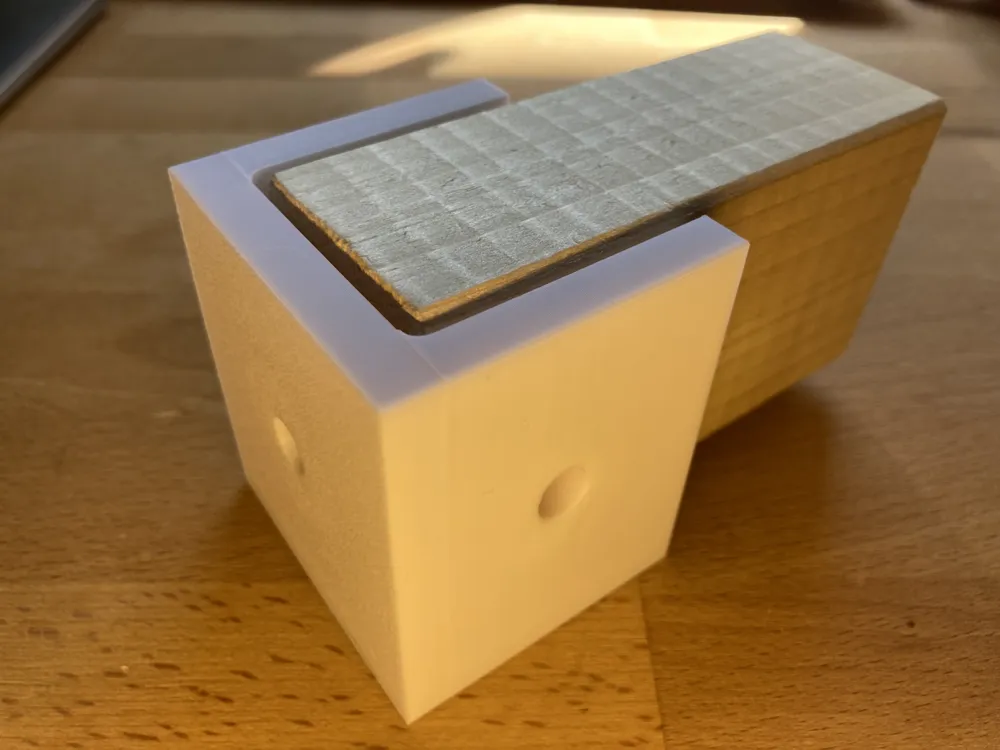

90° Angle Bracket – sturdy corner connector (PLA+ optimized)
Description:
This 90° angle bracket was designed with a focus on stability and versatility. It is ideally suited for attaching wood or plastic elements at a right angle, e.g., in furniture, shelving, or DIY projects.
Features:
- Three continuous mounting holes (unsunk)
- Allows mounting in two directions (horizontal to wall or away from wall)
- High stability due to sophisticated design and targeted reinforcement at critical points

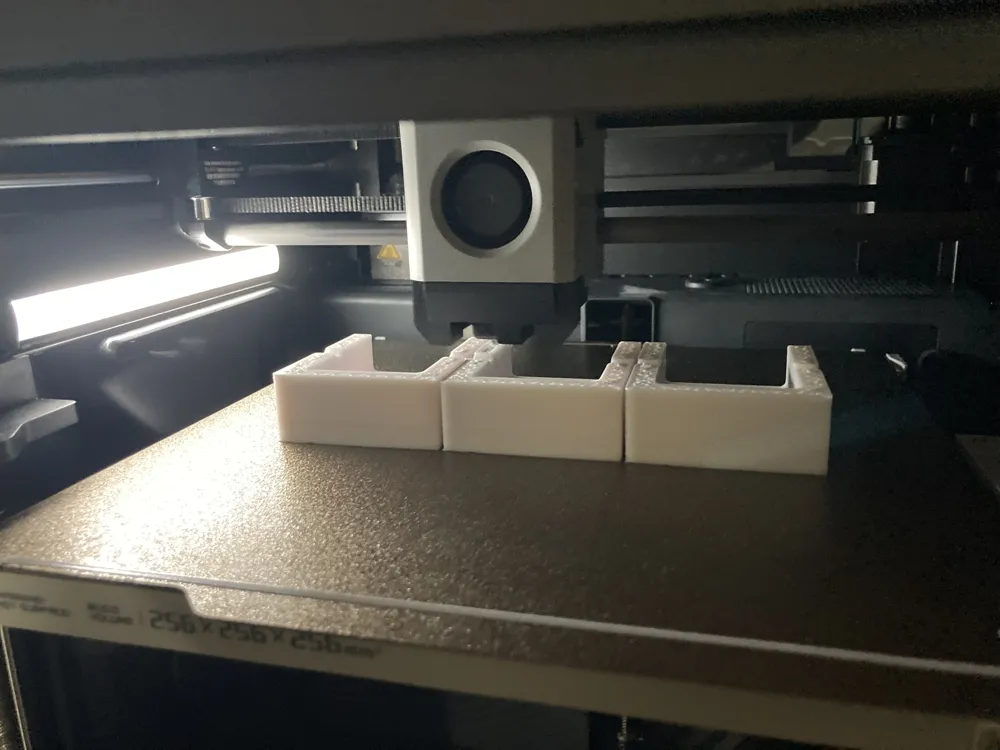

Print Information:
- Material: Sunlu PLA+ 2.0
- Printer: Bambu Lab P1S
- Profile: 0.20 Standard
- Wall Lines: 3
- Infill Density: 20 %
- Reinforced infill (80 %) in the area of the mounting holes for improved screw reception
Recommendations:
- No support necessary
- Activate cooling for precise edges
- Use of PLA+ or PETG recommended for increased mechanical stress
Use:
Perfect as a robust corner connection for shelves, workshop construction, furniture projects and much more – thanks to its symmetrical design, it is flexibly usable.
