Modular Shelving
Print Profile(1)
Description
Description

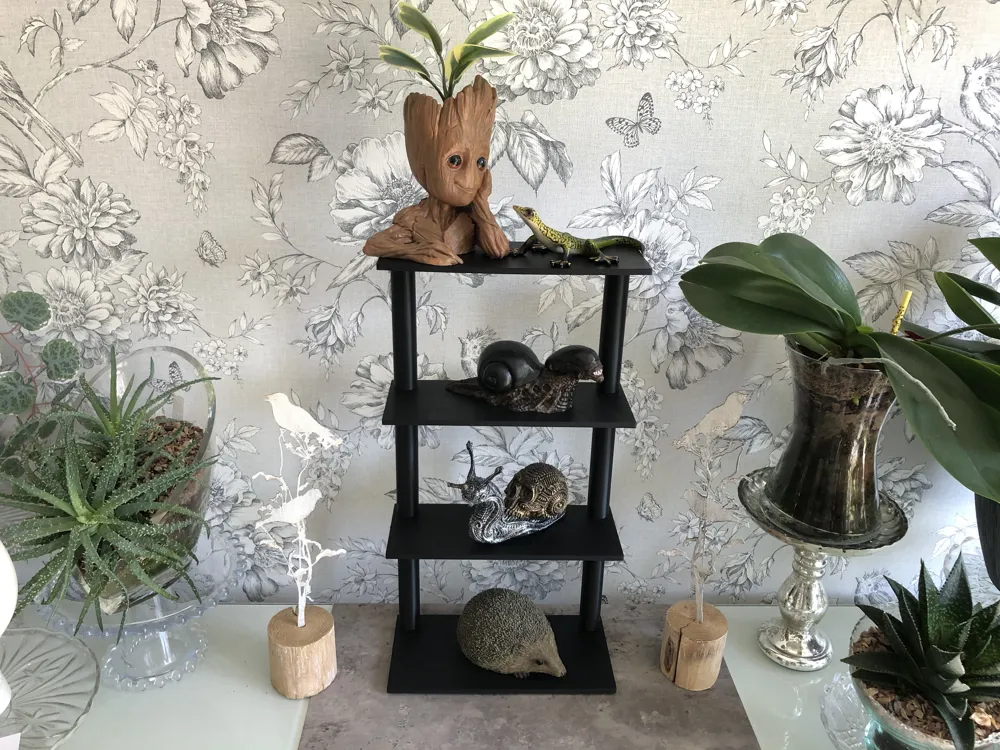

Needed a display stand for my craft fairs to display a few smaller models etc. but also need to be able to dismantle it to transport more easily. I've printed mine on a texture plate which in my opinion gives a nice effect on the tops of the shelves and also helps to hide the joint/seam lines .
I've added some modifiers to increase the wall count and infill to the parts that need extra strength.

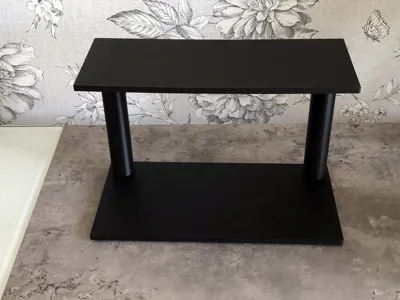

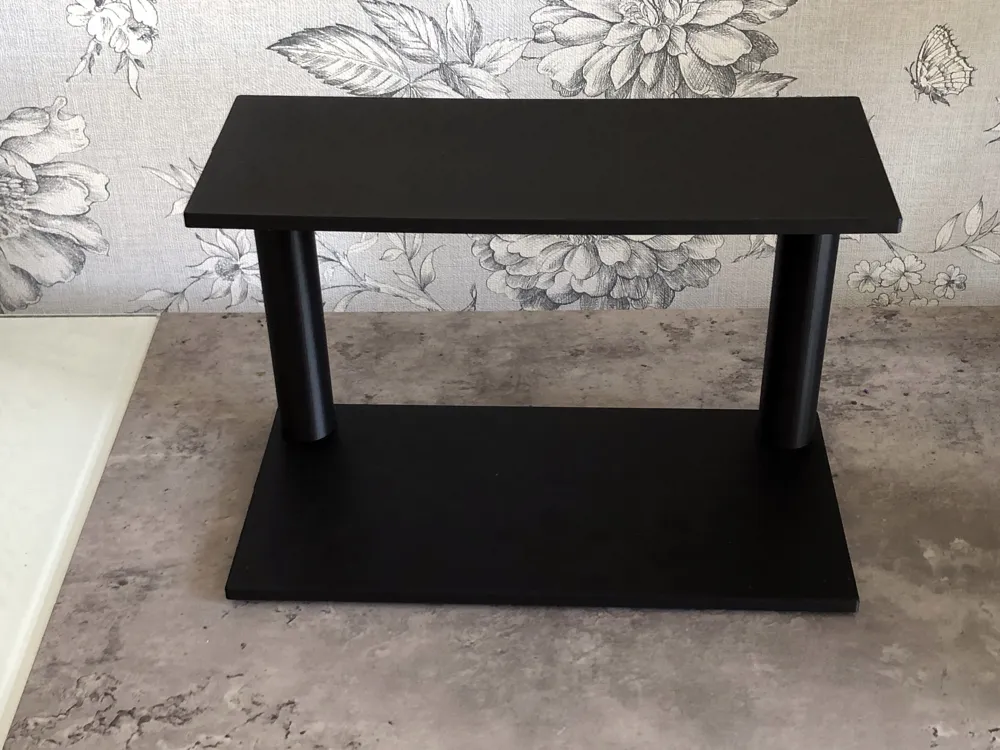

The main shelves are 250mm wide x 100mm deep and the base is slightly deeper to add stability at 125mm.

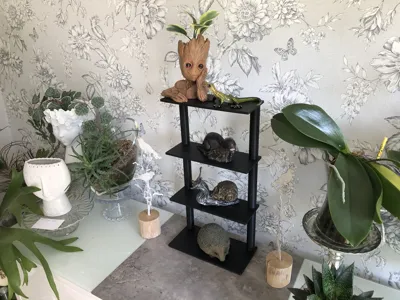

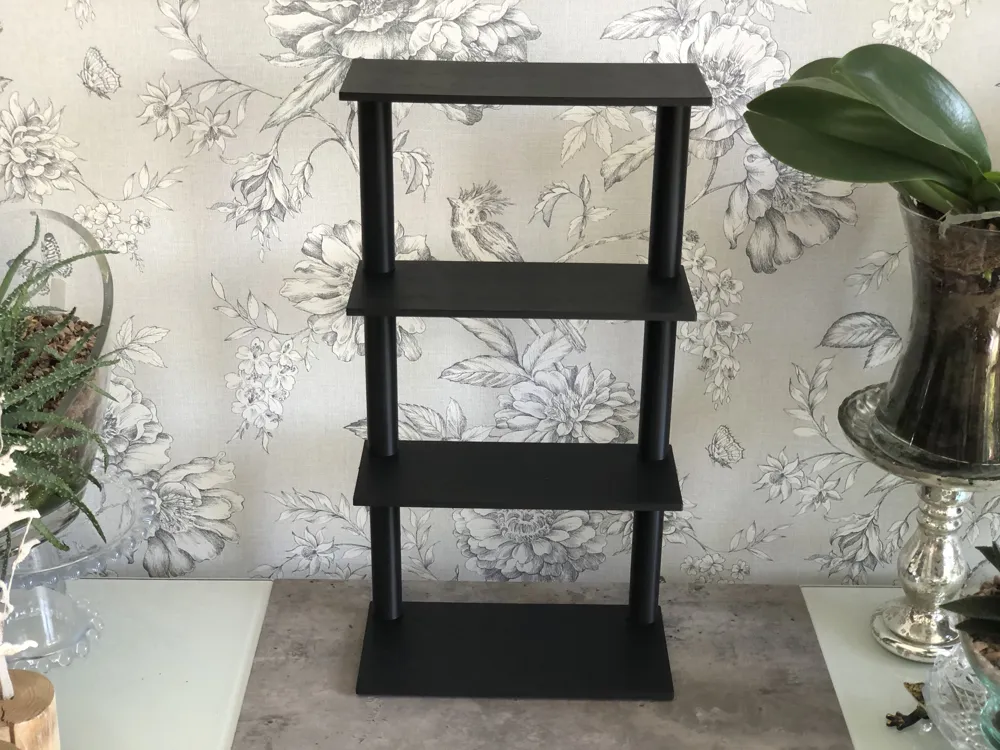

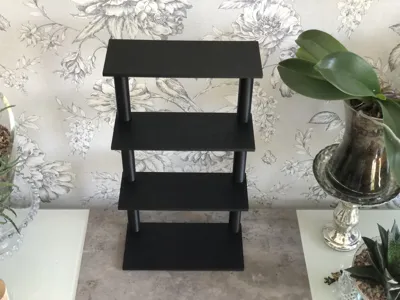

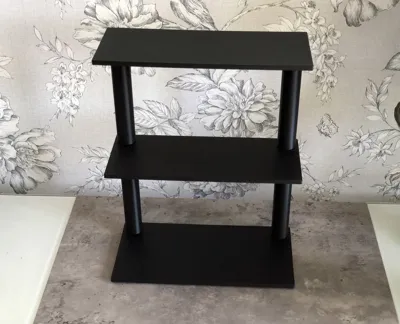

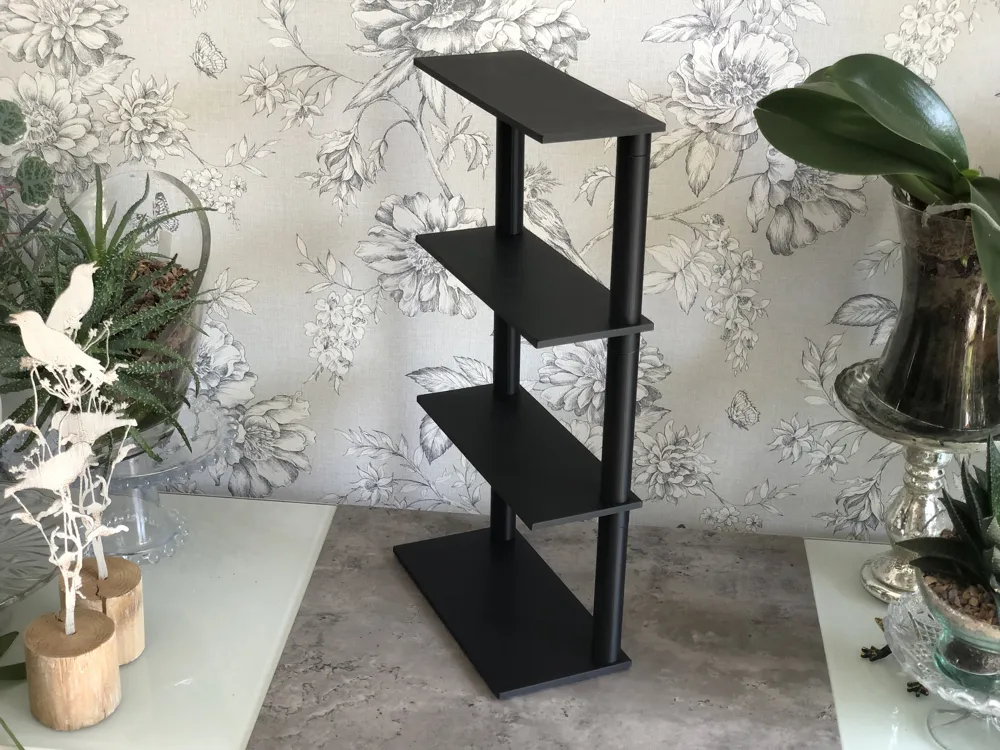

I've gone up to three shelves and it's still stable so the choice is yours, it's modular after all :)
The tolerances are quite tight on the thread and poles to stop any wobbling so please allow the model to cool before screwing in the poles and then screw them in a turn then unscrew, then a few more turns and unscrew etc. this will clear any extra material due to the seam. Be assured that once cleared they screw in very nicely but don't force them on the first try.
0.20mm layer height
5% infill (Honeycomb)
2 wall loops
please leave any comments below thank you.
