2200KV BLDC motor BLOWER FAN
IP Report
Print Profile(3)
0.2mm layer, 5 walls, 25% infill
Designer
5 h
1 plate
0.2mm layer, 4 walls, 20% infill
Designer
4.5 h
1 plate
0.2mm layer, 5 walls, 20% infill
Designer
50 min
1 plate
Open in Bambu Studio
Boost
222
472
8
7
264
77
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts

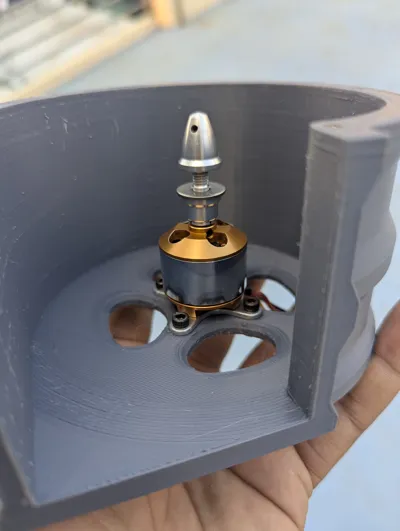

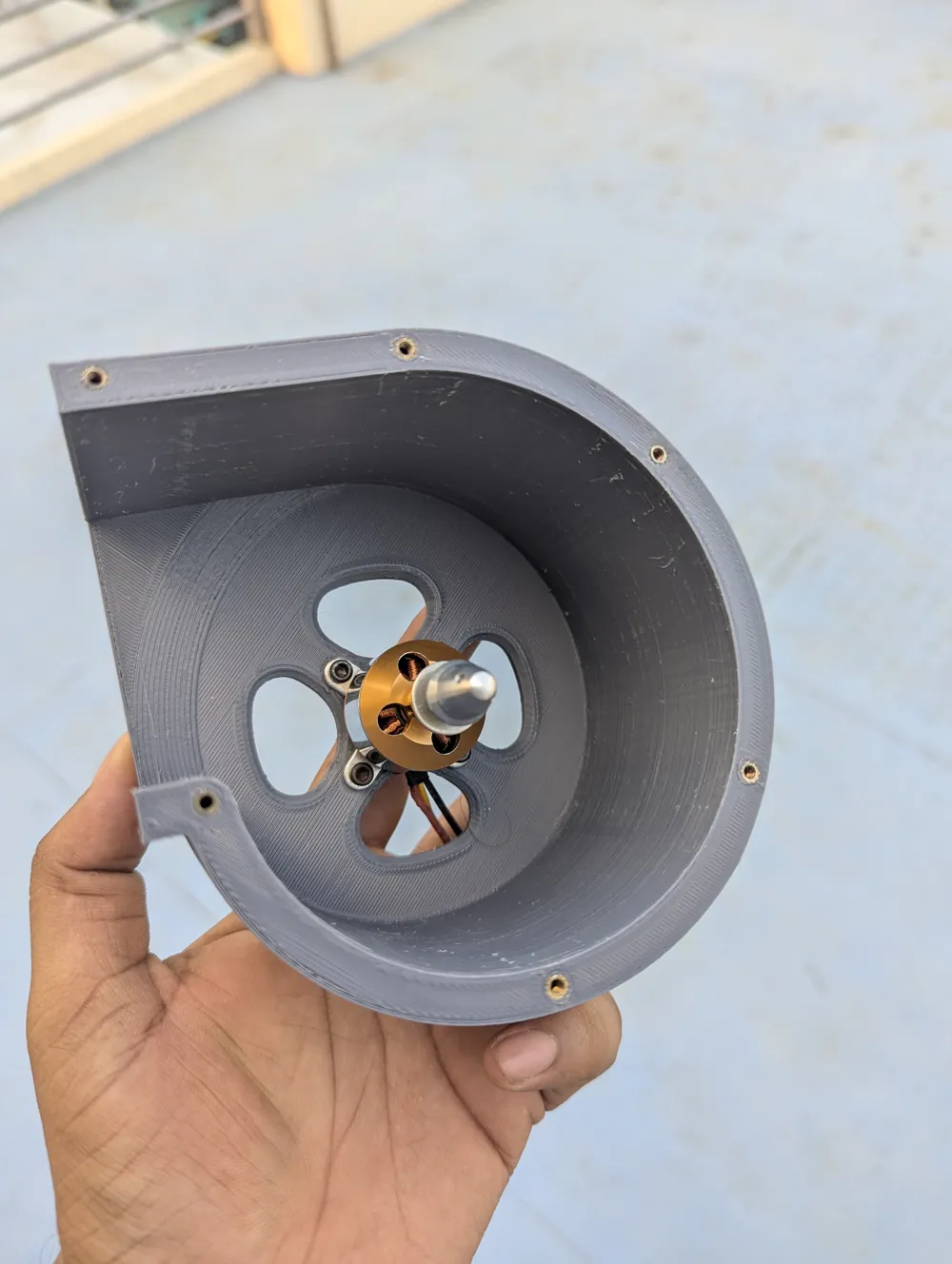

- M3 x 10mm bolts and nuts x 4: to mount the motor to the housing.

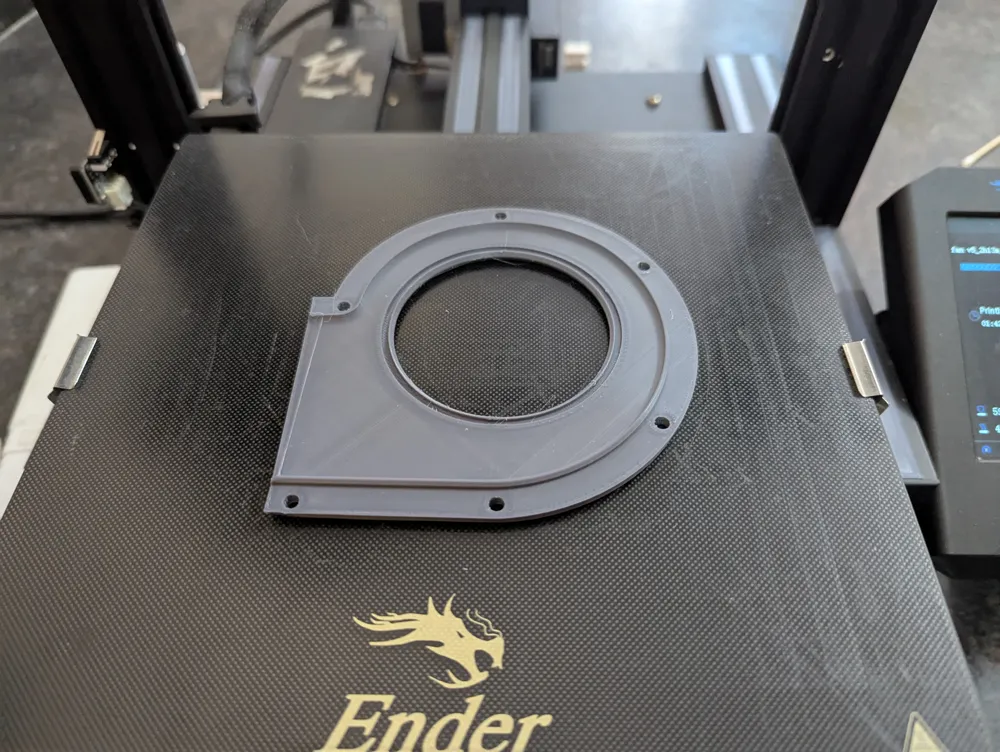

- M2.5 x 10 bolt x 6: to secure the top cover, insert the brass inserts using a soldering iron.
- M2.5 x 10 brass heat inserts x 6: Insert the brass inserts using a soldering iron.

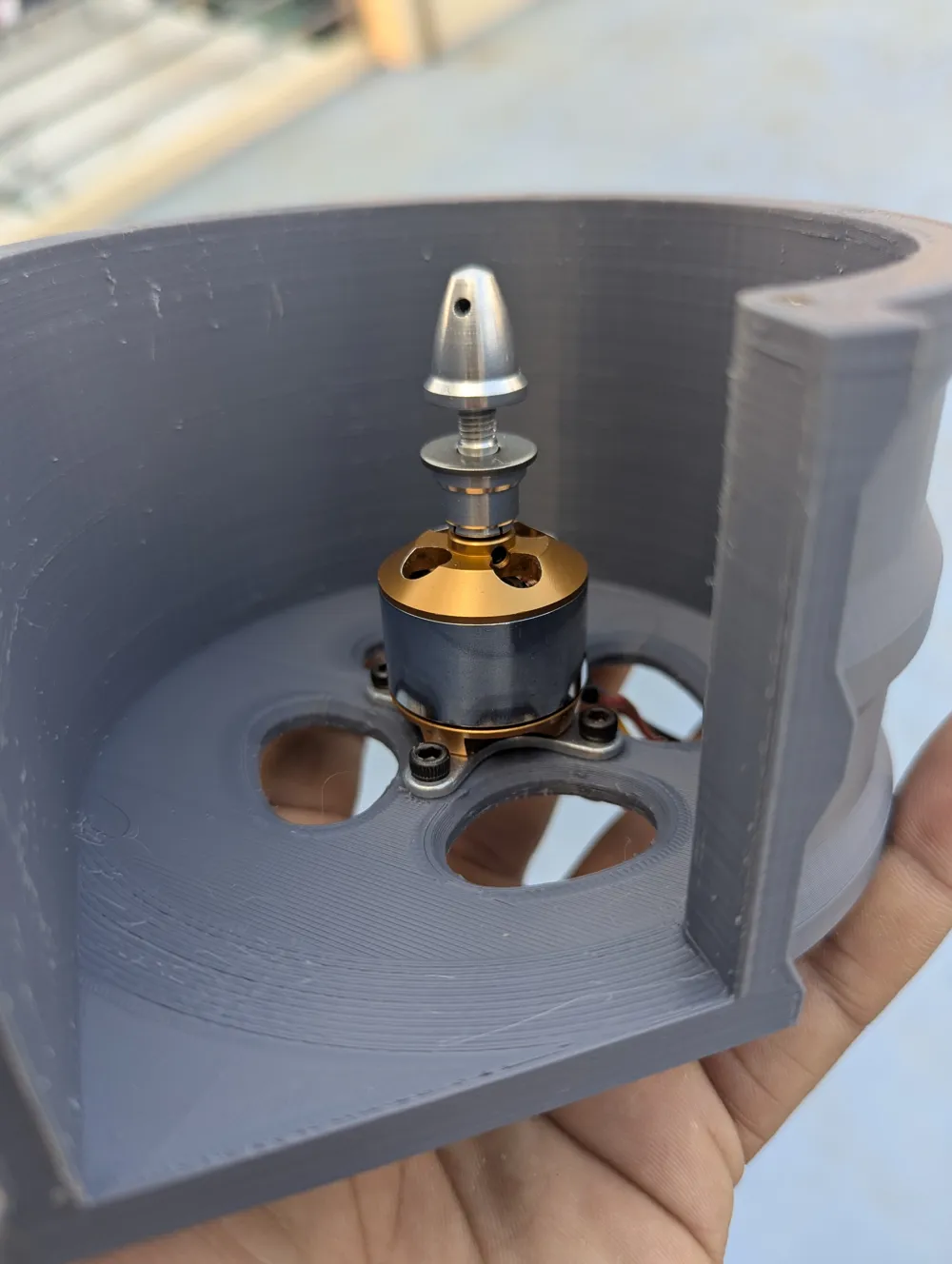

- bullet-style propeller adapter x 1: to mount the impeller to the motor shaft.
Description

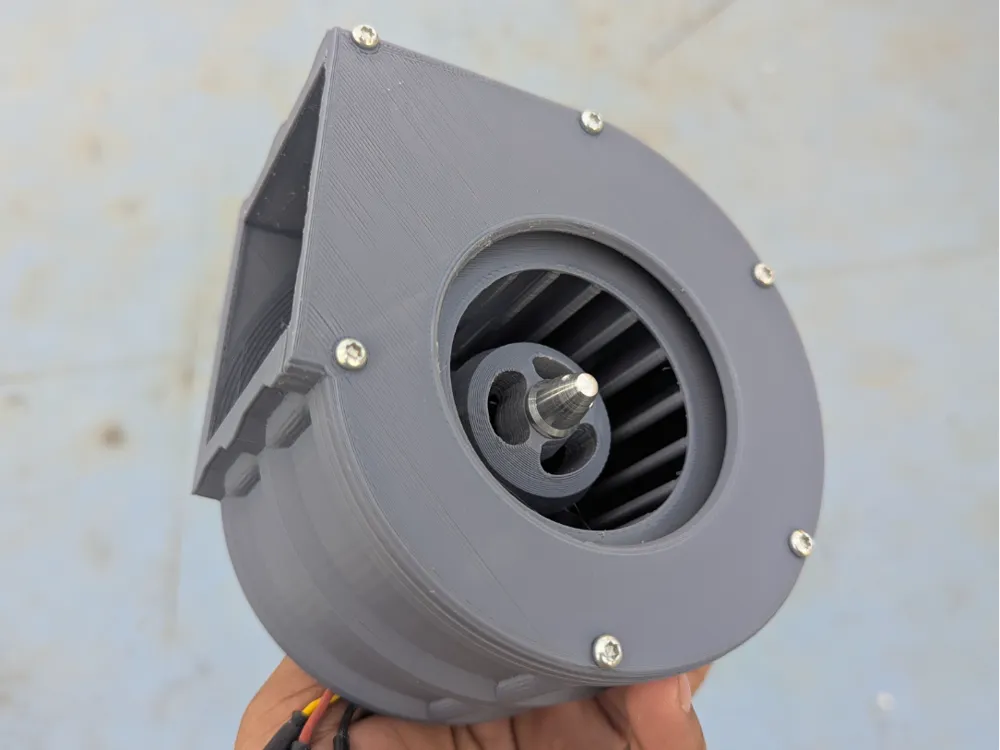

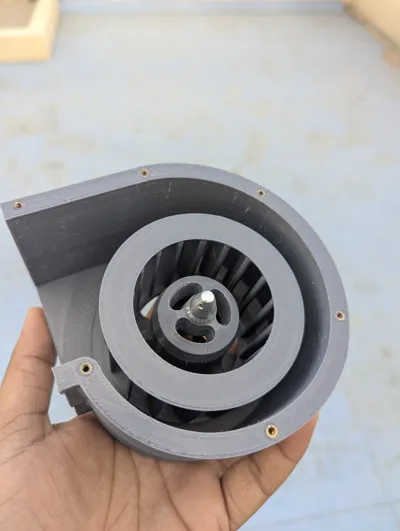

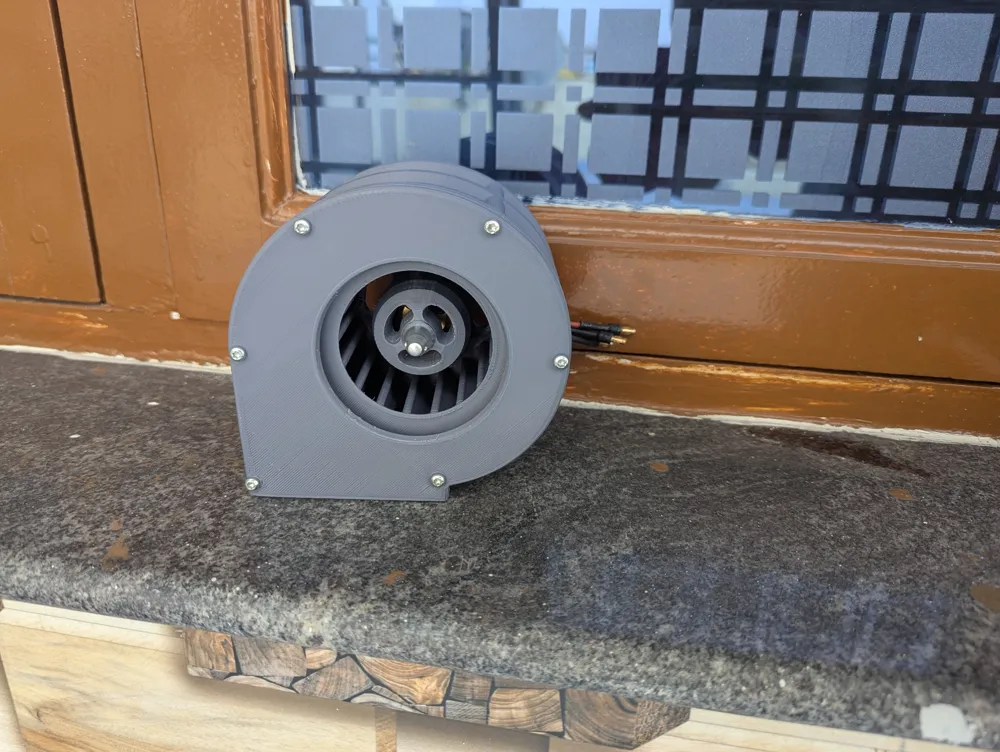

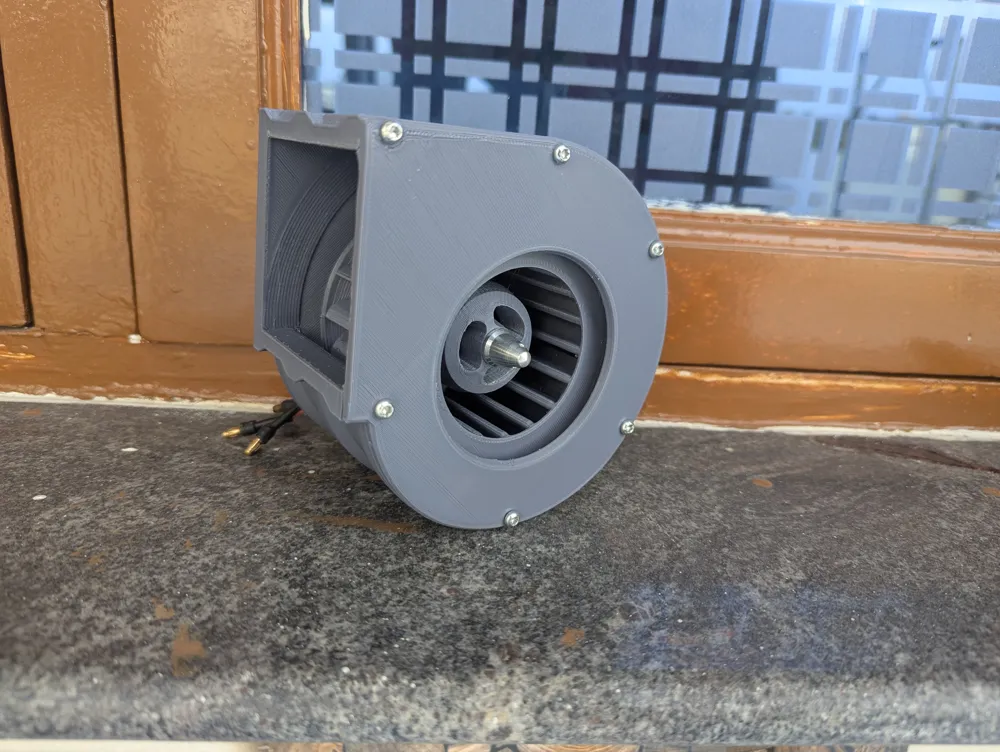

This is a large, high-speed blower fan designed to work with a 2200KV brushless DC (BLDC) motor, commonly used in RC applications. The design features a centrifugal-style impeller housed in a volute casing to provide strong directional airflow. It was made as a fun project and works great as a desk fan or for general airflow testing.
The fan runs on a 2S or 3S LiPo battery and requires an ESC (Electronic Speed Controller) to control the motor.
Ensure all parts are balanced and securely mounted before use. This motor can spin over 10,000 RPM, so always use caution and wear eye protection during operation.
