Description
*May 9, 2025 - Updated profile to be with ABS - had defaulted to PLA in error.

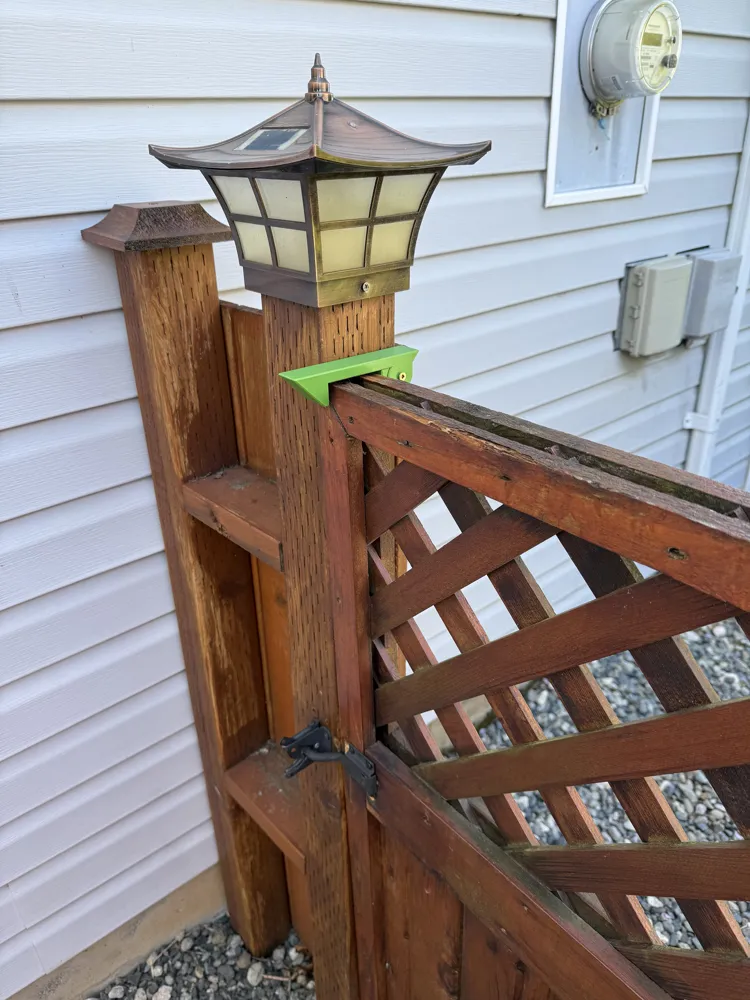

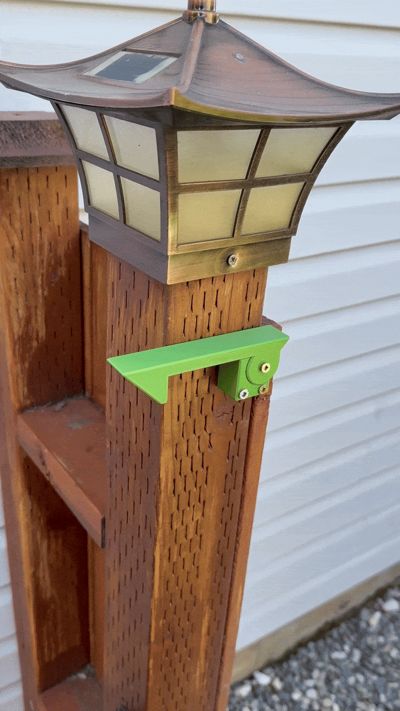

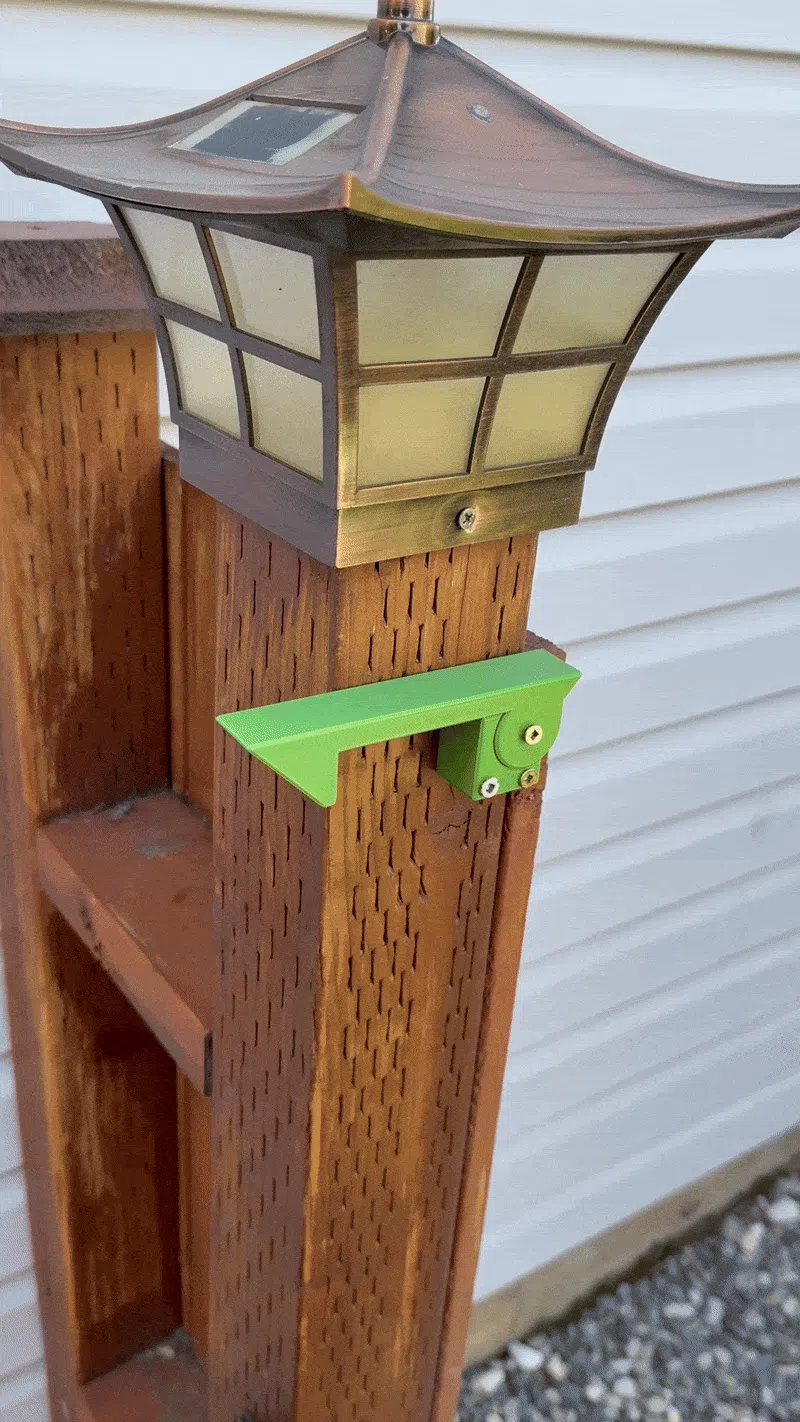

Designed to keep my toddler from opening garden gate. This gate catch automatically holds the gate closed from the top. Easy to open from either side. I have printed in ABS and has held up well so far. Considering adding a strike plate to front face of arm but may not be necessary.
Holes (4mm) work well with #8 wood screws, #6 should also work. Use long enough screws so shank (non threaded part) is long enough to act as axel for the catch arm.
