FOLDING COMB
IP Report
Print Profile(2)
PRINTED PIVOT, 0.2mm layer, 5 walls, 100% infill
Designer
54 min
1 plate
M3 SCREW PIVOT, 0.2mm layer, 5 walls, 100% infill
Designer
52 min
1 plate
Open in Bambu Studio
Boost
332
835
39
7
951
662
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

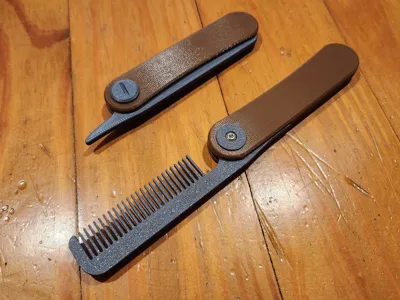

Designed from scratch to be robust, pocket sized, and fun to flip. Teeth optimized for clean prints. Has built in stops to prevent over-travel of the comb when opening and closing (also strengthening the frame considerably).
Included 2 versions of the pivot:
- One uses a 3D printed “chicago” style pivot if you don't have the hardware. Use a U.S. “Penny” (1¢) as a screwdriver. Weaker than the M3 version above and has small threads to print (the smaller the layer height the better.)
- Uses a M3x10 screw and a M3 nut. Much stronger than the printed pivot and recommended.
Other information:
-No supports. Print in supplied orientation at 0.2mm layer height or smaller.
-Print a 4-5 Perimeters with 100% infill for best results.
-There are a couple bridges on the M3 pivots holes that aid in printing without supports. Use the M3 screw or associated Allen key to punch through the holes.
