e-ink display frame
Print Profile(2)
Description
Boost Me (for free)
If you like the model, it's free :)

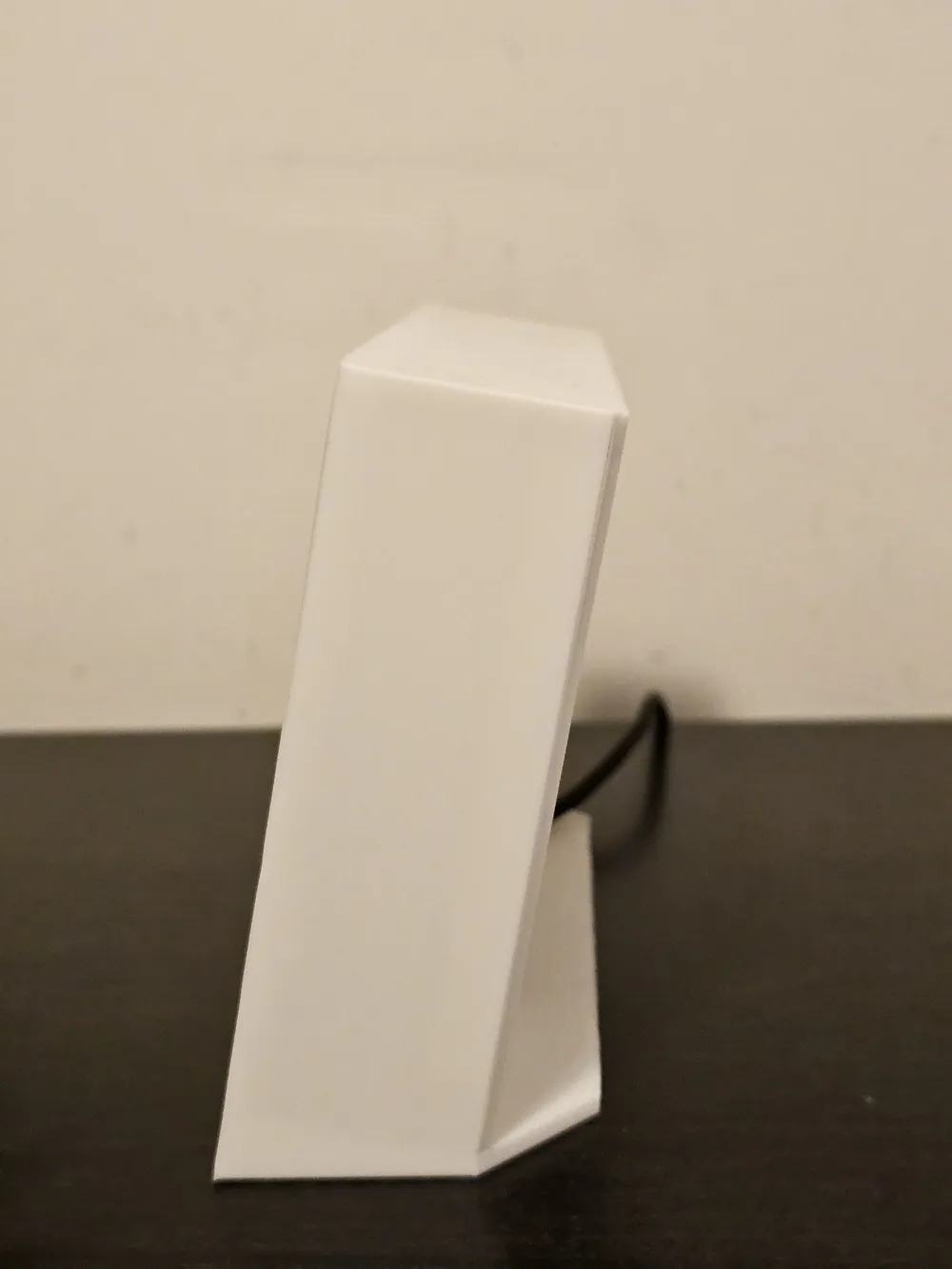

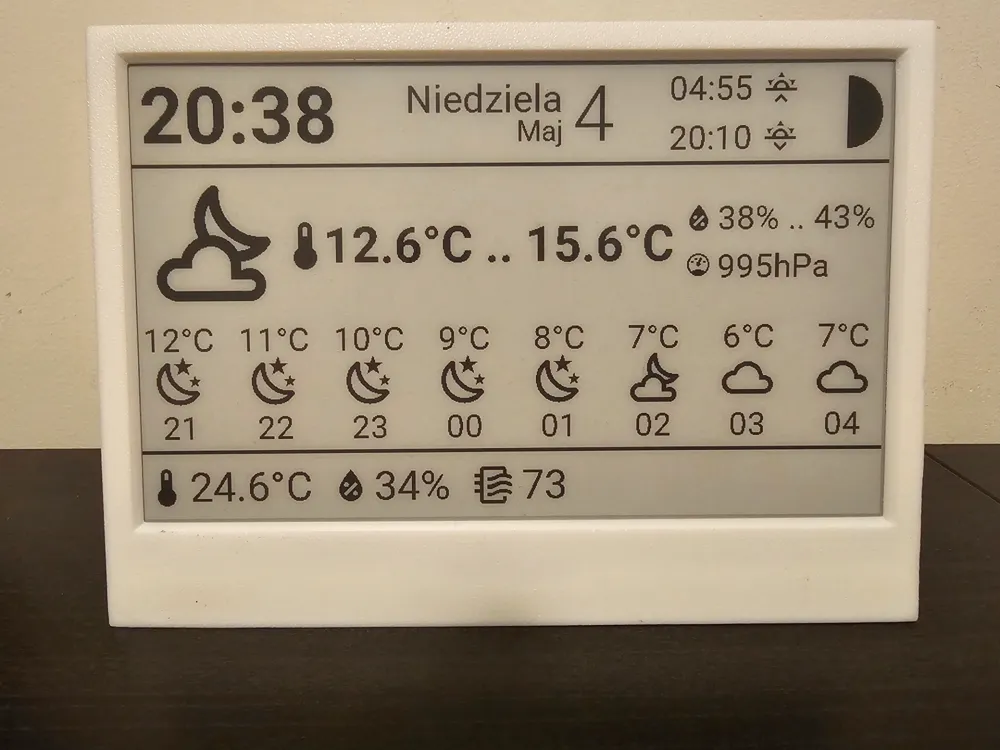

Its my take on a frame to hold a Waveshare 7.5 inch e-ink screen together with electronics required to run it. It is modelled to additionally hold an Esp32 S3 Waveshare board and a Waveshare air sensor. Everything is powered by usb-c and connected via wi-fi to my Home Assistant instance to run a weather station display.

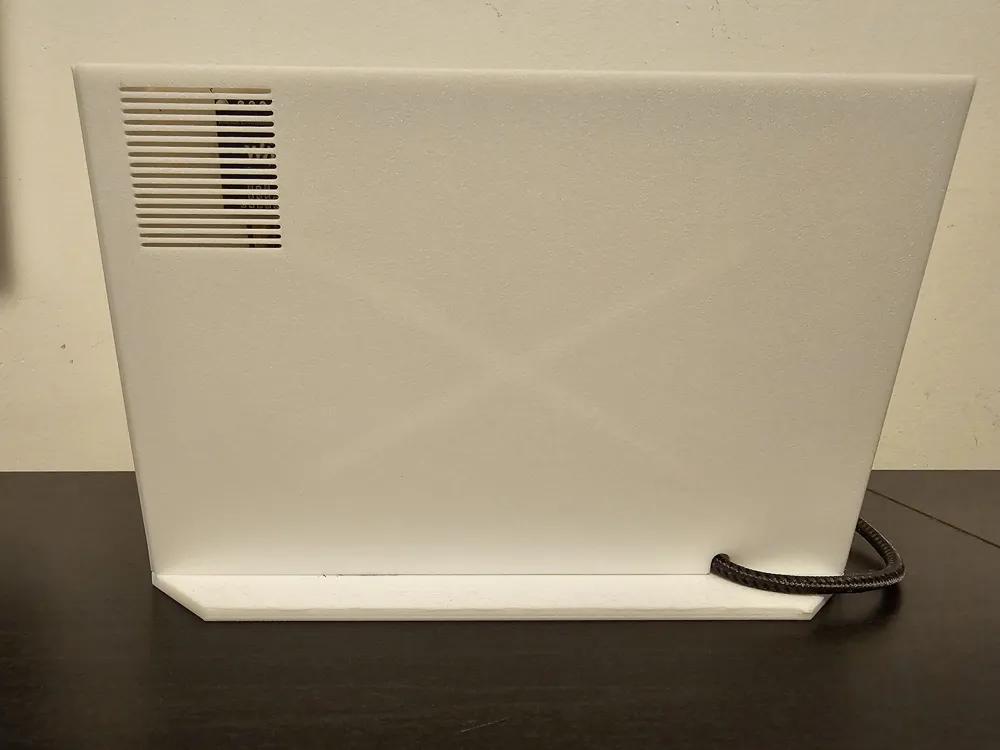

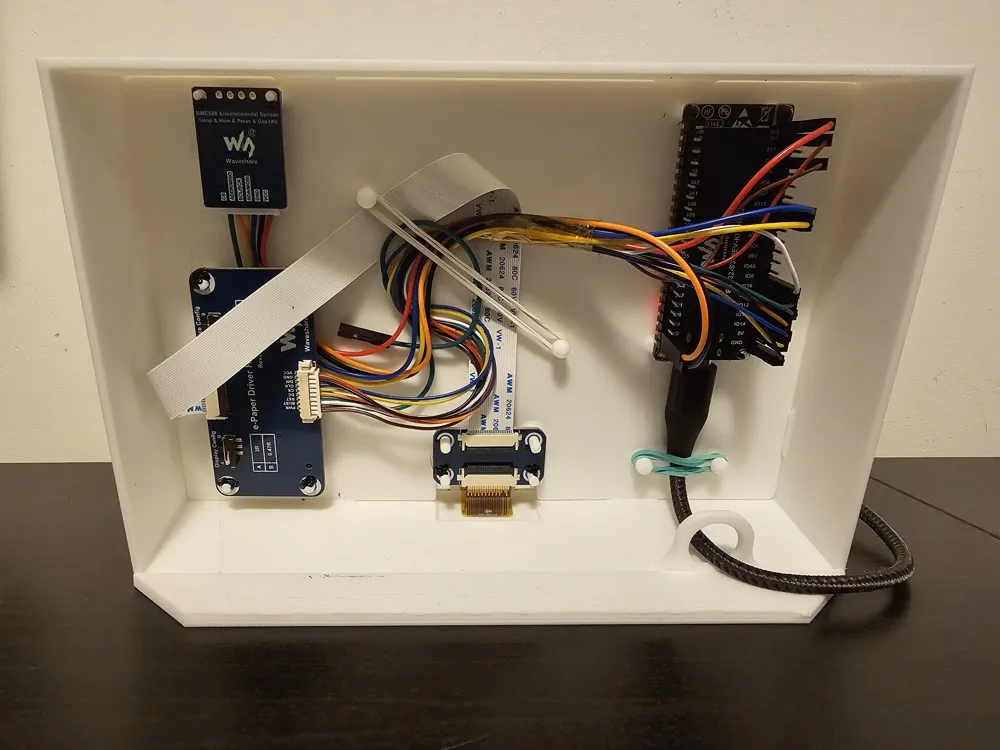

E-ink display is held by a back pannel which clicks into the frame. Electronic boards are press fit mounted onto poles on the back pannel. Rubber bands, on ball-ended poles, are used to hold loose wires connecting the elements. The cover is optional and is press fit to the main frame. It has slits allowing air flow to the sensor.
I've printed everything in Bambu Jade White Basic PLA
