SSD enclosure/case (T5, T7, T9, Others)

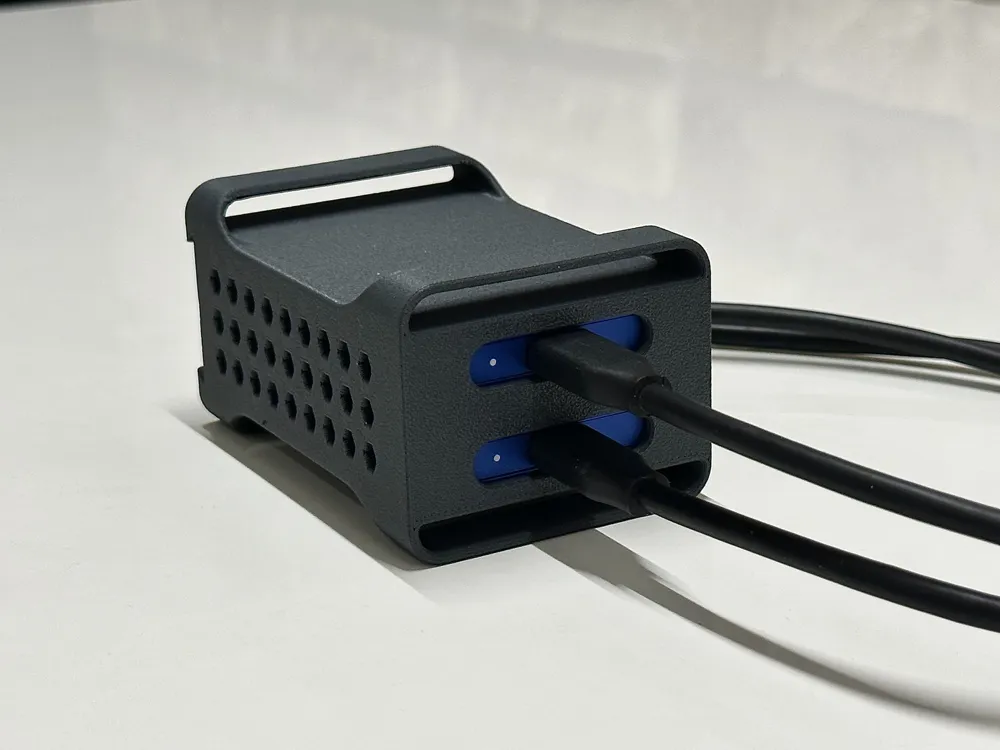

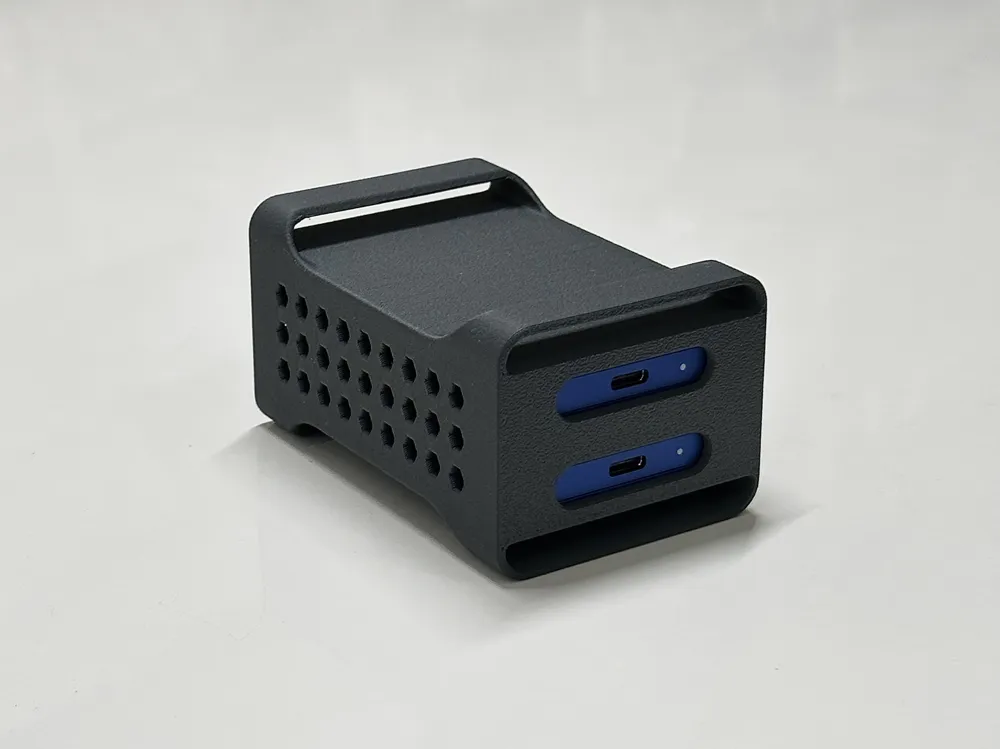

An aesthetic enclosure for Samsung T5, T7, T7 Shield, T9 SSDs, inspired by old Mac Pro designs.

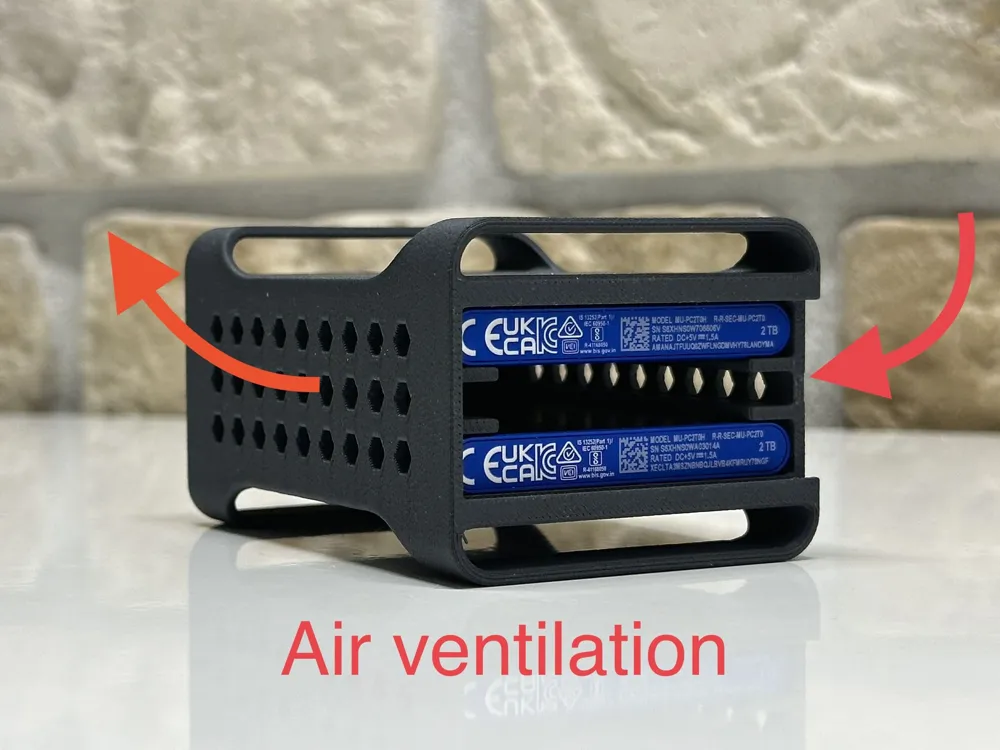

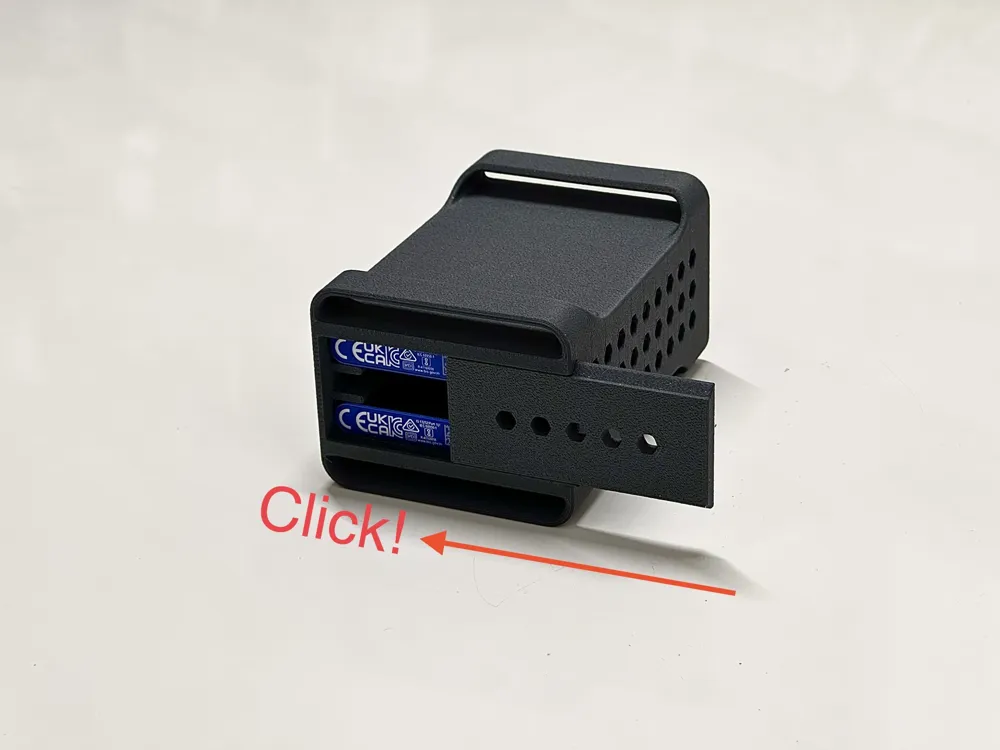

The case ensures high air ventilation and features a durable sliding lid.

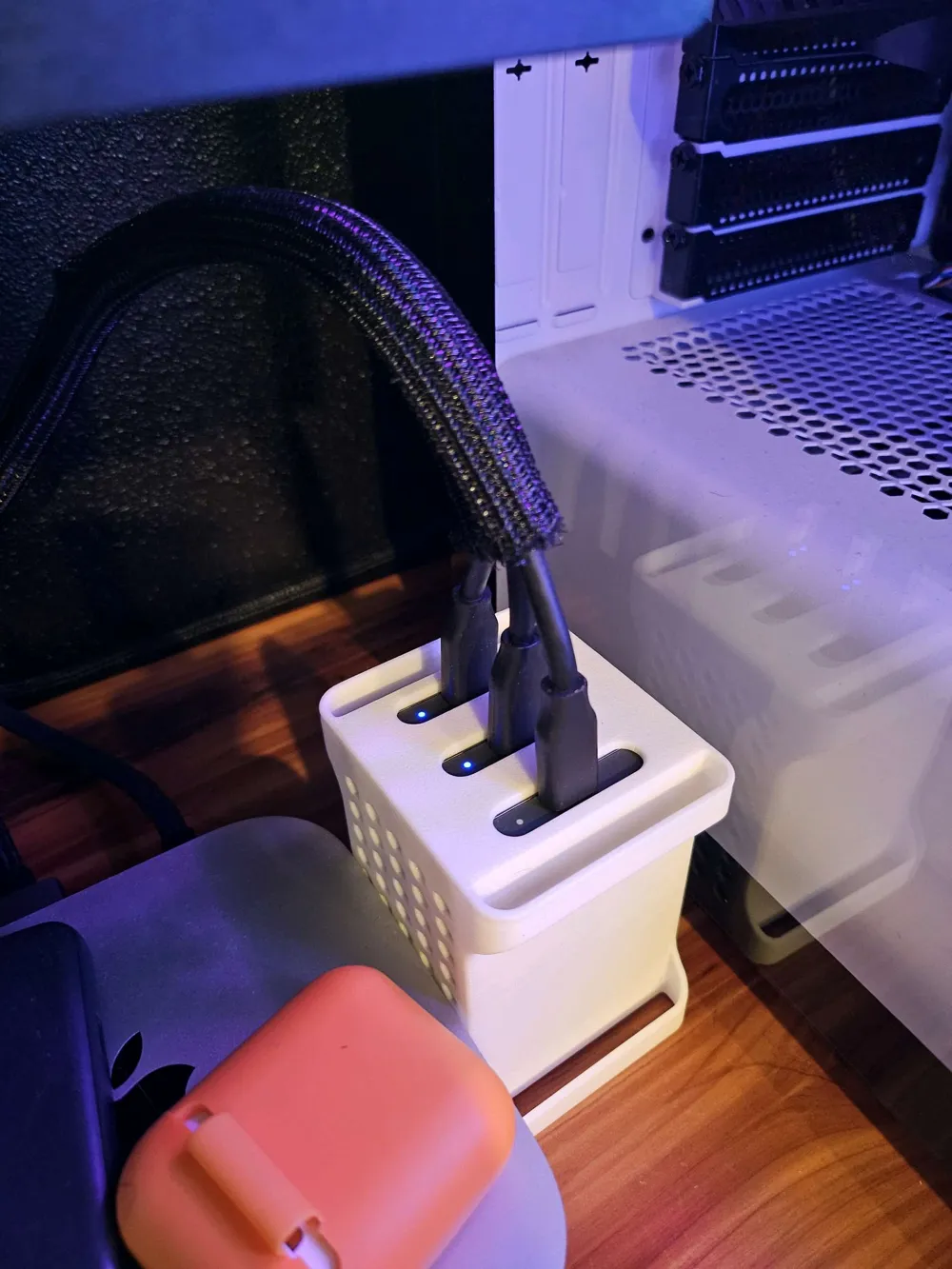

This setup is perfect for RAID configurations, keeping SSDs together securely.

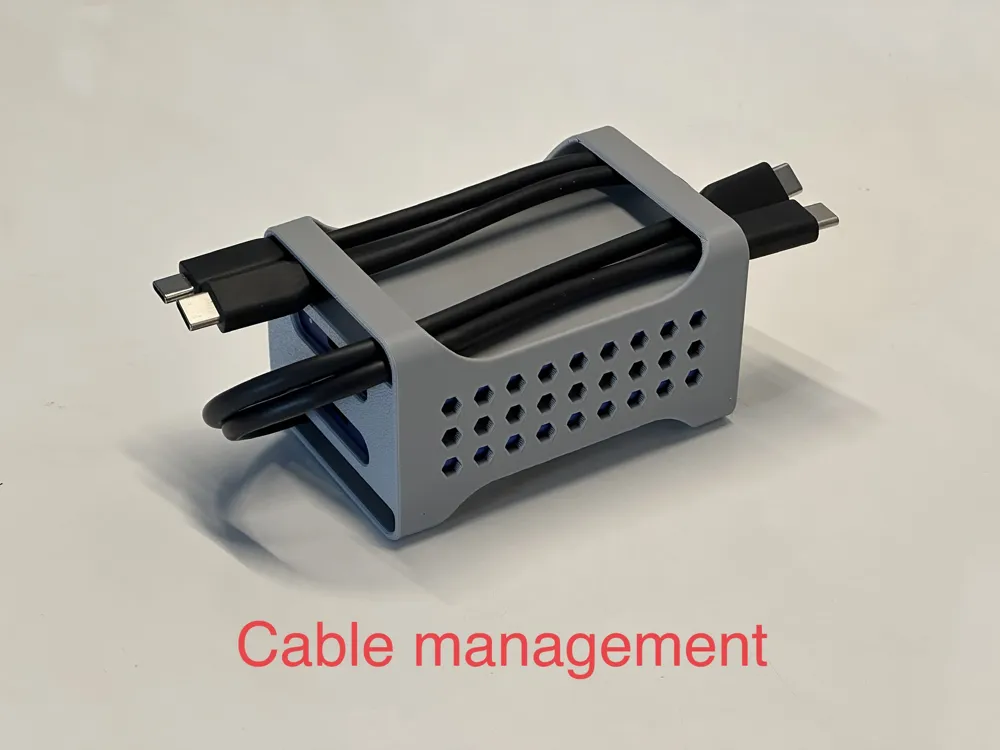

You can also use arcs for better cable management.

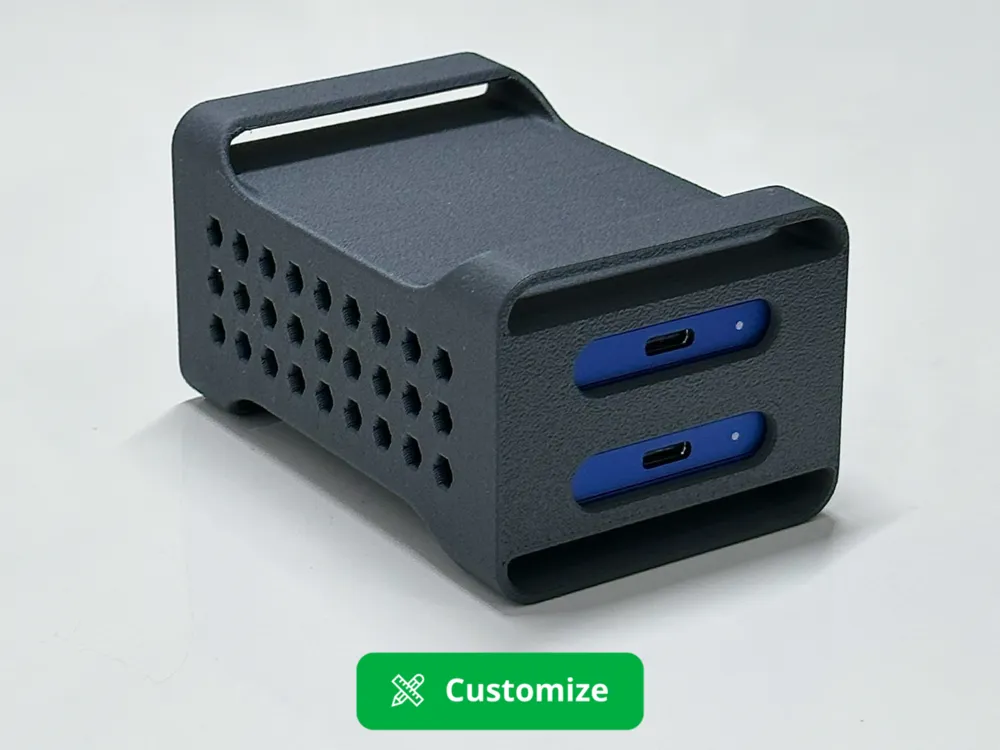

If your SSD is not listed, use the "Customize" button to create a case based on the exact dimensions of your SSD.

Printing rules:

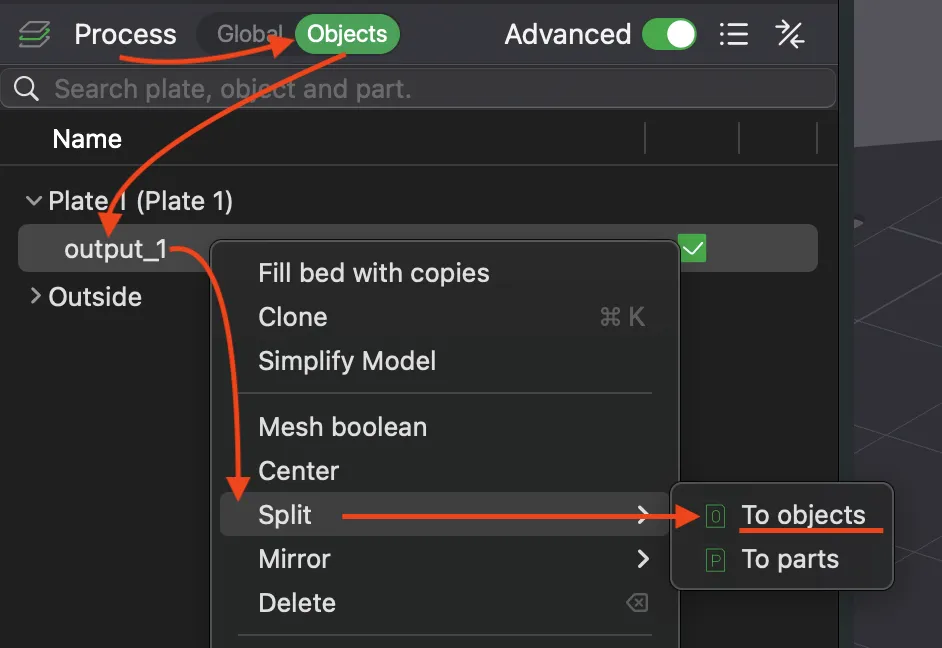

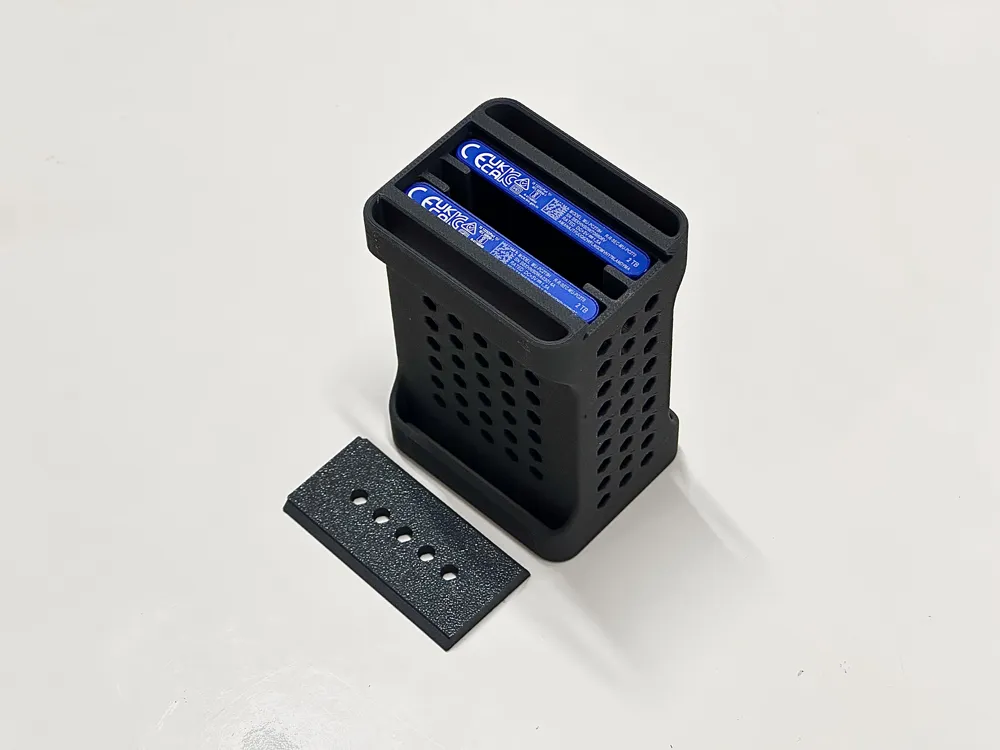

1. Separate the case and cover into individual objects:

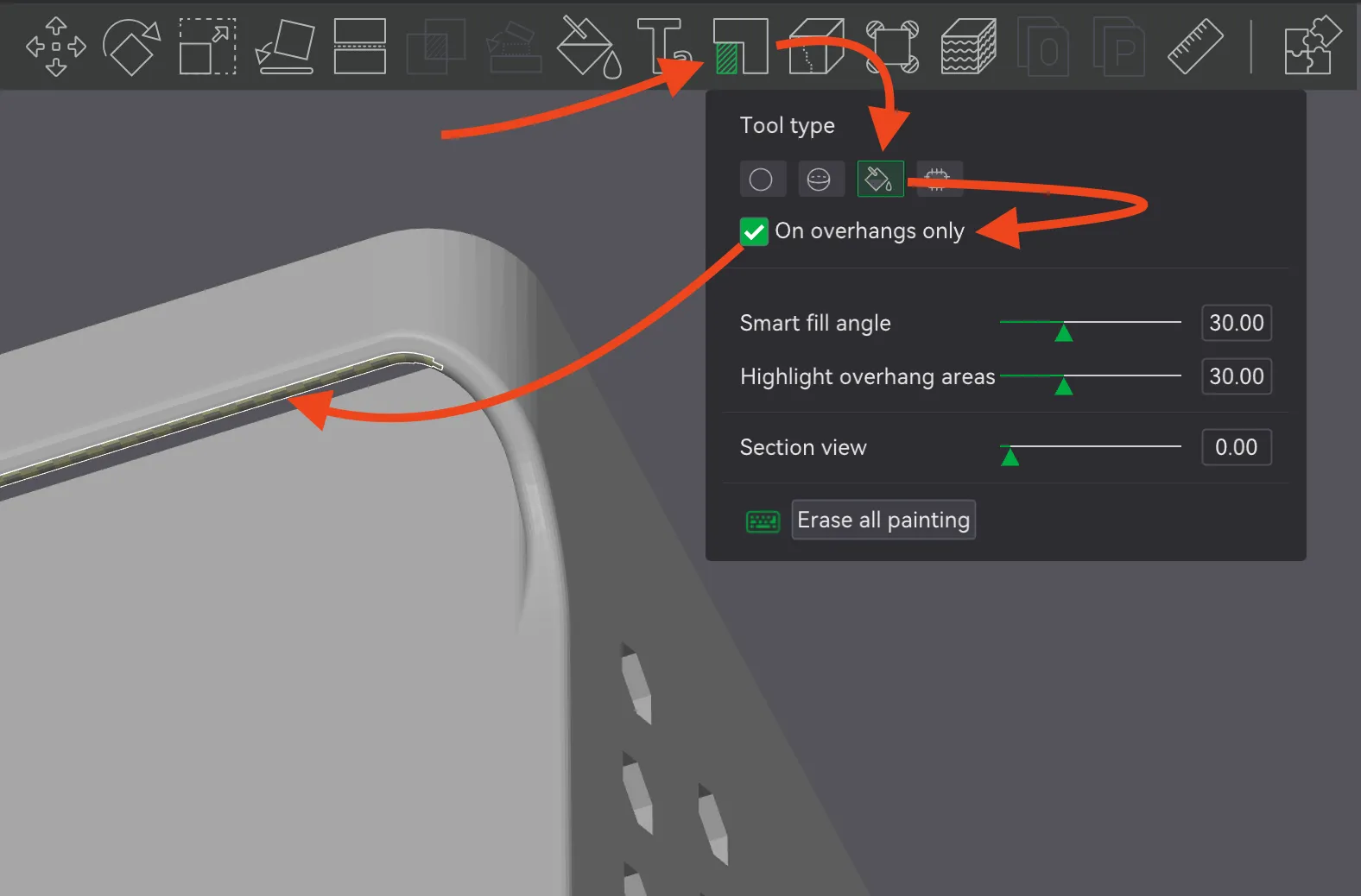

2. Enable supports for the long upper arches:

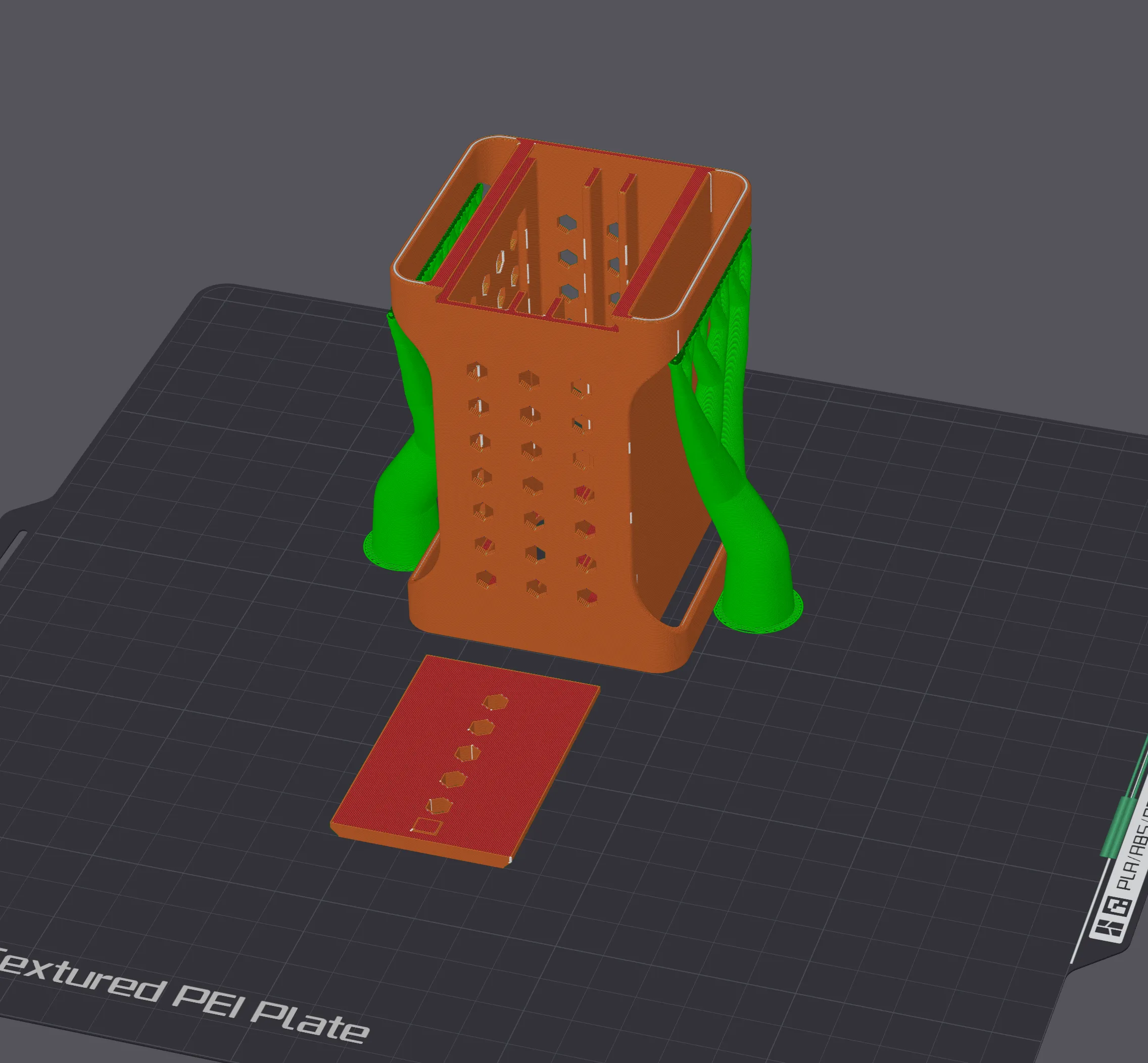

3. Place the parts before printing as shown below:

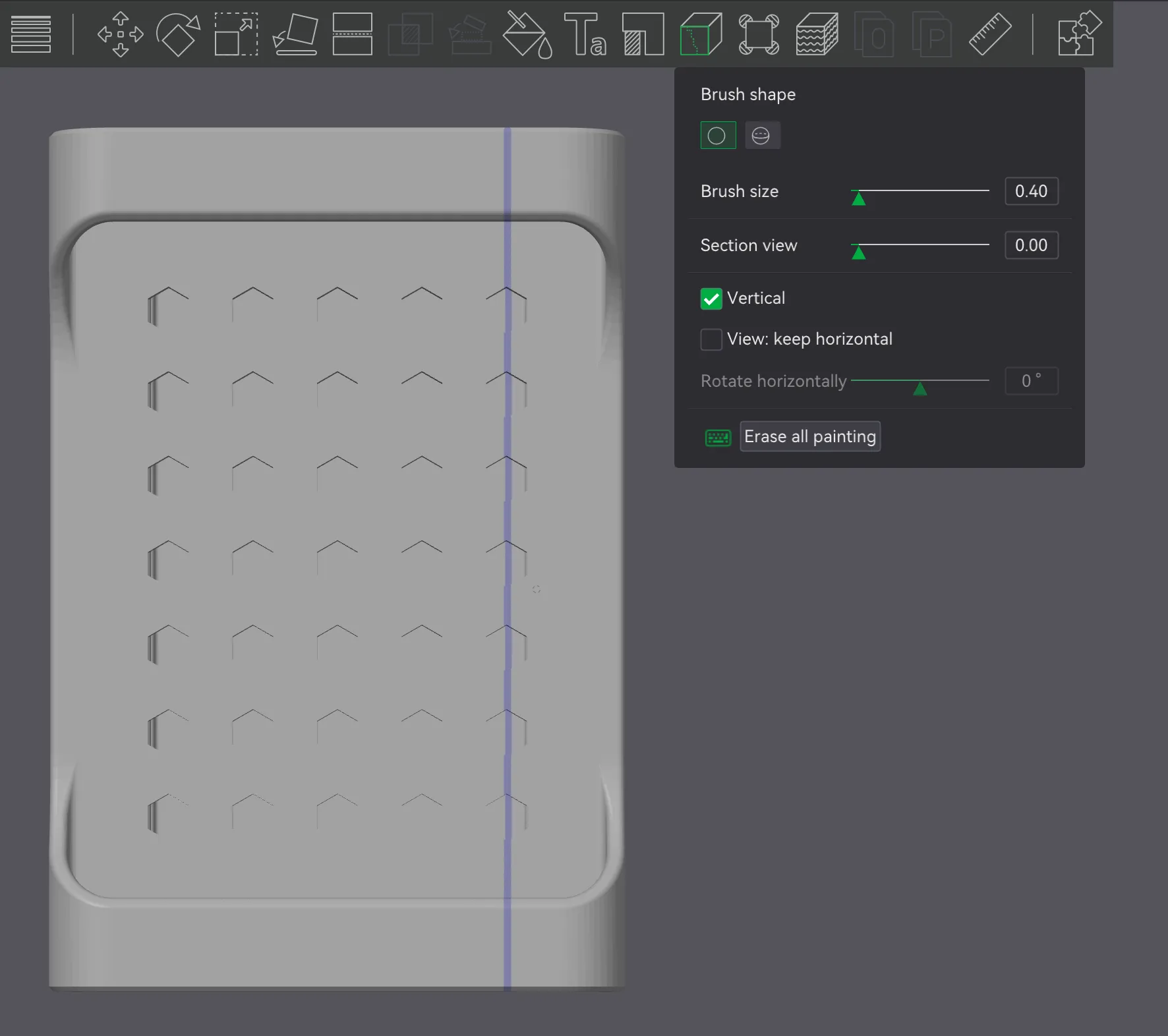

4. Suggestion: move the seam to the bottom side to ensure a clean appearance:




5. Use gyroid infill pattern

For the “Universal For 3 SSDs of different sizes”:

• H-shaped objects will also be generated, which you must insert after the disks to compensate for their different lengths
• If they are too thin and the slicer gives an error, do not print them

I recommend checking the actual sizes of the SSD slots after generating the file!
