Raspberry Pi 4 stackable mount - Free 3D Print Model

Search models, users, collections, and posts

Binary Boi

Hobby & DIY>Electronics

IP Report

Print Profile(3)

All

X1E

H2D

A1 mini

P1P

P1S

X1 Carbon

H2D Pro

H2S

P2S

H2C

X2D

A2L

With Top Fan Mount (0.2mm layer, 2 walls, 15% infill)

Designer

1 h

3 plates

Without Fan Mount (0.2mm layer, 2 walls, 15% infill)

Designer

44 min

2 plates

With Stack Fan Mount (0.2mm layer, 2 walls, 15% infill)

Designer

1.2 h

3 plates

Open in Bambu Studio

Boost

Released

Description

This model allows you to stack Raspberry Pi 4, M2 screws and nuts are required to mount the Raspberry Pi
It is a push fit system, with a hollow space between the pillar so that a M3 screw can be used to secure the stack.

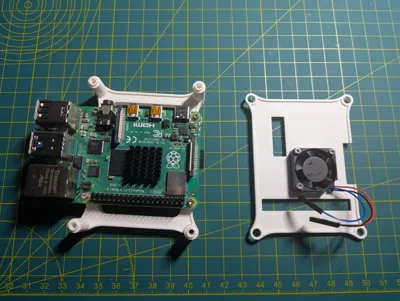

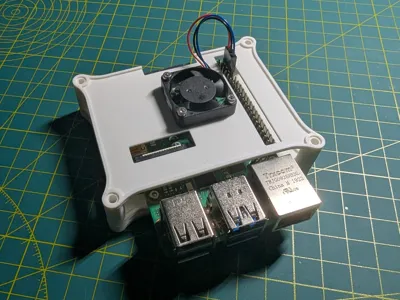

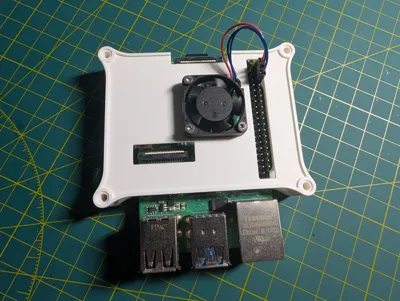

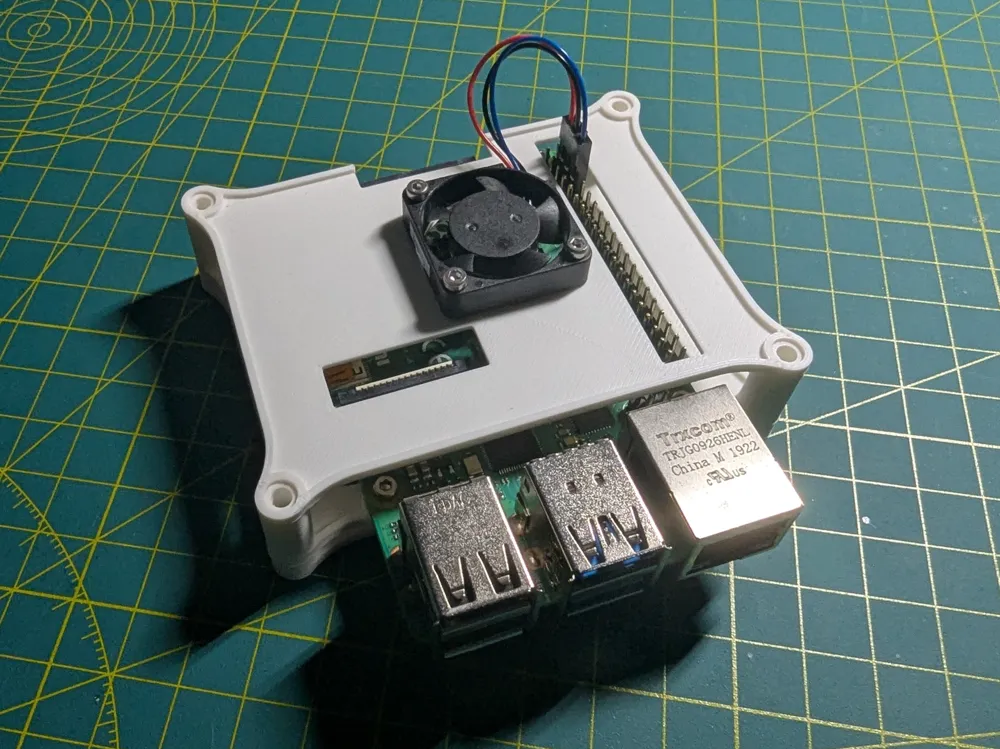

There are 3 print profiles available. one is just the mount for the Raspberry Pi 4 and mounting plate, the second includes a mount for the Raspberry Pi 4 fan (https://thepihut.com/products/raspberry-pi-4-case-fan ) as the top layer and the third includes a mount for the Raspberry Pi 4 fan as a middle stack

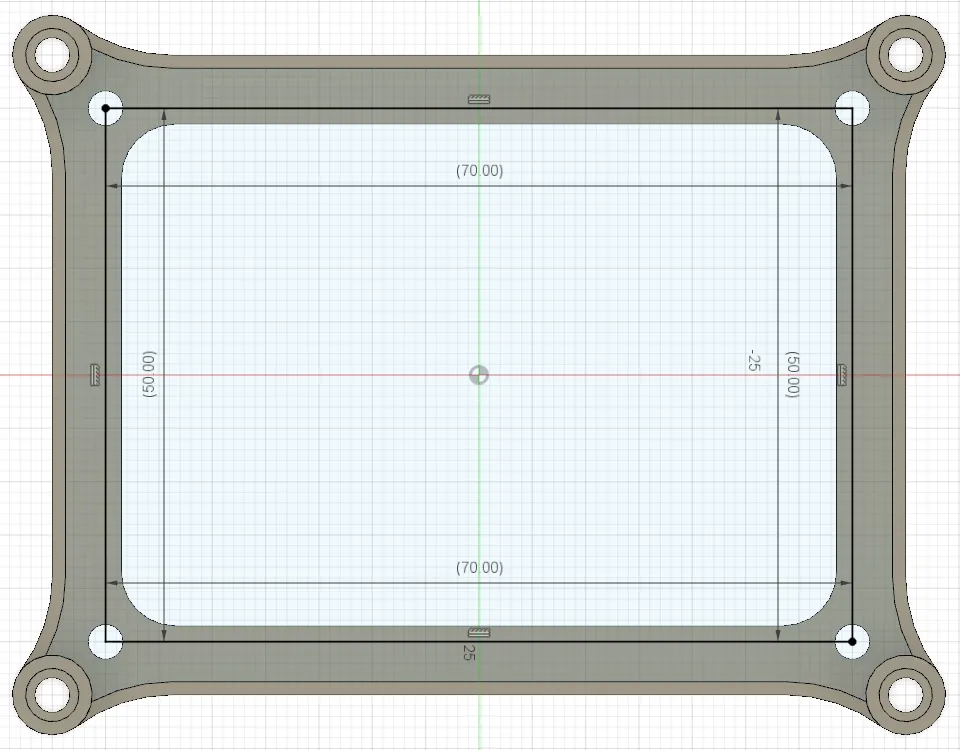

The M3 mounting holes have a distance of 50mm x 70mm.

Boost Me (for free)

If you like the model and find it useful, feel free to give me a boost!

This model is part of a collection of stackable mounts.

See here: https://makerworld.com/en/collections/6179802-stackable-mounts
