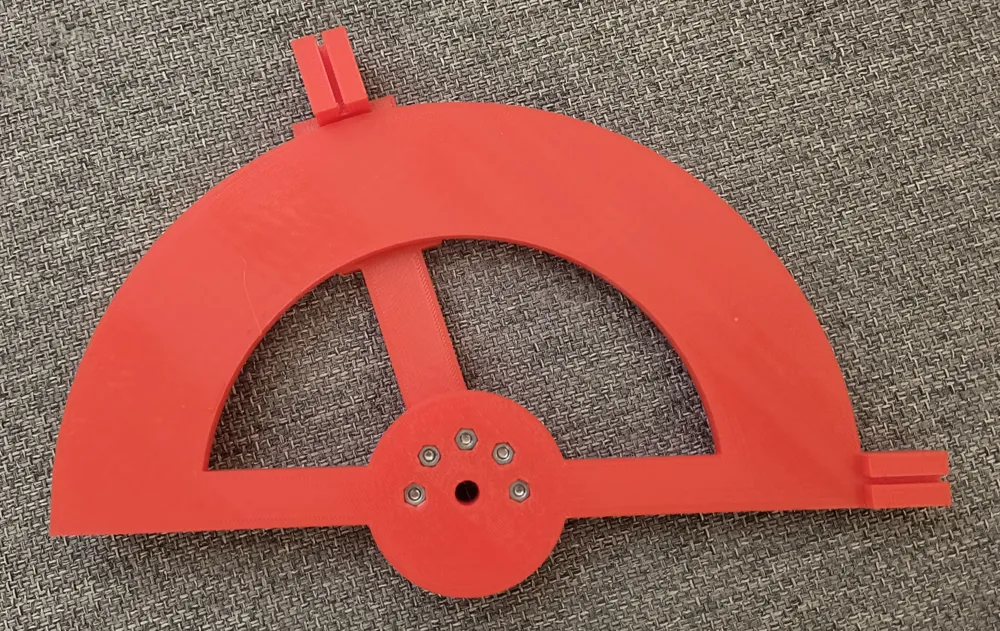

Wire Goniometer
Print Profile(1)
Bill of Materials

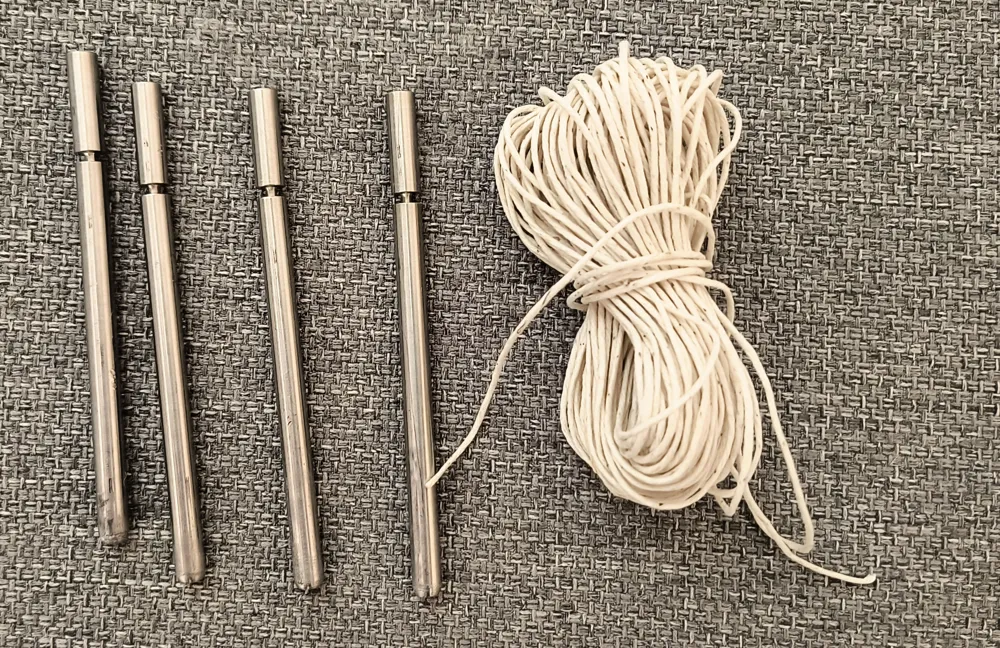

- 4 pieces of round steel bar 6mm diameter x 1: The steel rods are 6 mm in diameter and have a lathe-turned slot to wind the wire
Description

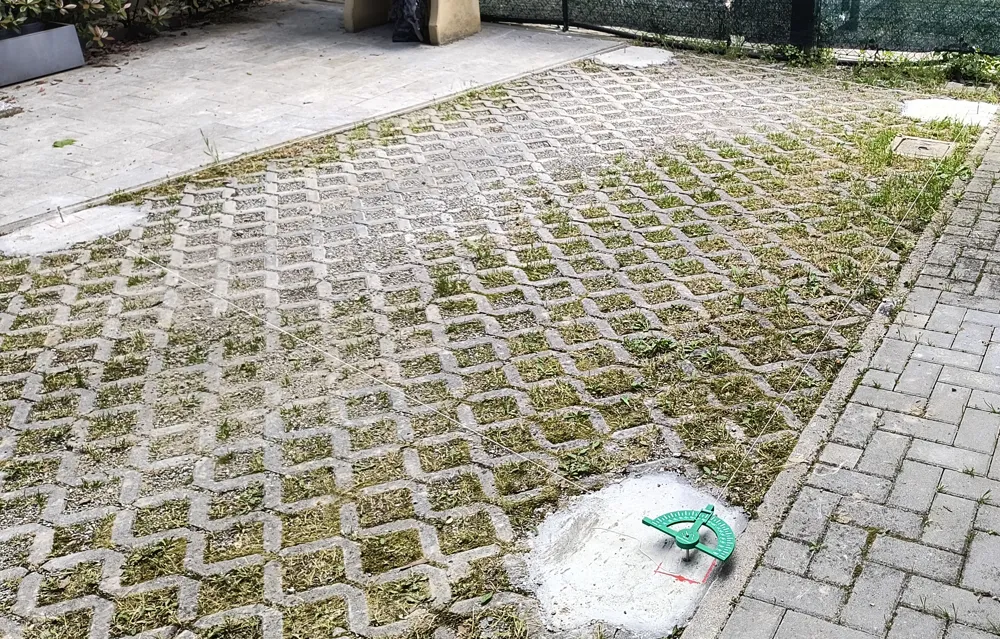

This project arose from the need to build a hail shelter for the car
With simple string, 4 steel pins and a wire goniometer, measurements can be made to an accuracy of 1 degree.

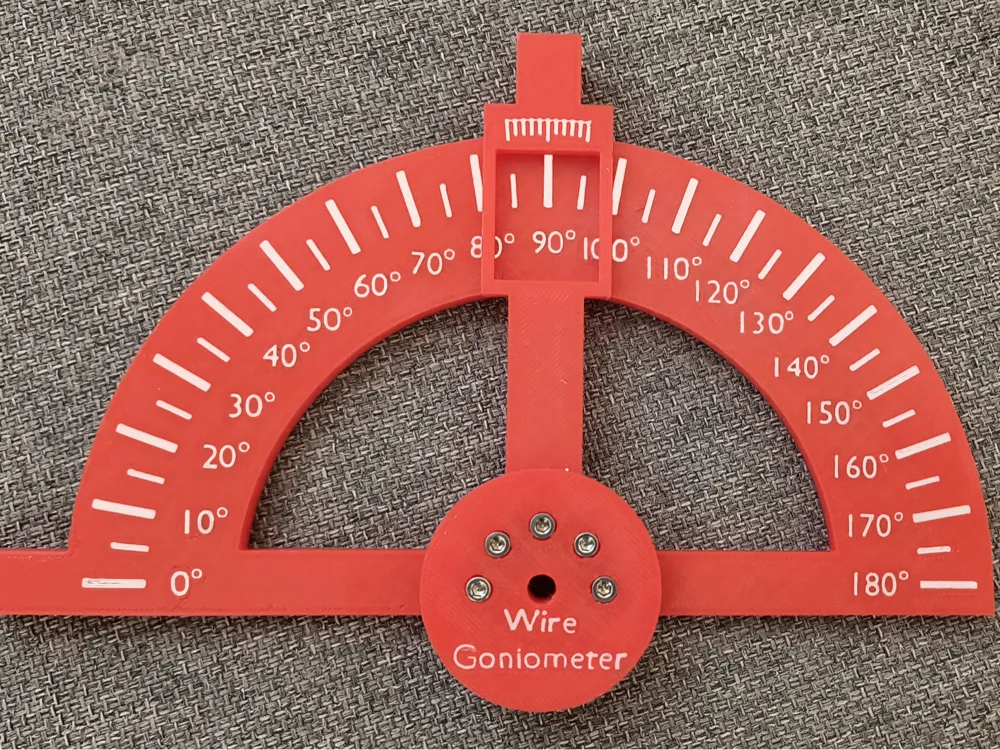

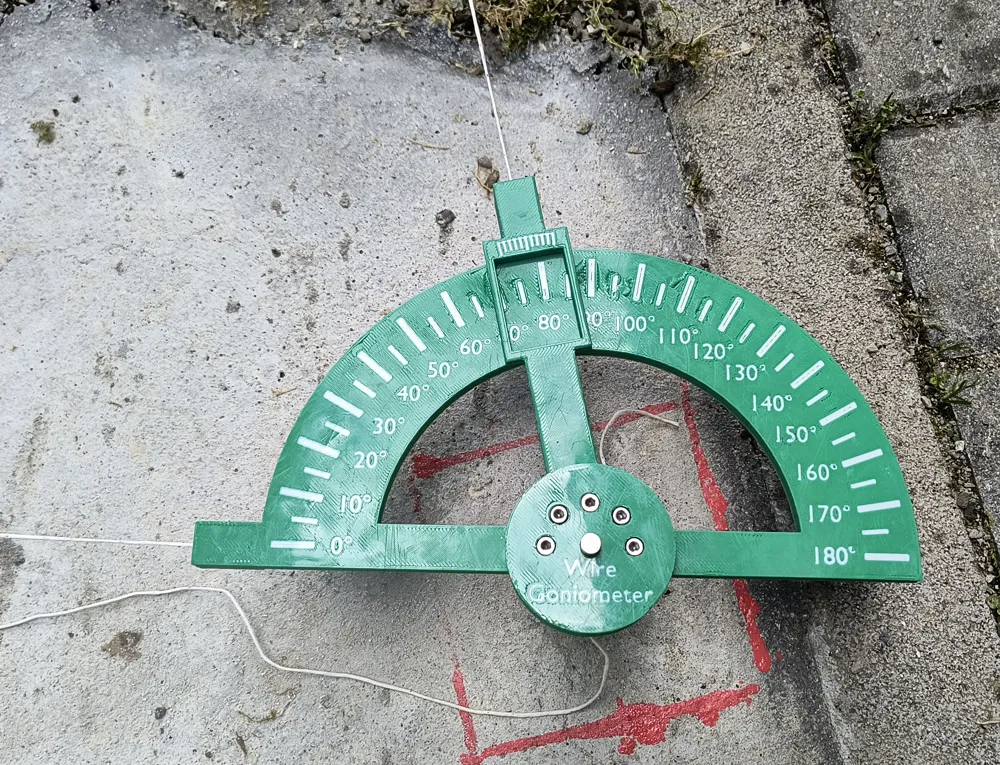

With the wire tightly stretched, simply insert the centre of the goniometer into the pin and insert the wire into the 2 slots and read off the value using the arm's single-degree scale to take measurements with 1 degree accuracy.
