Description
This is a real and working efficient water pump ! The only and the best !
It has insane pressure and flow, making it a perfect choice for any water-pumping needs !

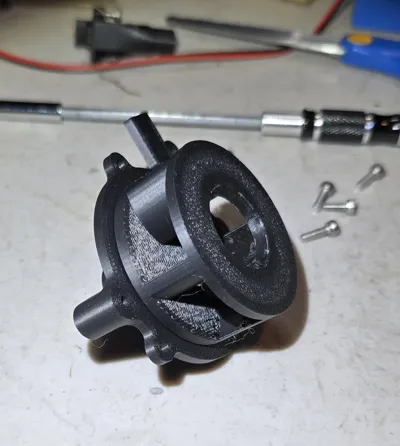

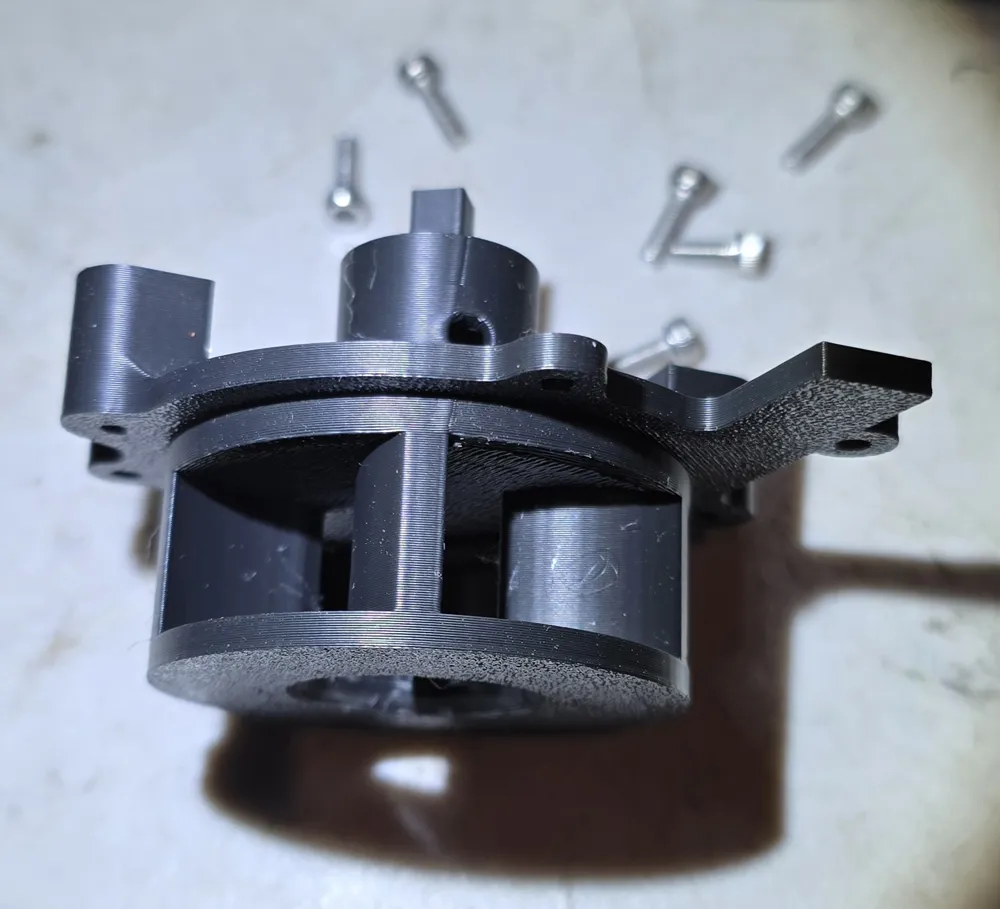

To improve efficiency, the pump uses a closed impeller with curved blades, which other pump models do not have.

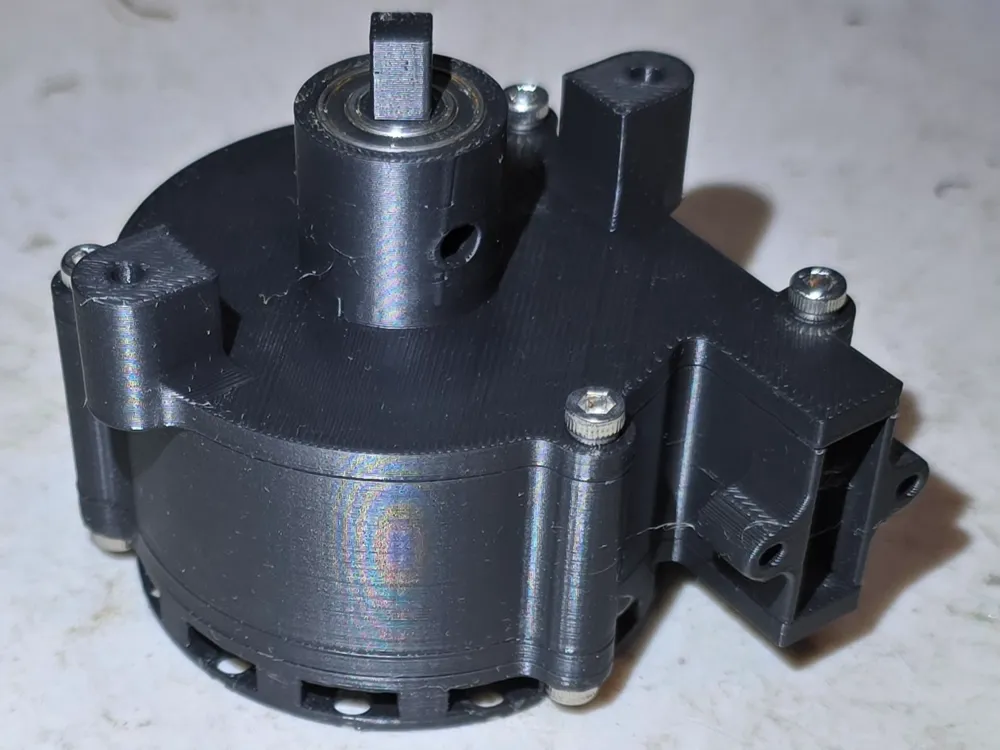

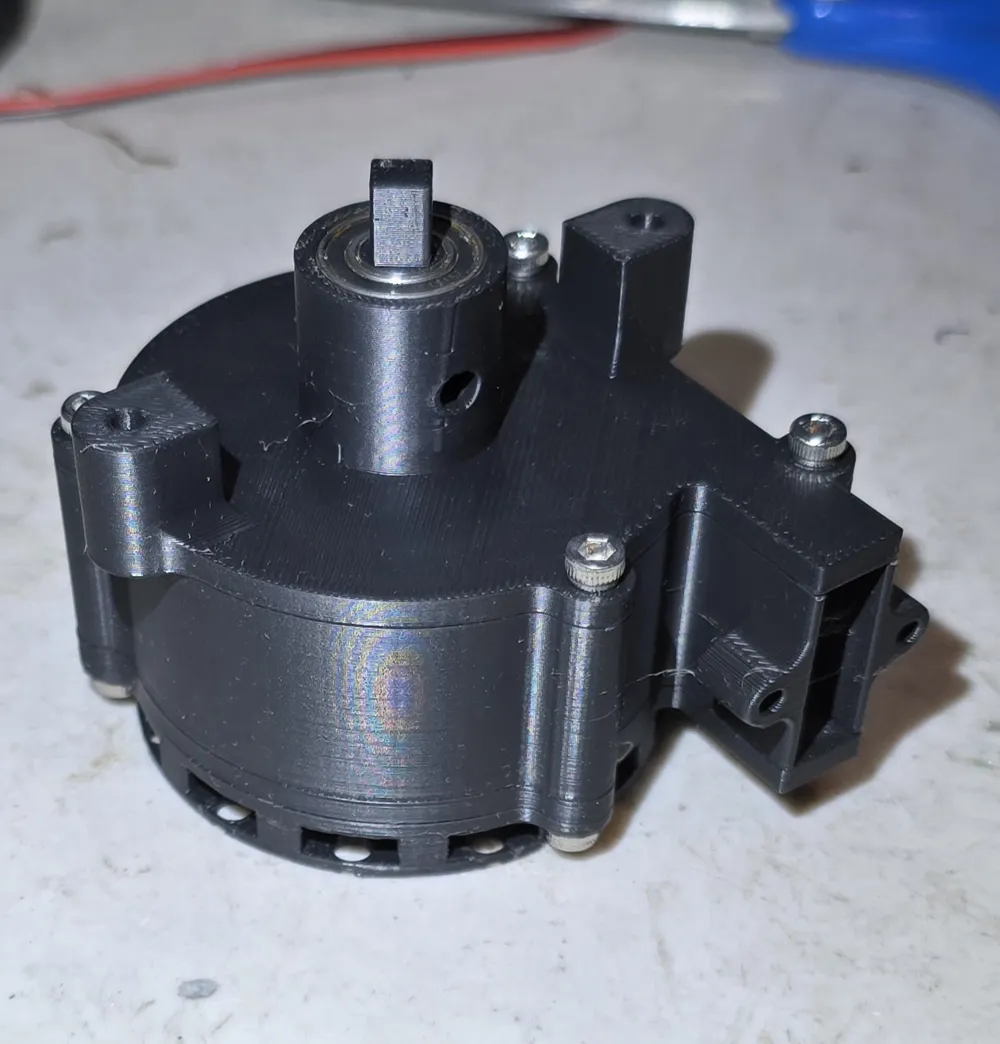

It also runs with bearings.

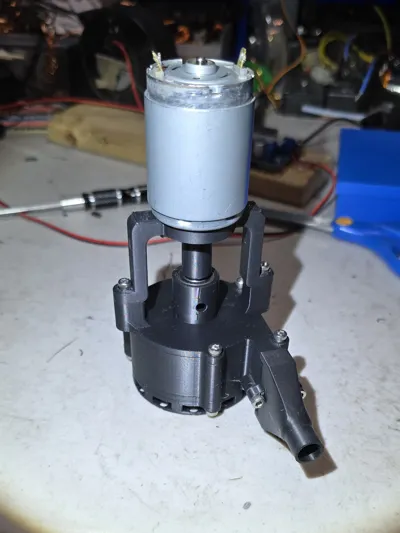

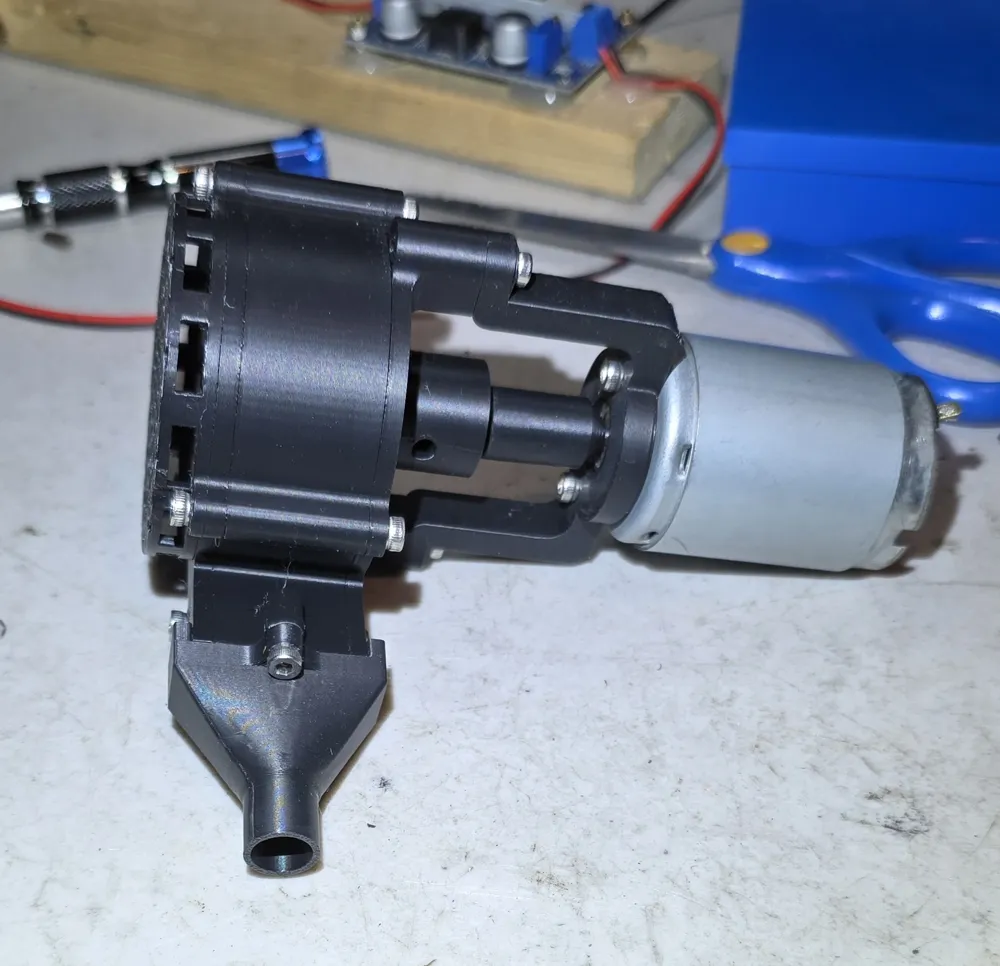

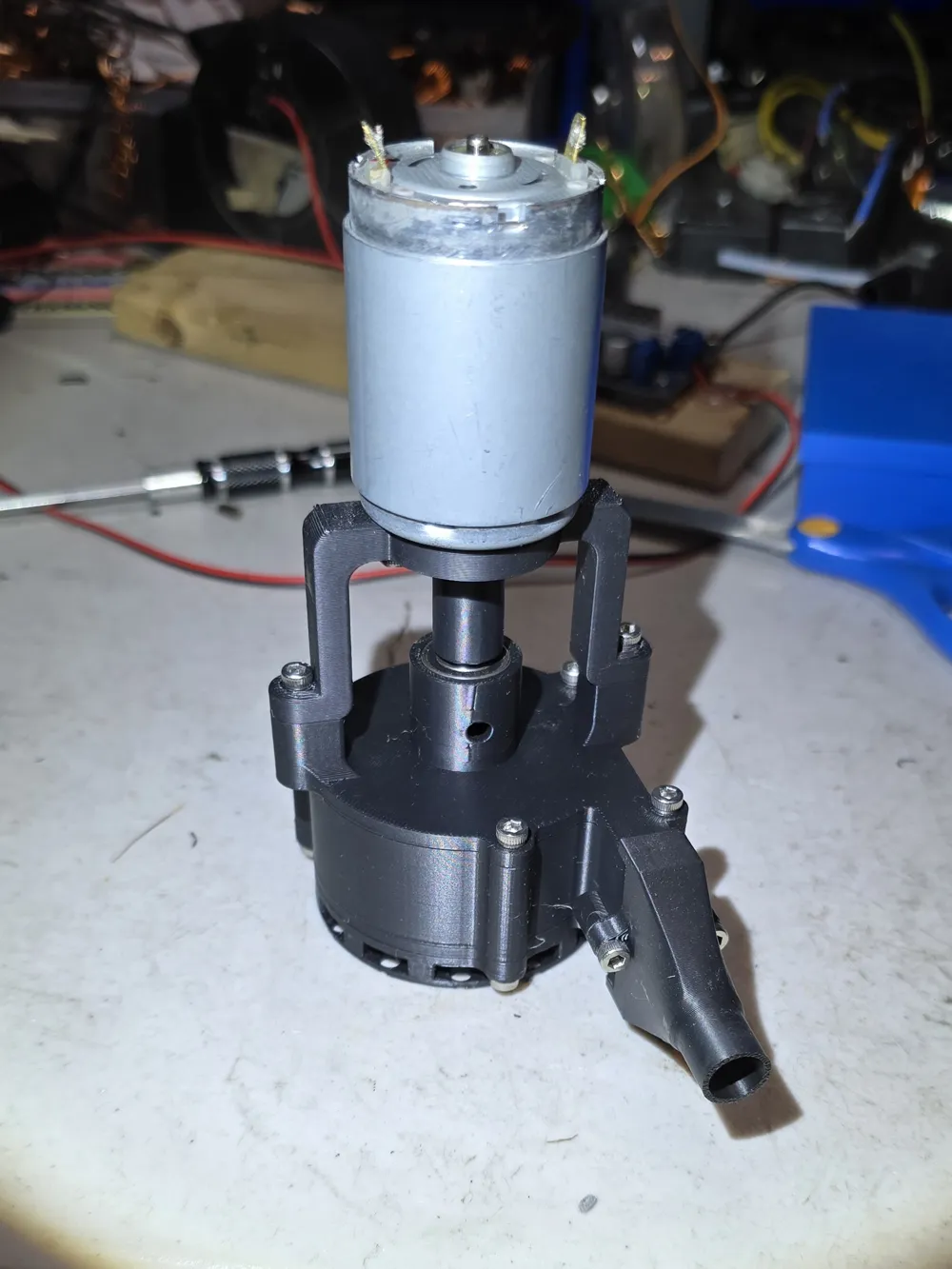

The pump needs a 540 motor to run. I am running it with an unknow 540 5 slot motor.
YOU WILL NEED A SLOW TURNING MOTOR WITH A LOT OF TORQUE.
Any standard 540 motor will rotate too fast.
I am using a 5 slots motor. You will not be able to find a motor slow enough with only 3 slots.
I estimate my motor to be turning at 3000 rpms at 12v. A standard 55T 540 3 slots motor will turn about 3500 rpms at 3 volts.
I am having a hard time to find such a motor on aliexpress. I have yet to find one. The slowest 540 5 slot motor i can find is a 20t, which rotates at about 8000 rpms on 10v. I salvaged mine from an old printer.
A solution could be to buy a 20t 540 5 slot motor and rewind it with really small coper wire.
Material list
- 10x M3x12 screws
- 4x M3x10 screws (for the motor and nozzle)
- 2x 16x8x5mm bearings
- 1x 540 3000rpms motor
