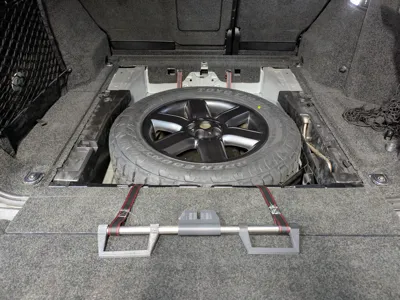

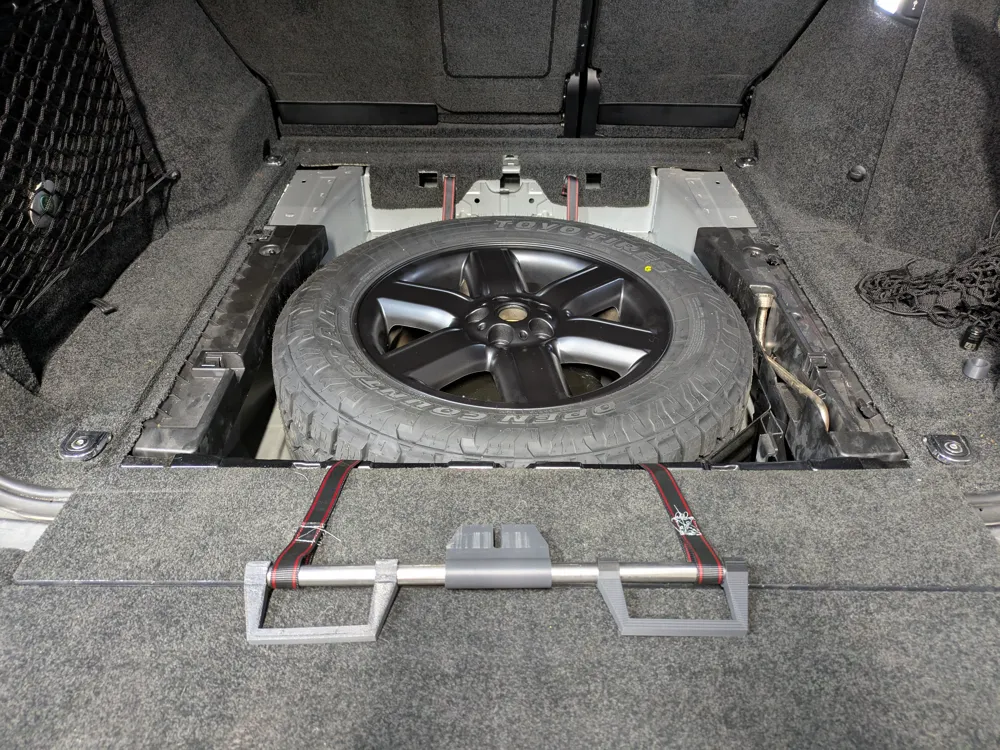

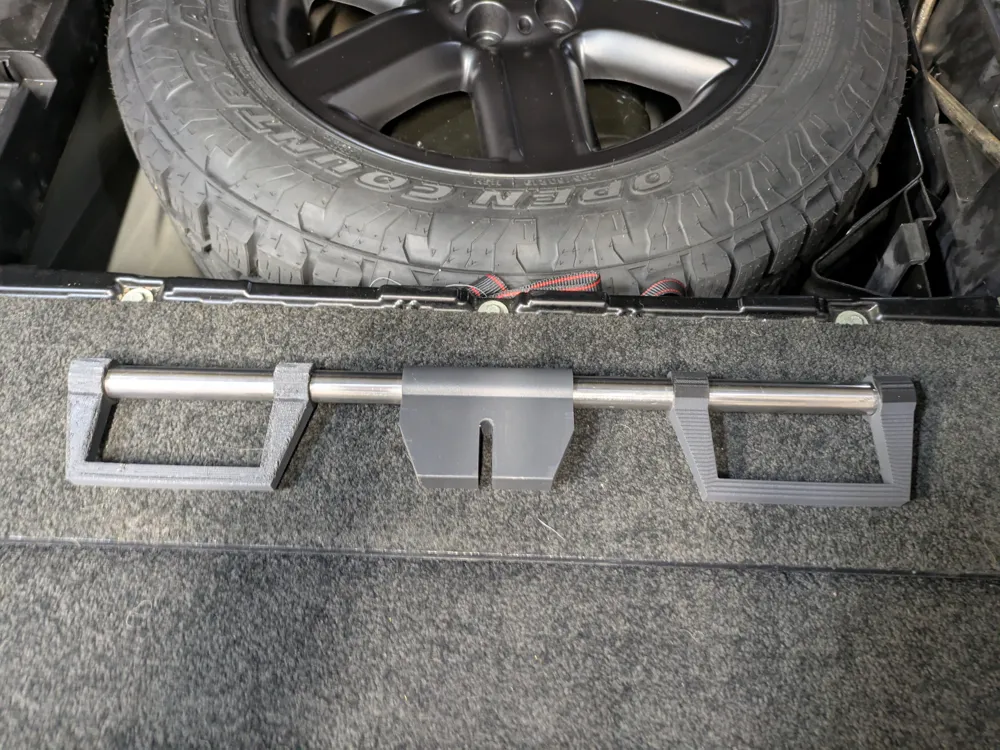

Range Rover L322 Spare Tire Lift
IP Report
Print Profile(1)
0.16mm layer, 4 walls, 25% infill
Designer
4.7 h
2 plates
Open in Bambu Studio
Boost
5
8
0
0
11
3
Released
Bill of Materials
List other parts
- Everbilt ¾ in x 1/16 in x 36 in steel pipe x 1:
- Husky 8 ft x 1 in luggage straps (2-pack) x 1:
- M10 - 1.5 x 25 mm cap screws (2-pack) x 1:
- ABB washers x 2:
Description

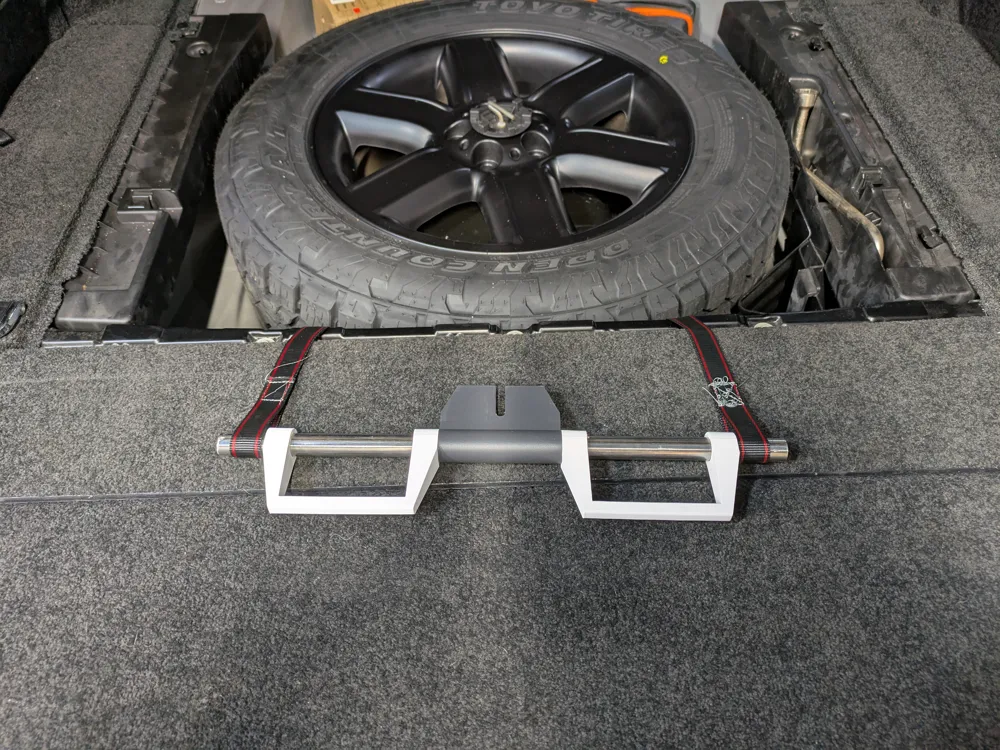

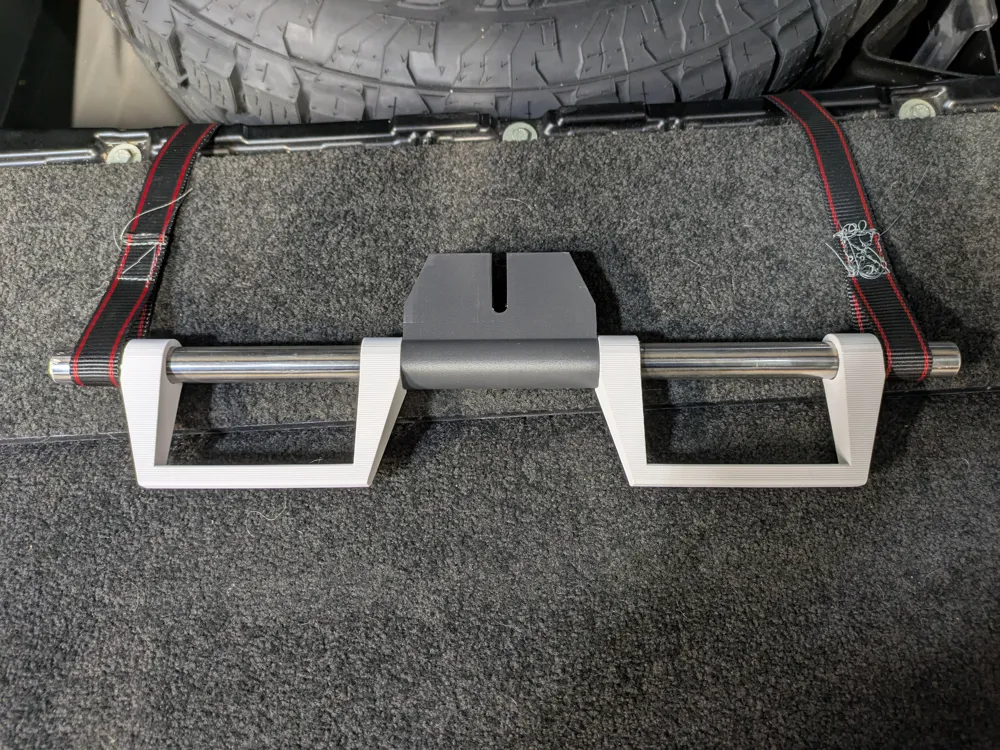

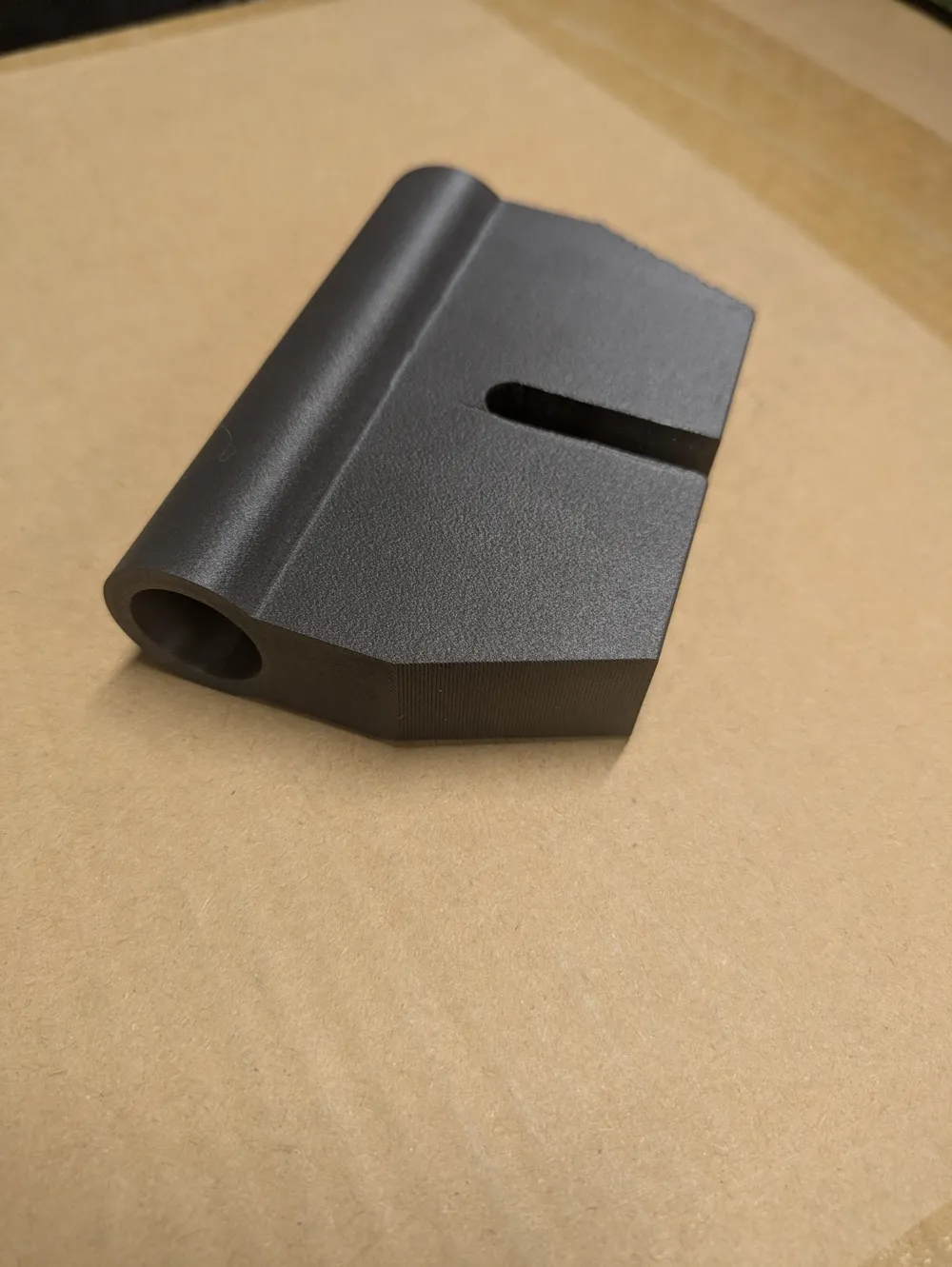

Using the excellent thread on the FullFatRR forum I decided to design and 3d print a solution for myself.
https://www.fullfatrr.com/forum/topic42071.html
Items needed to complete:

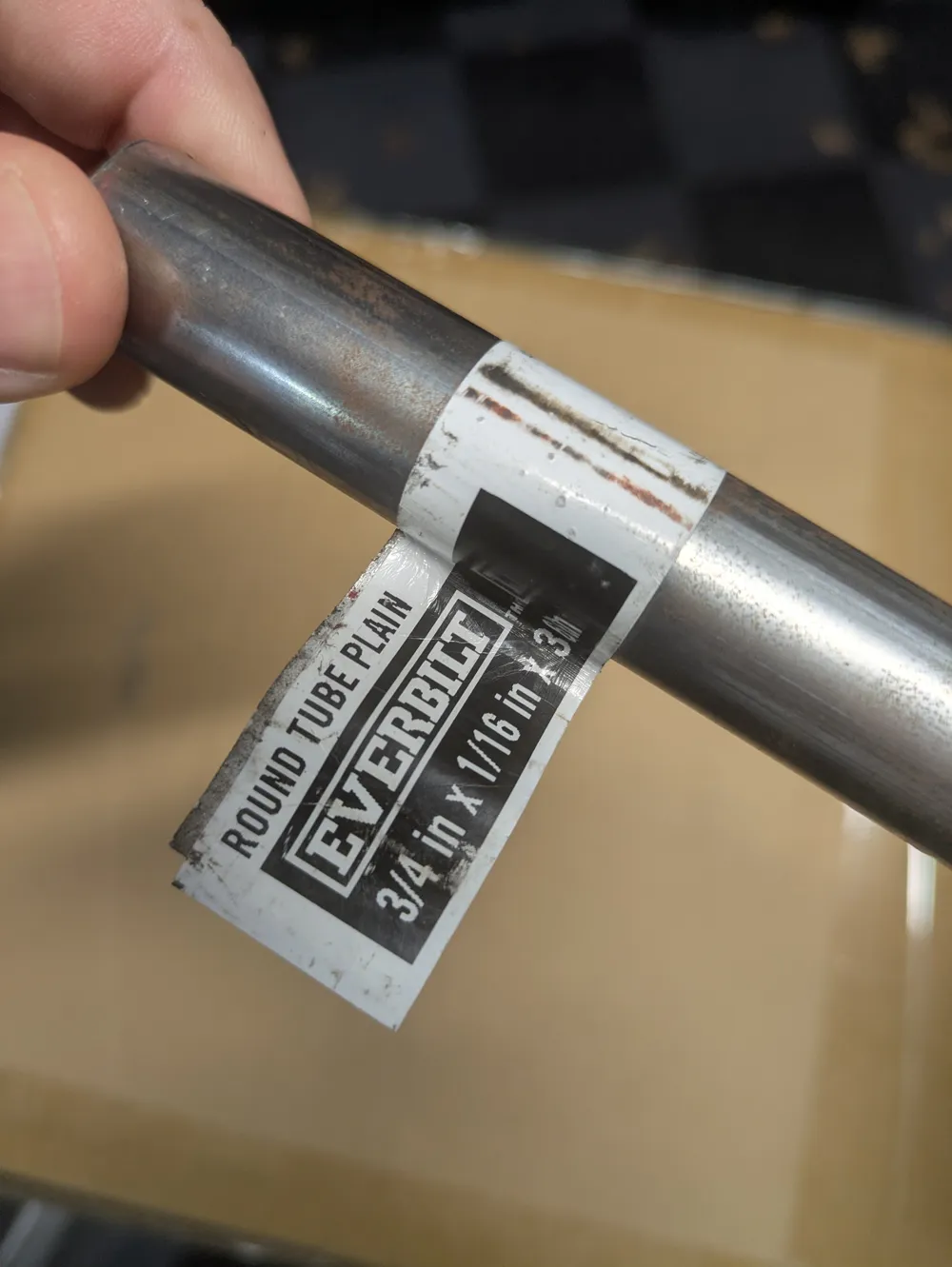

1 x Everbilt ¾ in x 1/16 in x 36 in steel pipe

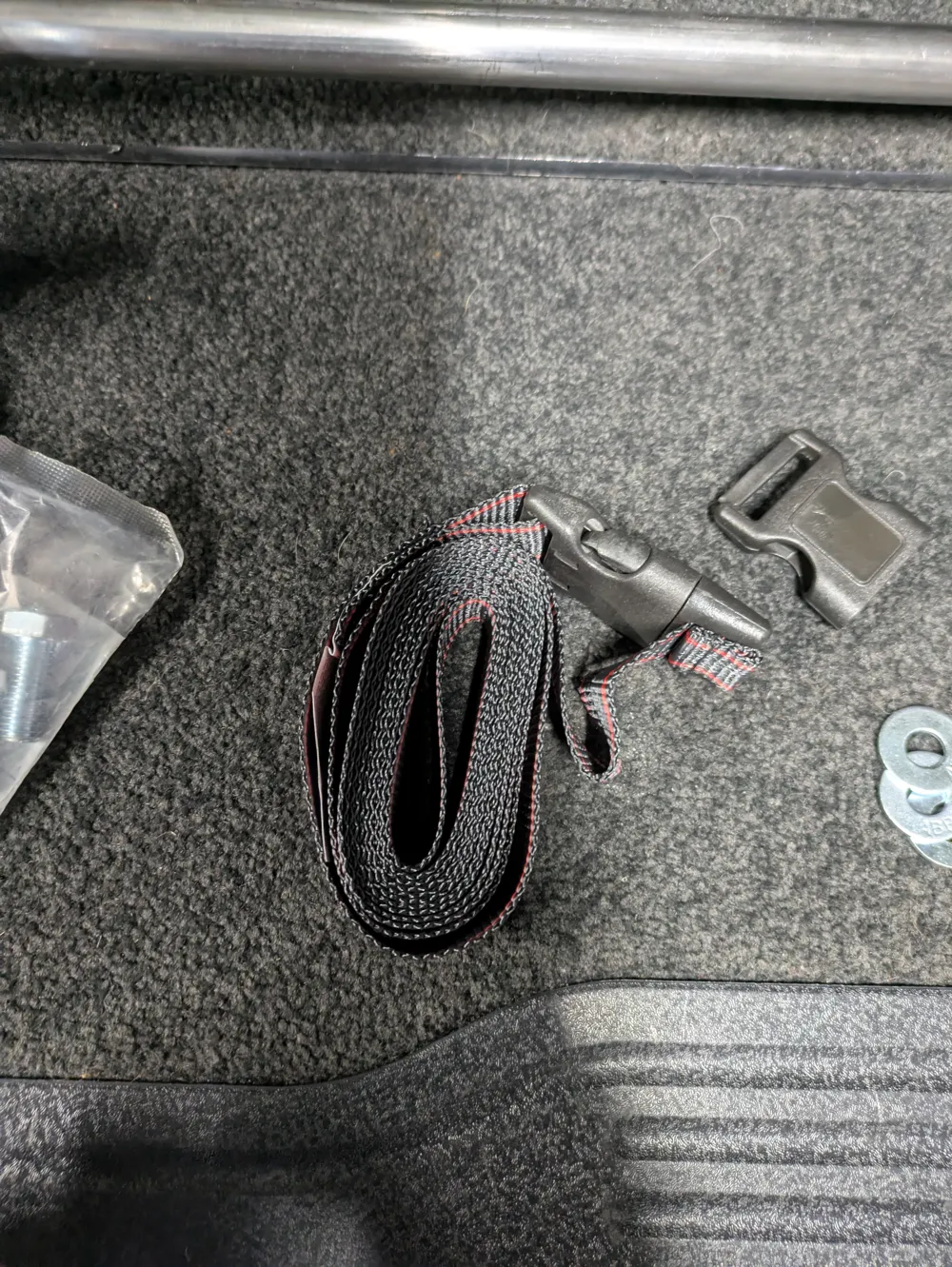

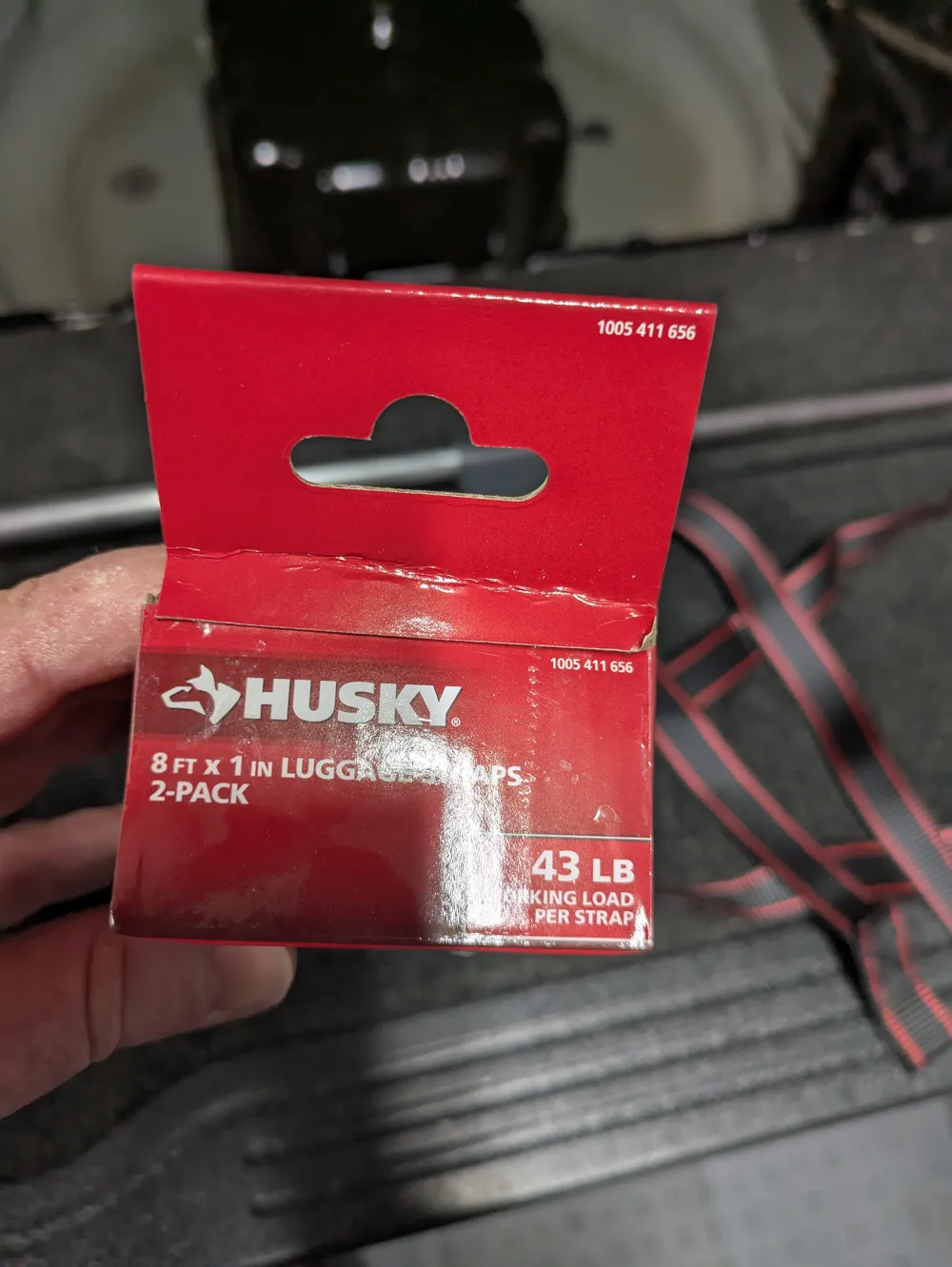

1 x Husky 8 ft x 1 in luggage straps (2-pack)

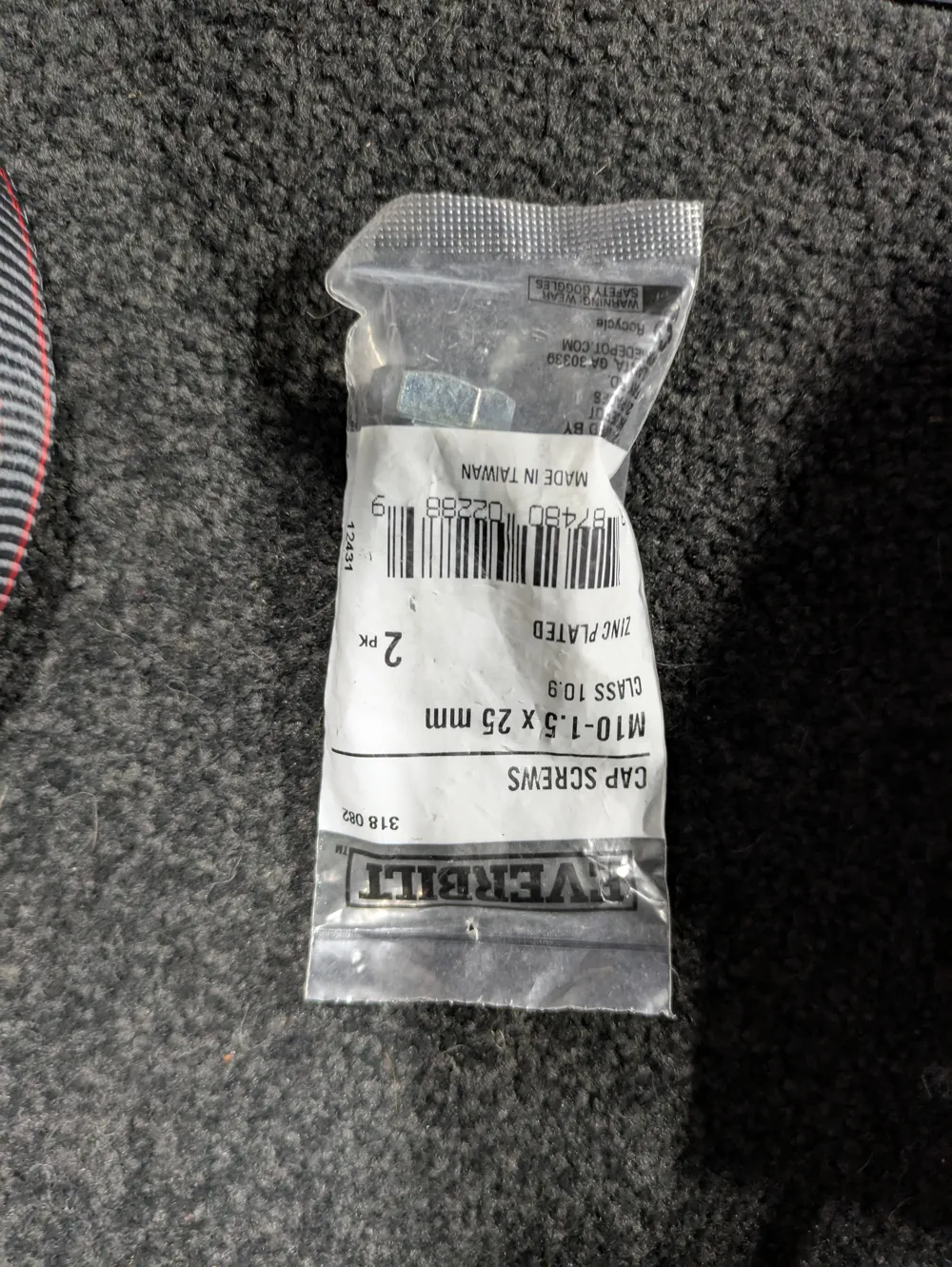

1 x M10 - 1.5 x 25 mm cap screws (2-pack)

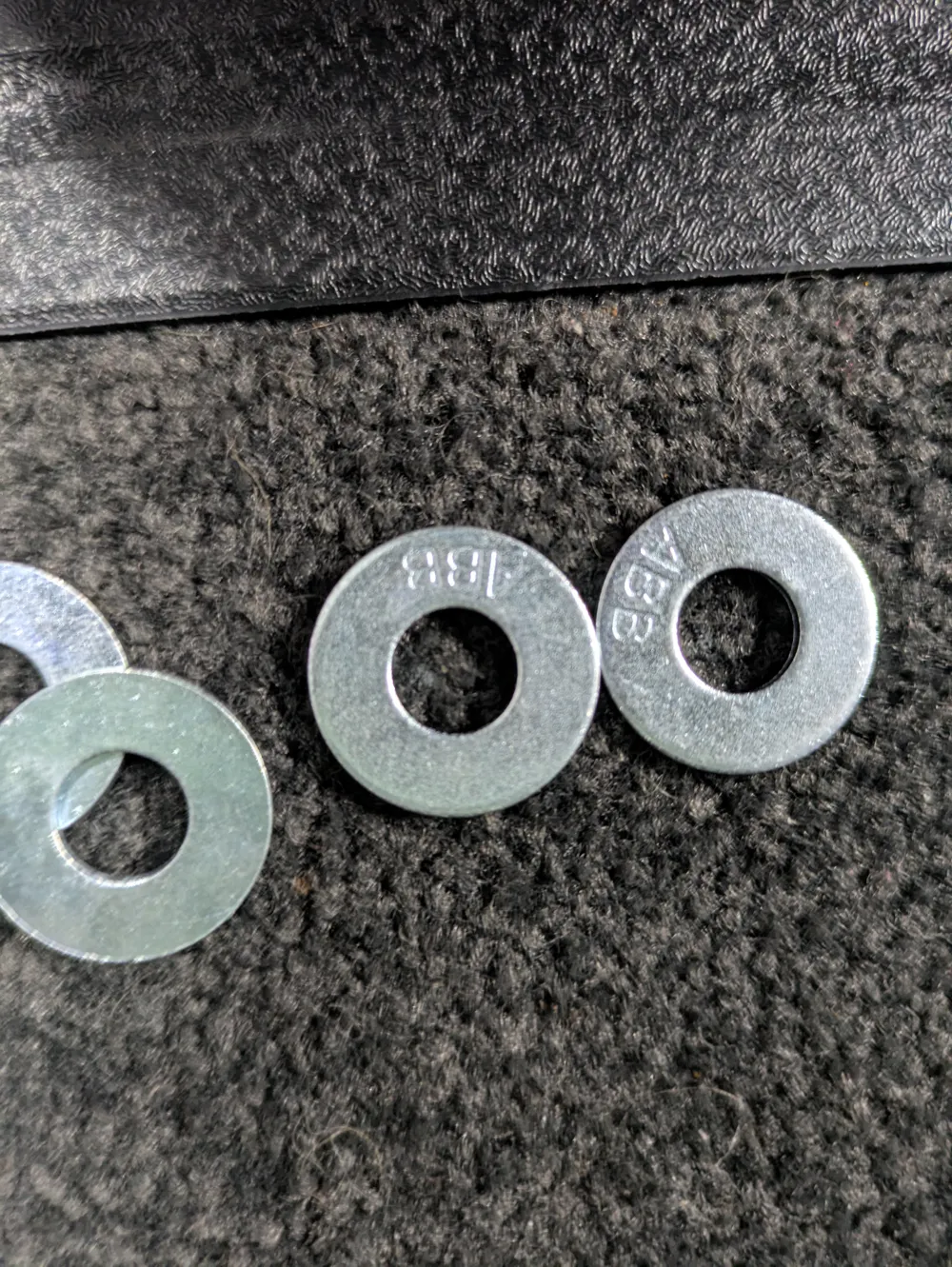

2 x ABB washers

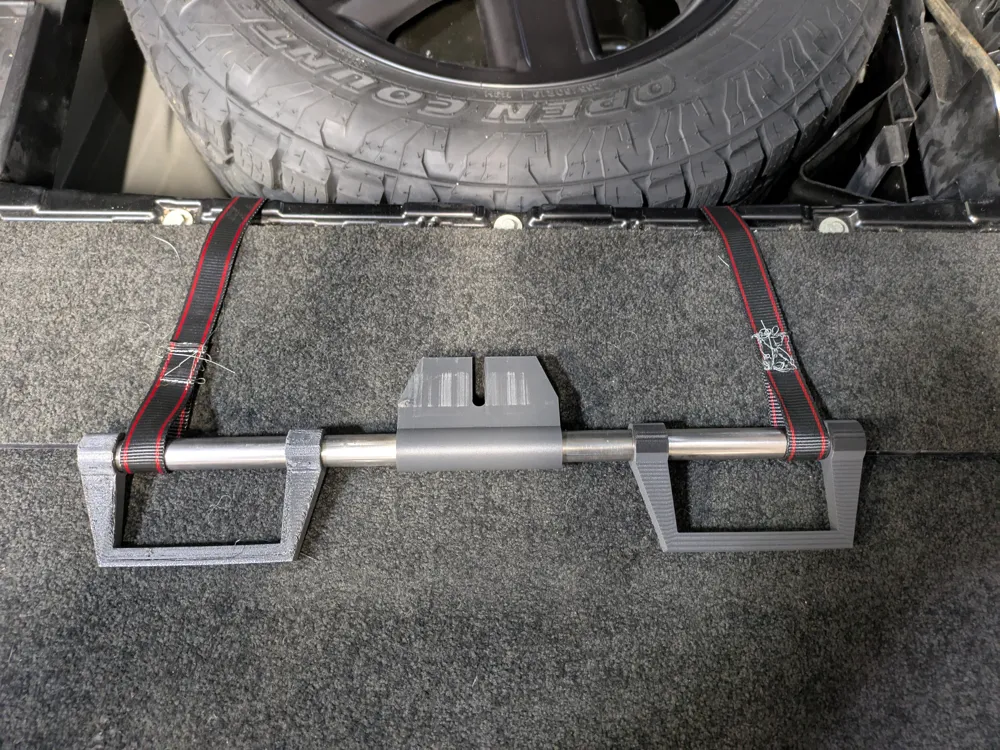

Total length needed for the straps (screw hole to end of loop) is 67 inches. I used a soldering iron to melt the screw holes into the straps and sewed a loop on the other end. I suggest looking at the forum post for any further info.
