Micro Servo Mount

Print Profile(1)

All
X1 Carbon
X2D
P1P
H2C
A2L
H2D Pro
H2D
A1
X1
P2S
X1E
P1S
A1 mini
H2S

0.16mm layer, 2 walls, 15% infill
0.16mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
24
64
5
0
60
37
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
M3x8 SHCS Machine Screw (20PCS) - AA037
9g Continuous Rotation Digital Servo-360° (1PCS) - PG002
Bambu Filaments
Select all
Black (33102) / Refill / 1 kg

Description

Short Overview

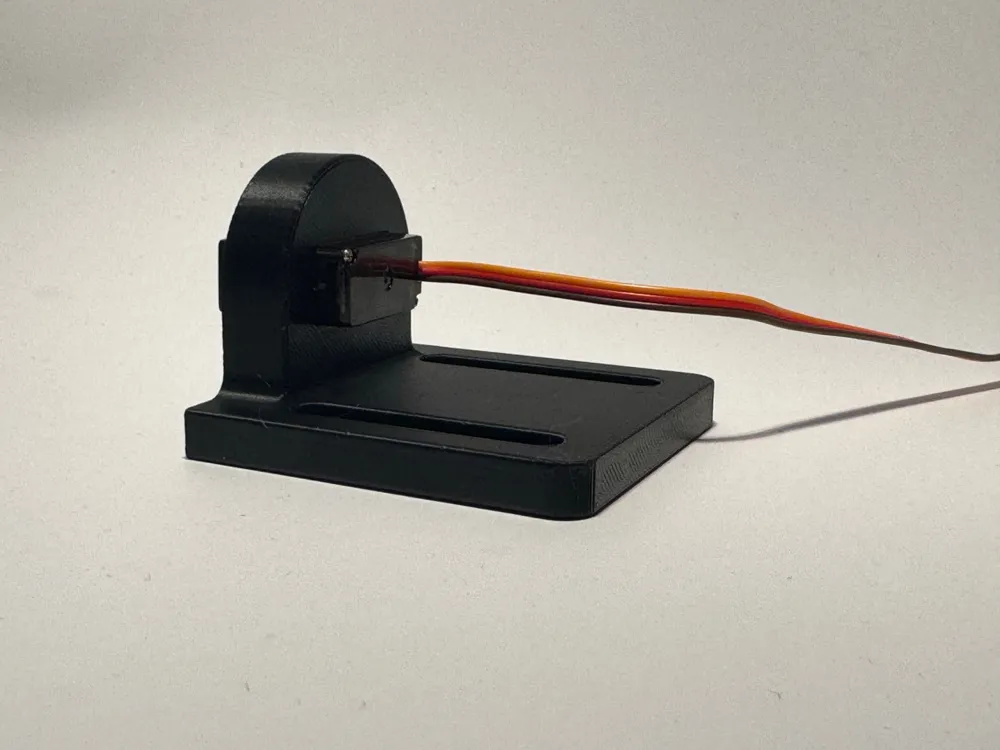

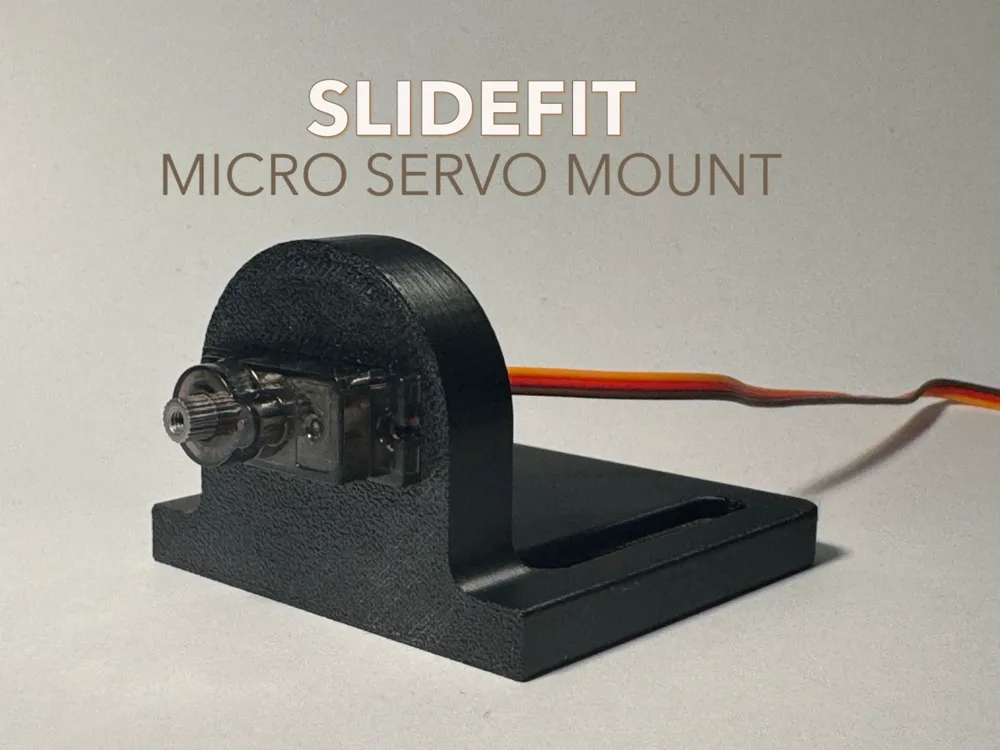

  • A sliding micro-servo mount designed for precise positioning.
  • Ideal for hobby electronics, robotics, and prototyping projects.

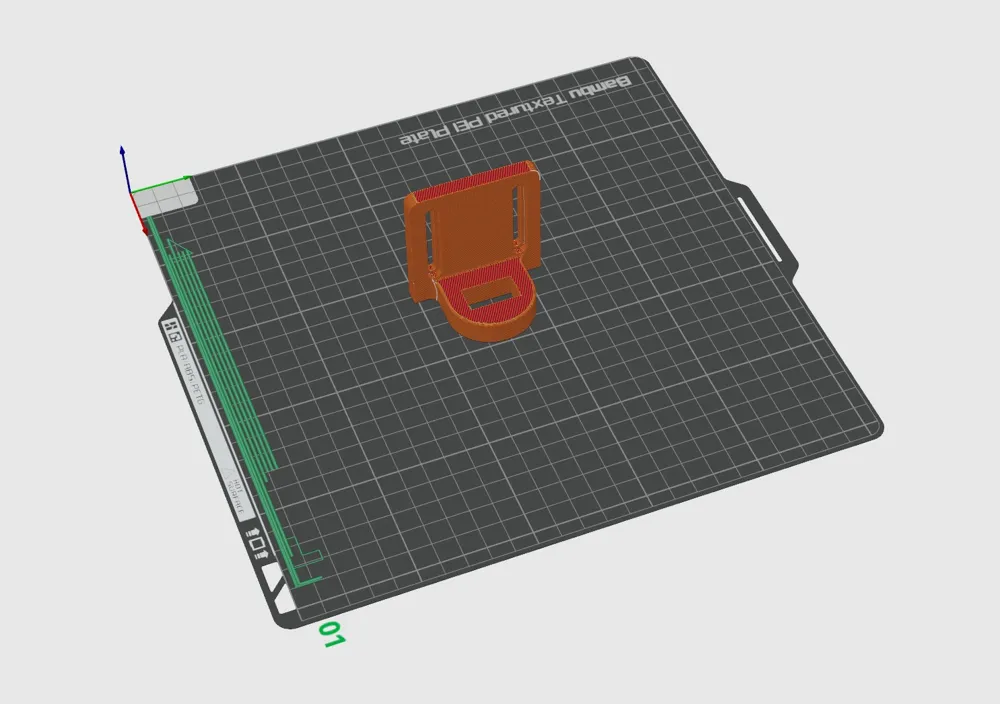

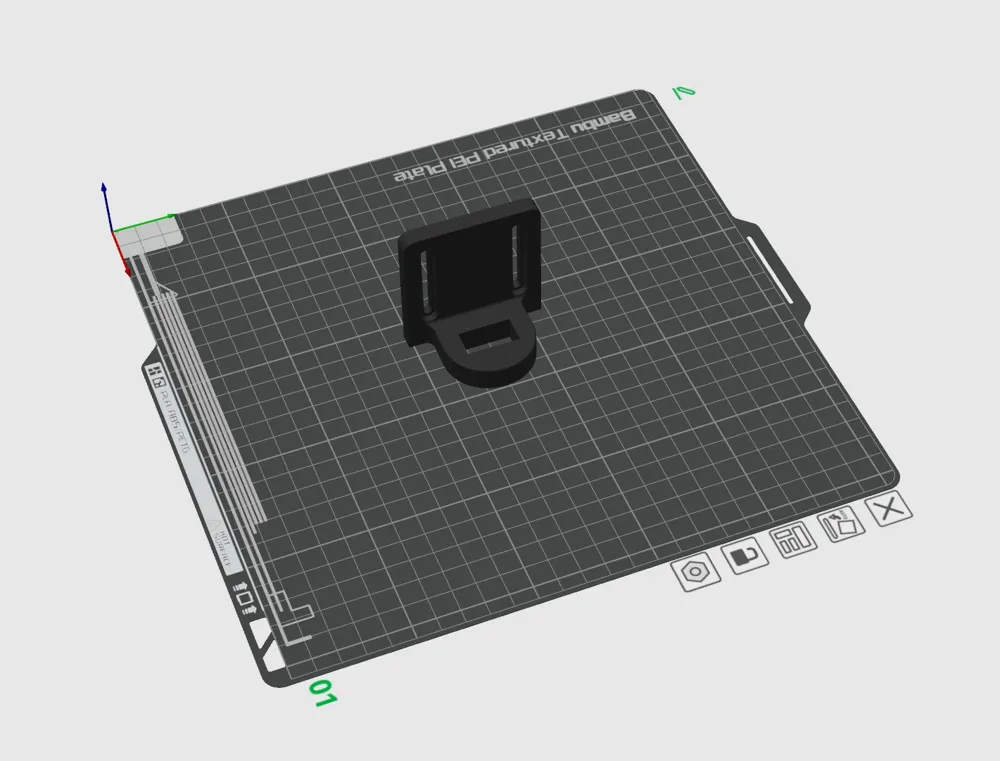

Print Settings

  • Filament: PETG HF Black
  • Layer: 0.16 mm @BBLX1C
  • Supports: No

Usage & Installation

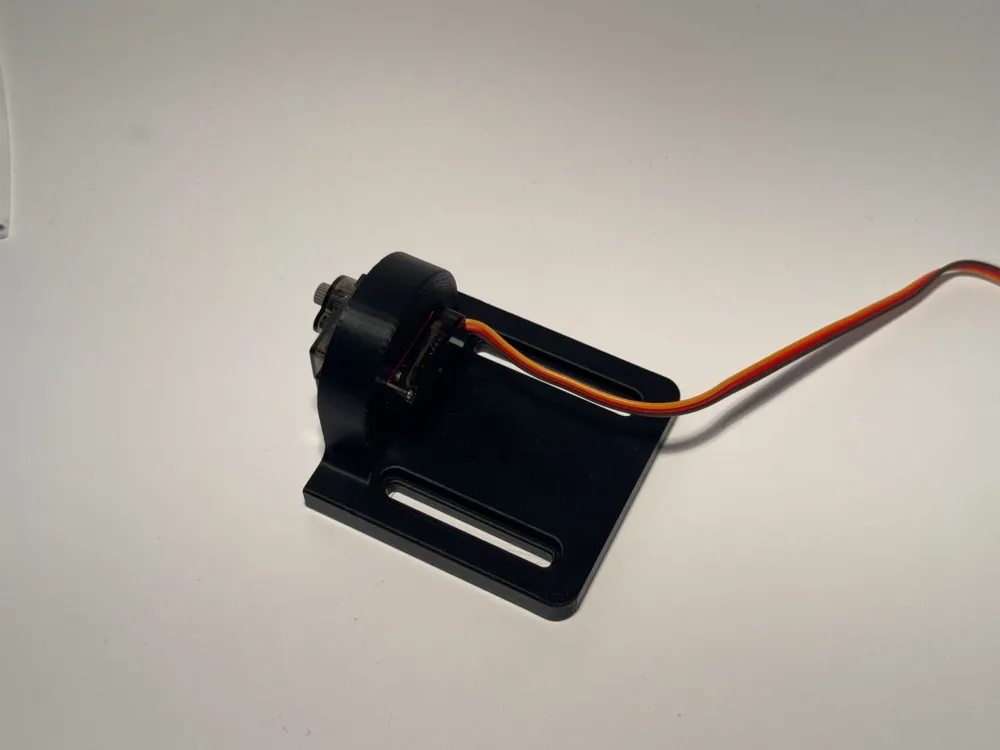

  • Slide your micro servo into the mount, align the slots, and secure with M3 bolts.
  • The adjustment holes are sized for standard M3 bolts slide along the slots for perfect alignment before tightening.
