Hi fellow artists and art lovers!!

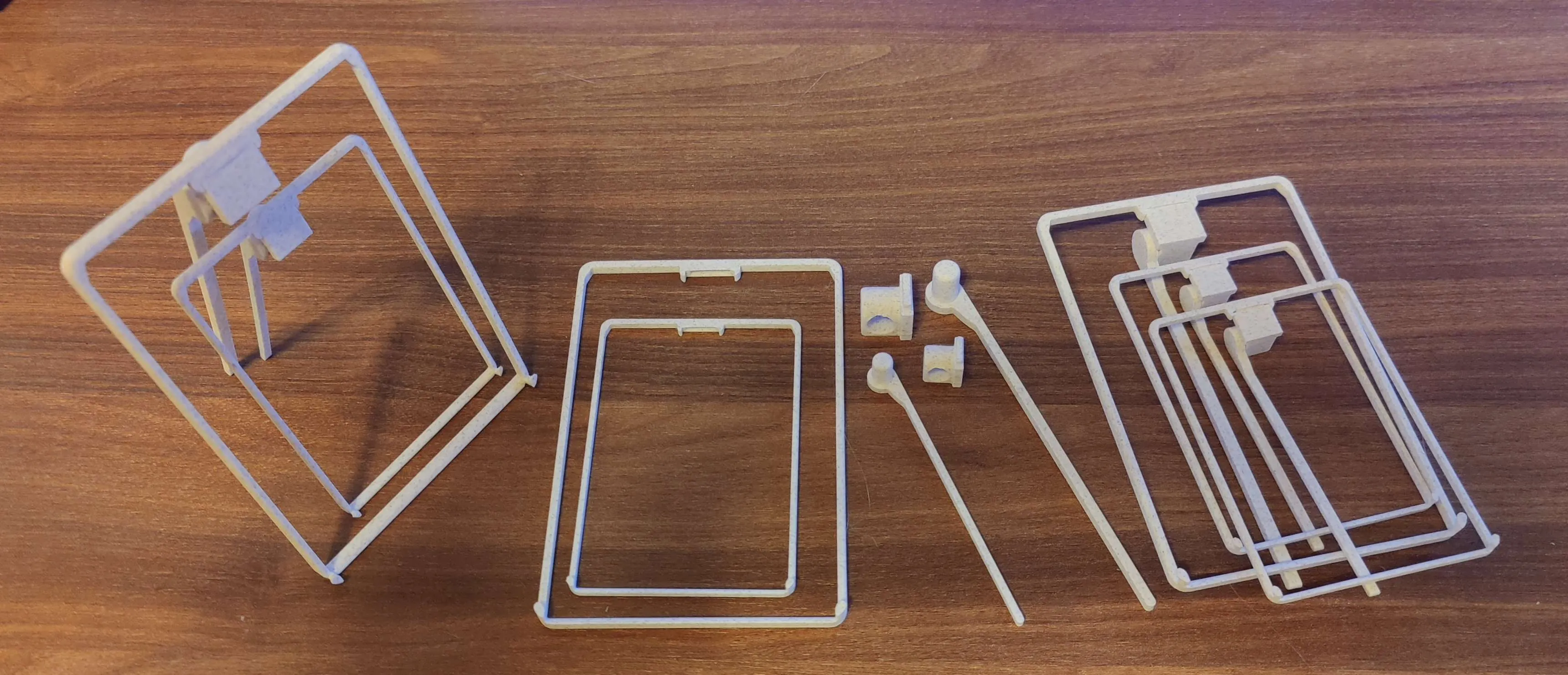

Public release Hueforge Art Stand Version 0.75.
This is "small hueforge stand for all size pictures you can print on your printer.

Version 0.75 is out now!



Normal version is now less than 5g ;) and still strong hold bigger pictures too!

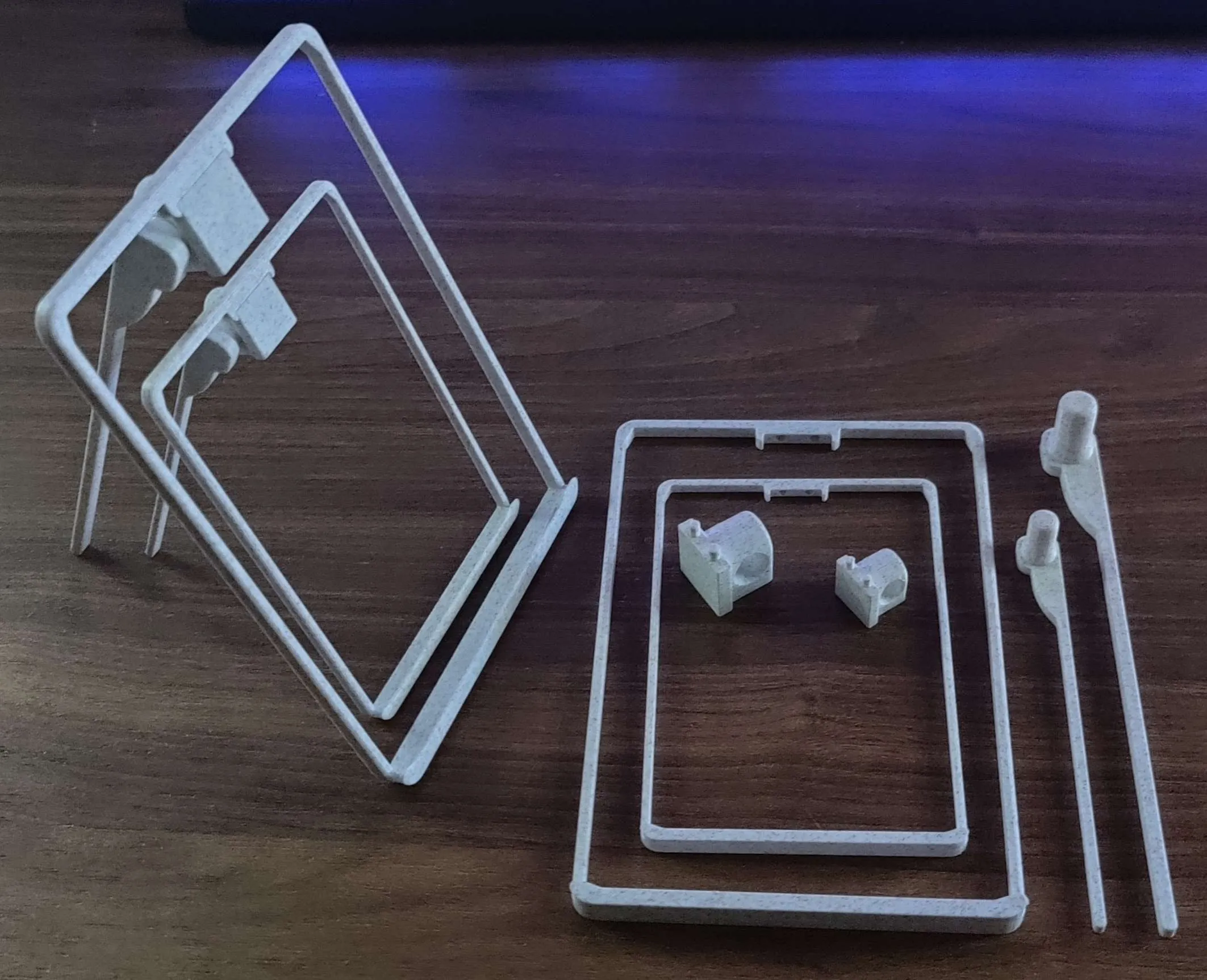

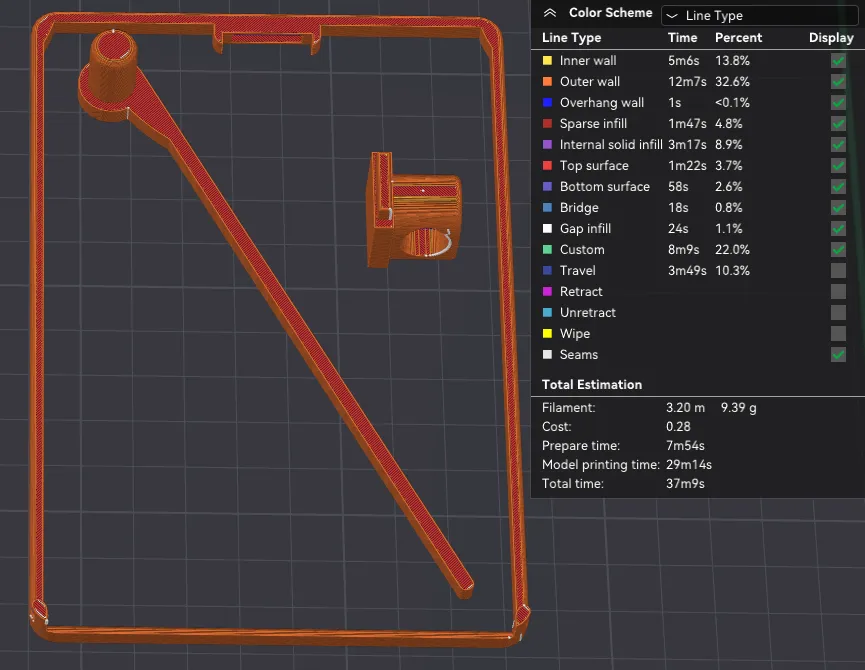

Bigger 140 version less than 10g almost less than 9g its much stronger and i recommend this model for use both are fine but this is much stronger.



you also can scale this model up or down. use uniform scale all parts can fit then. ;)

Here is some instructions how to build (0.25 version images but its working same)

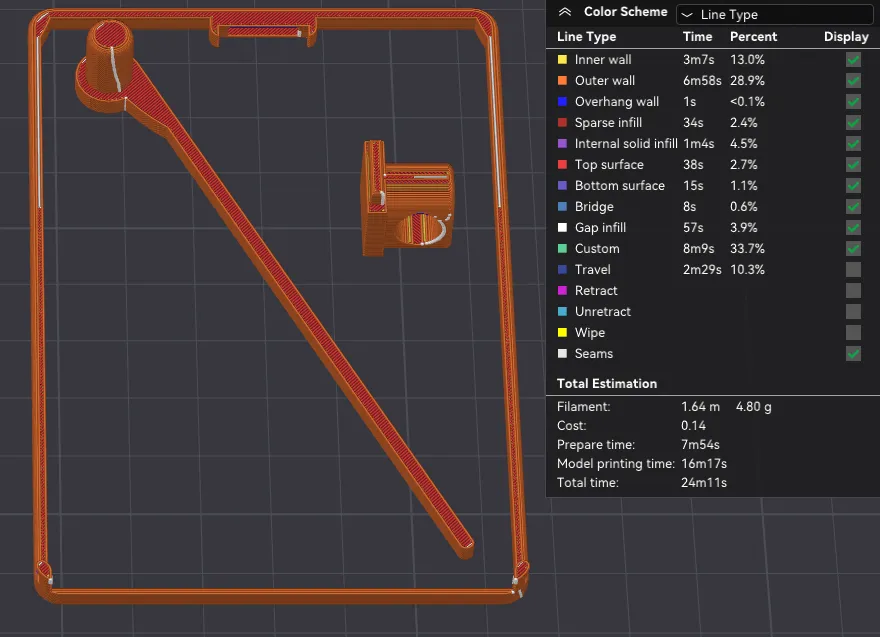

Added my profile all settings for (Marble, Basic, Matte) PLA Filament. Not tested other filament styles yet..
So if you want use my Setting 1. for marble, 2. for basic, 3. Matte. Profiles these have own uniqueness
else you can use bambulabs own default settings filaments it's up to you!

After you print how to build?

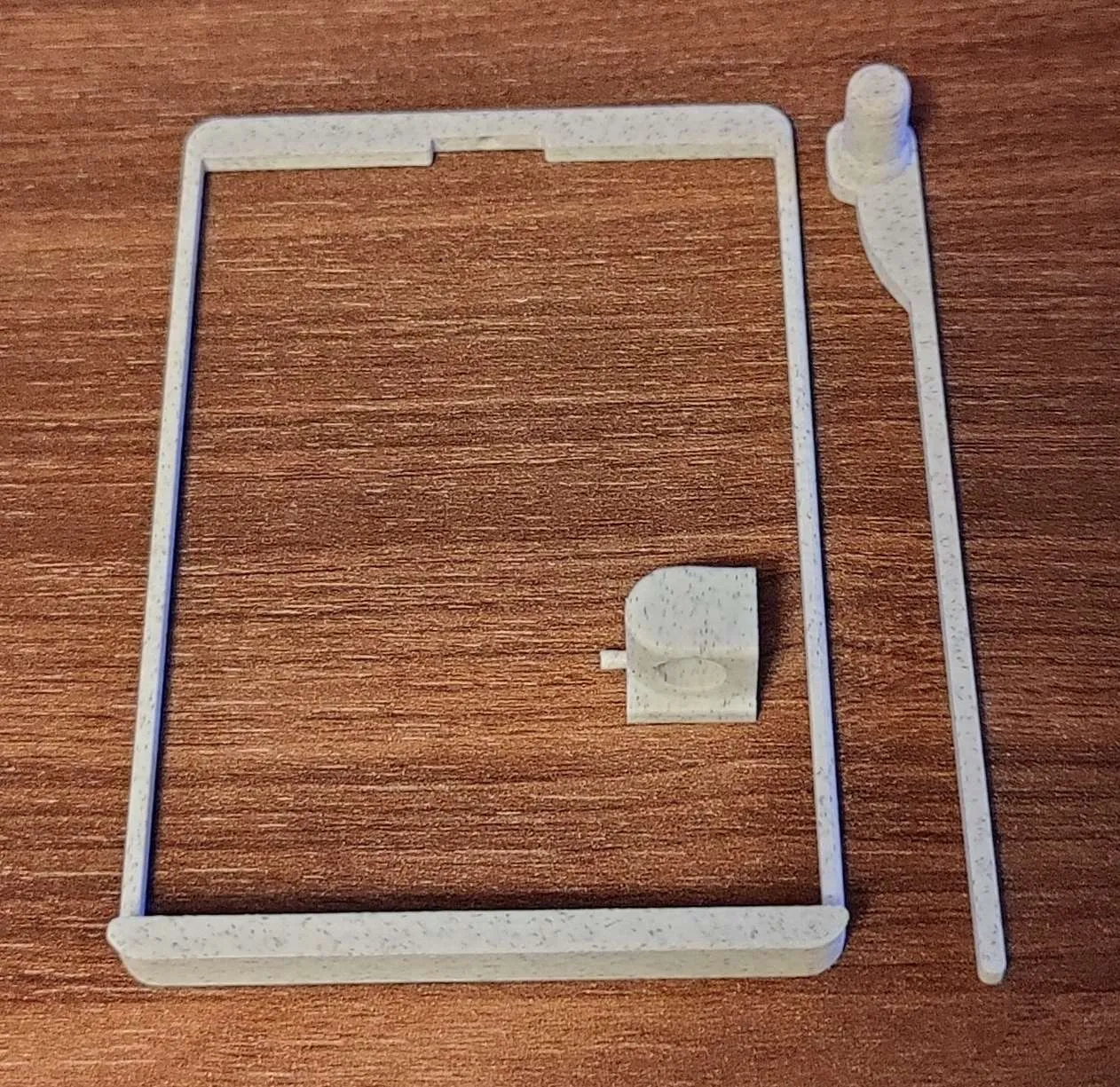

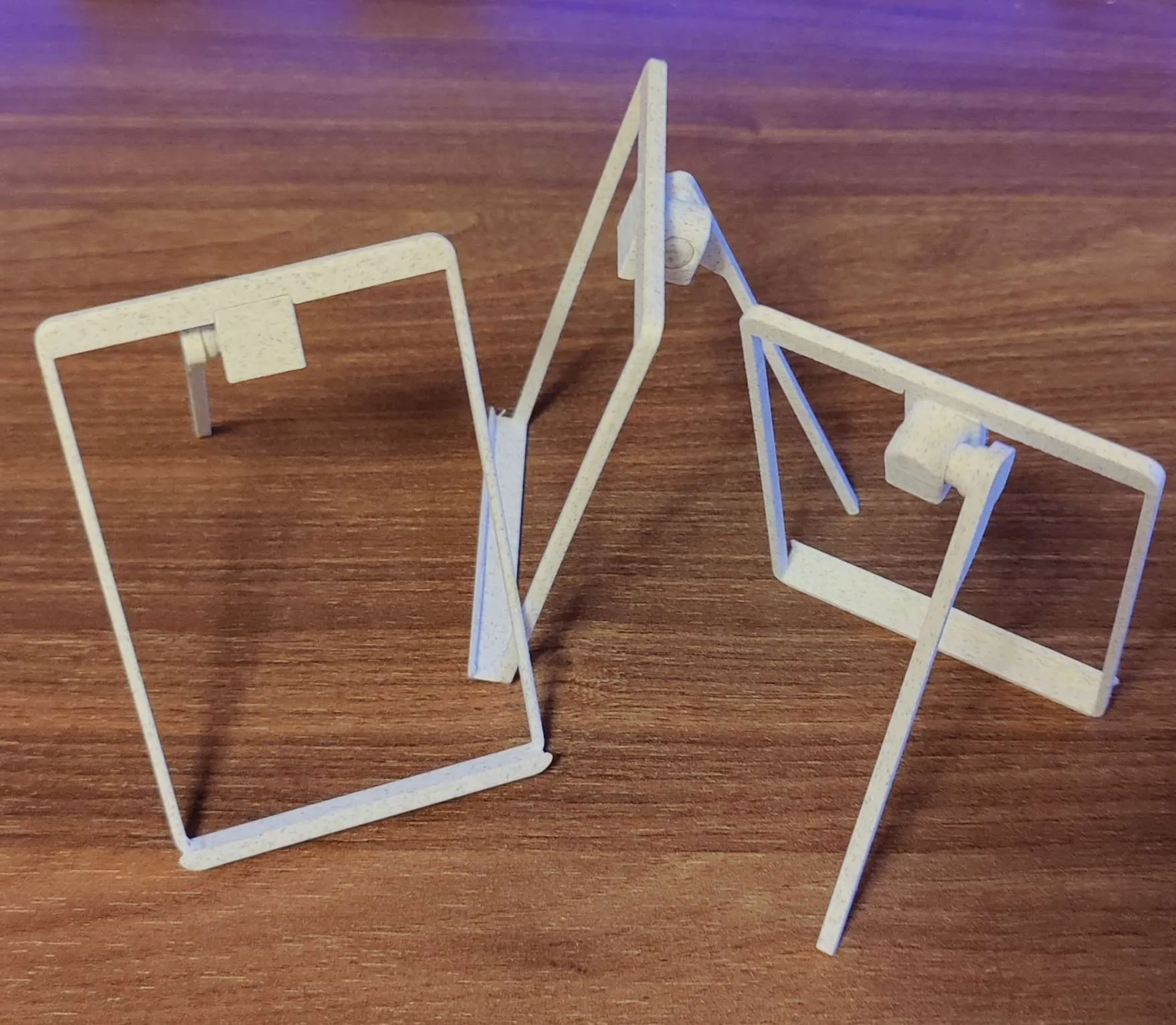

Congratz you have 3 pieces to assemble

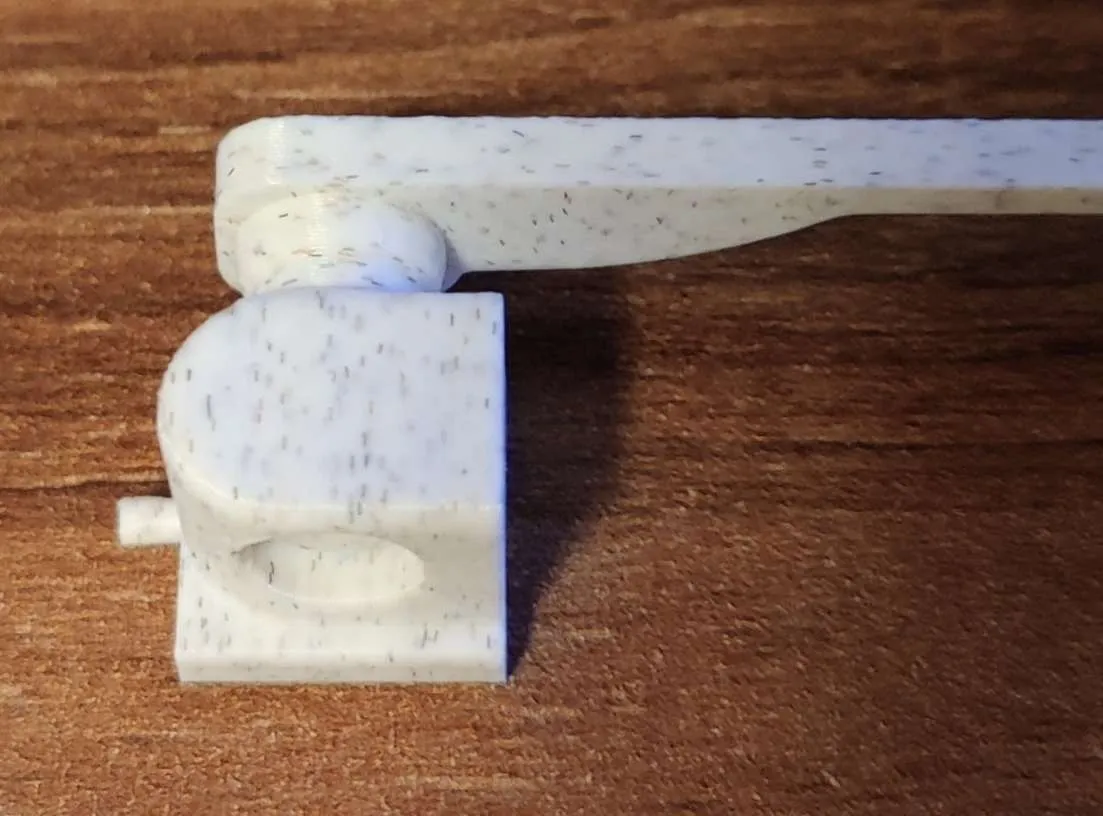

Insert rod to right side of this adjuster (it's tight i know!) but this is still on beta! (Working on it)


Next Put very carefully Adjuster to frame you see little peg on top adjuster put on backside on frame. CAUTION! Peg is tiny and very fragile! dont give too much force or it breaks and then you need add super glue sure you dont what do that ;)

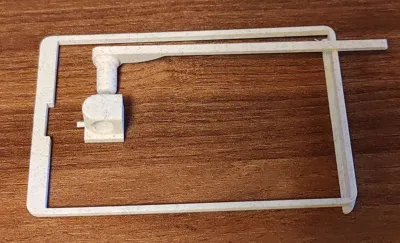

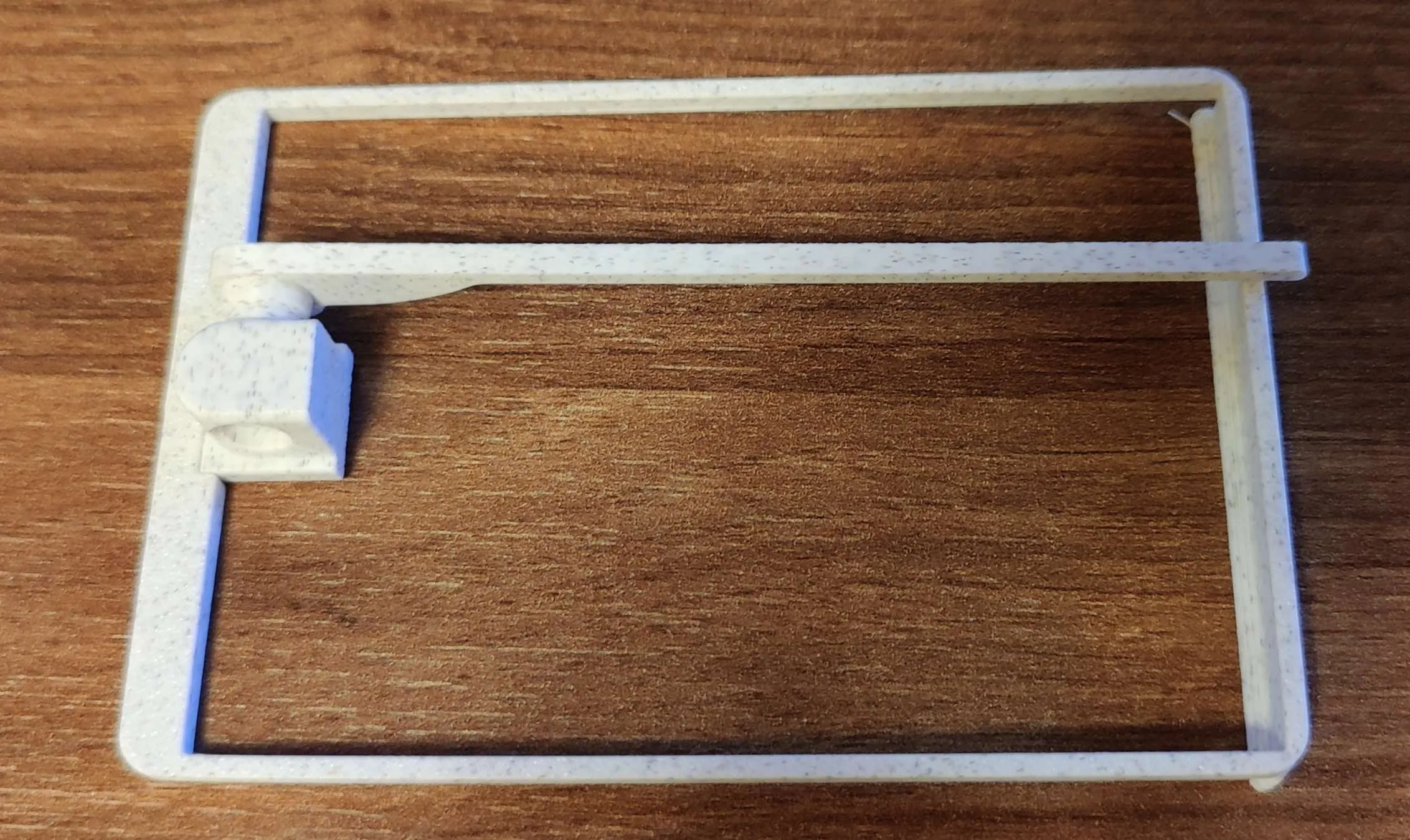

After installation have done. now how to adjust. this is Important or you may break peg. Hold on adjuster and tune other hand rod because this is tight fit its need little force to adjust. Dont hold Frame + Turn Rod if you doing all right it looks like this then

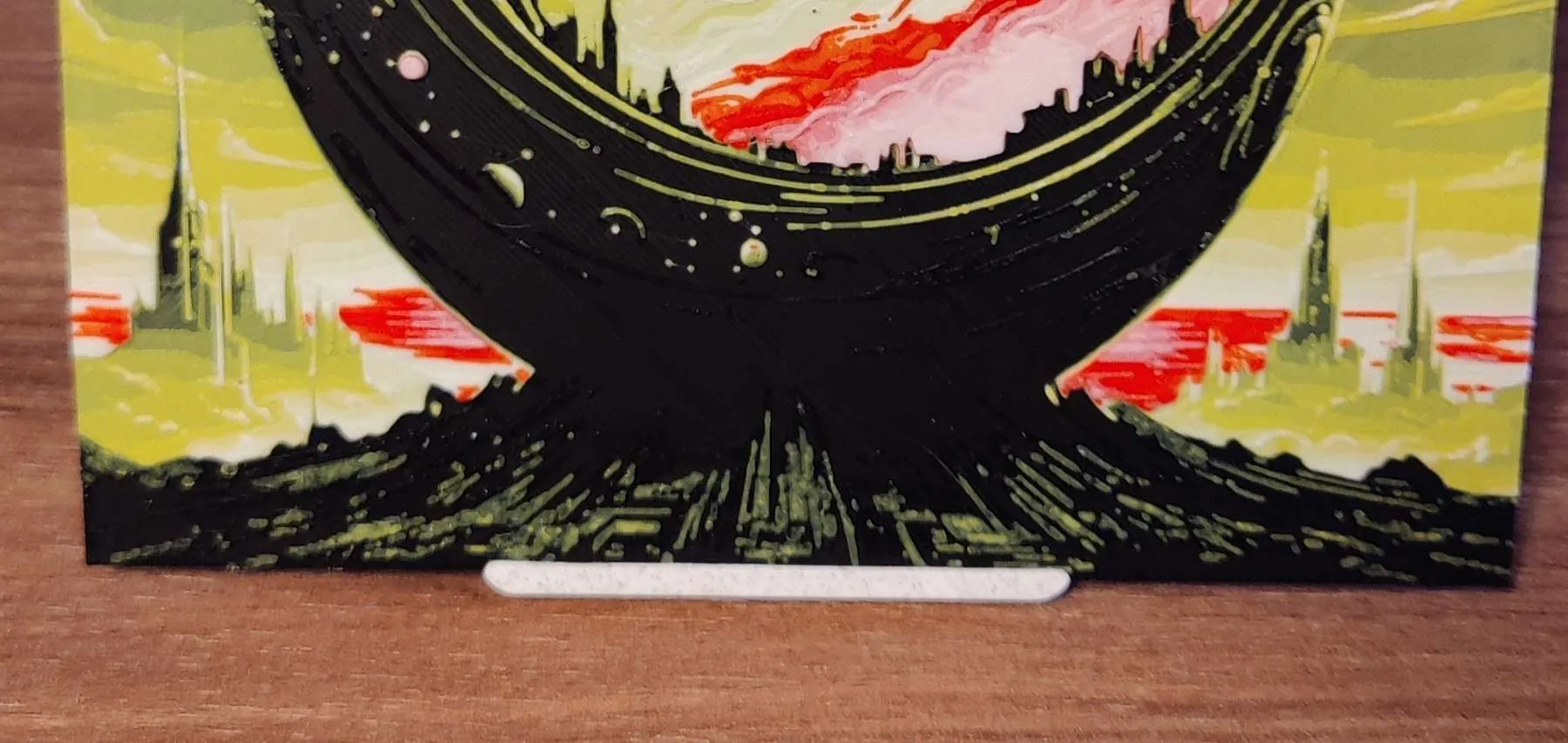

only small visible area as stopper and little bottom

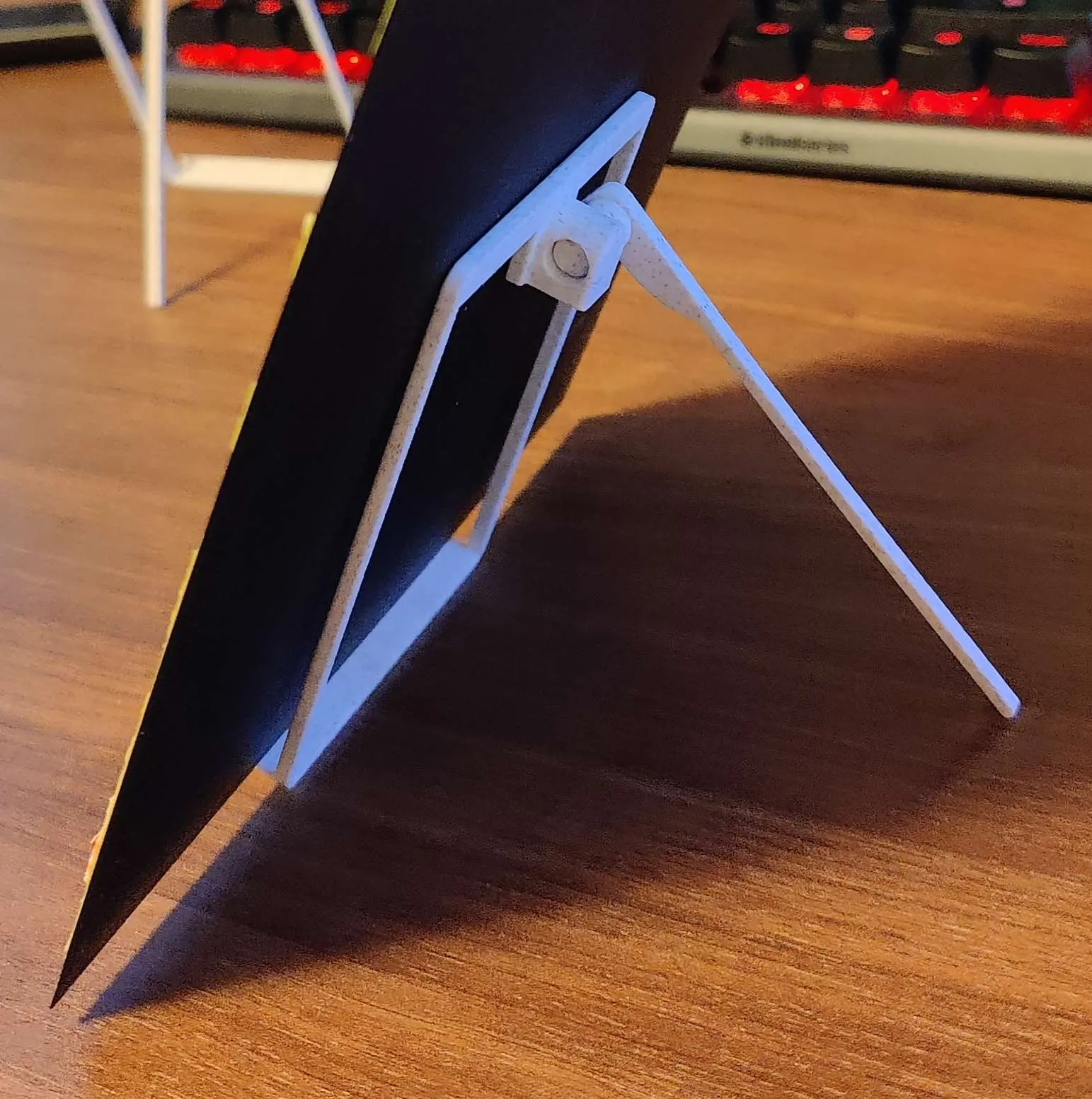

And here is behind

If all went OK! Yaay!. Congratulations you have now Hueforge Art Stand ready.

Version 0.5 still for share it's fine but 0.75 is better for my option..


Thankyou helping beta almost over. trying push final v1.0 model out!

If you like get my artwork here is my profile much artwork..
Dont forget check my Profile Page for artwork (Hueforge & lithophanes).
https://makerworld.com/en/u/1765792726

Thankyou for your time Please Like and follow if you like my desing!
