Description
Content has been automatically translated.

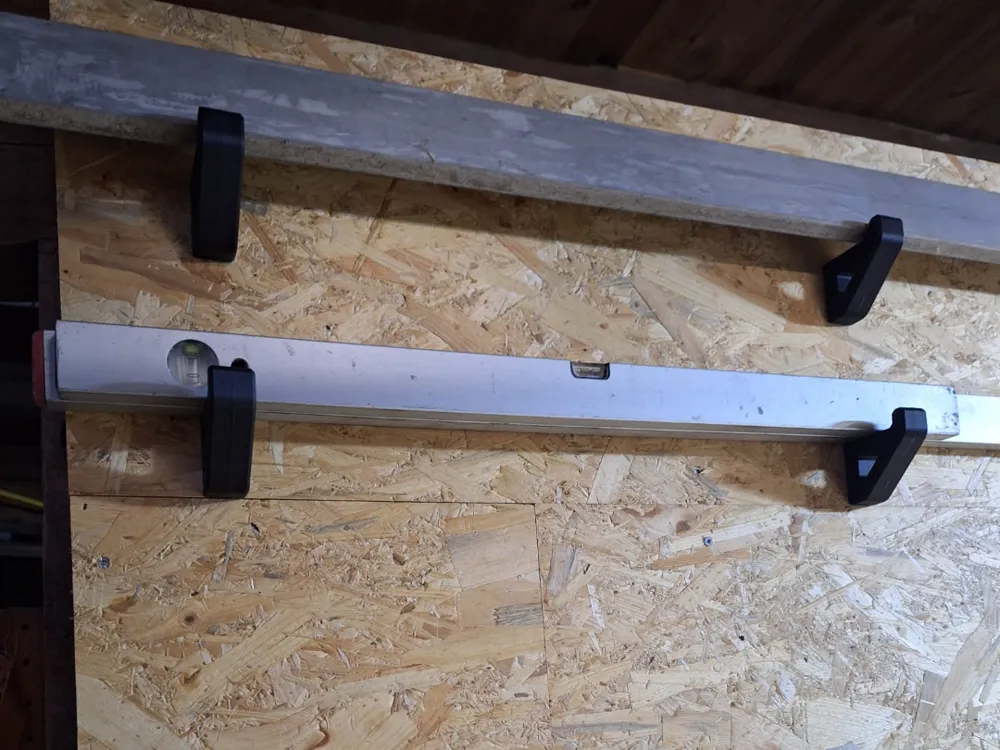

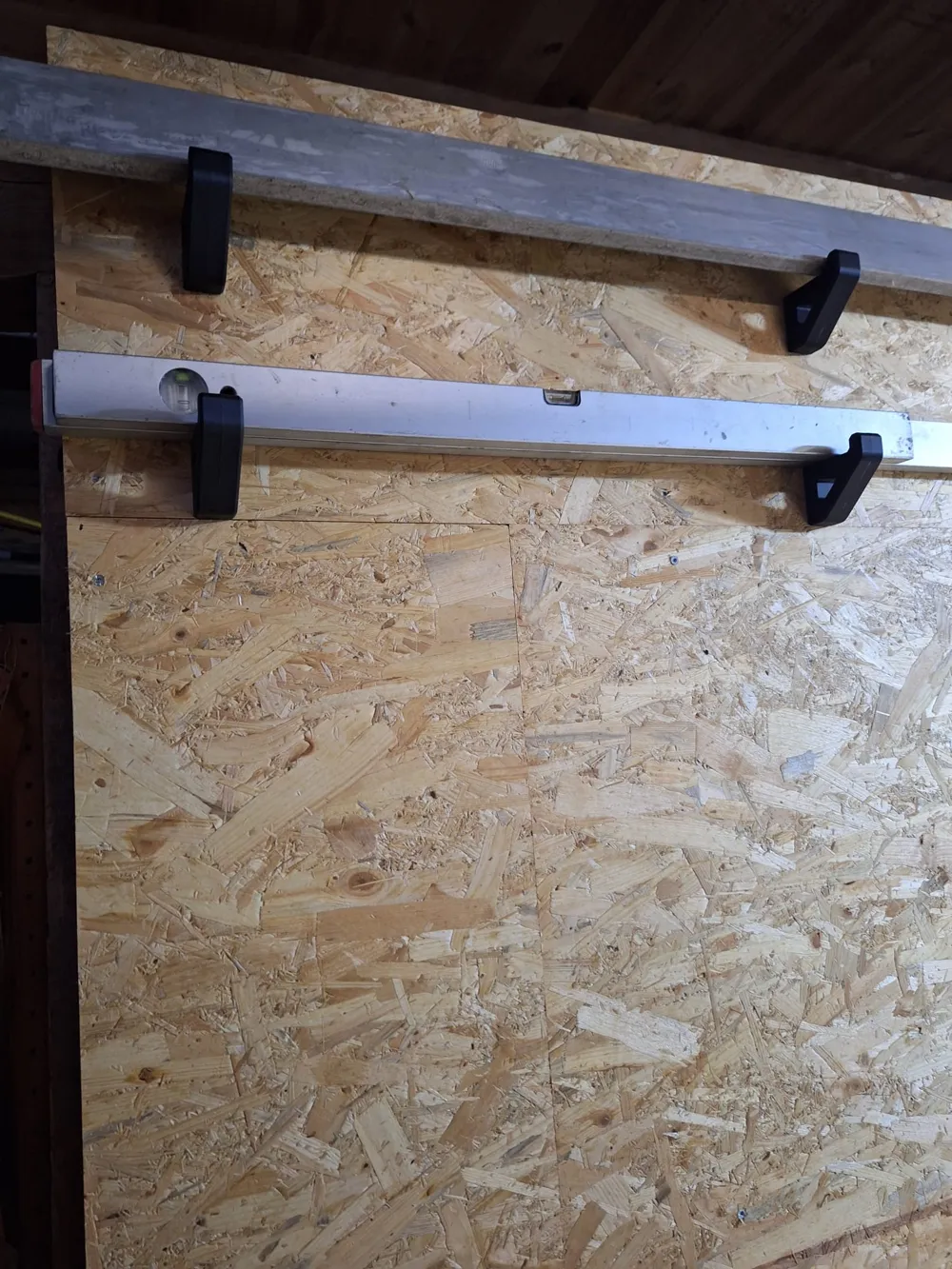

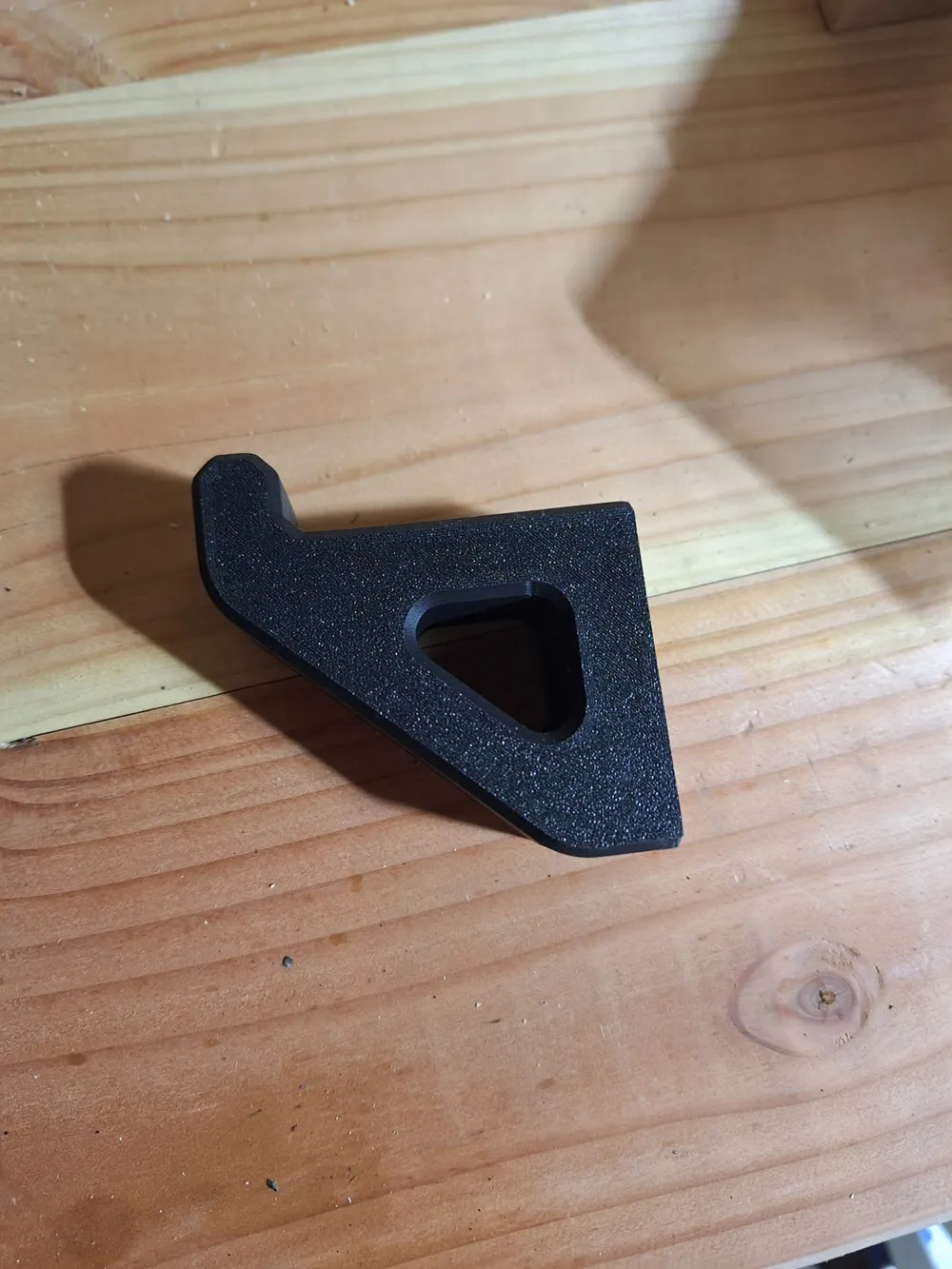

3D printable files for an angle bracket.
The whole thing is printed in several parts so that no supports are necessary.
After printing, the whole thing is assembled and glued together with dowels.

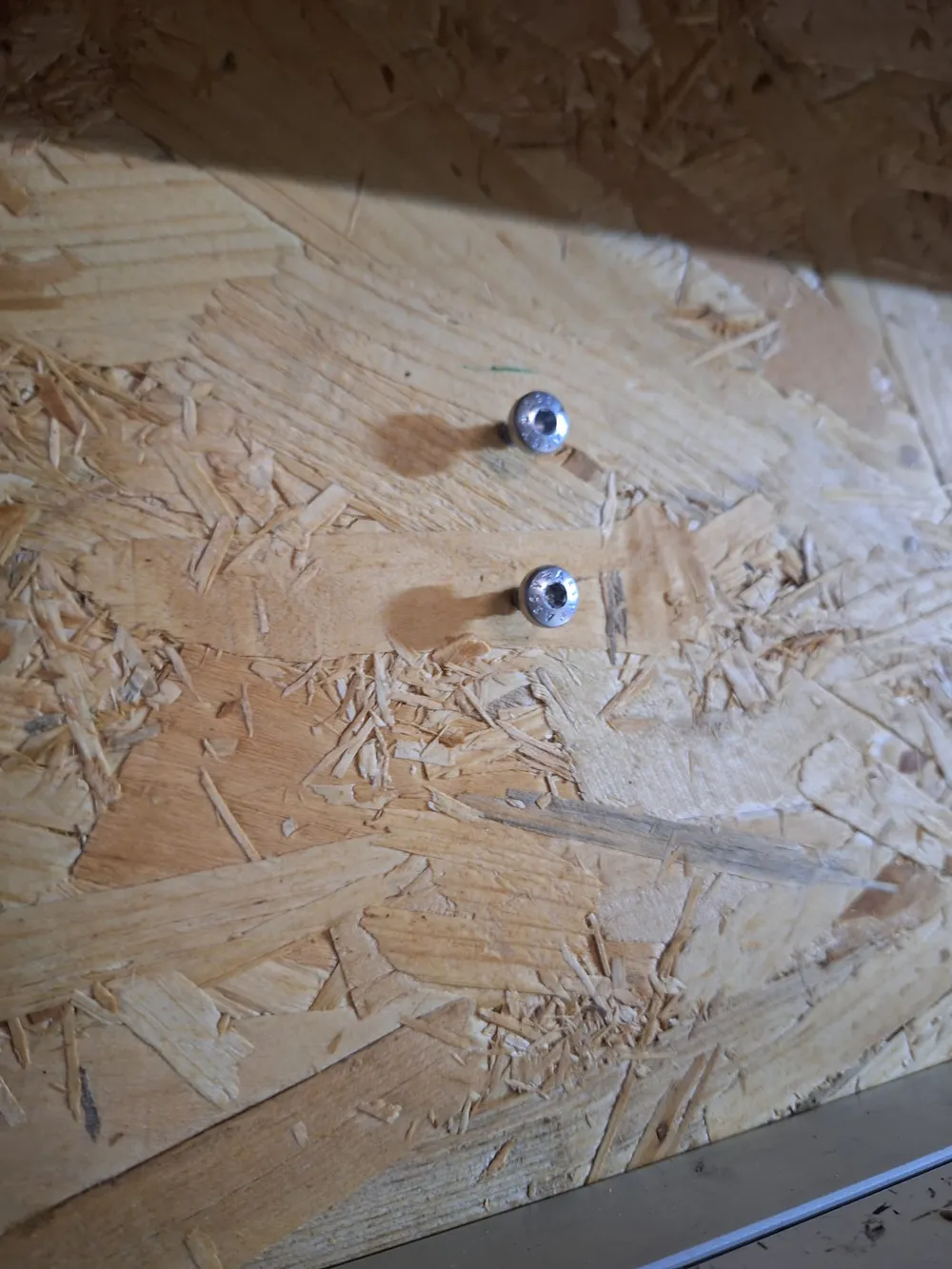

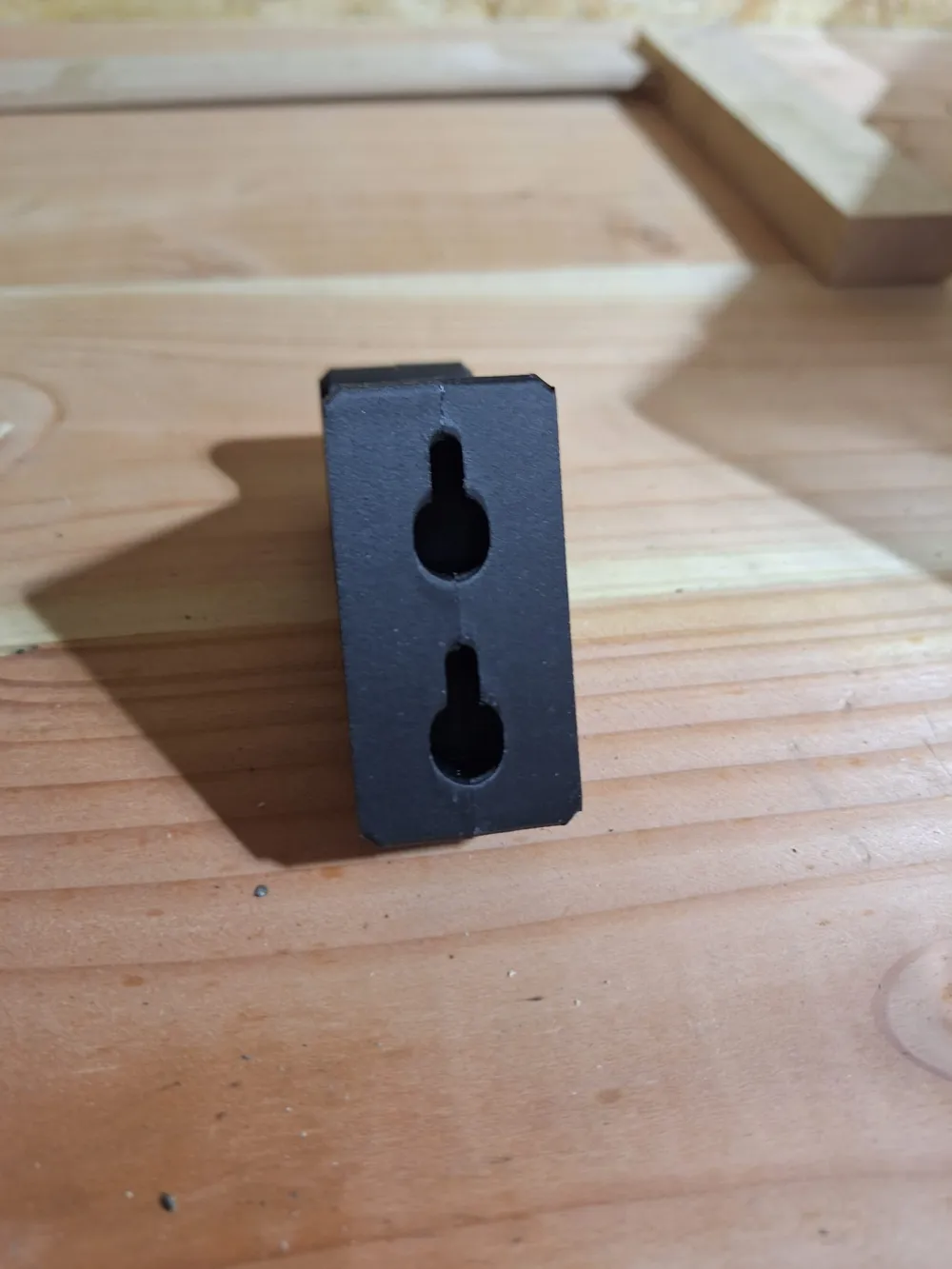

Assembly is done with the help of the associated template, which specifies the hole spacing and screw depth. For this, 2x 4mm holes are pre-drilled and then screws are screwed in. I recommend using 5x30mm pan head screws. The distance between the wall and the screw must be 7.2mm (thickness of the template) so that the bracket can be hung properly.
The template can also be used for the assembly of other models.
