Nine Dragon Pearls—Wind God Pearl
Print Profile(1)
Description
Nine Dragon Pearl Series (Portal):
Thunder God Sword, Thunder God Pearl Non-illuminated Version
Wind God Sword, Wind God Pearl
Dragon God Sword, Dragon God Pearl
Boost Me (for free)
If you like my model, please boost me, thank you!

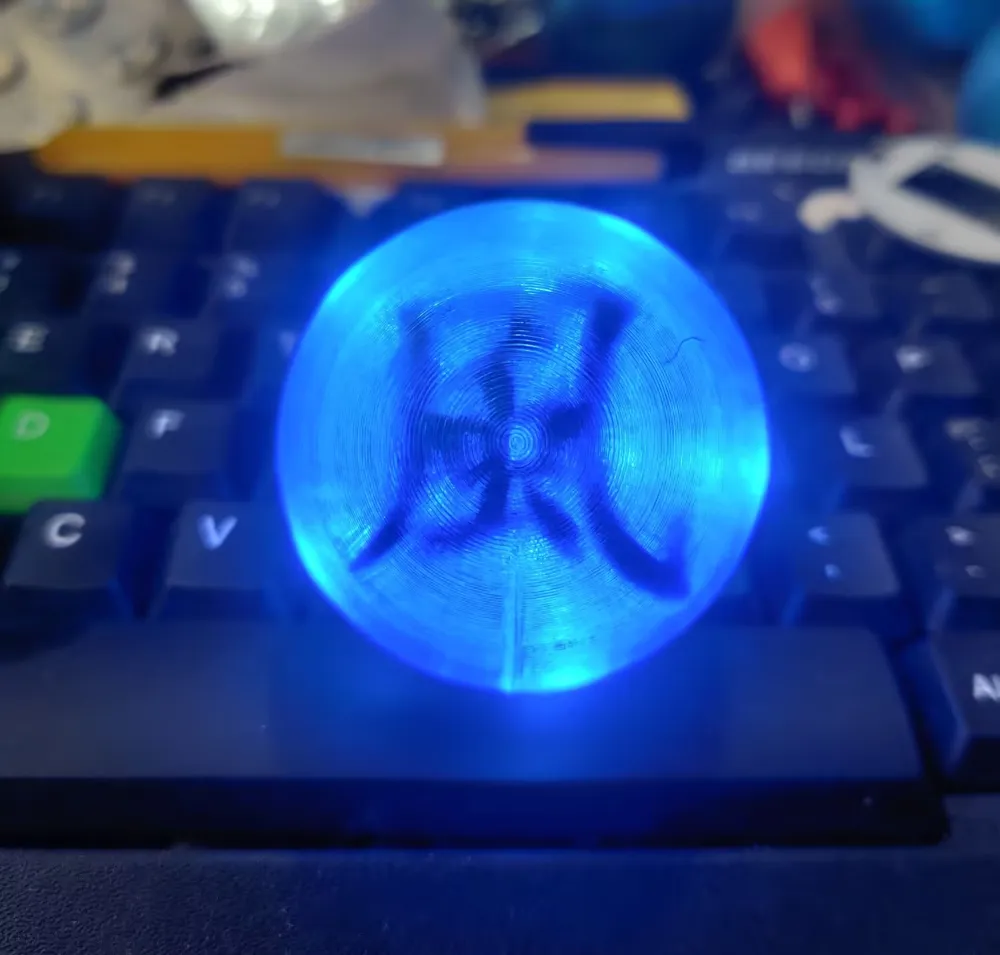

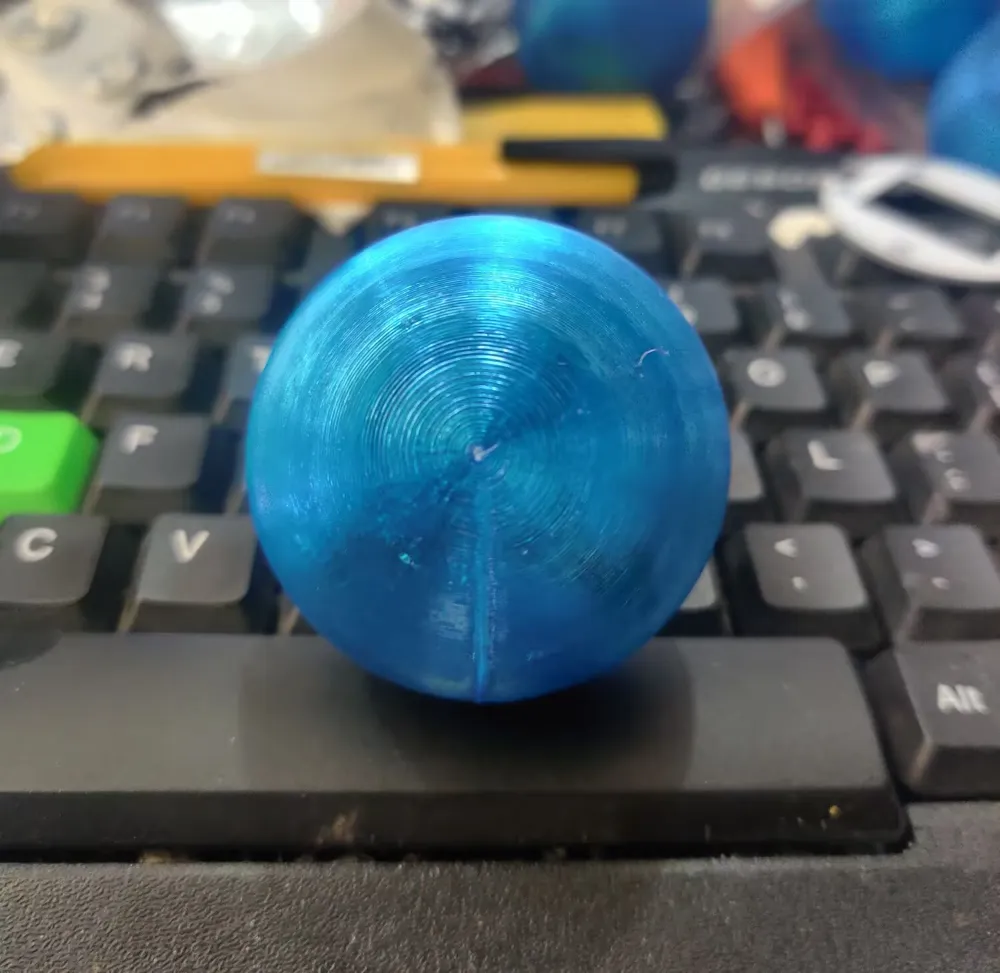

Nine Dragon Pearl - Wind God Pearl
Color-separated and segmented, AMS is required, filaments required are PETG Transparent Blue and PETG Black

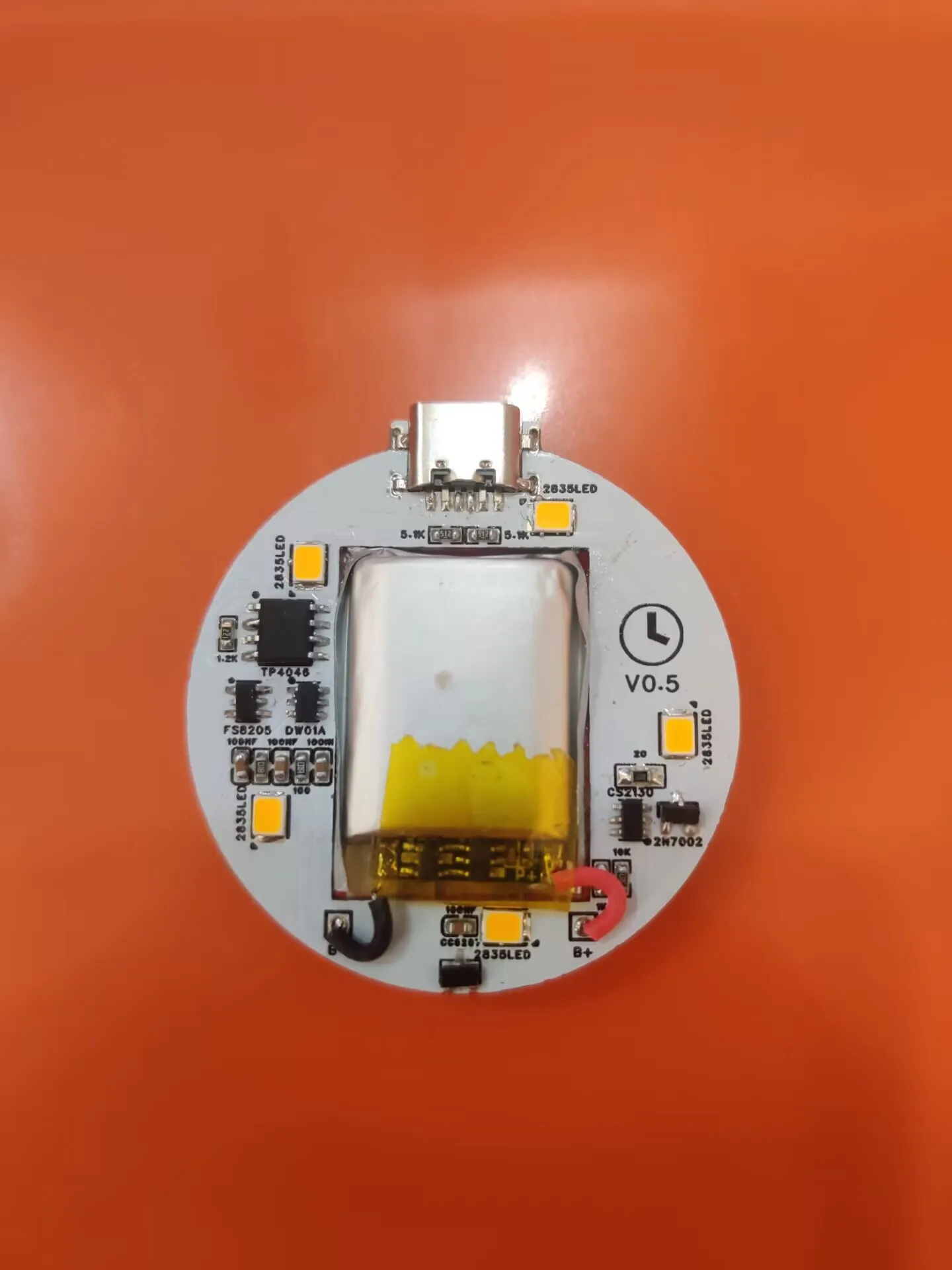

PCB board files are in the download list
PCB Components:
TP4056*1 SO8
FS8205*1 SOT23-6
DW01A*1 SOT23-6
CC6207*1 SOT-23
CS2130*1 SOT23-6
2N7002*1 SOT-23
TYPEC-6P recessed 1.6*1
SMD Resistors:
0805: 20Ω*1
0603: 100Ω*1, 1K*2, 1.2K*1, 5.1K*2, 10K*1
SMD Capacitors:
0603: 100NF*4
2835 SMD Blue LED*10
752028 Lithium Battery 3.7V*1 (602028 also works, thinner or thicker versions can be used)
After PCB soldering and testing, apply a dab of glue on the side of the battery to secure it, hot melt glue or 401 adhesive can both be used

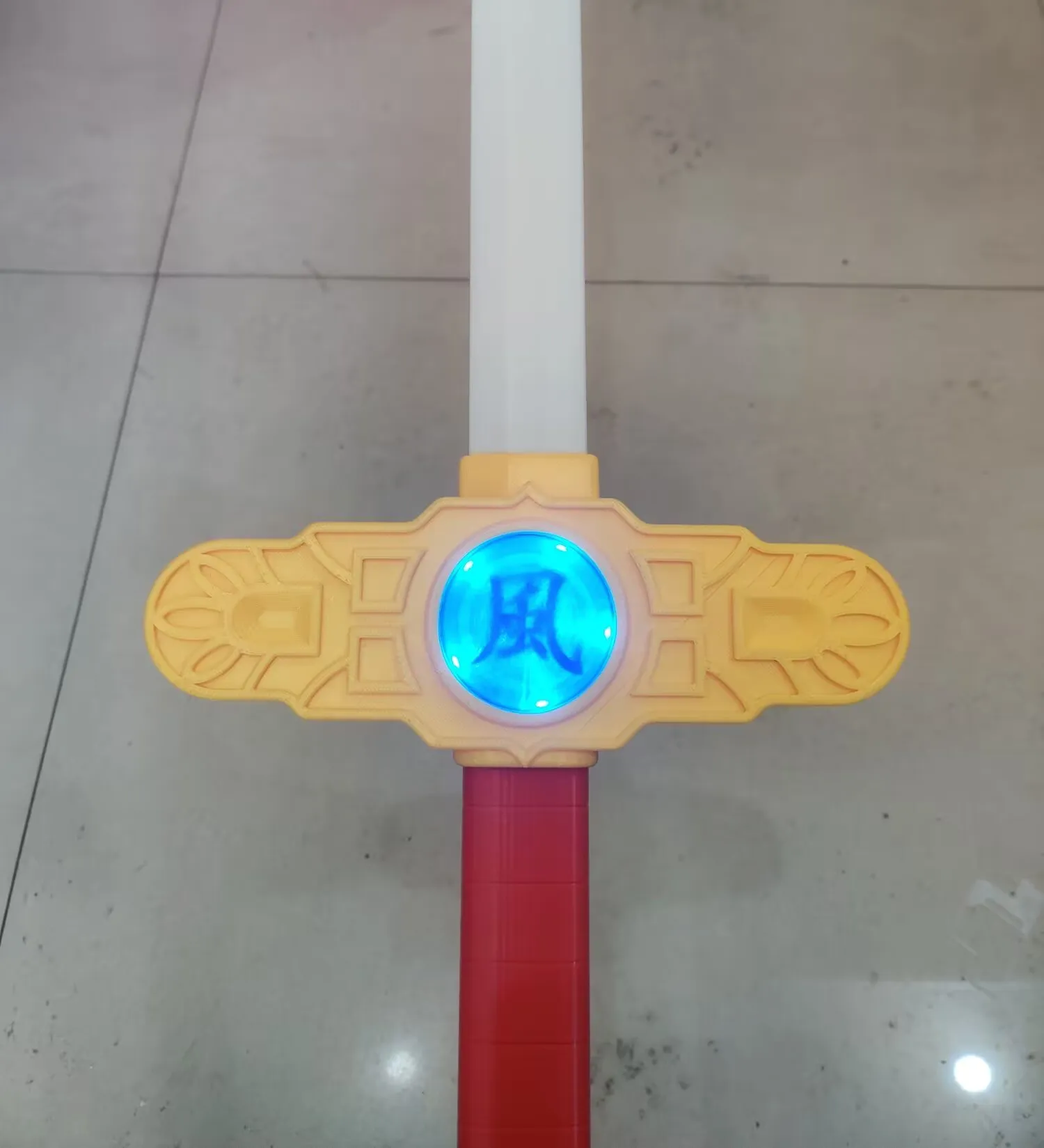

Sword illumination effect
