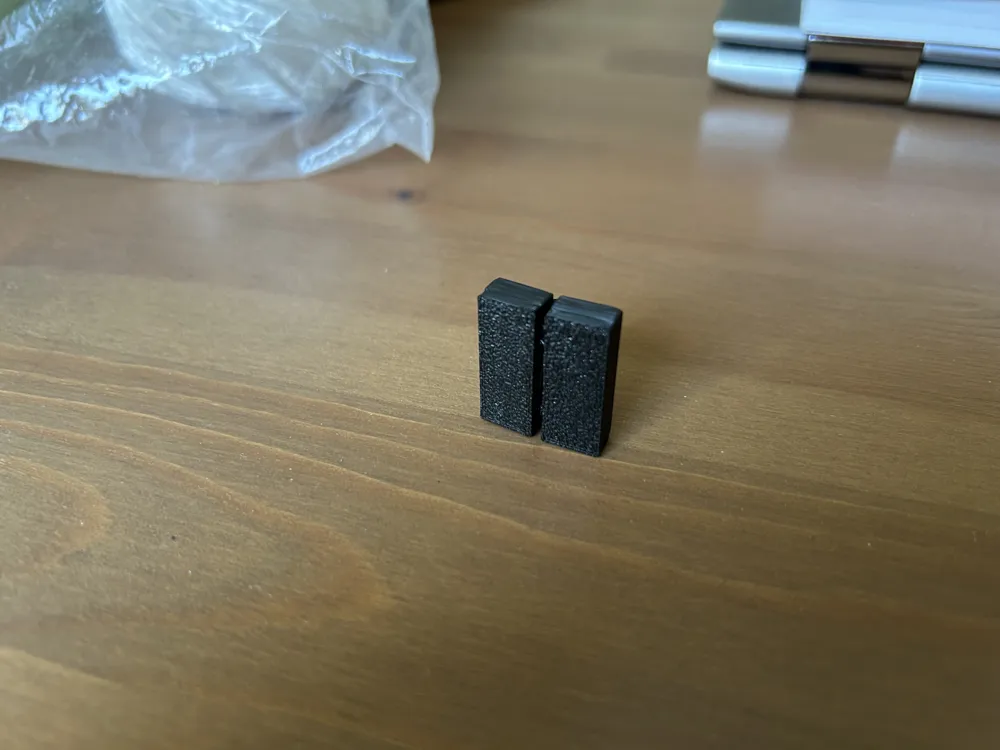

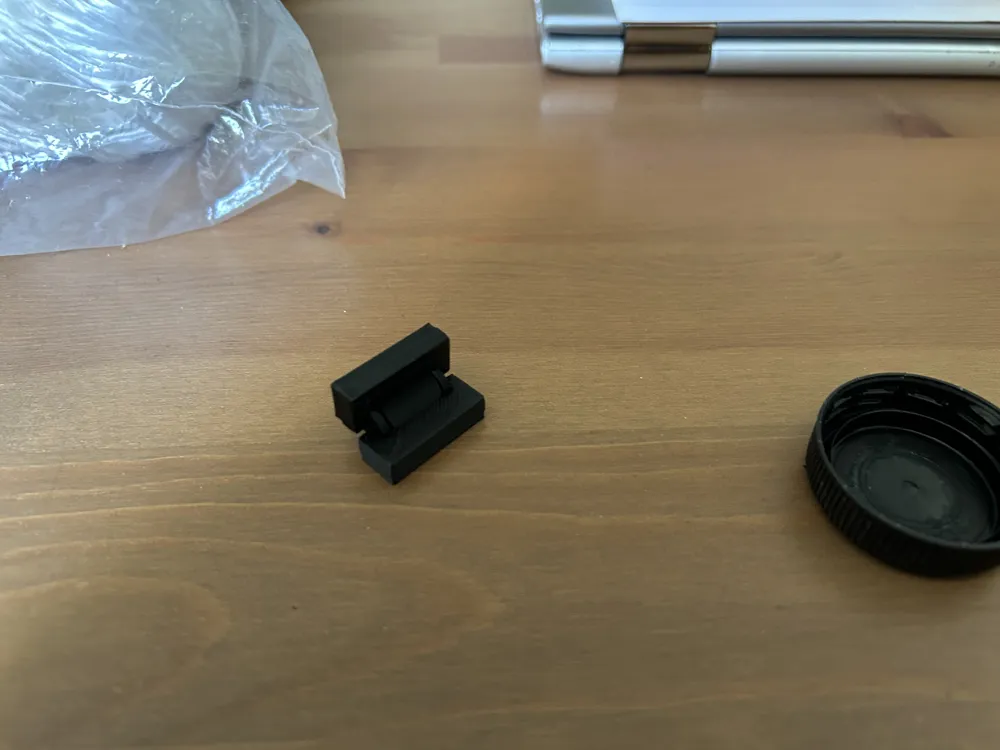

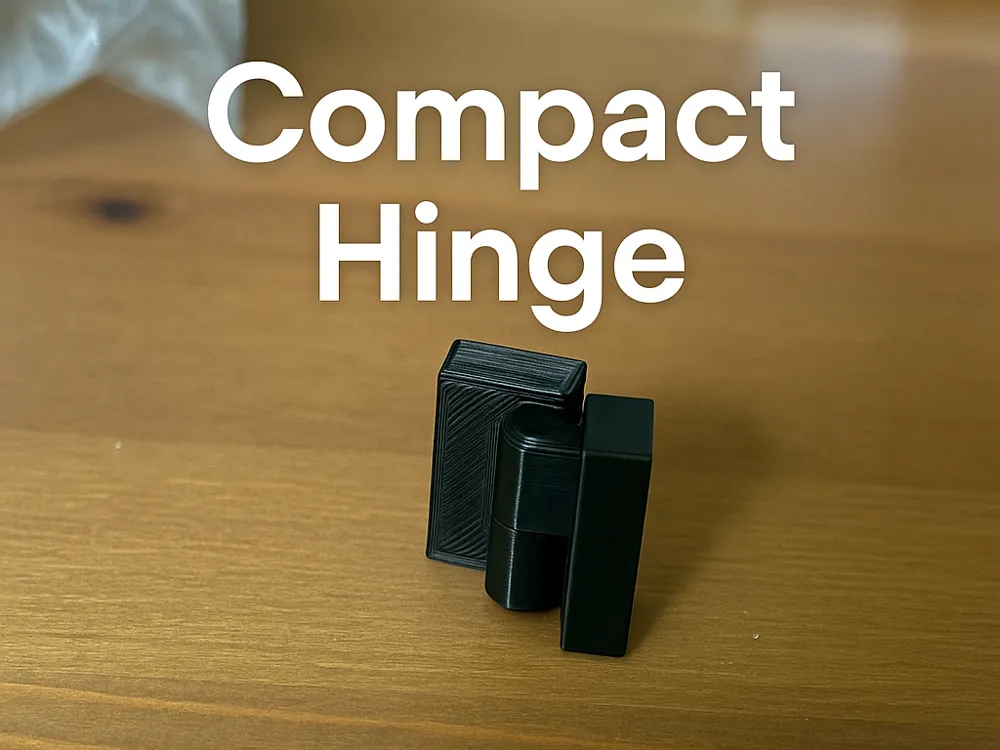

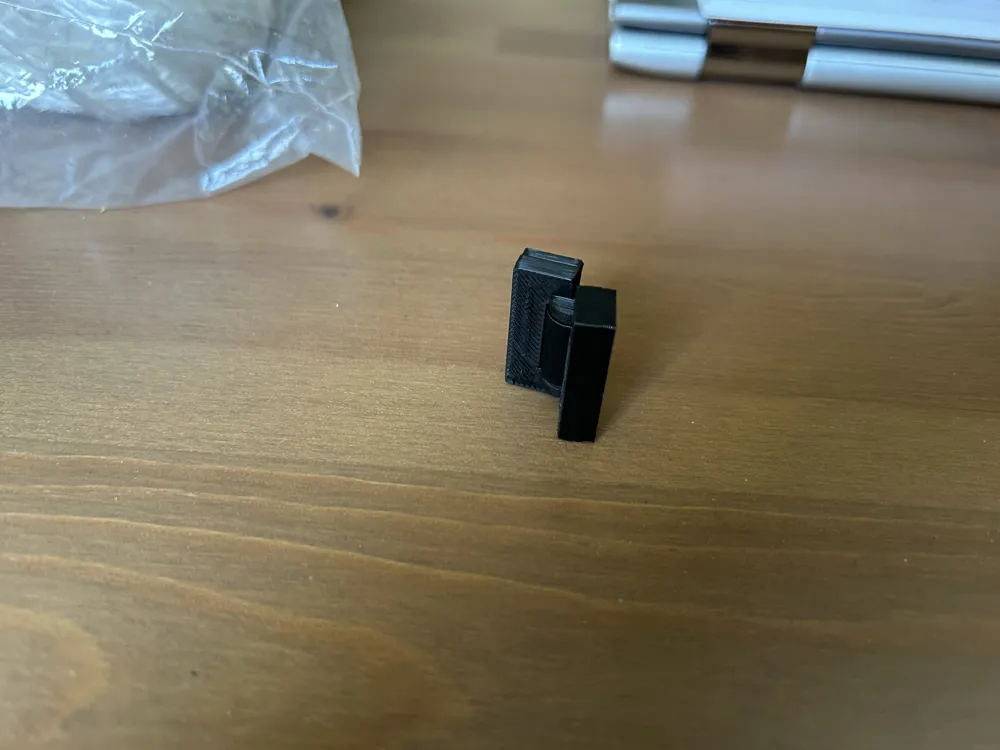

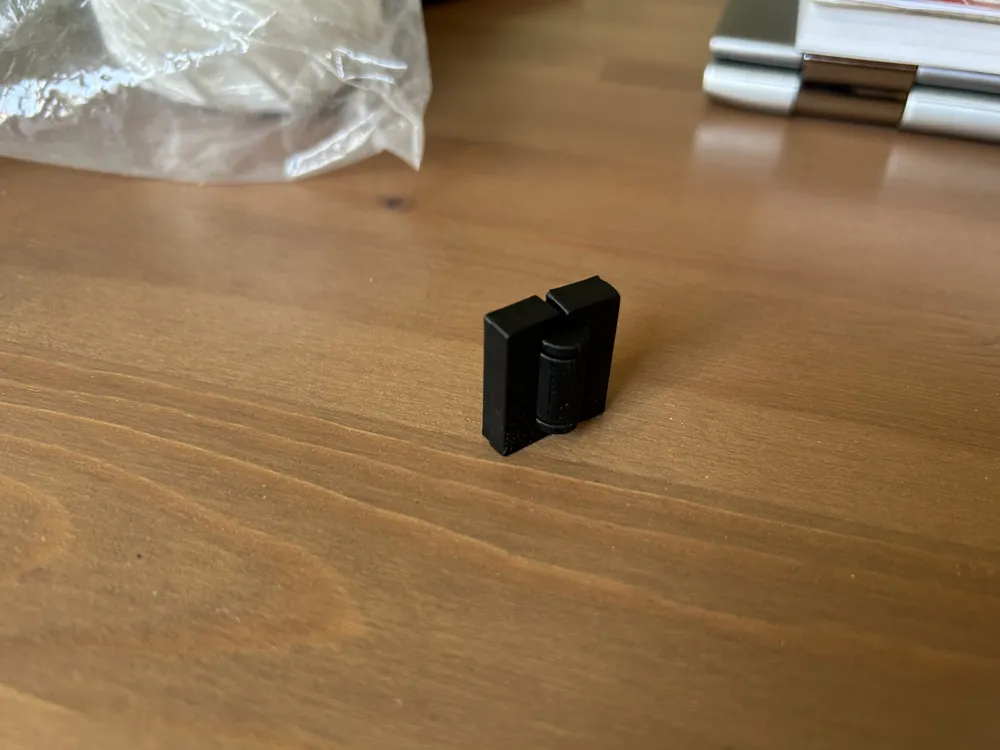

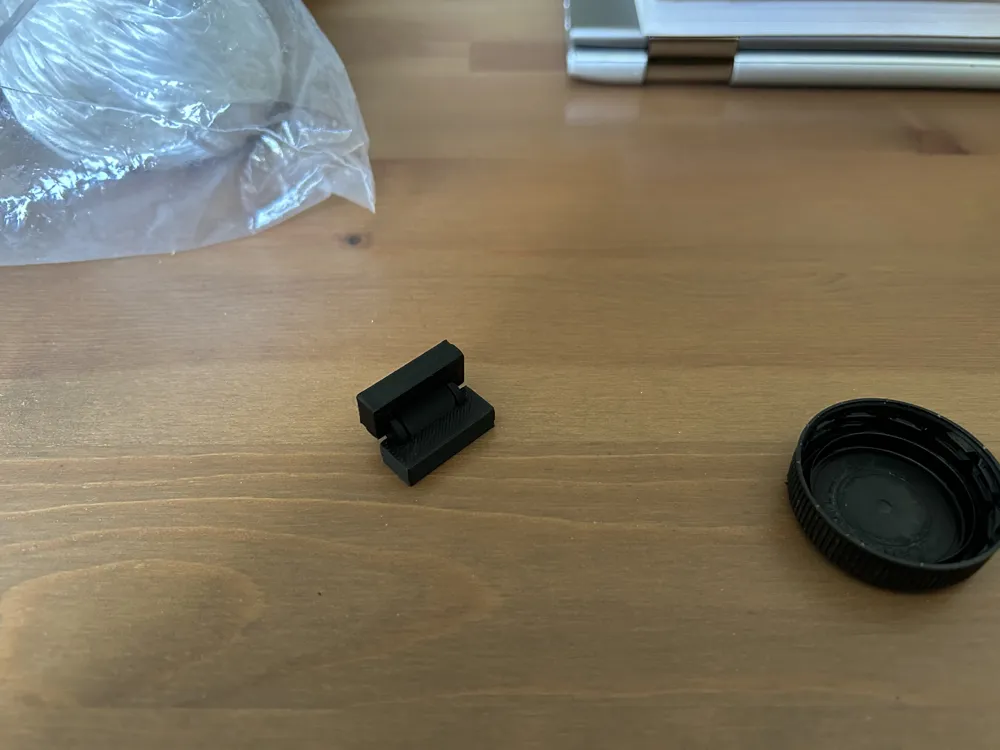

Compact Hinge – One-Piece Print for Custom Latching Systems
Description:
The Compact Hinge is a minimalist, easy-to-print hinge component designed specifically for makers and designers who want to integrate a functional latch or flap into their 3D printed projects. Whether you're building a small enclosure, a storage box, or a modular gadget, this hinge offers a reliable, snap-in place solution that prints in one go—no assembly required!
This hinge is perfect for anyone looking to add a movable part to their print without dealing with post-processing or screws. It prints as a single unit with pre-defined clearances to ensure movement right off the print bed.
These hinges are used in the following prints:
https://makerworld.com/de/models/1339053-box-with-snap-latch#profileId-1379162
Features:
- Prints in one piece – no supports, no assembly
- Integrated rotational axis – optimized for strength and flexibility
- Perfect for flaps, lids, or modular connections
- Great for prototyping & final builds
Print Settings:
| Setting | Value |
|---|---|
| Material | PLA |
| Layer Height | 0.2 mm |
| Infill | 80% |
| Supports | No supports required |
| Print Orientation | As provided |
Use Case & Application:
This hinge is designed to be mounted easily onto your custom 3D models. Ideal locations include:
- Small containers or cases
- Enclosures with flip lids
- Tool or battery compartments
- DIY gadgets requiring pivot movement
You can modify your CAD model to include a slot or recess that this hinge fits into, or glue it directly to a surface. Alternatively, you can simply insert the hinge into your component using Bambustudio.
Notes:
- Tolerances are tuned for most consumer-grade printers. If the hinge feels stiff, flex it gently a few times or lightly sand the rotating section.
- Print in PETG for more durability and slightly flexible hinge action.
