Gridfinity table clamp

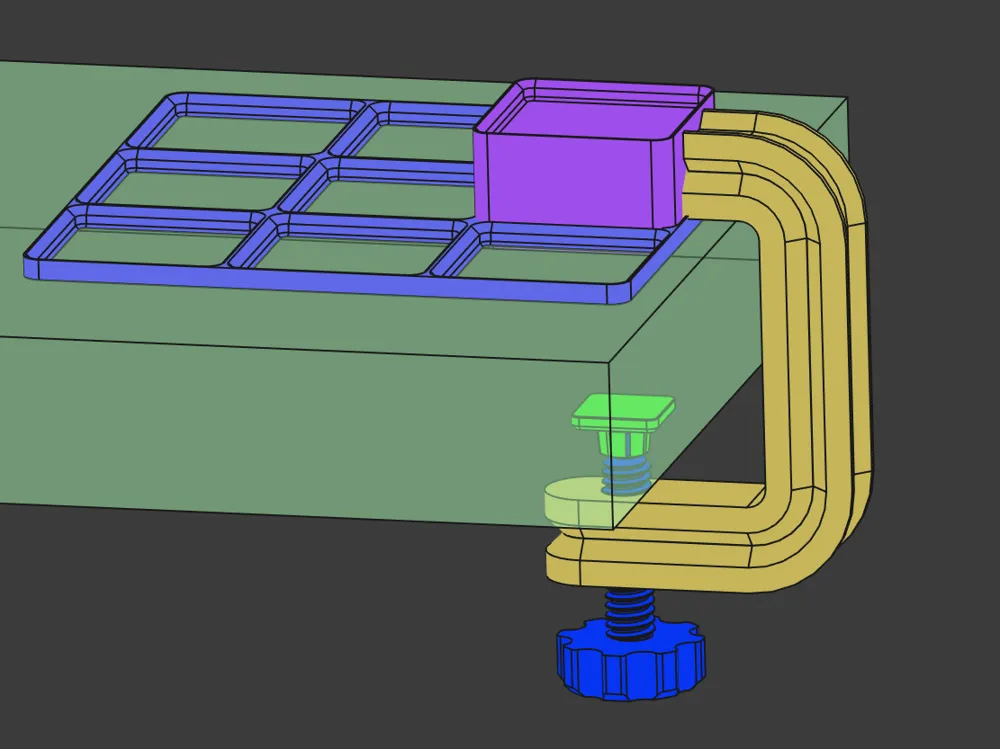

I made this clamp to hold a gridfinity basegrid in its place on a table. Especially when on that table is also a 3d printer. This will prevent the grid and all the bin's on it from moving around.

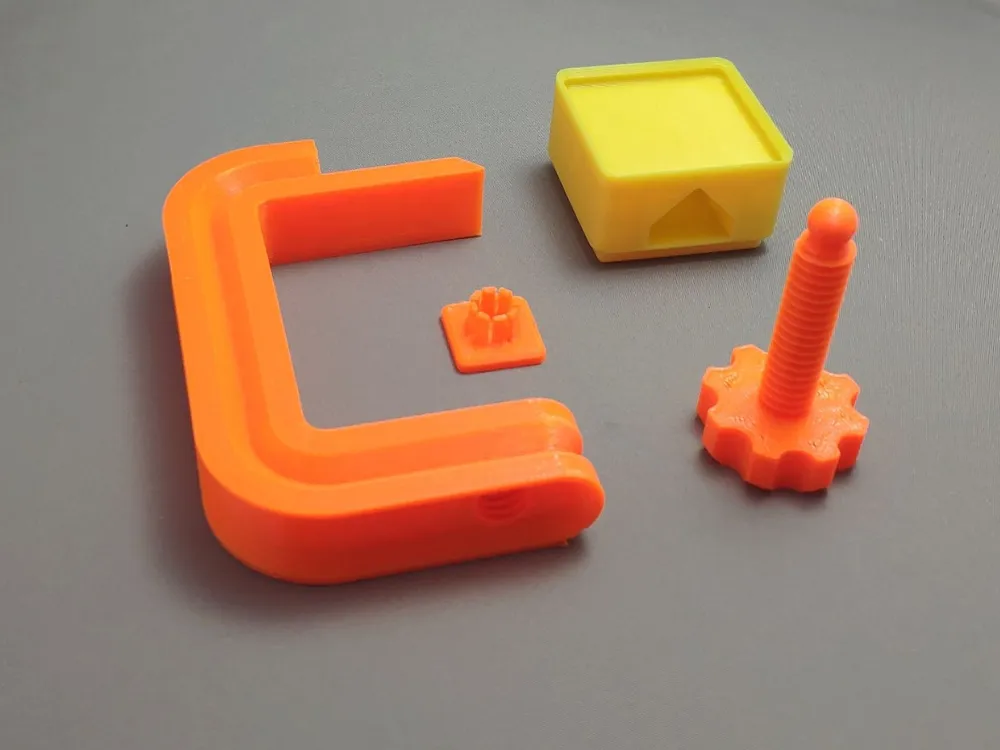

The clamp fits inside a custom gridfinity bin on which you also can place another gridfinity bin.

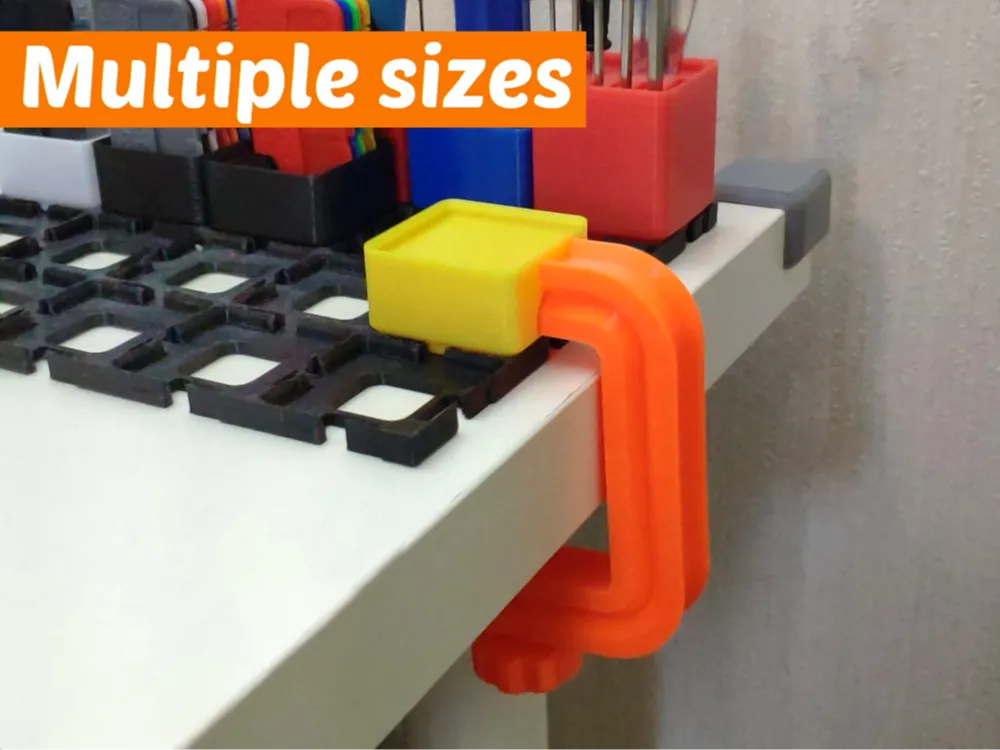

I made various sizes for different table heights and distances from the side.

h = the height of the table

d = the distance from the edge

With the screw you can adjust for approximately 9mm more or less height. So the 20mm height model should fit approximately from 11 to 29 mm thick tables.

Available sizes:

• 20h 10d
• 20h 20d
• 25h 10d
• 25h 20d
• 35h 10d
• 35h 20d

I could add other sizes if wanted.

Print instructions

Prints without support. I suggest to use 4 or more walls for the screw for extra strength.

Print profile for 25h,10d, download stl/cad files for other sizes.
