Binding/Paint Scraper
Print Profile(1)
Bill of Materials
Description
I made a pretty simple binding scraper that is really adjustable.

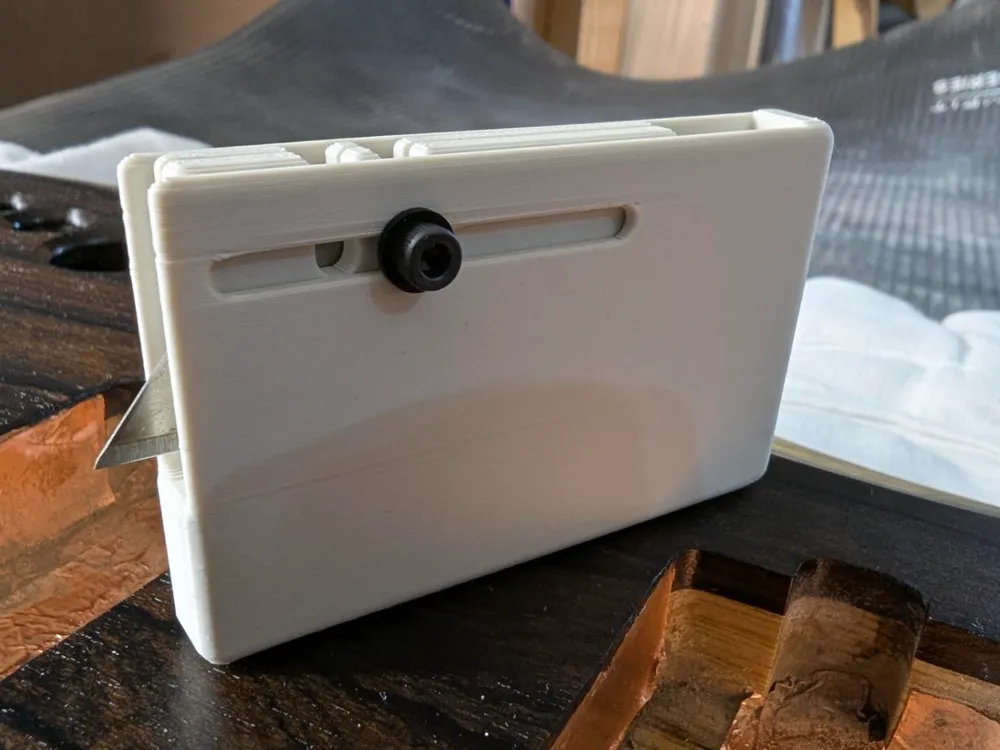

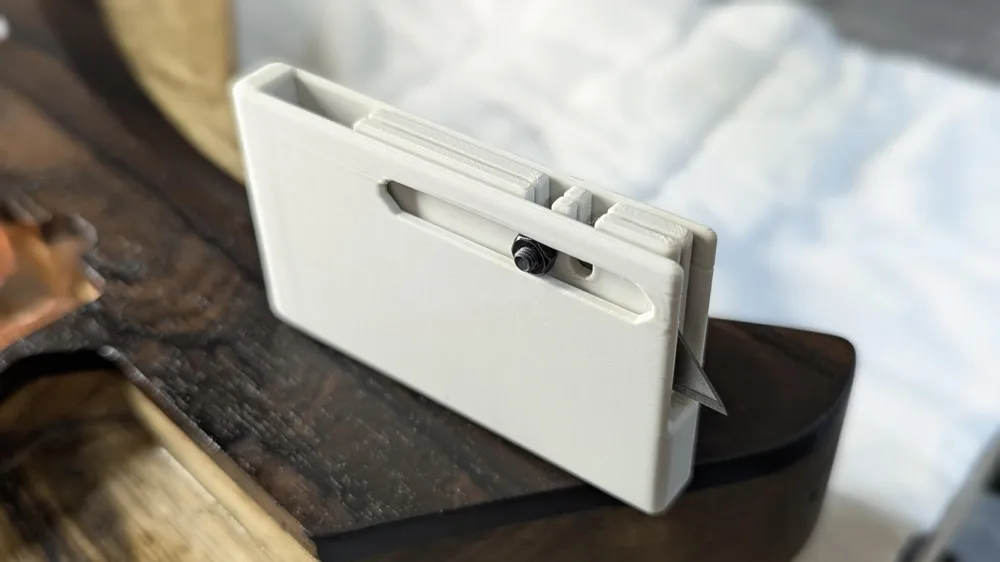

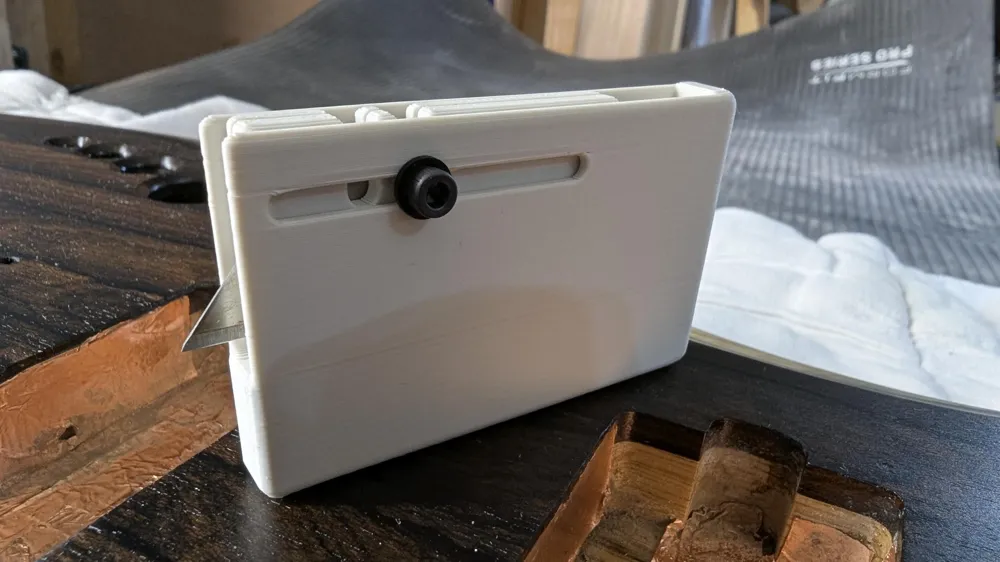

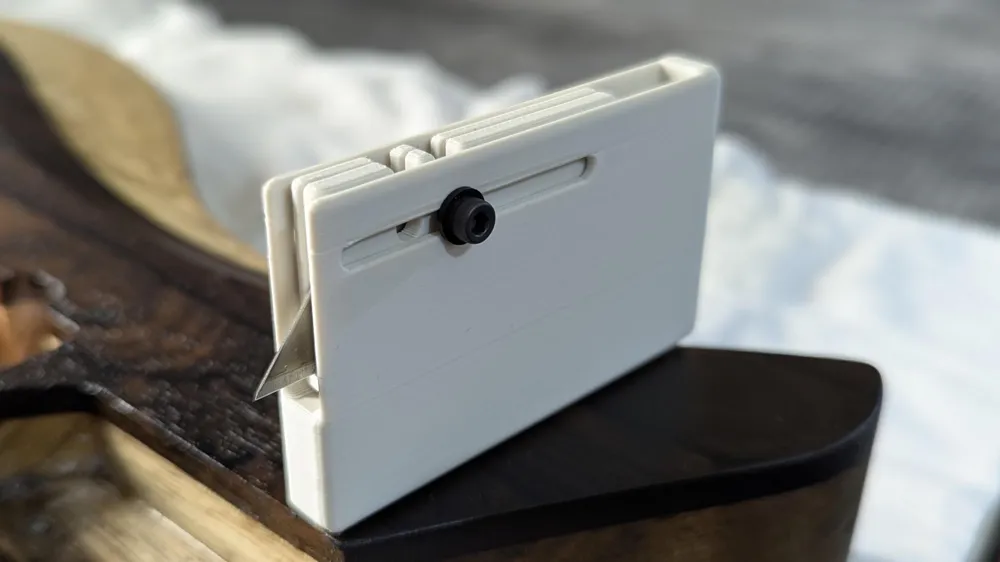

The razor blade rides in it's own housing and can be set in it 3 different ways.
Depending on how you set the blade in the housing, you can expose as much or as little of the blade tip as you want.

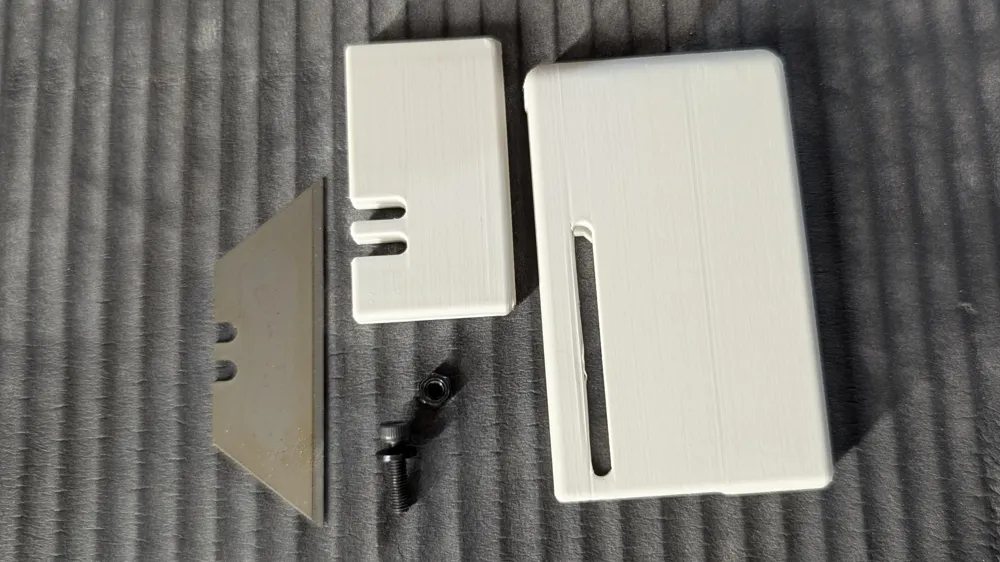

The only hardware needed is an M3x12 screw and nut. I use a nylon washer to keep from marring the plastic, but it's not necessary just highly recommended. You could use a steel one like I've linked to in the BOM as well - I just have the nylon ones in my shop for various other uses.

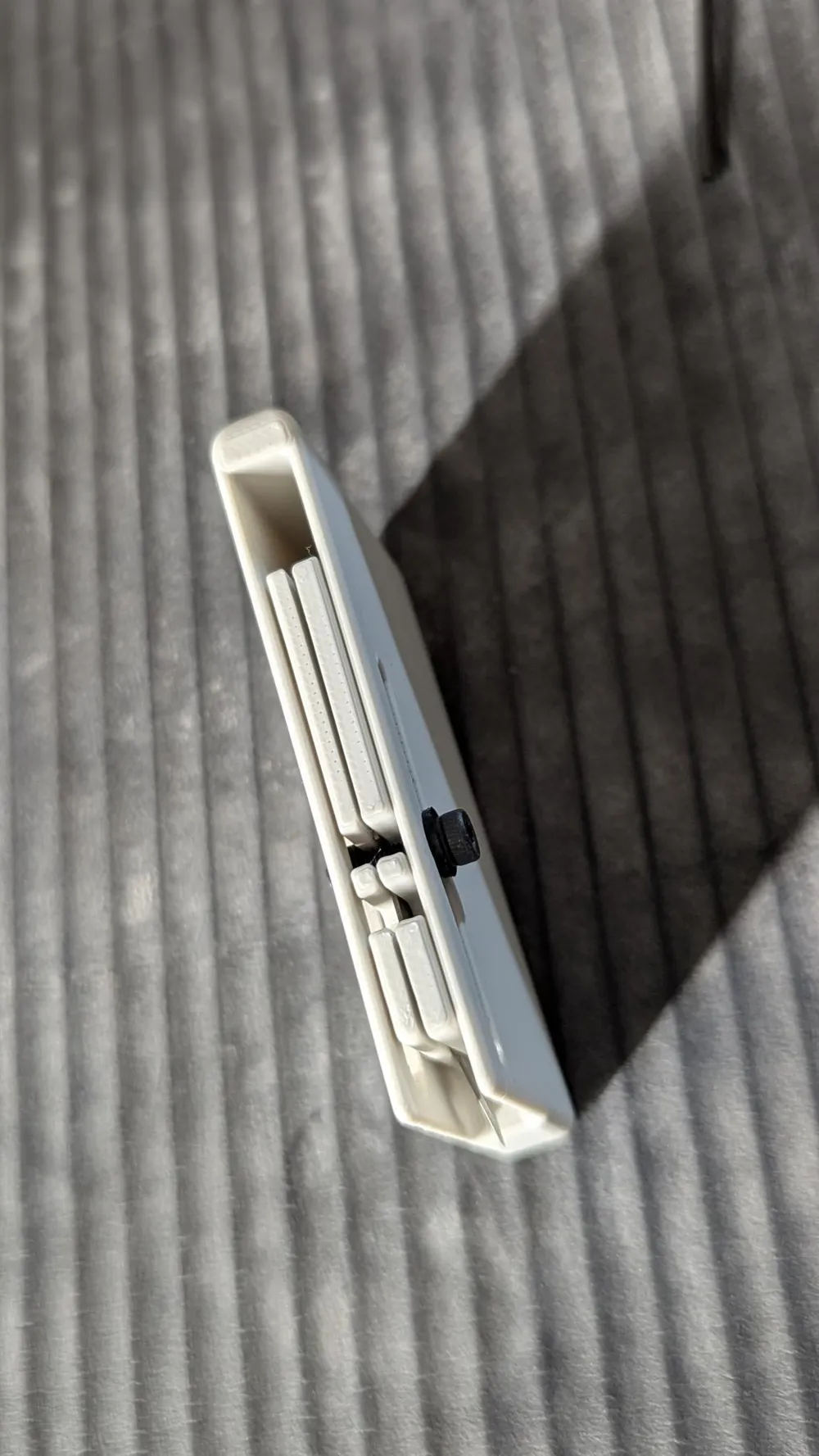

Note, some of the fraying in the screw channel is just the support interface I didn't completely remove.
I will likely make some adjustments to sizing and overall thickness, but this one works as is quite well.
If you print it and use it, let me know how/if I can improve it.
